USER MANUAL
SACP36

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
Table of Contents
Page
1
2
3
4
5
6
7
8
9
Specicaons
Operaon Instrucons Read Before Use
Control Panel Operaon IT9300
Control Panel Operaon IT9500
Calibrang the Temperature Display on IT9500
Spring-Loaded Tension Adjustment Lever
Heat Transfer Applicaon Guidelines
Troubleshoong Tips
Wiring Schemac

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
Power Switch
Specicaons:
Model NO: ENDURAPRESS SACP36
Voltage: 110V/60Hz/600w
Power:
Control Panel: LCD Control Panel
Time Range: 0~999sec.
Temp. Range: 0~480°F
Packaging: Double-walled Corrugated Paper Carton
Gross Weight: 33lbs (15kg)
1
Operaon Handle
Control Panel
Pressure Knob
Heang Element

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
Operaon Instrucons
Read Before Use
1. Check the voltage before using it. The correct voltage is 110-120V/60Hz
2. Turn o the machine when not in use, and remove the power plug from socket.
3. Grasp the handle rmly when opening.
4. Keep children away from the machine.
5. Do not touch the heang platen and platen cover aer pressing whilst in operaon
6. Do not aempt to press products that are not intended for normal heat transfer
7. Do not set the temperature any higher than 480° F as it may cause over heat and
stop working.
8. The heat press carries a ground line by default, please make sure the socket gets a
ground line protector.
2

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
Control Panel Operaon IT9300
Touch Screen
Control Panel.
Touch “Set” to
acvate menu.
Page 1:
Temperature.
Touch up or down
arrow to adjust
temperature.
Page 2: Time:
Touch up or down
arrow to adjust
cycle me
Page 4: Temperature Calibraon.
Touch up or down arrow to adjust displayed temperature
reading to match actual (measured) heat platen temperature.
For instance, if display reads 200° and actual temperature is
210°, set +10 here using up arrow.
Page 5: Pre-Alarm Seng.
Touch up or down arrow to set o the end-of-cylcle alarm
before the end of cycle. This feature is helpful for hot peel
applicaons requiring immediate acon at the end of the
cycle. The pre-alarm gives you me to prepare.
Page 3: Celsius or
Fahrenheit.
Touch up or down
arrow to change
temp display from
Fahrenheit to
Celsius.
3

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
Control Panel Operaon IT9500
4

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]

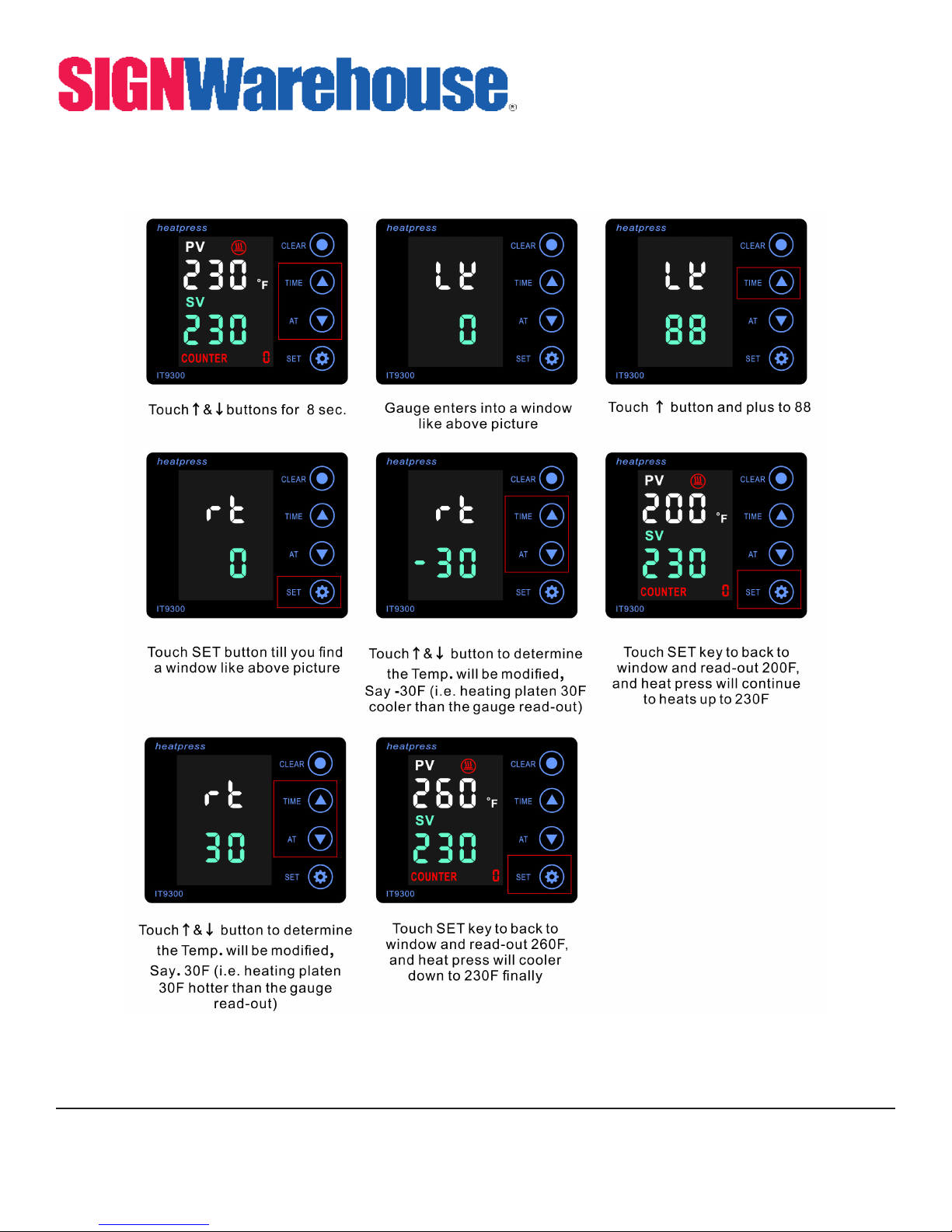

Calibrang the Temperature Display on IT9500
5

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
6
Spring-Loaded Tension Adjustment Lever
The SACP36 has a spring-loaded Tension lever to help keep the hat in place while
pressing. The hat will be placed on the platen and then stretched so that the lever pins
the back of the cap to the base of the press. The lever will pull the cap into place and
keep the crown rmly stretched against the lower platen.
Fig 1: The spring-loaded tension adjustment lever holds
the cap in place for a ght t over the lower platen.

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
Heat Transfer Applicaon Guidelines
These are general guidelines. For specic me and temperature sengs for specic lms and/or
transfer papers, please refer to the instrucons for that parcular product.
TRANSFERS Device Fabric TEMP. TIME PRESSURE
Sublimaon Paper Ricoh, Epson Polyester 400°F 25~30sec. 30Psi
Ink Tran. Paper Inkjet Printer Light Color 365°F 15sec. 30Psi
Dark Color 330°F 25sec. 30Psi
Laser Transfer Paper** Laser Printer Light Color 345°F 30sec. 30Psi
Laser Printer Dark Color 260 - 320°F 35 - 120 sec. 25Psi
Transfer Vinyls Cung Ploer / 300~320°F 8~10sec. 30Psi
Plassol Transfer / / 335°F 12sec. 50Psi
7

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]
Troubleshoong Tips
Q. Why isn’t my heat transfer vinyl scking to the fabric?
A. This can be caused by three things. Insucient pressure, or temperature, or me.
Time: Some heat transfer lms need a few seconds to cool before you remove the liner. Try a warm or
cold peel rst.
Temperature: If that doesn’t work, check to make sure you are using the recommended me and tem-
perature sengs. If you are, your press may not be pung out the correct amount of heat. Use a Geo
Knight IR thermometer to check the actual temperature of the platen. If it is more than 5° dierent
from the LCD display (PV), adjust it using step four in the control panel (see page 4).
Pressure: If the temperature is correct, adjust the pressure. Some lms require more pressure to bond
the adhesive to the fabric. There should be some resistance when you close the press. If you have
veried all of these and the lm doesn’t sck, contact SIGNWarehouse customer service or Technical
Support for further assistance.
Q. Why does my sublimated transfer look washed out?
A. This is usually caused by insucient temperature. Sublimaon works best at or near 400°F. If your
transfer is faded, check the output of the heat platen with a contact thermometer and make sure the
output matches the displayed temperature. If not, adjust as directed above. Then repress at 390 -
400°F.
Q. Why are my transfers are scking to the heang element of the upper platen?
A. If T-shirt vinyl is scking to the heang element, you have it upside down. Remove any adhesive
residue, ip it over and try again. If an inkjet or laser transfer is scking to the heang element, it’s
because the heat is aecng the ink. Cover it with a Teon sheet or sheet of silicone Kra paper to
prevent this. Using a Teon sheet or Kra paper is recommended for almost all heat transfer applica-
ons.
Q. Why is it so hard to peel the liner when I’m done pressing the paper?
A. A hot or warm peel lm may become hard to peel if allowed to cool. Always peel the lm or transfer
paper in accordance with the product’s recommendaons.
8

800-899-5655
www.signwarehouse.com •SignWarehouse, Inc. • 2614 Texoma Drive, Denison, TX 75020
•Toll Free Phone: [phone] •Local Phone: [phone] •Fax: [phone]

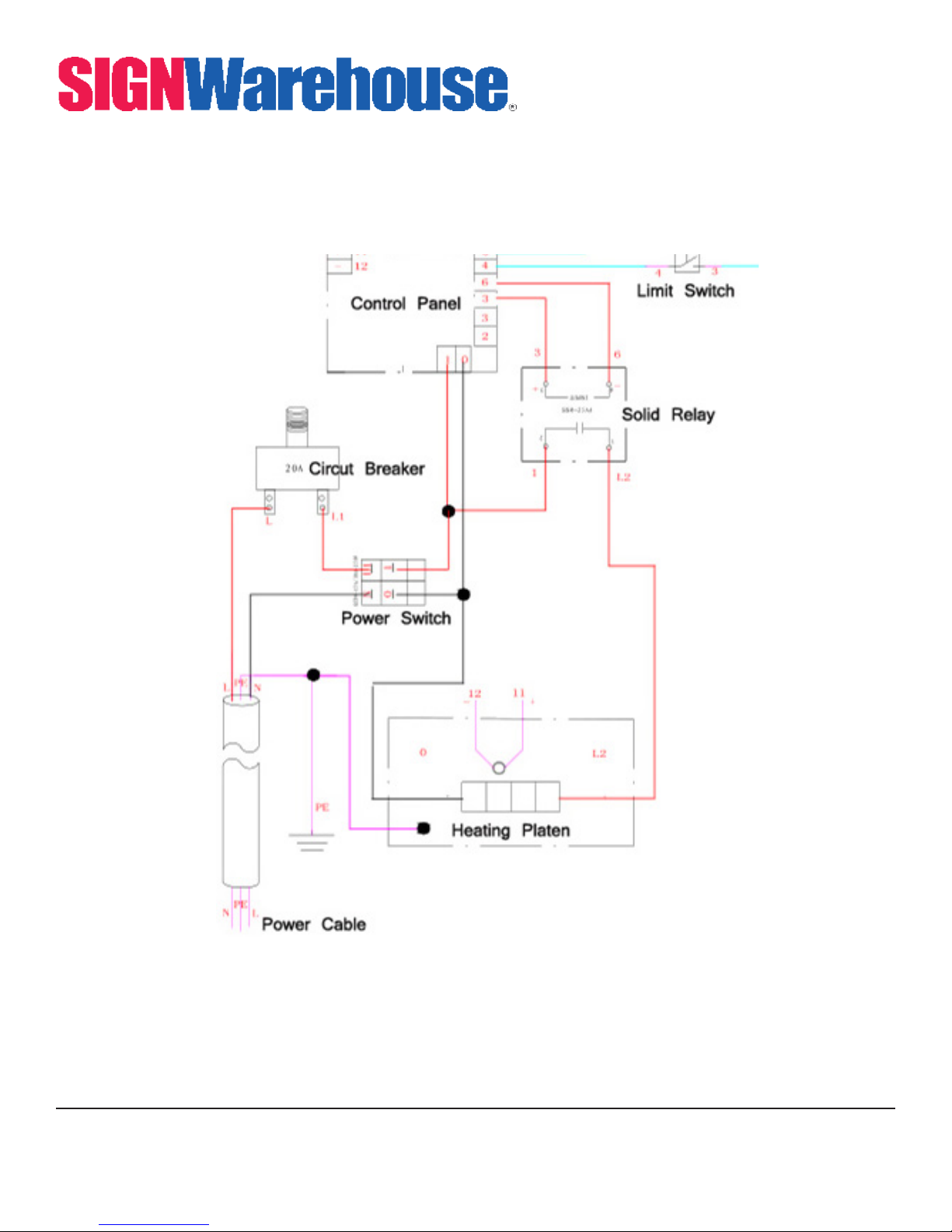

Wiring Schemac
WARRANTY
Thank you for choosing our products, you are entled to one year free warranty service for our
products. All exceeds warranty period we will sll provide technical supports and maintenance
guidance.
9
