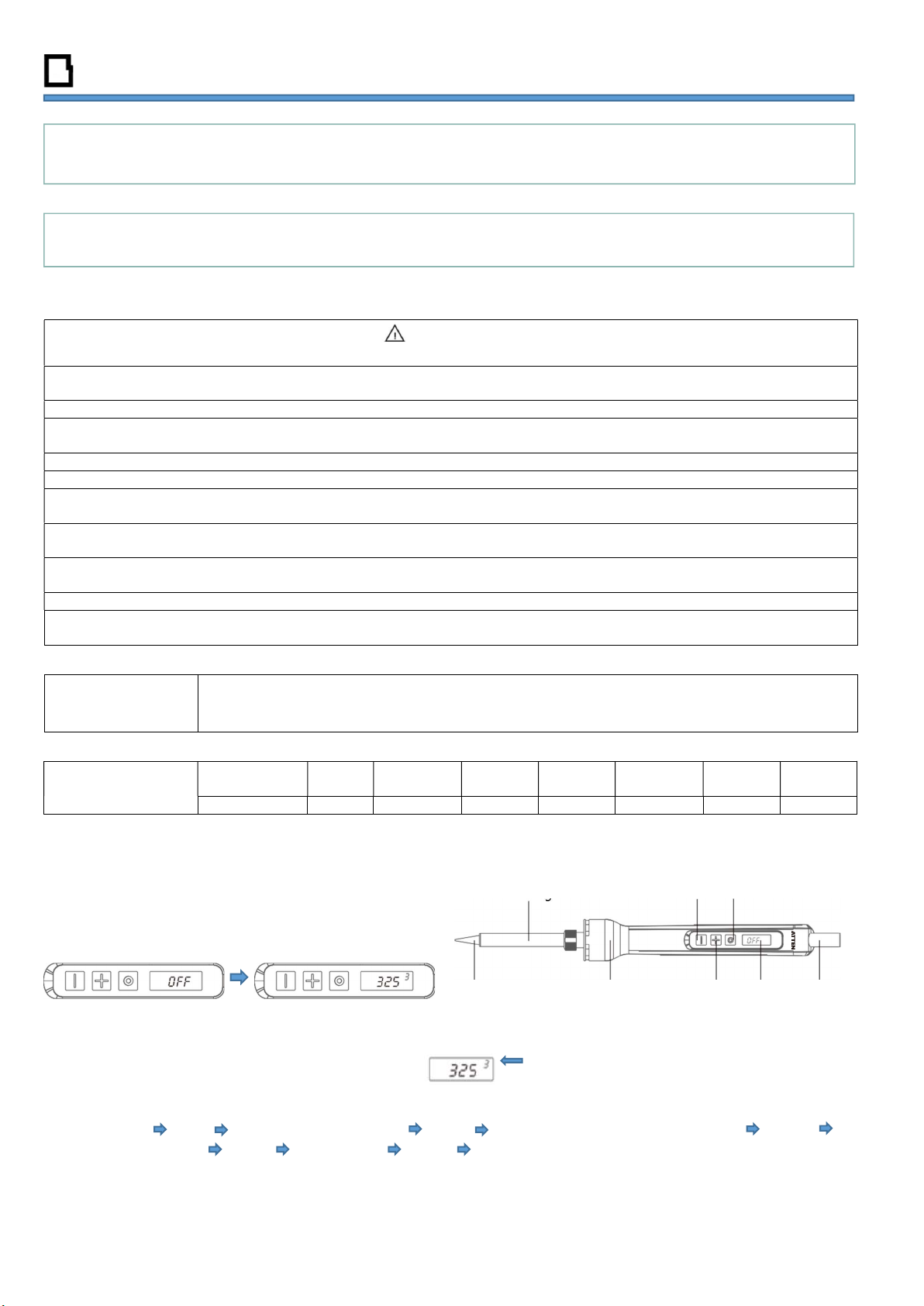

GALLUNOPTIMAL GOSprint150 User manual

GALLUNOPTIMAL Soldering Iron Sprint150
Features
Soldering iron with temperature control / Auto-Standby after 10 minutes / Sleep mode
after 20 minutes / Ceramic PTC heating element (3-pole, grounded) / Temperature
adjustable via buttons on soldering iron / Ergonomic handle
Specification
Valtage Power Temp.
range
Stability Heater Heating
indication
Temp.
unit
Display
110/240VAC 65W 80-480°C +/-2°C PTC LED °C/°F LCD
press Menü long change Temperatur short Temperature compensation short
Temperature unit short Standby short Working mode
WARNUNG
Disregarding the following instructions can lead to serious injury or death of the user.
When the unit is switched on, the soldering tip automatically heats up to the last set temperature.
There is a risk of burns on the surfaces!
The device is designed for soldering soft solder with different temperatures. Any other use is not permitted.
Do not touch the metal parts on the tools during operation and immediately after switching off, CAUTION! Danger
of burns!
Do not use the device near flammable materials and components.
Use a heat-resistant work surface and keep your workplace clean.
Solders, fluxes and heated materials can develop harmful properties and should be extracted in a controlled
manner. Do not inhale these toxic vapours or gases and ensure adequate ventilation.
The device may only be used for operation in dry indoor areas. Protect the device from liquids and moisture, even
by possibly wet hands. Otherwise, short circuits and electric shocks could be caused.
Inform other people in the work area that the temperature can be very high during operation. Switch off the unit
as soon as the work is finished to avoid danger.
Do not leave the appliance unattended while it is switched on.
After switching off, wait until the heated parts have reached room temperature if you want to touch parts or
change parts.
Add button
Power/Menü button
Display 3corded
power cabel
Shell
Soldering tip
Minus button
Stainless steal
outer casing
The soldering iron needs to be tested before it leaves the factory, so the soldering tip may cover a small
amount of tin, and the casing will be slightly yellowing, which is a normal phenomenon.
THANK YOU FOR PURCHASING A GALLUNOPTIMAL SOLDERING IRON. Please read the operating instructions
before use and keep them in a safe place easily accessible to all users.
Turn it on: Plug the power cable into the
socket and press Power at the soldering iron.
With the +/- keys 9 different temperature setting
ranges can be selected.
250°C/482°F, 300°C/572°F, 325°C/617°F,
350°C/662°F, 375°C/707°F, 400°C/752°F,
425°C
/797°F, 450°C/842°F, 480°C/896°F

Bräunlich GmbH
Am Heideberg 26
D-06886 Lutherstadt Wittenberg
Tel. [phone]
e-mail: info@loet-shop
www.loet-shop.de
When the Soldering iron is heated, the power light flashes, the brightness changes according to the power level and
the selected gear light is long.
Error messages
H-E and the soldering iron does not heat means the heating element is defective.
S-E means the sensor or the control unit is defective.
Lötspitzen
knife shape 7,5mm
needle-sharp 0,2mm chisel form 2,4mm
bevelled 0,8 mm
pencil point 0,5mm chisel form 3,2mm
bevelled 3mm
chisel form 1.2mm chisel form 4,6mm
bevelled 5mm
chisel form 1,6mm chisel form 6,5mm
bevelled 6,4mm
EU declaration of conformity according to Low-Voltage Directive 2014/35/EC
(Nr. 01-20)
The manufacturer/ distributor
Bräunlich GmbH
Am Heideberg 26
06886 Lutherstadt Wittenberg
hereby declares that the following product
Product designation: GALLUNOPTIMAL Soldering iron
Trade name: Trade GALLUNOPTIMAL Sprint150
Model name: GOSprint150
fulfills to the provisions of the Low-Voltage Directive 2014/35/EC - including the changes which applied at the time of
the declaration.
The following harmonised standards have been applied:
"DIRECTIVE OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL on the harmonisation of the laws of the Member
States relating to electromagnetic compatibility“.
The following national or international standards (or parts/clauses of them) and specifications were applied:
EN 60335-2-45:202 + A1:2008 + A2:2012
EN 60335-1:2012 + A11:2014 + A13:2017
EN 62233:2008
Place: Lutherstadt Wittenberg
Date: 20.4.2020
______________________________
(Signature) Mr. Tobias Bräunlich, CEO
Menu
Change Temperatur
press +/- short 1°K, long fast change
Temperature compensation press +/- short 1°K, long fast change (max.+/-50°C/90°F
Temperature unit
press +/- short, °C or °F
Standby press +/- short, 1=on, 0=off
Screw connection
Soldering Tip
Stainless steel housing
Heating element
