USB 3.0 to SATA Hard Drive
with SD reader Enclosure - 2.5"
User Reference Guide
04-1023A
Introduction
The USB 3.0 to SATA Hard Drive with SD Reader
Enclosure - 2.5" is a combination of 2.5" SATA
HDD/SSD enclosure and SD/MicroSD memory
card reader which enables you to access your data
through a single USB connection.
LOT Number Sticker
For future product return or exchange, this LOT
numberisrequired. Pleasekeepitforyourreference.
LOT Number Part Number

2
Key Features and Benefits
• All-in-one 2.5" SATA HDD/SSD enclosure
andSD/MicroSDmemorycardreader,easily
access various storage media through a
single USB connection
• Compatible with 9.5mm and 7mm height
2.5" SATA I/ II/ III drives
• Supports SuperSpeed USB 3.0 data transfer
rates up to 5Gb/s with UASP for optimal
performance
• Memory card reader supports SDHC
(UHS-I), SDXC (UHS-I), microSD (T-Flash),
microSDHC (UHS-I), and microSDXC
(UHS-I) flash memory cards
• Tool-less harddriveinstallation, low profile
design provides great portability
• Supports plug-n-play, hot-swappable and
backward compatible with USB 2.0/1.1
• Built-in LED indicators for power and
memory card reader connection status

3
Specifications
Package Contents
•USB 3.0 to SATA Hard Drive with SD Reader
Enclosure - 2.5" (w/protectivesiliconsleeve)
• USB 3.0 Type A to Micro-B cable
• UserReference Guide
Connectors
Source:
USB 3.0 Type-A (9-pin), Female
Device:
SATA data and power connector (7+15 pin), Female
Drive Type SATA
Drive Size 2.5" (9.5mm/7mm)
Max Drive Capacity Up to 4TB
Memory Card Types
SD/Micro SD (SDHC/SDXC)
#1 SD v1.0/ v1.1/ v2.0/ SDHC/ SDXC
#2 SD v3.01 UHS-I (Ultra High Speed): SDR12/
SDR25/ SDR50/ DDR50/ SDR104
Max Memory Card Capacity Up to 2TB
Type and Data Transfer Rate USB 3.0 (up to 5Gbps)
SATA III (up to 6Gbps)
Power USB Bus-powered
Material of Housing Plastic housing and Aluminum panel
Color Black with blue panel
Dimensions 5.43" (W) x 0.51" (H) x 3.15" (D)
Weight 0.15 lbs

4
System Requirements
• Desktop or notebook computer with an
available USB port (USB 3.0 port
recommended)
• Windows® 10 (32-/64-bit) / 8 (32-/64-bit) /
7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/
64-bit)
• Windows Server 2003 & 2008 (32-/64-bit) /
2008 R2 / 2012 / 2012 R2
• Mac OSX® v10.6.x or later
Layout
Figure 1: USB 3.0 to SATA Hard Drive with SD Reader Enclosure - 2.5
Protective silicon sleeve
Micro-B
Power / Card reader indicator
Micro-SD card slot
SD card slot

5
Hardware Installation

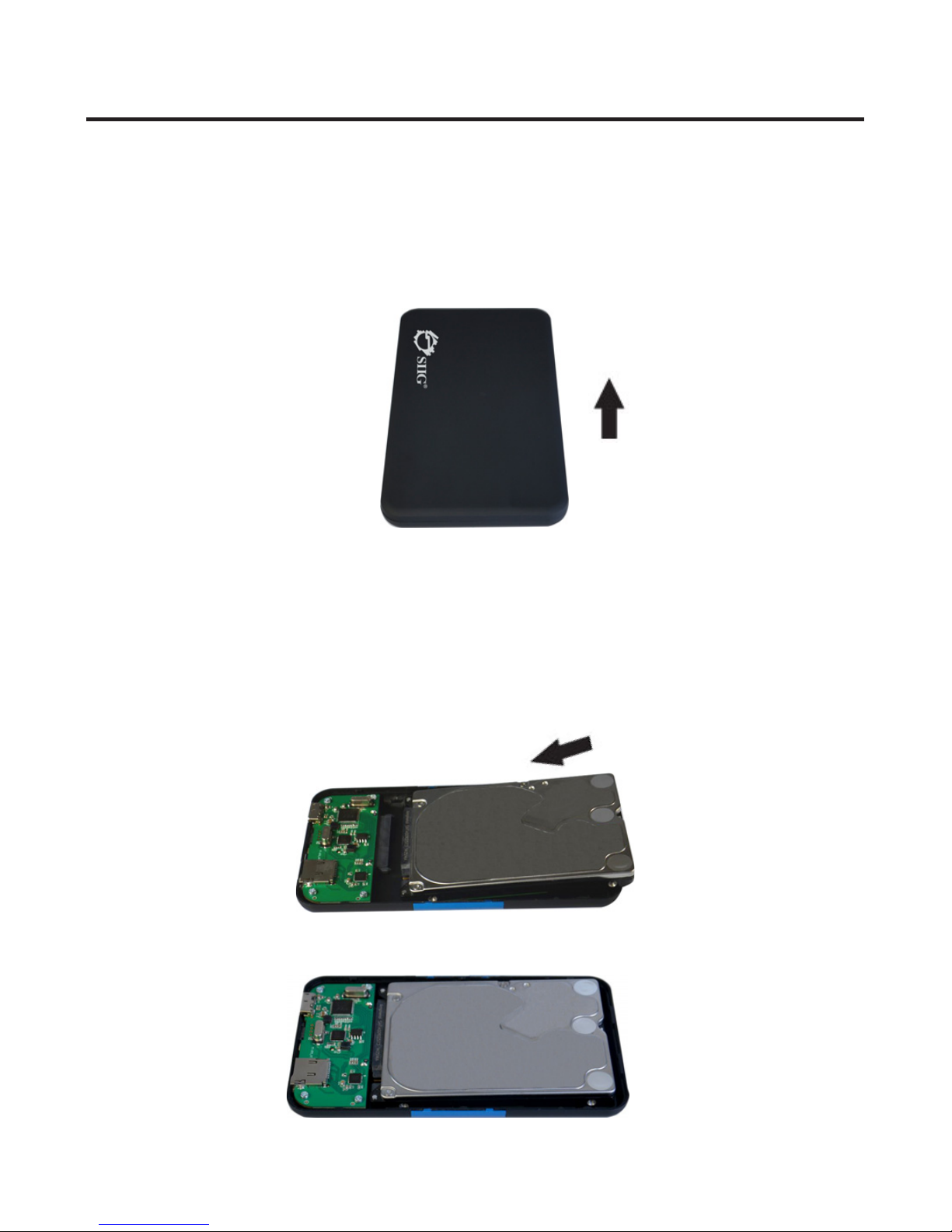

1. Take the included protective silicon sleeve
off,and turn the enclosure onto the back side.
2. Press and push forward to release the back
cover.
3. Insert and connect your SATA 2.5" HDD or
SSD, line up the sata connector, then gently
insert the drive into the case.
Figure 2
Figure 3
Figure 4

6
4. Align the latches on both covers, and push
the back cover down to close the enclosure.
5. Attachtheincluded protectivesilicon sleeve
tothe enclosure.
Figure 6
6. Connect the Micro-B port of the enclosure to
USB port of a computer using the included
USB cable.
7. Oncethe enclosure is detected, the driverwill
installautomatically.Now,it'sreadyforuse.
8. Optional: Insert a SD card or microSD card
into the corresponding slot as needed.
Figure 5

7

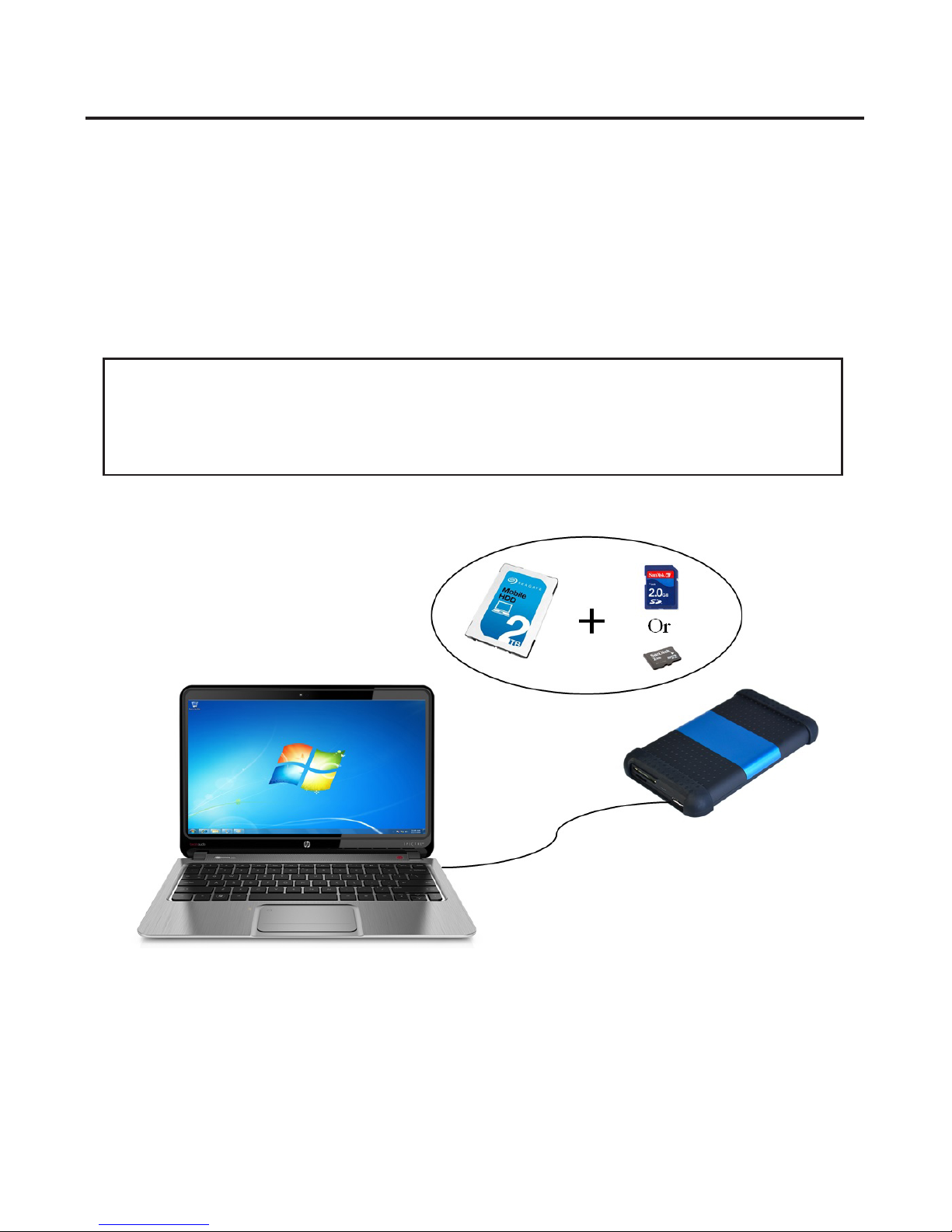

Application
The USB 3.0 to SATA Hard Drive with SD Reader
Enclosure - 2.5" provides an ideal solution toeasily
access your data. It includes a 2.5" SATA HDD/
SSD enclosure and SD or microSD memory card
reader through a single USB connection.
Note: Only one memory card can be inserted
at any one time.
Figure7:Application

8
Blank Page

9
Blank Page

10
Blank Page

11
Technical Support and Warranty
