10000mAh Rapid Charging
Dual-Port Battery Power Bank
User Reference Guide
04-0974A
Introduction
Key Features and Benefits
• 10000mAhbatterycapacitysupportsmultiplefull
charges to iPhones, iPads, tablets , smartphones
and may other USB powered electronic devices.
• Two USB charging ports provide 2.4A and 1.5A
power outs, fast charging dual device
simultaneously.
• Built-in smart detection circuit maximizes the
charging efficiency and device compatibility.
• Enhanced 1.5A recharging input, speeds up the
power bank recharging process and shortens the
rechargetimeeffectively.
• 4-level battery power LED indicator displays the
remaining battery capacity, addition LED unit
can use as light source.
• Multiple power safety features - short-circuit
protection,over-dischargeprotection.

2
Package Contents
•10000mAhRapid ChargingDual-Port BatteryPower
Bank
• USB charging cable (USB Type A to Micro- B)
• Userreference guide
Layout
Figure1:Layout
LOT Number Sticker
Forfutureproductreturnor exchange, this LOTnumber
is required. Please keep it for your reference.
LOT Number Part Number
On/Off
button
Recharging input
(Micro-B/ 5V- 1.5A)
LED Power
Indicator
Power-output (USB Type A/
5V- 1.5A) LED light
Power-output (USB Type A/
5V- 2.4A)
Power-Input 5V, 1.5A (Max)
Power-Output Left: 5V, 1.5A (Max)
Right: 5V, 2.4A (Max)

3
•On /Off button:
- For checking remaining battery level
Press once to turn the LED Power Indicator on for
displayingthebattery level; LED PowerIndicator
will go off after 15 seconds automatically.
- For charging devices
Pressoncetopoweron the powerbank and startthe
charging process; press twice quickly to turn off
the power bank and stop the charging process
- For using the LED light
Press and hold to turn on/off the light
•LED Power Indicator: Indicates the status
- Off: Power is off
- Running: The power is in recharging process
- Battery level indication: See Table 1
Figure2:USBChargingCable
Micro-B
USB Type A
Table 1
one LED on two LEDs on three LEDs on four LEDs on
<25% 25%-50% 50%-75% 75%-100%

4
•Power output (5V-1.5A): Connects smartphones
or other USB powered portable devices that
requires less charging power here
•Recharging input (Micro-B): Connects to a
Computer's USB port or USB wall charger (not
included) to charge the Power bank
•Poweroutput(5V-2.4A) :Connectstabletsorother
USBpoweredportabledevicesthat requires more
charging power here
Instructions for use
Charging the Power Bank
Note: Fully charge the Power Bank before initial use.
Pleaseuse theincluded USB charging cable to recharge
the Power Bank.
1. PlugtheMicro USB tipofincludedUSBcharging
cable into the Power Bank's Power-input port.
Then plug the other end of the included USB
charging cable into either a USB port of your
computeror your USB wall charger. See Figure 3.

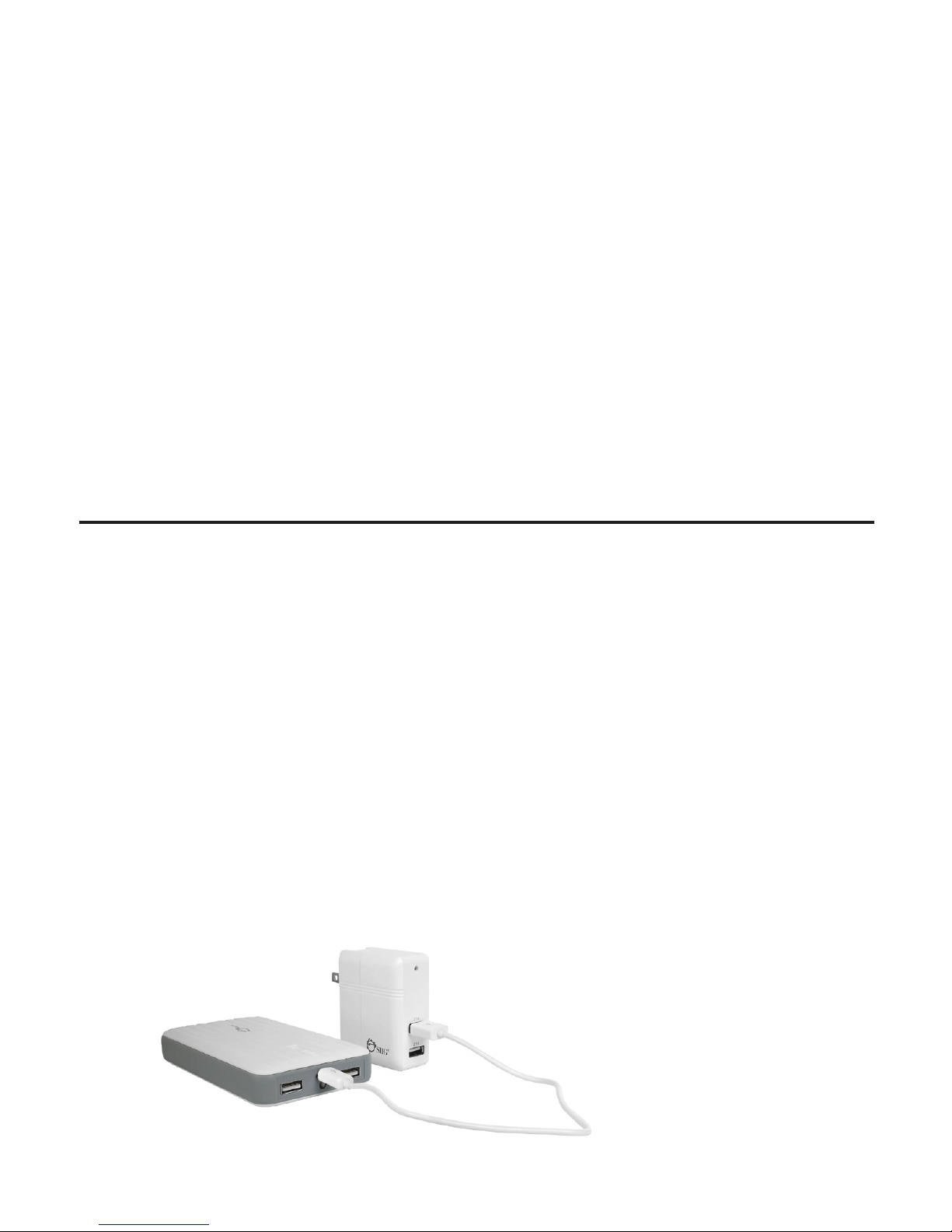

Figure 3
USB Type A
Micro-B
External power source
** P/N for Power Adpter
AC-PW0J12-S1

5
2. The Power Bank's LED indicator will light up to
indicate the recharging process has begun.
3. When the Power Bank is fully charged, all the four
LED indicators will be lit. It takes approximately
5-6 hours to fully charge the Power Bank. The
actual recharging time varies depending on the
Power Bank's remaining battery level and/or the
external power source. See Table 2
Charging Devices
Note: It is recommended to use the device's original
equipment USB charging cable.

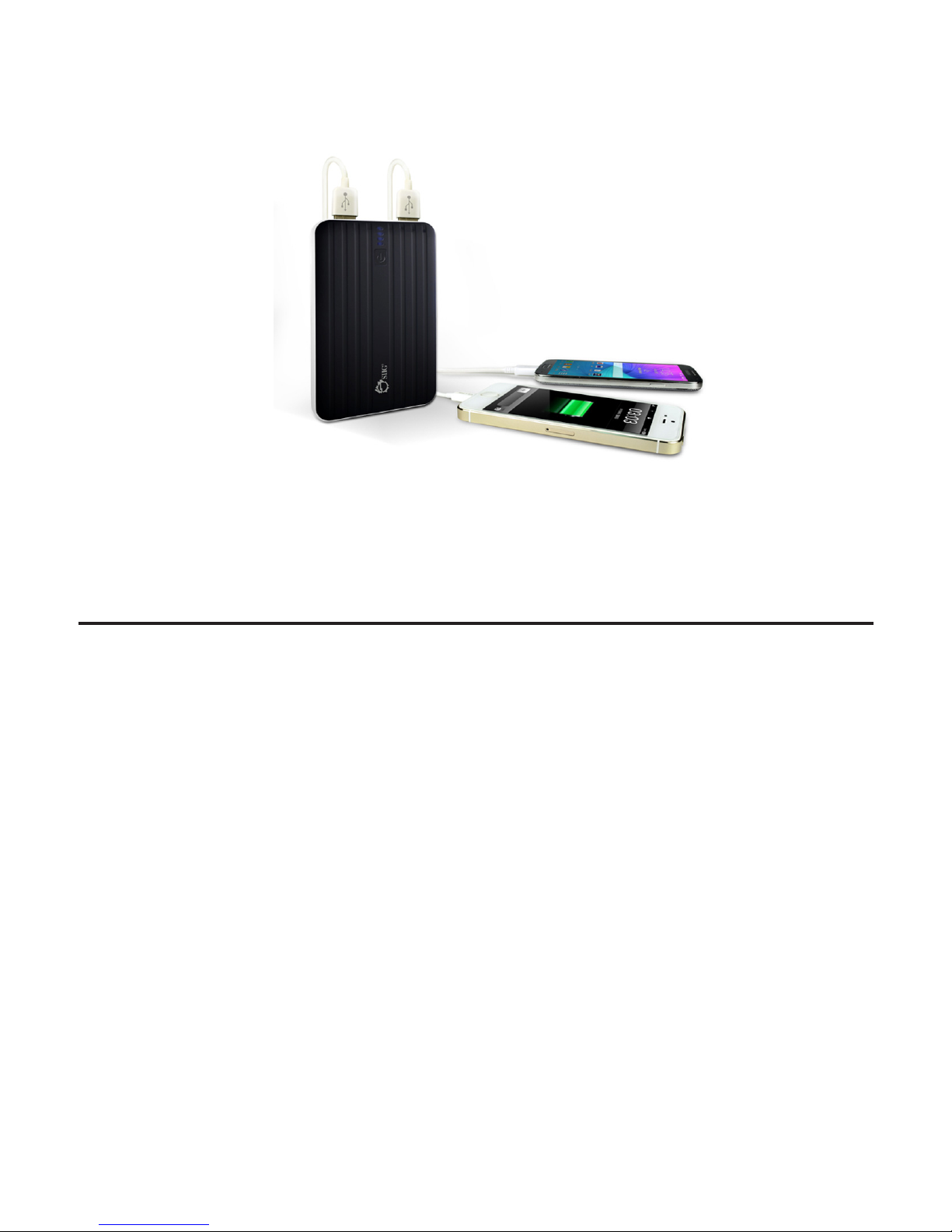

1. Plug the USB Type A tip of your device's USB
chargingcableintothePowerBank'sPower-output
port, then connect the other end of the charging
cable into the device.
2. Press the ON/ OFF botton once to start charging.
See Figure 4.
Table 2
Recharging input source Charging time
(The remaining battery less 25%)
5V/ 1.5A 5~6 hours
5V/ 1A 7~8 hours
5V/ 0.5A 9~11 hours
