SILENCE S01 User manual

OWNER’S MANUAL

Copyright© SILENCE Urban Ecomobility 2
HELL SILENCER
This is your new S01 electric scooter, equivalent to 125 cc, designed for urban use and 100% Made in Barcelona.
The S01 has the best battery of any electric scooter. Created, designed and patented by SILENCE, it is a trolley-type removable battery on wheels that means
you are no longer tied to a charging point. The battery can be comfortably, safely taken to any conventional socket: at home, the office, a bar… Anywhere is
good and will do for charging it, so you don’t have to depend on a specific point or facility.
This model has a top speed of 100 km/h and a battery range of approximately 115 kilometres. This makes it perfect for getting around in the city, with great
range and using up to 85% less than a combustion-engine scooter.
The S01 scooter is connected via SIM-App. Designed with advanced technology, the vehicle is always connected to a mobile application developed to give you
first-hand information on its status and specifications. You can switch the scooter on or shut it off with the app, with no need for a key, or open the seat and
locate the vehicle remotely. Plus, the app gives you real-time information on battery charge levels and how many more kilometres it can go.
A new attractively designed 0-emissions, high-tech scooter for safe, modern, silent urban driving. The best way to accelerate the change towards sustainable
urban mobility.
Do you dare improve cities with SILENCE?
Before you start driving your S01 for the first time, please read this owner’s manual for your own safety and to prevent any damage to the vehicle or third
parties. To service the vehicle, always take it to a SILENCE Official Service Centre.
Enjoy the smooth driving experience, without noise or vibrations.
Thanks for choosing a SILENCE S01!

Copyright© SILENCE Urban Ecomobility 3
ABOUT THIS MANUAL
Please read the whole manual carefully and pay special attention to the safety instructions. It explains everything you need to know as an S01 driver. It should
be considered part of the scooter, so if you sell the scooter the manual must go with it.
The information in this manual is the most recent available for this model as of approval for printing/publication. Scutum Logistic S.L. reserves the right to make
changes at any time with no prior notice, without taking on any sort of obligation. No part of this manual may be reproduced without written authorisation.
OTHER MANUALS FOR THIS MODEL
In addition to this document, there are other manuals geared mainly (though not exclusively) to garages:
a. S01 Spare Parts Catalogue
b. S01 Maintenance and Service Plan
c. S01 Torque Tables
d. S01 Workshop Manual
e. S01 Manual for Resolving Issues

Copyright© SILENCE Urban Ecomobility 4
SECURITY
Driving a vehicle requires your full attention and can affect your own safety and that of others. So, you are responsible for taking any precautions necessary to
minimise risk in using your SILENCE S01.
This section in particular, and the manual in general, offers information and tips to make driving your scooter as safe as possible. However, it can’t take into
account or warn you of the dangers associated with driving a vehicle and its maintenance. You must use common sense to enjoy your scooter with as little risk
as possible. Below you will find some important tips.
1. Use and maintenance
The SILENCE S01 is an urban scooter designed to be used on the road only, carrying at most the driver and one passenger. It is also important to respect the
maximum load indicated in the corresponding section.
Respect your limits while driving: Take into account your personal skills and the road conditions in order to drive safely. Don’t overestimate them and leave a
margin for the unexpected.
Don’t drink or take drugs before driving: Your reflexes will be impaired and so will your ability to avoid unexpected hazards. Don’t let anyone else drive in that
condition either.
Assess other factors: Also take into account other factors that affect driving, such as prescription drugs, fatigue or lack of attention.
Properly maintain the scooter: Just as you have to be in good shape to drive, it is your responsibility to check and service your scooter before driving, following
the instructions in this manual. Inadequate or no maintenance can be a risk factor.

Copyright© SILENCE Urban Ecomobility 5
DISCLAIMER
The scooter is NOT prepared for regular motorway use, although it can be done sporadically. The vehicle is designed to go at a steady speed of 85 km/h without any critical
elements overheating. If the vehicle is used in Sport mode all the time, the battery pack (BP) could overheat. So, SILENCE has developed a system that optimises the vehicle’s
power use and output to modify settings on the go and avoid this type of issues.
2. Clothing and protection
For your safety and that of the passenger, we recommend wearing the right clothing when driving the scooter. Although they do not provide total protection,
they can considerably decrease the probabilities of injury and the seriousness of the consequences. Consult a specialist to choose the clothing that best suits
you.
Always wear a helmet: Proper use of a helmet is basic and obligatory, both for the driver and for the passenger. It must be homologated, in good shape and
properly buckled. Helmets reduce the number of head injuries and their seriousness. We recommend using full-face helmets (that cover the whole head) in
light, bright colours or with reflector strips, that are lightweight and fit properly.
Protect your eyes: Always wear eye protection, either the visor of the helmet or appropriate glasses.
Other garments: Wear stiff boots and leather gloves, to protect feet, ankles and hands from scratches, cuts and contusions. Wear a suit or jacket and trousers
specifically designed for use on a scooter. These should be form-fitting and the right size, and we recommend they have reflector strips.
These recommendations also apply to the passenger, if there is one.

Copyright© SILENCE Urban Ecomobility 6
Always wear a helmet. Also protect
your face (visor or glasses)
Clothing should never be
loose
Wear gloves
Shoes should fit properly, have a low heel and
protect your ankles
Wear bright colours or
reflectors

Copyright© SILENCE Urban Ecomobility 7
3. Load
This scooter is designed to be driven safely as long as the maximum load capacity and proper distribution are respected. Failure to do so may compromise the
stability, braking power and manoeuvrability of the scooter.
The maximum mass of the scooter cannot be more than 320 kg, including the vehicle itself with its battery and accessories, the driver and the passenger, when
applicable, and any load. The weight carried must be distributed evenly between the two axles, with no more than 102 kg on the front axle and 218 kg on the
rear axle.
Remember that the weight of any accessories installed will reduce the additional load that the scooter can carry.
IMPORTANT INFORMATION
Tips
–Distribute the load evenly on the scooter, and try to keep it as close to the centre as possible.
–Make sure the load is firmly tied down, avoid carrying loose objects.
–Always make sure tyres are properly inflated, and adjust the rear suspension to suit the specific load in each case.

Copyright© SILENCE Urban Ecomobility 8
4. Accessories and modifications
We recommend using only SILENCE accessories, as they have been designed and tested to ensure they work properly with this model of scooter. If you use
other accessories or modify them in any way, you must make sure they are installed and chosen properly so that they:
–Don’t obstruct the turning radius of the handlebar or interfere with the use of any of the controls.
–Don’t limit the side angle of inclination or distance from the ground.
–Don’t interfere with visibility or the beam of any of the lamps.
–Don’t affect any electrical or electronic components of the scooter.
–Comply with legal regulations.

Copyright© SILENCE Urban Ecomobility 9
CONTENTS OF THIS MANUAL
OTHER MANUALS FOR THIS MODEL...................................................................................................................................................... ¡ERROR!MARCADOR NO DEFINIDO.
SECURITY.................................................................................................................................................................................................... ¡ERROR!MARCADOR NO DEFINIDO.
1. Use and maintenance......................................................................................................................................................................... ¡Error! Marcador no definido.
2. Clothing and protection...................................................................................................................................................................... ¡Error! Marcador no definido.
3. Load................................................................................................................................................................................................... ¡Error! Marcador no definido.
A. VEHICLE IDENTIFICATION................................................................................................................................................................ ¡ERROR!MARCADOR NO DEFINIDO.
1) VIN Number - chassis number............................................................................................................................................................. ¡Error! Marcador no definido.

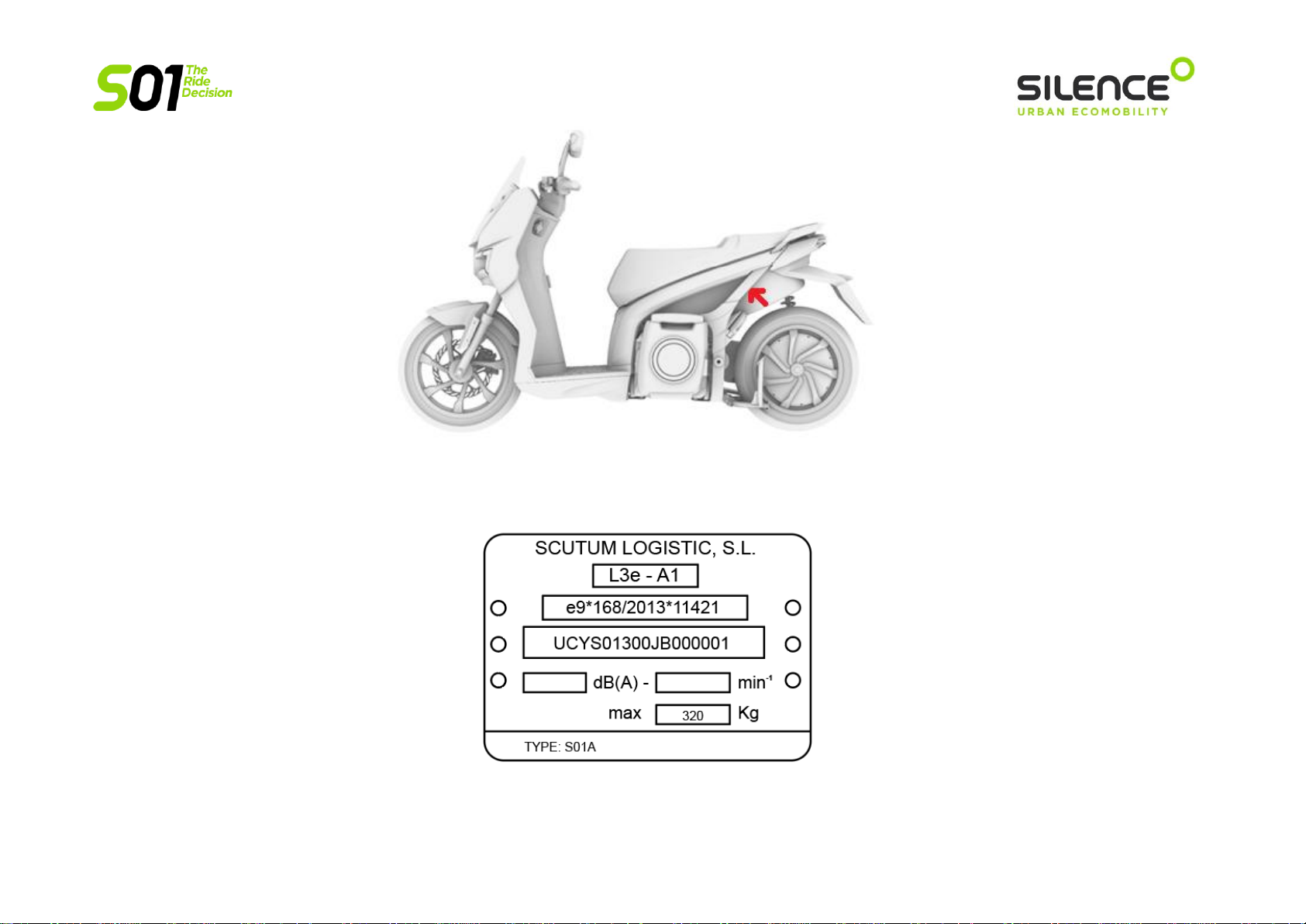

2) Information tag - production plate...................................................................................................................................................... ¡Error! Marcador no definido.
B. BASIC COMPONENTS ....................................................................................................................................................................... ¡ERROR!MARCADOR NO DEFINIDO.
1) Battery pack (be)................................................................................................................................................................................ ¡Error! Marcador no definido.
2) Motor (rear wheel)............................................................................................................................................................................. ¡Error! Marcador no definido.
3) Instrument panel................................................................................................................................................................................ ¡Error! Marcador no definido.

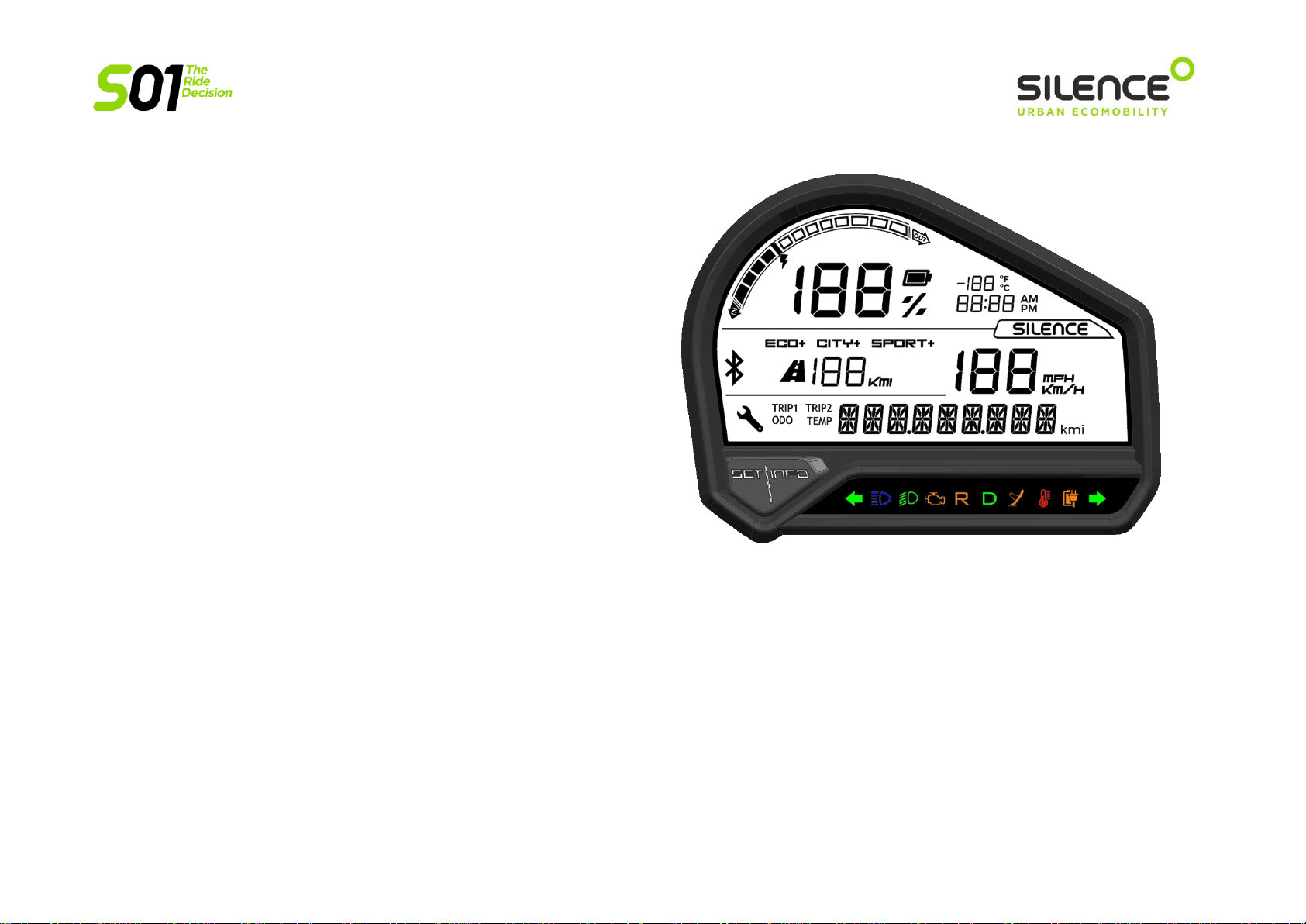

a) LCD screen..............................................................................................................................................................................................................................¡Error! Marcador no definido.
CHARGE GAUGE ..........................................................................................................................................................................................................................¡Error! Marcador no definido.
POWER LIGHT..............................................................................................................................................................................................................................¡Error! Marcador no definido.
OUTSIDE TEMPERATURE .............................................................................................................................................................................................................¡Error! Marcador no definido.
CURRENT TIME............................................................................................................................................................................................................................ ¡Error! Marcador no definido.
BLUETOOTH CONNECTION..........................................................................................................................................................................................................¡Error! Marcador no definido.
DRIVING MODE ...........................................................................................................................................................................................................................¡Error! Marcador no definido.
ESTIMATED BATTERY RANGE ......................................................................................................................................................................................................¡Error! Marcador no definido.
SPEEDOMETER ............................................................................................................................................................................................................................¡Error! Marcador no definido.
SERVICE .......................................................................................................................................................................................................................................¡Error! Marcador no definido.
ODO.............................................................................................................................................................................................................................................¡Error! Marcador no definido.
TEMP ...........................................................................................................................................................................................................................................¡Error! Marcador no definido.
TRIP1 ...........................................................................................................................................................................................................................................¡Error! Marcador no definido.
TRIP2 ...........................................................................................................................................................................................................................................¡Error! Marcador no definido.
b) Buttons...................................................................................................................................................................................................................................¡Error! Marcador no definido.
SWITCHING BETWEEN SCREENS..................................................................................................................................................................................................¡Error! Marcador no definido.
CHANGE VIEW KMS PARTIAL - AVERAGE SPEED (AVG)...............................................................................................................................................................¡Error! Marcador no definido.
RESET PARTIAL KMS ....................................................................................................................................................................................................................¡Error! Marcador no definido.
CHANGE TEMPERATURE VIEW....................................................................................................................................................................................................¡Error! Marcador no definido.

Copyright© SILENCE Urban Ecomobility 10
CHANGE TIME .............................................................................................................................................................................................................................¡Error! Marcador no definido.
CHANGE UNIT MEASUREMENTS .................................................................................................................................................................................................¡Error! Marcador no definido.
GET RID OF SPANNER ICON FOR SERVICE/REVISION................................................................................................................................................................... ¡Error! Marcador no definido.
c) Warning lights ........................................................................................................................................................................................................................¡Error! Marcador no definido.
4) Vehicle controls and driving................................................................................................................................................................ ¡Error! Marcador no definido.
d) Controls on the left side of the handlebar .............................................................................................................................................................................¡Error! Marcador no definido.
Lamps:.........................................................................................................................................................................................................................................¡Error! Marcador no definido.
Indicators. ...................................................................................................................................................................................................................................¡Error! Marcador no definido.
Horn. ...........................................................................................................................................................................................................................................¡Error! Marcador no definido.
Reverse lamps. ............................................................................................................................................................................................................................¡Error! Marcador no definido.
e) Combined brake and regenerative brake...............................................................................................................................................................................¡Error! Marcador no definido.
f) Controls on the right side of the handlebar ...........................................................................................................................................................................¡Error! Marcador no definido.
Accelerator..................................................................................................................................................................................................................................¡Error! Marcador no definido.
Hazard/low beams ......................................................................................................................................................................................................................¡Error! Marcador no definido.
INFO ............................................................................................................................................................................................................................................¡Error! Marcador no definido.
MODE..........................................................................................................................................................................................................................................¡Error! Marcador no definido.
g) Ignition ...................................................................................................................................................................................................................................¡Error! Marcador no definido.
BLOCK HANDLEBAR.....................................................................................................................................................................................................................¡Error! Marcador no definido.
OPEN SEAT ..................................................................................................................................................................................................................................¡Error! Marcador no definido.
SHUT OFF /UNBLOCK HANDLEBAR..............................................................................................................................................................................................¡Error! Marcador no definido.
IGNITION .....................................................................................................................................................................................................................................¡Error! Marcador no definido.
5) Lighting.............................................................................................................................................................................................. ¡Error! Marcador no definido.
h) Front lamp..............................................................................................................................................................................................................................¡Error! Marcador no definido.
i) Front sidelights - indicator lights............................................................................................................................................................................................¡Error! Marcador no definido.
j) Rear lights...............................................................................................................................................................................................................................¡Error! Marcador no definido.
6) Seat –compartment inside seat.......................................................................................................................................................... ¡Error! Marcador no definido.
k) Open and close seat ...............................................................................................................................................................................................................¡Error! Marcador no definido.
l) Remove battery......................................................................................................................................................................................................................¡Error! Marcador no definido.
m) Fuse box ................................................................................................................................................................................................................................. ¡Error! Marcador no definido.
7) Stands................................................................................................................................................................................................ ¡Error! Marcador no definido.
n) Side stand...............................................................................................................................................................................................................................¡Error! Marcador no definido.
o) Centre stand...........................................................................................................................................................................................................................¡Error! Marcador no definido.
8) Rear-view mirrors............................................................................................................................................................................... ¡Error! Marcador no definido.
C. MOBILE APP -SCOOTER ALWAYS CONNECTED......................................................................................................................... ¡ERROR!MARCADOR NO DEFINIDO.
D. ACCESSORY COMPONENTS ........................................................................................................................................................... ¡ERROR!MARCADOR NO DEFINIDO.

Copyright© SILENCE Urban Ecomobility 11
1) Battery Pack Components .................................................................................................................................................................. ¡Error! Marcador no definido.
a) Trolley removable battery system..........................................................................................................................................................................................¡Error! Marcador no definido.
b) Internal charger......................................................................................................................................................................................................................¡Error! Marcador no definido.
c) Light ring.................................................................................................................................................................................................................................¡Error! Marcador no definido.
2) Power..................................................................................................................................................................................................... ¡Error! Marcador no definido.
3) Battery sharing (Available soon) ............................................................................................................................................................. ¡Error! Marcador no definido.
4) Battery monitoring system (BMS) ........................................................................................................................................................... ¡Error! Marcador no definido.
5) Connecting charging unit ........................................................................................................................................................................ ¡Error! Marcador no definido.
a) First aid...................................................................................................................................................................................................................................¡Error! Marcador no definido.
b) Fire protection........................................................................................................................................................................................................................¡Error! Marcador no definido.
1) Charge level ....................................................................................................................................................................................... ¡Error! Marcador no definido.
2) Lights and indicators........................................................................................................................................................................... ¡Error! Marcador no definido.
3) Stands................................................................................................................................................................................................ ¡Error! Marcador no definido.
4) Tyres.................................................................................................................................................................................................. ¡Error! Marcador no definido.
Rear tyre......................................................................................................................................................................................................................................¡Error! Marcador no definido.
5) Brakes................................................................................................................................................................................................ ¡Error! Marcador no definido.
a) Brake fluid ..............................................................................................................................................................................................................................¡Error! Marcador no definido.
b) Front brake.............................................................................................................................................................................................................................¡Error! Marcador no definido.
c) Rear brake ..............................................................................................................................................................................................................................¡Error! Marcador no definido.
d) Brake lever .............................................................................................................................................................................................................................¡Error! Marcador no definido.
C. SOLVING PROBLEMS.......................................................................................................................................................................................................¡Error! Marcador no definido.
E. CLEANING AND STORAGE (GUIDE TO PARKING THE VEHICLE).......................................................................................................... ¡ERROR!MARCADOR NO DEFINIDO.
1) Cleaning............................................................................................................................................................................................. ¡Error! Marcador no definido.
2) Storage .............................................................................................................................................................................................. ¡Error! Marcador no definido.
A. DELIVERY TO BUYER........................................................................................................................................................................ ¡ERROR!MARCADOR NO DEFINIDO.
B. WARRANTY CONDITIONS................................................................................................................................................................. ¡ERROR!MARCADOR NO DEFINIDO.
(GROUNDS FOR VOIDING WARRANTY).............................................................................................................................................................. ¡ERROR!MARCADOR NO DEFINIDO.
C. INSPECTIONS: SCOOTER &BATTERY........................................................................................................................................... ¡ERROR!MARCADOR NO DEFINIDO.
Registry of inspections S01 (both scooter and battery):............................................................................................................................... ¡Error! Marcador no definido.

Copyright© SILENCE Urban Ecomobility 12
1. GENERAL CHARACTERISTICS AND OPERATING THE
VEHICLE
A.VEHICLE IDENTIFICATION
1) VIN Number - chassis number
The VIN number is an alphanumeric code with 17 digits that identifies your scooter. The VIN number is established
according to ISO standards. The VIN number must be given when ordering replacement parts.
The VIN number is engraved directly on the chassis of the scooter, on the square bar on the rear right (see picture).
2) Information tag - production plate
This scooter has a tag with the chassis number, maximum allowable noise, maximum mass and revolutions per minute.
The tag is on the rear left, on the opposite side from the number engraved on the chassis (see picture).

Copyright© SILENCE Urban Ecomobility 13

Copyright© SILENCE Urban Ecomobility 14
B. BASIC COMPONENTS
The basic components (from a user standpoint) that make up the scooter are:
Front
mudguard
Rear-view mirror
Brake light,
indicators
Rear wheel
(motor)
Seat
Instrument
panel
Front wheel
Side stand
Battery
Centre stand

Copyright© SILENCE Urban Ecomobility 15
1) Battery pack (be)
The SILENCE S01 model has an innovative removable battery pack with a
handle and wheels so it can be transported like a trolley. This way, you can
charge it on the scooter or wherever you want, taking the battery to a power
source. Plus, this battery pack can be used on other scooters, or even used to
power other devices.
For more information, see the section of this manual on the battery pack,
which explains all the specifications and how to use your new battery.
2) Motor (rear wheel)
On the rear wheel, this scooter has a 100% electric motor with brushless
technology (HUB), direct transmission and an air cooling system.
The nominal power is 7,000 W (L3e homologation) and it has a maximum
speed of 100 kilometres per hour. For L1e homologation, the nominal power
and speed are limited electronically to 4,000 W and 45 km/h, respectively.

Copyright© SILENCE Urban Ecomobility 16
3) Instrument panel
The instrument panel gives you all the information you need to know about
the scooter while driving.
It features an LCD screen, 2 buttons (“SET” and “INFO”) and 10 warning lights,
which are explained below.

Copyright© SILENCE Urban Ecomobility 17
a) LCD screen
CHARGE GAUGE
On the bottom of the screen, there is an SoC gauge (State of Charge). This is shown as a percentage, so when the
battery is completely drained it will read 0% and when it is fully charged it will show 100%.

Copyright© SILENCE Urban Ecomobility 18
POWER LIGHT
Plus, on the upper left, there is a light that shows whether power is flowing out of the battery (being used) or into it
(regenerated through the brake motor or charging).
OUTSIDE TEMPERATURE
On the top right, there is a temperature gauge (showing the outside temperature in Celsius or Fahrenheit,
depending on the settings). It shows both positive and negative temperatures.
CURRENT TIME
Just below that, there is a clock showing the current time (battery data). The time can be shown using the 12-hour
or 24-hour clock systems.

Copyright© SILENCE Urban Ecomobility 19
BLUETOOTH CONNECTION
This icon shows that the scooter ECU is paired with the driver’s smartphone. It blinks when pairing and stays on
once the connection has been made. The light turns off when the user disconnects their smartphone.
DRIVING MODE
On the top middle (below the charge percentage), the screen shows the current driving mode (ECO, CITY or SPORT).
ESTIMATED BATTERY RANGE
Below the driving modes, there is information about the remaining range, in kilometres or miles. This is
approximate and depends on driving style and current use of power.

Copyright© SILENCE Urban Ecomobility 20
SPEEDOMETER
In the middle on the right (under the SILENCE logo), a gauge shows the scooter’s current speed. It can be set to
kilometres per hour or miles per hour.
SERVICE
When it is time for a scheduled service (determined by the number of kilometres travelled), a spanner icon will
appear in the lower left corner.
After the scooter has been serviced, the authorised SILENCE mechanic will deactivate the icon and it will not appear
again until it is time for another scheduled service. The icon is just a reminder and getting rid of it does not
constitute certification of having passed a revision. To get rid of the icon, the scooter must be turned off and you
press the SET and INFO buttons at the same time and start the scooter (while holding the buttons down).
Regardless of the kilometres travelled, the scooter must pass at least one revision yearly if it hasn’t reached the
kilometres to trigger the spanner icon.
Please read the maintenance section of the manual for more information.
