Silicon Laboratories Si5041-EVB User manual

Rev. 0.1 7/09 Copyright © 2009 by Silicon Laboratories Si5041-EVB
Si5041-EVB
Si5041 EVALUATION BOARD
Description
The Si5041-EVB provides a platform for evaluating
Silicon Laboratories' Si5041 XFP Signal Conditioning
Transceiver. The Si5041 is a complete, low-power, high-
performance XFP transceiver suitable for use in all XFP
module types, from short-reach datacom to long-reach
telecom applications. The Si5041 is unique in that it
integrates a rate-agile, jitter-attenuating transmit CMU
and receive CMU. The device supports referenceless
operation or may use a reference clock for LOL
detection. The device can be completely configured
through a serial microcontroller interface. The Si5041
Transceiver provides full-duplex operation at serial data
rates from 9.95 to 11.35 Gbps (continuous).
The Si5041-EVB also contains an MCU (C8051F320)
and a crystal oscillator (Si534), both from Silicon Labs.
The 8051F320 provides status and control
communication between the Si5041 and the Si5041-
EVB Software. The Si534 is a multi-rate crystal
oscillator that, when enabled, supplies one of four
selectable reference clocks to the Si5041 while
providing that clock at SMA connectors for external
monitoring/use.
The Silicon Laboratories MCU (C8051F320) has a USB
port that is used to communicate to a PC that is running
the Si5041 EVB software. The MCU also has a serial
port that connects to the serial control port of the Si5041
to read and write to its registers. In addition, the MCU
drives all but one of the LEDs on the EVB and can make
a very accurate reading of the three voltages that power
the EVB.
Features
The Si5041-EVB includes the following:
Evaluation of Silicon Laboratories' Si5041 XFP
Signal Conditioning Transceiver
Separate supply connections for the following:
VDD (1.8 V) powers the internal circuitry of the Si5041.
VDD_3p3 (3.3 V) powers the MCU and XTAL oscillator.
VDDIO (1.8 or 3.3 V) powers the LVTTL IOs of the
Si5041.
Four selectable on-chip reference frequencies.
LEDs for visual monitoring of key chip and board
parameters.
Si5041 EVB software allows for quick and easy
access to all registers in the Si5041.
A dual-row header allows the Si5041 to be easily
connected to another MCU for serial control and
status communications.
Synchronous output clock at 1/64 the recovered
clock rate.
Si5041-EVB Quick Start
To set up the Si5041-EVB, perform the following steps:
1. Install the Si504x EVB Software. (Assumes that
Microsoft .NET Framework 1.1 is already installed.)
2. Allow the software installer to also install the Si504x
EVB Driver. (This must be installed before the EVB
is connected to the PC via the USB cable.)
3. Connect the power supplies to the EVB.
4. Turn on the power supplies.
5. Connect a USB cable from the EVB to the PC where
the software was installed. Launch the software by
clicking on StartProgramsSilicon
LaboratoriesSi504x EVB Software and selecting
one of the programs to run.
6. If prompted, pick a serial number corresponding to
the desired EVB to control.
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
2 Rev. 0.1
7. The device should now be functioning with the
CMUs in referenceless mode. That is, the RX and
TX CMUs clean up the recovered clock from the
CDR without the aid of any external reference clock
or crystal. In addition, the device will automatically
detect an external reference clock for CDR
acquisition. If an external reference clock is not
provided, the CDR acquisition will be in reference-
less mode as well.
8. Next, open System Programmer. Under System
Programmer, there is a block diagram of the device,
and under the "Alarms and Interrupts" tab, are all the
alarms you need for the evaluation.
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 3
1. Functional Description
The Si5041-EVB and software allow for a complete and
simple evaluation of the functions, features, and
performance of the Si5041 transceiver.
1.1. Input Power
This evaluation board requires three power inputs,
+1.8 V, +3.3 V, and VDDIO(1.8 V or 3.3 V), as well as a
ground connection. J8 and J9 are used for connecting
power to the EVB (see Figure 1).
1.2. LEDs
Three LEDs indicate that power has been properly
applied to the EVB. These are +3.3 V, VDDIO, and
+1.8 V. Since these LEDs are driven by the MCU (not
the power itself), the VDDIO and +1.8 V LEDs will not
function unless +3.3 V is first applied to the EVB (see
Figure 1).
The 3.3 V LED will be on solid when the 3.3 V input is
within the 2.97 to 3.63 V range. The 1.8 V LED will be
on solid when the 1.8 V at the Si5041 VDD pins is within
the 1.62 to 1.89 V range.
The VDDIO LED will be on solid when this input voltage
is between 1.89 and 3.63 V. The VDDIO LED will flash on
and off when this voltage is between 1.62 and 1.89 V.
The REF ON LED indicates that the Si534 clock
reference chip is powered up and applying a clock
signal to the Si5041. JP16 must be set to the ON
position in order to power up the Si534.
Since the 1.8 V LED indicates the voltage at the Si5041
VDD pins, the jumper, JP12, must be in place for this
LED to function and for the Si5041 to receive its core
supply voltage. However, the VDDIO LED will function
without the jumper on JP13.

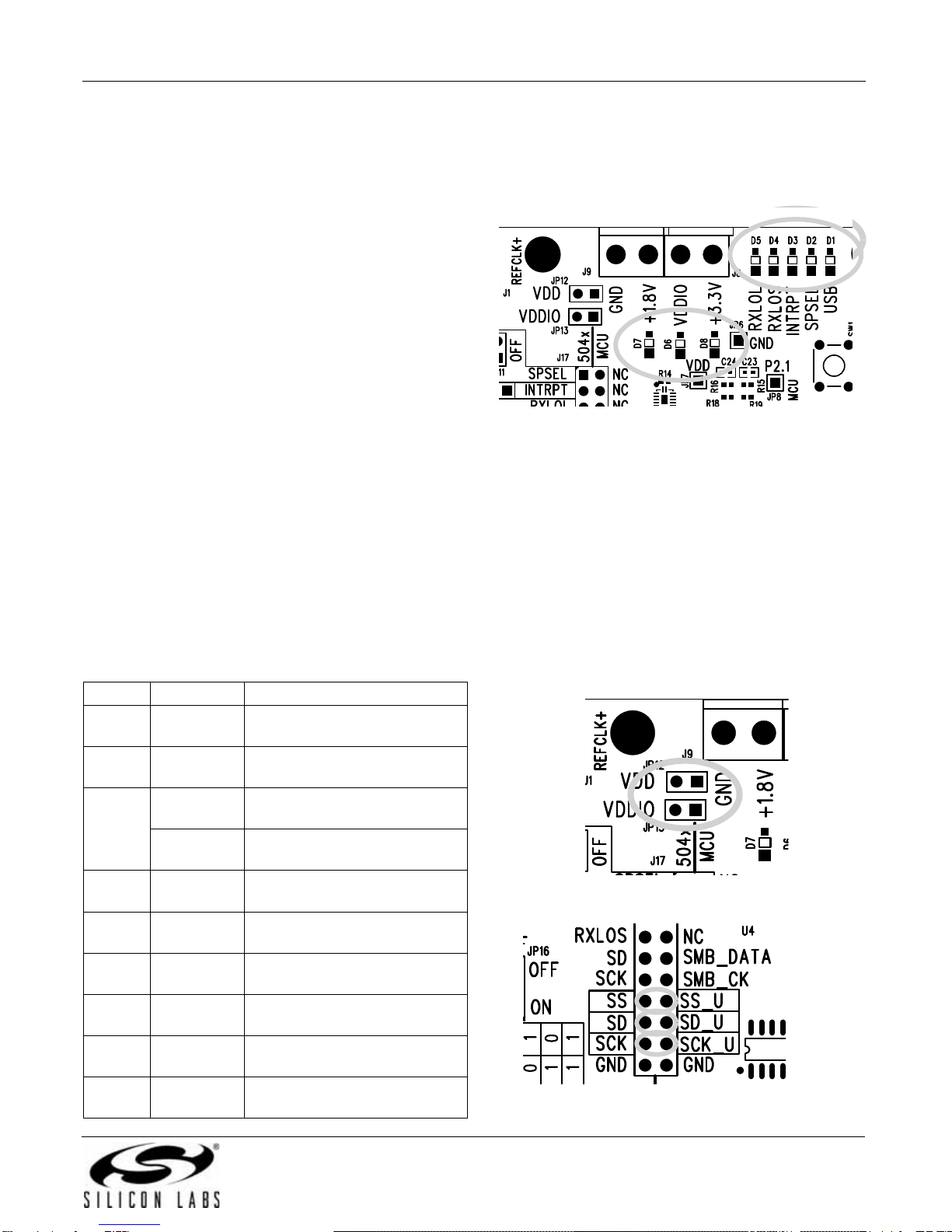

Figure 1. LEDs
1.3. Jumpers and Headers
For the EVB to function, there are five jumpers that
must be installed.
There must be jumpers on JP12 and JP13 because
they apply power to the Si5041 (see Figure 2). The next
three required jumpers are three positions on J17,
labeled SS, SD, and SCK on one side and SS_U,
SD_U, and SCK_U on the other side (see Figure 3).
Connecting jumpers between SS to SS_U, SD to SD_U,
and SCK to SCK_U enables the onboard MCU to
communicate with the Si5041 using the 3-wire serial
interface.
Figure 2. JP12 and JP13
Figure 3. J17
Table 1. LED Status and Description
LED Status Description
3.3 V ON When 3.3 V supply is between
2.97 and 3.63 V.
1.8 V ON When Si5041 VDD pins are
between 1.62 and 1.89 V.
VDDIO ON When Si5041 VDDIO pin is
between 1.89 and 3.63 V.
FLASHING When Si5041 VDDIO pin is
between 1.62 and 1.89 V.
REF
ON ON When the Reference clock
source Si534 is powered up.
USB ON Flashes when USB Access is
occurring.
SPSEL ON When the Si5041 SPSEL pin is
high.
INTRPT ON When the Si5041 INTRPT pin
is high.
RXLOS ON When the Si5041 RXLOS pin
is high.
RXLOL ON When the Si5041 RXLOL pin is
high.
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
4 Rev. 0.1
1.3.1. MCU to Si5041 Serial Communications
(Status and Control)
The microcode within the MCU is designed to
communicate with the Si5041 when SPSEL pin 9 is high
(JP11 no jumper). In this mode, the serial data transfer
from the MCU to the Si5041 is very similar to the SPI
protocol but with a single bidirectional data line rather
than two unidirectional data lines. However, one could
write new microcode for the MCU that uses the SMBus
(I2C compatible) to communicate with the Si5041. To
enable SMBus communication between the Si5041 and
the MCU, you must install a jumper on JP11 and on J17
between SD/SMB_DAT, SCK/SMB_CK and SS/SS_U.
See Figure 4. Note that INTRPT on JP17 should be
labeled as INTRPTB because the interrupt from the
Si5041 is an active low signal.

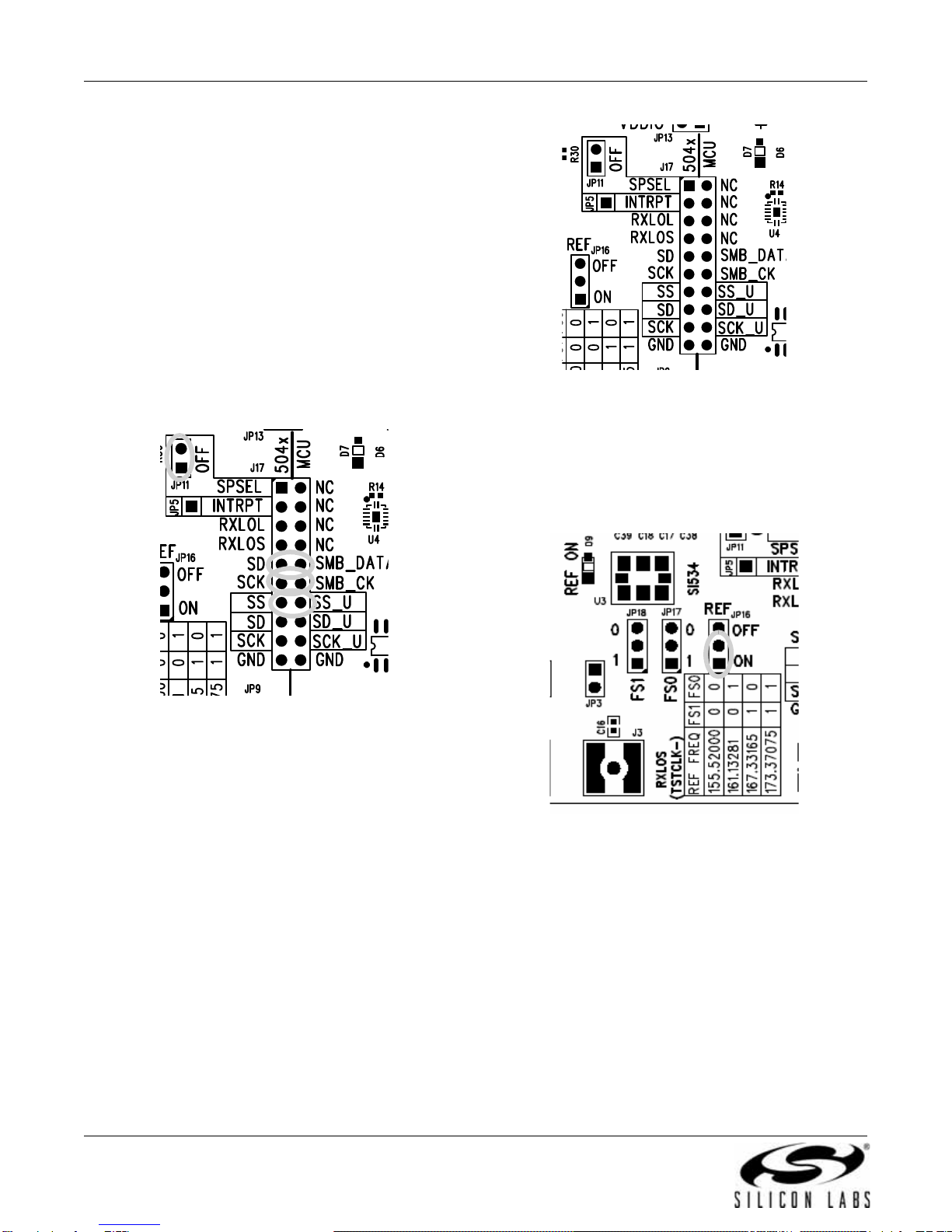

Figure 4. SMBus Protocol
1.3.2. External MCU Control
To use an external MCU, make sure that all jumpers are
removed from J17 and that JP11 does not have a
jumper (see Figure 5). Now, the following pins of J17
are available for connection to an external MCU.
SCK
SD
SS
RXLOS
RXLOL
INTRPT
SPSEL
GND
The Silicon Labs MCU that is well-suited for use within
XFP Modules is the C8051F330.
Figure 5. External MCU
1.3.3. Reference Clock
To use the on-chip reference clock (Si534), JP16 must
be set to the ON position. When this is done, the REF
ON LED will light, indicating that power is applied to the
Si534. The output frequency of the Si534 is controlled
by jumpers JP17 and JP18 (see Figure 6).
Figure 6. Reference Clock
1.3.4. Synchronous Test Clock
By setting Register 57 to 9Ch, the Tx CMU clock divided
by 64 will be output at J2 and J3. The EVB must have
jumpers on JP2 and JP3 to enable the /64 clock output
(see Figure 7). By setting Register 57 to 1Ch, the Rx
CMU clock divided by 64 will be output at J2 and J3.
When jumpers are placed on JP2 and JP3, the
functionality of RXLOS and RXLOL is lost, and the state
of the LEDs for these two signals becomes invalid. To
return the RXLOL and RXLOS signals to their normal
modes, set Register 57 to 00h, and remove the jumpers
on JP2 and JP3. Register 57 cannot be changed with
the System Programmer GUI, you must use the
Register Programmer GUI (see page 8).
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 5
Figure 7. Synchronous Test Clock
1.4. Reference Clock Details
The Si5041 can function without a reference clock and
meet all system jitter generation and jitter tolerance
specifications. However, the presence of a reference
clock provides the following capabilities:
Ability to measure the frequency error of the input
data and generate a Loss-of-Lock indication if the
frequency error exceeds 1000 ppm with respect to
the reference clock.
Only acquire lock if the input data is within 200 ppm.
A reference clock to the Si5041 can be input from an
external source, or it can be generated from the
onboard Si534. Since the clock from the Si534 is
linearly summed with the external reference clock input,
care must be taken to ensure that both clock sources
are not active at the same time. When the Si534 is
enabled (JP16 on), its output will be present at SMAs J1
and J5 for monitoring and/or system usage. When the
Si534 is OFF, a differential clock applied at J1 and J5
will be attenuated by 2.7 dB before it reaches the
REFCLK± inputs of the Si5041.
While an Si534 has the capability of generating any four
frequencies between 10 MHz and 1400 MHz, this Si534
has been programmed to generate four specific
frequencies. Jumpers JP17 and JP18 control the
FS[1:0] inputs to the Si534 (see Figure 6). The four
frequencies are as follows:
155.52000 MHz Set FS[1:0] = 00
This is 1/64 of the SONET OC-192 rate of
9.95328e9 bps
161.13281 MHz Set FS[1:0] = 01
This is 1/64 of the 10 GIGE LAN PHY rate of
10.3125e9 bps
167.33165 MHz Set FS[1:0] = 10
This is 1/64 of the SONET OC-192 rate with 255/237
FEC overhead (10.709225e9 bps)
173.37075 MHz Set FS[1:0] = 11
This is 1/64 of the 10 GIGE LAN Phy rate with 255/
237 FEC overhead (11.095727e9 bps)
While the Si534 output is clean enough to meet the XFP
requirements for the "optional clean reference clock",
the Si5040 does not support this function. Please look
at the Si5041 if you desire this function.
1.5. RD De-Emphasis
Even though the output data at the Si5041 RD pins has
very fast transitions, we have found that some
customers prefer some signal shaping of the RD output
signal at the XFI. Therefore, the Si5041 EVB has a de-
emphasis circuit added to the RD± outputs that is not
shown in the schematic of Figure 10. This circuit is
composed of a few resistors and capacitors, all of which
can be generic, low-cost units. Because it is a passive
circuit, it slightly attenuates the RD signal, which
requires that the RD signal level from the Si5041 be
slightly increased. Please use the Si5041 Register 56 to
increase the RD drive signal from its default value of
600 mV to 800 mV. See the Si5041 data sheet for more
information. The circuit that is implemented on the EVB
is shown below:
Figure 8. EVB De-Emphasis Circuit
Within an XFP module, the pre-emphasis circuit should
be located as close to the Si5041 RD± pins as is
practical. In an XFP module, the pre-emphasis circuit
above can be modified to remove one component yet
still behave the same electrically. The following circuit
shows this simplification.
20.5
3.0 pF
5041
RD+
XFI RD+
274 
.01 uF
20.5
3.0 pF
5041
RD- 274 
.01 µF
XFI RD-
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
6 Rev. 0.1
Figure 9. Recommended XFP Pre-Emphasis Circuit
Should you not like the eye pattern at the RD± pins, this
circuit can be easily optimized for your application. If
you wish assistance in this matter, please contact
Silicon Laboratories.
1.6. Start Up Script(s)
Upon selecting the EVB or doing a reset, the Si504X
EVB System Programmer will automatically load a
script that:
1. Increases the RD output to 800 mV to compensate
for the loss of the RD de-emphasis network
described in the previous section.
2. Holds the PLL in lock with higher jitter on the input
signal. See AN345D section 4.
3. Sets the Interrupt output pin to CMOS mode.
The 504X Register Programmer will not automatically
load scripts.
20.5
3.0 pf
5041 RD+ XFI RD+
20.5
3.0 pf
5041 RD-
274 
XFI RD-
.01 µF
274 
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 7
2. EVB Software Installation
The following sections describe how to install the EVB
software.
2.1. PC System Requirements
Microsoft Windows 2000, XP, or Vista
USB 2.0
2 MB of hard drive space
1024x768 screen resolution or greater
Microsoft .NET Framework 1.1
Si504x EVB Driver (based on USBXpress 3.1.1)
Note: The Si504x EVB Driver is provided with the software
installation files.
2.2. Microsoft .NET Framework Installation
The Microsoft .NET Framework is required before
installing and running the Si504x EVB Software. Details
and installation information about the .NET Framework
are available via a shortcut in the NETFramework
directory or at the following web site:
http://www.microsoft.com/downloads/
details.aspx?FamilyId=262D25E3-F589-4842-8157-
034D1E7CF3A3&displaylang=en
Contact your system administrator for more details.
2.3. Si5041 EVB Software Installation
To install:
1. Navigate to the install directory.
2. Double-click the install .exe file.
3. Follow the steps in the wizard to install the program.
4. After the installation is complete, click on Start >
Programs > Silicon Laboratories > Si504x EVB
Software. Select one of the programs to control the
EVB.
5. See the online help available in one of the programs
via the Help menu option.
To uninstall:
Note: Close all the Si504x EVB Software before running the
uninstaller to ensure complete removal of the software.
The driver software must be uninstalled separately. See
the next section for details.
To uninstall the software, use the Add and Remove
Programs utility in the Control Panel. Select Si504x
EVB Software from the list, or double-click on the
Uninstal.exe file in the Si504x EVB Software directory,
where the software is installed originally.
2.4. Si504x EVB Driver
Note: The Si504x EVB Driver must be installed on computers
that were running the driver from the Si5041 EVB
Software version 2.3 or older. This newer driver is
required to run with the software version 4.0 and
newer.
The driver is installed after the EVB software is installed.
If this option is cancelled then the EVB will not run with
the computer via USB.
The installer will copy the necessary driver files and
update the operating system. However, for every
different EVB connected to the same computer, the
hardware installation wizard will run to associate this
driver with the new EVB. Let the wizard run with its
default settings.
The Si504x EVB driver may be removed via the Add
and Remove Programs utility in the Control Panel.
Locate the entry called Silicon Laboratories Si504x EVB
Driver. Click the button and it should show the version
and location of what it will remove.
The driver installation files are located with the installed
Si504x EVB Software files. The driver files for the EVB
may be re-installed from this location or by running the
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
8 Rev. 0.1
2.5. Si504x EVB Software Description
There are three programs to control the Si5041. Each
provides a different kind of access to the device. Refer
to the online help in each program by clicking
HelpHelp in the menu for more information on how to
use the software.
Program Description
Register
Viewer
The Register Viewer displays the cur-
rent data in a table format sorted by
register address of the Si5041 register
map to provide a quick view of the
Si5041's state. This program can save
and print the register map.
Register
Programmer
The Register Programmer provides
low-level register control of the
Si5041. Single and batch operations
are provided to read from and write to
the device. Register map files can be
saved and opened in the batch mode.
System
Programmer
The System Programmer provides
high-level control of the Si5041. There
are multiple settings for this chip; so,
this program will make it easier to con-
figure these settings. (The settings this
program can control are documented
in the Si5041 data sheet.) The soft-
ware can also save and open the reg-
ister data in a text file format.
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 9
3. Typical Application Schematics
DEVICE=FA-23838P8800MB-K
XTAL_2 NC_2
NC_1
XTAL_1
MPZ1608S221A
FERRITE 1608 RDC=.05
MPZ1608S221A
FERRITE 1608 RDC=.05
LED RED UB
CLKMCLKP
FS1 FS0
GND NC OE
VDD
SI534
SI504
RD-
GND6
RD+
GND5
TD- TD+
GND4
SCK
SPSEL
XTAL_OUT
XTAL_IN
VDD2
REFCLK+
REFCLK-
VDD1
INTRPT
GND3 RXDIN+ RXDIN- GND2 VDDIO RX_LOS RX_LOL GND1
GND7
GND8
SS
SD
VDD3
VDD4
TXDOUT+
TXDOUT-
C32
10 UF
VIN_1P8X
C37
.1 UF
C33
10 UF
C36
.1 UF
VDDIOX
18 17 19 20 21 22 23 24
9
10
11
12
13
14
15
16
8 7 6 5 4 3 2 1
28
31
26
25
27
32
30
29
U1
12
JP3
1
JP5
R37 200 OHMS R38 200 OHMS
C39
.01 UF
C38
.01 UF
C18
.01 UF
C17
.01 UF
VDDIO
VDD_3P3
VDD_534
R2
50 OHMS
VDDIO
C14
.1 UF
C10
.1 UF
54 7 8
3 1 2
6
U3
1
JP1
D9
12
JP12
12
FB1
R4
3.3 OHMS
C29
1 UF
R27
3.01 KOHMS
R26
1 KOHMS
R28
3.01 KOHMS
R30
150 OHMS
R32
17.8 OHMS
CLKP
R31
17.8 OHMS
CLKM
R29
150 OHMS
R33
17.8 OHMS
R36
17.8 OHMS
R35
17.8 OHMS
R34
17.8 OHMS
R3
50 OHMS
R1
3.01 KOHMS
C15
.001 UF
R5
3.01 KOHMS
1
2 3
J2
142-0711-201
12
JP2
21
FB2
RXLOL
C9
.001 UF
VDD
12
3
J5
142-0711-201
1
2 3
142-0711-201
J1
C6
.01 UF
C13
.1 UF
C19
.1 UF
C34
.1 UF
C12
.1 UF
C11
.1 UF
R6
10 KOHMS
C5
.01 UF
C8
.1 UF
C35
.01 UF
C1
.1 UF
C2
.1 UF
C7
.01 UF
C4
.1 UF
.001 UF
C16
C31
10 UF
CLKP CLKM
VDD
SPSEL
3 4
2 1
Y1
12
JP11
SCK
SS
SD
1
2 3
J3
142-0711-201
VDD
VDD_534
2 1 3
JP18
VDD_534
2 1 3
JP16
VIN_1P8
VDD
VIN_1P8
3
4
5
1
2
J12
142-761-881
3
4
5
1
2
J14
142-761-881
3
4
5
1
2
J13
142-761-881
3
4
5
1
2
J15
142-761-881
3
4
5
1
2J16
142-761-881
3
4
5
1
2J11
142-761-881
3
4
5
1
2J7
142-761-881
3
4
5
1
2J6
142-761-881
2 1 3
JP17
VDD
VIN_1P8X
VDDIOX
12
JP13
1 2
J8
1 2
J9
INTRPT
VDD_3P3
RXLOS
Figure 10. Application Schematic (Page 1)
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
10 Rev. 0.1
DEVICE=SP0503B
FXL5T244
OE
VCCI
VCCO
Y4 Y3 Y2 Y1 Y0
A4 A3 A2 A1 A0
GND
LED GREEN
LED GREEN
LED GREEN
LED GREEN
LED GREEN
NC2
OUTS OUTF
NC1
GNDS GND IN NR
MAX6126AASA25
1
10
11 12 13 14 15 16 17 18 19
2
20
34 56 78 9
CONN2X10
USB_CONNECT
D+
D-
GND
VCC
LED RED UB
LED RED UB
LED RED UB
/RST/C2CK
P3.0/C2D
P2.7
P2.6
P2.5
P2.4
P2.3
P2.2
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
P1.0
P1.1
P2.1 P2.0 P1.7 P1.6 P1.5 P1.4 P1.3 P1.2
VBUS REGIN VDD D- D+ GND PO.0 PO.1
DEVICE=C8051F320
1
JP6
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
17 18 19 20 21 22 23 24
8 7 6 5 4 3 2 1
U2
VDD_3P3
SMB_DATA
SD_U
SS
SPSEL SD_U
VDD_3P3
VDD_3P3
VDD3P3_B
VDD_1P8_B
1
JP7
1
JP8
1
JP9
1
JP10
D5
D4
D3
R13
301 OHMS
R17
1 KOHMS
C24
.1 UF
C23
.1 UF
C27
.1 UF
C25
.1 UF
C30
1 UF
C26
.1 UF
R14
301 OHMS
C28
.1 UF
C22
.1 UF
C21
.1 UF
C3
4.7 UF
C20
.1 UF
3 2 4
6
1
5
J10
INTRPT_B
R23
1 KOHMS
R24
1 KOHMS
RX_LOS_B
R25
1 KOHMS
RX_LOL_B
R7
200 OHMS
VDD3P3_B
R8
200 OHMS
VDD_1P8_B
R22
200 OHMS
SPSEL_B
R21
200 OHMS
ACCESS_B
R20
200 OHMS
VDDIO_B
R18
3.01 KOHMS
VDDIOX
R19
3.01 KOHMS
VDD_3P3
R16
3.01 KOHMS
R15
3.01 KOHMS
VDD
R9
1 KOHMS
R12
1.02 KOHMS
R10
1 KOHMS
R11
1.02 KOHMS
VDDIOX
1 2
SW1
RXLOS_U
RXLOL_U
SS_U
SD_U
SCK
SS_U
SD
SMB_CK
SMB_CKSMB_DATA
SPSEL_U
SPSEL_U
SPSEL_B
SPSEL
RXLOS
RXLOL
INTRPT
SCK_U
1
10
11 12 13 14 15 16 17 18 19
2 20
34 56 78 9
J17
5 6 7 8
4 3 2 1
U7
VDDIOX
VDD_3P3
D8
D7
D2
D1
D6
1
10
2
34 56 78 9
J4
7
8
1
14
9 10 11 12 13
6 5 4 3 2
U4
VDD_3P3
12
34 U5
VREF_2P5
INTRPT_U
INTRPT_U RXLOS_U
INTRPT RXLOS
MISO
MISO
VDDIO_B
RXLOL
VREF_2P5
RXLOL_U
RX_LOS_B RX_LOL_B ACCESS_B INTRPT_B
VDD_3P3
SCK_U
Figure 11. Application Schematic (Page 2)
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 11
4. Bill of Materials
Table 2. Si5041-EVB Bill of Materials
Item Qty Reference Description Manufacturer Number Manufacturer
1 8 C1,C2,C10,
C11,C12 CAP, SM, 0.1 µF, 10 V, 10%, X7R,0402 540L105KW10820T ATC
C13,C14,C19
2 14 C4,C8,C20,
C21,C22,C23,
C24,C25,C26,
C27,C28,C34,
C36,C37,
CAP, SM, 0.1 µF, 16 V, 10%, X7R,0402 C0402X7R160-104KNE Venkel
3 7 C5,C6,C7,
C17,C18,
C38,C39
CAP, SM, 0.01 µF, 25 V, X7R,0402 C0402X7R250-103KNE Venkel
4 1 C3 CAP, SM, 4.7 µF, 6.3 V, X7R,0805 CEJMK212BJ475KG-T Taiyo Yuden
5 3 C9,C15,C16 CAP, SM, 1000 pF, 50 V, 5%, C0G,0402 C0402C0G500-102JNE Venkel
6 2 C29,C30 CAP, SM, 1 µF, 6.3 V, X7R, 0603 C0603X7R6R3-105KNE Venkel
7 3 C31,C32,C33 CAP, SM, 10 µF, 10 V, X7R, 1206 C1206X7R100-106KNE Venkel
8 5 D1,D2,D6,
D7,D8 LED, SM, LN1371G, GREEN LN1371G Panasonic
9 4 D3,D4,D5,D9 LED, SM, LN1271, BRIGHT RED LN1271RAL-TR Panasonic
10 2 FB1,FB2 FERRITE, SM, 165 , 2000 mA MPZ1608S221A TDK
11 4 J1,J2,J3,J5 CONN, SMA, SM, VERT 142-0711-201 Johnson
Components
12 1 J4 CONN, HEADER, 5x2 103309-1 AMP
13 8 J6,J7,J11,J12,
J13,J14,J15,
J16
CONN, SMA, COPLANAR 142-0761-801 Johnson
Components
14 2 J8,J9 CONN, POWER, 2 POSITION 1729018 Phoenix Contact
15 1 J10 CONN, USB, B, RECEPT 897-30-004-90-000000 MILL-MAX
16 1 J17 CONN, HEADER, 10X2 2340-6111TN or 2380-6121TN 3M
17 7 JP1,JP5,JP6,
JP7,JP8,JP9,
JP10
CONN, HEADER, 1X1 2340-6111TN or 2380-6121TN 3M
18 5 JP2,JP3,JP11,
JP12,JP13 CONN, HEADER, 2x1 2340-6111TN or 2380-6121TN 3M
19 3 JP16,JP17,
JP18 CONN, HEADER, 3x1 2340-6111TN or 2380-6121TN 3M
20 8 R1,R5,R15,
R16,R18,R19,
R27,R28
RES, SM, 3.01 k, 1%, 0402 CR0402-16W-3011FT Venkel
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
12 Rev. 0.1
21 2 R2,R3 RES, SM, 49.9 , 1%,0402 CR0402-16W-49R9FT Venkel
22 1 R4 RES, SM, 3.3 , 5%, 0402 CR0402-16W-3R3JT Venkel
23 1 R6 RES, SM,10 k, 1%, 0402 CR0402-16W-1002FT Venkel
24 7 R7,R8,R20,
R21,R22,R37,
R38
RES, SM, 200 , 1%, 0402 CR0402-16W-2000FT Venkel
25 7 R9,R10,R17,
R23,R24, RES, SM, 1 k, 1%, 0402 CR0402-16W-1001FT Venkel
R25,R26
26 2 R11,R12 RES, SM, 1.02 k, 0.1%, 0402 TFCR0402-16W-E-1021BT Venkel
27 2 R13,R14 RES, SM,301, 1%, 0402 CR0402-16W-3010FT Venkel
28 2 R29,R30 RES, SM,150, 1%, 0402 CR0402-16W-1500FT Venkel
29 6 R31,R32,R33,
R34,R35,R36 RES, SM, 17.8, 1%,0402 CR0402-16W-17R8FT Venkel
30 1 SW1 SWITCH, PUSH BUTTON, MINIATURE EVQPAD04M Panasonic
31 1 U1 IC, SM, Si5041 Si5041 Silicon Laboratories
32 1 U2 IC, SM, MCU, 32 POS, QFN C8051F320 Silicon Laboratories
33 1 U3 IC, Si534 534AB000129BG Silicon Laboratories
34 1 U4 IC, SM, VOLTAGE-SUPPLY
TRANSLATOR, 14 PIN DQFN FXL5T244BQX Fairchild
35 1 U5 IC, SM, DIODE ARRAY,
6 POS, SOT143 SP0503BAHT Littlefuse
36 1 U7 IC, SM, VOLTAGE REFERENCE,
8-PIN SOIC MAX6126AASA25 Maxim
37 1 Y1 CRYSTAL, SM, 114.285 MHz 7BA, 114.285 MHZ TXC
No Load
38 1 C35 CAP, SM, 0.01 µF, 25 V, X7R, 0402 C0402X7R250-103KNE Venkel
Table 2. Si5041-EVB Bill of Materials (Continued)
Item Qty Reference Description Manufacturer Number Manufacturer
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 13
5. Layers
Figure 12. Si5041-EVB Top Silkscreen
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
14 Rev. 0.1
Figure 13. Si5041-EVB Bottom Silkscreen
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 15
Figure 14. Primary Component Side
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
16 Rev. 0.1
Figure 15. Plane 1 (GND)
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 17
Figure 16. Plane 2 (PWR)
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
18 Rev. 0.1
Figure 17. Signal 1
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
Rev. 0.1 19
Figure 18. Plane 3 (GND)
Downloaded from Elcodis.com electronic components distributor

Si5041-EVB
20 Rev. 0.1
Figure 19. Signal 2
Downloaded from Elcodis.com electronic components distributor
