AZZA 6IFA User manual
PT-6IFA
SYSTEM BOARD
( VER. 1.x )
OPERATION MANUAL
PT-6IFA SYSTEM BOARD TABLE OF CONTENTS
i
TABLE OF CONTENTS
Chapter & Section Page
1. INTRODUCTION---------------------------------------------------------------------------1
1.1 SYSTEM OVERVIEW ----------------------------------------------------------------1
1.2 FEATURES ------------------------------------------------------------------------------1
2. SPECIFICATIONS -------------------------------------------------------------------------1
3. SYSTEM BOARD LAYOUT------------------------------------------------------------1
3.1 PT-6IFA VER. 1.x----------------------------------------------------------------------1
4. HARDWARE SETUP ---------------------------------------------------------------------1
4.1 UNPACKING----------------------------------------------------------------------------1
4.2 HARDWARE CONFIGURATION ------------------------------------------------1
4.2.1 DRAM INSTALLATION -------------------------------------------------------1
4.2.2 CONNECTORS--------------------------------------------------------------------3
4.2.3 JUMPERS---------------------------------------------------------------------------7
5. AWARD BIOS SETUP -------------------------------------------------------------------1
5.1 GETTING STARTED ----------------------------------------------------------------1
5.2 MAIN MENU ---------------------------------------------------------------------------1
5.3 CONTROL KEYS ---------------------------------------------------------------------2
5.4 STANDARD CMOS SETUP --------------------------------------------------------2
5.5 BIOS FEATURES SETUP ----------------------------------------------------------3
5.6 CHIPSET FEATURES SETUP ----------------------------------------------------5
5.7 POWER MANAGEMENT SETUP------------------------------------------------7
5.8 PNP/PCI CONFIGURATION-------------------------------------------------------8
5.9 INTEGRATED PERIPHERALS ---------------------------------------------------11
5.10 LOAD SETUP DEFAULTS -------------------------------------------------------12
5.11 SUPERVISOR PASSWORD / USER PASSWORD-------------------------12
5.12 IDE HDD AUTO DETECTION -------------------------------------------------13
5.13 HDD LOW LEVEL FORMAT---------------------------------------------------13
5.14 SAVE & EXIT SETUP-------------------------------------------------------------13
5.15 EXIT WITHOUT SAVING--------------------------------------------------------13
PT-6IFA SYSTEM BOARD
ii
TRADEMARKS
All trademarks used in this manual are the property of their respective owners.
NOTE
The "LOAD SETUP DEFAULTS" function loads the default settings directly from
BIOS default table, these default settings are the best-case values that should optimize
system performance and increase system stability . This function will be necessary
when you accept this system board, or the system CMOS data is corrupted.
By pressing "Enter" key, while "LOAD SETUP DEFAULTS" is highlighted, then
presses "Y" and "Enter" key. the SETUP default values will be loaded. (Please refer to
the Chapter 5 AWARD BIOS SETUP procedures in this maulal.)
NOTICE
Information presented in this manual has been carefully checked for reliability;
however, no responsibility is assumed for inaccuracies. The information contained in
this manual is subject to change without notice.
WARRING !
The "Static Electricity" will cause damage to the components on the system board, for
this reason, please eliminate all static electricity on your body before you touch this
system board.
PT-6IFA SYSTEM BOARD INTRODUCTION
1
I. INTRODUCTION
A. SYSTEM OVERVIEW
ThePT-6IFAPentium Pro PCI Local Bus system board is an ATX form-factor
system board. It is designed based on the Intel 82440FX PCIset system chipset and
Winbond I/O chipset. It built-in two channel PIO and Bus Master Enhanced PCI IDE
ports, one Floppy Disk control port, two high speed Serial ports (UARTs) and one
multimode Parallel port and also supports PS/2 mouse, IR and USB ports. It is designed
to fit a high performance, Pentium Pro Processor 150 MHz up to 266 MHz based
solution for high-end and true GREEN-PC computer systems.
The Pentium Pro Processor is a 64-bit processor with RISC technology, which offers
several key features such as built-in 256KB/512KB L2 cache, 12-stage superpipeline
architecture, out of order execution .... etc, in order to optimize its capabilities and
performances, the Pentium Pro Processors require 32-bit Operating Systems (such
Windows NT and OS/2) and applications.
This system board supports the Peripheral Component Interconnect (PCI) Local Bus
standard (PCI Spec. Rev. 2.1 compliant). It not only breaks through the I/O bottlenecks
of the traditional ISA main board, but also provides the performance needs for
networking and multi-user environments.
A. FEATURES
The PT-6IFA system board contains the following features:
Supports wide range Pentium Pro family CPUs from 150 MHZ through 266
MHz , fully IBM PC/AT compatible system board with ISA Bus and PCI Local
Bus.
Built-in 3 set voltage regulator circuits to support all low-voltage components
include CPU, chipset ..., so that no VRM (Voltage Regulator Module) is needed.
DRAM Memory : Supports fast page mode (FPM), Extended Data Out (EDO)
and Burst Extended Data Out (BEDO) memory. Supports
PT-6IFA SYSTEM BOARD INTRODUCTION
2
ECC/Parity functions.
Cache Memory : Supports Pentium Pro CPU's built-in 256KB/512KB L2 cache.
System BIOS: Supports Plug and Play System BIOS.
IDE ports : Supports two channel PIO and Bus Master Enhanced PCI IDE
ports, up to Mode 4 timing, and up to 22 MBytes/s transfer rates.
I/O ports : Supports two high speed serial ports (UARTs), One multimode
parallel port for standard (SPP), enhanced (EPP) and high speed
(ECP) modes. One Floppy Disk Control port. And also supports
PS/2 mouse connector on board.
IR Port : Supports IR (Infrared Rays) functions. Both HPSIR and ASKIR
are supported.
USB Ports : Supports two Universal Serial Bus (USB) ports.
ACPI : Supports a part of ACPI (Advanced Configuration and Power
Interface) functions, such as "Software Power Off".
PT-6IFA SYSTEM BOARD SPECIFICATIONS
1
I. SPECIFICATIONS
CPU
Intel Pentium Pro processors, from 150MHz through 266 MHz
CPU VCC
Three set voltage regulator circuits, support CPU operating voltage from +2.1V DC
through +3.5V DC
WORD SIZE
Data Path : 8-bit, 16-bit, 32-bit, 64-bit
PC SYSTEM CHIPSET
Intel 82440FX PCIset (82441FX, 82442FX, 82371SB)
SUPER I/O CHIPSET
Winbond W83977F
BUS FREQUENCY
60/66.6 MHz adjustable.
MEMORY
DRAM: Four banks, each bank could be single or double sided, 8MB up to 1024
MB.
Supports fast page mode (FPM), Extended Data Out (EDO) and Burst
Extended Data Out (BEDO) memory. (Using 72-pin SIMM x6).
CACHE : Supports Intel Pentium Pro CPU's built-in 256KB/512KB L2 cache.
BIOS
AWARD Plug & Play System BIOS. (128KBx8, Flash ROM)
EXPANSION SLOTS
PCI Slots : 32-bit x 4 (All Master/Slave, PCI Spec. Rev. 2.1 Compliant)
ISA Slots : 16-bit x4 (One slot PCI/ISA shared)
PT-6IFA SYSTEM BOARD SPECIFICATIONS
2
IDE PORTS
Two channel PIO and Bus Master Enhanced PCI IDE ports, maximum could be
connected up to 4 IDE Hard Disk and ATAPI CD-ROM device. BIOS supports IDE
CD-ROM boot-up.
SUPER I/O PORTS
1. Two high speed NS16C550 compatible serial prots (UARTs).
2. One parallel port, supports SPP/EPP/ECP mode.
3. One Floppy Disk Control port.
IR PORT
One HPSIR and ASKIR compatible IR transmission connector (5-pin).
MOUSE AND KEYBOARD
One PS/2 mouse connector, One PS/2 keyboard connector (optional) and One AT
keyboard connector.
USB PORTS
Two Universal Serial Bus (USB) ports.
DIMENSION
Width & Length : 244 mm x 305 mm.
Height : 3/4 inches with components mounted, but without expansion
boards and cables.
PCB Thickness : 4 layers, 0.05 inches normal.
Weight : 20 ounces.
ENVIRONMENT
Operating Temperature : 10to 40. (50to 104)
Required Airflow : 50 linear feet per minute across CPU.
Storage Temperature : - 40to 70. (- 40to 158)
Humidity : 0 to 90% noncondensing.
Altitude : 0 to 10,000 feet.
PT-6IFA SYSTEM BOARD SYSTEM BOARD LAYOUT
1

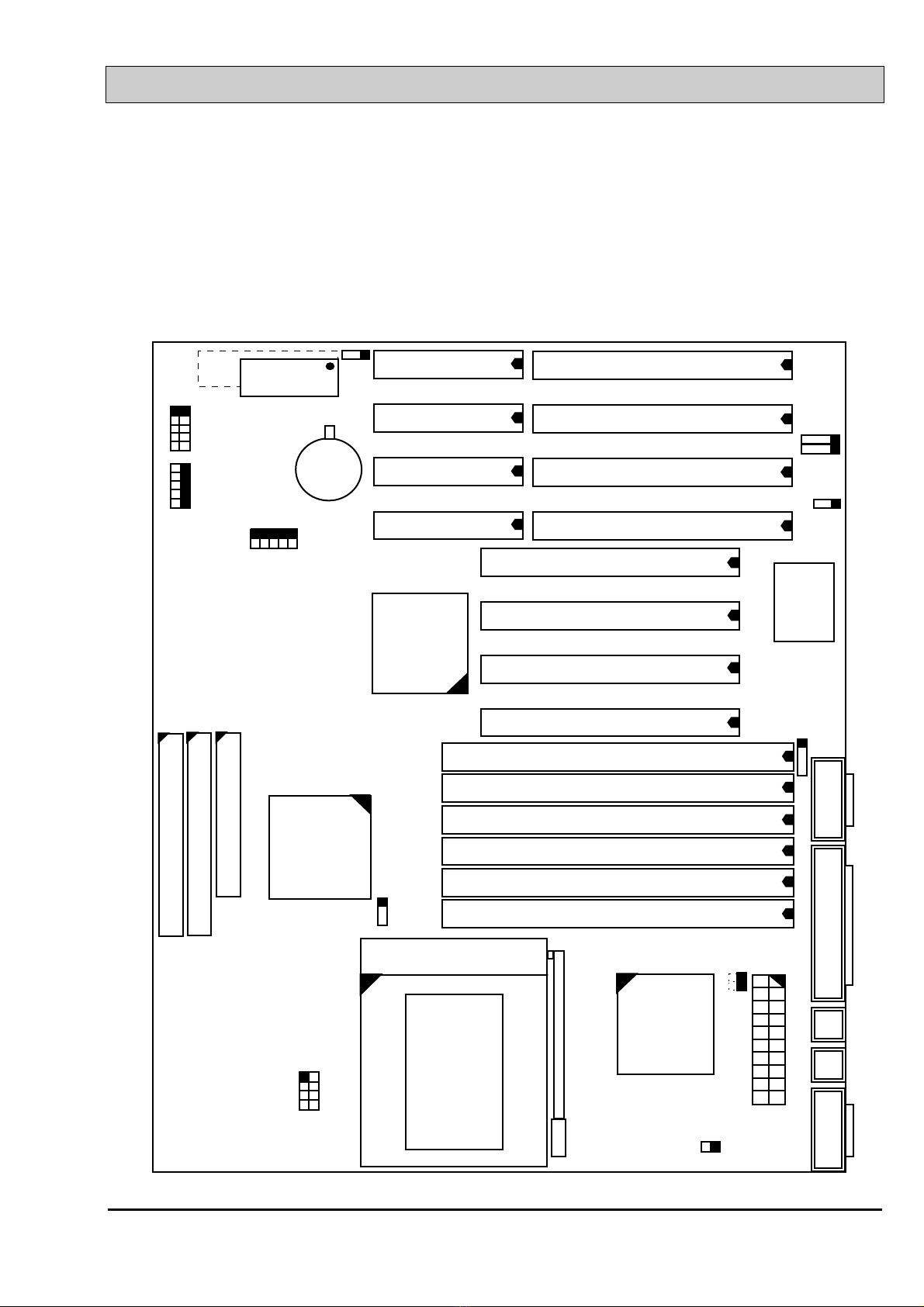

I. SYSTEM BOARD LAYOUT
A. PT-6IFA VER. 1.x
Explanation : All connectors, jumpers and components which marks by a black point on
the corner means the pin-1 side of the connector, jumper and component.
Intel
82371SB
BAT 1
CPU
SPEAKER
KEYLOCK
HL
SL
SS
PW
RS
Winbond
W83977F
SL4
Socket 8
JP1
82442FX
Intel
82441FX
Intel
JP5
JP4
USB2
USB1
SL3
SL2
SL1
PCI 1
PCI 2
PCI 3
PCI 4
JP3
JP2
CN5 POWER CON.
CN12
CN13
CN7 COM B CN1 COM A
CN3
PS/2
MS.
PS/2
KB.
CN2
COOLING FAN CON.
SIMM 6
SIMM 5
SIMM 4
SIMM 3
SIMM 2
SIMM 1
CN11 IR
JP11
CN4CN6 LPT
SYS. BIOS
CN9 IDE1
CN10 IDE2
CN8 FDC
JP10
JP9
JP8
JP7
JP6
1 2
7
+
_
8
PT-6IFA SYSTEM BOARD HARDWARE SETUP
1
I. HARDWARE SETUP
A. UNPACKING
The system board package should contain the following parts :
The PT-6IFA system board.
OPERATION MANUAL.
Cable set for IDE and I/O device.
A. HARDWARE CONFIGURATION
Before the system board is ready to operate, the hardware must be configured to allow
for various functions within the system. To configure the PT-6IFA system board is a
simple task, only a few jumpers, connectors, cables and sockets needs to be selected and
installed. (For the detailed locations of each component please refer to page 3-1 "system
board layout" figure )
1. DRAM INSTALLATION
The PT-6IFA system board will support four banks main memory on board (bank0 :
SIMM1, SIMM2. bank1 : SIMM3, SIMM4. bank2 : SIMM5, SIMM6), each bank could
be single-sided or double-sided, 8MB up to 768 MB of local memory can be attained. It
supports three types of DRAM memory either standard fast page mode (FPM),
Extended Data Out (EDO) or Burst Extended Data Out (BEDO) memory. (Both
Symmetrical and Asymmetrical DRAM addressing are supported.)
Bank can be populated in any order (bank 0 does not have to be populated before bank
1). Within any given bank, two SIMMs must be same size. Among the two banks,
SIMMs' densities could be mixed in any order. EDO, FPM and BEDO DRAMs could
be mixed between Banks, a given SIMM must contain only one type of DRAM. When
DRAM types are mixed, each SIMM runs optimized for that particular type of DRAM.
The speed of FPM DRAMs must be used 70ns or faster than 70ns, the speed of EDO
DRAMs and BEDO DRAMs must be used 60ns or faster than 60ns.
PT-6IFA SYSTEM BOARD HARDWARE SETUP
2
There is no jumper needed for DRAM configuration, DRAMs' type and size will be
detected by system BIOS automatically.
In DRAM memory subsystem, ECC and Parity can be checked on the DRAM interface
(Functions selected by BIOS via CMOS setup, please refer to Chapter 5, the defult
status is parity selected.) All SIMMs and DIMM must be populated with parity bit to
implement ECC or Parity functions.
ECC is an optional data integrity feature provided by the system. This feature provides
single-bit error correction, multiple-bit error detection, and detection of all errors
confined to single nibble for DRAM memory subsystem.
The SIMMs' operating voltage are :
SIMM1 - SIMM6 : + 5V DC
The usable DRAM modules are : (Note : S = Single-sided , D = Double-sided)
SIMMs : 1MBx32(36)-S ( 4MB) ,
2MBx32(36)-D ( 8MB) ,
4MBx32(36)-S ( 16MB) ,
8MBx32(36)-D ( 32MB) ,
16MBx32(36)-S ( 64MB) ,
32MBx32(36)-D (128MB) .
The following table is an example for DRAM memory installation, it contains several
modules combination, but not all combination.
Bank 0 Bank 1 Bank 2 Total
SIMM1, SIMM2 SIMM3, SIMM4 SIMM5, SIMM6 Size
4MB, 4MB 4MB, 4MB 4MB, 4MB 24 MB
8MB, 8MB 8MB, 8MB 8MB, 8MB 48 MB
16MB, 16MB 16MB, 16MB 16MB, 16MB 96 MB
32MB, 32MB 32MB, 32MB 32MB, 32MB 192 MB
64MB, 64MB 64MB, 64MB 64MB, 64MB 384 MB
128MB, 128MB 128MB, 128MB 128MB, 128MB 768 MB
PT-6IFA SYSTEM BOARD HARDWARE SETUP
3
1. CONNECTORS
A connector is two or more pins that are used make connections to the system standard
accessories (such as power, mouse, printer,...etc.) The following is a list of connectors
on board, as well as descriptions of each individual connector.
(A) BAT1 Battery Socket (Using 3 Vlots Lithium battery : CR2032)
Pin # Assignment
Battery Positive
Ground
(B) CN1 COM A (Serial Port 1) connector
COM1/2/3/4, selected by BIOS setup, using IRQ4 or 3
12 Pin#
Assignment Pin # Assignment
1 DCD (Data Carrier Detect) 2 RD (Received Data)
3 TD (Transmit Data) 4 DTR (Data Terminal
Ready)
5 Ground 6 DSR (Data Set Ready)
7 RTS (Request To Send) 8 CTS (Clear To Send)
9 RI (Ring Indicator) 10 NC (No Connection)
910
(B) CN2 Cooling Fan Power Connector
12 Pin#
Assignment Pin # Assignment
1+12VDC 2Ground
(C) CN3 PS/2 Mouse connector
Pin # Assignment Pin # Assignment Pin # Assignment
1 Mouse Data 3 Ground 5 Mouse Clock
2 No Connection 4 + 5V DC 6 No Connection
(D) CN4 PS/2 Keyboard connector
Pin # Assignment Pin # Assignment Pin # Assignment
1 Keyboard Data 3 Ground 5 Keyboard Clock
2 No Connection 4 + 5V DC 6 No Connection
PT-6IFA SYSTEM BOARD HARDWARE SETUP
4
(E) CN5 Power connector
Pin # Assignment Pin # Assignment Pin # Assignment
1 + 3.3V DC 8 PW-OK 15 Ground
2 + 3.3V DC 9 + 5V SB 16 Ground
3 Ground 10 + 12V DC 17 Ground
4 + 5V DC 11 + 3.3V DC 18 5V DC
5 Ground 12 12V DC 19 + 5V DC
6 + 5V DC 13 Ground 20 + 5V DC
7 Ground 14 PS-ON
(F) CN6 Parallel Port connector
(Supports Normal/EPP/ECP mode, selected by BIOS setup,using IRQ7 or
IRQ5,ECP using DMA channel 3 or 1)
114 Pin#
Assignment Pin # Assignment
1STROBE14 AUTO FEED
2 Data Bit 0 15 ERROR
3 Data Bit 1 16 INIT
4 Data Bit 2 17 SLCT IN
5 Data Bit 3 18 Ground
6 Data Bit 4 19 Ground
7 Data Bit 5 20 Ground
8 Data Bit 6 21 Ground
9 Data Bit 7 22 Ground
10 ACK23 Ground
11 BUSY 24 Ground
12 PE 25 Ground
13 SLCT 26 N.C. (No Connection)
13 26
(G) CN7 COM B (Serial Port 2) connector
COM1/2/3/4, selected by BIOS setup, using IRQ3 or 4
12 Pin#
Assignment Pin # Assignment
1 DCD (Data Carrier Detect) 2 RD (Received Data) or IR-RX
3 TD (Transmit Data) or IR-
TX
4 DTR (Data Terminal Ready)
5 Ground 6 DSR (Data Set Ready)
7 RTS (Request To Send) 8 CTS (Clear To Send)
PT-6IFA SYSTEM BOARD HARDWARE SETUP
5
9 RI (Ring Indicator) 10 NC (No Connection)
910
(H) CN8 Floppy Disk Control Port connector (Using IRQ6, DMA channel 2)
(I) CN9 IDE 1 connector (Primary IDE Port, I/O address is 1F0H, using IRQ14)
(J) CN10 IDE 2 connector (Secondary IDE Port, I/O address is 170H, using
MIRQ0)
(K) CN11 IR (Infrared Rays) connector
1Pin#
Assignment
1 + 5V DC
2 No Connection
3 IR Receive (IR-RX2)
4 Ground
5 IR Transmit (IR-TX2)
5
(L) CN12 USB 1 (Universal Serial Bus port1) connector
1Pin#Assignment
1 + 5V DC
2DATA
3DATA
4 Ground
4
(M) CN13 USB 2 (Universal Serial Bus port2) connector
1Pin#Assignment
1 + 5V DC
2DATA
3DATA
4 Ground
4
(N) RS Reset Button connector
Pin # Assignment Pin1&2 Function
1 Ground Open No action
PT-6IFA SYSTEM BOARD HARDWARE SETUP
6
2 Reset Control Short System Reset
(O) HL IDE HDD LED connector
Pin # Assignment
1 Pullup (+ 5V DC)
2 Signal Pin
(P) TL Turbo LED connector
Pin # Assignment
1 Pullup (+ 5V DC)
2 Signal Pin
(Q) SS External SMI button connector
Pin # Assignment Pin1&2 Function
1 SMI Control Open For normal operation
2 Ground Short To get into Suspend mode
(R) PW Panel Power Switch connector
Once : Power On
Next : Power Off
(S) SPEAKER Speaker connector
1Pin#
Assignment
1 + 5V DC
2 No Connection
3 No Connection
4 Speaker Data Signal
5 No Connection
5
(T) KEY LOCK Front Panal Power LED & Key-Lock connector
1Pin#
Assignment
1 Pullup (+ 5V DC for Power LED)
2 No Connection
3 Ground
4 Keyboard Lock
5 Ground
5
PT-6IFA SYSTEM BOARD HARDWARE SETUP
7
Explanation : ( For next section : JUMPERS )
open
1-2
1
2-3
1
1
11
short
,
,
1. JUMPERS
A jumper is two, three or more pins which may or may not be covered by a plastic
connector plug (mini-jumper). A jumper is used to select different system options.
Please make sure all jumpers at correct position before this system board used.
(A) JP1 CPU operating voltage selection
Different Pentium Pro processors may require different operating voltages (VccP).
Current processors (marked "Pentium Pro") support VID and will automatically
adjust the output of voltage regulator so that no jumper setting are needed (leave
these jumpers open in this case). Some older processors without VID support
require manual voltage ID setting. The following table is used for those older
processors only.
JP1 JP1
Voltage 1-2 3-4 5-6 7-8 Voltage 1-2 3-4 5-6 7-8
VID0 VID1 VID2 VID3 VID0 VID1 VID2 VID3
+2.1V short open open open +2.9V short open open short
+2.2V open short open open +3.0V open short open short
+2.3V short short open open +3.1V short short open short
+2.4V open open short open +3.2V open open short short
+2.5V short open short open +3.3V short open short short
+2.6V open short short open +3.4V open short short short
+2.7V short short short open +3.5V short short short short
+2.8V open open open short
Note :The detailed CPU-VccP requirement, please inquire of your CPU supplier.
PT-6IFA SYSTEM BOARD HARDWARE SETUP
8
(B) JP4,JP6-JP10 CPU External (BUS) Frequency and CPU to BUS Frequency
Ratio selection
(1). CPU External (BUS) Frequency selection
Frequency (unit : MHZ) Remark
System PCI Bus JP4 JP9 JP10 (CPU Type)
60 30 1-2 open short For 150, 180, 210, 240
66.6 33.3 2-3 short open For 166, 200, 233, 266
(2). CPU to BUS Frequency Ratio selection
Ratio JP6 JP7 JP8 Remark (CPU Type)
2 xshort short short
2.5 xopen short short For 150, 166
3 xshort open short For 180, 200
3.5 xopen open short For 210, 233
4 xshort short open For 240, 266
5 xshort open open
(3). Currently common CPUs Frequency and Ratio quick setting
CPU
(MHz) JP4 JP6 JP7 JP8 JP9 JP10 Remark
150 MHz 1-2 open short short open short
166 MHz 2-3 open short short short open
180 MHz 1-2 short open short open short
200 MHz 2-3 short open short short open
210 MHz 1-2 open open short open short
233 MHz 2-3 open open short short open
240 MHz 1-2 short short open open short
266 MHz 2-3 short short open short open
PT-6IFA SYSTEM BOARD HARDWARE SETUP
9
(C) JP5 Clear CMOS button
Pin # Function
open Normal operation
short Clear CMOS
(Note : Don't forget to open this jumper after 2-3 seconds)
Note : Depends on different brand-name of RTC IC (U33 or U32), there are two
times to clear CMOS, the following is a list for reference :
(1) while power-on : BENCHMARQ / bq3287AMT, SGS / M48T86,
(2) while power-off : VIA / VT82885N, ODIN / OEC12C885 /
OEC12C887A,DALLAS / DS12887A.
(D) JP11 ROM BIOS Selection
Pin # Function
1-2 For +5V FLASH ROM
2-3 For +12V FLASH ROM
PT-6IFA SYSTEM BOARD AWARD BIOS SETUP
1
I. AWARD BIOS SETUP
A. GETTING STARTED
When the system is first powered on or reset, the BIOS will enter the Power-On Self
Test routines ( POST : Display a copyright message on the screen followed by a
diagnostics and initialization procedure.) (If an EGA or VGA card is installed, the
copyright message of the video card maybe displayed on the screen first.) The BIOS
will indicate any error or malfunction by a series of beeps or display the error message
on screen.
Normally, the simulate figure 5-1 will display on the screen when the system is powered
on.
Fig. 5-1 Initial Power-On screen.
During the POST routines are progress, the following message appears :
" Press DEL to enter SETUP "
To execute the Award BIOS Setup program, press DEL key. The simulate screen in
figure 5-2 MAIN MENU will be displayed at this time.
A. MAIN MENU
ROM PCI / ISA BIOS (2A69HXXX)
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP SUPERVISOR PASSWORD
BIOS FEATURES SETUP USER PASSWORD
CHIPSET FEATURES SETUP IDE HDD AUTO DETECTION
POWER MANAGEMENT SETUP HDD LOW LEVEL FORMAT
PNP/PCI CONFIGURATION SAVE & EXIT SETUP
INTEGRATED PERIPHERALS EXIT WITHOUT SAVING
LOAD SETUP DEFAULTS
PT-6IFA SYSTEM BOARD AWARD BIOS SETUP
2
ESC : Quit : Select Item
F10 : Save & Exit Setup (Shift)F2 : Change Color
Time, Date, Hard Disk Type ...
Fig. 5-2 CMOS SETUP MAIN MENU screen.
A. CONTROL KEYS
Listed below is an explanation of the keys displayed at the bottom of the screens
accessed through the BIOS SETUP program :
Arrow Keys : Use the arrow keys to move the cursor to the desired item.
Enter : To Select the desired item.
F1 : Display the help screen for the selected feature.
(Shift)F2 : To change the screen color, total 16 colors.
ESC : Exit to the previous screen.
PgUp(-)/PgDn(+) : To modify the default value of the options for the highlighted
feature.
F5 : Retrieves the previous CMOS values from CMOS, only for the
current option page setup menu.
F6 : Loads the BIOS default values from BIOS default table, only for
the current option page setup menu.
F7 : Loads the SETUP default values from BIOS default table, only for
the current option page setup menu.
F10 : Save all changes made to CMOS RAM, only for the MAIN
MENU.
The following pages will show the simulate screens of CMOS SETUP, each figure
contains the setup items and the default settings of them. Below each figure may or may
not contain a lists of function description for commonly used settings. For the other
settings' function description if you still needed, please feel free to contact with your
supplier.
A. STANDARD CMOS SETUP
ROM PCI / ISA BIOS (2A69HXXX)
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
PT-6IFA SYSTEM BOARD AWARD BIOS SETUP
3
Date (mm : dd : yy) : Mon, Mar 10 1997
Time (hh : mm : ss) : 16 : 43 : 55
HARD DISKS TYPE SIZE CYLS HEAD PRECOMP LANDZ SECTOR MODE
Primary Master Auto 0 0 0 0 0 0 Auto
Primary Slave Auto 0 0 0 0 0 0 Auto
Secondary Master Auto 0 0 0 0 0 0 Auto
Secondary Slave Auto 0 0 0 0 0 0 Auto
Drive A : 1.44M, 3.5 in.
Drive B : None Base Memory : 640 K
Extended Memory : xxxxxx K
Video : EGA/VGA Other Memory : xxxxxx K
Halt On : All Errors Total Memory : xxxxxx K
ESC : Quit : Select Item PU/PD/+/- : Modify
F1 : Help (Shift)F2 : Change Color
Fig. 5-3 STANDARD CMOS SETUP screen.
MODE :
For IDE hard disks, this BIOS provides three modes to support both normal size IDE
hard disks and also disks size larger the 528MB:
NORMAL : For IDE hard disks size smaller then 528MB.
LBA : For IDE hard disks size larger then 528MB and up to 8.4GB (Giga
Bytes) that use Logic Block Addressing (LBA) mode.
Large : For IDE hard disks size larger then 528MB that do not use LBA mode.
Large mode is a new specifition which may not be fully supported by
all operation systems. Now it can only be used with the MS-DOS and is
very uncommon.
Auto : Auto is a new technology, you can select "Auto" under TYPE and
Mode fields. This will enable automatic detection of your IDE driver during
bootup.
(Note :Some OSes (like SCO-UNIX) must use "NORMAL" for installation.)
A. BIOS FEATURES SETUP
ROM PCI / ISA BIOS (2A69HXXX)
This manual suits for next models
1
Table of contents
Other AZZA Motherboard manuals
