Silicon Laboratories Si50x-FPB1-EVB User manual

Rev. 0.1 6/13 Copyright © 2013 by Silicon Laboratories Si50x-FPB1-EVB-DS087
Si50x-FPB1-EVB
FIELD PROGRAMMER USER GUIDE
Description
The Silicon Laboratories Si50x-FPB1 kit contains the
hardware and software needed for field programming
the Si501/2/3/4 Singe/Dual/Quad/Any-Frequency
single-wire programmable CMEMS® (CMOS + MEMS)
oscillators. The Field Programmer Board (FPB) can be
run on a USB-equipped PC.
Features
Field programming of Silicon Laboratories'
Si501/2/3/4 CMEMS oscillators
Windows-compatible software control and
device programming
Kit Shipment Contents

Si50x-FPB1-EVB
2 Rev. 0.1
1. Quick Start
1. Install the Si50x CMEMS® FPB Software and driver.
2. Download FPB GUI Software from www.silabs.com/Si50x-FPB1
3. Launch the Field Programmable Oscillator Software by selecting Start All Programs Silicon
Laboratories Si50x Field Programmer.
4. Install blank Device Under Test (DUT) to be programmed and follow the Graphical User Interface (GUI)
directions.
Figure 1. FPB GUI and Kit Contents

Si50x-FPB1-EVB
Rev. 0.1 3
2. Introduction
This Si50x-FPB1 User’s Guide documents immediately useful information for programming blank devices (DUTs)
and additional reference details in support of the Si50x-FPB1(FPB). This document also describes the operation
of the Silicon Laboratories Si50x-FPB1 field programmer kit. The Si50x-FPB1 kit refers to the field programmer
board hardware and software intended for field programming of the Si501, 502, 503, and 504 CMEMS oscillators.
The term, “field programming” as it is used in this document refers to writing the write-once configuration registers in Non-Volatile
Memory (NVM). The NVM controls the configuration of the device on powerup.
2.1. Kit Contents
The Si50x-FPB1 kit contains the following:
Si50x Field Programmer Board
Plastic tweezers
Metal tweezers
USB Type B retractable cable
2 canisters w/ blanks on tape inside
25 blank 2025 parts
25 blank 2532 parts
25 blank 3250 parts
Note: The FPB GUI must be downloaded from www.silabs.com/Si50x-FPB1. It is not included in the FPB Kit.
The software components run on a USB-equipped PC and are described in detail in Section “11. Software Guide”
The Si50x-FPB1 field programmer board can be used to program one Si50x CMEMS oscillator at a time when
installed in 1 of 4 differently sized sockets.

4Rev. 0.1
Si50x-FPB1-EVB
2.2. FPB-EVB GUI Quick Start Guide
Figure 2. Main Screen (1 of 2)
TypeanexistingOPNhereandallexisting
OPNsdisplaybelow.Hit<enter>to
deployOPNconfigurationintooption
dropͲdownboxes.
Hitmagnifyingglasstoseealistofall
OPNsgeneratedbytheuser’sFPB.
Option1:Vdd,lowpower/lowjitter,tr/tf
Selectdevice:Si501/Si502/Si503/Si504.
Theavailableoptionschangeaccording
totheselecteddevice.
Createreportonlygeneratesthereport
anddoesnotprogramanysample.Thisis
availablewithorwithoutanFPBboard.
Programthetargetdevice,generatean
OPNandreport.Usermusthavea
SiLabs.comuserIDandbeconnectedto
theinternet.UserDOESNOThavetobe
connectedtoprogramthepartand
report,butanOPNwillnotbegenerated.
ProvidestheOPNandreport.Doesnot
programapart.Usermusthavea
SiLabs.comuserIDandbeconnectedto
theinternet.
Packageselectioncorrespondstoa
specificsocketshownbylightedLED.
Revisionisnotselectablebecausethere
isonlyRevA.
Greencheckindicatesboardis
connected.
“PartNumber”willdisplay“XXXX”until
anofficialOPNisavailable.IfanOPNis
available,thisfieldwilldisplaythefull
OPN.
Clearsform.

Si50x-FPB1-EVB
Rev. 0.1 5

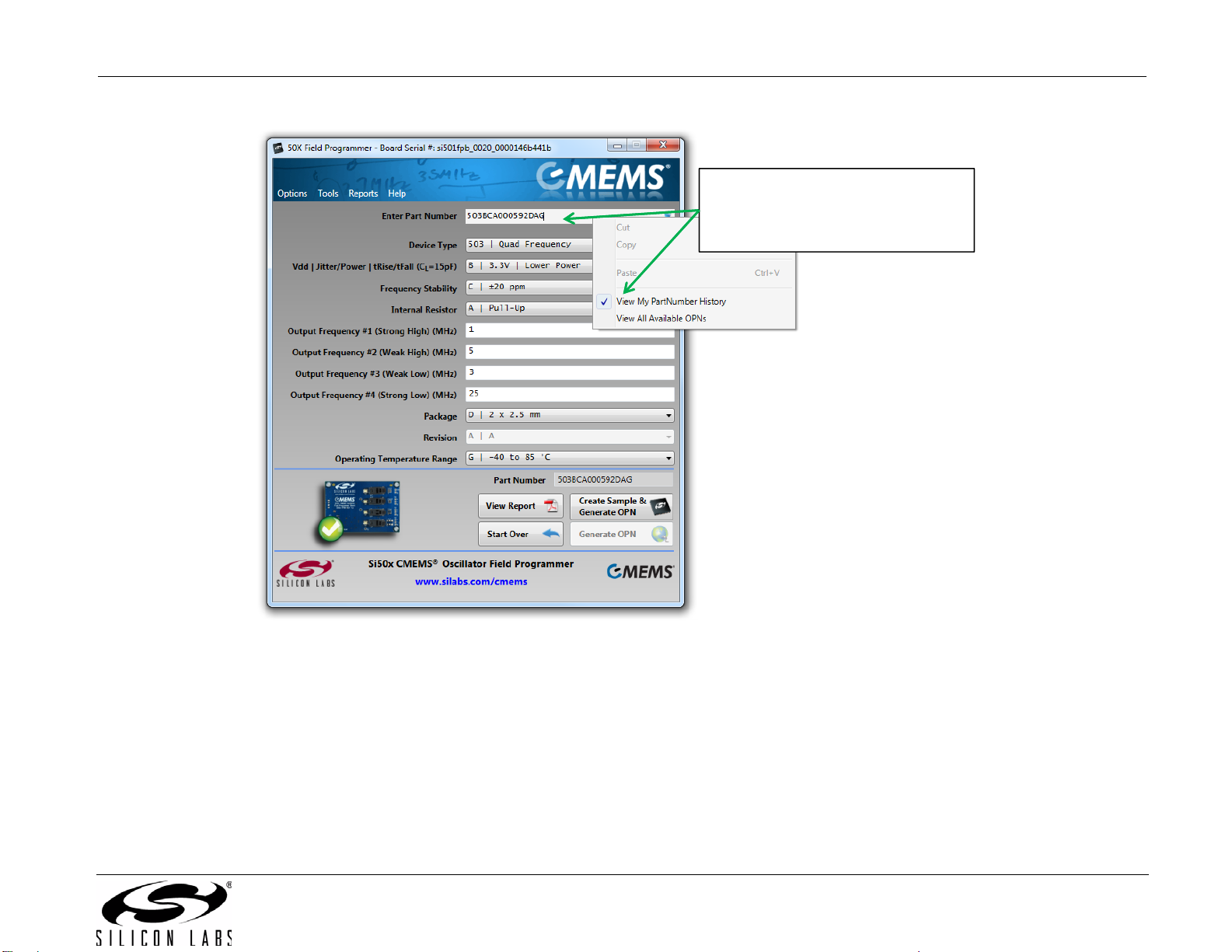

Figure 3. Main Screen (2 of 2)
RightClickintheSearchfieldtoselect
whetheryouseeALLOPNsinSAPorjust
theOPNscreatedonthisField
ProgrammerBoard.

6Rev. 0.1
Si50x-FPB1-EVB
Figure 4. Programming Screen
LEDindicatestargetsocketfor
programming.Anerrormessagewill
displayifthedeviceisinadifferent
socketthantheonetargeted.
Returnstomainscreen.Allsettings
remain.
Optionalfieldtoentercommentssuchas
customername,targetapplication,etc.
Usercan“continueanyway”tocreatea
sampleusingadifferentsizepackage
thanthedesiredOPN.TheOPNanddata
sheetaddendumwillshowthepart
numberforthedifferentpackage.

Si50x-FPB1-EVB
Rev. 0.1 7
Table 1. Drop Down Menus
Drop Down Menu Selection Function
Options Exit Exits GUI.
Tools Advanced Control Programmer Board Allows user to enable/disable VDD and set OE
High/OE Low. This is an advanced feature.
Advanced Update FW Updates EVB FW with file saved to hard drive.
New FW is included any time the GUI is
updated.
Submit Pending OPNs If a user has created part configurations while
not connected to the internet, they will be
stored here. The GUI will also prompt the user
to submit pending OPNs at launch.
Generate OPN Initiates the process to generate an OPN.
Query FPB FW Version Provides FPB MCU Firmware version.
Reports View Latest Sample Report Opens last generated report.
View Part Number History Opens a table of all part numbers generated
by the FPB. The report can be exported to
Excel.
View All Sample Reports on Hard Drive Opens the directory where all sample reports
are stored.
EVB Firmware Version Provides the EVB FW version number.
Help User’s Guide Opens the User’s Guide in pdf.
Device Data Sheet Opens latest device data sheet. Later revi-
sions of the data sheet are loaded with new
GUI SW updates.
Order Blank Parts Provides the OPN for more blank parts. More
parts must be ordered through Silicon Labs
representatives.
Check for GUI Software Update Checks www.silabs.com for any available GUI
updates.
Check for FPB Firmware Update Checks www.silabs.com for any available FW
updates for the FPB MCU.
About Provides information on FPB SW and FW
version numbers.

Si50x-FPB1-EVB
8 Rev. 0.1
3. Board Views
3.1. Top Board View
Figure 5. Top Board View

Si50x-FPB1-EVB
Rev. 0.1 9

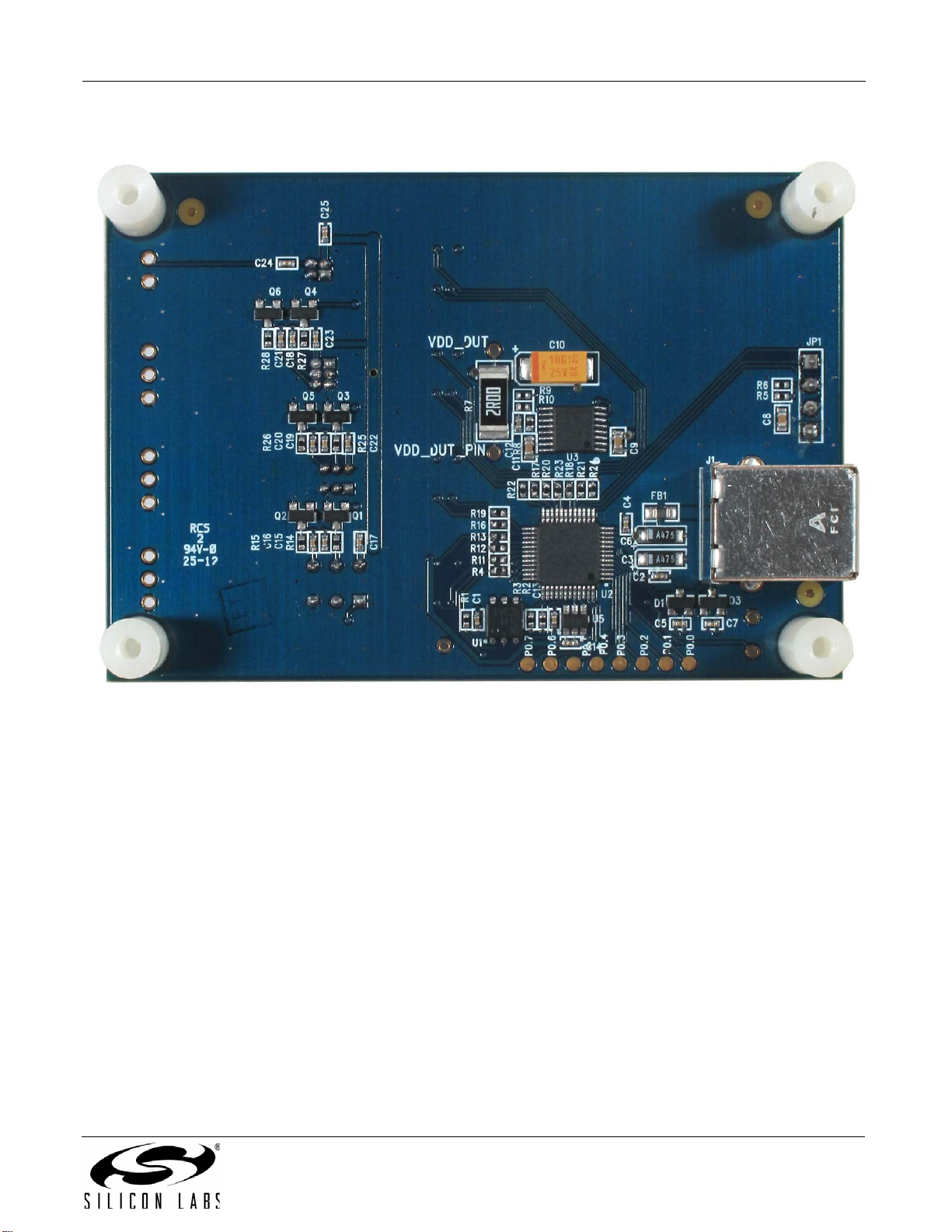

3.2. Bottom Board View
Figure 6. Bottom Board View

Si50x-FPB1-EVB
10 Rev. 0.1
4. Functional Description
Figure 7. Block Diagram
The pages that follow provide the detailed functional description of the hardware. The FPB schematics, bill of
materials, and PCB layouts are included as sections 15, 16, and 17, respectively. Figure 7 provides a block
diagram for the board.
Location descriptions in this document assume the reader is viewing the board in the conventional orientation, i.e.,
looking down on the top side (primary side) with the silkscreen text right side up as in Figure 5.
4.1. Power Supply
The Si50x-FPB1 is pre-configured to accept +5 V from the USB connector at J1. The +5 V is filtered and routed to
the MCU, the DUT VDD voltage regulator, and to each DUT’s status LEDs. The output of the voltage regulator is
under MCU control and yields either 3.3 V or 4.1 V. The higher voltage is used when writing to the DUT’s NVM. The
power supply components are mounted on the back side of the board

Si50x-FPB1-EVB
Rev. 0.1 11
4.2. MCU
The Silicon Laboratories MCU, P/N C8051F380 is alsomountedon the backside oftheboardatU2.TheMCU provides
the following functions:
Supports single-wire communication(C1)to the DUT on behalf of the host PC per the Field Programmable
Oscillator Software
Drives 3-state status indicator LEDs (see Table 3)
Supplies 3.3 V to peripheral ICs (the serial number generator and the C1 voltage level shifter)
Controls DUT voltage supply regulator (see Section “4.1. Power Supply” )
Switches in pull-down near end bias resistors (reserved for future use)
Auto-detects the board type. The firmware identifies the board type MCU via port P1.7 (pin 29). The voltage at
this pin is pulled up internally on the Si50x-FPB1. (The pin is pulled down via an external resistor on the Si501/
2/3/4-EVB customer evaluation board.)

Si50x-FPB1-EVB
12 Rev. 0.1
5. Device Support
The FPB has four latch-able sockets installed to support four different surface mount package sizes. These are
enclosed in red in Figure 8 below. To the right of each socket is the corresponding device footprint to further guide
the user as to which socket supports which size package. Note that the pin 1 location is marked in silk screen
beside each package footprint. The device must be inserted into the socket in this orientation to work. Also note
that some landing patterns have six pads. This is to support future differential output devices. The Si501/2/3/4 have
four pins and only support single-ended LVCMOS outputs.

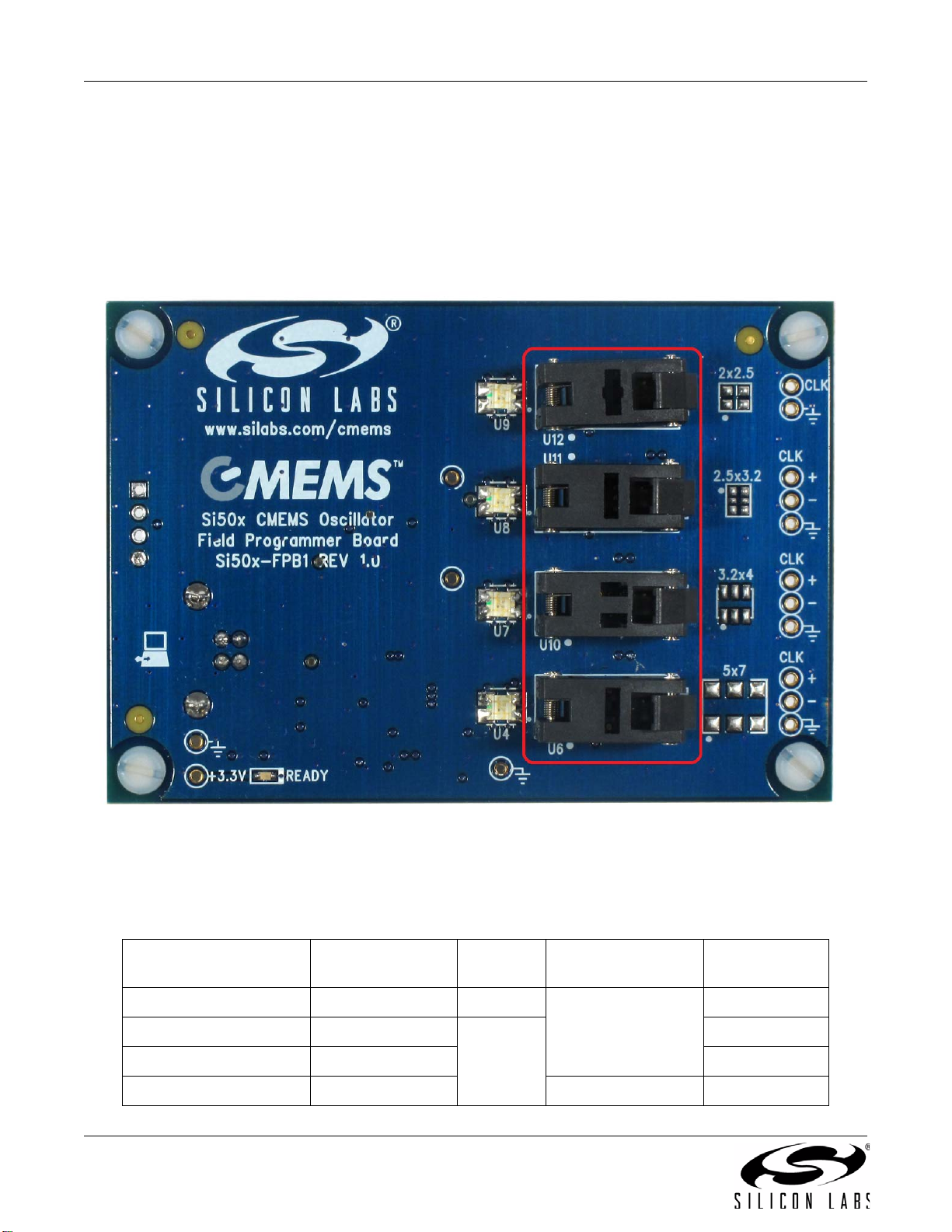

Figure 8. Socket Locations
Reference information regarding sockets and package compatibility is listed in Table 2 below. Sockets are listed in
the same relative order as shown in Figure 8.
Table 2. Si50x-FPB1 Device Support
Nominal Package Size
(mm) Socket Ref Des # Pins Supported Devices Notes
2x2.5 U12 4 Si501, Si502
Si503, Si504
2.5x3.2 U11 6
3.2x4 U10
5x7 U6 N/A Reserved

Si50x-FPB1-EVB
Rev. 0.1 13
6. USB
A 4-pin USB Type B receptacle is provided at location J1. The Si50x-FB1 is compatible with USB Specification 2.0.
This connector is mounted on the back of the PC board in the lower left hand corner. The location is noted on the
top side with silkscreen artwork showing an icon of a PC with bidirectional arrows. See Figure 9 below.

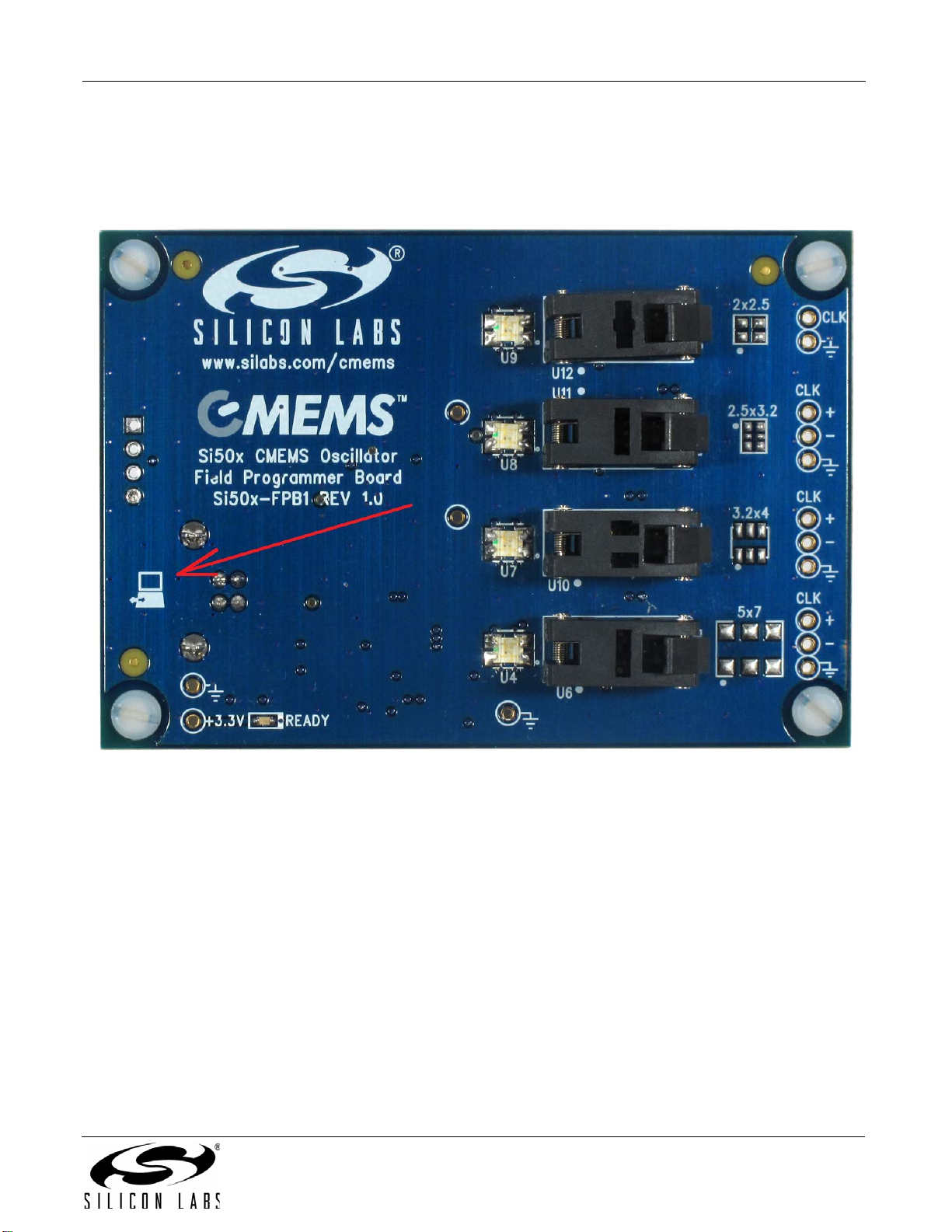

Figure 9. USB Connection Location

Si50x-FPB1-EVB
14 Rev. 0.1
7. Status Signals
The five LEDs on the board are listed in Table 3. Four of these are surface mount tri-color Red, Green, Blue (RGB)
LED units that report the programming status for DUTs in their respective sockets. (Note that yellow or amber is
produced by mixing Red + Green light simultaneously). The location of these LEDS is noted in Figure 10.

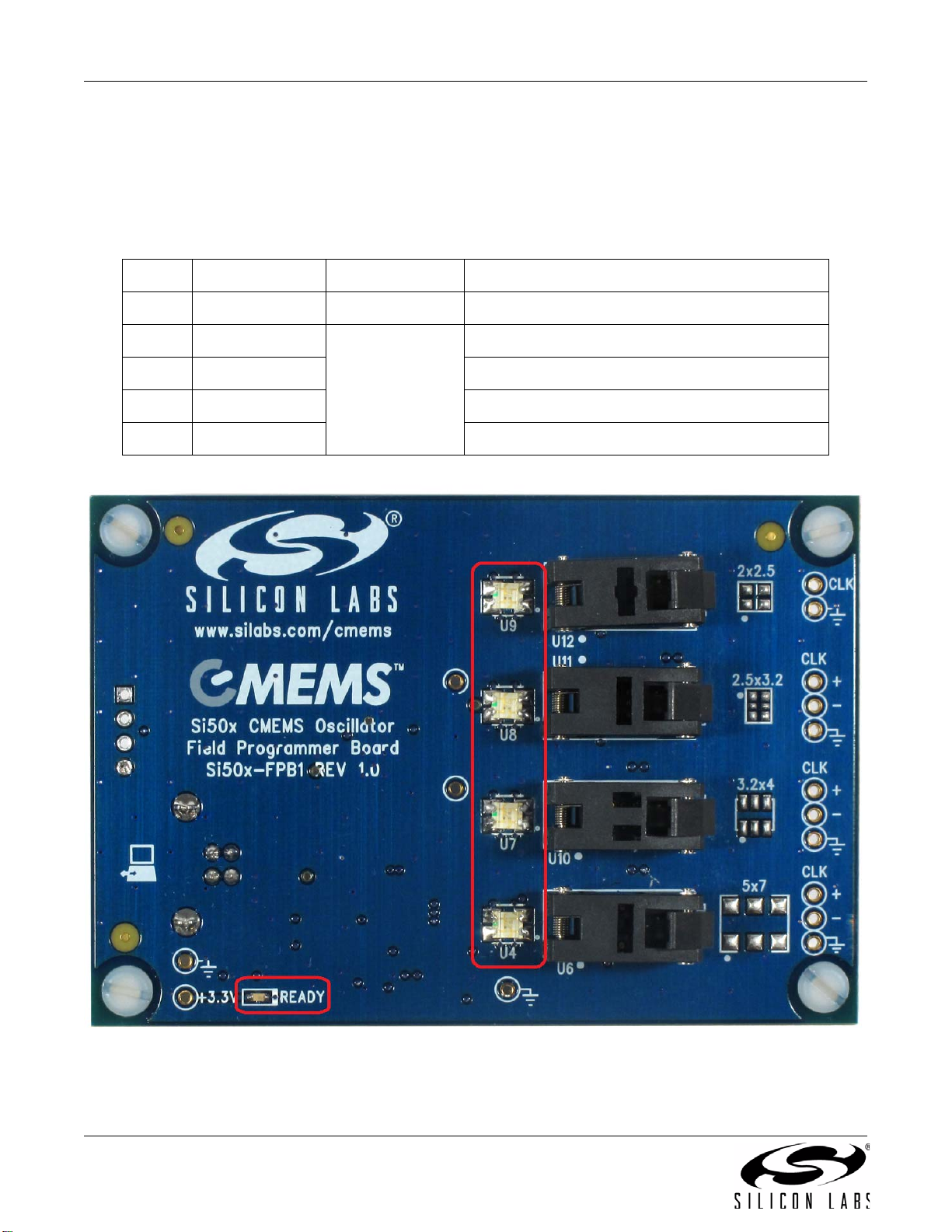

Figure 10. Si501-FPB1 LEDs
Table 3. Si501-FPB1 LEDs
Ref Des Signal Color (Status) Notes
D2 Ready Green Should illuminate on USB connection (power up)
U4 5x7 Status Green (Pass)
Red (Fail)
Yellow (Busy)
Blue (Socket
Location)
Reserved
U7 3.2x4 Status
U8 2.5x3.2 Status
U9 2x2.5 Status

Si50x-FPB1-EVB
Rev. 0.1 15
8. Current Sense Resistor
There is one current sense resistor located on the FPB designated R7 and placed between test points
VDD_DUT_PIN TP15 and VDD_DUT TP16 in the center back side of the board. R7 is pointed out in the photo
below. The default or pre-loaded resistor value is 2 . The voltage drop across this resistor may be used for
calculating a DUT's current draw and power consumption.

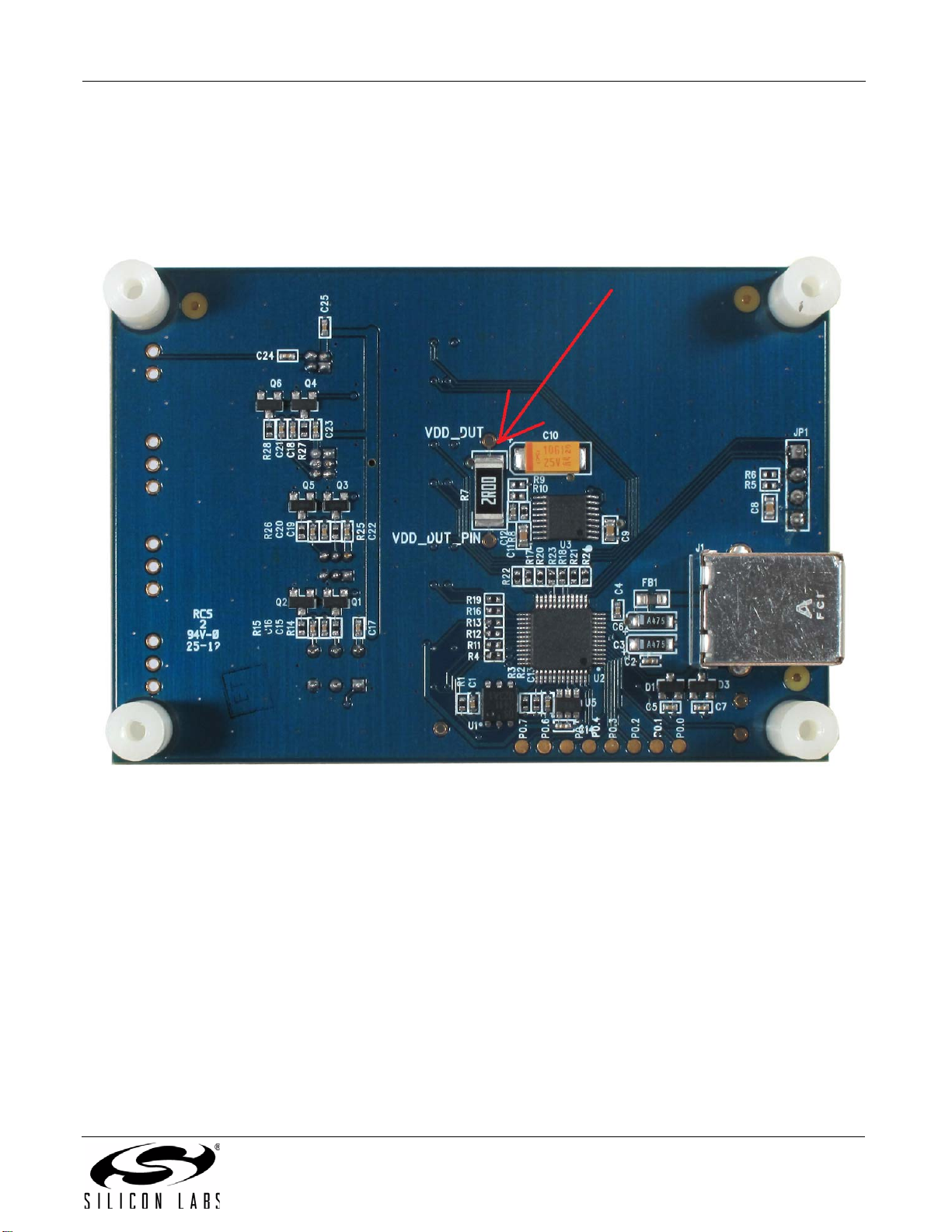

Figure 11. Current Sense Resistor Location

Si50x-FPB1-EVB
16 Rev. 0.1
9. Outputs
At this time, the Si50x-FPB1 supports only single-ended format outputs on the Si501/2/3/4 CMEMS oscillator. The
three 6-pin sockets will support differential outputs on future oscillator devices. Near-end bias resistors are installed
to support future devices. All outputs are ac-coupled to test points on the right hand side edge of the board (see
Figure 12). These output test points are also included in Table 4.
Figure 12. Output Test Points

Si50x-FPB1-EVB
Rev. 0.1 17
10. Headers and Test Points
For reference purposes, all headers (JP*) and test points (TP*) are collected in Table 4. There are no headers
intended for routine jumper use in the current version of the FPB. The output test points give ac-coupled access to
a DUT installed in a socket. Generally, these test points are not populated. (The “NI” in the Notes column means
“Not Installed”.)
Table 4. Si50x-FPB1 Headers and Testpoints
Category Ref
Des Signal Notes
MCU JP1 1-C2D Header 4x1
2-C2CLK
3-BOOTLDR
4-GND
Power
Supplies TP1 3.3V Red Loop
TP11 GND Black Loop
TP12 GND Black Loop
TP15 VDD_DUT_PIN Red Loop
TP16 VDD_DUT Red Loop
Outputs TP17 5x7 CLKN NI
TP18 5x7 CLKP NI
TP19 5x7 GND NI
TP20 3.2x4 CLK_N NI
TP21 2.5x3.2 CLKN NI
TP22 3.2x4 CLKP NI
TP23 2.5x3.2 CLKP NI
TP24 2x2.5 CLK NI
TP25 3.2x4 GND NI
TP26 2.5x3.2 GND NI
TP27 2x2.5 GND NI

Si50x-FPB1-EVB
18 Rev. 0.1
11. Software Guide
Users must download the Si50x CMEMS Oscillator Software, available from the Silicon Labs website at
www.silabs.com/Si50x-FPB1. This software includes a User's Guide as well. The FPB SW controls the FPB and allows
the user to set all configurable parameters, program devices, and generate orderable part numbers and reports.
11.1. Configuring the Si501-FPB1
Figure 13. Si50x-FBP1Typical Configuration

Si50x-FPB1-EVB
Rev. 0.1 19
11.2. 50X Field Programmer Software Installation
The following sections describe how to install and use the 50X Field Programmer software. This software runs on a
USB equipped PC to field program the NVM of Si501/2/3/4 MEMS oscillators. It can also be used to generate an OPN
(Orderable Part Number). Context sensitive help windows pop up when the cursor hovers above a feature on the GUI.
There is a readme.txt file with the installation files as well as a software user guide installed with the software.
System Requirements
Microsoft Windows® 2000, XP, Vista, 7
 USB 2.0
2 MB of free hard drive space
1024 x 768 screen resolution or greater
Microsoft .NET Framework 4.0
USBXpress 3.1.1 driver
Note: USBXpress 3.1.1 driver is provided and installed with the software.
11.3. Microsoft .NET Framework Installation
The Microsoft .NET Framework is required before installing and running the software. Details and installation
information about the .NET Framework are available via a shortcut in the NETFramework directory or at the
following web site:
http://www.microsoft.com/en-us/download/details.aspx?id=26
There are multiple versions of the .NET Framework available from Microsoft,and they can be installed side-by-side
on the same computer. The software requires Version 4.0. Contact your system administrator for more details.
11.4. Si50x CMEMS® Field Programmer Oscillator Software Installation
The Si50x CMEMS Oscillator Software is installed from the Si50xCMEMSSwInstall.exefile.
1. Double-click the install file to start the wizard.
2. Follow the wizard instructions to complete the installation for both the software and the driver. Use the
default installation location for best results.
3. After the installation is complete, click on Start Programs Silicon Laboratories Si50x CMEMS
Oscillator Software. Select one of the items in the menu including the User Guide to get more details on
how to run the software.

Si50x-FPB1-EVB
20 Rev. 0.1
12. Si50x CMEMS®Field Programmer Oscillator Software Overview
The FPB software supports specifying a configuration and then creating a sample or generating an Orderable Part
Number or OPN. The main menus appear at the top as shown in the red rounded rectangle in the GUI excerpt
below.
The top level menus and their pull-down functions are listed in Table 1, “Drop Down Menus,” on page 7.
