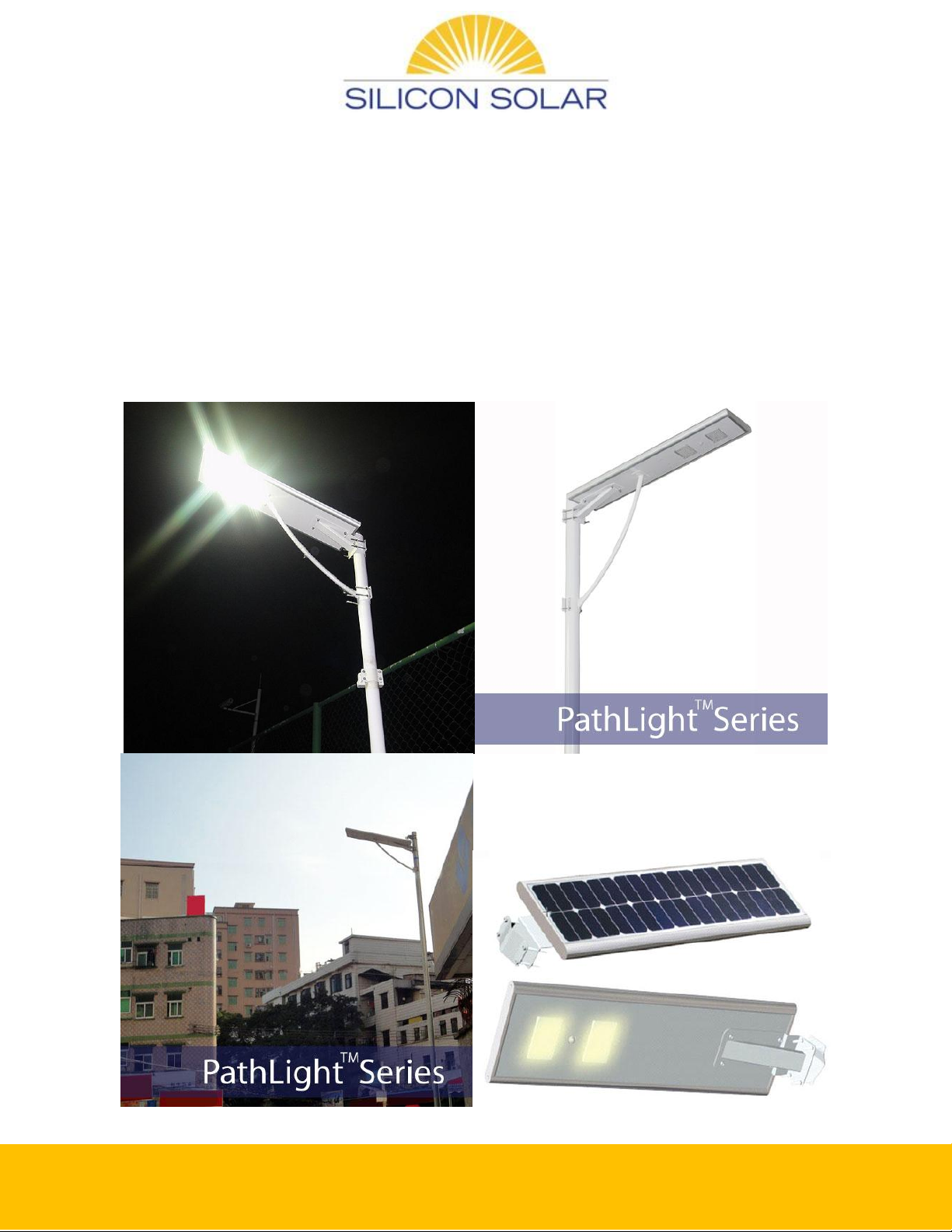

Silicon Solar PathLight series User manual

Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com
Instruction Manual
PathLight Solar Street & Parking Lot Light
(20W 25W 30W)

Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com
Overview:
Our PathLight solar street light which integrates the efficient solar panel, LED light and the Li-Fe
battery into a single product. It operates with human intelligence induction system to become the
solution of low-energy, durable, high-luminance and free maintenance.
Purpose:
For garden, residential area, courtyard, streets, walkways, parking lots, docks & piers, remote and
rural area, etc. The high efficient solar panel absorb solar energy at day time, charge the battery
which provide energy for the light at night.
Components:
- High efficient solar panel (Built-into the Fixture/Box)
- Li-Ion battery (Built-into the Fixture/Box)
- LED light (Built-into the Fixture/Box)
- MPPT controller (Built-into the Fixture/Box)
- Human intelligence induction system/motion sensor (Built-into the Fixture/Box)
- Bracket (For Mounting)
How it works?
The solar panel converts sunlight into electricity and stored in Li-Fe battery via controller, the LED
light will work at night automatically under the light sensor control, and provide light for the different
areas. And there are two modes for the light, they are full power mode and power saving mode.
When the motion sensor senses movement, it will operate in full power mode. It will operate in power
saving mode when it does not senses any movement around.

Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com
Data and Specification:
Model
PathLight-20W
PathLight-25W
PathLight-30W
Specifications
Light source
20W LED
25W LED
30W LED
Solar panel
50W(Poly)
50W(Poly)
60W(Poly)
Battery
12.8V 25AH
12.8V 30AH
12.8V 35AH
Motion sensing
YES
YES
YES
Dimension
36.2" x 12.8" x 5.5"
36.2" x 12.8" x 5.5"
51.2" x 12.8" x 5.6"
net weight
27.56 LBS
27.56 LBS
27.56 LBS
Light efficiency
Luminous
Full load
working
2000 - 2200lm
2500 –2750lm
3000 –3300lm
Flux
Less load
working
660lm
800lm
1000lm
Visual angle
120°
120°
120°
Color temperature
6000k-6500k
6000k-6500k
6000k-6500k
Work time
Full power
~10Hr
~10Hr
~10Hr
Saving
mode
~20Hr
~20Hr
~20Hr
Operating temperature
Work temperature
-22 - 158 Degree Fahrenheit
Recommended Placement Info.
Recommended mounting
height
Up to 20 ft
Up to 20 ft
Up to 23 ft
Recommended Distance
(Light to Light)
50ft –65ft
65ft –70ft
70ft –75ft

Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com
Assembling and Installation:
Step 1:
Open the box and prepare all the parts you need.
Step 2:
Unscrewing the screw of the light fixture/box for installing bracket.

Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com

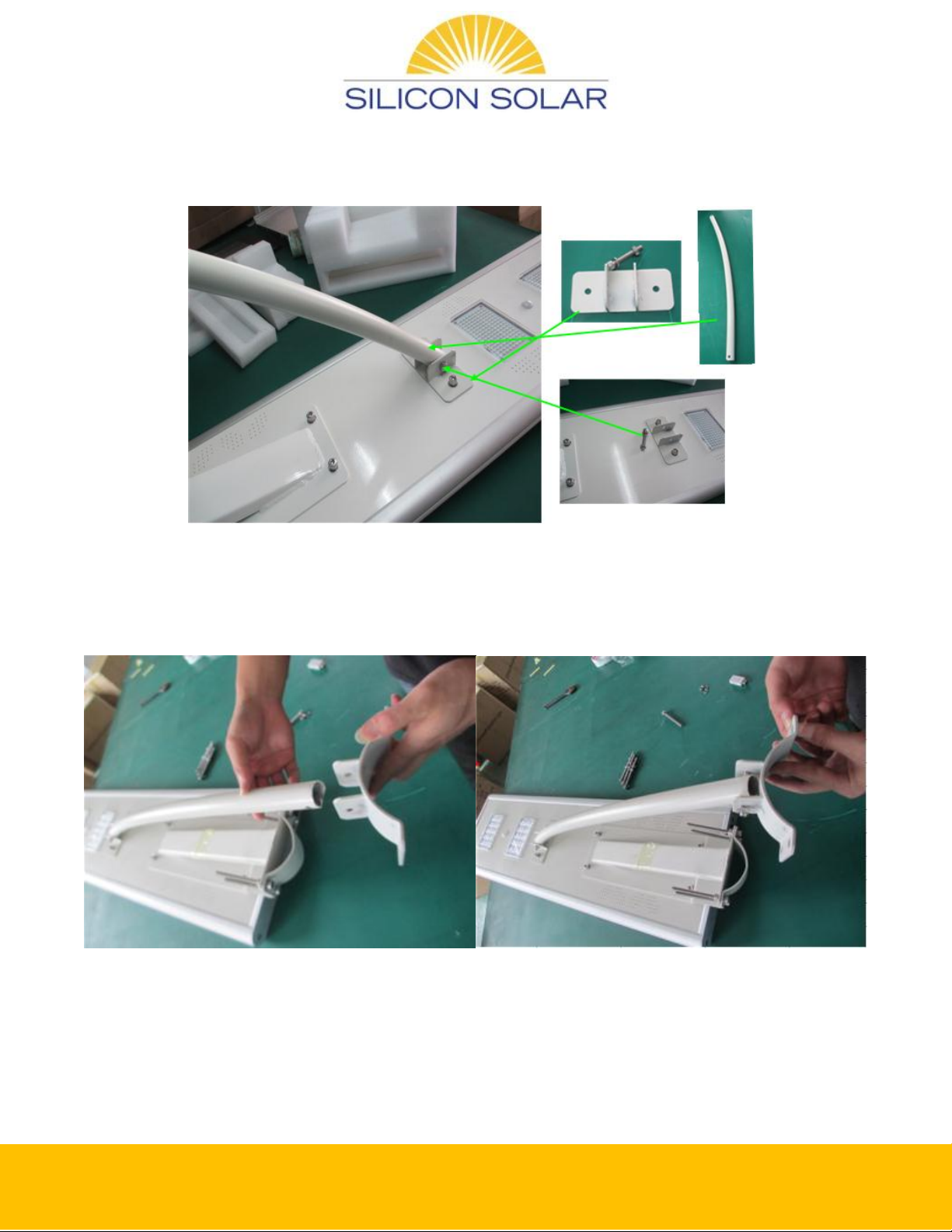

Step 3:
Screw and hold one end of the mounting support tube to the light fixture/box.
Step 4:
Connect the pole mount bracket with the support tube.

Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com
Step 5:
Insert the fuse into the light fixture/box. Unfold the knob of fuse (see below) and take out the insulating film of
the fuse socket. Make sure the fuse is working, then tighten.
Step 6:
Mount the light fixture/box on the pole.

Innovative Solar Solutions LLC | 2917 State Hwy 7, Bainbridge, N.Y. 13733 | Ph: 800.786.0329 | www.SiliconSolar.com
Step 7:
Turn on the switch. And this is how it looks when it is installed on a pole.
Reminder:
PathLight solar street light adopts the long life Lithium battery for storing energy, charging temperature
at day time is between: 32°F～+140°F，when temperature goes lower than 32°F ，the control system
will stop automatically to protect the battery, and it will revive to charge the battery while temperature
goes higher than 32°F. Discharging temperature at night is between: -4°F～+140°F，any ambient
beyond will bring damage to the battery. Please confirm your local extreme temperature is suitable for
above while selecting the street light.
Battery of the light can be stored for 6 months long after full charged, and please examine, charge it
periodically after long time transportation to prevent damage.
Keep clearing the surface of the PathLight solar street light with normal detergent to get maximum
power generation, clear the dust or tree leaves or any grease.
While installing in Northern Hemisphere, please make sure the surface of the solar panel is facing the
South to absorb maximum sunshine radiation. While installing in Southern Hemisphere, please make
sure the surface of the solar panel is facing the North to absorb maximum sunshine radiation. At the
same time, please keep it away from any shadow of house, trees etc. Meanwhile, you can adjust the
angel between the lamp head and level (as follows), you’d better reconcile the lamp head with local
latitude.

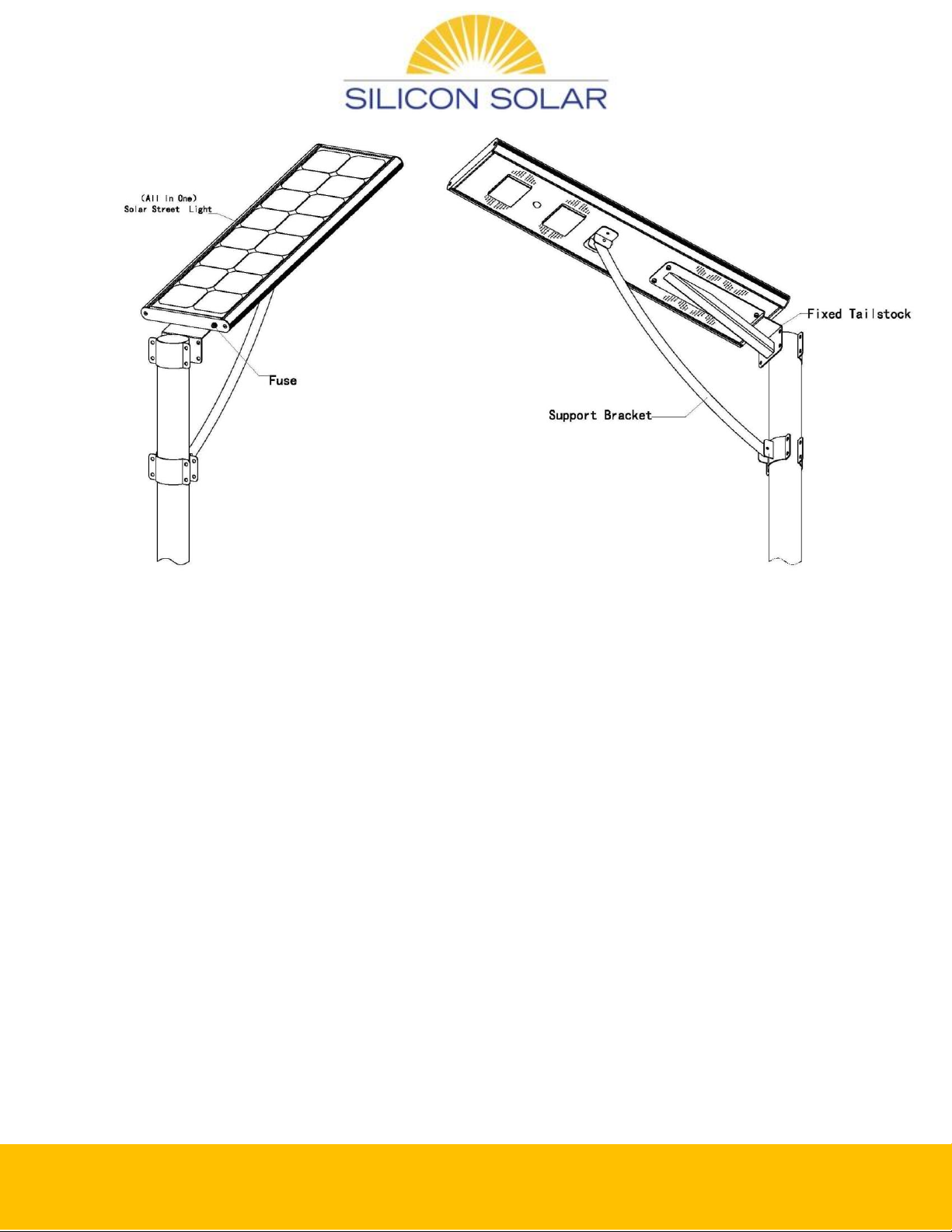

Fuse holder built on the light housing, please take off the isolation film for first time use. One piece of
fuse 5A(220V) is offered for backup.
