Fujitsu General ASHG07KPCE User manual

AIR CONDITIONER
Wall mounted type
SERVICE MANUAL
INDOOR
ASHG07KPCE
ASHG09KPCE
ASHG12KPCE
OUTDOOR
AOHG07KPCA
AOHG09KPCA
AOHG12KPCA
SR_AS059EG_02
2022.07.07

Notices:
• Product specifications and design are subject to change without notice for future improvement.
• For further details, please check with our authorized dealer.
Trademarks
FGLair™ is trademark of Fujitsu General Limited in the United States, other countries or both.
Google Play™ is trademark of Google LLC.
App Store® is a service mark of Apple Inc., registered in the U.S. and other countries.
Copyright © 2021, 2022 Fujitsu General Limited. All rights reserved.

CONTENTS
1. GENERAL INFORMATION
2. TECHNICAL DATA AND PARTS LIST
3. TROUBLESHOOTING
4. CONTROL AND FUNCTIONS
5. FILED WORKING

1. GENERAL INFORMATION
2021.12.16
SR_CH01_AS059EG_01

CONTENTS
1. GENERAL INFORMATION
1. Specifications..............................................................................................01-1
1-1. Indoor unit ......................................................................................................................01-1
1-2. Outdoor unit....................................................................................................................01-3
2. Dimensions..................................................................................................01-4
2-1. Indoor unit ......................................................................................................................01-4
2-2. Outdoor unit....................................................................................................................01-6

1. Specifications
1-1. Indoor unit
Type Wall mounted
Inverter heat pump
Model name ASHG07KPCE ASHG09KPCE ASHG12KPCE
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Capacity
Cooling
Rated kW 2.00 2.50 3.40
Btu/h 6,800 8,500 11,600
Min.—Max. kW 0.9—2.8 0.9—3.0 0.9—3.7
Btu/h 3,100—9,600 3,100—10,200 3,100—12,600
Heating
Rated kW 2.50 2.80 3.80
Btu/h 8,500 9,500 13,000
Min.—Max. kW 0.9—3.4 0.9—3.8 0.9—4.80
Btu/h 3,100—11,600 3,100—12,900 3,100—16,400
Input power
Cooling Rated
kW
0.48 0.71 1.00
Min.—Max. 0.25—1.03 0.25—1.05 0.25—1.14
Heating Rated 0.63 0.79 1.14
Min.—Max. 0.25—1.39 0.25—1.39 0.25—1.60
Fan
HIGH
W
21.5 26.9
MED 12.5 14.5
LOW 6.3 7.1
QUIET 3.0 3.0
Current Cooling Rated A 2.7 3.5 4.7
Heating 3.2 3.8 5.6
EER Cooling kW/kW 4.17 3.52 3.40
COP Heating 3.97 3.54 3.33
Sensible capacity Cooling kW 1.9 2.1 2.6
Power factor Cooling %77 87 92
Heating 85 90 89
Moisture removal L/h (pints/h) 1.0 (1.80) 1.3 (2.30) 1.8 (3.20)
Maximum operating current *1Cooling A6.5
Heating 9.0
Fan
Airflow rate
Cooling
HIGH
m3/h
580 630
MED 460 490
LOW 340 360
QUIET 240 240
Heating
HIGH 580 630
MED 460 490
LOW 380 380
QUIET 260 260
Type × Q'ty Crossflow fan × 1
Motor output W 27
Sound pressure level *2
Cooling
HIGH
dB (A)
45 46
MED 38 40
LOW 31 33
QUIET 22 22
Heating
HIGH 45 46
MED 40 40
LOW 36 35
QUIET 26 27
Heat exchanger type
Dimensions (H × W × D) mm 210 × 600 × 26.6
Fin pitch 1.3
Rows × Stages 2 × 10
Pipe type Copper tube
Fin type Aluminum
Enclosure
Material Polystyrene
Color White
Approximate color of Munsell N 9.25/
Dimensions
(H × W × D)
Net mm 270 × 784 × 224
Gross 279 × 864 × 334
Weight Net kg 8.0
Gross 11.0
Connection pipe Size Liquid mm (in) Ø6.35 (Ø1/4)
Gas Ø9.52 (Ø3/8)
Method Flare
Drain hose Material PP+HDPE
Tip diameter mm Ø13.8 (I.D.), Ø15 to Ø16.8 (O.D.)
Operation range Cooling °C 18 to 32
%RH 80 or less
Heating °C 16 to 30
Remote controller type Wireless (Option: Mobile app*3 [FGLair™])
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m. (Between outdoor unit and indoor unit.)
• Protective function might work when using it outside the operation range.
• *1: Maximum current is maximum value when operated within the operation range.
• *2: Sound pressure level:
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
• *3: Available on Google Play™ store or on App Store®. Optional WLAN Adapter is also required. For details, refer to the setting manual.
1-1. Indoor unit - (01-1) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

Specifications for Lot10
Model name ASHG07KPCE ASHG09KPCE ASHG12KPCE
Energy efficiency class Cooling A++
Heating (Average) A+
P design Cooling kW 2.0 (35 °C) 2.5 (35 °C) 3.4 (35 °C)
Heating (Average) 2.2 (-10 °C) 2.4 (-10 °C) 2.5 (-10 °C)
SEER Cooling kWh/kWh 6.7 6.3
SCOP Heating (Average) 4.0 4.1
Annual energy consumption QCE kWh/a 104 131 189
QHE (Average) 769 840 853
Sound power level Cooling HIGH dB (A) 57 58 59
Heating 58 58 59
1-1. Indoor unit - (01-2) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

1-2. Outdoor unit
Type Inverter heat pump
Model name AOHG07KPCA AOHG09KPCA AOHG12KPCA
Power supply 230 V ~ 50 Hz
Power supply intake Outdoor unit
Available voltage range 198—264 V
Starting current A 3.2 3.8 5.6
Fan
Airflow rate Cooling m3/h 1,650 1,700
Heating 1,450 1,470
Type × Q'ty Propeller fan × 1
Motor output W 23
Sound pressure level *1 Cooling dB (A) 45 47 49
Heating 46 47 51
Sound power level Cooling dB (A) 57 59 62
Heating 58 59 62
Heat exchanger type
Dimensions
(H × W × D) mm 504 × 650 × 18.2 504 × 630 × 36.4
Fin pitch 1.3
Rows × Stages 1 × 24 2 × 24
Pipe type Copper
Fin type Type (Material) Corrugate (Aluminum)
Surface treatment PC Fin
Compressor Type × Q'ty DC Rotary × 1
Motor output W 850
Refrigerant Type (Global warming potential) R32 (675)
Charge g 550 590
Refrigerant oil Type POE
Amount cm3240
Enclosure
Material Steel sheet
Color Beige
Approximate color of Munsell 10YR 7.5/1.0
Dimensions
(H × W × D)
Net mm 541 × 663 × 290
Gross 596 × 798 × 369
Weight Net kg 23 25
Gross 25 27
Connection pipe
Size Liquid mm (in) Ø6.35 (Ø1/4)
Gas Ø9.52 (Ø3/8)
Method Flare
Pre-charge length
m
15
Max. length 20
Max. height difference 15
Operation range Cooling °C -10 to 46
Heating -15 to 24
Drain hose Material PP
Tip diameter mm Ø13.0 (I. D.), Ø16.0 to Ø16.8 (O. D.)
NOTES:
• Specifications are based on the following conditions:
– Cooling: Indoor temperature of 27 °CDB/19 °CWB, and outdoor temperature of 35 °CDB/24 °CWB.
– Heating: Indoor temperature of 20 °CDB/15 °CWB, and outdoor temperature of 7 °CDB/6 °CWB.
– Pipe length: 5 m, Height difference: 0 m.
• Protective function might work when using it outside the operation range.
• *1: Sound pressure level
– Measured values in manufacturer’s anechoic chamber.
– Because of the surrounding sound environment, the sound levels measured in actual installation conditions might be higher than the specified values here.
1-2. Outdoor unit - (01-3) - 1. Specifications
GENERAL INFORMATION GENERAL INFORMATION

2. Dimensions
2-1. Indoor unit

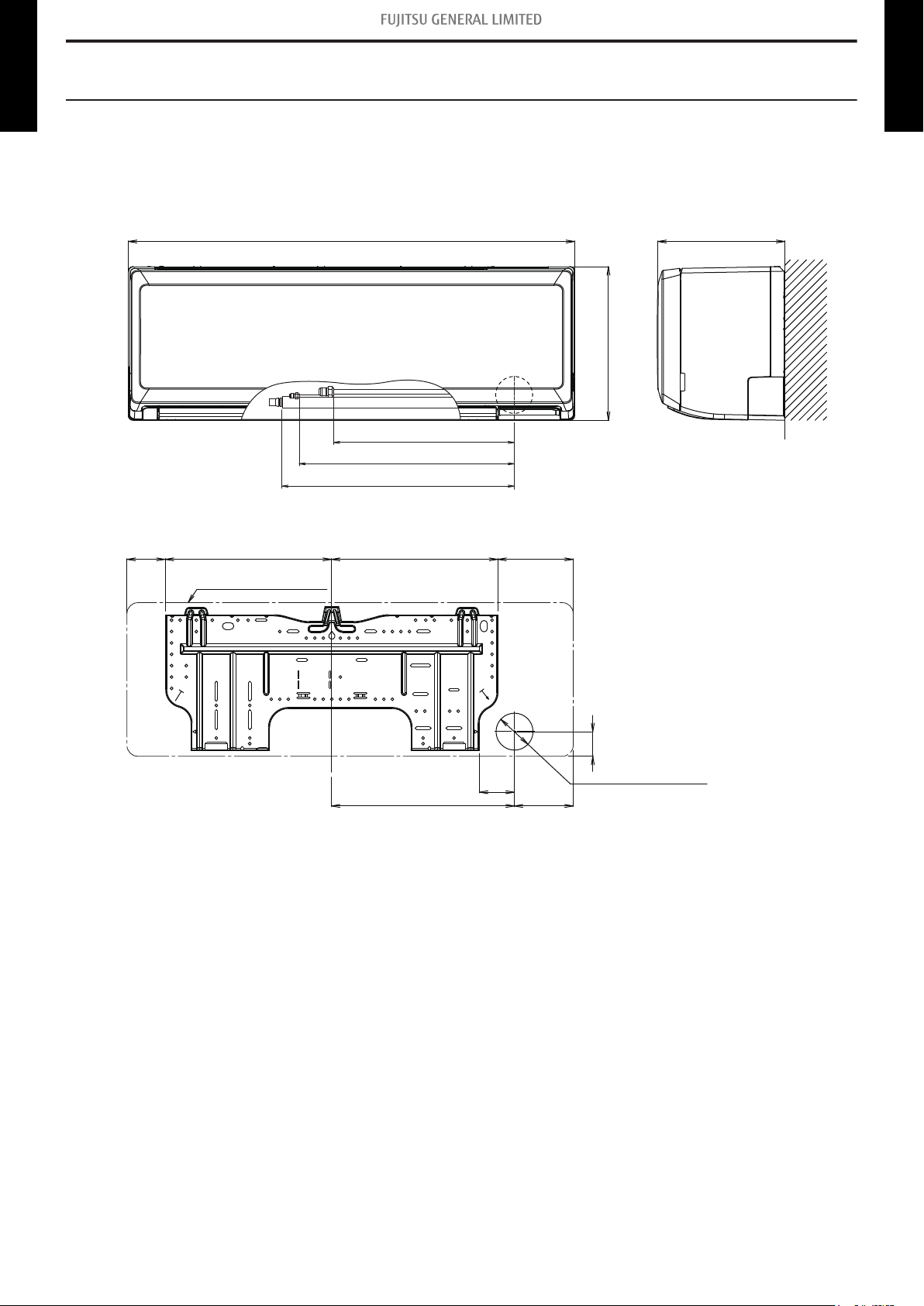

¢Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE
Unit: mm
784 224
270
307
366
516
Outline of indoor unit
for pipe inlet Ø65
43
292 13329267
104321 62
2-1. Indoor unit - (01-4) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

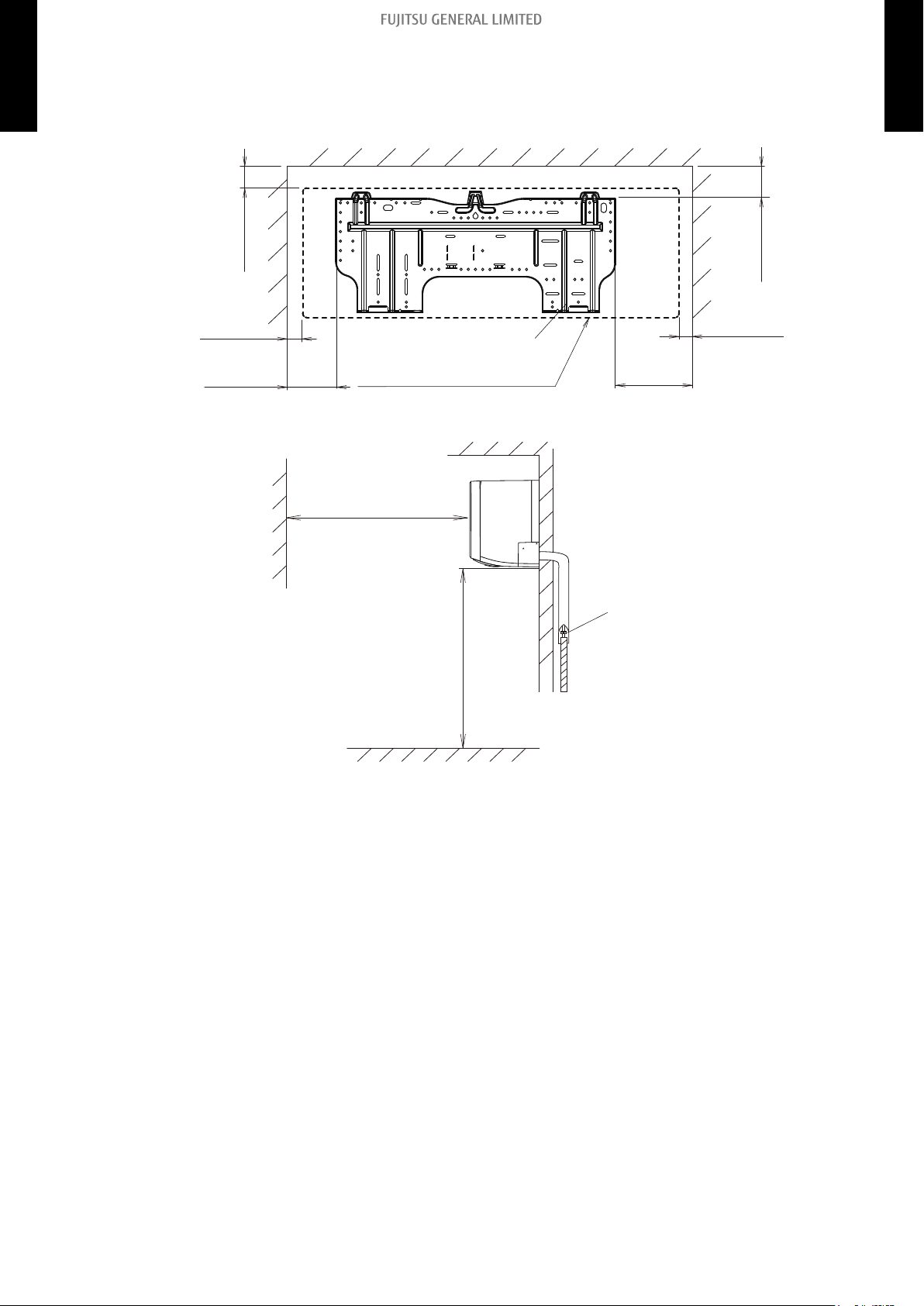

Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
Wall hook bracket
Outline of the indoor unit
50 or more
71 or more
The flare connection
part should be installed
outdoors.
40 or more
30 or more
107 or more
1,500 or more
1,800 or more
163 or more
2-1. Indoor unit - (01-5) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2-2. Outdoor unit
¢Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA
Unit: mm
Airflow
106450
19 663 68 16
33 30
290
353
330
Pitch of bolts for installation
4-
M1 0 hole
Bottom view Side view (Valve part)
Top view
Side view
Side view Front view
Pitch of bolts for installation
353
541
20
184
120
37
170
331
Drain port Ø42
2-2. Outdoor unit - (01-6) - 2. Dimensions
GENERAL INFORMATION GENERAL INFORMATION

2. TECHNICAL DATA AND PARTS LIST
2022.07.07
SR_CH02_AS059EG_02

CONTENTS
2. TECHNICAL DATA AND PARTS LIST
1. Precautions..................................................................................................02-1
2. Indoor unit parts list....................................................................................02-2
2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE .......................................02-2
3. Outdoor unit parts list.................................................................................02-6
3-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA ......................................02-6
4. Accessories ...............................................................................................02-10
4-1. Indoor unit ....................................................................................................................02-10
4-2. Outdoor unit..................................................................................................................02-10
5. Optional parts ...........................................................................................02-11
5-1. Others...........................................................................................................................02-11
6. Refrigerant system diagrams...................................................................02-12
6-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA ....................................02-12
7. Wiring diagrams ........................................................................................02-13
7-1. Indoor unit ....................................................................................................................02-13
7-2. Outdoor unit..................................................................................................................02-14
8. PC board diagrams ...................................................................................02-15
8-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE .....................................02-15
8-2. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA ....................................02-16

1. Precautions
When you start servicing, pay attention to the following points. For detailed precautions, refer to the
installation manual of the products.
CAUTION
• Service personnel
– Any person who is involved with working on or breaking into a refrigerant circuit should hold a
current valid certificate from an industry-accredited assessment authority, which authorizes
their competence to handle refrigerants safely in accordance with an industry recognized as-
sessment specification.
– Servicing shall only be performed as recommended by the equipment manufacturer. Mainte-
nance and repair requiring the assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable refrigerants.
– Servicing shall be performed only as recommended by the manufacturer.
• Work
– Prior to beginning work on systems containing flammable refrigerants, safety checks are nec-
essary to ensure that the risk of ignition is minimized. When repairing the refrigerant system,
refer to the precautions written in the installation manual of the products before you start ser-
vicing.
– Work shall be undertaken under a controlled procedure so as to minimize the risk of a
flammable gas or vapor being present while the work is being performed.
– All maintenance staff and others working in the local area shall be instructed on the nature of
work being carried out.
– Work in confined spaces shall be avoided.
– The area around the workspace shall be sectioned off.
– Ensure that the conditions within the area have been made safe by control of flammable ma-
terial.
– Electric shock may occur. After turning off the power, always wait 5 minutes before touching
electrical components.
– Do not touch the fins of the heat exchanger. Touching the heat exchanger fins could result in
damage to the fins or personal injury such as skin rupture.
– Do not place any other electrical products or household belongings under the product.
– Condensation dripping from the product might get them wet, and may cause damage or mal-
function to the property.
• Checking for presence of refrigerant
– The area shall be checked with an appropriate refrigerant detector prior to and during work, to
ensure the technician is aware of potentially flammable atmospheres.
– Ensure that the leak detection equipment being used is suitable for use with flammable refrig-
erants, i.e. non-sparking, adequately sealed or intrinsically safe.
• Service parts information and design are subject to change without notice for product improve-
ment.
• For the latest information of the service parts, refer to our Service Portal.
https://fujitsu-general.force.com/portal/
• Precise figure of the service parts listed in this manual may differ from the actual service parts.
- (02-1) - 1. Precautions
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

2. Indoor unit parts list
2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE
¢Exterior parts
1
2
3
4
5
6
7
8
9
10
11
12
13
14 15
2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE - (02-2) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
1 9388147017 Bracket panel ♦
2 9387597066 Wire cover assy ♦
3 9333888002 Louver assy (Up/Down) ♦
4 9387476002 Screw cap ♦
5 9333872018 Under cover R ♦
6 9334098004 Remote controller holder ♦
7 9334138083 Remote controller assy ♦
8 9333886091 Front panel total assy ♦
9 9333913018 Intake grille assy ♦
10 9333704005 Grille clamper R ♦
11 9333719009 Grille clamper L ♦
12 9333868004 Air filter ♦
13 9333871011 Under cover L ♦
14 9333951003 Louver spring ♦
15 9333608013 Bush ♦
2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE - (02-3) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

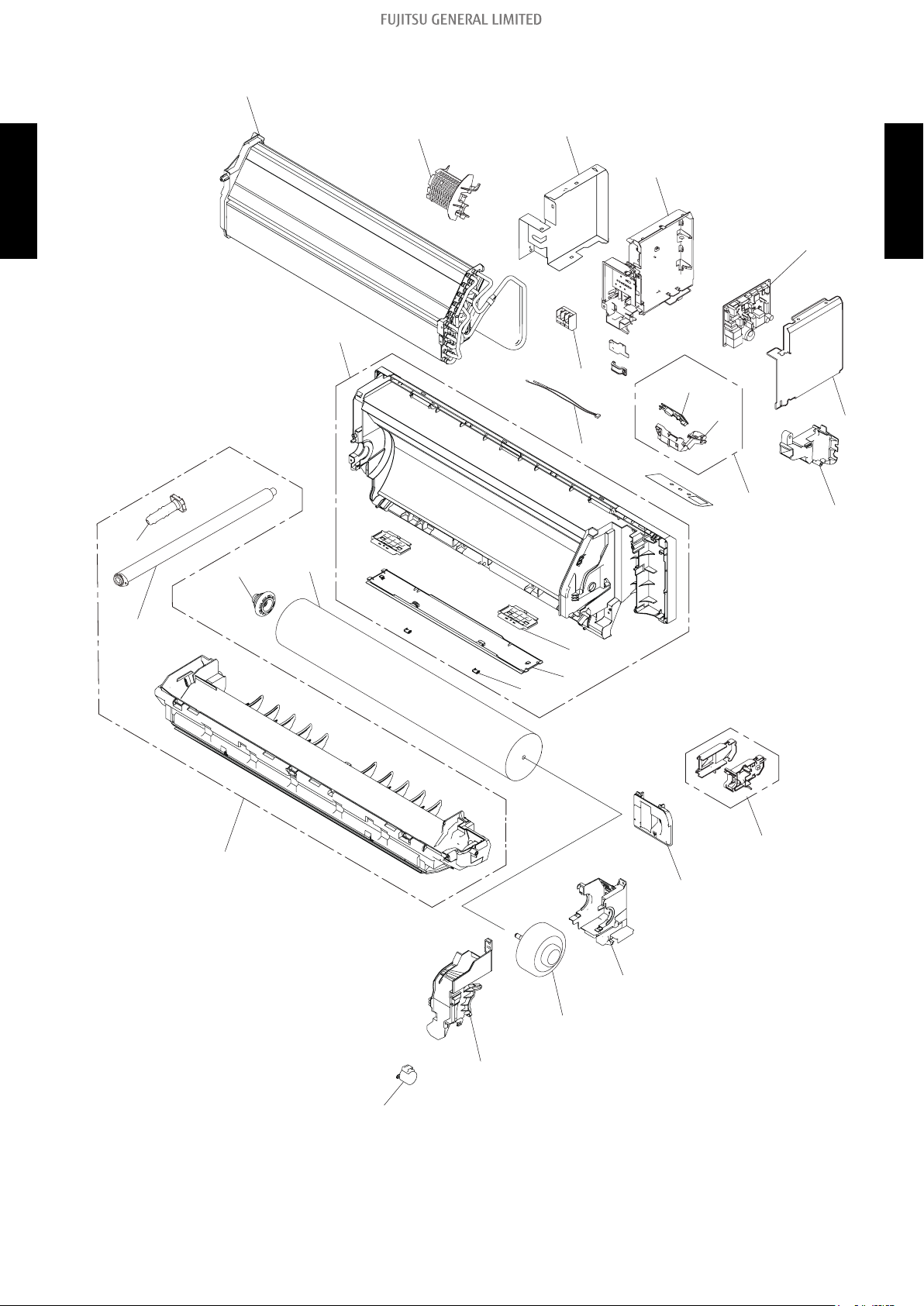

¢Chassis
50
51 52
a
55
56
60
59
b
57
53 58
61
62
63
64
65
66
67
68 69
70
71
72
73
54
c
2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE - (02-4) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

Item no. Part no. Part name Service part
50 9333897028 Evaporator total assy ♦
51 9387467017 Room thermistor holder ♦
52 9333865003 Box shield ♦
53 9901013010 Terminal ♦
54 9900627065 Thermistor assy ♦
55
9711141040 Main PCB (for 07 model) ♦
9711141057 Main PCB (for 09 model) ♦
9711141064 Main PCB (for 12 model) ♦
56 9334049006 Cable guide ♦
57 9711146021 Display assy ♦
58 9711147028 Indicator PCB ♦
59 9383765018 WLAN adapter holder assy ♦
60 9383729041 Wire cover assy ♦
61 9334040003 Motor case assy ♦
62 9603688004 DC fan motor ♦
63 9333849003 Motor cover assy ♦
64 9901011030 Step motor ♦
65 9333911007 Drain pan total assy ♦
66 9316904002 Drain hose assy ♦
67 9316177017 Drain cap ♦
68 9333628004 Bearing D assy ♦
69 9333606026 Crossflow fan assy ♦
70 9333882031 Base assy ♦
71 9334137000 Screw cap ♦
72 9334136003 Under cover C ♦
73 9388139012 Pipe bracket A ♦
a— Control box —
b— Control cover —
c— Display case assy —
2-1. Models: ASHG07KPCE, ASHG09KPCE, and ASHG12KPCE - (02-5) - 2. Indoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST

3. Outdoor unit parts list
3-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA
¢Exterior parts and chassis
1
18
17
16
14
13
12
11
10
9
8
7
6
2
3
4
5
a
15
3-1. Models: AOHG07KPCA, AOHG09KPCA, and AOHG12KPCA - (02-6) - 3. Outdoor unit parts list
TECHNICAL DATA AND PARTS LIST TECHNICAL DATA AND PARTS LIST
