Silvercrest OM1008 Instruction sheet

WIRELESS MOUSE
WIRELESS OPTICAL
MOUSE WITH MINIATURE
USB RECEIVER
User manual and service
information
GB
IE
TRÅDLÖS OPTISK MUS MED
RADIO-USB-MOTTAGARE
Bruksanvisning och
serviceinformation
SE
USB-VASTANOTTIMELLA
VARUSTETTU LANGATON
OPTINEN HIIRI
Käyttöopas ja huolto-ohjeet
FI
TRÅDLØS OPTISK MUS MED
TRÅDLØS USB-MODTAGER
Brugervejledning og
serviceinformation
DK
Silvercrest OM1008
hb-c_3ac_om1008_0810.qxd 01.10.2008 16:57 Uhr Seite 1

Wireless Optical Mouse OM1008
English - 1

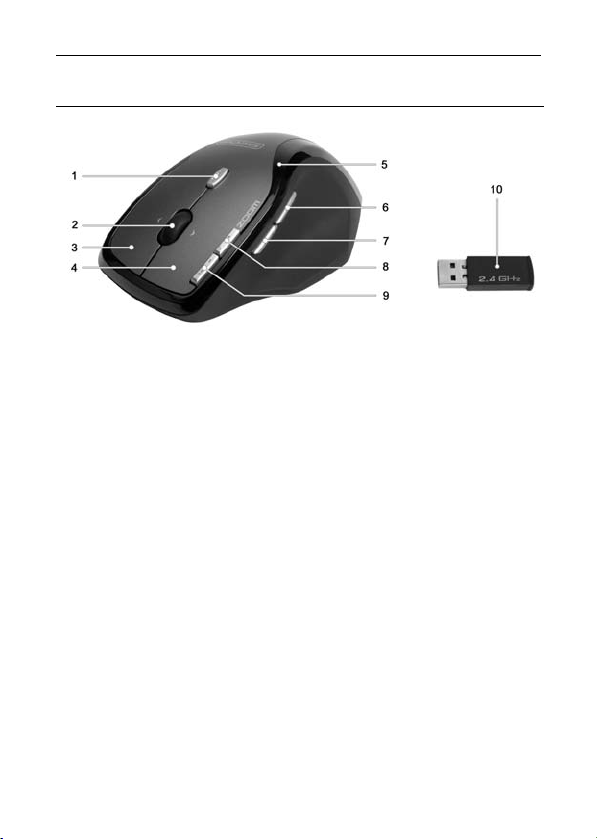

Overview
1 Toggle 500/1000 cpi (pressed briefly)
Toggle standard / media operation
(pressed continually for 3 seconds)
2 Tilt wheel (standard)
Volume control and sound off (media operation)
3 Right mouse button
4 Left mouse button
5 Battery power control lamp
6 Forward (standard)
Next title (media operation)
7 Back (standard)
Previous title (media operation)
8 Zoom + (standard)
start Media Player (media operation)
9 Zoom – (standard)
Play / Pause (media operation)
10 Miniature USB receiver

Wireless Optical Mouse OM1008
2 - English
Contents
Overview .......................................................................................... 1
Important Safety Information............................................................3
Operating Environment................................................................. 3
Maintenance and Care ................................................................. 4
Children ........................................................................................4
Compliant Use ..............................................................................4
Batteries........................................................................................ 5
R/F Interface .................................................................................5
Compliance................................................................................... 6
Appliance Disposal .......................................................................6
Package Contents............................................................................7
System Requirements......................................................................7
Introduction....................................................................................... 7
Hardware Installation........................................................................8
Inserting the Batteries................................................................... 8
Connecting the USB Receiver......................................................9
Software Installation.........................................................................9
Operation........................................................................................ 12
Toggling between Operating Modes...........................................12
Configuration ..............................................................................12
Attachment .....................................................................................14
Troubleshooting..........................................................................14
Technical Data............................................................................ 14
Warranty Information......................................................................15

Wireless Optical Mouse OM1008
English - 3
Important Safety Information
Before putting the appliance into operation for the first time, please
thoroughly read the following instructions and heed all safety
warnings, even if you are quite used to handling electronic devices.
Keep this manual in a safe place for future reference. If you sell or
pass on the appliance, you should absolutely ensure to hand over
these instructions as well.
Operating Environment
Position the device on a firm, even surface and do not place any
objects on top of it. The appliance is not designed for operation in
spaces subject to high humidity or temperatures (e.g. bathrooms) or
in excessively dusty locations. Operating temperature and air
humidity: 5°C to 45°C, max. relative air humidity 90%.
Please ensure that:
-the appliance is not exposed to direct sources of heat (e.g.
heating elements);
-the appliance is not exposed to direct sunlight or artificial light;
-any contact with splashes and/or drips of water and other
liquids is avoided and the device is not operated near water; in
particular, the appliance may never be submerged (do not place
water-filled objects such as vases or open drinks containers on
top of or near the appliance);
-the appliance is not placed in the direct vicinity of magnetic
fields (e.g. loudspeakers);
-no sources of open flame (e. g. lighted candles) are placed on
top of or near the appliance;
-the appliance is not penetrated by foreign objects;
-the appliance is not exposed to strong temperature fluctuations;
-the appliance is not subjected to excessive shaking or vibration;

Wireless Optical Mouse OM1008
4 - English
Maintenance and Care
Maintenance activities are required if the appliance has been
damaged, liquids or objects have penetrated the casing, the
appliance has been exposed to rain or moisture, the appliance is
not working properly or if it has been dropped. If you notice any
smoke developing, unusual noises or smells, please switch off the
appliance immediately. In such cases the appliance may not be
operated until a professional specialist has checked it. Any repairs
are only to be performed by qualified professional technicians.
Never open the casing of the appliance or of any accessories. Only
clean the appliance with a clean and dry cloth, never using any
aggressive liquids.
Children
Electrical appliances are unsuitable as children’s toys. Never permit
children the unsupervised use of any electrical appliances. Children
are not always able to fully appreciate the potential dangers. If
swallowed, batteries and small parts can potentially be life-
threatening. Keep batteries out of reach of small children. If a
battery has been swallowed, medical help needs to be consulted
immediately. Please also keep the plastic packaging away from
children to avoid suffocation risks.
Compliant Use
This wireless mouse consists of an optical mouse and a radio
receiver and is an information technology appliance. The appliance
may not be used outside of closed rooms or in regions with a
tropical climate. Only use connecting cables and/or peripheral
devices whose technical safety, electromagnetic compatibility and
shielding properties correspond to the appliance in question. This
appliance meets all the relevant norms and standards in connection
with CE-conformity. Compliance with these standards is no longer
guaranteed if the appliance is modified without the manufacturer’s
authorization. Only use the accessories specified by the
manufacturer.
If you are not using the appliance within the Federal Republic of
Germany you are bound by the state regulations and/or legislation
applicable in the country of operation.

Wireless Optical Mouse OM1008
English - 5
Batteries
Please always insert the battery with the poles pointing in the
proper direction. Never attempt to recharge the batteries and under
no circumstances try to incinerate them. Remove the battery if
appliance is not being used for any longer periods of time.
Inappropriate battery use may result in explosion and leakage risks.
Please take care to protect the environment. Used batteries do not
belong in the domestic waste and need to be handed in at a
collection point for used batteries instead.
R/F Interface
Please switch off the appliance in airplanes, hospitals, operating
theatres and in the vicinity of medical electronic system. The radio
waves transmitted could impair the functionality of sensitive
appliances.
Observe a minimum distance of 20 cm between the appliance and
any pacemaker as the radio waves could impair the function of the
pacemaker.
The transmitted radio waves may create interference noises in
hearing aids.
Do not allow the appliance to be introduced in the vicinity of
inflammable gases or environments subject to a risk of explosion
(e.g. paint shops) as long as the radio component is switched on,
as the transmitted radio waves could trigger an explosion or fire.
The coverage/range of the radio waves varies depending on the
surrounding and environmental conditions.
In any data exchange via wireless connections, unauthorized third
parties are also able to receive the data. Targa GmbH is not liable
for any radio or television interference caused by unauthorized
modifications of this appliance. Targa furthermore accepts no
liability for the replacement or exchange of connection cables and
appliances not specified by Targa GmbH. The user is solely
responsible for the elimination of interferences caused by such
unauthorized modifications, as well as for the replacement or
exchange of the appliances concerned.

Wireless Optical Mouse OM1008
6 - English
Compliance
This wireless mouse has been tested and approved
for compliance with the essential requirements and
other relevant regulations contained in the EU
directive for R&TTE directive 1999/5/EC. For more
information about Conformity of this product, please
visit http://service.targa.co.uk.
Appliance Disposal
All appliances labelled with this symbol are subject to
the European directive 2002/96/EC. All electrical and
electronic appliances need to be disposed off
separately via the facilities provided for this purpose
by the authorities and may not be included in the
domestic waste. The proper disposal of old appliances
helps to protect the environment and prevents risks to
your personal health. Further information on the
proper disposal of this appliance, once it is no longer
needed, is available from your municipal authority, the
waste disposal services, or the shop where you
bought the product.

Wireless Optical Mouse OM1008
English - 7
Package Contents
Please check the completeness of package contents using the
following list:
-Wireless optical mouse
-Miniature USB receiver
-1 type AA battery, 1,5V (Mignon)
-Driver CD
-User manual
System Requirements
-Intel®Pentium®III / AMD Athlon™ or higher
-1 free USB port
-Microsoft®Windows®2000 Professional, Windows®XP or
Windows Vista™
-CD-ROM drive or DVD drive for installing the software
Introduction
Thank you very much for buying SilverCrest OM1008. Besides the
3 standard buttons, this optical wireless mouse is equipped with five
special buttons for easier access to frequently used functions. The
scrolling wheel is a tilt wheel enabling you to scroll in horizontal as
well as vertical directions. The special CPI button (1) puts you in a
position to toggle between the optical resolutions of 500 cpi and
1000 cpi or between standard and media operation.

Wireless Optical Mouse OM1008
8 - English
Hardware Installation
Inserting the Batteries
Please insert the included AA type battery in the wireless mouse,
taking care that the + and – poles point in the required direction,
and switch on the mouse using the On/Off (11) switch on the
bottom.
11 On/Off switch
12 Optical sensor
13 Battery compartment
The control lamp (5) on the top of the wireless mouse lights up if the
battery power runs low. If this happens, please replace the battery
with a new, 1,5 V AA battery(Mignon).

Wireless Optical Mouse OM1008
English - 9
Connecting the USB Receiver
Connect the miniature USB receiver (10) to a free USB port of your
running computer.
The operating system will automatically recognize the new
hardware and install the required drivers. Depending on the
operating system installed, the following screen messages may
appear:
Windows®2000/XP
When the receiver is connected for the first time, the operating
system Windows®2000/XP displays the message „New hardware
detected“. Wait until the message „The new hardware has been
installed and is now ready for use“ is displayed before using your
mouse.
Windows Vista™
When the receiver is connected for the first time, the operating
system Windows Vista™ displays the message „Installation of
appliance driver software“. Wait until the message „The
appliances are ready for use now“ appears. The mouse is now
operational and ready to be used.
If your previous mouse is still connected to the computer, please
shut down the computer, disconnect the appliance and then restart
the computer.
Software Installation
If you would like to use all of the functions of your wireless mouse
you need to install the software included. Insert the included CD-
ROM in the CD-ROM drive of your computer. The installation
process should start automatically, failing that, start the CD-ROM
file "setup.exe" manually by double-clicking it.
Only with the operating system Windows Vista™ will the installation
initially be stopped by the user account control function with the
message: „An unidentified program is attempting to access the
computer”. Click on „OK“ to continue with the installation.

Wireless Optical Mouse OM1008
10 - English
The following installation illustrations correspond to the operating
system Windows Vista™. The windows shown in the operating
systems Windows®XP and Windows®2000 are slightly different,
but their content is the same.

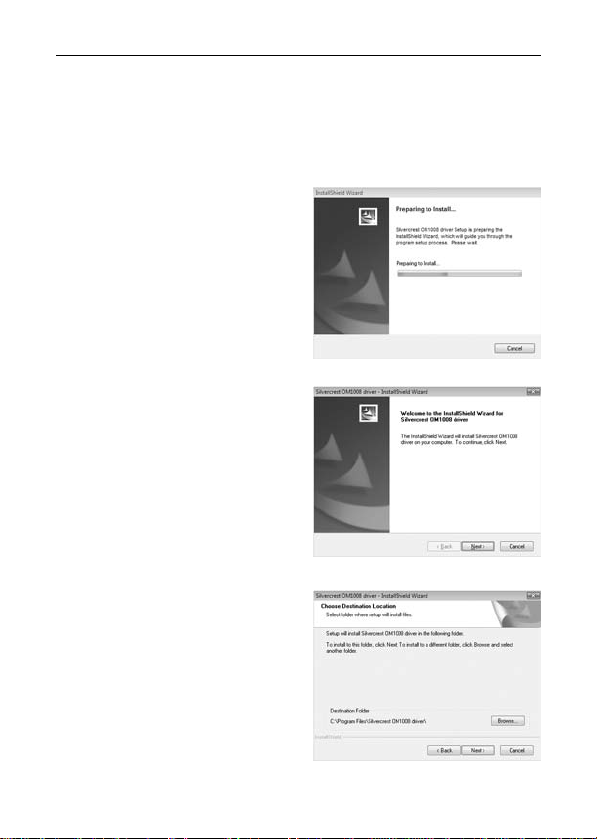

The installation is being prepared.
Click on Next to start the
installation.
Here you can select the target file
for the installation via the Browse
button or use the suggested file.
Click on Next to proceed with the
installation.

Wireless Optical Mouse OM1008
English - 11

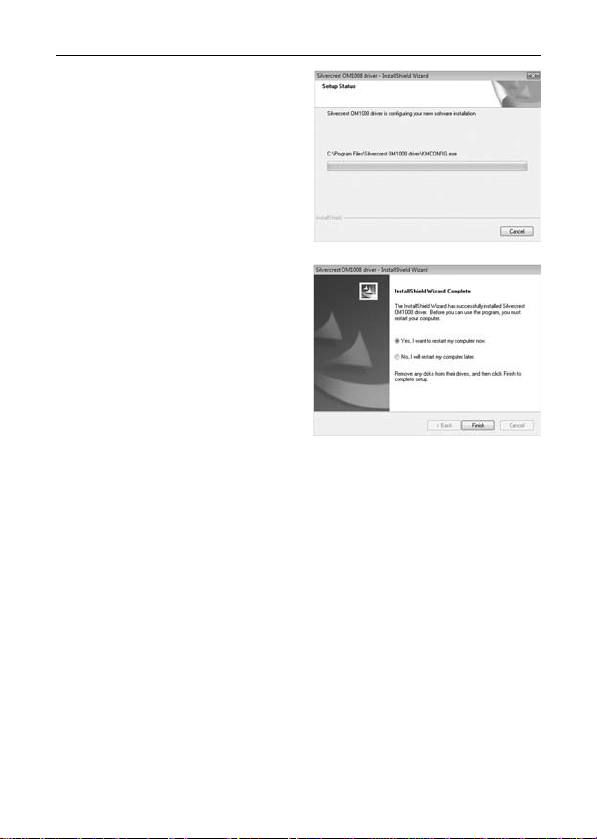

The data for the software are
being copied. Please wait.
Only the operating system
Windows Vista™ requires a
restart. Select “Yes, restart the
computer now” first and then click
on Finish.
Windows Vista™ will subsequently execute a restart. As soon as
the restart of your computer is concluded, your optical mouse is
ready for configuration using the software.

Wireless Optical Mouse OM1008
12 - English
Operation
Toggling between Operating Modes
The CPI button (1) puts you in a position to toggle between the
optical scan resolutions of 500 cpi und 1000 cpi. The scanning is
more precise at 1000 cpi and the mouse cursor will move faster
given the same movements.
If you would like to toggle between standard operation and media
operation, press the CPI button (1) and keep it pressed for a
minimum of 3 seconds until the power control lamp (5) briefly lights
up. Please see the list on page 1 for information on the functions
available in the media operation mode.
Configuration
Double-click on this symbol in the task bar (bottom right of the
screen, next to the system clock) in order to open the configuration
menu for the mouse.
Here you can specify functions
for selected mouse buttons.
Simply click on the selection
switch next to the corresponding
mouse button and select a
function from the menu by
clicking on it with the left mouse
button.
You can restore the mouse to its
original state by clicking on the
„Restore to default“ button.
If you would like to apply your changes, please click on the „Apply“
button (the window will still stay open) or the „OK“ button (the
window will close).

Wireless Optical Mouse OM1008
English - 13
The slide switch puts you in a position to adjust the speed of double
clicks. If you move the slide to the left and activate the function via
the „Apply“ button, the mouse will react to a slow double-clicking
speed. If you move the switch to the right you will need to execute
double clicks at a correspondingly faster speed.
You can test the speed setting for double clicks by double-clicking
on the symbol next to the slide switch.
Click on the „Config of the mouse wheel“ tab in order to perform the
following mouse settings.
Vertical Scrolling
The vertical scrolling function
determines the speed at which
the scroll wheel moves the lines
on the screen up or down. Use
the option “For pages“ in order to
scroll through a document page
by page.
Audio Volume Adjustment
Select the option „Adjust of the
volume“ to adjust the system
volume using the tilt wheel of the
mouse. The slide switch puts you
in a position to define the rate of
volume change per notch.
Tip for users of Microsoft®Windows Vista™:
You can also adjust the horizontal scrolling of the tilt wheel in the
system control of the operating system in the submenu „Mouse“.
The configuration menu of the mouse driver needs to be closed in
order to access the system control menu.

Wireless Optical Mouse OM1008
14 - English
Attachment
Troubleshooting
If the wireless mouse is not being recognized following installation
or does not respond to input, please check the following:
;Check whether the battery has been properly inserted (with
the poles pointing in the right direction).
;Check whether the miniature USB receiver is properly
connected to the computer; see page 9 – Connecting the
USB ReceiverConnecting the USB Receiver).
;Try another USB port.
;Check the battery power and insert a new battery, if required.
;Please note that you need to use a mat (e.g. mouse pad) if
you intend to use the mouse on a glass surface or glossy
surface.
Technical Data
Wireless optical mouse with miniature USB receiver
8 buttons, 7 of which are programmable
Tilt wheel for vertical and horizontal scrolling
Selectable resolution: 500 cpi or 1000 cpi
Smart Link (no complicated connection process required for
receiver and mouse)
Radio frequency: 2.4 GHz
Toggling between Media Player and Office Mode (standard
operation) by simple key operation
Range: up to 5m

Wireless Optical Mouse OM1008
English - 15
Warranty Information

Wireless Optical Mouse OM1008
16 - English

Kaapeliton optinen hiiri OM1008
Suomi - 17
Yleiskuva
1 Vaihto 500/1000 cpi (paina lyhyesti)
Vaihto standardii-/mediakäyttö (pidä painettuna 3
sekuntia)
2 4-tie-rulla (standardi)
Äänenvoimakkuuden säätö ja ääni pois (mediakäyttö)
3 OIkea näppäin
4 Vasen näppäin
5 Merkkivalo pariston tila
6 Eteenpäin (standardi)
Seuraava kappale (mediakäyttö)
7 Takaisin (standardi)
Edellinen kappale (mediakäyttö)
8 Zoomi + (Standardi)
Media Player käynnistys (mediakäyttö)
9 Zoomi – (standardi)
Play / Pause (mediakäyttö)
10 Mini-USB vastaanotin

Kaapeliton optinen hiiri OM1008
18 - Suomi
Sisältö
Yleiskuva........................................................................................17
Tärkeitä turvallisuusohjeita.............................................................19
Käyttöympäristö..........................................................................19
Huolto ja hoito............................................................................. 20
Lapset.........................................................................................20
Määräystenmukainen käyttö....................................................... 20
Paristot........................................................................................ 21
Radioliitäntä................................................................................21
Konformität .................................................................................22
Vanhojen laitteiden käytöstä poisto ............................................ 22
Toimituksen laajuus........................................................................23
Järjestelmäedellytykset ..................................................................23
Einleitung........................................................................................23
Hardwaren asennus ....................................................................... 24
Paristot........................................................................................ 24
USB-vastaanottimen liitäntä .......................................................25
Softwaren asennus ........................................................................ 25
Käyttö .............................................................................................28
Käyttötavan vaito ........................................................................28
Konfigurointi................................................................................ 28
Liite................................................................................................. 30
Ongelmien poisto........................................................................ 30
Tekniset tiedot ............................................................................30
Takuu .............................................................................................31

Kaapeliton optinen hiiri OM1008
Suomi - 19
Tärkeitä turvallisuusohjeita
Lue ohjeet tarkoin ja ota kaikki varoitukset huomioon ennen laitteen
ensimmäistä käyttöä, siinäkin tapauksessa, että olet kokenut
sähkölaitteiden käyttäjä. Säilytä tämä käsikirja tulevaisuutta
nähden. Jos myyt tai luovutat laitteet jollekin toiselle henkilölle,
anna silloin käsikirja mukaan.
Käyttöympäristö
Aseta laite tukevalle, tasaiselle pinnalle äläkä aseta laitteen päälle
mitään esineitä. Laitetta ei saa käyttää kuumissa tiloissa tai
kosteudessa (esim. kylpyhuone) tai tiloissa, joihin kerääntyy paljon
pölyä. Käyttölämpötila ja -ilmankosteus: 5°C ... 45°C, max. 90%
suht. kosteus
Ota huomioon, että:
-laite ei ole suoraan lämpölähteiden lähellä (esim. lämmitys);
-aurinko tai muu valo ei paista suoraan laitteeseen;
-vältät vesiroiskeita ja veden tippumista sekä voimakkaita
nesteitä, että laitetta ei käytetä veden lähellä eikä laitetta saa
missään tapauksessa upottaa veteen (älä aseta laitteen päälle
nestettä sisältäviä esineitä, esim. kukkavaaseja tai juomia);
-laite ei ole magneettikenttien lähettyvillä (esim. kaiuttimet);
-laitteen vieressä tai lähellä ei ole avotulia (esim. kynttilöitä);
-laitteeseen ei joudu mitään vieraita esineitä;
-lämpötilan muutokset eivät vaikuta laitteeseen;
-laite ei heilu tai tärise liikaa
