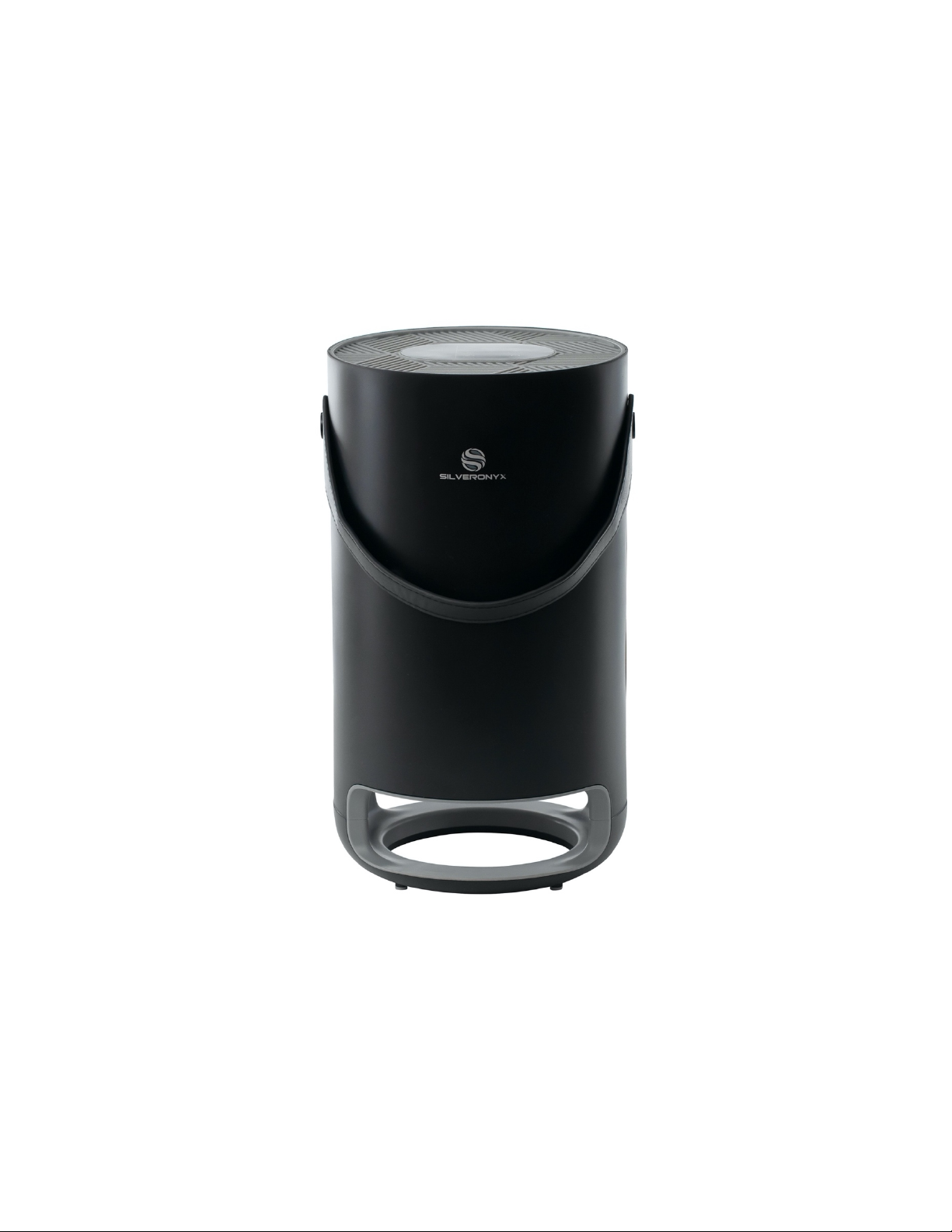

SilverOnyx 3 Stage User manual

SilverOnyx
Portable HEPA Air Purifier
User Manual
- Version 1.0 -
Store in a safe place for future reference.

Page 2 of 12
Congratulations!
Dear Customer,
Congratulations on your purchase of the SilverOnyx 3 Stage Air Purifier.
This product is meticulously designed with high quality materials and
components. Please read the user manual carefully to familiarize yourself
with the special features and functions.
If you have any questions or concerns about this product, please contact
us by phone or email.
Thank you!
SilverOnyx LLC!
801-341-2845!
[email protected]

Page 3 of 12
CONTENTS
QUICK START 04
CHOOSING A SUITABLE LOCATION 06
CAUTION 06
COMPONENTS 07
OPERATING INSTRUCTIONS 08
MAINTENANCE 10
TROUBLESHOOTING 11
SPECIFICATIONS 12

Page 4 of 12
QUICK START
1. After unpacking, set box and
packing materials aside for at
least 30 days.
2. Place purifier upside down on a
soft, level surface.
3. Rotate the filter counter-
clockwise and lift up to
remove.
4. Remove the filter from the
clear, plastic bag and place
filter back in the purifier - rotate
clockwise to secure.

Page 5 of 12
5. Ensure the power switch on the
back of the unit is in the OFF
position (“O” = Off).
6. Attach power cable to the
corresponding input port on
the back of the purifier.
7. Insert other end of power cable
into suitable power outlet.
8. Flip the power switch on the
back of the unit to the ON
position (“I” = On).
9. Tap the ‘Power’ button on the
display and select desired fan
speed with the ‘Air Flow’
button.

Page 6 of 12
CHOOSING A SUITABLE LOCATION
For best results…
ü
Keep the purifier in the room you will spend the most time
ü
Position the purifier closest to the source of smoke or other household
odors
ü
Close windows and doors to the room!
ü
Ensure there is a few feet of clearance at top, front, and sides of the
purifier
ü
Position the purifier where it will NOT be a tripping hazard!!
û
Do NOT keep the purifier in the corner of the room
û
Do NOT place the purifier behind furniture!
û
Do NOT position the purifier directly below shelves!
û
Do NOT position the purifier within 2 feet of electronics, such as a TV,
microwave, or stereo (computers are fine) during operation
CAUTION
• Use only original power adapter; if the adapter or wire is damaged
please contact Customer Care.
• Do NOT touch the electrical plug with wet hands.
• Disconnect the power supply before replacing the filter, or if the
product is not used for a long time.
• Make sure the power supply is as per the voltage indicated on the
adaptor.
• Do NOT put any object inside the air purifier either from inlet or outlet.
• Do NOT block the inlet or the outlet of the air purifier.
• Do NOT attempt to repair or disassemble the air purifier; service should
be performed by authorized personnel only.
• Keep the air purifier away from water, heat, and fire.
• Do NOT run the air purifier without filter - the suction of dust may cause
problems in the equipment and its components.

Page 7 of 12
COMPONENTS
Control Panel
Air Outlet
Handle
Power Switch
Power Input
Back Air Inlet
Base
UV LED Lamp
HEPA/Carbon
Filter
Lower Air Inlet

Page 8 of 12
OPERATING INSTRUCTIONS
Start:
After main power is switched on, tap the Power button. The unit will beep
and the air flow speed indicator will light.
First Use:
For best results, we recommend first running your purifier on fan speed 3
for several days to a week (while away from the room, if necessary). Then
switch to a lower fan speed as desired.!
Air Flow/Fan Speed:
Tap the Air Flow button to toggle between the 3 available fan speeds.
Sleep Mode:
Tap the Sleep button after startup or while in another mode and it will
switch to sleep mode.
In this mode the Sleep Indicator will light, the lights will dim, and the air
purifier will run on the lowest fan speed.
Timer:
Tap the Timer button after startup or while in another mode and it will
switch to the Timer mode.
In this mode you can toggle between 1hr, 4hrs, and 8hrs to automatically
switch off the air purifier. The chosen time will be indicated on the display.
Tapping the Timer button while 8H is selected will disable the timer.

Page 9 of 12
Light Controls:
Tap the Light button to switch on/off the display and ambient lights. This
function can be used at night, when you do not want any light to disturb
your sleep.
UV Lamp:
Tap the UV button after startup or while in another mode and the
indicator will light while the UV LED light is active. Tap the UV button again
to disable this function.
*NOTE: The UV LED bulb is located under the motor and is not visible
during operation.
Stop Purifier:
If you want to switch off the air purifier completely, tap the Power button -
the fan will stop and all lights will turn off.
Reset Filters Button:
When the filter needs to be changed, this button will light up. After
replacing the filter, press and hold the Filter Life Reset button for 5 seconds
to reset.

Page 10 of 12
MAINTENANCE
WARNING! Before attempting to perform any maintenance on this air
purifier, disconnect the power adapter!
COMBINATION HEPA FILTER & ACTIVATED CARBON:
It is suggested that the filter be changed every 6 months*.
*Note: Filter life will depend on the air quality of the room and length of
use. For example, the filter may need to be replaced sooner in
contaminated zones, smoking areas, etc. Please change the filter if
purification has degraded.
Cleaning procedure: monthly (or more often in heavy polluted areas)
• Use a soft brush or dry cotton cloth to clean the filter surface only or
vacuum gently.
• Do NOT use water to wash the filter.
• Filter may damage easily - use caution during handling and replace
immediately if damaged.
*Replacement filters can be purchased on our website at
http://www.silveronyx.com
EXTERNAL SURFACE:
• Use a dry, soft fabric cloth to wipe the surface, inlets and outlets of the
purifier.
• Do not use a chemical cleaning agent!
• During Extended Idle Periods:
• Unplug unit from its power source.
• Clean the surface and filter.
• Store in a cool, dry location and cover with a plastic bag.

Page 11 of 12
TROUBLESHOOTING
Problem
Reason & Solution
Smell
• The filter may be too dirty if not replaced for a long time.!
Replace the filter.
• Using the air purifier in moist conditions or water entered
in the filter.!Replace the filter.
• Burning smell.!Stop the purifier and unplug immediately;
contact Customer Care.
No Air Flow
• Air purifier being operated in sleep mode.!Change the
mode.
• The air purifier is malfunctioning.!Check power supply, if
problem persists contact Customer Care.
Ineffective
• The filter is clogged and no longer effective.!Replace the
filter.
• Being used in inappropriate places, such as oversized
spaces.

Page 12 of 12
SPECIFICATIONS
Model
KJ100F-Q01
Adapter Power Supply
Input 100-240V ~ 50/60Hz
0.6A Max
Unit power supply
24V DC 1A
CADR
100m3/hr
Noise level
Low: 25 dB(A); High:
52dB(A)
Dimension in inches
8.5 x 8.5 x 13.2
Net weight
3.97 lbs
