SilverStar SHOWPRO LEDFRE102 User manual

LED Fresnel RGBAL
LEDFRE102
USER MANUAL

1
1 PRODUCT
1.1 TECHNICAL SPECIFICATIONS
Type
LED Fresnel RGBAL
LED colors
Red, Green, Blue, Amber, Lime
Power
100W
Voltage Range
AC100~240V,50/60Hz
Protection
IP20
Operation Temperature
0℃~45℃
Dimensions
449x283x266mm
Weight
5.62KG

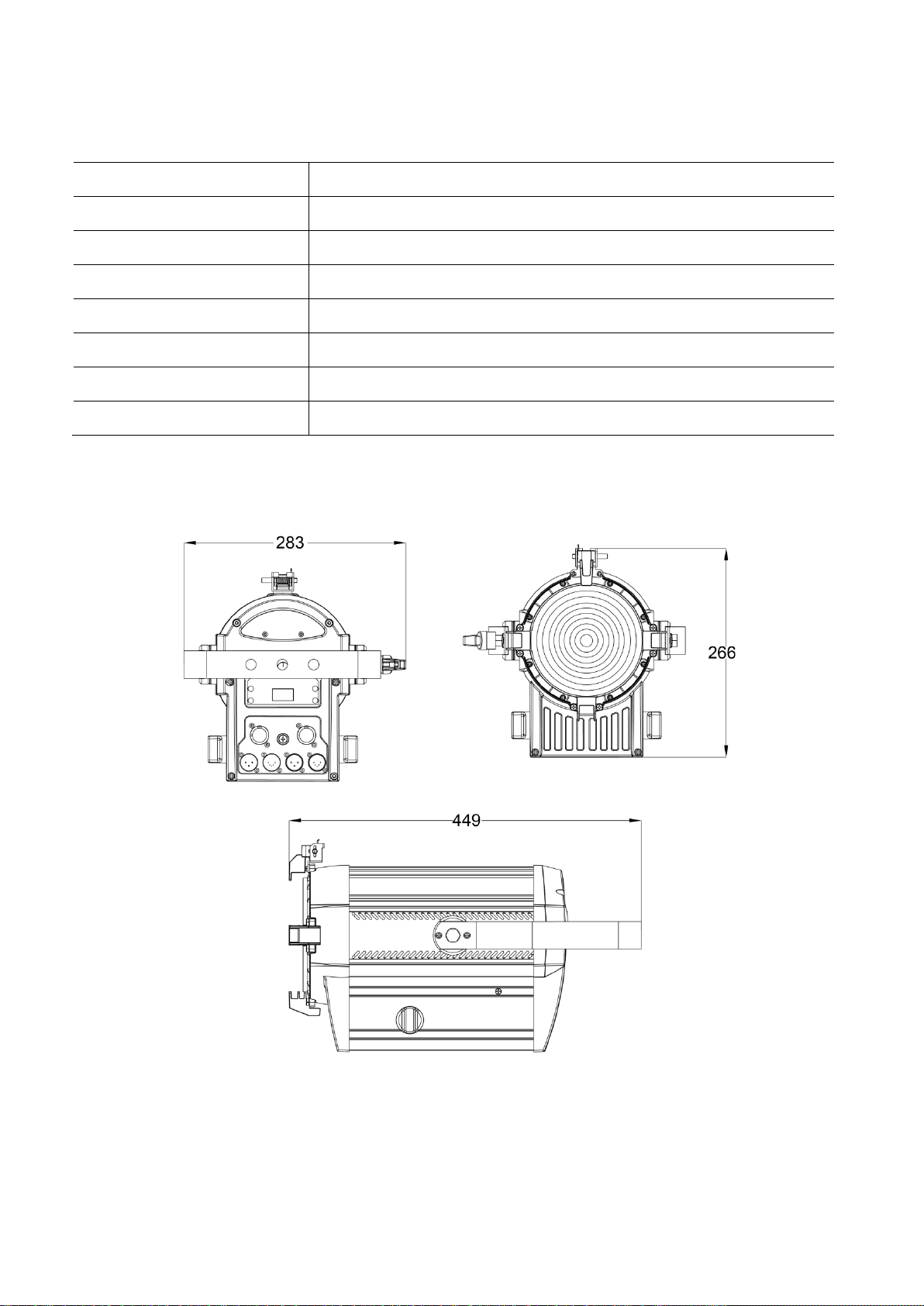

DIMENSIONAL DRAWINGS

2
1.2 Safety Notes
IMPORTANT
⚫ This product must be installed by a qualified professional.
⚫ To keep the product in good condition, and to ensure safe operation, it is necessary for the
user to follow the safety instructions and warning notes in this manual.
⚫ The manufacturer will not accept liability for any resulting damage caused by the
non-observance of this manual or any unauthorized modification to the device.
CAUTION!
⚫ Make sure that the available voltage is not higher than stated on the rear panel.
⚫ Do not touch the power cables if your hands are wet.
⚫ The earth wire must always be connected to the ground. It is essential to connect the
yellow/green conductor to earth.
⚫ Make sure that the power cord is never crimped or damaged by sharp edges. Check the
device and the power cord from time to time for damage. Electrical connection, repairs and
servicing must be carried out by a qualified person.
⚫ Always disconnect the power input cable to completely remove power from the unit when
not in use, or before cleaning or servicing the fixture.
⚫ Do not switch the fixture on and off in short intervals as this could reduce the life of the fixture.
⚫ Do not touch the device’s housing bare hands during its operation as the housing becomes
hot. The surface of the product’s casing can reach up to 60°C (140°F) during operation.
Avoid contact with people and materials. Do not install the product in a location where there
is a risk of accidental contact. Allow the product to cool for at least 10 minutes before
handling.
⚫ When replacing use lamps and fuses of the same type and rating only.
⚫ Please protect the fixture from damage during transport and installation. If there is any
damage to the coating, the shell may be corroded.
⚫ When hanging lamps and lanterns, it is necessary to verify that facilities and hooks can
bear at least 10 times the weight of lamps and lanterns.
⚫ Attach the safety wire to the correct holes only. Only operate the fixture after having
checked that the housing is closed, and all screws are tightly fastened.
⚫ The maximum ambient temperature of 45°C must never be exceeded. Do not operate
the product if the ambient temperature (Ta) exceeds 45°C (115°F).
Electrical Warning
⚫ The light source contained in this luminaire shall only be replaced by the manufacturer or
qualified service agent, or a similar qualified person.

3
2 INSTALLATION
2.1 MOUNTING
UPRIGHT
◆ For overhead use, always install a safety cable that can hold at least 10 times the weight of
the fixture.
◆ Ensure that the structure (truss) to which you are attaching the fixture is secure.
Hanging layout
2.2 POWER CONNECTIONS
◆ POWER Linking: 13 units@110V；25 units@220V.
◆ This product has an auto-ranging power supply that can work with an input voltage range of
100–240 VAC, 50/60 Hz. AC Plug
Connection
Wire (U.S.)
Wire (Europe)
Screw Color
AC Live
Black
Brown
Yellow/Brass
AC Neutral
White
Blue
Silver
AC Ground
Green/Yellow
Green/Yellow
Green

4
2.3 Data network requirements
◆ Connect the DMX controller to the units in series. A DMX 512 data link is required to control
the fixture via DMX. The fixture has 3/5-pin XLR connectors for DMX data input and output.
◆ Each unit has N DMX channels so the DMX Addresses should increase by increments of 1，
(Nx1) +1，(Nx2) +1，(Nx3) +1...
◆ Any DMX address in the range from 001 to 512 may be used.

5
3 FUNCTIONS AND SETTINGS
3.1 DISPLAY OPERATION
◆ MENU: Used to access the menu or to return a previous menu option.
◆ ENTER: Used to select and store the current menu or confirm the current function value or
option within a menu.
◆ UP: Navigates downwards through the menu list and increases the numeric value when in a
function.
◆ DOWN: Navigates upwards through the menu list and decreases the numeric value when in
a function.
3.2 Menu Map
KNOB MODE
Mode 1
1. Dimmer 2. CCT 3. Green
Knob mode select
Mode 2
1. CYAN 2. MAGENTA 3. YELLOW
Mode 3
1.H 2.S 3.I
STATIC
MANUAL
RED
0-255
Combine RED, GREEN, BLUE, LIME,
AMBER to create an infinite range of colors
(0-255). Set the value of the STROBE (0-
25Hz).
GREEN
0-255
BLUE
0-255
AMBER
0-255
LIME
0-255
STROBE
0-255
CCT
1800K
Color temperature selection
2200K
2700K
3000K
3200K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
8000K
10000K
PRESET
COLOR
COLOR 1
Preset colour (See Annex I for details）
COLOR 2
...
COLOR 48
CMY
CYAN
CYAN, MAGENTA, YELLOW colour
mixing

6
MAGENTA
YELLOW
C+M
C+Y
M+Y
ADDRESS
001-512（default001）
Set the DMX ADDRESS
RUN MODE
DMX (default）
DMX Using the DMX 512 controller to
control SLAVE Master--Slave operation.
SLAVE
PERSONALITY
HSIC
Use the menu to select desired channel
mode
SSP
TOUR (default）
TR16
CMY
AUTO
PROGRAM
AUTO 1
0-255
Selects automatic AUTO program and
AUTO program speed.
Programs CUSTOM 1 and CUSTOM 2 are
fully programmable and can be edited in
EDIT mode.
AUOT 2
0-255
...
0-255
AUTO 10
0-255
PR 1
PR 2
EDIT
PROGRAM
1-2
SCENE
01-10
RED
0-255
Enter the EDIT mode to edit the custom
programs PROGRAM01 and PROGRAM2.
Each custom program has 30 scenes that
can be edited.
Fade transition time can be set from 0-255
(units in seconds), fade time setting should
be less than time setting.
After editing the program, Play in AUTO.
GREEN
0-255
BLUE
0-255
AMBER
0-255
LIME
0-255
STROBE
0-255
CCT
0-255
COLOR
0-255
TIME
0-255
FADE
0-255
UPLOAD
****
SEND
Select UPLOAD to upload the custom programs
SETTING
****
RESET
****
RESET
Restore factory settings
DIMMER
DIM4（default）
Dimming curves DIM1 (fast) to DIM4 (slow)
OFF
DMX
ERROR
SAVE (default）
Hold after loss of DMX signal
BLACK
Blackout after loss of DMX signal
LED PWM
1200HZ（default）
Sets the PWM frequency
2400HZ
4000HZ
6000HZ

7
25000HZ
PERFORM
LIVE (default）
Fan mode low speed
POWER
Fan at full power
STUDIO
Automatic rotation of fan
DISP KEY
ON (default）
Locks display (passcode is UP, DOWN, UP,
DOWN, ENTER)
OFF
DISP TIME
ON
Display backlight always on
10s
Turns off display backlight after 10s/30s
/2min of inactivity
30s（default）
2min
LANGUAGE
****
中文
Language Selection
ENGLISH
Color Cali
OFF
Full power operation
UC
RED 0-255
Manual correction of full bright colors
GREEN0-255
BLUE0-255
AMBER 0-255
LIME 0-255
Factory Calibration
Factory Calibration mode
INFO
FIXTURE HOURS
Hours of fixture use
VERSION
Software versions
RDM
UID
0x388Axxxxxxxx
Check fixture's ID
LABEL
Check fixture's LABEL
All passwords for this product are UP, DOWN, UP, DOWN, ENTER

8
4 USING A DMX512 CONTROLLER
4.1 DMX CONTROL
HSIC
(7CH)
Value
Function
CH.1
0-255
INTENSITY
CH.2
0-255
HUE
CH.3
0-255
HUE FINE
CH.4
0-255
SATURATION
CH.5
CCT
0-10
NO FUNCTION
11-28
1800K
29-46
2200K
47-64
2700K
65-82
3000K
83-100
3200K
101-118
4000K
119-136
4500K
137-154
5000K
155-172
5600K
173-190
6000K
191-208
6500K
209-226
7000K
227-244
8000K
245-255
10000K
CH.6
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM SLOW TO FAST (0-25Hz)
100-109
NO FUNCTION
110-179
THUNDER STROBE
180-189
NO FUNCTION
190-255
RANDOM SROBE
CH.7
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER
091-100
RESERVED
101-110
DIMMER OFF

9
111-120
DIMMER DIM4
121-150
RESERVED
151-160
1200Hz
161-170
2400Hz
171-180
4000Hz
181-190
6000Hz
191-200
25000Hz
201-210
ALL RESET
211-255
RESERVED
SSP
（ 8CH ）
TOUR
（ 12CH
TR16
（ 18CH ）
Value
Function
CH.1
CH.1
CH.1
0-255
MASTER DIMMER
--
--
CH.2
0-255
MASTER DIMMER FINE
CH.2
CH.2
CH.3
0-255
RED
--
--
CH.4
0-255
RED FINE
CH.3
CH.3
CH.5
0-255
GREEN
--
--
CH.6
0-255
GREEN FINE
CH.4
CH.4
CH.7
0-255
BLUE
--
--
CH.8
0-255
BLUE FINE
CH.5
CH.5
CH.9
0-255
AMBER
--
--
CH.10
0-255
AMBER FINE
CH.6
CH.6
CH.11
0-255
LIME
--
--
CH.12
0-255
LIME FINE
--
CH.7
CH.13
PRESET COLOR
0-10
NO FUNCTION
11-255
PRESET COLOUR (See Annex I for details）
--
CH.8
CH.14
CCT
0-10
NO FUNCTION
11-28
1800K
29-46
2200K
47-64
2700K
65-82
3000K
83-100
3200K
101-118
4000K
119-136
4500K
137-154
5000K
155-172
5600K
173-190
6000K
191-208
6500K

10
209-226
7000K
227-244
8000K
245-255
10000K
--
CH.9
CH.15
Effects
0-40
NO FUNCTION
41-50
AUTO 1
51-60
AUTO 2
61-70
AUTO 3
71-80
AUTO 4
81-90
AUTO 5
91-100
AUTO 6
101-110
AUTO 7
111-120
AUTO 8
121-130
AUTO 9
131-140
AUTO 10
141-150
PROGRAM 1
151-160
PROGRAM 2
161-255
NO FUNCTION
--
CH.10
CH.16
0-255
AUTO SPEED ADJUSTMENT
CH.7
CH.11
CH.17
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM SLOW TO FAST (0-25Hz)
100-109
NO FUNCTION
110-179
THUNDER STROBE
180-189
NO FUNCTION
190-255
RANDOM SROBE
CH.8
CH.12
CH.18
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-150
RESERVED
151-160
1200Hz
161-170
2400Hz
171-180
4000Hz

11
181-190
6000Hz
191-200
25000Hz
201-210
ALL RESET
211-255
RESERVED
CMY
（ 10CH ）
Value
Function
CH.1
0-255
DIMMER
CH.2
0-255
CYAN
CH.3
0-255
MAGENTA
CH.4
0-255
YELLOW
CH.5
PRESET COLOR
0-10
NO FUNCTION
11-255
PRESET COLOUR (See Annex I for details）
CH.6
CCT
0-9
NO FUNCTION
10 - 24
1800K
25 - 39
2200K
40 - 54
2700K
55 - 69
3000K
70 - 84
3200K
85 - 99
4000K
100 - 114
4500K
115 - 129
5000K
130 - 144
5600K
145 - 159
6000K
160 - 174
6500K
175 - 189
7000K
190 - 204
8000K
205 - 255
10000K
CH.7
Effects
0-40
NO FUNCTION
41-50
AUTO1
51-60
AUTO2
61-70
AUTO3
71-80
AUTO4
81-90
AUTO5
91-100
AUTO6
101-110
AUTO7
111-120
AUTO8

12
121-130
AUTO9
131-140
AUTO10
141-150
CUSTOM1
151-160
CUSTOM2
161-255
NO FUNCTION
CH.8
0-255
AUTO SPEED ADJUSTMENT
CH.9
STROBE
0-9
NO FUNCTION
10-99
STROBE FROM (SLOW TO FAST ,0-25Hz)
100-109
NO FUNCTION
110-179
LIGHTNING STROBE
180-189
NO FUNCTION
190-255
RANDOM STROBE
CH.10
CONTROL（EXECUTE AFTER 3 SECONDS）
000-010
NO FUNCTION
011-060
RESERVED
061-070
LIVE
071-080
STUDIO
081-090
POWER
091-100
RESERVED
101-110
DIMMER OFF
111-120
DIMMER DIM4
121-150
RESERVED
151-160
1200Hz
161-170
2400Hz
171-180
4000Hz
181-190
6000Hz
191-200
25000Hz
201-210
ALL RESET
211-255
RESERVED

13
Annex 1
PRESET COLOR
Value
Color Names
x
y
0-10
NO FUNCTION
COLOR 1
11-15
L176
Loving Amber
0.407
0.321
COLOR 2
16-20
R40
Light Salmon
0.499
0.321
COLOR 3
21-25
L24
Scarlet
0.561
0.296
COLOR 4
26-30
L164
Flame Red
0.659
0.302
COLOR 5
31-35
L747
Easy White
0.389
0.344
COLOR 6
36-40
R303
Warm Peach
0.448
0.353
COLOR 7
41-45
L08
Dark Salmon
0.498
0.347
COLOR 8
46-50
L25
Sunset Red
0.566
0.359
COLOR 9
51-55
L04
Medium Bastard Amber
0.37
0.335
COLOR 10
56-60
L237
CID (To Tungsten)
0.43
0.365
COLOR 11
61-65
R321
Soft Golden Amber
0.477
0.406
COLOR 12
66-70
L652
Urban Sodium
0.535
0.399
COLOR 13
71-75
L212
LCT Yellow(Y1)
0.34
0.363
COLOR 14
76-80
L765
LEE Yellow
0.389
0.412
COLOR 15
81-85
L513
Ice And A Slice
0.38
0.447
COLOR 16
86-90
L100
Spring Yellow
0.41
0.502
COLOR 17
91-95
L244
LEE Plus Green
0.324
0.388
COLOR 18
96-100
R4430
CalColor 30 Green
0.318
0.44
COLOR 19
101-105
L122
Fern Green
0.234
0.543
COLOR 20
106-110
L90
Dark Yellow Green
0.184
0.641
COLOR 21
111-115
L243
LEE Fluorescent3600K
0.286
0.37
COLOR 22
116-120
R92
Turquoise
0.235
0.36
COLOR 23
121-125
R94
Kelly Green
0.185
0.459
COLOR 24
126-130
L327
Forest Green
0.162
0.496
COLOR 25
131-135
L191
Cosmetic Aqua Blue
0.3
0.318
COLOR 26
136-140
L728
Steel Green
0.256
0.302
COLOR 27
141-145
L117
Steel Blue
0.223
0.278
COLOR 28
146-150
L354
Special Steel Blue
0.173
0.265
COLOR 29
151-155
L53
Paler Lavender
0.284
0.284
COLOR 30
156-160
L501
New Colour Blue
0.246
0.249
COLOR 31
161-165
L174
Dark Steel Blue
0.204
0.205
COLOR 32
166-170
L165
Daylight Blue
0.159
0.158
COLOR 33
171-175
L136
Pale Lavender
0.288
0.254
COLOR 34
176-180
L194
Surprise Pink
0.24
0.183
COLOR 35
181-185
L142
Pale Violet
0.209
0.148
COLOR 36
186-190
L700
Perfect Lavender
0.177
0.07
COLOR 37
191-195
L35
Light Pink
0.335
0.289
COLOR 38
196-200
L794
Pretty'n Pink
0.335
0.251
COLOR 39
201-205
L328
Follies Pink
0.335
0.18
COLOR 40
206-210
L795
Magical Magenta
0.327
0.138
COLOR 41
211-215
L154
Pale Rose
0.35
0.318
COLOR 42
216-220
L127
Smokey Pink
0.397
0.265
COLOR 43
221-225
L192
Flesh Pink
0.41
0.237
COLOR 44
226-230
L332
Special Rose Pink
0.465
0.193
COLOR 45
231-235
L790
Moroccan Pink
0.378
0.324
COLOR 46
236-240
L157
Pink
0.457
0.272
COLOR 47
241-245
R332
Cherry Rose
0.489
0.295
COLOR 48
246-250
L128
Cool LED Bright Pink
0.57
0.263
251-255
NO FUNCTION
