TourPro Lighting LED Pin Spot User manual

!
TourPro LED Pin Spot
User Manual


©2015 TourPro Lighting Company all rights reserved. Information, specifications, diagrams,
images, and instructions herein are subject to change without notice. TourPro Lighting Company
logo and identifying product names and numbers herein are trademarks of TourPro Lighting
Company. Copyright protection claimed includes all forms and matters of copyrightable materials
and information now allowed by statutory or judicial law or hereinafter granted. Product names
used in this document may be trademarks or registered trademarks of their respective companies
and are hereby acknowledged. TourPro Lighting Company and all affiliated companies hereby
disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to
any persons, and direct or indirect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result of the improper, unsafe, insufficient
and negligent assembly, installation, rigging, and operation of this product.
TourPro Lighting Company AUS| 12 Expansion St. | Molendinar, QLD, 4214#
[phone] | | www.tlcflobal.com.au | [email protected]
Date
Document Version
Software Version
Channel Modes
09/2016
1.1
4,6,7
Page 2
TourPro LED Pin Spot - Manual v1.1


INTRODUCTION
The TourPro LED Pin Spot has been designed to perform reliably for years when the
guidelines in this booklet are followed. Please read and understand the instructions in this
manual carefully and thoroughly before attempting to operate this unit. These instructions
contain important information regarding safety during use and maintenance.
BOX CONTENTS
$(1) powerCON Cable
$(1) 10° Lens
(1) 45° Lens
$Manual#
Page 3
TourPro LED Pin Spot - Manual v1.1


LIMITED WARRANTY
A. TLC GLOBAL (“Tourpro Lighting Company”) warrants this product for the periods set
forth below from the date of purchase, to be free from defects in material and
workmanship:
$• 24 months for DMX-controllable lighting fixtures
$• 12 months for Labour
This limited warranty is valid only for the original purchaser, is not transferable and is only
applicable to products sold within Australia.
This limited warranty is limited solely to the above, applies only for the period set forth
above, and is contingent upon TLC Global receiving the defective product no later than the
expiration of the applicable warranty period, along with a description of the defect and the
date of its discovery. Warranty claims will not be considered for products received after the
expiration of the applicable warranty period. All warranty claims are judged under the
terms of this limited warranty. A dated proof of purchase must accompany the returned
product.
Warranty claims will not be considered without a dated proof of purchase. Current and
consistent maintenance records must be maintained for all products covered under this
warranty and supplied to TLC Global upon request (proper maintenance guidelines are
detailed in the product technical documentation).
No agent, employee or representative of TLC Global may bind TLC Global to any terms or
conditions beyond the scope of this limited warranty. Any provisions contained in the
purchaser’s purchase order or any other purchaser document which conflict with the terms
and conditions of this limited warranty or which are not expressly set forth in this limited
warranty shall be of no force or effect.
The purchase of this TLC Global product constitutes the purchaser’s acceptance of the
terms set forth in this limited warranty. This warranty gives the purchaser specific legal
rights. The purchaser may also have other rights, which vary from region to region.
B. This limited warranty excludes any defects caused by, resulting from or relating to the
following:
$i. Parts prone to normal wear and tear including lamps, LED’s, fuses, brushes, contact
rings, zippers, lamp sockets and belts;
$ii. misuse, abuse, improper handling, tampering or attempts to repair by or on behalf of
the owner or any person not authorised by TLC Global;
$iii. damage to the product resulting from acts of God;
iv. exposure to harsh or excessively corrosive environmental conditions (whether indoors
or outdoors), including, but not limited to, extreme temperatures, humidity, atmospheric
Page 4
TourPro LED Pin Spot - Manual v1.1


conditions (including salinity or pressure), radiation (UV, infrared or nuclear), shock and
conditions which exceed the product’s Ingress Protection (“IP”) rating;
$v. use of the product in a manner which exceeds the applicable product specification,
including, but not limited to, exposure to excessive, insufficient or other voltage conditions;
$vi. installation or use of the product not in accordance with the technical documentation
and product guidelines as outlined in the product or applicable building and electrical
codes, regulations and standards;
$vii. failure to maintain the product in accordance with the technical documentation;
$viii. natural degradation and colour shift of the LED source over the course of normal
product use;
$ix. slight deviations in the specified values of intensity and colour that do not affect the
functionality of the product;
$x. use of the product not for its intended purpose.
This limited warranty shall be null and void if the original identification information on the
product is missing or has been altered in any manner.
TLC Global offers no warranty for any accessories, peripheral equipment or products not
bearing the name TLC Global or a Tourpro Lighting Company brand, including, but not
limited to, road cases, third party wireless devices, cords, batteries, clamps, lamps and
brackets (unless otherwise specifically stated). Any warranty or other claims relating to any
such third party products are the sole responsibility of the manufacturer of such third party
products and the purchaser must communicate directly with such third party manufacturer
regarding such claims.
C. If a product fails within the warranty period and if, upon examination by TLC Global, it is
found to have failed for a covered cause, TLC Global will, at its sole discretion, repair or
replace the defective part or product or reimburse the purchaser a pro-rated portion of the
purchase price based on the percentage of the warranty period still remaining as of the
date that the returned product was received by TLC Global. Should a replacement part or
product be discontinued or unavailable, TLC Global reserves the right, in its sole and
absolute discretion, to substitute a comparable replacement part or product for the
defective part or product. TLC Global’s warranty obligation hereunder is limited solely to
the repair or replacement of or reimbursement for the particular parts or products found by
TLC Global to have failed for a covered cause within the warranty period. In no event shall
TLC Global be responsible to replace or reimburse purchaser for any products or portions
of a system not found by TLC Global to have failed for a covered cause within the warranty
period even if other products or portions of a system could not be repaired or replaced by
TLC Global.
D. Costs of removal, shipping to TLC Global or its authorised representative and
reinstallation are solely the responsibility of the purchaser. If TLC Global determines that
the product is covered by this limited warranty, TLC Global will advise where to send your
product to be repaired, whether that is TLC Global or a preferred local repair centre. The
cost of shipping repaired or replacement products or parts to any locations within Australia
Page 5
TourPro LED Pin Spot - Manual v1.1


and Overseas is the sole responsibility of the purchaser. If TLC Global determines that the
product is not covered by this limited warranty, the purchaser will have the option to pay for
the repair (if the product can be repaired) and the purchaser shall therefore be responsible
for the cost of shipping the repaired product to the purchaser. TLC Global reserves the
right, in its sole and absolute discretion, to decline any repair.
E. IN NO EVENT SHALL TLC GLOBAL BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, INDIRECT OR PUNITIVE LOSS OR DAMAGE OF ANY
KIND, INCLUDING,
BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUES, LOSS OF USE OF THE
PRODUCT OR ANY OTHER GOODS OR ASSOCIATED EQUIPMENT, DAMAGE TO ANY
ASSOCIATED EQUIPMENT, COST OF CAPITAL, COST OF SUBSTITUTE PRODUCTS,
FACILITIES OR SERVICES, DOWN TIME COST, INSTALLATION OR LABOR COSTS,
OR CLAIMS OF THE PURCHASER’S CUSTOMERS, WHETHER BASED ON
WARRANTY, CONTRACT OR NEGLIGENCE, ARISING IN CONNECTION WITH THE
SALE, USE OR REPAIR OF THE PRODUCT.
TLC GLOBAL’S MAXIMUM LIABILITY SHALL NOT, IN ANY CASE, EXCEED THE
PURCHASE PRICE OF THE PRODUCT THAT GIVES RISE TO THE CLAIM.
EXCEPT FOR THE LIMITED WARRANTY SET FORTH HEREIN, ALL PRODUCTS SOLD
BY TLC GLOBAL ARE SOLD “AS IS” WITHOUT ANY WARRANTY, EXPRESS OR
IMPLIED, STATUTORY OR OTHERWISE, INCLUDING, BUT NOT LIMITED TO, IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE,
ALL OF WHICH ARE EXPRESSLY AND SPECIFICALLY DISCLAIMED BY TLC GLOBAL.
To secure warranty coverage, retain a copy of your dated proof of purchase, which will be
required to verify warranty eligibility. Products under warranty receive priority for repairs.
This warranty does not confer any rights other than those expressly set out in this warranty
and, except as otherwise set forth in this limited warranty, no credit will be issued.#
Page 6
TourPro LED Pin Spot - Manual v1.1


SAFETY INSTRUCTIONS
•For proper operation, follow the Installation guidelines described in this manual.
Only qualified and certified personnel should perform installation of this fixture
and only the original rigging parts (brackets) included with this fixture should be
used for installation. Any modifications will void the original manufactures
warranty and increase the risk of damage and/or personal injury.
•$Never look directly into the light source of this fixture to prevent risk of injury to your
retina, which may induce blindness. Those suffering from epilepsy should avoid
looking directly into the light source of this unit at all times. #
•$Always disconnect from main power source before performing any type of service
and/or cleaning procedure. Only handle the power cord by the plug end, never
pull out the plug by tugging the wire portion of the cord. #
•$Do not operate this fixture if the power cord has become frayed, crimped and/or
damaged. If the power cord is damaged, replace it immediately with a new one of
similar power rating. #
Page 7
TourPro LED Pin Spot - Manual v1.1


FIXTURE INSTALLATION
•$Ambient operating temperature range for this fixture is -15°C to 45°C. Do not use
the fixture under or above this temperature.
•$Fixture installation must always be secured with a secondary safety attachment,
such as an appropriate safety cable.
•POWER LINKING #
Max number of units that can be power linked is 60 units @240V.
•Always use a Safety Cable whenever installing this fixture in a suspended
environment to ensure the fixture will not drop if the clamp fails.
DMX-512 CONNECTION WITH DMX TERMINATOR
A DMX terminator should be used in all DMX lines especially in longer runs. The use of a
terminator may avoid erratic behaviour in your DMX line. A terminator is a 120 ohm 1/4
watt resistor that is connected between pins 2 and 3 of a male XLR connector (DATA +
and DATA -). This fixture is inserted in the female XLR connector of the last fixture in your
daisy chain to terminate the line. Using a line terminator will decrease the possibilities of
erratic behaviour.
#
Page 8
TourPro LED Pin Spot - Manual v1.1


DMX Channels
4ch
6 Ch
7ch
CH1
R
0-255
0-100%
CH2
G
0-255
0-100%
CH3
B
0-255
0-100%
CH4
W
0-255
0-100%
CH1
R
0-255
0-100%
CH2
G
0-255
0-100%
CH3
B
0-255
0-100%
CH4
W
0-255
0-100%
CH5
Master dimmer
0-255
0-100%
CH6
strobe
001-005
006-010
011-255
Sound control
dimmer
Strobe from slow to
fast
CH1
R
0-255
0-100%
CH2
G
0-255
0-100%
CH3
B
0-255
0-100%
CH4
W
0-255
0-100%
CH5
Master dimmer
0-255
0-100%
CH6
strobe
001-005
006-010
011-255
Sound control
dimmer
Strobe from slow to
fast
CH7
Built-in program
000-004
005-125
126-255
CH1-CH4 dimmer
15 colour change from
slow to fast
15 colour fade from
slow to fast
Page 9
TourPro LED Pin Spot - Manual v1.1


CLEANING AND MAINTENANCE
CLEANING
Frequent cleaning is recommended to insure proper function, optimised light output,
and an extended life. The frequency of cleaning depends on the environment in
which the fixture operates: damp, smoky or particularly dirty environments can
cause greater accumulation of dirt on the fixture’s optics.
$Clean the external lens surface at least every 20 days with a soft cloth to
avoid dirt/debris accumulation.
$Never use alcohol, solvents, or ammonia based cleaners. #
MAINTENANCE #
Regular inspections are recommended to insure proper function and
extended life. There are no user serviceable parts inside this fixture, please
refer all other service issues to an authorised TourPro Lighting Company
service technician. Should you need any spare parts, please order genuine
parts from your local TourPro Lighting dealer.
#
Please refer to the following points during routine inspections:
•$A detailed electric check by an approved electrical engineer every three
months, to make sure the circuit contacts are in good condition and prevent
overheating.
•$Be sure all screws and fasteners are securely tightened at all times. Lose
screws may fall out during normal operation resulting in damage or injury
as larger parts could fall.
•$Check for any deformations on the housing, colour lenses, rigging hardware
and rigging points (ceiling, suspension, trussing). Deformations in the
housing could allow for dust to enter into the fixture. Damaged rigging
points or unsecured rigging could cause the fixture to fall and seriously
injure a person(s).
•Electric power supply cables must not show any damage, material fatigue or
sediments. Never remove the ground prong from the power cable. !
Page 10
TourPro LED Pin Spot - Manual v1.1



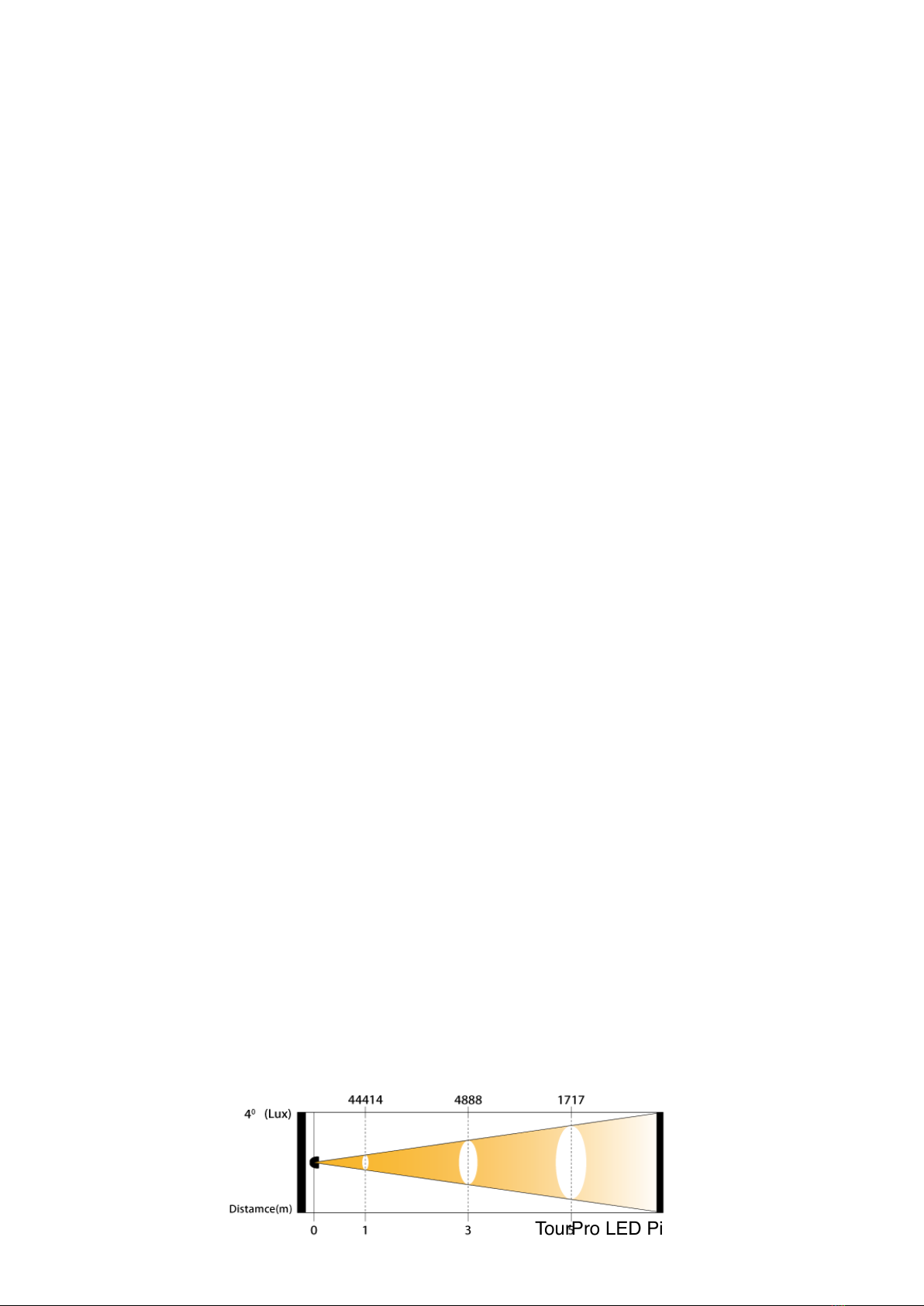

TECHNICAL SPECIFICATIONS
FEATURES
#
RDM - Remote Device Management Individual LED Control#
Variable Dimming Curve Modes Multiple Unit Power Linking#
Rugged Die-Cast Aluminium Exterior Flicker Free Operation for TV and FILM
SOURCE #
(1) 15W 4-in-1 RGBW LEDs 100,000 Hour Average LED Life
EFFECTS #
Strobe and Chase Effects!
Variable and Selectable Dimming Curves
CONTROL / CONNECTIONS #
3DMX Channel Modes (4,6,7) !
4 Button Control Panel and LCD Menu Display!
RDM (Remote Device Management) !
5 pin DMX In/Out powerCON Power In/Out
SIZE / WEIGHT #
Length: 203mm!
Width: 135mm!
Weight: 1.4kg
ELECTRICAL / THERMAL #
AC 110-240V - 50/60Hz!
17W Max Power Consumption!
POWER LINKING !
Max number of units that can be power linked is 60 units @240V.
APPROVALS / RATINGS #
CE | IP20
Please Note: Specifications and improvements in the design of this unit and this
manual are subject to change without any prior written notice.
Page 11
TourPro LED Pin Spot - Manual v1.1
