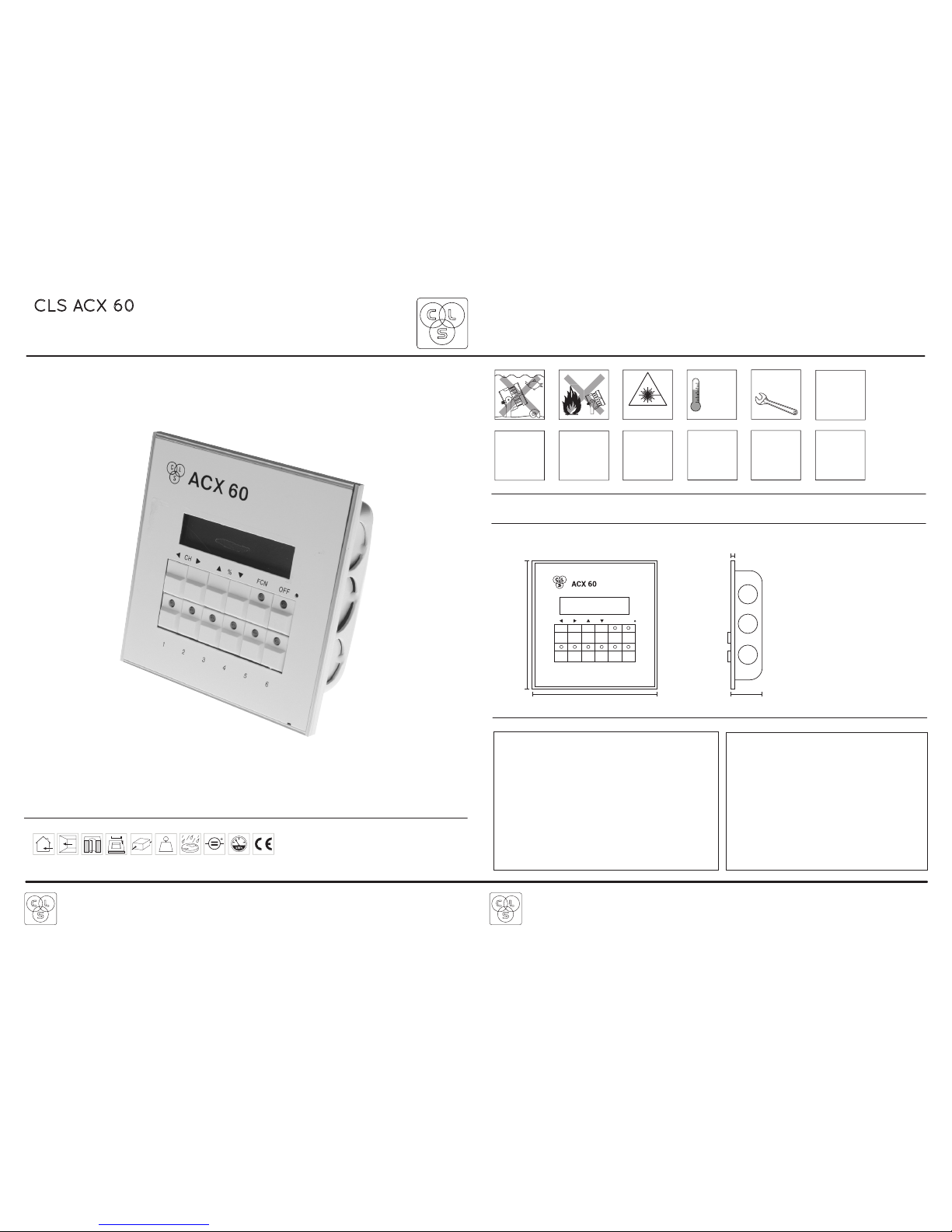

CLS ACX 60 User manual

www.cls-led.com www.cls-led.com
CLS ACX 60
Manual Version 1.1 june 2016
2
Wall 5 cm 10 x 10 cm Driver incl. 500 gr 9~12 VDCIP20 Max.
0,3 Watt
h
wd
MEASUREMENTS
Ambiance
Max. 40º
Block access
below the work
area when
maintaining
the unit
Disconnect the
power supply
before
installing or
maintaining
Use a source
of AC power
that complies
local electrical
codes
Don’t install in
a ammable
or explosive
area
Warning!
Some surfaces
can be hot
Do not stare
into the LED
Don’t modify
or install
genuine parts
on this product
Qualied
technician
Make sure all
connectors are
connected
properly
SPECIFICATIONS
Power supply: 9-12V AC/DC
Power consumption: Max. 0,3 Watt
DMX protocol: DMX512
Maximum DMX channels: 60
Maximum scenes: 40
Maximum chasers: 6 (Max. 24 scenes at each chaser)
Connector: RJ11
Housing: Steel Frame
Weight: 500 gr
IP value: IP20
Measurements: 120 x 116 x 55 mm (hxwxd)
Ambient temperature: -30º C till +40º C
ACCESSORIES
707032 CLS LED-Powersupply for ACX60 9-12V new type
707037 CLS LDV-45 DMX LED dimmer 4 channels 5Amp
113000 CLS LDC-41 DMX LED dimmer 4 channels
707061 CLS convertercable RJ11-RJ45 for LDV/LDC 1 mtr
707050 CLS ACX60 adapter RJ11 3 way
707051 CLS RJ11 RJ11 extension cord 2mtr
707052 CLS RJ11 RJ11 extension cord 5mtr
SAFETY INFORMATION
OFFFCNCH %
123456
116 mm
120 mm
55 mm
5 mm

www.cls-led.com www.cls-led.com
3 4
2. LOCKING/UNLOCKING PROGRAM-BUTTONS
It is possible to lock and unlock the program-buttons of the ACX60. When you start programming first unlock the
program-buttons.
• To lock the program-buttons of the ACX60 press [FCN] + [OFF] + [t] + [u].
• To unlock the program-buttons of the ACX60 press [FCN] + [t] + [u].
3. CHANNEL SETTINGS
With the channel-settings you can enable/disable the DMX-channels or set how much DMX-channels you have
to program. Factory-set (and maximum) is 60 DMX-channels.
3.1 Setting the dmx start address
You have to select a start address for the controller, here you can set on which channel the ACX60 should start
sending it's DMX data. For standard use this address should be set to 1.
• First push the [FCN] button to get in the main-menu.
• Scroll with the %-buttons [s] [q] to select [F8: START DMX] where you can set the address.
• You can change the address using the %-buttons [s] [q].
• To confirm and go back to the main-menu press [FCN].
3.2 Set maximum of DMX-channels
• First push the [FCN] button to get into the main-menu.
BEFORE PROGRAMMING, FIRST POWER ON THE ACX60 FOR 8 HOURS. AFTER
THIS 8 HOURS, THE BACKUP BATTERY IS FULL, AND NOW YOU CAN
PROGRAM THE ACX60.
THE MAXIMUM LENGTH OF THE RJ11- RJ11 CABLE BETWEEN THE SPLITTER
AND ACX60 IS 5 METRES. IF YOU USE A LONGER CABLE, THE DISPLAY OF
THE ACX60 WON'T WORK!
PROGRAMMING
• Scroll with the %-buttons [s] or [q] to select [F3: MAXIMUM CH] where you can set a maximum of DMX-
channels. Enter this menu with the [FCN] button.
• Change the maximum of settings with the %- and CH-buttons [s] or [q] - [t] or [u]. To save press the
function-button [FCN] and go back to the main-menu.
3.3 Disable DMX-channels
• To black-out (disable channels) press [OFF].
4. EDIT INTERNAL CLOCK
• First push the [FCN] button to get into the main-menu.
• Scroll with the %-buttons [s] or [q] to select [F5: MODIFY CLOCK] where you can edit the internal clock.
Enter this menu with the [FCN] button.
• Now select a date/time to edit. To do this, use the %-buttons [s] or [q].
• Now edit the date/time with the %- or CH-buttons [s] or [q] or [t] or [u].
• If you are ready press the function-button [FCN] to save.
5. SCENES
Before you can program a chase you must program scenes. A scene is 1 step with information for all 60 DMX-
channels.
[Example] Scene 1: DMX-Channel 1 value 50%
DMX-Channel 2 value 50%
Scene 2: Channel 30 value 24%
Channel 59 value 75%
All other DMX-channels value 0%
Scene 3: …
5.1 Programming Scenes
Every time you want to program, first push the function [FCN] button. You enter a menu where you can change all
settings.
• First push the [FCN] button to get into the main-menu.

www.cls-led.com www.cls-led.com
5
65
• Scroll with the %-buttons [s] or [q] to select [F1: MODIFY CH] where you can create scenes. Enter this menu
with the [FCN] button.
• Now we want to give one or more DMX-channels a value. Scroll with the CH-buttons ([É] or [Ñ]) to the desired
DMX-channel. You can enter a value with the %-buttons [s] or [q].
[Example] Channel 30 value 24% Channel 59 value 75%
If you want to set the value from 0% to 100% directly, push and hold the [q] button and press twice the [s] but-
ton.
• To save this scene push on the function [FCN] button. Scroll with the %-buttons [s] or [q] to the scene-number
where you want to save this scene.
• To save press hotkey [1]. To cancel press hotkey [2].
You are now back in the main-menu and the first scene is programmed (or cancelled). If this scene is program-
med, you see this is a programmed scene. Always press the [OFF] button when a scene is running, before you
want to program another scene.
5.2 Load Scenes
If you want to see your programmed scenes, you can load them.
• First push the [FCN] button to get into the main-menu.
• Scroll with the %-buttons [s] or [q] to select [F7: LOAD SC] where you can load scenes.
Enter this menu with the [FCN] button.
• Scroll with the %-buttons [s] or [q] to see all 40 scenes. The ACX60 shows all scenes, also the scenes that
not are programmed.
• If you want to go back to the main-menu push the function [FCN] button.
6.CHASERS
A chase is a program with a minimum of 1 and a maximum of 24 scenes. It is possible to program a scene more
than once in a chase. A chase can be programmed with fade-times and wait-times. Each chase has a hotkey (1-6).
[Example] Chase 1 Step 1: Scene 2
Step 2: Scene 4
Step 3: Scene 1
Step 4: Scene 4
6.1 Programming chasers
• First push the [FCN] button to get into the main-menu.
• Scroll with the %-buttons [s] or [q] to select [F2: EDIT CHASER]. Push the [FCN] button to get in this menu.
• Scroll with the %-buttons [s] or [q] to select 1 of the 6 chasers you start to program. If you are on the desired
chase press the first hotkey [1] to program this chase. Press hotkey [2] to cancel.
• Now you can program steps in a chase (maximum 24 steps). You begin with the first step of the chase you
selected. Scroll with the %-buttons [s] or [q] to a scene that you have programmed.
• If you want more steps in this chase scroll with the CH-buttons [t] or [u]to step 2. Program also this step with
a scene you wish.
[Example] Chase 1 Step 1: Scene 2
Step 2: Scene 4
Step 3: Scene 1
Step 4: Scene 4
Step 5: …
• If you are ready with this chase press de function-button [FCN] to save this chase and install a fade- and wait time.
A fade-time is the time between 2 steps in a chase.
A wait-time is the time that a step is staying in a chase.
• You can change the fade-time (from 0.1 sec. to 99 min.) with the %-buttons [s] or [q].
• You can change the wait-time (from 0.1 sec. to 99 min.) with the CH-buttons [t] or [u].
• If you are ready press the [FCN] button to save times and set a fade-mode. With a fade-mode you can set how a
chase fades between 2 steps.
• To select a chase fade mode scroll with the %-buttons [s] [q] between 1 and 4. Mostly we select mode 4
(see example on page 7).
• You can turn the chase fade mode on or off with the CH-buttons [t] or [u].
• If you are ready press the function [FCN] button to save and go back to the main-menu.
If you want to see your programmed chase, press the hotkey (1-6) you have programmed. Always press the [OFF]
button when a chase is running and you want to create another chase.

www.cls-led.com www.cls-led.com
7 8
Red
Green
Blue
100%
100%
100%
100%
Mode 1
Mode 2
Mode 3
Mode 4
There are 4 different chase fade modes: mode 1, Mode 2, Mode 3, Mode 4 7.TIMER SETTINGS
With timer settings you can set a date and time when there must be another chase.
[Example] Monday till Friday Chase 2
Saturday till Sunday Chase 3
7.1 Set timer on/off
• First push the [FCN] button to get in the main-menu.
• Scroll with the %-buttons [s] or [q] to select [F6: TIMER ON/OFF] where you can set the timer on or off.
We go inside this menu when you confirm this with the [FCN] button.
• Set the timer on or off with the %-buttons [s] or [q]. If you are ready press the [FCN] button to save and go
back to the main menu. The display shows “T” when the timer is switched on.
7.2 Set a timer
• First push the [FCN] button to get in the main-menu.
• Scroll with the %-buttons [s] or [q] to select [F4: EDIT TIMER] where you can set a timer.
Enter this menu with the [FCN] button.
• To set the timer press hotkey [3].
• First we set the time. Scroll with the %-buttons [s] or [q] to set an hour you wish. Press then on [u]where you
can set the minutes with the %-buttons [s] or [q].
•Press now [u] to set the chase fade mode you like. This mode you can change with the %-buttons [s] or [q].
•Press also [u] to set the chase (1-6) you want on this time. You can change it with the %-buttons [s] or [q].

www.cls-led.com www.cls-led.com
9 10
• Then press [Ñ] to set the chase speed. Attention! This speed must be the same as the chase speed you set at
this chase. Change it with the %-buttons [s] or [q].
• Now we set the days we want a chase. First press [u]. Now you can select which days you want this chase.
You can choose:
Everyday
Monday – Friday
Saturday – Sunday
Sunday
You can change it with the %-buttons [s] or [q].
• The last setting is the keep-time. Press [u]. Attention! This Keep-time must be the same as the Keep-time you
set at this chase. Change it with the %-buttons.
To save this timer press the function-button [FCN].
• To go back to the main-menu press [FCN].
7.3 Edit timer
• First push the [FCN] button to get in the main-menu.
• Scroll with the %-buttons [s] or [q] to select [F4: EDIT TIMER] where you can edit a timer. Enter this menu with
the [FCN] button.
• Select now which timer you want to edit with the CH-buttons [t] or [u]. Then press hotkey [4] to edit this timer.
• Select with the CH-buttons [t] or [u]which item you want to edit.
• Scroll with the %-buttons [s] or [q] to set another value. Then press the function-button [FCN] to save.
• To go back to the main-menu press [FCN].
7.4 Delete timer
• First push the [FCN] button to get in the main-menu.
• Scroll with the %-buttons [s] or [q] to select [F4: EDIT TIMER] where you can delete a timer.
To enter this menu press the [FCN] button.
•Select with the CH-buttons [t] or [u] which timer you want to delete and press hotkey [2].
• Press hotkey [1] to delete this timer, or press hotkey [2] to cancel.
• Press the function-button [FCN] to go back to the main-menu.
8. MEMORY RESET
You can reset the ACX60 to factory defaults.
•First turn off the power supply.
• Press and hold the [s] or [q] + [FCN] + [OFF] buttons and power on the ACX60.
• Press hotkey [1] to reset or press hotkey [2] to cancel.
2015 CLS-LED BV. All rights reserved. Information subject to change without notice, CLS-LED BV and all affiliated companies disclaim liability for
injury, damage direct or indirect loss, consequential or economic loss or any other loss occasioned by the use of, inability to use or reliance on the
information contained in this manual. No part of this manual may be reproduced, in any form or by any means, without permission in writing from
CLS-LED BV. Other legal information can be found in our General conditions to be found on the back of your CLS-LED BV invoice or on our website
www.cls-led.com/Voorwaarden.pdf

www.cls-led.com www.cls-led.com
11 12
OFFFCNCH %
123456

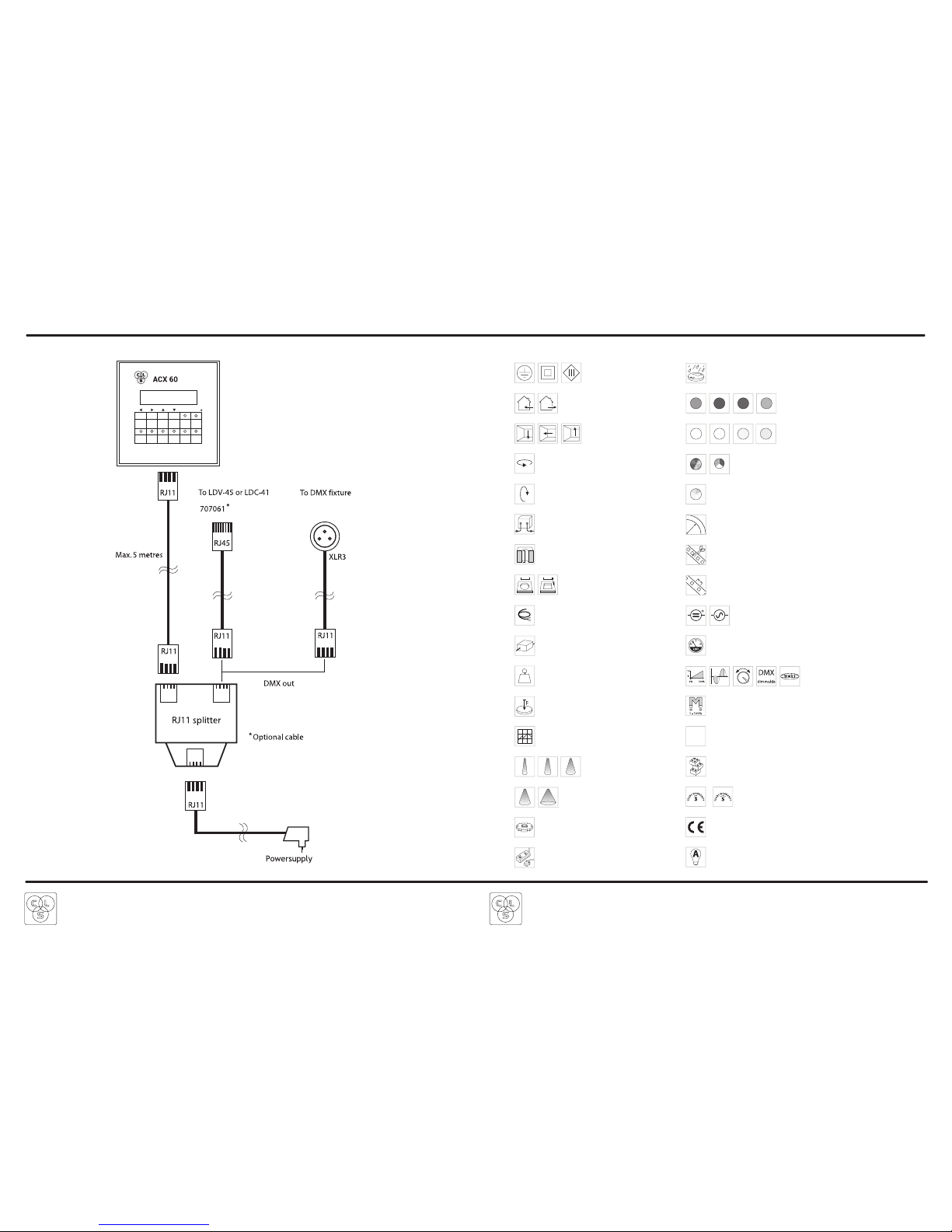

WIRING DIAGRAM LIST OF SYMBOLS
Multiple connection
Daisychain connectivity
Installation depth
In centimeters
Swivel
Fixture is horizontally rotatable,
indicated in degrees
Swivel
Fixture is vertically rotatable,
indicated in degrees
Installation size
In centimeters
Application area
Indoor or outdoor
Application area
Floor, wall or ceiling
Protection class
One, two or three
Cable length
Maximum cable attached
to the fixture in centimeters
Lifespan
Of the light source in hours
Driver
Inclusive or exclusive
Pressure
Maximum pressure on
the fixture in kg/cm2
Weight
In grams/kilograms
Curve
Minimal bending curve
in centimeters
LED pitch
Pitch between the
LEDs in millimeters
Power supply
In VDC, VAC or milliAmpere
Power consumption
In VA or Watt
IP value
Ingress Protection classifies the
degrees of protection provided
against the intrusion of the product
Cutting length
Indicated by the
cutting marks
LEDs
Kind of LED used in the
fixture
Lenses
Availble lenses,
indicated in degrees
Plug & play
Easy connection using the
SmartConnect system
White colour temperature
In different Kelvin values;
Cold white, neutral white, warm
white or extra warm white
Colour
Available colours;
Amber, blue, red or green
Colour changing
RGB, RGB-W, RGB-A
or AWB
Dynamic White
Stepless control of white light
DMX input
Fixture works on DMX512
protocol
Magno dimming
Accurate dimming from
100 - 1% by using a magnet
Combined product
Compose your own fixture
Warranty
3 or 5 years warranty on
the product
Energy label
Conformité Européenne
CE marking for free marketability of
industrial goods within the EU
DMX
512
r
h
ø w d
Dimmable
1-10 Volt, Phase, individual,
DMX dimmable or DALI
