SilverStar barLED YG-LED316 User manual

ABLE OF CONTENTS
T
TABLEOF CONTENTS I2008.5.22

11.1 PRODUCTINTRODUCTION
1.2 PRODUCTFEATURES
1.3 TECHNICALSPECIFICATIONS
1.4 PHOTOMETRIC DATA
1.5 SAFETYWARNING
PRODUCT (GENERAL)
1 PRODUCT(GENERAL) 12008.5.22

1.1 PRODUCTINTRODUCTION
This product is designed for indoor use. Suitable applications include wash or effect
lighting for stage or nightclub applications. This product can also be installed for use in
signage and advertisingusing the dynamicfunctions available withDMX512 control. Direct
input of DMX512 signal allows theunits tobe controlled from any DMX512 controller. This
product can beoperated as asingle unit orin multiple unitsfor large applications.
The specially developed controller that allows the product to be controlled independent of
the DMX512 controllerenables the userto create andedit a widerange of customprograms.
All programs can be touch-button displayed or scheduled to START andEND at scheduled
times. When programshave been createdor edited inthe controller, it is also possible to
trigger theseprograms usingthe DMXIN functionwhen connectedto aDMX512 controller.
1.2 PRODUCTFEATURES
LED FIXTURE
* RGBDimmer 0-100%
* Strobe
* Automatic/Customsprograms
* LCD display
* Display control'lock-out'
* DirectDMX512 input
* Independant IDaddress
* Stand-alone/ Slave
* 'Over-heat'protection
* Fanspeed control
1 PRODUCT(GENERAL) 22008.5.22

1.3 TECHNICALSPECIFICATIONS
LED MODULE
Dimensions
LED MODULE:
Voltage
Rated Power
45pcs (15 xRED / 15x GREEN /15x BLUE)
Weight
LED/Unit
Output/LED
Cooling
1W
Forced air convection
430 x 310x300mm
6Kg
AC 100~240V...50/60Hz
85W
1 PRODUCT(GENERAL) 3
Environment Temperature -20 ~40
2008.5.22

1.4 PHOTOMETRICDATA
PHOTOMETRICDATA
1 PRODUCT(GENERAL) 4
RED
1
2
3
0
1
2
3
246810Distance(m)
2035 578 268 158 104 LUX
15
GREEN
1
2
3
0
1
2
3
246810Distance(m)
2340 672 310 180 120 LUX
15
BLUE
1
2
3
0
1
2
3
246810Distance(m)
510 152 71 42.5 29.2 LUX
15
RGB
1
2
3
0
1
2
3
246810Distance(m)
4830 1408 644 376 246 LUX
15
WHITE
1
2
3
0
1
2
3
246810Distance(m)
4560 1344 621 360 238 LUX
15
2008.5.22

1.5 SAFETYWARNING
IMPORTANT
ALWAYSREAD THEUSER MANUALBEFORE OPERATION.
PLEASE CONFIRMTHATTHE POWERSUPPLYSTATED ONTHE
PRODUCT ISTHE SAMEAS THEMAINS POWERSUPPLYIN YOUR
AREA.
This productmust beinstalled bya qualifiedprofessional.
Always operatethe equipmentas describedin theuser manual.
A minimum distance of 0.5m must be maintained between the equipment and
combustible surface.
The productmust alwaysbe placedin awell ventilatedarea.
Always makesure thatthe equipmentis installedsecurely.
DO NOT stand close to the equipment and stare directly into the LED light
source.
Always disconnectthe powersupply beforeattempting andmaintenance.
Always make sure that the supporting structure is solid and can support the
combined weight ofthe products.
The earthwire mustalways beconnected tothe ground.
Do not touchthe power cablesif your handsare wet.
ATTENTION
This product leftthe place ofmanufacture in perfectcondition. In orderto
maintain thiscondition andfor safeoperation, theuser mustalways followthe
instructions andsafety warningsdescribed inthis usermanual.
Avoid shakingor strong impactsto any partof the equipment.
Make sure thatall parts ofthe equipment arekept clean andfree of dust.
Always makesure thatthe powerconnections areconnected correctand
secure.
If thereis anymalfunction ofthe equipment,contact yourdistributor
immediately.
When transferringthe product,it isadvisable touse theoriginal packagingin
which the productleft thefactory.
Shields, lenses orultraviolet screens shallbe changed ifthey have become
damaged tosuch anextent thattheir effectivenessis impaired.
The lamp(LED) shallbe changedif ithas becomedamaged orthermally
deformed.
1 PRODUCT(GENERAL) 52008.5.22

22.1 MOUNTING
2.2 POWERCONNECTIONS
2.3 SETTINGUP WITHADMX512 CONTROLLER
2.3-1 DMX512ADDRESSING WITHOUTID ADDRESSING
2.3-2 DMX512ADDRESSING WITHID ADDRESS
INSTALLATION
6
2 INSTALLATION 2008.5.22

2.1 MOUNTING
HANGING
UPLIGHT
The LED mini BATTEN can be mounted in an
upright or sitting position using the supporting
brackets.
The LED mini BATTEN can be mounted in a
hanging position using the supporting bracket.
The bracket should be secured to the mounting
truss or structure using a standard mounting
clamp. Please note that when hanging the unit
a safetycable shouldalso beused.
The LED MODULEcan be mountedat any angleand in any
position. It ispossible to furtheradjust the angleof the LED
MODULE using thetwo adjustment knobslocated on theside of
the fixture.
7
2 INSTALLATION
safety cable
Clamp
@ 220V:15 unitsmay beconnected inseries
@120V: 10units maybe connectedin series
2.2 POWER CONNECTIONS
Note: Asthis fixture's DMX signal cable connection had beenchanged toParallel connection,
so ifover 30units tobe connected,then aDMX signalamplifier isneeded.
2008.5.22

2.3 SETTING UPWITHADMX512
CONTROLLER
2.3-1 DMX512ADDRESSING WITHOUT IDADDRESSING
(STAGE1 MODE)
The figureabove showsa simpleDMX512
layout with thestarting address ofthe first
unit setat 1,with thesecond setat 11 and
so on... (Note thatwhen usedin thisway,
the CH9 IDfunction must be inactive (CH9=0))
DMX512
CONTROLLER
Connect the DMX512controller to theunits in series.
Each unithas 10DMX channelsso theDMX Addresses shouldincrease byincrements of
10 (e.g. 1,11,21,31...)
The ID addresshas not beenset so therefore when usingthe controller Ch9must
be inactive (CH9=0 ).
Each DMXAddressmay beused asmany timesas required.
Any DMXaddress inthe rangefrom 001to 512may beused.
2.3-2 DMX512ADDRESSING WITH IDADDRESS(STAGE1 MODE)
Connect theDMX512 controllerto theunits inseries
Each unithas 10DMX channelsso theDMX Addresses shouldincrease byincrements of
10 (e.g. 1,11,21,31...)
Each DMXAddressmay beused asmany timesas required.
Any DMXaddress inthe rangefrom 001to 512may beused.
Each DMX addressmay carry upto 66 separateID addresses.
ID should beset inthe menuon eachunit inascending values
(i.e. 1,2,3...)
ID addressesare accessiblefrom Ch9on theDMX512 controller.
Example:
2 INSTALLATION
............
DMX Addr.1 DMX Addr.11 DMX Addr.21
82008.5.22

DMX512
CONTROLLER

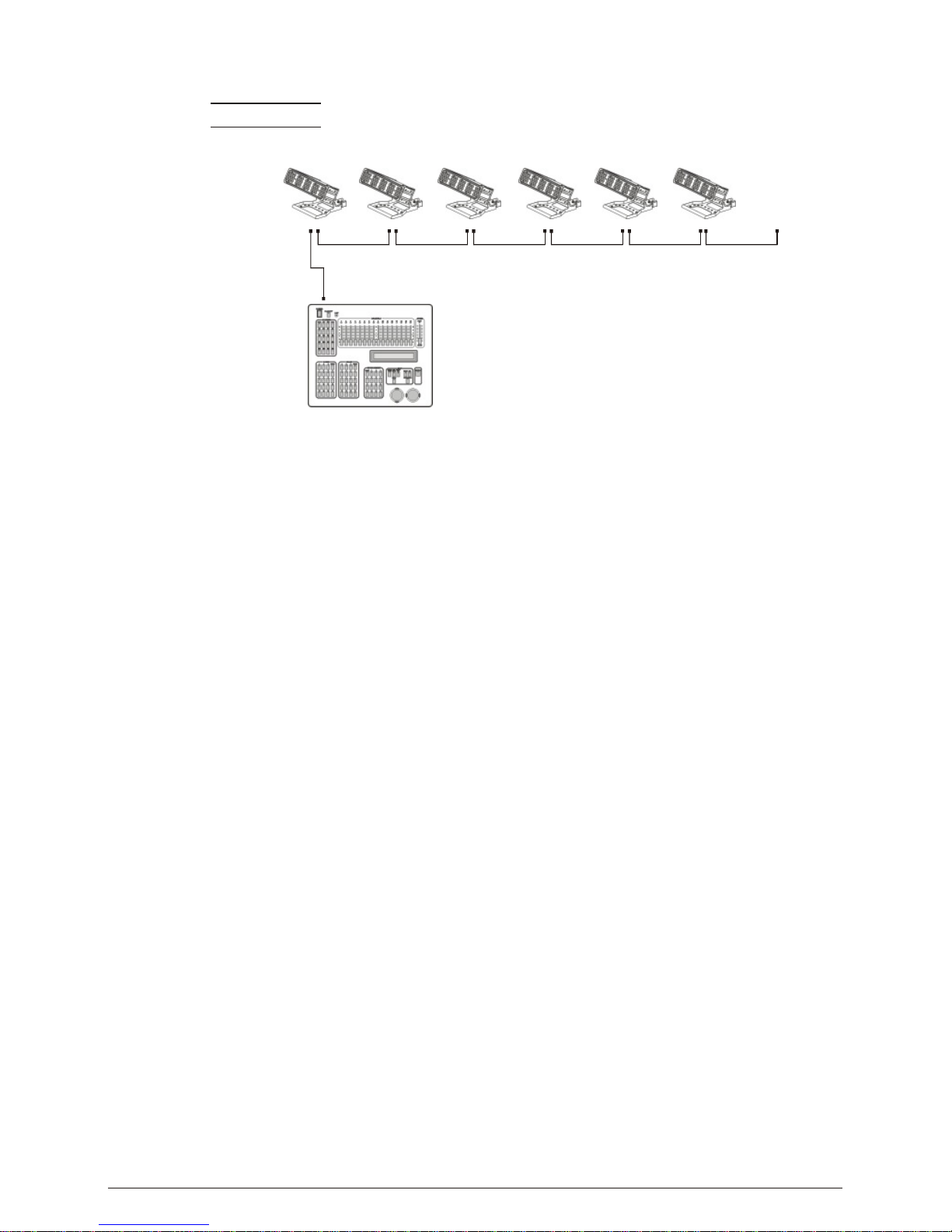

Example:
The figureabove showsa simpleDMX layout
which has usedthree units ateach DMX address.
The three unitshave differentID addresses which
allows theuser tocollectively controlthe whole
group ofunits atthat DMXaddress bysetting
CH9 to0, orto controleach unitindependently by
first selectingthe DMXaddress andthen byusing
Ch9 to locatethe target IDaddress.
2 INSTALLATION
............
DMX Addr.1
ID Addr.1 DMX Addr.1 ID Addr.2 DMX Addr.1 ID Addr.3 DMX Addr.11 ID Addr.1 DMX Addr.11 ID Addr.2 DMX Addr.11 ID Addr.3
92008.5.22

3DISPLAY PANEL OPERATION
10
3 DISPLAY PANEL OPERATION
3.1 BASIC
3.2 MENU
3.3 STATIC COLOR
3.4 AUTO
3.5 DMXADDRESSING
3.6 RUNMODE
3.7 PERSONALITY
3.8 IDADDRESS
3.9 SETTINGS
3.10 PASSWORD
3.11 EDIT
3.12 FAN SETTING
2008.5.22

3.1 BASIC
11
3 DISPLAY PANEL OPERATION
MODE scroll through the main menu or exit from the current menu or function
SET Enter the currently selected menu or confirm the current function value
UP scroll 'UP' through the menu list or increase the value of the current function
DOWN scroll 'DOWN' through the menu list or decrease the value of the current function
SET UP DOWNMODE
2008.5.22

3.2 MENU
12
3 DISPLAY PANEL OPERATION
MODE 1. STATIC
2. AUTO
7. SET
Gree 0~255
Auto 01
Auto 02
Auto 03
Auto 04
Auto 05
Auto 06
Auto 07
Auto 08
Auto 09
Auto 10
Custom 01
Custom 02
Custom 03
Custom 04
Custom 05
Custom 06
Custom 07
Custom 08
Custom 09
Custom 10
9. EDIT Scene 01
Scene 02
Scene 03
Scene 04
Scene 05
Scene 06
Scene 30
4. RUN
5. PERSON
SLAVE
DMX
3. DMX
STAGE1
BLOCK
ARC 1
ARC 1+D
6. ID
Addr 1~66
Addr 1~512
Upload
Password
Red 0~255
Blue 0~255
Stro 0~020
Reset
Password
8. KLOCK
OFF
ON
Custom 01
Custom 02
Custom 03
Custom 04
Custom 05
Custom 06
Custom 07
Custom 08
Custom 09
Custom 10
Gree 0~255
Red 0~255
Blue 0~255
Stro 0~020
Time 0~255
Fade 0~255
10. FANS OFF
LOW
NORMAL
HIGH
AUTO
2008.5.22

3.3 STATIC COLOR
3.4 AUTO
STATIC
Red Gree Blue StroSelect / / / and set the valueby pressing
UP and DOWN
Press SET to save and backto theupper menu
The fixturewill be automatic inMaster runningmode underthis function
AUTO
Select thetarget AUTO program and press SET
Programs Auto 01 to Auto 10 are fullypre-programmed andwill notbe
altered
Programs Custom 01 to Custom 10 are fullypre-programmed andcan be
edited in EDIT mode
The fixturewill be automatic inMaster runningmode underthis function
13
3 DISPLAY PANEL OPERATION
MODE 1. STATIC
Gree 0~255
Red 0~255
Blue 0~255
Stro 0~020
2. AUTO Auto 01
Auto 02
Auto 03
Auto 04
Auto 05
Auto 06
Auto 07
Auto 08
Auto 09
Auto 10
Custom 01
Custom 02
Custom 03
Custom 04
Custom 05
Custom 06
Custom 07
Custom 08
Custom 09
Custom 10
MODE
2008.5.22

14
3 DISPLAY PANEL OPERATION
3.5 DMXADDRESSING
DMX
DMX 1~512 Enter and set theDMX address
Press SET save thesetting.
3. DMX
Addr 1~512
MODE
4. RUN
SLAVE
DMX
MODE
3.6 RUN MODE
RUN
Enter the MODE mode toset workingmode.
DMX mode is forusing the DMX512controller to controlthe fixtures.
SLAVE mode isfor Master-- Slaveoperation, orcontrolled fixtureby
Pix-controller.
Note: When fixturesare underAutoprogram operation,the MODE no works.
2008.5.22

15
3 DISPLAY PANEL OPERATION
3.7 PERSONALITY
PERSONALITY
PERSON STAGE1 / ARC1 ARC1+DEnter and select / BLOCK /
DMX mode
3.8 IDADDRESS
ID address
ID 1~066Enter and set theID address
5. PERSON STAGE1
BLOCK
ARC 1
ARC 1+D
MODE
6. ID
Addr 1~66
MODE
7. SET Upload
Password
Reset
Password
MODE
3.9 SETTINGS
Upload
Reset
This functionwill resetall settingto theoriginal factorysetting
Select Upload to upload thecustom programs fromthe current MASTERunit to
the SLAVE units.
In orderto activatethe uploadfunction thepassword mustbe entered
Password is thesame as themain access password
When uploading theMASTER and SLAVE units willdisplay YELLOW
If anerror occurs whenuploading the MASTERand/or SLAVE units willdisplay RED
On successful uploadingof the customprograms the MASTERand SLAVE units
will displayGREEN.
2008.5.22

16
3 DISPLAY PANEL OPERATION
3.10 PASSWORD
FANS
Enter FANS and selectthe workingmode offan: Auto , Off , Low ,
Normal or High
8. KLOCK
OFF
ON
MODE
Password
Enter the KLOCK mode toset passwordON/OFF
When password isactivated, display willdemand password eachtime
the fixtureis poweredon.
The factorydefault passwordis UP >DOWN >UP > DOWN
9. EDIT Scene 01
Scene 02
Scene 03
Scene 04
Scene 05
Scene 06
Custom 01
Custom 02
Custom 03
Custom 04
Custom 05
Custom 06
Custom 07
Custom 08
Custom 09
Gree 0~255
Red 0~255
Blue 0~255
Stro 0~020
Time 0~255
Fade 0~255
MODE
3.11 EDIT
EDIT
EDIT ustom 1 ustom 10
Enter to edit the custom programs Cto C
Each programhas 100steps toedit
Each stepallows acreation ofa sceneusing Red,Green,Blue,Strobe,Steptime,
Fade time
10. FANS OFF
LOW
NORMAL
HIGH
AUTO
MODE
3.12 FAN SETTING
2008.5.22

4.1 BASICADDRESSING
4.2 CHANNELASSIGNMENT
4.3 BASICINSTRUCTIONS FORDMX512
OPERATION (STAGE 1)
4USINGADMX512
CONTROLLER
17
4 USINGA DMX512CONTROLLER 2008.5.22

18
4 USINGA DMX512CONTROLLER
MARCO
No function
DIMMER
4.1 BASICADDRESSING
Connect all of the unitsin series using standard DMX512signal cable or the IP65rated cable
provided.
Set theDMX512 addressin the DMX menu.
It ispossible tohave thesame DMXaddress orindependent addressesfor eachfixture.
4.2 CHANNELASSIGNMENT
Note: This product havethree DMX512 channel configuration: STAGE 1 , BLOCK ,
ARC 1 and ARC 1+D
STAGE 1
BLUE
GREEN
RED
Strobe speed (0-20Hz)
STROBE
No function
60 9
1
2
0 255
3
4
0 255
0 255
0 255
5
0 10
11 35
36 60
61 85
86 110
111 135
136 160
161 185
186 210
211 215
216 220
221 225
226 230
231 235
236 240
241 245
246 250
251 255
RED 100% /GREEN UP /BLUE 0%
RED DOWN /GREEN 100% /BLUE 0%
RED 0% /GREEN 100% /BLUE UP
RED 0% /GREEN DOWN /BLUE 100%
RED UP /GREEN 0% /BLUE 100%
RED 100% /GREEN 0% /BLUE DOWN
RED 100% /GREEN UP /BLUE UP
RED DOWN /GREEN DOWN /BLUE 100%
WHITE 1: 3200K
WHITE 2: 3400K
WHITE 3: 4200K
WHITE 4: 4900K
WHITE 5: 5600K
WHITE 6: 5900K
WHITE 7: 6500K
WHITE 8: 7200K
WHITE 9: 8500K
10 255
CHANNEL FUNCTIONVALUE
(or STEPTIME when Customs 01-10 inCh7 is activated)
(or FADE TIME when Customs 01-10 in Ch7 isactivated)
2008.5.22
