Sim-Lab P1-X User manual

P1-X
VERSION 2.0
Last updated: 17-12-2021
INSTRUCTION MANUAL

2|2 28

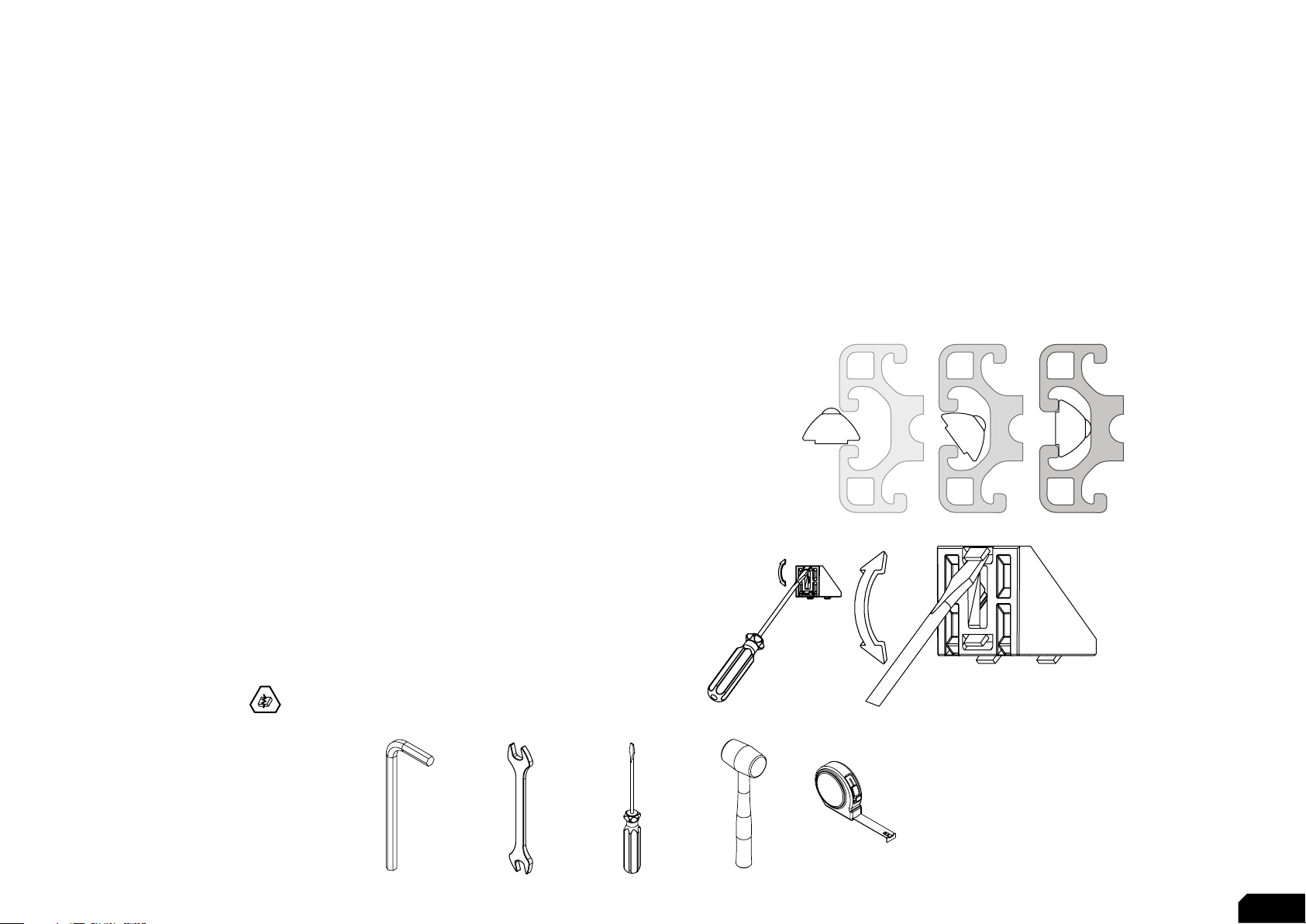

Breaking tabs:
Sometimes tabs from corner brackets need to be broken off in
order to fit as instructed. Place a flathead screwdriver behind
the tab and tilt upwards.
Always make sure to point away from you while doing so.
To know when to do this, we will show the following
symbol next to the brackets.
Inserting Slot-Nuts:
You got excited, finished the build, put the caps on, but forgot to install
one element. Do not worry. It happens to everyone. In this diagram, you
can see how to insert a Slot-Nut directly into the slot from the side.
You can also use one of your smaller Hex wrenches to help wiggle
the Slot-Nut in place.
Tools needed:
Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on
assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before
starting (pages 26/27) and make sure all the parts are delivered.
Note:
Depending on your date of purchase, you may or may not have received a large bag of additional washers. If this
is the case, use one on every M8 bolt to install brackets. This was a temporary solution and will be phased out as
soon as possible and therefore is omitted from this instruction manual.
BEFORE YOU START:
4/5/6MM - 13/24MM

3|3 28
BUILD 2X
1350MM
1X
Slot-Nut M8
4X
B22
AP1

4|4 28
BUILD 2X
500MM Slot-Nut M8
1X 4X
AP2
B22

5|5 28
500MM
or
20”
Corner
Bracket
8X
M8 X 16
16X
B16
B8

6|6 28
120MM
or
5”
IF YOU PURCHASED THE
LEVELING FEET, PLEASE
CONTINUE ON PAGE 7.
OTHERWISE, CONTINUE
ON PAGE 9
Corner Bracket
Cap
8X
Profile 160x40
End-Cap
4X
Rubber
Feet
M6 X 20
4X4X 4X
Slot-Nut M6
B10
B9
B17
B7
B23

7|7 28
Feet
Support Plate
1X
Nut M16 Washer M16
2X2X
Feet
1X
Feet
Support Plate
1X
Nut M16 Washer M16
2X2X
Feet
1X
BUILD
BOTH
VERSIONS
2X
D2
D6
D4
D1

8|8 28
300MM
or
1FT
M8 X 25
(D3)
8X
Washer M8
(D5)
8X
Slot-Nut M8
(D7)
8X
Corner Bracket
Cap
8X
Profile 160x40
End-Cap
4X
D7
B10
B9
D3
D5

9|9 28
BUILD 2X
Corner
Bracket*
2X
M8 X 16
2X
Slot-Nut M8
2X
500MM
1X
B22
B8
B16
BP2

10 |10 28
Corner Bracket
Cap
4X
Profile 40X40
End-Cap
4X
M8 X 16
4X
Slot-Nut M8
4X
B16
B9
B13
B22

11 |11 28
BUILD 2X
M8 X 20
4X
Slot-Nut M8
4X
Profile 120X40
End-Cap
1X
Sandwich
Plate Large
1X
780MM
1X
B20
B22
AP3
B11
B5

12 |12 28
540MM
or
21”
M8 X 20
8X
Slot-Nut M8
14X
Profile 120X40
End-Cap
2X
B11
B20
B22

13 |13 28
IF YOU PURCHASED THE
WHEEL DECK,
CONTINUE ON PAGE 15
IF YOU PURCHASED THE
SIDE MOUNT,
CONTINUE ON PAGE 17
Corner Bracket
Cap
4X
M8 X 30
(F9)
4X
Corner
Bracket**
4X
M8 X 25
(F10)
4X
Washer M8
(F12)
8X
Front Mount
Side Plate Right
1X
Front Mount
Side Plate Left
1X
Front Mount
1X
F10
F9
F5
F15
F12
F3
F2
F1
F4

14 |14 28
CONTINUE
ON PAGE 19
M8 X 20
(F7)
6X
Washer M8
(F12)
6X F12
F7

15 |15 28
IF YOU PURCHASED THE
SIDE MOUNT,
CONTINUE ON PAGE 17
Corner Bracket
Cap
4X
Corner
Bracket**
4X
M8 X 25
(W8)
8X
Washer M8
(W10)
8X
Wheel Deck
Side Plate Right
1X
Wheel Deck
Side Plate Left
1X
Wheel Deck
1X
W3
W1
W2
W5
W11
W10
W4
W8

16 |16 28
CONTINUE
ON PAGE 19
M8 X 20
(W6)
6X
Washer M8
(W10)
6X W10
W6

17 |17 28
Side Mount
Profile Holder Left
1X
M8 X 20
(S9)
8X
SP1
2X
Side Mount
Profile Holder Right
1X
Side Mount
Base Holder Left
1X
Side Mount
Base Holder Right
1X
S9
SP1
S4
S2
S3
S5

18 |18 28
M8 X 20
(S6)
6X
Washer M8
(S11)
6X S11
S6

19 |19 28
M8 X 25
8X
P1-X Pedal
Plate Left
1X
P1-X Pedal
Plate Right
1X
470MM
1X
470MM
1X
C8
C4
C3
CP1
CP2

20 |20 28
WE WENT FOR 4 SLOT-NUTS PER
SIDE IN THIS CASE.
2 WILL ALSO SUFFICE FOR
LIGHTER BRAKE PEDALS.
Slot-Nut M8
4/8X
C10
