Sim2 DLINE D35 Operating manual

46.0576.000
USER AND INSTALLATION MANUAL
DLine by SIM2

2
D35
Not active
in this model.
Not active
in this model.
MENU -
Activates the On Screen
Display menus.
Navigates menu pages.
FREEZE
Freezes a moving
picture.
FOCUS
Selects focus
lens adjustment.
MENU +
Activates the On Screen Display menus.
Navigates menu pages.
INFO
Displays the selected source information
and the projector status.
vCR
Improves the video recorder
signals quality.
ASPECT
Selects image Aspect ratio.
SOURCE
Displays the Source
Selection menu.
Up/Down/Left/Right Arrow keys
Navigate through and make adjustments
to the On Screen menus.
Arrow Up/Down
menus.
AUTO
Selects Auto Adjust
(automatic optimisation
of the displayed image).
ZOOM
Selects lens zoom
adjustment.
STAND-bY
Switches off to stand-by.
0-9 Keys
Switch on from stand-by
and allow direct source
selection.
ESCAPE
Deactivates the On Screen Display.

3
D35

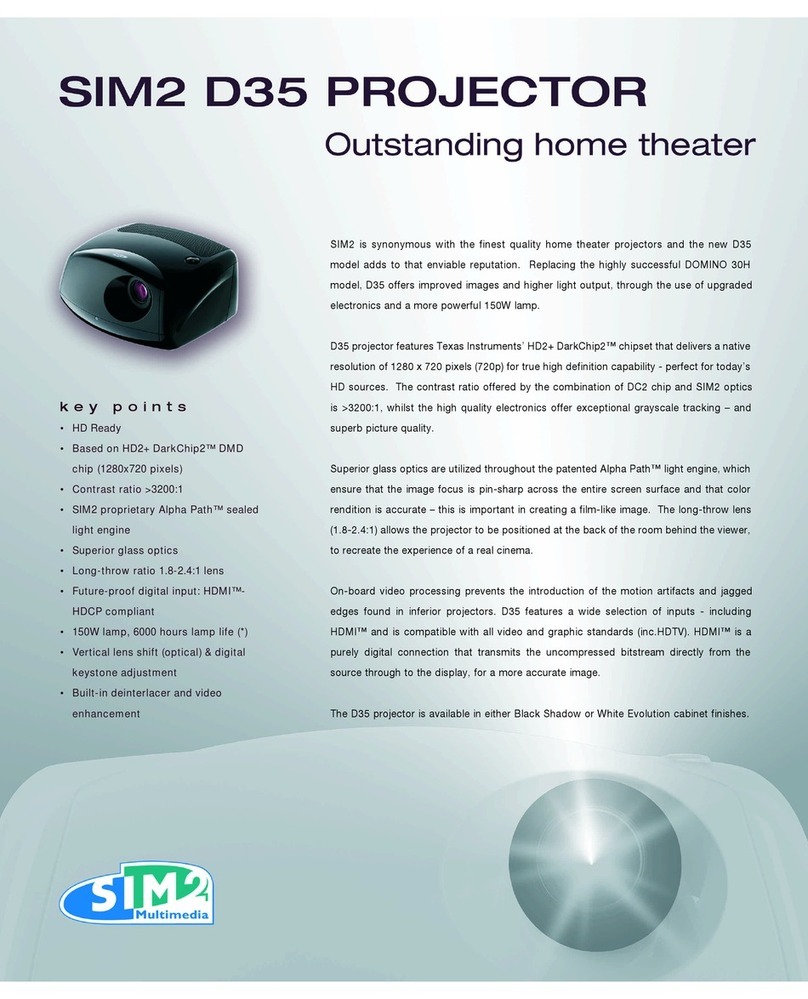

1 INTRODUCTION
Congratulations and thank you for choosing a D35 projector, a SIM2 Multimedia SpA product (Fig. 1).
DIGIT
AL
INPUT
AUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
1
24
35
ATTENTION:pournepascompromettre
laprotectioncontrelesresqued'incende
remplacerparunfusibledememe type
etdememscaracteristique
CAUTION:forcontinuedprotectionagainst
riskoffire,replace
onlywithsametype
andrating fuse.

4
D35
A sophisticated proprietary optical system, coupled with a hight
performance zoom lens ensures hight contrast images, superior
uniformity and edge-to-edge definition.
A new 6-segment colour wheel dramatically reduces the so
called “rainbow effect” and gives a better contrast, better
colorimetry and a lower black level to the image.
The renowned DCDi™technology is adopted for deinterlacing:
conversion from interlaced to progressive produces a smooth
and natural image, without flickering, loss of vertical resolution
and jaggedness along diagonal lines.
The low-noise ventilation system – with variable speed fans – en-
sures appropriate cooling and maximizes projector reliability.
To fully appreciate your new projector we recommend the
use of a good quality screen and surround-sound system.
Contact your nearest authorized SIM2 Multimedia dealer for
further details.
SIM2 carries out comprehensive functional testing in order
to guarantee the maximum product quality.
For this reason, when you start using the product lamp ope-
rating hours may already be at between 30 and 60.
In addition to the regular tests, the Quality Control depart-
ment performs additional statistical tests at the time of
shipment.
In this case the packing may show signs of having been
opened, and the accumulated lamp operating hours may
be slightly higher than the hours associated with the stand-
ard tests.
Fig. 1
Using the very latest in DLP™ technology, this projector has
been designed specifically for high quality “Home Cinema”
applications.
Sophisticated digital processing and a wide choice of inputs
enable the connection of a variety of sources such as DVD
players, analogue and digital VCRs, analogue and digital sa-
tellite receivers and personal computers etc.
The long throw zoom lens allows the position of the projector to
be located behind the viewer, thus reproducing a cinema-like
installation (Fig. 2).
C-SYNC
Fig. 2
DLP and DMD are registered trademarks of Texas Instruments.
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing
LLC.

5
D35
6
4
1235 8
7
HDMI AUDIO
OUT
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
R/Cr
G/Y
B/Cb
HV
124
35
A
TTENTION: pour ne pas compromettre
la protection contre les resque d'incende
remplacer par un fusible de meme type
et de mems caracteristique
CAUTION: for continued protection against
risk of fire, replace
only with same type
and rating fuse.
12 11 13 17
9
10
16
21
15
14
18
22
19 20
1 Projection lens
2 Lens shift knob
3 Cooling air inlet vents
4 Remote control IR sensor
5 Cooling air outlet vents
6 Adjustable carry-handle
7 Adjustable levelling feet
8 Ceiling/wall bracket fixing holes
9 Fused power socket
10 Main power switch
11 Remote control rear IR sensor
12 Green LED
13 Red LED
14 Rear keyboard pad
15 Composite video input
16 S-Video input
17 VGA input
18 RGB / YCrCb input
19 HDMI™ input
20 Optical Audio Output
21 12Vdc screen output
22 RS232 interface connector

6
D35
2 IMPORTANT SAFETY INSTRUCTIONS
ATTENTION:
To reduce the risk of electric shock, disconnect the power supply cable on the rear panel before removing the top cover of
the projector. Refer to trained, authorised personnel for technical assistance.
Prior to switching on the projector please read each chapter of this manual carefully as this manual provides basic instructions for using the projector.
The installation of the lamp assembly, preliminary adjustments and procedures that necessitate the removal of the top cover, must be carried out by authorised,
trained technicians. There are no user serviceable parts inside. To ensure safe and long term reliability please use power cables supplied with the projector.
Observe all warnings and cautions.
This symbol indicates the presence of impor-
tant instructions regarding use and mainte-
nance of the product.
This symbol indicates the possible electric
shock hazard associated with uninsu-
lated live components in the interior of
the unit.
LAMP WARNING:
If the lamp should suddenly break with a loud bang, air the room thoroughly before using it. Do not replace the lamp: seek qualified technical
assistance from your nearest Dealer.
ENVIRONMENTAL INFORMATION:
The product you have purchased contains extracted natural resources that have been used in the manufacturing process. This product
may contain substances known to be hazardous to the environment or to human health. To prevent releases of harmful substances
into the environment and to maximize the use of natural resources, SIM2 Multimedia provides the following information on how you can
responsibly recycle or reuse most of the materials in your ”end of life” product. Waste Electrical and Electronic Equipment (commonly
know as WEE) should never be disposed of in the municipal waste stream (residential garbage collection). The “Crossed-Out-Waste Bin”
label affixed to this product is in your reminder to dispose of your “End of Life” product properly. Substances such as glass, plastic, and
certain chemical compounds are highly recoverable, recyclable, and reusable. You can do your part for the environment by following
these simple steps:
1. When your electrical or electronic equipment is no longer useful to you, “take it back” to your local or regional waste collection
administration for recycling.
2. In some cases, your “end of life” product may be “traded in” for credit towards the purchase of new SIM2 Multimedia equipment.
Call SIM2 Multimedia to se if this program is available in your area.
3. If you need further assistance in recycling. Reusing, or trading in your “end of life” product, you may contact us at the Customer
Care number listed in your products user guide and we will be glad to help you withy our effort.
Finally, we suggest that your practice other environmentally friendly actions by understanding and using the energy-saving features of this
products (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and
by disposing of a or recycling used properly.
With your help, we can reduce the amount of natural resources needed to procedure electrical and electronic equipment, minimize the
use of landfills for the disposal of “end of life” products, and generally improve our quality of life by ensuring that potentially hazardous
substances are not released into the environment and are disposed of properly.

7
D35
Please follow carefully the warnings listed below, to ensure safe
and long term performance of your projector.
• Connect the projector to a power supply with a nominal
voltage within the following values: 100-240 Vac, 50/60 Hz,
earthed (Fig. 3).
100-240 Vac 
50/60 Hz
DIGITAL 
INPUT
AUDIO
OUT
35
A
TTENTION: pour ne pas compromettre
la protection contre les resque d'incende
remplacer par un fusible de meme type
et de mems caracteristique
CAUTION: forcontinuedprotectionagainst
riskof fire, replace
only with sametype
andratingfuse.
Fig. 3
• The mains plug is the disconnect device. Take care, when
installing, that the mains plug and socket outlet are easily
accessible. Never pull on the cable to take it out of the
socket. If the system is unlikely to be used for a number of
days, disconnect the power cable and other apparatus
connected to it.
• To save energy, switch off the projector by using the power
switch at the rear; when in stand-by (red light on) the projector
continues to draw a minimal amount of power.
• Only replace the safety fuse (on the power socket at the rear
of projector) with a fuse identical in type and characteristics
(T 3.15A H) (Fig. 4).
• Do not switch on your projector when flammable liquids or
fumes are present. Do not pour or drop fluids in the vents.
• Do not use the projector when the room temperature is
above 35°C (95°F).
AUDIO
OUT
p
as compromettre
resque d'incende
e de meme type
t
ique
e
d protection against
250 v
T 3.15A H
2
3
4
1
Fig. 4
• Do not obstruct the cooling air inlets on the top cover, or the
air outlets underneath the projector.
• Do not switch on the projector if it is standing on soft sur-
faces such as cushions, pillows, blankets, mattresses and
carpets: the air cooling outlets underneath could become
obstructed.
• Do not switch-on the projector if it is standing on surfaces
sensitive to heat, as this may result in damage caused by
the hot air outlets underneath. Should this be unavoidable
take extra precaution of protecting the surfaces with a layer
of heat resistant material.
• Intense Light Source! Do not stare directly into the projection
lens as possible eye damage could result. Be especially
careful that children do not stare directly into the beam.
• Do not open the projector’s cover; no user serviceable parts
are inside. Refer servicing to qualified service personnel.
Opening the projector’s cover will invalidate warranty.
• Take care not to shake the projector whilst carrying it by the
handle.
• Always position the projector away from direct heat sour-
ces.
• Do not touch the surface of the projection lens.

8
D35
3 PACKAGING AND CONTENTS
The carton should contain the following:
- the projector
- the remote control
- four 1.5V AAA batteries (for remote control)
- three power cables (EU, UK, USA)
- the user manual.
To unpack the projector safely and easily please follow steps 1
to 4, as drawing (Fig. 5).
It is recommended that the carton and packaging is retained
for future use and in the unlikely event that your projector needs
to be returned for repair.
Fig. 5
• The projector must be positioned on a stable, suitable pla-
tform or be installed using a bracket for fixed ceiling or wall
installation. Do not rest the projector on the side panels or
on the rear panel when in operation.
• Take care to position cables safely, especially in dark places,
in order to avoid a trip hazard.
• For installations using a ceiling or wall-mounted bracket, ca-
refully follow the installation and safety instructions provided
with the bracket’s literature.
• Please remove batteries from the remote control if not in
use for a long period of time.

9
D35
Position the projector on a stable, suitable platform or utilise the
optional bracket for a fixed ceiling or wall installation.
CAUTION: In the case of ceiling or wall mounting using a
suspension bracket, follow the instructions carefully and
comply with the safety standards you will find in the box
together with the bracket. If you use a bracket different to
the one supplied by SIM2 Multimedia, you must make sure
that the projector is at least 65 mm (2-9/16 inch) from the
ceiling and that the bracket is not obstructing the air vents
on the lid and on the bottom of the projector.
Adjust the feet underneath to obtain a level position, lining up
the base of the projected image to the base of the projection
screen (Fig. 6).
DIGITAL
INPUT
AUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35

A
TTENTION:pournepascompromettre
laprotectioncontrelesresqued'incende
remplacerparunfusibledememetype
etdememscaracteristique
CAUTION:forcontinuedprotectionagainst
riskoffire,replace
onlywithsametype
andratingfuse.
Fig. 6
Position the projector the desired distance from the screen: the
size of the projected image is determined by the distance from
the lens of the projector to the screen and the zoom setting. See
“Appendix C”: Projection distances” for more information.
Use the motorised lens zoom to adjust the image size and
the
motorised lens focus to achieve maximum clarity. With optimum
focus you should be able to clearly see each single pixel when
within close proximity to the screen (Fig. 7).
DIGITAL
INPUT
AUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35

ATTENTION:pournepas compromettre
laprotectioncontre les resque d'incende
remplacerparun fusible de meme type
etdemems caracteristique
CAUTION:forcontinuedprotectionagainst
riskoffire, replace 
onlywithsame type 
andratingfuse.
FOCUS
FOCUS
FOCUS
FOCUS
Fig. 7
The manual lens shift adjustment allows the projected image
to be moved vertically, up or down, in relation to the centre of
the screen; the maximum adjustment being equal to half the
height of the image in either direction (Fig. 8).
DIGITAL
INPUT
AUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35
ATTENTION:pournepascompromettre
laprotectioncontrelesresqued'incende
remplacerparunfusibledememetype
etdememscaracteristique
CAUTION:forcontinuedprotectionagainst
riskoffire,replace
onlywithsametype
andratingfuse.
Fig. 8
In the event you are unable to centre the image within the
screen area, tilt the projector until the image is correctly posi-
tioned. Any keystone error can be removed by the Keystone
adjustment in the Set up menu (Fig. 9).
The kyestone adjustment is not available for model DOMINO
20 H with 1080i input signal.
4 INSTALLATION

10
D35
KEYSTONE
20%

C-SYNC
Fig. 9
The Orientation adjustment in the Set up menu will allow the
projector to be used for desktop front, ceiling front, desktop rear
and ceiling rear installations (Fig. 10).
DIGIT
AL
INPUT
AUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35
ATTENTION:pournepascompromettre
laprotectioncontrelesresqued'incende
remplacerparunfusibledememetype
etdememscaracteristique
CAUTION:forcontinuedprotectionagainst
riskoffire,replace
onlywithsametype
andratingfuse.
Fig. 10
To activate an electric motorised screen a 12 Volt output is
provided at the rear of the projector. This can be connected
to a screen interface unit, which can be supplied by screen
manufacturers (Fig. 11).
The output is activated (Voltage: 12 Vdc) when the projector is
switched on and is de-activated (no Voltage output) when the
projector is in stand-by mode.
DIGIT
AL
INPUT
AUDIO
OUT
ZOOM
CONTROL(RS 23 2)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35
A
TTENTION:pour ne pas compromettre
laprotection contre les resque d'incende
remplacerpar un fusible de meme type
etde mems caracteristique
CAUTION:forcontinued protection against
riskof fire, replace
onlywith same type
andrating fuse.
Fig. 11
Some manufacturers offer screen-masking systems to help
frame the projected image and improve picture contrast.
These systems can be connected to output , at the rear of
the projector (Fig. 12).
DIGIT
AL
INPUT
AUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35

ATTENTION:pournepascompromettre
laprotectioncontrelesresqued'incende
remplacerparunfusibledememetype
etdememscaracteristique
CAUTION:forcontinuedprotectionagainst
riskoffire,replace
onlywithsametype
andratingfuse.
Fig. 12
For rear projection the screen must be translucent.
For front projection, we recommend the use of screens with low
gain specifications (i.e. 1.3 to 2). The use of high gain screens
should be avoided due to their limited viewing angle, which is
undesirable for a large audience.
Preferably, use a screen with black, non-reflecting borders,
which will perfectly frame the projected image.
Avoid light shining directly on the screen during projection as
this will reduce contrast and black level detail on the projected
image. For the true cinema experience best results are achie-

11
D35
ved with little or no ambient light.
Furniture and other objects with reflecting surfaces, as well as
light coloured walls should be avoided, as they are likely to
interfere with the screen’s characteristics.
5 SWITCHING ON AND OFF THE PROJECTOR
CAUTION: Connect the projector to a power supply with a nominal voltage within the following values: 100-240 Vac, 50/60
Hz. It must be earthed (Fig. 13).
Position I : on
Position O : off
Power switch
Fused power
socket
Power plug
Fig. 13
Upon switch on (in position I) the projector will initialise (red
and green LEDs on). Followed by stand-by mode (red LED
on) (Fig. 14).

HDMI AUDIO
OUT
ZOOM
CONTROL (RS232)
GRAPHICS RGB
R/Cr
G/Y
B/Cb
HV
24
35

ATTENTION: pour ne pas compromettre
la protection contre les resque d'incende
remplacer par un fusible de meme type
et de mems caracteristique
CAUTION:for continuedprotectionagainst
riskof fire, replace
only with sametype
andratingfuse.
Fig. 14
SWITCH ON FROM STAND-bY
By remote control: press one of 1...9
By keyboard: press Up or Down Arrow .
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
124
Fig. 15
When switching on from stand-by, the projector will turn on the
lamp; after a brief warm up period the image will be displayed
(green LED on).The input automatically selected will be the last
one memorised prior to switch off (Fig. 15).
You may experience difficulties switching on the projector
shortly after switching off: the lamp may fail to come on as it
is too hot.
Just wait a few minutes to cool it down.

12
D35
SWITCHING OFF AND RETURNING TO STAND-bY
By remote control: press
By keyboard: press key
When switching off, the projector goes in to stand-by memo-
rising the input selection at the time of switch-off.
The fans will continue to work until the lamp has cooled down
(red and green LEDs flashing) and will stop automatically after
this period.
LED INDICATORS
The LED indicators, located in the top-rear of the projector,
provide information about the state of the projector (see
table below).
6 CONNECTIONS
To obtain the best performance from your projector, we recom-
mend the use of good quality “video cables” to the various
signal sources (75 ohm Impedance).
Poor quality cables will cause inferior picture performance.
For optimum connectivity we recommend you follow these
simple steps:
- With exception of coaxial RCA/Phono type connectors,
always double-check that the plug is inserted the correct
way round to avoid damaging the plugs or the sockets on
the projector (Fig. 16).
- Remove cables by the plug and do not pull on the cable
itself.
- Avoid tangled cables.
- Position the cables carefully to avoid a trip hazard - especially
in low light areas.
HDMI AUDIO
OUT
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
R/Cr
G/Y
B/Cb
HV
124
35
la
protec
remplacer pa
r
un
f
et dememscaracteris
tique
CAUTION: for continued protection ag
ainst
risk of fire, replace 
only with same type 
and rating fuse.
75

Fig. 16
POWER OFF
INITIALIZATION
STATE NOTES
INDICATORS
GREEN RED
STANDBY
OPERATING
COOLING LAMP
WARNING
ERROR
The Power is turned off
Power button has been pressed and the software is initialized (15 s)
Projector is in standby mode
Projector is on
Projector is powering down; the fans are running to cool the lamp (1 min)
Problems to display one or more source
Internal circuit failure
OFF
ON
OFF
ON
OFF
OFF
ON
ON
OFF
FLASHINGFLASHING
FLASHING OFF
FLASHING

13
D35
HDMIAUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35
CAUTIO
risk of fire, re
place
only with same type

and rating fuse.
Fig. 19
RGb/YCRCbINPUT
DIGIT
AL 
INPUT
AUDIO
OUT
(
RS232)
HICSRGB
R/Cr
G/Y
B/Cb
HV
35
A
la pro
tectio
remplacer par u
n
fus
et de mems caracteristiqu
e
CAUTION: for continued protection aga
i
n
st
risk of fire, replace 
only with same type 
and rating fuse.
RGSB - YSCRCB
COMPONENT 
VIDEO
Fig. 20
This input is suitable for a RGB video signal, or for a Component
(YCrCb) type, with composite synchronisation on the green
signal (RGsB) or on the luminance (Y) signal (YsCrCb) through a
cable with RCA/Phono type connector (Fig. 20).
RGB or YCrCb signals can also have H+V Composite Sync.
In this case connect the R, G, B (or Y, Cr, Cb) outputs of the
source to the respective R/Cr, G/Y, B/Cb inputs of the projector
(paying attention not to invert the positions) and the synchroni-
sation signal to the HV input . When connecting the three sets
of RCA connectors use the colours as a guide: connector R is
red, G is green, B is blue and HV is white. By using a suitable
SCART to RCA connector adapter cable, an RGB video signal
from a source equipped with an SCART connector can be
COMPOSITE vIDEO INPUT
CONTROL (RS 232)
B/Cb
HV
12
CVBS
COMPOSITE VIDEO
Fig. 17
This input is suitable for a “Composite Video CVBS” via a cable
with an RCA/Phono connector (Fig. 17).
S-vIDEO INPUT
S-VIDEO
CONTROL (RS 232)
B/Cb
HV
12
Fig. 18
This input is suitable for equipment fitted with a S-Video output
to give improved picture performance (S-VIDEO/S-VHS) Con-
nection is made via a 4-pin mini-DIN (Fig. 18).
vGA INPUT
Personal Computers, Video Processors (scalers) and Video
Game consoles can be connected to the projector via the
HDB 15-Pin (VGA) terminal.
Ensure the output of equipment connected is RGB with one of
the following synchronisation options: separate H/V Sync, H+V
(Fig. 19). This input accepts a Horizontal Scan Frequency of
between 32-80 kHz and a Vertical frequency of between 48-
100 Hz. Computer Resolutions of VGA, SVGA, XGA, SXGA and
UXGA can be displayed.

14
D35
connected to this input.
Component signals are connected to inputs Y, Cr and Cb, tak-
ing care to observe the correspondence with the outputs on the
source. The video signals that can be connected to this input
can have horizontal scanning frequencies of 15 kHz (standard
video resolution), 32 kHz, or higher (progressive scanning video,
high definition video).
Some sources provide the facility to choose between a progres-
sive signal or an interlaced signal.
HDMI™
With this input it is possible to integrate the optimal quality of a digital
image with a multichannel audio signal.
The HDMI™ (High Definition Multimedia Interface) in fact integrates
a multichannel audio signal with the uncompressed high definition
video signal.
The interface also allows the exchange between the video source
and the HT system of control data to optimise the quality of the
projected image.
The HDMI™ input allows connection to video sources that use the
HDCP (High-Bandwidth Digital Content Protection) protocol to protect
their contents. This protocol is in fact incorporated in the definition of
the HDMI™ technology.
HDMI AUDIO
OUT
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
R/Cr
G/Y
B/Cb
HV
124
35
CAUTION: for contin
risk of fire, replace
only with same type
and rating fuse.
HDMI AUDIO
OUT
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
R/Cr
G/Y
B/Cb
HV
124
35
CAUTION: for contin
risk of fire, replace
only with same type
and rating fuse.
MOTORISED PROJECTION SCREEN OUTPUT
ZOOM
CONTROL (RS 232)
GRAPHICS RGB
124
Fig. 22
The projector is equipped with two outputs (Voltage: 12 Vdc) for
motorised projection screen and screen masking systems. These
12V outputs should be connected to the appropriate screen
interface provided by the screen manufacturer (Fig. 22).
The +12V output is activated when the projector is switched
on (green LED on) and is de-activated when the projector is in
stand-by mode (red LED on).
The output can be used to control a screen masking system;
its output can be set with the “Screen control” adjustment in the
“Aspect” menu. This output allows reduction in the area of a
16:9 screen, into a 4:3 format, by activating a screen masking
system (refer to screen manufacturer for further information).
Fig. 21a
Once the video source has been connected to the HDMI™ input,
internal processing by the projector separates the video information
from the audio information. This information is then made available
via an optical digital output with a female TOSLINK connector in ac-
cordance with the S/PDIF standard.
Fig. 21b

15
D35
7 KEYbOARD PAD
Eight push buttons, at the rear of the projector, will allow complete operation without the use of the remote control.
RS232 INTERFACE CONNECTOR
It is possible to control the projector through a personal compu-
ter. First, load the appropriate projector control software onto
your PC, then simply connect this input to a cable from your
PC’s RS232 serial port (Fig. 23).
HDMIAUDIO
OUT
ZOOM
CONTROL(RS232)
GRAPHICSRGB
R/Cr
G/Y
B/Cb
HV
124
35
CAUTIO
risk of fire, re
place
only with same type

and rating fuse.
Fig. 23
Up/Down/Left/Right arrow keys
Navigate through and make adjustments to the
On Screen menus.
Arrow Up/Down switch on from stand-by and
recall Source Selection menu.
Switches off to stand-by.
Menu
Activates the On Screen Display menus. Navigates
Menu pages.
-Focus-Esc
De-activates the On Screen Display and
gives access to the lens Zoom/Focus
adjustment functions.
Auto
Selects Auto Adjust
(automatic optimisation of the
displayed image).

16
D35
8 REMOTE CONTROL
Insert the batteries, taking care to match the polarity, as indi-
cated in the battery recess of the remote (Fig. 24).
+-
+-
+
-
+
-four 1.5V
AAA alkaline
batteries
Fig. 24
Change the batteries in the remote control if experiencing
difficulty in sending commands to the projector.
If the remote control is not to be used for a long period of
time remove the batteries. Replace all batteries at the same
time; do not replace one new battery with a used battery. If
the batteries have leaked, carefully wipe the case clean and
replace with new batteries.
The remote control sends commands to the projector via
infrared signals.
It is possible to control the projector by pointing the remote
control at the screen; the sensor at the front of the projector will
pick up the reflected infrared commands. (Fig. 25).
DVI
C-SYNC
Fig. 25
Avoid placing obstructions between the remote control and
the infrared sensor at the front of the projector; this will impair
the remote control performance.

17
D35
Fig. 26a
Fig. 26b
9 ON SCREEN MENU
After selecting the source signal (by means of the ·and ‚
keys), press MENU+/MENU - to confirm and close the pull-down
menu; the value you have just set will be displayed on the right
of the < symbol.
As with the other inputs, you can now select the input just set
by pressing the ‡key.
During the short time it takes to find the signal, a box appears
showing the signal requested. As soon as the signal is shown
in the box additional information is displayed concerning the
INPUTS
The input selection menu (Inputs) is called by pressing 0 on the
remote control and, when no other menu is displayed, using
the ·and ‚keys on the keypad. To select an input, scroll the
list with the ·and ‚keys until the desired input is highlighted,
then press ‡.
Display of the input selection menu is terminated by pressing the
ESC key, or when the time allowed for displaying the on-screen
menu has lapsed (set in the Set-up Menu).
Input 3 can receive RGB and YCrCb signals, at 15 kHz, 32 kHz
or higher. The association between the input and the type of
signal is made from the pull-down menu that appears on the
right of the < symbol after pressing the flkey (Fig. 26b).
video standard (for video signals) or resolution (for graphic
signals), and format.
Fom the SETUP menu it is possible to choose to visualize or not
this information, for more details check the “ SOURCE INFORMATION ”
in “ MENU ” section.
The various menus only offer the relevant adjustments in ac-
cordance with the type of input signal displayed (e.g. certain
typical adjustments for video signals, not necessary for graphic
signals, do not appear on the menus, and vice versa).
Some adjustments (e.g. BRIGHTNESS and CONTRAST ) are associated
with a numerical value that can be varied within the set limits
using the keys fl/ ‡. For others (e.g. VIDEO TYPE ) you can choose
among three options presented on the same
fl/ ‡).
Fig. 27
MAIN MENU
To access the main menu of the On Screen Display press
the MENU key on the keypad or the MENU+ or MENU- key on the
remote control.
The main menu is divided into four windows, PICTURE,
IMAGE, SETUP and MENU , in which the various adjustments are
grouped according to the frequency of use. Use ·and ‚
to select the line corresponding to the adjustment you wish to
make (Fig. 27).
Contrast
Color
Tint
Sharpness
Filter
Cinema Mode
Video Type
50
50
50
3
2
Off
Normal
Auto
Auto
VCR1 VCR2
Noise Reduction
Brightness 60
Inputs
1 VIDEO
2 S-VIDEO
3 COMPONENT/RGBS
4 GRAPHICS RGB
5 HDMI
1
2
3
4
5
15kHz
RGBS
Inputs
1 VIDEO
2 S-VIDEO
4 GRAPHICS RGB
5 HDMI
1
2
3
4
5
15kHz
RGBS
3 COMPONENT/RGBS
YCrCb AutoSync
YCrCb 15KHz
YCrCb
RGB AutoSync
RGB 15KHz
RGB

18
D35
Other adjustments (marked by the < symbol) provide subme-
nus, which appear as a superimposed window in which the
selection is made with the ·/ ‚keys (Fig. 28). .
Color Temperature
Gamma Correction
Position
Overscan
Y/C Delay
Aspect
1
Normal
Anamorphic
Letterbox
Panoramic
Pixel to pixel
User 1
User 2
User 3
Color Temperature
Gamma Correction
Position
Y/C Delay 1
Overscan 1
Aspect
Fig. 28b
Fig. 28a
These submenus are accessed by pressing the flkey, while
exit and return to the upper level occurs by pressing MENU+/- .
Press ESC on the remote control or keypad to interrupt the
menu display or wait for it to disappear automatically after the
number of seconds set on the SETUP page.
This menu features the adjustments related to picture quality.
Adjustments that are not available for a given input do not
appear on the menu. Table 1 summarises the adjustments
available for each input.
BRIGHTNESS
Use this control to adjust the image’s black level without
affecting white areas. Increasing the value will give more detail
in darker parts of the picture. For correct adjustment it may prove
useful to display the signal relative to the grey scale within which
the black level and the level immediately above it must be
separately identifiable. Alternatively use a scene composed of
black objects alongside other dark coloured objects.
CONTRAST
Use this control to adjust the image’s black level without affec-
ting white areas.
To ensure correct adjustment, it may prove useful to display the
signal relative to the grey scale, within which the white level and
the level immediately below it must be separately identifiable.
Alternatively use a scene composed of well-lit white objects
surrounded by light coloured objects with lower level lighting.
COLOR
This control (also called Saturation) increases or decreases
the picture colour intensity. When set to zero, colour images
will be shown in black and white. Increasing the value, try to
find the point at which the colours look natural: suitable referen-
ces include skin tones and grass in landscape shots.
TINT
Controls the purity of the colours. Basically determines the
red-green ratio of the picture.
Reducing the value will boost the red contents of the pictu-
re, increasing the value will boost the green tones. For this
adjustment use skin tones or a test pattern image with colour
bars as a reference.
SHARPNESS
Use this adjustment to increase and decrease the level of
picture detail.
When the sharpness value is reduced the image details
appear less pronounced, while increasing the value raises
image definition, making the outline of objects sharper.
Note that an excessively high value may result in a ‘noisy’ picture
and the edges of objects may be unnaturally defined.
SHARPNESS MODE
This allows you to select the type of processing associated
with sharpness adjustment. In the case of a progressive or in-
terlaced video signal VIDEO mode is advisable; with PC graphic
signals use GRAPHIC MODE .
FILTER
This allows you to select the mode in which the input signal
is processed. Selecting the most appropriate value for a given
input signal ensures the best horizontal and vertical definition
and makes the picture sharper.

19
D35
Tab. 1INPUT SIGNALS AND ADJUSTABLE/SETTING ITEMS
CINEMA MODE
In AUTO the deinterlacer recognises if the video signal source
is a movie film (obtained from a Telecine device with 3:2 or
2:2 pull-down) and applies a deinterlace algorithm optimised
for this type of signal.
If the video signal source is not identified as a film, or if you select
NO the deinterlacer applies a Motion compensated algorithm
optimised for video camera signals.
VIDEO TYPE
Activates a filter to improve stability of pictures from video re-
corders or DVD Players. To toggle between NORMAL, VCR1 mode
and VCR2 mode press on the remote control.
NOISE REDUCTION
This adjustments allows to choose the filter value for noise
reduction purposes.
As soon as this option is selected on the menu, the image is
divided in two parts.
In the left side the image is not altered by the filter, in the right
part the filter is activated.
This allows you to compare the effect of the filter.
It is possible to deactivated the filter ( NOT ACTIVE ), to use the au-
tomatic adjustments ( AUTO ) or to manually select ( MANUAL ) the
value suitable for the image with the VALUE adjustment.
In case of using the VALUE adjustement, it is enoght to select
to cursor below and set the value with the fl/ ‡keys of the
remote control.
BRIGHTNESS
CONTRAST
Video
S-Video RGBS YCrCb RGB Grafico HDMI™
RGBS 15kHz
YCrCb 15kHz
ADJUSTEMENTS
INPUTS
COLOR - -
-
- -
-
-
-
-
-
-
-
-
-
-
- - -
-
TINT
(NTSC)
SHARPNESS
SHARPNESS MODE
FILTER
Adjustable/can be set Not adjustable/can not be set
CINEMA MODE
VIDEO TYPE
NOISE REDUCTION -
-
-
-
-
-

20
D35
This menu features adjustments relating to picture position,
aspect ratio, etc.
ASPECT
This adjustment allows you to change the dimensions and
aspect ratio (relationship between width and height) of the
displayed image. There are five preset aspects available and
three personalised aspects (with user-settable parameters). You
can select a different aspect for each source: the selected
aspect ratio will be automatically called the next time the
relative source is called.
You can also select the required aspect ratio by repeatedly
pressing the key, or by pressing and a numerical key
(1...8).
The following aspects are available.
NORMAL : projects the image occupying the full height of the
screen while maintaining the aspect ratio of the input signal.
When the input signal aspect ratio is 4:3 black vertical bands
are displayed on the right and left of the picture.
ANAMORPHIC : allows a 16:9 picture to be displayed correctly.
LETTERBOX : serves to display 4:3 letterbox image (with source si-
gnal having black bands above and below the picture) so that
it fills the 16:9 screen and maintains the correct aspect ratio.
PANORAMIC : this aspect stretches the 4:3 image, slightly cropping
the upper and lower parts.
Panoramic is ideal for displaying a 4:3 image on the 16:9
screen of the Display.
PIXEL TO PIXEL : this aspect displays the image as it is input without
adapting it to the screen.
The image is projected in the centre of the screen and if its ho-
rizontal and/or vertical dimensions are smaller than the display,
it is bounded by vertical and/or horizontal black bands.
USER 1, 2, 3: When none of the preset formulas are suitable, the
User formulas are available, with the facility for continuous
horizontal and vertical adjustment of picture size.
SCREEN CONTROL
For each aspect chosen, the SCREEN CONTROL command
allows you to reframe the screen to a variety of aspect ratios
and screen size, using an appropriate screen-masking interface
connected to the 12 V output socket (please refer to the screen
manufacture’s manual)
COLOR TEMPERATURE
Changes the colour balance of the image.
Colours can be adjusted towards the red end of the spectrum
(low colour temperature values - expressed in degrees Kelvin)
or the blue end (high values).
Colour temperature can be selected with three preset values:
HIGH (corresponding to approx. 9000 degrees Kelvin), MEDIUM
(approx. 8000 degrees Kelvin), LOW (approx. 6500 degrees
Kelvin) and one PERSONAL setting controlled by the user with
separate adjustments for RED, GREEN and BLUE .
In the personale color adjustment for all three colors it is possible
to set an Offset value and Gain.
The Offset adjustments have an impact of the low IRE values,
while the Gain adjustments impact of the higher IRE values.
Generally, the HIGH value is more suitable for displaying graphic
images, MEDIUM and LOW for video images.
These adjustments are reserved for expert users since there is a
risk of obtaining results that impair projected image quality.
GAMMA CORRECTION
Determines the system’s response to the grey scale, empha-
sising or attenuating the different grades of brightness (blacks,
dark, medium, light grey, whites) in the projected image.
The GRAPHICS setting is more suitable for computer images,
while the FILM and VIDEO settings are more suitable for video
images.
OVERSCAN
Remove noise around image. Some sources can produce a
picture with noise along edges, thanks to the overscan function
it is possible to drop such imperfections outside the projected
area. The overscan value can be included between 0 (no
overscan) and 32 (maximum value). The image maintains in
any case the aspect.
POSITION
Use this adjustment to position the image vertically and horizon-
tally. Determines the aspect ratio of the projected image.
These parameters do not normally require adjustment becau-
se the system checks the input signal and automatically sets
the
