Sim2 DLP Video Projector C3X Link User manual

C3X LINK
DLP™VIDEO
PROJECTOR
RS-232C
CONTROL
SPECIFICATIONS
Document Revision 1.1(16 December 2005)

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
2
Table of Contents
1. INTRODUCTION 3
2. CONNECTION 3
3. COMMUNICATION PROTOCOL 4
HEADER 4
PAYLOAD 4
4. COMMANDS 5
REMOTE CONTROL KEY CODES 5
OPERATION CODES 7
GET CODES 12
5. EXAMPLES 14
6. WARNINGS 14
Revision History:
Revision Date Software Version Description of Change
1.116 December 2005 2.48.62CL or higher
Added ON command.
Command 0 is now different from
command ON.
1.0 5 December 2005 2.48.60 CL or higher Initial version.

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
3
1. Introduction
This document describes the communication and data formats used to control SIM2 C3X LINK projector via
RS-232C port.

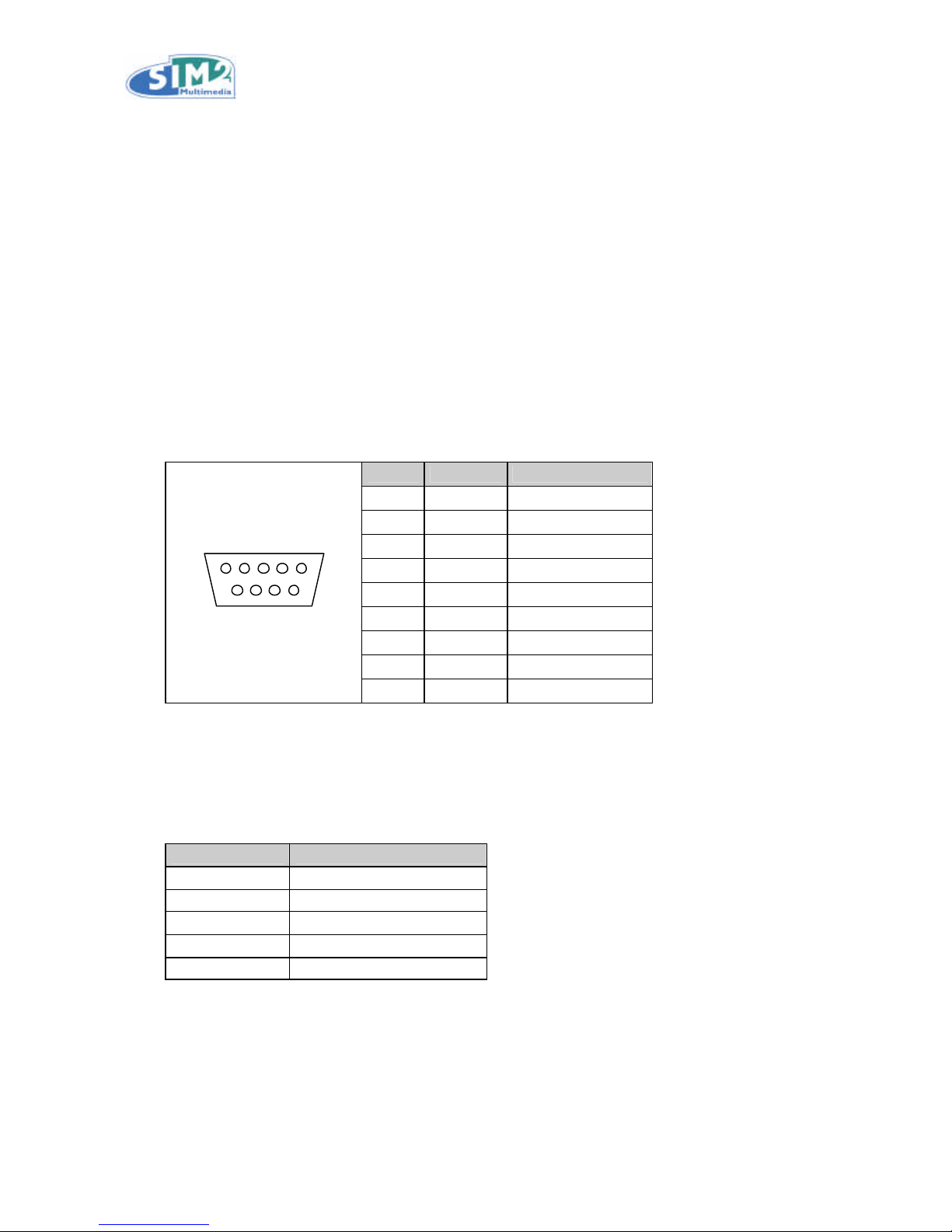

2. Connection
Switch off the Personal Computer the Projector before connecting RS 232C cable.
Use a standard serial cable with 9 pin female to the Personal Computer and 9 pin male to the Projector: pin
2 connects to pin2, pin 3 to pin 3 and pin 5 to pin 5.
SIM2 C3X LINK RS-232C Port is described as follows.
SIM 2 C3X LINK RS-232C Control Port:
Pin No Signal Definition
1N/A Not used
2TD Transmit data
3RD Receive data
4N/A Not used
5GND Ground
6N/A Not used
7N/A Not used
8N/A Not used
D-SUB 9-pin
(female)
5 1
9 6
9N/A Not used
Switch on the Personal Computer and, after start up, switch on the Projector.
Load a suitable communication software onto your Personal Computer, and set the Serial Port Parameters as
shown below.
Communication Parameters:
Parameter Value
Transfer Rate 19200 bps
Data Bits 8
Parity Bit None
Stop Bit 1
Flow Control None
Set Send Mode and Read Mode to HEX.

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
4
3. Communication Protocol
The communication protocol is packet oriented. Packets consists of Header and Payload.
There are two types of packets: Event and Operation.
The packet header size is fixed (7 bytes), while the packet payload type and content varies based on the
type of packet: Event payload size is 6 bytes, while Operation payload size is 25 bytes.
The entire packet size is variable, being the sum of the fixed-size packet header and variable-sized packet
payload: Event packet size is 13 bytes and Operation packet size is 32 bytes.
Header
All Packets use the same Packet Header format.
The Packet Header size is fixed at seven bytes.
0123456
BE EF Packet Type Packet Payload Size Packet Checksum (CRC)
0xEFBE is a fixed value that is used to insure packet alignment if there are partial packets received or byte
lost. The least-significant byte of the word (BE) is sent first, then the most-significant-byte (EF).
The Packet Type is a number (a byte in length) that defines the type of data in the packet.
The Packet Payload Size is a number (two bytes) that defines the size of the payload portion of the
packet. For a given Packet Type, Packet Size is fixed.
The Packet Checksum (two bytes) is the CRC value for the entire packet (Header and Payload).
Payload
The packet payload format depends on the packet type.
The Event packet payload size is 6 bytes, while the Operation packet payload size is 25 bytes.
Event Packet Format:
012345
Event 00 00 00 00
Operation Packet Format:
012345678910 11 12
Op Type
Op ID 00 00 Op Target 00 00 Op Value 00 00
13 14 15 16 17 18 19 20 21 22 23 24
00 00 00 00 00 00 00 00 00 00 00 00

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
5
4. Commands
Remote Control Key Codes
The following commands send simulated Remote Control input to SIM2 C3X LINK projector.
Remote Control Keycodes:
Key Command
STAND BY BE EF 02 06 00 94 F7 9D 01 00 00 00 00
ON (1) BE EF 02 06 00 A7 F7 9E 01 00 00 00 00
0(2)BE EF 02 06 00 6B E6 52 01 00 00 00 00
1 (3)BE EF 02 06 00 80 E5 49 01 00 00 00 00
2 (3)BE EF 02 06 00 B3 E5 4A 01 00 00 00 00
3 (3)BE EF 02 06 00 62 E4 4B 01 00 00 00 00
4 (3)BE EF 02 06 00 D5 E5 4C 01 00 00 00 00
5 (3)BE EF 02 06 00 04 E4 4D 01 00 00 00 00
6 (3)BE EF 02 06 00 37 E4 4E 01 00 00 00 00
7 (3)BE EF 02 06 00 E6 E5 4F 01 00 00 00 00
8 (3)BE EF 02 06 00 89 E7 50 01 00 00 00 00
9 (3)BE EF 02 06 00 58 E6 51 01 00 00 00 00
10 (3)BE EF 02 06 00 BC E0 75 01 00 00 00 00
11 (3)BE EF 02 06 00 8F E0 76 01 00 00 00 00
12 (3)BE EF 02 06 00 5E E1 77 01 00 00 00 00
ESC BE EF 02 06 00 0D E6 54 01 00 00 00 00
CURSOR UP BE EF 02 06 00 DC E7 55 01 00 00 00 00
CURSOR LEFT BE EF 02 06 00 EF E7 56 01 00 00 00 00
CURSOR RIGHT
BE EF 02 06 00 3E E6 57 01 00 00 00 00
CURSOR DOWN BE EF 02 06 00 C1 E6 58 01 00 00 00 00
MENU LEFT (-)BE EF 02 06 00 10 E7 59 01 00 00 00 00
MENU RIGHT (+) BE EF 02 06 00 23 E7 5A 01 00 00 00 00
FREEZE BE EF 02 06 00 F2 E6 5B 01 00 00 00 00
MEMORY BE EF 02 06 00 45 E7 5C 01 00 00 00 00
F1 BE EF 02 06 00 E6 F4 8F 01 00 00 00 00
F2 BE EF 02 06 00 89 F6 90 01 00 00 00 00
INFO BE EF 02 06 00 A7 E6 5E 01 00 00 00 00
AUTO BE EF 02 06 00 79 E2 60 01 00 00 00 00
ASPECT NORMAL BE EF 02 06 00 2A F4 83 01 00 00 00 00
ASPECT ANAMORPHIC BE EF 02 06 00 9D F5 84 01 00 00 00 00
ASPECT LETTERBOX BE EF 02 06 00 4C F4 85 01 00 00 00 00
ASPECT PANORAMIC BE EF 02 06 00 7F F4 86 01 00 00 00 00
ASPECT PIXEL TO PIXEL
BE EF 02 06 00 AE F5 87 01 00 00 00 00

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
6
ASPECT USER 1 BE EF 02 06 00 51 F5 88 01 00 00 00 00
ASPECT USER 2 BE EF 02 06 00 80 F4 89 01 00 00 00 00
ASPECT USER 3 BE EF 02 06 00 B3 F4 8A 01 00 00 00 00
VCR BE EF 02 06 00 9B E3 62 01 00 00 00 00
Direct access codes
Zoom BE EF 02 06 00 94 E6 5D 01 00 00 00 00
Focus BE EF 02 06 00 76 E7 5F 01 00 00 00 00
Goto Brightness BE EF 02 06 00 C7 E1 7E 01 00 00 00 00
Goto Contrast BE EF 02 06 00 16 E0 7F 01 00 00 00 00
Goto Color BE EF 02 06 00 19 F4 80 01 00 00 00 00
Goto Tint BE EF 02 06 00 C8 F5 81 01 00 00 00 00
(1)
When the unit is in Standby state, this command switches on the unit and the last source memorised
prior to switch off is automatically selected.
(2)
When the unit is On, this command displays the Source Selection windows of the OSD.
(3)
Selects the corresponding Source.
The response of the unit to a correct Remote Control Key Code consists of a single byte: 06.

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
7
Operation Codes
The following codes provide direct access to SIM2 C3X LINK User Interface operations not accessible via a
single Remote Control command.
Operation Codes:
Operation Action Command
INCREMENT BE EF 03 19 00 AB 7E 03 00 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
BRIGHTNESS
DECREMENT BE EF 03 19 00 C5 D4 04 00 08
00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 3E 23 03 01 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CONTRAST
DECREMENT BE EF 03 19 00 50 89 04 01 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 C1 C7 03 02 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
COLOR
DECREMENT BE EF 03 19 00 AF 6D 04 02 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 54 9A 03 03 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
TINT
DECREMENT BE EF 03 19 00 3A 30 04 03 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 7E 0C 03 04 08 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SHARPNESS (Video)
DECREMENT BE EF 03 19 00 10 A6 04 04 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 D4 C4 03 09 08 0
0 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SHARPNESS FILTER
DECREMENT BE EF 03 19 00 BA 6E 04 09 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET VIDEO BE EF 03 19 00 7A 80 01 60 02 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SHARPNESS MODE
SET GRAPHICS BE EF 03 19 00 EA 41 01 60 02 00 00 00 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET OFF BE EF 03 19 00 33 43 01 07 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
CINEMA MODE
SET AUTO BE EF 03 19 00 A3 82 01 07 08 00 00 00 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET NORMAL BE EF 03 19 00 A6 1E 01 06 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
VIDEO TYPE
SET VCR BE EF 03 19 00 36 DF 01 06 08
00 00 00 00 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 55 BA 03 21 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
POSITION
HORIZONTAL DECREMENT BE EF 03 19 00 3B 10 04 21 08
00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 AA 5E 03 22 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
POSITION
VERTICAL DECREMENT BE EF 03 19 00 C4 F4 04 22 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 01 BE EF 03 19 00 D6 F4 01 C2 09 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 02 BE EF 03 19 00 46 35 01 C2 09 00 00 00 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
COLOR
TEMPERATURE
SET 03 BE EF 03 19 00 B7 75 01 C2 09 00 00 00 0
0 00 00
02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
8
SET 04 BE EF 03 19 00 27 B4 01 C2 09 00 00 00 0
0 00 00
03 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 05 BE EF 03 19 00 15 F6 01 C2 09 00 00 00 00 00 0
0
04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 06 BE EF 03 19 00 85 37 01 C2 09 00 00 00 0
0 00 00
05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 07 BE EF 03 19 00 74 77 01 C2 09 00 00 00 0
0 00 00
06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 08 BE EF 03 19 00 E4 B6 01 C2 09 00 00 00 0
0 00 00
07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 09 BE EF 03 19 00 10 F3 01 C2 09 00 00 00 0
0 00 00
08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 10 BE EF 03 19 00 80 32 01 C2 09 00 00 00 0
0 00 00
09 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 11 BE EF 03 19 00 71 72 01 C2 09 00 00 00 0
0 00 00
0A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 12 BE EF 03 19 00 E1 B3 01 C2 09 00 00 00
00 00 00
0B 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 13 BE EF 03 19 00 D3 F1 01 C2 09 00 00 00 0
0 00 00
0C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 14 BE EF 03 19 00 43 30 01 C2 09 00 00 00 0
0 00 00
0D 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 15 BE EF 03 19 00 B2 70 01 C2 09 00 00 00 0
0 00 00
0E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 16 BE EF 03 19 00 22 B1 01 C2 09 00 00 00 0
0 00 00
0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 17 BE EF 03 19 00 1A F9 01 C2 09 00 00 00 00 00 0
0
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 18 BE EF 03 19 00 8A 38 01 C2 09 00 00 00 0
0 00 00
11 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 19 BE EF 03 19 00 7B 78 01 C2 09 00 00 00 0
0 00 00
12 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 20 BE EF 03 19 00 EB B9 01 C2 09 00 00 00 0
0 00 00
13 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 21 BE EF 03 19 00 D9 FB 01 C2 09 00 00 00 0
0 00 00
14 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 22 BE EF 03 19 00 49 3A 01 C2 09 00
00 00 00 00 00
15 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 23 BE EF 03 19 00 B8 7A 01 C2 09 00 00 00 0
0 00 00
16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 24 BE EF 03 19 00 28 BB 01 C2 09 00 00 00 0
0 00 00
17 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 25 BE EF 03 19 00 DC FE 01 C2 09 00 00 00 0
0 00 00
18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 26 BE EF 03 19 00 4C 3F 01 C2 09 00 00 00 0
0 00 00
19 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 27 BE EF 03 19 00 BD 7F 01 C2 09 00 00 00 0
0 00 00
1A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 28 BE EF 03 19 00 2D BE 01 C2 09 00 00 00 0
0 00 00
1B 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 29 BE EF 03 19 00 1F FC 01 C2 09 00 00 00 00 00 0
0
1C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 30 BE EF 03 19 00 8F 3D 01 C2 09 00 00 00 0
0 00 00
1D 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 31 BE EF 03 19 00 7E 7D 01 C2 09 00 00 00 0
0 00 00
1E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
COLOR
TEMPERATURE
SET 32 BE EF 03 19 00 EE BC 01 C2 09 00 00 00 0
0 00 00
1F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
9
SET 33 BE EF 03 19 00 0E ED 01 C2 09 00 00 00 0
0 00 00
20 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 34 BE EF 03 19 00 9E 2C 01 C2 09 00 00
00 00 00 00
21 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 35 BE EF 03 19 00 6F 6C 01 C2 09 00 00 00 0
0 00 00
22 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
COLOR
TEMPERATURE
SET 36 BE EF 03 19 00 FF AD 01 C2 09 00 00 00 0
0 00 00
23 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET ST1 BE EF 03 19 00 6F 9D 01 27 08 00 00 00 0
0 00 00
0B 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET EN1 BE EF 03 19 00 CD 1E 01 27 08 00 00 00 0
0 00 00
0D 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET EN2 BE EF 03 19 00 3C 5E 01 27 08 00 00 00 0
0 00 00
0E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET EN3 BE EF 03 19 00 FA 59 01 27 08 00 00 00 0
0 00 00
06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET EN4 BE EF 03 19 00 6A 98 01 27 08 00 00 00
00 00 00
07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET EN5 BE EF 03 19 00 0E 1C 01 27 08 00 00 00 0
0 00 00
09 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET GR1 BE EF 03 19 00 FF 5C 01 27 08 00 00 00 0
0 00 00
0A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET GR2 BE EF 03 19 00 5D DF 01 27 08 00 00 00 0
0 00 00
0C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
GAMMA
SET USER BE EF 03 19 00 0B 19 01 27 08 00 00 00 0
0 00 00
05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 15 95 03 24 08
00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
FREQUENCY
DECREMENT BE EF 03 19 00 7B 3F 04 24 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 80 C8 03 25 08 00 00 00 00 00
00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
PHASE
DECREMENT BE EF 03 19 00 EE 62 04 25 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 7F 2C 03 26 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
Y/C DELAY
DECREMENT BE EF 03 19 00 11 86 04 26 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 FF 72 03 2C 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
MAGNIFICATION
DECREMENT BE EF 03 19 00 91 D8 04 2C 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 6A 2F 03 2D 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
PAN HORIZONTAL
DECREMENT BE EF 03 19 00 04 85 04 2D 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 0
0 00 00
INCREMENT BE EF 03 19 00 95 CB 03 2E 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
PAN VERTICAL
DECREMENT BE EF 03 19 00 FB 61 04 2E 08 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 01 26 03 1C 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
KEYSTONE VERTICAL
DECREMENT BE EF 03 19 00 6F 8C 04 1C 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 6B 9F 03 1E 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
KEYSTONE
HORIZONTAL DECREMENT BE EF 03 19 00 05 35 04 1E 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
10
SET 200 BE EF 03 19 00 D8 EE 01 4A 08 00 00 00 0
0 00 00
C8 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 210 BE EF 03 19 00 B3 65 01 4A 08 00 00 00 0
0 00 00
D2 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 220 BE EF 03 19 00 D7 E1 01 4A 08 00 00 00
00 00 00
DC 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 230 BE EF 03 19 00 64 73 01 4A 08 00 00 00 0
0 00 00
E6 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET 240 BE EF 03 19 00 0A FD 01 4A 08 00 00 00 0
0 00 00
F0 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
LAMP POWER
SET 250 BE EF 03 19 00 AD 7B 01 4A 08 00 00 00 0
0 00 00
FA 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET ENGLISH BE EF 03 19 00 15 35 01 05 24 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET ITALIANO BE EF 03 19 00 85 F4 01 05 24 00 00 00 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET FRANCAIS BE EF 03 19 00 74 B4 01 05 24 00 00 00 0
0 00 00
02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET DEUTSCH BE EF 03 19 00 E4 75 01 05 24 00 00 00
00 00 00
03 00 00 00 00 00 00 00 00 00 00 00 00 0
0 00 00
SET ESPANOL BE EF 03 19 00 D6 37 01 05 24 00 00 00 0
0 00 00
04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
LANGUAGE
SET PORTUGUES BE EF 03 19 00 46 F6 01 05 24 00 00 00 0
0 00 00
05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 82 88 03 61 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSD POSITION
HORIZONTAL DECREMENT BE EF 03 19 00 EC 22 04 61 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INCREMENT BE EF 03 19 00 7D 6C 03 62 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
OSD POSITION
VERTICAL DECREMENT BE EF 03 19 00 13 C6 04 62 08 00 00 00 0
0 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb
AutoSync
BE EF 03 19 00 92 04 01 82 08 00 00 00 0
0 00 00
14 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 15kHz BE EF 03 19 00 5B 0C 01 82 08 00 00 00 0
0 00 00
08 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 32kHz BE EF 03 19 00 51 06 01 82 08 00 00 00 0
0 00 00
10 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB AutoSync
BE EF 03 19 00 97 01 01 82 08 00 00 00 0
0 00 00
18 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB 15kHz BE EF 03 19 00 5E 09 01 82 08 00 00 00 0
0 00 00
04 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INPUT 5
(COMP RGB 1) /
SIGNAL TYPE
SET RGB 32kHz BE EF 03 19 00 98 0E 01 82 08 00 00 00 0
0 00 00
0C 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb
AutoSync
BE EF 03 19 00 97 98 01 83 08 00 00 00 0
0 00 00
15 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 15kHz BE EF 03 19 00 5E 90 01 83 08 00 00 00 0
0 00 00
09 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 32kHz BE EF 03 19 00 54 9A 01 83 08 00 00 00 00 00
00
11 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB AutoSync
BE EF 03 19 00 92 9D 01 83 08 00 00 00 0
0 00 00
19 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB 15kHz BE EF 03 19 00 5B 95 01 83 08 00
00 00 00 00 00
05 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INPUT 6
(COMP RGB 2) /
SIGNAL TYPE
SET RGB 32kHz BE EF 03 19 00 9D 92 01 83 08 00 00 00 0
0 00 00
0D 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
11
SET YCrCb
AutoSync
BE EF 03 19 00 4C 4E 01 84 08 00 00 00 00 00
00
16 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 15kHz BE EF 03 19 00 85 46 01 84 08 00 00 00 0
0 00 00
0A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 32kHz BE EF 03 19 00 8F 4C 01 84 08 00 00 00 0
0 00 00
12 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB AutoSync
BE EF 03 19 00 49 4B 01 84 08 00 00 00 0
0 00 00
1A 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB 15kHz BE EF 03 19 00 80 43 01 84 08 00 00 00 0
0 00 00
06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INPUT 7
(COMP RGB 3) /
SIGNAL TYPE
SET RGB 32kHz BE EF 03 19 00 46 44 01 84 08 00 00 00 0
0 00 00
0E 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb
AutoSync
BE EF 03 19 00 49 D2 01 85 08 00 00 00 0
0 00 00
17 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 15kHz BE EF 03 19 00 80 DA 01 85 08 00 00 00 0
0 00 00
0B 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET YCrCb 32kHz BE EF 03 19 00 8A D0 01 85 08 00 00 00 0
0 00 00
13 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB AutoSync
BE EF 03 19 00 4C D7 01 85 08 00 00 00 0
0 00 00
1B 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SET RGB 15kHz BE EF 03 19 00 85 DF 01 85 08 00 00 00 0
0 00 00
07 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
INPUT 8
(COMP RGB 4) /
SIGNAL TYPE
SET RGB 32kHz BE EF 03 19 00 43 D8 01 85 08 00 00
00 00 00 00
0F 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
RECALL BE EF 03 19 00 85 EB 01 27 09 00 00 01 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SAVE CURRENT
SETTINGS
BE EF 03 19 00 54 D6 01 27 09 00 00 0
0 00 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
MEMORY 1
SAVE INITIAL
SETTINGS
BE EF 03 19 00 45 9A 01 28 09 00 00 01 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
RECALL BE EF 03 19 00 74 AB 01 27 09 00 00 01 0
0 00 00
02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SAVE CURRENT
SETTINGS
BE EF 03 19 00 A5 96 01 27 09 00 00 00 0
0 00 00
02 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
MEMORY 2
SAVE INITIAL
SETTINGS
BE EF 03 19 00 76 DE 01 28 09 00 00 02 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
RECALL BE EF 03 19 00 E4 6A 01 27 09 00 00 01 0
0 00 00
03 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
SAVE CURRENT
SETTINGS
BE EF 03 19 00 35 57 01 27 09 00 00 00 0
0 00 00
03 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
MEMORY 3
SAVE INITIAL
SETTINGS
BE EF 03 19 00 A7 E3 01 28 09 00 00 03 0
0 00 00
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
The response of the unit to a correct Operation Code consists of the byte 1E followed by a copy of the
packet that has been sent to the unit, where, however:
-byte number 11 is set at 01,
-CRC (bytes number 6 and 7) has been altered accordingly.
01234567
1E BE EF Packet Type Packet Payload Size Packet Checksum (CRC)
8910 11 12 13 14 15 16 17 18 19 20
Op Type
Op ID 01 00 Op Target 00 00 Value 00 00

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
12
21 22 23 24 25 26 27 28 29 30 31 32
00 00 00 00 00 00 00 00 00 00 00 00
Get Codes
Get Commands may be used to get the current value of projector parameters.
The response to a correct Get Command consists of 33 byte packet, where Byte Number 11 contains the
Validation Code (01) and bytes Number 17 and Number 18 the requested value (the least-significant byte of
the value being sent first). Of course CRC (bytes number 6 and 7) has been altered accordingly.
01234567
1E BE EF Packet Type Packet Payload Size Packet Checksum (CRC)
8910 11 12 13 14 15 16 17 18 19 20
Op Type
Op ID 01 00 Op Target 00 00 Req Value 00 00
21 22 23 24 25 26 27 28 29 30 31 32
00 00 00 00 00 00 00 00 00 00 00 00
Get Codes:
BRIGHTNESS BE EF 03 19 00 52 2A 02 00 08 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
(1)
CONTRAST BE EF 03 19 00 C7 77 02 01 08 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
(1)
COLOR BE EF 03 19 00 38 93 02 02 08 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
(2)
TINT BE EF 03 19 00 AD CE 02 03 08 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
(3)
COLOR TEMPERATURE BE EF 03 19 00 9D 0B 02 C2 09 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
(4)
GAMMA BE EF 03 19 00 13 25 02 27 08 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
(5)
MEMORY BE EF 03 19 00 5E D5 02 27 09 00 00 01 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
(6)

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
13
(1) Returned value is indeterminate when the unit is in No Signal state.
Returned value may be different from the value displayed on the OSD, as in the latter, the values have
been normalized to the 0-100 range.
(2) Returned value is valid only when Video, S-Video, RGBS 15 kHz, YPrPb 15 kHz or YPrPb 32 kHz
signals are displayed. Returned value is indeterminate when other signals are displayed and when the
unit is in No Signal state.
(3) Returned value is valid only when Video (NTSC), S-Video (NTSC), RGBS 15 kHz, YPrPb 15 kHz
signals are displayed. Returned value is indeterminate when other signals are displayed and when the
unit is in No Signal state.
(4) Table below associates OSD labels with returned values:
Color Temperature
OSD
Label
Returned
value OSD Label
Returned
value OSD Label
Returned
value OSD Label
Returned
value
01 00 10 09 19 12 28 1B
02 01 11 0A 20 13 29 1C
03 02 12 0B 21 14 30 1D
04 03 13 0C 22 15 31 1E
05 04 14 0D 23 16 32 1F
06 05 15 0E 24 17 33 20
07 06 16 0F 25 18 34 21
08 07 17 10 26 19 35 22
09 08 18 11 27 1A 36 23
(5) Table below associates OSD labels with returned values:
Gamma
OSD
Label
Returned
value
ST1 0B
EN1 0D
EN2 0E
EN3 06
EN4 07
EN5 09
GR1 0A
GR2 0C
User 05
(6) Table below associates OSD labels with returned values:
Memory
OSD
Label
Returned
value
0 (Auto)
00
101
202
303

SIM2 C3X LINK
RS-232C CONTROL SPECIFICATIONS
14
5. Examples
1. Send the simulated "SWITCH ON FROM STAND-BY" Remote Control keycode.
Remote Control allows Switching on from Stand-by via the key "0".
Send the code relative to key "0":
BEEF020600A7F79E0100000000.
The projector switches on and the last source memorised prior to switch off is automatically selected.
The projector returns the response code: 06 (Acknowledged with no error).
2. Send the simulated "MENU RIGHT" Remote Control keycode.
Send the packet:
BEEF02060023E75A0100000000.
The OnScreen Display appers on the screen.
The projector returns the response code: 06 (Acknowledged with no error).
3. Send the "SET ASPECT ANAMORPHIC" Operation Code.
Send the packet:
BEEF0206009DF5840100000000.
The Aspect Ratio changes to Anamorphic.
The projector returns the response code: 06 (Acknowledged with no error).
4. Select "INPUT 5 (COMP RGB 1) WITH YcrCb 15kHz SIGNAL"
Send the packet:
BEEF0319005B0C01820800000000000008000000000000000000000000000000
Wait for the return code and add an additional delay of 50 ms.
Send the the code relative to the Key to which Input 5 has been assigned: for instance if the key is "3"
the code is:
BEEF02060062E44B0100000000
5. Get "COLOR TEMPERATURE" Value for the Current Source
Send the packet:
BEEF0319009D0B02C20900000000000000000000000000000000000000000000
The unit returns the code:
1EBEEF031900C41F02C2090100000000000D000000000000000000000000000000
where bytes Number 17 and Number 18 (underlined above) carry the requested value. The returned
value is 0D which corresponds to point 14 in the OSD Color Temperature chart.
6. Warnings
When the number of bytes sent to the Projector is greater than indicated for the Command (32 bytes for
Operation Packets and 13 bytes for Event Packets), excess data will be ignored.
Conversely, if number of bytes sent to the Projector is smaller than required by the Communication Protocol,
the command may be ignored.
Command execution time may vary from few milliseconds to 500 milliseconds, depending on the operation
that have been requested.
If the unit is busy when a command is sent, the unit may not accept the command. If several commands are
to be sent one after the other, sufficient time between them should be allowed.
