EN
SAFETY WARNINGS AND REGULATIONS
m
WARNINGS
–After having removed the packaging
make sure that the product supplied is
integral and complete in all its parts. If
this is not the case, please contact the
Dealer who sold the appliance.
–The appliance must be used as intend-
ed by
Sime who is not responsible for
any damage caused to persons, ani-
mals or things, improper installation,
adjustment, maintenance and improp-
er use of the appliance.
–In the event of water leaks, disconnect
the appliance from the mains pow-
er supply, close the water mains and
promptly inform professionally quali-
fied personnel.
–Periodically check that the operating
pressure of the water heating system
when cold is
1-1.2 bar . If this is not the
case, increase the pressure or contact
professionally qualified personnel.
–If the appliance is not used for a long
period of time, at least one of the fol-
lowing operations must be carried out:
-
set the main system switch to "OFF";
- close the gas and water valves for the
water heating system.
–In order to ensure optimal appliance
operations Sime recommends that
maintenance and checks are carried
out ONCE A YEAR .
m
WARNINGS
– It is recommended that all operators
read this manual carefully in order to
use the appliance in a safe and rational
manner.
–
This manual is an integral part of the
appliance. It must therefore be kept
for future reference and must always
accompany the appliance in the event
the appliance is transferred or sold to
another Owner or User or is installed
on another system.
–
Installation and maintenance of this
appliance must be carried out by a
qualified company or by a profession-
ally qualified technician in accordance
with the instructions contained in the
manual. Once the work is complete,
the company or technician will issue a
declaration of conformity with national
and local technical standards and leg-
islation in force in the country where
the appliance will be used.
–
Any repairs on the appliance must be
carried out solely by professional-
ly qualified personnel, using original
spare parts only. Failure to comply with
these instructions can jeopardise the
appliance’s safety and void the warran-
ty with immediate effect.
–
Fonderie SIME S.p.A. reserves the right
to make improvements to its prod-
ucts at any time without prior notice,
without compromising their essential
characteristics. The graphic illustra-
tions and/or images in this document
may show optional accessories that
vary according to the country in which
the appliance is used.

3
EN
RESTRICTIONS
d
IT IS FORBIDDEN
–To allow children under the age of 8 to
use the appliance. The appliance can
be used by children no younger than
8 years old, by people with physical
or cognitive disabilities, and by people
lacking experience or the necessary
knowledge, provided that they are su-
pervised or have been instructed on
how to use the appliance safely and
that they understand the risks associ-
ated with it.
–To allow children to play with the ap-
pliance.
–To allow unsupervised children to per-
form user maintenance and cleaning.
–To use electrical devices or appliances
such as switches, electrical appliances
etc if you can smell fuel. If this should
happen:
-
open the doors and windows to air the
room;
- close the gas isolation device;
- promptly call for professional assis-
tance.
–To touch the appliance with bare feet or
with any wet part of the body.
–Do not carry out any technical inter-
vention or cleaning operation unless
the appliance has been disconnected
from the mains power by setting the
system to “OFF”, and before shutting
off the supply of fuel and of water from
the hydraulic circuit.
d
IT IS FORBIDDEN
–To modify the safety or adjustment
devices without authorization and in-
structions from the manufacturer.
–To block the condensate drain (if present).
–To pull, detach or twist the electrical
cables coming out of the appliance
even if the appliance is disconnected
from the mains power supply.
–To block or reduce the size of the venti-
lation openings of the room where the
appliance is installed, if present.
–Remove the mains power and gas sup-
ply from the appliance if the external
temperature could fall below ZERO
(risk of freezing).
–To leave containers with flammable
substances in the room where the ap-
pliance is installed.
–To dispose of the packaging material
irresponsibly as it could be dangerous.
Packaging must be disposed of as speci-
fied by the legislation in force in the coun-
try where the appliance will be used.
–To use the appliance with diesel con-
taining a mixture of biofuel greater
than 10%.

4
EN
Dear Customer,
Thank you for purchasing a
Sime RONDÒ/ESTELLE 4-5-6-7 ErP BE
boiler, a latest-generation low-temperature modulating appli-
ance, with all the technical and performance features to satisfy
your heating needs, in maximum safety and with low running
costs.
RANGE
MODEL CODE
ESTELLE 4 ErP BE 8104360
ESTELLE 5 ErP BE 8104361
ESTELLE 6 ErP BE 8104362
ESTELLE 7 ErP BE 8104363
RONDÒ 4 ErP BE 8104340
RONDÒ 5 ErP BE 8104341
RONDÒ 6 ErP BE 8104342
RONDÒ 7 ErP BE 8104343
COMPLIANCE
Our company declares that RONDÒ/ESTELLE 4-5-6-7 ErP BE boil-
ers comply with the following directives:
–Low Voltage Directive 2014/35/EU
–Electromagnetic Compatibility Directive 2014/30/EU
–Ecodesign Directive 2009/125/EC
–Regulation (EU) No. 811/2013 - 813/2013
–Boiler Efficiency Directive 92/42/EEC
SPECIFIC WARRANTY
RONDÒ/ESTELLE 4-5-6-7 ErP BE boilers are covered by a LEGAL
WARRANTY and by a possible WARRANTY EXTENSION, which
will be proposed by the Technical Support Service in your area
and will take effect from the date on which the Service itself
validates it.
SYMBOLS
a
WARNING
To indicate actions which, if not carried out correctly,
can result in injury of a general nature or may damage
or cause the appliance to malfunction; these actions
therefore require particular caution and adequate
preparation.
f
ELECTRICAL HAZARD
To indicate actions which, if not carried out correct-
ly, could lead to injury of an electrical nature; these
actions therefore require particular caution and ade-
quate preparation.
d
IT IS FORBIDDEN
To indicate actions which MUST NOT BE carried out.
m
CAUTION
To indicate particularly important and useful informa-
tion.
MANUAL STRUCTURE
This manual is organized as follows.
USER INSTRUCTIONS
TABLE OF CONTENTS 5
DESCRIPTION OF THE APPLIANCE
TABLE OF CONTENTS 9
INSTALLATION AND SERVICING
INSTRUCTIONS
TABLE OF CONTENTS 19

5
EN
USER INSTRUCTIONS
TABLE OF CONTENTS
1 WORKING WITH THE BOILERS RONDÒ/ESTELLE 4567 E r P BE 6
1.1 Control panel ...................................6
1.2 Preliminary checks ..............................6
1.3 Ignition ........................................6
1.4 Adjusting the heating temperature .................7
1.5 Possible faults ..................................7
1.5.1 Safety thermostat ...................... 7
1.5.2 Burner lock-out ....................... 7
1.5.3 System low pressure (replenishment)...... 7
2SHUTDOWN 8
2.1 Temporary shutdown.............................8
2.2 Shutting down for long periods ....................8
3MAINTENANCE 8
3.1 Adjustments....................................8
3.2 External cleaning................................8
3.2.1 Cleaning the cladding................... 8
4DISPOSAL 8
4.1 Disposal of the equipment (European Directive
2012/19/EU) ....................................8

6
EN
1WORKING WITH THE BOILERS RONDÒ/ESTELLE 4567 E r P BE

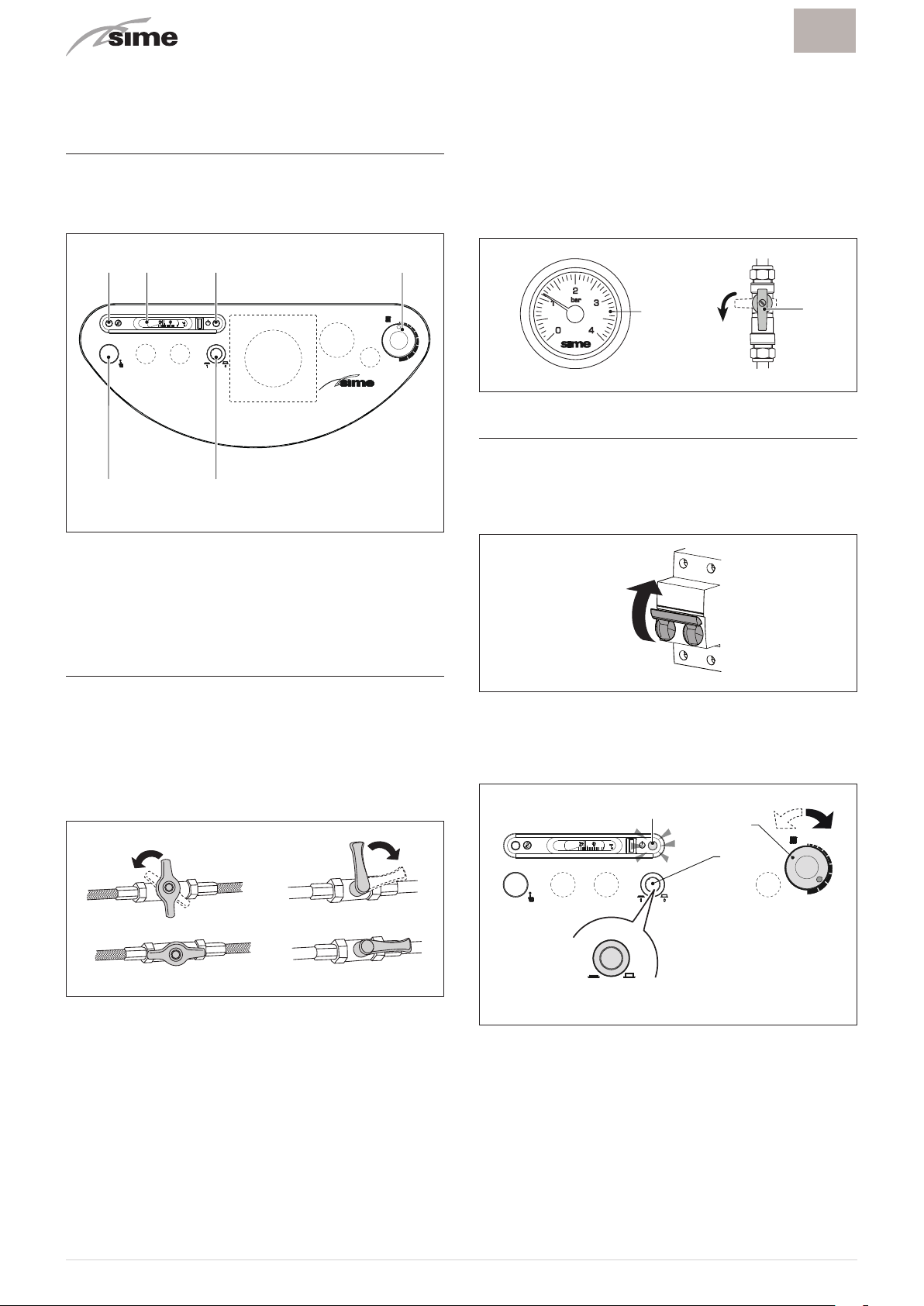

1.1 Control panel
The control panel enables all operators to make the necessary
adjustments for managing the
Sime RONDÒ/ESTELLE 4-5-6-7
ErP BE
boiler and the systems connected to it.
1
5 6
2 3 4
Fig. 1
1 Orange signalling LED ; system low pressure
2 Thermometer
3 Green signalling LED ; power supply
4 Heating thermostat (min 45°C - max 85°C)
5 Safety thermostat reset
6 Main switch
1.2 Preliminary checks
The initial start-up of the RONDÒ/ESTELLE 4-5-6-7 ErP BE boiler
must be carried out by professionally qualified personnel, after
which the appliance can function automatically. It may be neces-
sary for the user to restart the appliance autonomously, without
contacting the technician; for example, after a holiday. In this
case, the following checks and operations must be carried out:
–check that the fuel and water circuit shut-off valves are open
Fig. 2
a
WARNING
Sime RONDÒ/ESTELLE 4-5-6-7 ErP BE boilers are NOT
equipped with a system filling device. The system
must be fitted with a pressure gauge (A), to check that
the (cold) water pressure is between 1 and 1.2 bar
(98–117.6 kPa) and a loading/filling valve (B).
–check on the pressure gauge (A) that the pressure of the heat-
ing system, when cold, is
1–1.2 bar . If not, open the filling valve
(B) and refill the heating system until the pressure gauge (A)
shows a reading of
1–1.2 bar
–close the filling valve (B).
AB
04
13
2
bar
Fig. 3
1.3 Ignition
After completing the preliminary checks, to start up the boiler:
–adjust the room thermostat to the desired temperature (~
20°C)
–set the main system switch to "ON"
ON
Fig. 4
–adjust the heating thermostat (4) to roughly 3/4 of the adjust-
ment range (corresponding to roughly 75°C)
–press the main switch (6) on the control panel and verify that
the green LED switches on (3)
4
6
3
1 0
Fig. 5
The burner will pre-heat the fuel (for burners equipped with fuel
pre-heaters) and perform the pre-ventilation cycle; it will then
ignite the flame and operate at its adjusted power until the tem-
perature set on the room thermostat is reached.
The thermometer will show the temperature value of the water
in the appliance, measured at that time.

7
EN
1.4 Adjusting the heating temperature
If the heating temperature must be increased or decreased,
turn the knob (4) until the desired value is reached. The temper-
ature can be set to between 45°C and 85°C.
a
WARNING
To ensure constantly optimal performance of the gen-
erator, we suggest
NOT to adjust the heating thermostat
to below the 60°C working temperature
.
60÷75°C
4
Fig. 6
1.5 Possible faults
1.5.1 Safety thermostat
The manual-reset safety thermostat intervenes by triggering
the immediate lock-out of the burner, when the temperature
exceeds 100°C. The intervention of the safety thermostat is not
signalled but can be detected by the boiler thermostat (T>100°
C). To reactivate the appliance, wait until the temperature in-
dicated by the thermostat falls to roughly 75° C then unscrew
the protective cap and press the underlying shaft. Wait for the
completion of the fuel pre-heating and start-up phases until the
flame appears.
Fig. 7
a
WARNING
If the reactivation fails, DO NOT REPEAT it and wait for
qualified technical personnel to intervene.
1.5.2 Burner lock-out
If any ignition or operating anomalies occur, the boiler will run
a “LOCK-OUT” and the
PSB button will light up red. To reset the
burner ignition conditions, press the burner unlock button (PSB)
until the flame appears. This operation can be repeated 2–3
times at the most and, should it fail, wait for qualified technical
personnel to intervene.
PSB
Fig. 8
a
WARNING
Check that there is enough fuel in the tank and that the
shut-off valves are open. Once the tank has been filled, it
is advisable to interrupt the boiler’s operation for roughly
one hour.
1.5.3 System low pressure (replenishment)
Sime RONDÒ/ESTELLE 4-5-6-7 ErP BE boilers are NOT equipped
with a system filling device. The system must be fitted with a
pressure gauge (A), to check that the (cold) water pressure is
between
1 and 1.2 bar (98–117.6 kPa) and a loading/filling valve
(B).
When the system water pressure indicated on the pressure
gauge (A) falls below
1 bar (98 kPa) , the unit must be filled.
To do this:
–open the filling valve (B) to raise the pressure until it reaches
the correct value, between
1 and 1.2 bar (98–117.6 kPa)
–close the valve (B)
NOTE: if the pressure exceeds the maximum value specified
above, open the relief valve of any radiator (some water will
come out) until the correct value is reached.
04
13
2
bar A B
Fig. 9

8
EN
2SHUTDOWN
2.1 Temporary shutdown
If the user is away temporarily, for a weekend, short trip etc and
if the outside temperature is at ZERO:
–press the main switch (6) to switch off the boiler
6
1 0
Fig. 10
–close the fuel and water circuit shut-off valves.
Fig. 11
2.2 Shutting down for long periods
If the boiler is to be left unused for a long period, the following
operations need to be carried out:
–press the main switch (6) to switch off the boiler
–close the fuel and water circuit shut-off valves
–set the main system switch to "OFF"
OFF
Fig. 12
m
CAUTION
In case of difficulties in completing the described pro-
cedure, contact professionally qualified personnel.
3MAINTENANCE
3.1 Adjustments
For the appliance to operate correctly and efficiently it is recom-
mended that the User calls upon the services of a Professionally
Qualified Technician to carry out
ANNUAL maintenance.
m
CAUTION
Maintenance must ONLY be carried out by qualified
professionals who follow the indications provided in
the INSTALLATION AND MAINTENANCE INSTRUC-
TIONS.
3.2 External cleaning
3.2.1 Cleaning the cladding
When cleaning the cladding, use a cloth dampened with soap
and water or alcohol for stubborn marks.
d
IT IS FORBIDDEN
to use abrasive products.
a
WARNING
–Should it be necessary to access the zones in the
rear part of the appliance, make sure that the sys-
tem’s components or pipes are not too hot (risk of
burns).
–Before performing any maintenance, put on protec-
tive gloves.
4DISPOSAL
4.1 Disposal of the equipment (European Di-
rective 2012/19/EU)
At the end of their life span, the appliance
and electrical and electronic devices coming
from households or classifiable as household
waste must be delivered to appropriate waste
collection systems, in accordance with the law
and with Directive 2012/19/EU. This product
was designed and manufactured for minimis-
ing its impact on the environment and on hu-
man health, but it contains components that
could be detrimental if managed improperly.
The symbol (crossed-out wheelie bin) depict-
ed here and also appearing on your appliance
means that the appliance at the end of its life
must be managed in accordance with the law
and treated as electrical and electronic waste.
Before delivering the appliance for its disposal,
consult the applicable provisions of the laws in
force in the country where the appliance is used
and get information on the authorised waste
disposal facilities by contacting the relevant lo-
cal offices.

9
EN
DESCRIPTION OF THE APPLIANCE
TABLE OF CONTENTS
5DESCRIPTION OF THE APPLIANCE 10
5.1 Characteristics ................................10
5.2 Operation .....................................10
5.3 Check and safety devices ........................11
5.4 Identification ..................................11
5.5 Structure .....................................12
5.6 Technical features ..............................13
5.7 Burner adjustments ............................14
5.8 Main water circuit ..............................15
5.9 Combinable burners ............................15
5.10 Combustion chamber dimensions.................15
5.11 Fastening the burner............................15
5.12 Boiler head losses..............................16

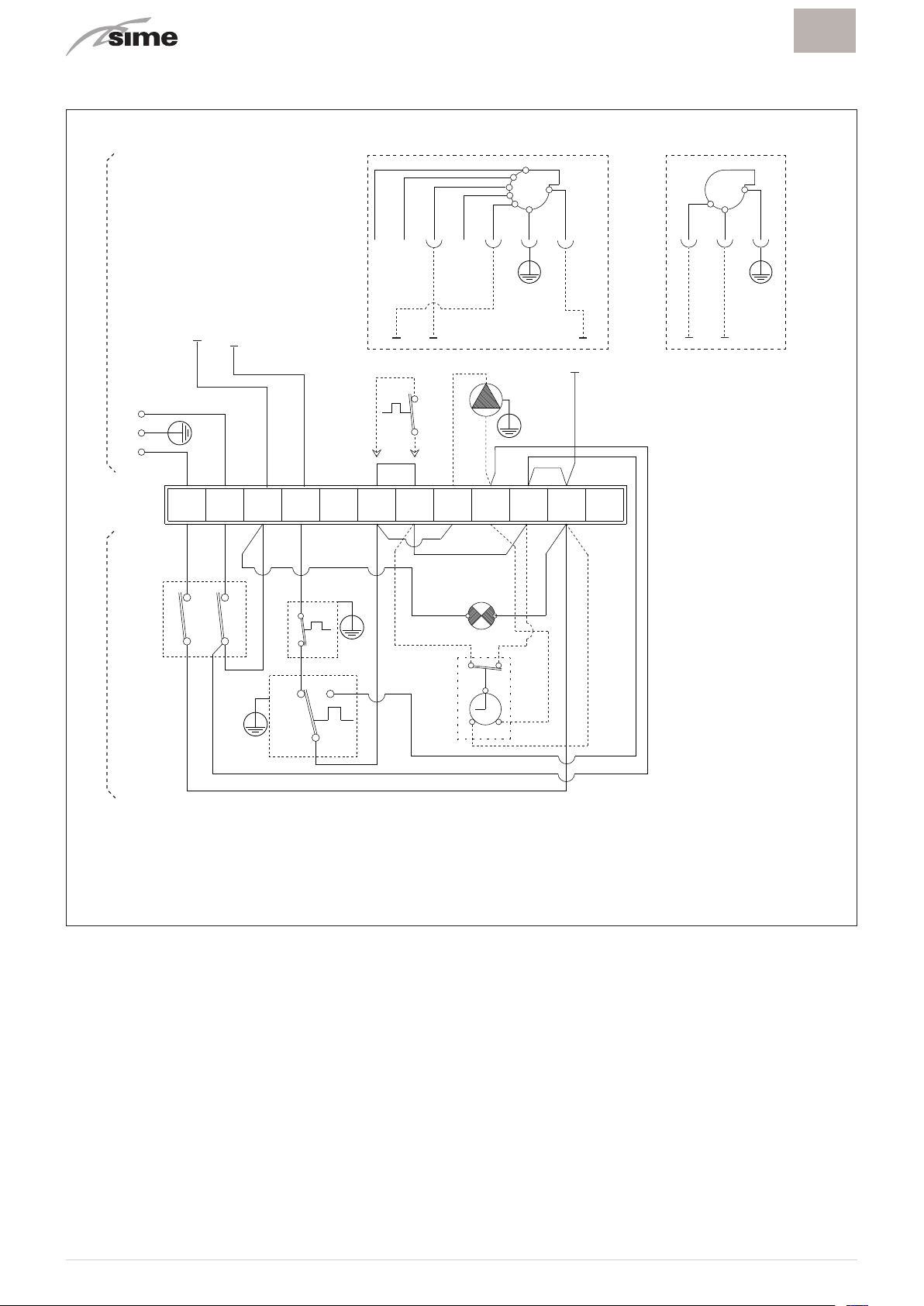

5.13 Wiring diagrams ...............................17
5.13.1 RONDÒ / ESTELLE 4- 5 ErP BE ............... 17
5.13.2 RONDÒ
/ ESTELLE 6- 7 ErP BE ............... 18

10
EN
5DESCRIPTION OF THE APPLIANCE
5.1 Characteristics
Sime RONDÒ/ESTELLE 4-5-6-7 ErP BE cast iron boilers are configured for operating with diesel blown-air Low NOx burners. They are
specially designed for users who privilege high performances, silent operation and compact dimensions.
RONDÒ/ESTELLE 4-5-6-7 ErP BE boilers are the version for space heating only. They can be TYPE B23P (open) devices, when the burner
draws combustion air from the environment in which they are installed, therefore the room MUST include adequate vents sized ac-
cording to the laws in force in the country where the appliance is used.
RONDÒ / ESTELLE 4 ErP BE and RONDÒ / ESTELLE 5 ErP BE models can be converted into TYPE C23P (sealed) devices, using the available
ACCESSORIES KITS (see the paragraph
6.1.1 Optional accessories ) which allow the appliance to draw combustion air directly from
outside the room where it is installed.
ESTELLE ErP BE boilers are equipped with a reversible door that opens towards the right. By inverting the pin, the door opening direc-
tion can be switched to the left side.
The door pin is not present on
RONDÒ ErP BE boilers. They are supplied in 3 separate packages: boiler body, jacket, control panel and
document kit.
The broad heat exchange surface of the cast iron body allows to obtain high performances that ensure considerable savings in terms
of running costs.
5.2 Operation
Prior to starting up the boiler, we suggest setting the heating
thermostat (4) to roughly 3/4 of the adjustment range (roughly
75°C) and then activating the general and main switches (6) to
power the system electrically. The green signalling LED (3) will
light up to signal that the system is powered.
When a heat request arrives, with the thermostat in request
mode, the fuel will start heating (for burners fitted with a fuel
pre-heater) for a few minutes with the burner stationary. The
following operations occur in sequence: powering of the burner
and of the ignition transformer; ignition of the flame and start-
ing up of the system pump.
The flame will remain on until the temperature set through the
heating thermostat (4) of the control panel has been reached,
while the system pump continues to operate in order to use the
heat generated (available). The burner will then switch on and
off in an alternating manner until the temperature requested by
the room thermostat is reached.
The temperature of the water contained in the cast iron body will
appear on the thermometer (2).
m
CAUTION
The diagram of the operating sequences/phases is
shown in the documentation supplied with the burner
installed.
6
2 3 4
Fig. 13

11
EN
5.3 Check and safety devices
RONDÒ/ESTELLE 4-5-6-7 ErP BE appliances are equipped with
the following control and command devices:
– thermal safety thermostat 100°C
– heating thermostat (min 45°C - max 85°C)
– thermometer (0-120°C).
d
IT IS FORBIDDEN
To commission the appliance with safety devices
which do not work or which have been tampered with.
a
WARNING
Safety device may only be replaced by professional
qualified personnel using
Sime original spare parts.

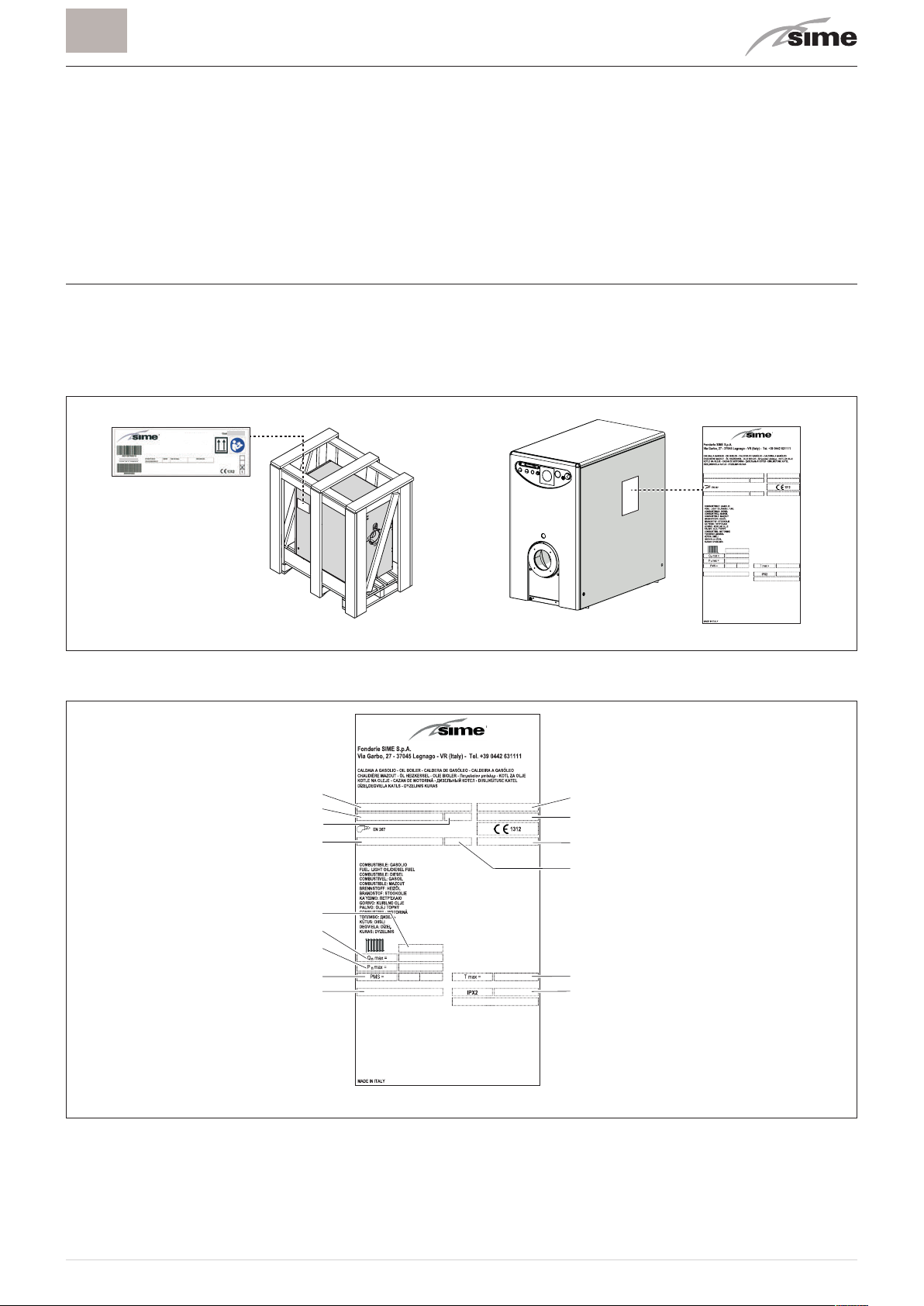

5.4 Identification
The RONDÒ/ESTELLE 4-5-6-7 ErP BE boilers can be identified by means of:
1 Packaging label: located on the outside of the packaging, it includes the code and serial number of the boiler in addition to the
barcode.
2 Technical data plate: it is located on the right-hand side of the boiler and includes the technical data, appliance performance data
and any other information required by law in the country where the appliance will be used.
21
Fig. 14
Technical Data Plate
NAME
SERIAL NUMBER
NOx CLASS
YEAR OF MANUFACTURE
WATER CONTENT IN BOILER
MAX HEAT INPUT
MAX HEAT OUTPUT (80-60°C)
MAX OPERATING PRESSURE MAX OPERATING TEMPERATURE
ELECTRICAL PROTECTION DEGREE
ELECTRICAL SUPPLY
MAXIMUM ABSORBED POWER
APPLIANCE TYPE
NOx VALUE
CODE
N° PIN
Fig. 15
m
CAUTION
Tampering with, removing or failing to display the identification plate or carrying out any other operation which does not
allow safe identification of the product or which may hinder installation and maintenance operations.

12
EN

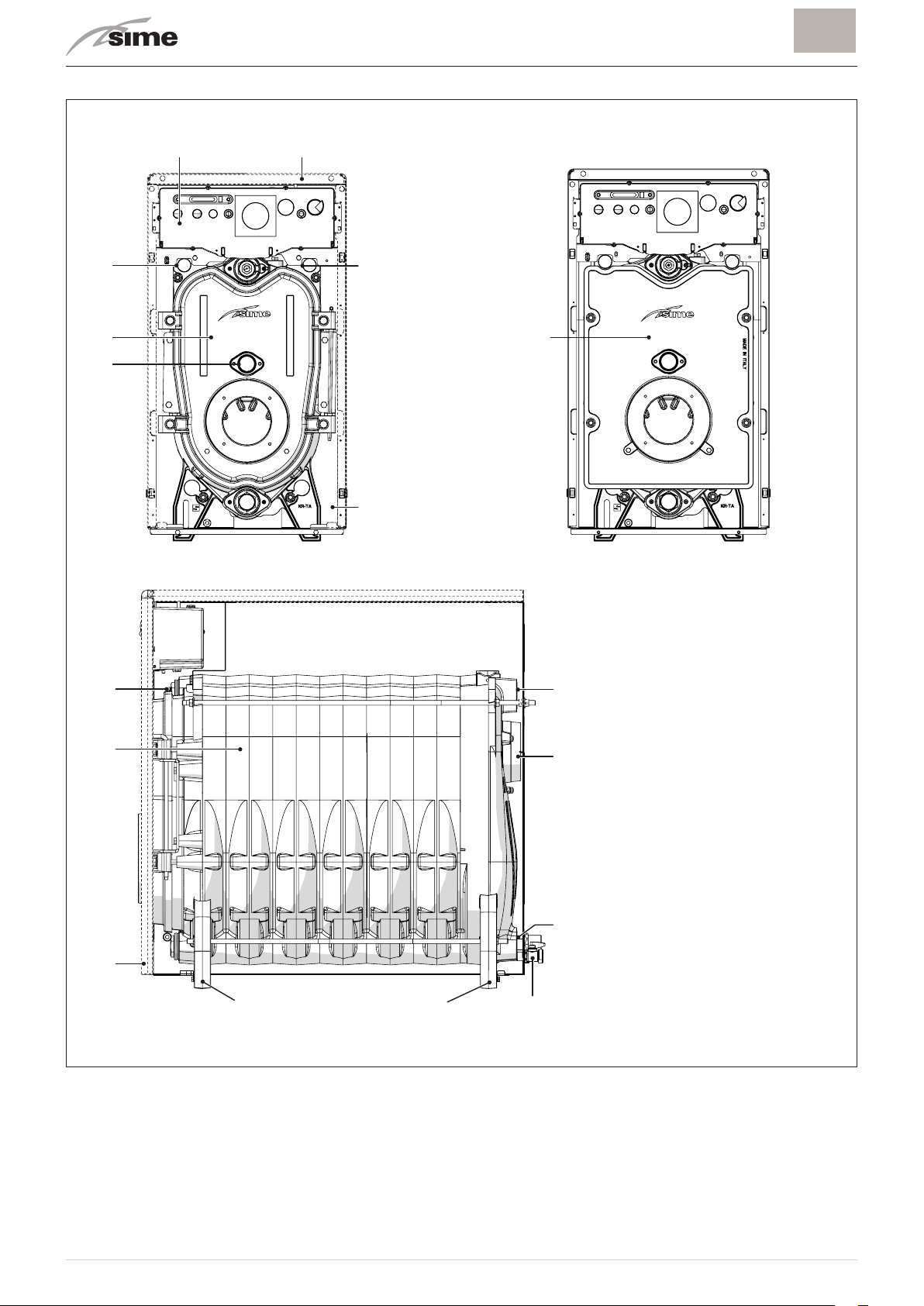

5.5 Structure
RONDÒ 4-5-6-7 E r P BE RONDÒ/ESTELLE 4-5-6-7 E r P BE
1
4
3
2
5
6 6
7
8 9
10
11
10
12
14 14
13
1 Thermowell
2 System delivery (MI)
3 System return (R)
4 Smoke outlet fitting
5 System discharge valve
6 Appliance support frame
7 Front panel
8 Control panel
9 Top panel
10 Holes for handling
11 Side panels
12 Flame viewing window
13 Cast iron body
14 Cast iron front door
Fig. 16

13
EN
5.6 Technical features
DESCRIPTION
RONDÒ / ESTELLE
4 ErP BE 5 ErP BE 6 ErP BE 7 ErP BE
CERTIFICATIONS
Country of intended installation IT – ES – EN – FR – NL – EL - DE - SL - RO - PT - RU - HR - DK
Fuel Diesel
PIN number 1312CR192R
Appliance classification B23P-C23P B23P
Class NO
x (*) 3
HEATING PERFORMANCE
HEAT INPUT (**)
Nominal flow (Q
n max) kW 26,8 32,9 46,1 55,0
Useful efficiency (80-60°C) %94 94,2 96,5 94,5
HEAT OUTPUT
Nominal (80-60°C) (P
n max) kW 25,2 31,0 44,5 52,0
Nominal (50-30°C) (P
n max) kW 35,5 42,2 50,5 62,8
ENERGY PERFORMANCE
Heating seasonal energy efficiency class % B
Heating seasonal energy efficiency %86 89
ELECTRICAL SPECIFICATIONS
Power supply voltage V230
Frequency Hz 50
Electrical protection degree IP IPX2
COMBUSTION DATA
Cast iron elements n° 4567
Fume temperature (80-60°C) °C 160 136 156
Fume mass flow rate m
3
n/h 37,4 43,9 50,4 56,9
CO
2 %12,5
TEMPERATURES  PRESSURES  WEIGHTS
Max operating temperature (T max) °C 95
Heating adjustment range °C 45÷85
Max operating pressure bar 4
kPa 392
Water content in boiler l16,8 20,8 24,8 28,8
Head loss fume side (***) mbar 0,16 0,21 0,26 0,31
kPa 0,015 0,020 0,025 0,030
Combustion chamber pressure (***) mbar 0,2
kPa 0,020
Recommended negative pressure at flue mbar 0,3
kPa 0,030
(*) NOx Class as per EN 267:2009
(**) Heat input calculated using the lower heat output (Hi)
(***) Data measured with flue draught of 0 mbar

14
EN
5.7 Burner adjustments
The suggested adjustments for the operation of the combinable burners installed at sea level are shown in the table.
Description Model Code
Nozzle
Pulverisation
angle
Pump
pressure
(bar) NOx class
Absorbed
electrical
power (*)
(W)
Type GPH
RONDÒ / ESTELLE 4 ErP BE
SIME FUEL 25 EV
(Standard
version) 8118500
DANFOSS
0,55
60°H
12
3
201
RONDÒ / ESTELLE 5 ErP BE
SIME FUEL 35 EV
(Standard
version) 8118501 0,65 190
RONDÒ / ESTELLE 6 ErP BE
SIME MACK 6
ErP BE 8099157
FLUIDICS
1,00
80°HF
263
RONDÒ / ESTELLE 7 ErP BE
SIME MACK 7
ErP BE 8099158 1,25 11,2 260
(**) Values obtained during operation
When the burner is installed at altitudes up to maximum 1300 m.a.s.l., due to the lower air density, the factory adjustments for the
burner must be modified as follows:
–Keep the nozzle mounted in the factory
–Do not vary the position of the combustion head
–Gradually reduce the pump pressure to reduce the fuel flow rate
–Adjust the air shutter by taking the following readings:
-CO
2 (%)
-CO (ppm) (as per the regulations in force)
-Bacharach index (≤ 0,5)
-Flue gas temperature.

15
EN
5.8 Main water circuit
M
R
3
2 1
KEY:
M System delivery
R System return
1 Boiler body
2 Automatic bleed valve (not sup-
plied)
3 Boiler drain (not supplied)
Fig. 17
5.9 Combinable burners
The burners that can be combined with RONDÒ/ESTELLE 4-5-6-7
ErP BE
boilers are:
Burner RONDÒ / ESTELLE
MODEL CODE
4 ErP
BE
5 ErP
BE
6 ErP
BE
7 ErP
BE
SIME FUEL 25 EV
(Standard version) 8118500 X
SIME FUEL 35 EV
(Standard version) 8118501 X
SIME MACK 6 ErP BE 8099157 X
SIME MACK 7 ErP BE 8099158 X
m
CAUTION
–The burners shown in the table can be purchased
separately from the boiler.
–It is possible to install a burner that the customer
already has, provided that it has the
“CE marking”
and fulfils the performance requirements applica-
ble to the boiler with which it will be paired.
–Blown-air burners for diesel fuel must comply with
the EN 267 standard.
m
CAUTION
–When choosing the burner, pay special attention to
the maximum power absorbed at 30% for the load
and in the burner stand-by mode, while checking
that the values are equal to or below those shown
in ANNEX AA.1
m
CAUTION
–For the burner installation, wiring diagrams, fuel
supply and warnings, refer to the specific manual
supplied with the burner.
–All the operations must be carried out exclusively by
the
Sime Technical Service or by professionally quali-
fied personnel
.
–
Fonderie SIME S.p.A. declines all liability for any
harm to people or animals and damage to objects
caused by failure to observe the warnings and op-
erating procedures described in this instruction
manual.

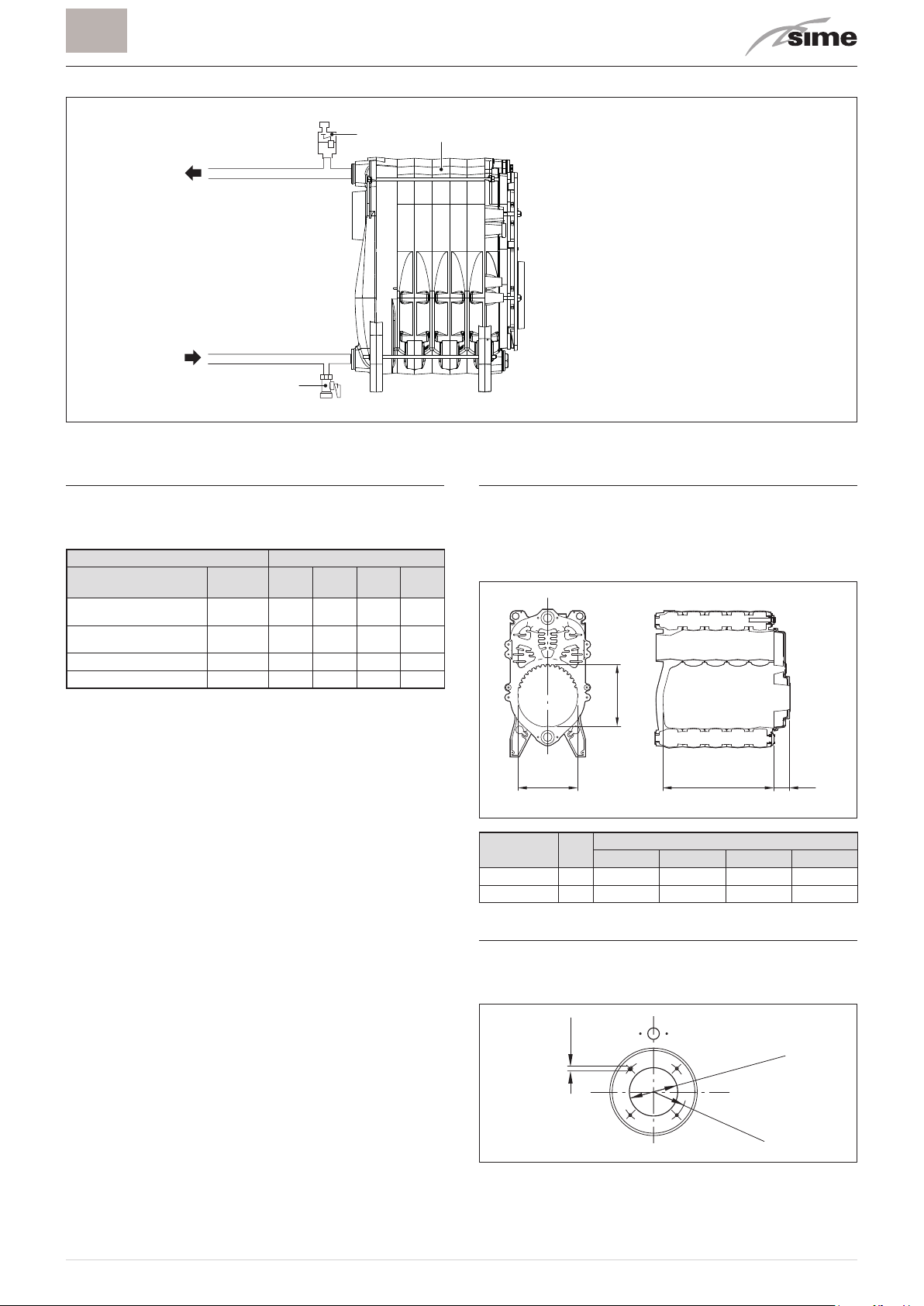

5.10 Combustion chamber dimensions
The combustion chamber is a direct-passage type chamber and
conforms to the EN 303-3 standard Annex E. Its dimensions are
shown in the figure. An appropriate protective panel is applied
to the inner wall of the rear head on all models.
270
280
L 70
Fig. 18
Description U/M
RONDÒ / ESTELLE
4 ErP BE 5 ErP BE 6 ErP BE 7 ErP BE
Lmm 405 505 605 705
Volume dm
3
24,0 30,5 37,0 43,5
5.11 Fastening the burner
The boiler door is designed to receive the flange for mounting
and fastening the burner.
R 75
ø 110
M8
Fig. 19

16
EN

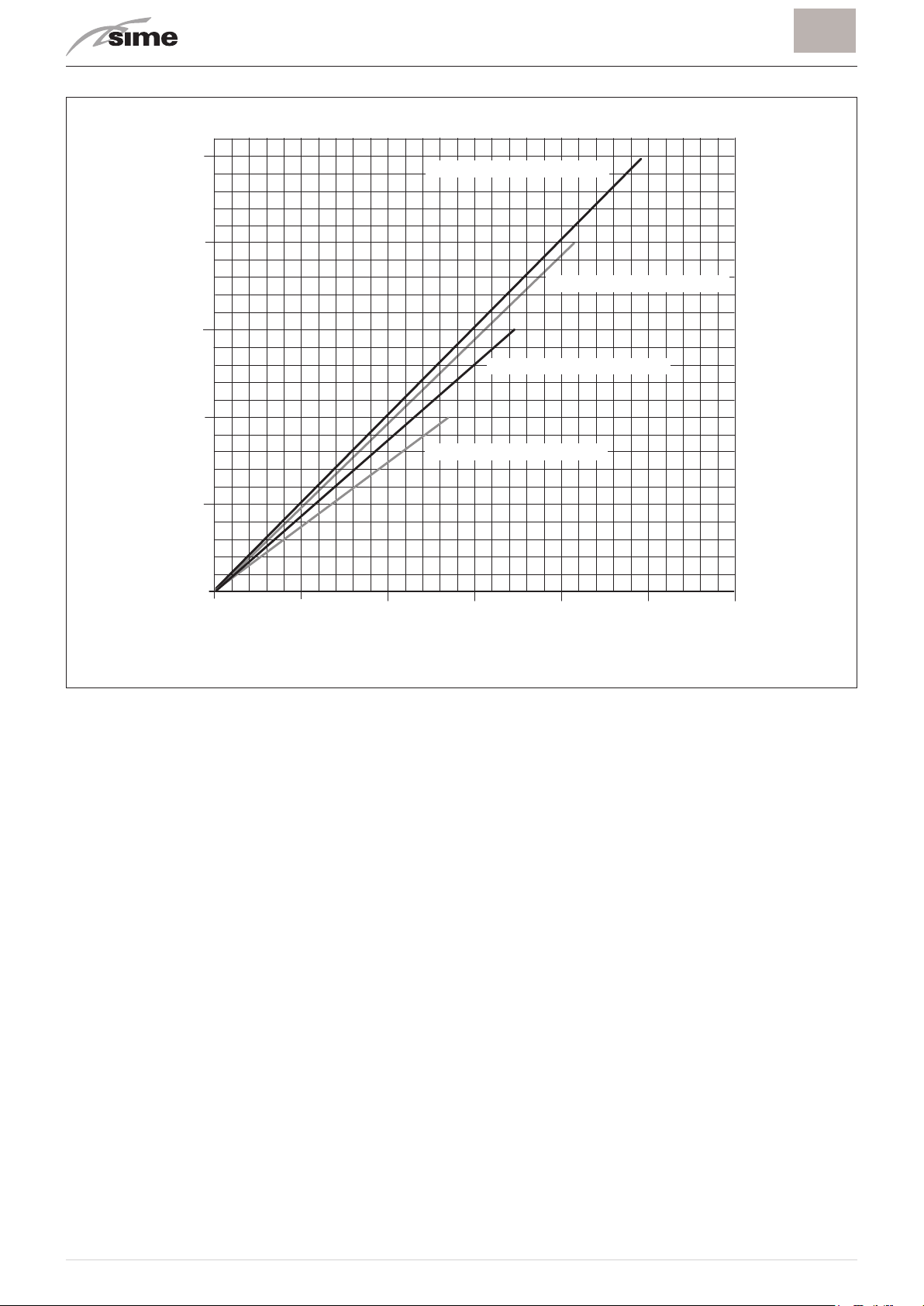

5.12 Boiler head losses
Head losses (mbar)
03000
2000
1000
10
4000
5000 6000
15
20
25
5
RONDÒ/ESTELLE 6 ErP BE
RONDÒ/ESTELLE 7 ErP BE
RONDÒ/ESTELLE 4 ErP BE
RONDÒ/ESTELLE 5 ErP BE
Flow rate (l/h)

17
EN
5.13 Wiring diagrams
5.13.1 RONDÒ / ESTELLE 4- 5 ErP BE
Connections to be made by the installer
Factory connections
B
N L
BRBL
B1
B4 S3 T2 T1 N L1
GRBRBL
PI
MIQ
TA
230 V
50 Hz
TC
CTP
SA
IG
TS
C
1 2
21
53
N
L
LN12345678910
GR
BR
BL
L Line
N Neutral
IG Main switch
TS Safety thermostat
TC Boiler thermostat
SA Voltage indicator light
PI System pump
(high-efficiency)
B Burner with direct
supply
B1 Burner with perma-
nent single-stage
supply (e.g. SIME
FUEL 25/35 EV)
TA Room thermostat
CTP Timer-controlled pro-
grammer thermostat
(optional)
GR Grey
BL Blue
BR Brown
– To connect the room timer-controlled thermostat (TA), remove the jumper between terminals 4-5.
– To connect the programmer timer-controlled thermostat (CTP), remove the jumper between terminals 5-8.
– For the burner connections refer to the appliance manual.
Fig. 20
m
CAUTION
Users must:
–To mount an omnipolar residual-current circuit
breaker conforming to EN standards
that allows for
completely disconnecting the system in overvoltage
category III conditions (that is, with a gap of at least 3
mm between the open contacts)
.
–Respect the connections L (Live) - N (Neutral).
–Ensure that the special power cable is only replaced
with a cable ordered as a spare part and connected
by professionally qualified personnel.
m
CAUTION
Users must:
–Connect the earth wire to an effective earthing sys-
tem.
The manufacturer is not responsible for any dam-
age caused by failure to earth the appliance or failure
to observe the information provided in the wiring dia-
grams
.
a
WARNING
The grey cable (GR), when not used, MUST be removed
from the terminal block MIQ
.
d
IT IS FORBIDDEN
To use water pipes for earthing the appliance.

18
EN
5.13.2 RONDÒ / ESTELLE 6- 7 ErP BE
Connections to be made by the installer
Factory connections
B
N L
GRBL
B1
B4 S3 T2 T1 N L1
BRGRBL
PI
MIQ
TA
230 V
50 Hz
TR
CTP
SA
IG
TS
C
1 2
21
53
N
L
LN12345678910
BR
GR
BL
L Line
N Neutral
IG Main switch
TS Safety thermostat
TC Boiler thermostat
SA Voltage indicator light
PI System pump
(high-efficiency)
B Burner with direct
supply
B1 Burner with perma-
nent single-stage
supply (e.g. SIME
MACK 6/7 ErP BE)
TA Room thermostat
CTP Timer-controlled pro-
grammer thermostat
(optional)
GR Grey
BL Blue
BR Brown
– To connect the room timer-controlled thermostat (TA), remove the jumper between terminals 4-5.
– To connect the programmer timer-controlled thermostat (CTP), remove the jumper between terminals 5-8.
– For the burner connections refer to the appliance manual.
Fig. 21
m
CAUTION
Users must:
–To mount an omnipolar residual-current circuit
breaker conforming to EN standards
that allows for
completely disconnecting the system in overvoltage
category III conditions (that is, with a gap of at least 3
mm between the open contacts)
.
–Respect the connections L (Live) - N (Neutral).
–Ensure that the special power cable is only replaced
with a cable ordered as a spare part and connected
by professionally qualified personnel.
m
CAUTION
Users must:
–Connect the earth wire to an effective earthing sys-
tem.
The manufacturer is not responsible for any dam-
age caused by failure to earth the appliance or failure
to observe the information provided in the wiring dia-
grams
.
a
WARNING
The brown cable (BR), when not used, MUST be removed
from the terminal block MIQ
.
d
IT IS FORBIDDEN
To use water pipes for earthing the appliance.

19
EN
INSTALLATION AND SERVICING INSTRUCTIONS
TABLE OF CONTENTS
6INSTALLATION 20
6.1 Receiving the product ...........................20
6.1.1 Optional accessories .................. 20
6.2 Dimensions and weight..........................20
6.3 Handling......................................20
6.4 Installation room ...............................21
6.5 New installation or installation of a replacement
appliance .....................................21
6.6 Cleaning the system ............................21
6.7 Water system treatment .........................22
6.8 Plumbing connections...........................22
6.9 Smoke outlet and combustion air inlet .............22
6.10 Electrical connections...........................24
6.11 Refilling or emptying............................25
6.11.1 SYSTEM REFILL operations ............. 25
6.11.2 EMPTYING operations ................. 26
7COMMISSIONING 27
7.1 Preliminary operations ..........................27
7.2 Before commissioning ..........................27
7.2.1 Checks.............................. 28
7.3 Checking the combustion parameters .............28
7.4 Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
7.4.1 Temporary shutdown .................. 28
7.4.2 Shutting down for long periods .......... 28
8MAINTENANCE 29
8.1 Adjustments...................................29
8.2 Cleaning the inside of the appliance ...............29
8.2.1 Dismantling the jacket ................. 29
8.2.2 Cleaning the fume duct ................ 30
8.2.3 Burner maintenance................... 30
8.3 Possible faults and solutions .....................31
8.3.1 Burner .............................. 31
8.3.2 System .............................. 31

20
EN
6 INSTALLATION
m
CAUTION
The appliance must only be installed by the Sime Tech-
nical Service or by qualified professionals
who MUST
wear
suitable protective safety equipment.

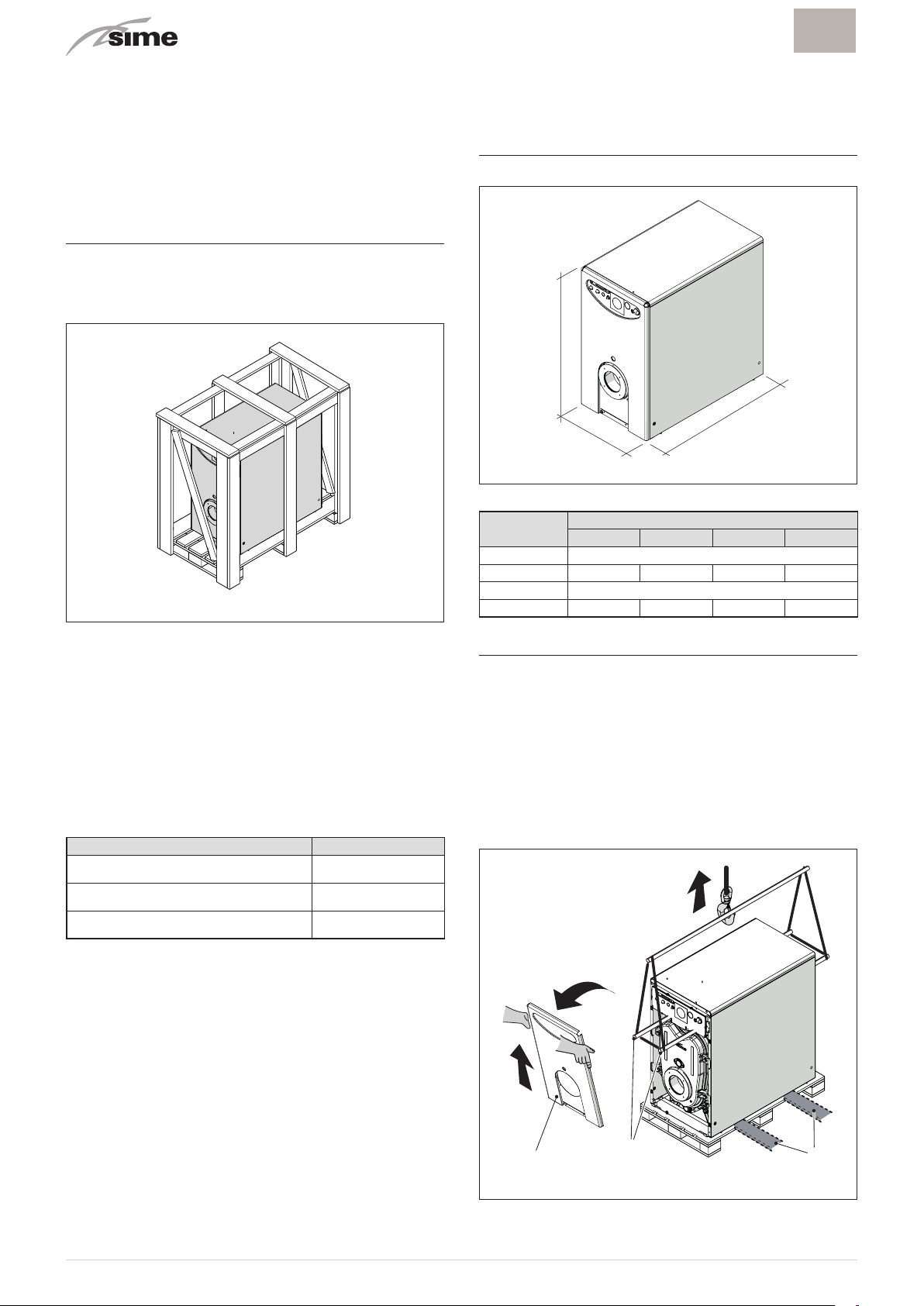

6.1 Receiving the product
Appliances Sime RONDÒ/ESTELLE 4-5-6-7 ErP BE are supplied in
a single package, protected by a nylon cover, placed on wooden
pallets.
Fig. 22
The plastic bag found inside the packaging contains the follow-
ing:
– user, installation and servicing instructions
– warranty certificate
– hydraulic test certificate
d
IT IS FORBIDDEN
To leave packaging material around or near children
since it could be dangerous. Dispose of it as pre-
scribed by legislation in force.
6.1.1 Optional accessories
Description Code
Kit for conversion to sealed burner (for
coaxial ducts) 8098815 (*)
Kit for conversion to sealed burner (for
separate ducts) 8098816 (*)
Timer-controlled weekly programmer
thermostat 8113509
(*) with fitting for connection to burner SIME FUEL EV.
6.2 Dimensions and weight
H
L
P
Fig. 23
Description
RONDÒ / ESTELLE
4 ErP BE 5 ErP BE 6 ErP BE 7 ErP BE
W (mm) 460
D (mm) 515 615 715 815
H (mm) 850
Weight (kg) 135 161 186 212
6.3 Handling
After removing the packaging, the appliance can be handled as
follows:
– remove the front panel (1) to make it easier to grip and move
– insert two pipes (2) size 3/4” into the relevant housings
– move the forks (3) of the hand pallet truck or forklift truck
closer to or insert them into the pallet
– if possible, lift the appliance using adequate equipment or
slide it along the pallet, with the aid of the bars (2), until it
rests on the forks (3)
– carry it to the desired spot.
13
2
Fig. 24
