2
SAFE HANDLING
IMPORTANT NOTICE
For the first year all of our appliances are protected by our manufacturer’s guarantee which covers both parts and
labour.
As you would expect from Sime Ltd, it is our aim to provide our valued customers with the best in after sales and
service.
To take advantage of any extended warranty offered, all you have to do is to adhere to these 3 simple conditions:
The installation must be carried out to Manufacturers/Benchmark Standards by a Gas Safe Registered
Engineer, and recorded in the installation manual.
The appliance must be registered with both Sime Ltd and Gas Safe within 30 days of installation.
The appliance must be serviced every 12 months, within 30 days of the anniversary of the installation date, by either
Sime Ltd or a Gas Safe registered engineer- ensuring that the Benchmark service record in the installation
manual is completed.
Failure to comply with the above will result in only the 12 month warranty being offered.In the absence of any proof
of purchase, the 12 month warranty period will commence from the date of manufacture of the boiler as shown on the
appliance data plate.
This boiler may require 2 or more operatives to move it into its installation site, remove it from its packaging and
during movement into its installation location. Manoeuvring the boiler may include the use of a sack truck and involve
lifting pushing and pulling.
Caution should be exercised during these operations.
Operatives should be knowledgeable in handling techniques when performing these tasks and the following precau-
tions should be considered:
– Grip the boiler at the base
– Be physically capable
– Use personal protective equipment as appropriate e.g. gloves, safety footwear.
During all manoeuvres and handling actions, every attempt should be made to ensure the following unless unavoi-
dable and/or the weight is light.
– Keep back straight
– Avoid twisting at the waist
– Always grip with the palm of the hand
– Keep load as close to the body as possible
– Always use assistance
WARNING
Caution should be exercised when performing any work on this appliance.
Protective gloves and safety glasses are recommended.
– Avoid direct contact with sharp edges.
– Avoid contact with any hot surfaces.
NOTICE
Please be aware that due to the wet testing of the appliance, there may some residual water in the hydraulic circuit.
– Protect any surfaces, carpets or floorings.
– Use a suitable container to catch any water that escape when removing the protective caps from the connections.
All descriptions and illustrations provided in this manual have been carefully prepared but we reserve the right to make
changes
and improvements in our products that may affect the accuracy of the information contained in this manual.

3
IMPORTANT
Prior to switching on the boiler for the first time, check the following:
– Make sure that there are no liquids or inflammable materials in the immediate vicinity of the boiler.
– Make sure that the electrical connections have been made correctly and that the earth wire is connected
to a good earthing system.
– Ensure that tightness and let by test have been conducted, including the internal gas pipe work.
– Make sure that the boiler is set for operation for the type of gas supplied.
– Check that the flue pipe for the outlet of the products of the combustion is unobstructed and has been
properly installed.
– Make sure that any isolation valves are open.
– Make sure that the system is filled with water and is thoroughly vented.
– Check that the circulating pump is not jammed.
– Purge the gas supply pipe work.
– Ensure that the checklist is filled in when the commissioning has been completed.
Important Information
IT IS A STATUTORY REQUIREMENT THAT ALL GAS APPLIANCES ARE INSTALLED BY COMPETENT PERSONS,
IN ACCORDANCE WITH THE GAS SAFETY (INSTALLATION AND USE) REGULATIONS (CURRENT EDITION).
The manufacturer’s instructions must not be taken as overriding any statutory requirements, and failure to
comply with these regulations may lead to prosecution.
No modifications to the appliance should be made unless they are fully approved by the manufacturer.
GAS LEAKS: DO NOT OPERATE ANY ELECTRICAL SWITCH, OR USE A NAKED FLAME. TURN OFF THE GAS SUPPLY
AND VENTILATE THE AREA BY OPENING DOORS AND WINDOWS contact the gas emergency service on 0800111999.
CONTENTS
1 DEVICE DESCRIPTION............................................................................................................................................ 4
2 INSTALLATION ....................................................................................................................................................... 11
3 CHARACTERISTICS ................................................................................................................................................ 23
4 COMMISSIONING, USE AND MAINTENANCE.......................................................................................................... 30
5 FAULT FINDING ...................................................................................................................................................... 40
6 ESPLOSI PER PARTI DI RICAMBIO.......................................................................................................................... 41
7 APPENDIX 1 (GUIDANCE HHIC  OCTOBER 2018 ISSUE 1.0)................................................................................... 53
USER INSTRUCTIONS............................................................................................................................................. 67
CONFORMITY
Our Company declares that MURELLE EQUIPE 220-330-440-550-660 BOX ErP boilers comply with the essential
requirements of the following directives:
- Boiler Efficiency Directive 92/42/EEC
- Gas Appliances Directive 2009/142/EC
- Electromagnetic Compatibility Directive 2014/30/EU
- Low Voltage Directive 2014/35/EU
- Ecodesign Directive 2009/125/EC
- Regulation (EU) N. 813/2013 - 811/2013
VERY IMPORTANT!
PLEASE MAKE SURE YOUR COMMISSIONING CHECKLIST AND THE SERVICE INTERVAL RECORDS ENCLOSED
ARE FILLED IN CORRECTLY.
ALL GAS SAFE REGISTERED INSTALLERS CARRY A GAS SAFE ID CARD.
BOTH SHOULD BE RECORDED IN YOUR COMMISSIONING CHECKLIST AND A SERVICE INTERVAL RECORDS.
YOU CAN CHECK YOUR INSTALLER IS GAS SAFE REGISTERED
BY CALLING ON 0800 408 5500 OR ALTERNATIVELY WWW.GASSAFEREGISTER.CO.UK

4
1.2 DIMENSIONS MODULES

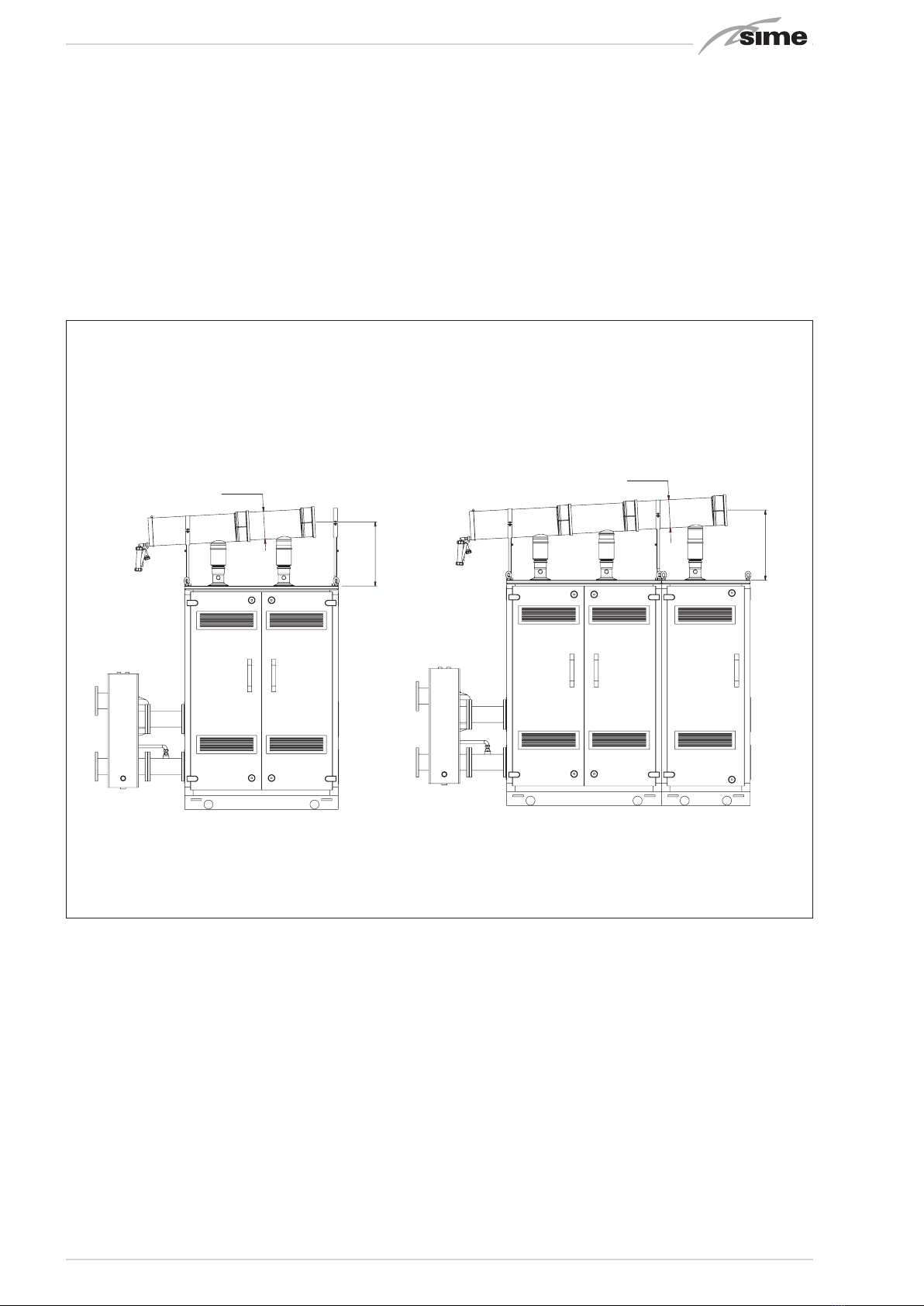

1.2.1 “MURELLEEQUIPE 220 BOX ErP” (fig. 1)
90
180
156
396
790
567
272
S3
G
M
307
777
R
260
380 1100
648
1600
2010
470 390
1 DEVICE DESCRIPTION
FIXTURES
M System supply (Flange PN6-DN100)
R System return (Flange PN6-DN100)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40

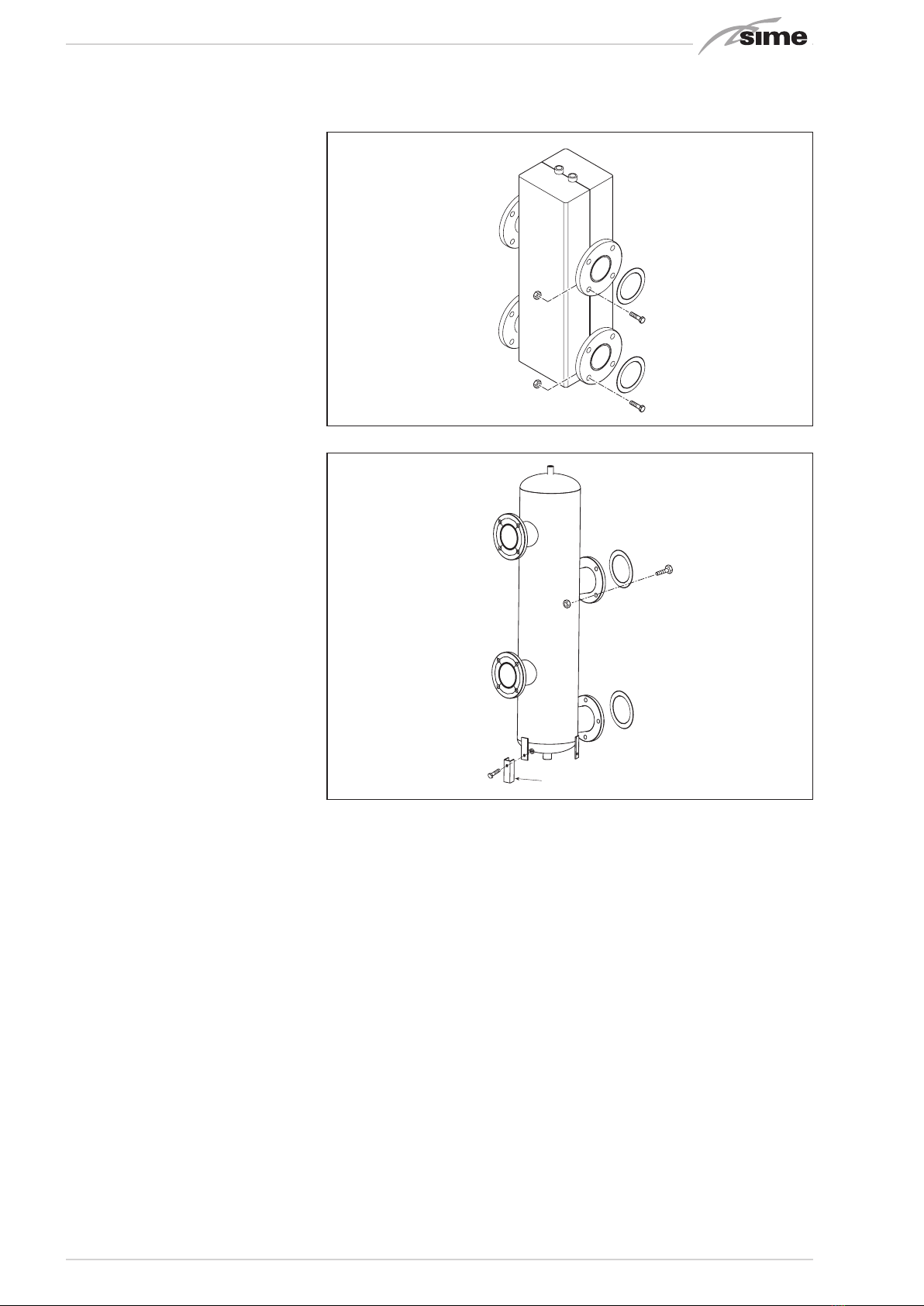

NOTE: The installation must incorporate a hydraulic separator or plate heat exchanger. The hydraulic separator available from
Sime Ltd is supplied with modules in a kit code 8101552 and the tubes connecting the hydraulic separator in the kit code 8101532.
It can be assembled on the left-hand side by moving the system supply/return manifold blind flanges.
Fig. 1
1.1 INTRODUCTION
MURELLE EQUIPE220-330-440-550-660
BOX ErP are pre-mixed condensation
heating modules intended only for heating,
designed to work in sequence/cascade.

5
90
180
156
396
790
567
272
S3
G
648
1600
2010
390
630
470
1730
380 260
307
777
M
R
1100 630
NOTE: The installation must incorporate a hydraulic separator or plate heat exchanger. The hydraulic separator available from
Sime Ltd is supplied with modules in a kit code 8101552 and the tubes connecting the hydraulic separator in the kit code 8101532.
It can be assembled on the left-hand side by moving the system supply/return manifold blind flanges.
FIXTURES
M System supply (Flange PN6-DN100)
R System return (Flange PN6-DN100)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40
Fig. 1/a
1.2.2 “MURELLE EQUIPE 330 BOX ErP” (fig. 1/a)

6
180
790
396
156
567
90
272
562
1197
S3
M
R
G
1600
2010
2830
590
500
390
630
470
630
470
635
562
MURELLE EQUIPE 440 BOX ErP
180
790
396
156
567
90
272
562
1197
S3
M
R
G
1600
2010
2200
590
500
390
470
630
470
635
562
MURELLE EQUIPE 550 BOX ErP
Fig. 1/b
FIXTURES
M System supply (Flange PN6-DN100)
R System return (Flange PN6-DN100)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40
NOTE: The installation must incorporate a hydraulic separator or plate heat exchanger. The hydraulic separator available from
Sime Ltd is supplied with modules in a kit code 8101553 and the tubes connecting the hydraulic separator in the kit code 8101533.
It can be assembled on the left-hand side by moving the system supply/return manifold blind flanges.

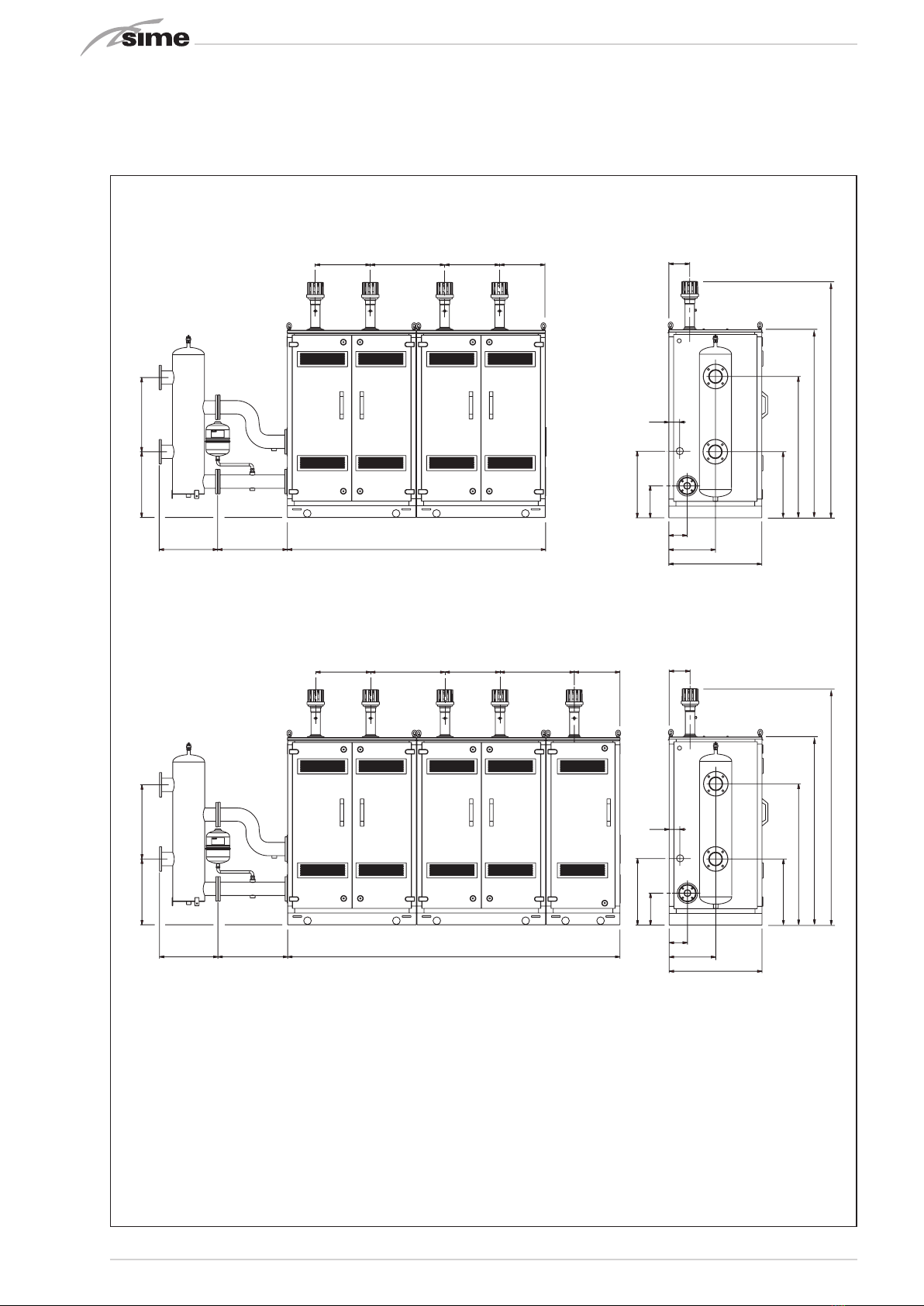

1.2.3 “MURELLE EQUIPE 440-550 BOX ErP” (fig. 1/b)

7
180
790
396
156
567
90
272
562
1197
S3
M
R
G
1600
2010
3300
590
500
470
630
470
635
562
390
470
630
FIXTURES
M System supply (Flange PN6-DN100)
R System return (Flange PN6-DN100)
G Gas (Flange PN6-DN50)
S3 Condensation drain ø 40
NOTE: Assembly of a hydraulic separator or plate exchanger is also mandatory. The hydraulic separator is supplied with modules in a
kit code 8101553 and the tubes connecting the hydraulic separator in the kit code 8101533. Fixtures may be assembled on the left-hand
side by moving the system supply/return manifold blind flanges.

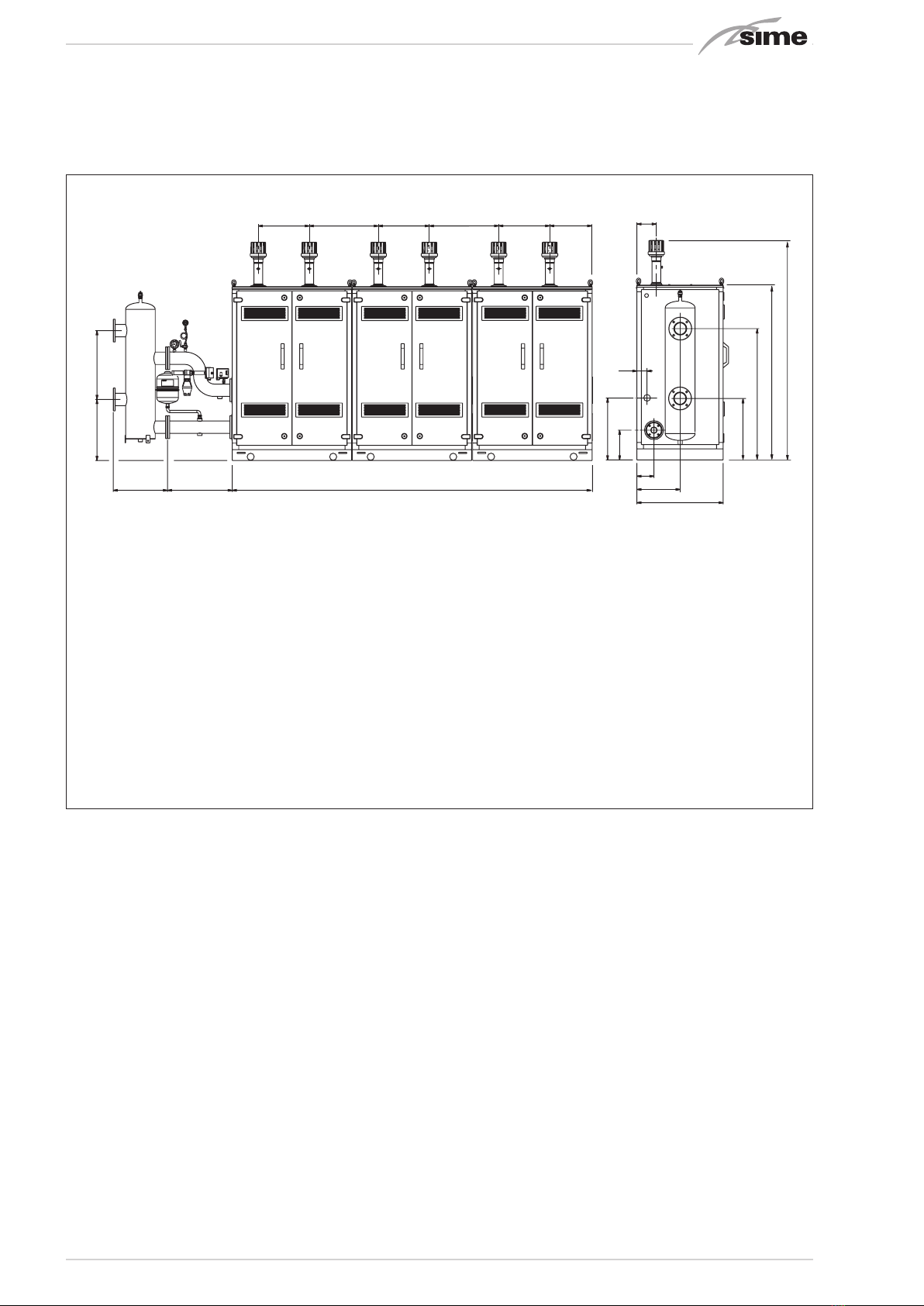

Fig. 1/c

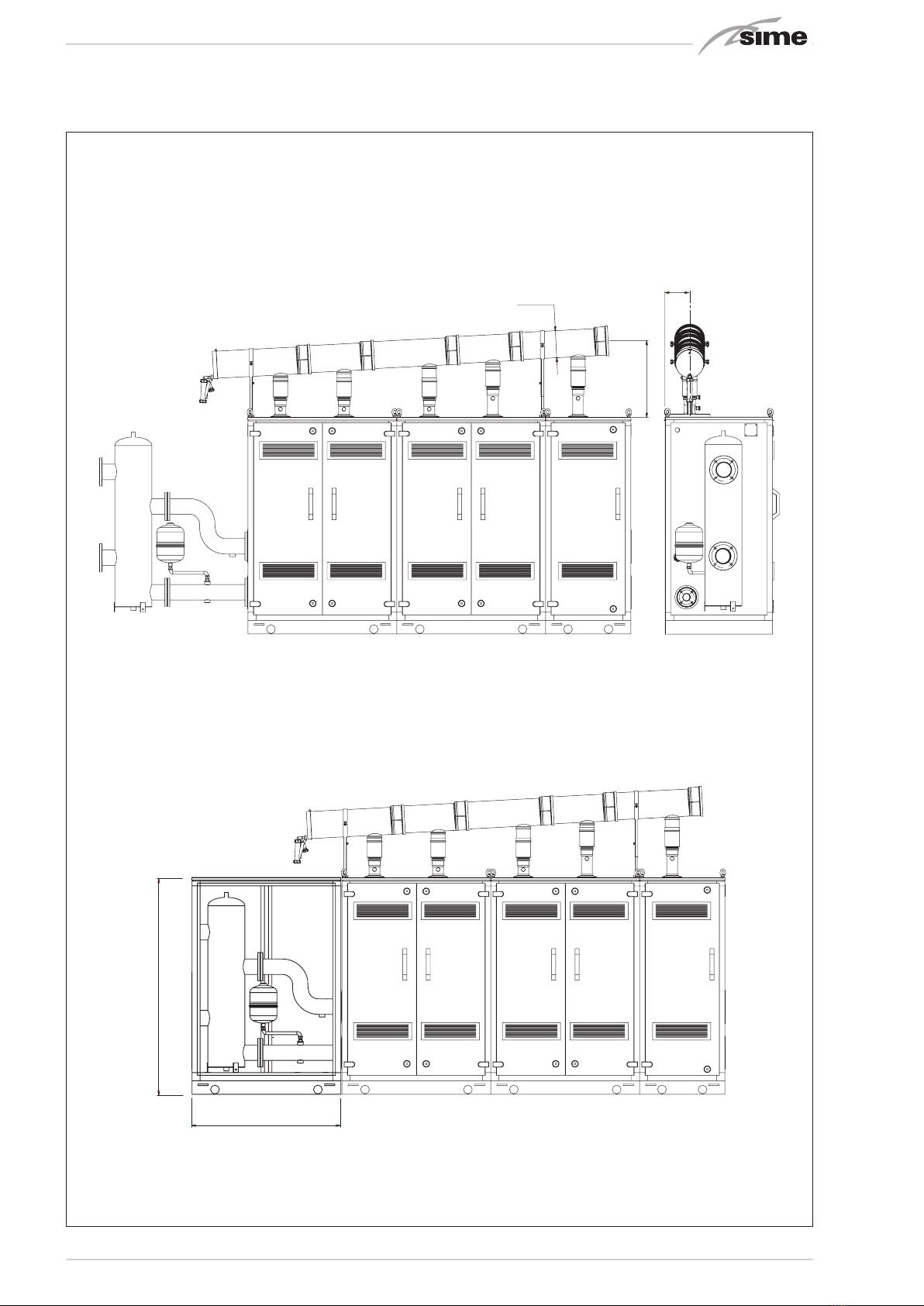

1.2.4 “MURELLE EQUIPE 660 BOX ErP” (fig. 1/c)

8
1.3 TECHNICAL SPECIFICATIONS
MURELLE EQUIPE
220 BOX
ErP
330 BOX
ErP
440 BOX
ErP
550 BOX
ErP
660 BOX
ErP
Generators with a heat output kW 105.4 n° 2 3 4 5 6
Heat output nominal (80-60°C) (Pn max) kW 212,4 318,6 424,8 531,0 637,2
Heat output nominal (50-30°C) (Pn max) kW 225.2 337.8 454.0 563.0 675,6
Heat output nominal (80-60°C) (Pn min) kW 20,8
Heat output nominal (50-30°C) (Pn min) kW 23,2
Heat input (*)
Nominal (Qn max - Qnw max) kW 216 324 432 540 648
Minimum (Qn min - Qnw min) kW 21,6
Min-max operating yield (80-60°C) %96,4 - 98,3
Min-max operating yield (50-30°C) %107,4 - 104,2
Operating yield at 30% (40-30°C) %105,4
Losses after shutdown to 50°C (EN 15502) W498 747 996 1245 1494
Feeding tension V-Hz 230-50
Absorbed power consumption (Qn max) W536 804 1072 1340 1608
Absorbed power consumption (Qn min) W134 138 142 146 150
Absorbed power consumption C.H. pump W280
(140 x 2)
420
(140 x 3)
560
(140 x 4)
700
(140 x 5)
840
(140 x 6)
Electrical protection grade IP X4D
Energy efficiency
Seasonal energy efficiency class of the heating system A
Seasonal energy efficiency of the heating system %90 91
Sound power of the heating system dB (A) ---
Single module temperature regulation °C 20/80
Water content modules l36.3 55.9 72.6 92.2 108,9
Max operating pressure (PMS) bar (kPa) 5 (490)
Max operating temperature (T max) °C 85
Exhaust fumes temperature at max flow rate (80-60°C) °C 70 64
Exhaust fumes temperature at min. flow rate (80-60°C) °C 60 51
Exhaust fumes temperature at max flow rate (50-30°C) °C 40 45
Exhaust fumes temperature at min. flow rate (50-30°C) °C 33 40
Smokes flow min/max g/s 10.28 /
103.34
10.28 /
155.00
10.28 /
206.67
10.28 /
258.34
10.3 /
309,9
CO2 at max/min flow rate (G20) %9.0 / 9.0
CO2 at max/min flow rate (G31) %10,2 / 10,2
NOx measured (EN15502 - 1:2015) mg/kWh 22
Max. output pressure fumes manifold Pa 375
Max. pressure independent fumes Pa 428
PIN number 1312CM5621
Category II2H3P
Type B23-B53-B23P-B53P
NOx emission class (EN 15502-1:2015) 6 (‹ 56 mg/kWh)
Weight when empty kg 380 615 760 995 1140
Gas and nozzle pressure
Supply pressure G20 mbar (kPa) 20/25 (1.96-2.45)
Supply pressure G31 mbar (kPa) 37 (3.63)
Number of nozzles n° 2 3456
Nozzle diameter G20 ø17,2
Nozzle diameter G31 ø9,8
Consumption at nominal output G20 m3/h 22.84 34.26 45.68 57.10 68.52
Consumption at minimum output G20 m3/h 2.28
Consumption at nominal output G31 kg/h 16.76 25.14 33.52 41.90 50.28
Consumption at minimum output G31 kg/h 1,68
(*) Heat input of the heating system measured using lower heating value (LHV)

9

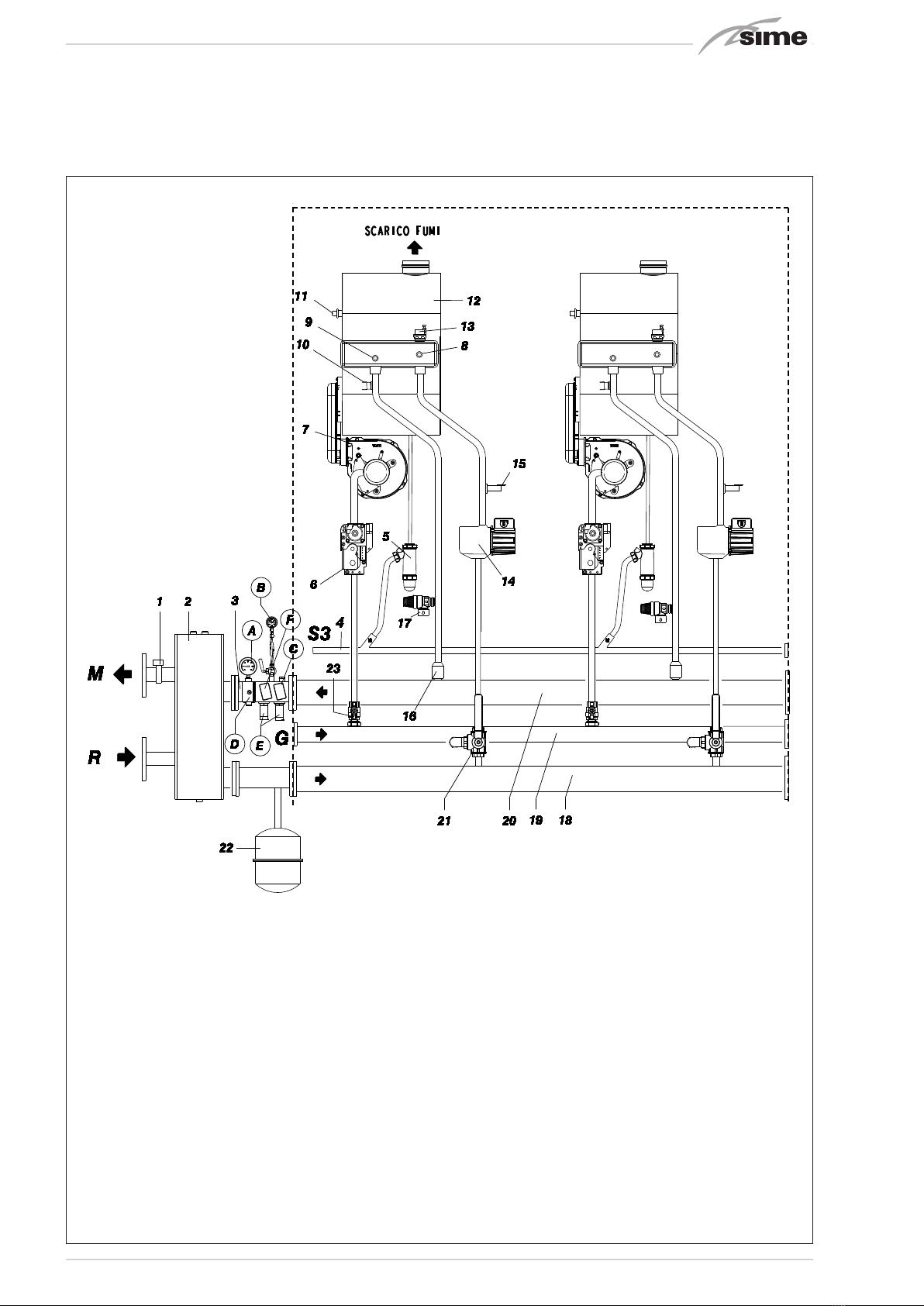

1.4 OPERATING DIAGRAM (FIG. 2)
KEY
1 Cascade delivery probe (SMC)
2 Hydraulic compensator
3 Ankle boot ISPESL
A - Thermometer 0-120 ° C
B - 0-10 bar pressure gauge with tap
C - Maximum safety pressure switch 4 bar
D - Manual reset safety thermostat 100 ° C
E - Safety valve 4.5 bar
F - Minuma safety pressure switch 0.9 bar
4 Comdense manifold
5 Condensate drain siphon
6 Gas valve
7 Fan
8 Return probe
9 Heating sensor (SM)
10 Safety thermostat 100 ° C
11 Flue gas probe (SF)
12 Primary exchanger
13 Automatic vent
14 High efficiency system pump
15 Water pressure transducer
16 Check valve
17 Safety valve 5 bar
18 Return manifold
19 Gas manifold
20 Delivery manifold
21 3-way valve Ø 1 1/4 “
22 8 liter expansion vessel
23 Gas cock
ATTACKS
M System delivery
R System return
G Gas
S3 Condensate drain
Fig. 2

10

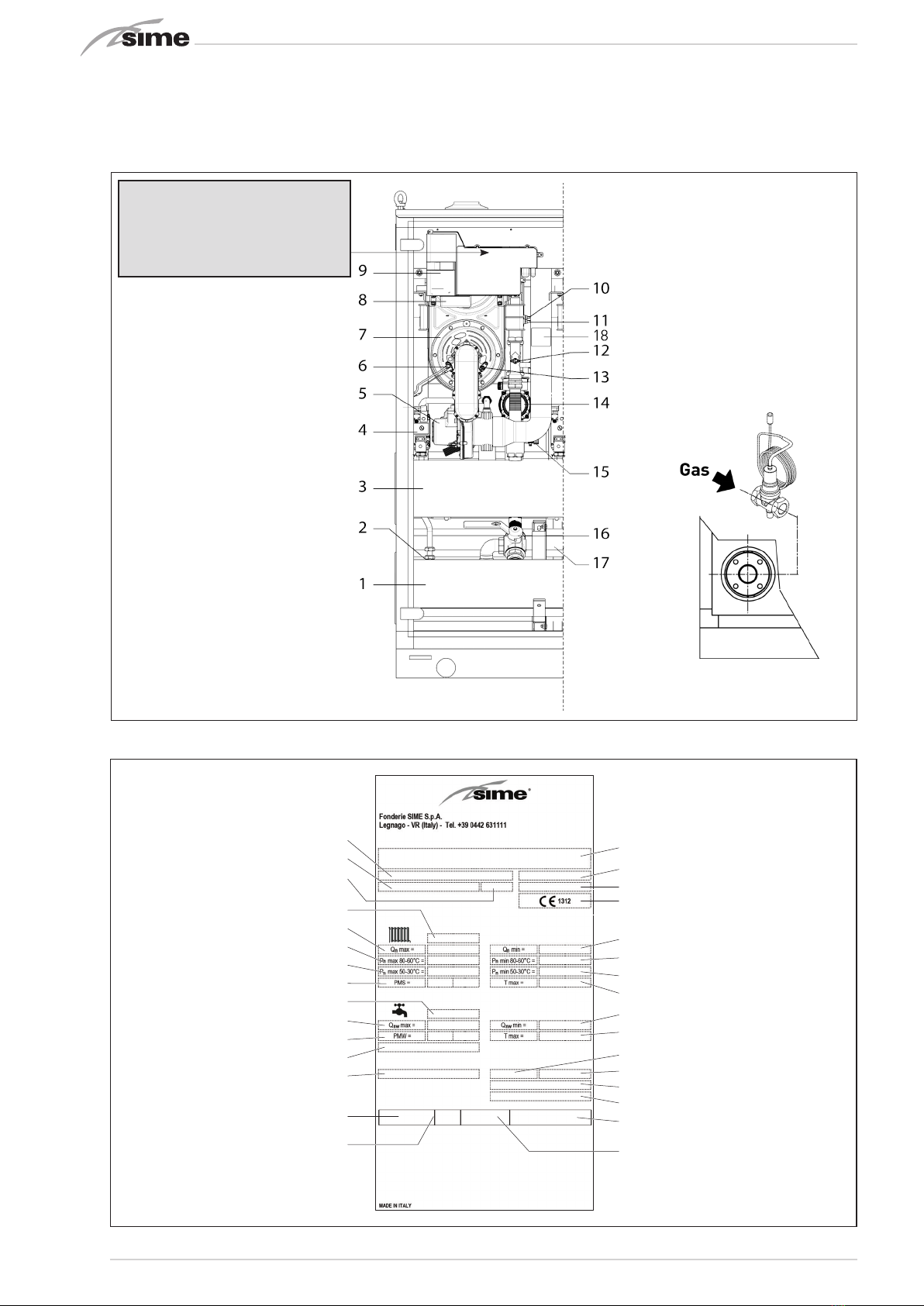

1.5 MAIN COMPONENTS (FIG. 3)
Fig. 3
KEY
1 System return manifold
2 Gas isolation valve
3 System supply manifold
4 Gas valve
5 Fan
6 Ignition electrode
7 Primary exchanger
8 Ignition transformer
9 Control panel
10 Heating return probe (SR)
11 Heating supply probe (SM)
12 Safety thermostat 100°C
13 Ionisation electrode
14 Pump high efficiency
15 Non return valve
16 3-way isolation/drain valve
17 Gas manifold
18 Diaphragm in suction
CAUTION: To access the control panel
(9) remove the two screws which
secure it to the support bracket and
turn the panel downwards.
MODEL
SERIAL NUMBER
YEAR OF CONSTRUCTION
WATER CONTENT IN BOILER
HEAT INPUT MAX
HEAT OUTPUT MAX (80-60°C)
HEAT OUTPUT MAX (50-30°C)
MAX OPERATING PRESSURE
CONTENTS D.H.W.
HEAT INPUT MAX D.H.W.
MAX OPERATING PRESSURE D.H.W.
D.H.W. FLOW RATE
POWER SUPPLY
MAX POWER ABSORBED
COUNTRIES OF DESTINATION
CATEGORY
TYPE
CODE
DIRECTIVE OF REFERENCE
PIN NUMBER
HEAT INPUT MIN
HEAT OUTPUT MIN (80-60°C)
HEAT OUTPUT MIN (50-30°C)
MAX OPERATING PRESSURE
HEAT INPUT MIN D.H.W.
MAX OPERATING PRESSURE D.H.W.
ELECTRICAL PROTECTION GRADE
NOx CLASS
CODE GAS COUNCIL NUMBER (UK)
CERTIFICATION WRAS (UK)
TYPE OF GAS
GAS SUPPLY PRESSURE
CLASSIFICATIONS
1.6 TECHNICAL DATA PLATE (FIG. 3/A)
Fig. 3/a
Code 8117080
Model MURELLEEQUIPE 220 BOX ErP
Serial n. 9999999999
PAR 1 = 68 (G20) / 70 (G31)
PAR 2 = 9

11
BOX CONTENITORE DOPPIO PER COMPENSATORE
IDRAULICO cod. 8101527
PER MURELLE EQUIPE 220 - 330 BOX
BOX CONTENITORE DOPPIO PER COMPENSATORE
IDRAULICO cod. 8101527
PER MURELLE EQUIPE 440 - 550 - 660 BOX
1600
470
308
1100 790
396
396
635
562
1100
1600
790

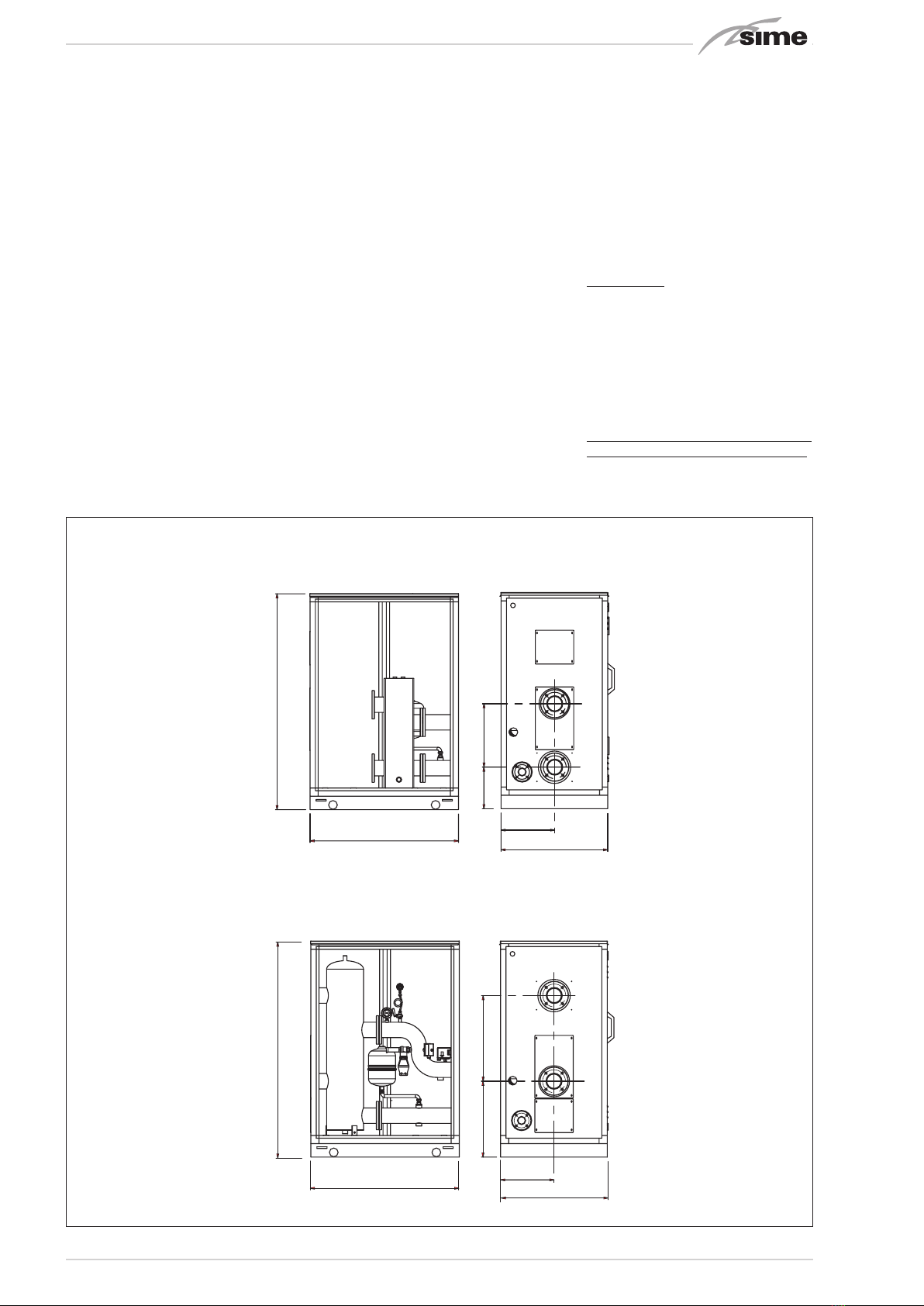

Fig. 4
NOTE: position the blanking covers according to the hydraulic separator used.
DOUBLE BOX FORHYDRAULIC SEPARATOR
AND CONNECTIONS code 8101527
FOR MURELLEEQUIPE 220-330 BOX ErP
DOUBLE BOX FORHYDRAULIC SEPARATOR
AND CONNECTIONS code 8101527
FOR MURELLEEQUIPE 440-550-660 BOX ErP
2 INSTALLATION
The unit is suitable for external
installation in a fixed location. It must
be installed by qualified engineers
in compliance with all instructions
contained in this manual. Furthermore,
the installation must be in accordance
with current standards and regulations.
2.1 SUPPLY (FIG. 4)
“MURELLE EQUIPE 110 BOX ErP” heat
modules are available in single or
double generators and can be coupled
together to a maximum of 5 generators.
The cabinet is pre painted, zinc coated.
They are supplied complete with flow and
return, gas and condensate manifolds,
external temperature probe kit, cascade
supply and RS-485 code 8092250 board
connection cable. Available separately:
-Connection kit for the hydraulic
separator code 8101532 for modules
“220-330 BOX ErP” and code 8101533
for modules “440-550-660 BOX ErP”
-Double box (size: 1100 x 790 x 1600) for
hydraulic separator code 8101527
-Hydraulic separator kit code 8101552
for modules “220-330 BOX ErP” and
code 8101553 for modules “440-550-
660 BOX ErP”
-Polypropylene exhaust manifold kit for
indoor installation (purposely treated
to resist weathering when installed
outdoors):
code 8102530 for “220 BOX ErP” module
code 8102531 for “330 BOX ErP” module
code 8102532 for “440 BOX ErP” module
code 8102533 for “550 BOX ErP” module
code 8102534 for “660 BOX ErP” module
-Exhaust terminal code 8089530 (1 per
generator) for outdoor installations.
-To electrically connect the modules
and to assemble the exhaust for
indoor or outdoor installations, see
points 2.6, 2.7 and 2.10 in this manual.
2.2 INSTALLATION
2.2.1 Indoors
“MURELLE EQUIPE 220-330-440-550-
660 BOX ErP” heat modules can be
installed in boiler rooms whose size and
requirements meet current regulations.
VENTILATION
The following is provide for your guid-
ance only, and assumes the ventila-
tion air is taken directly from outside.
The sizes of the vents may need to be
increased in respect of other appliances
installed in the same area, and seasonal
use. Take care that the position of low
level vents would not subject to adverse
weather conditions, ie flooding.
Ventilation requirements for Murelle HE
110 R ErP boilers and cascade systems.

12
BS6644 has a requirement that the
temperatures in a room or compartment
do not exceed certain levels:
25°C at floor level (0-100mm)
32°C at mid level (1.5M above the floor level)
40°C at ceiling level (0-100mm from
ceiling)
Installed as a class B appliance (open flued).
Installed in a room
High level (within 15% of the room height
from ceiling) - 2cm²/KW of net heat input
Low level (low as possible within 1 metre
from floor natural gas, 250mm LPG)–
4cm²/KW of net heat input
A single generator (120KW net input)
would require 240cm² at high level and
480cm² at low level.
Installed in a compartment or enclosure
High level (within 15% of the room height
from ceiling) - 5cm²/KW of net heat input
Low level (low as possible within 1
metre from floor natural gas, 250mm
LPG) – 10cm²/KW of net heat input.
A single generator (120KW net input)
would require 600cm² at high level and
1200cm² at low level.
2.2.2 Outdoors
“MURELLE EQUIPE 220-330-440-550-
660 BOX ErP” heat modules can also
be installed outdoors with the specific
exhaust for single module code 8089530.
2.3 SYSTEM REQUIREMENTS
The heating system should be flushed
prior to the connection of the heating
modules. The system should be treated
in accordance with BS 7593. Sime Ltd
recommend only the use of Fernox prod-
ucts for the flushing and final treatment
of the system water. This is particularly
important in hard water areas.
It is recommended that the inhibitor
concentration is checked at installation,
system modification and at every service
in accordance with the manufacturers
instructions. Test kits are available from
inhibitor stockist.
WARNING: Failure to clean the heat
system or add an adequate inhibitor
invalidates the device’s warranty.
Gas connections must be made in accord-
ance with current standards and regula-
tions. When dimensioning gas pipes from
the meter to the module, both capacity
volume (consumption) in m
3
/h and gas
density must be taken into account.
System pipe sections must be able to
guarantee sufficient supply to cover max-
imum demand, limiting pressure loss
between the meter and any utility device
no greater than 1.0 mbar for second fam-
ily gas (natural gas).
A sticker inside the module includes identifica-
tion and gas type data specific to the module.
2.3.1 Condensation drain connection
The condensate drain must be con-
nected to the civil drain by a pipe with
minimum 5 mm per meter gradient for
condensation collection.
Only stainless steel or plastic pipes are
suitable to convey condensate.
2.3.2 Filter on the gas pipe
The gas valve on each generator is sup-
plied ex factory with an inlet filter, which,
however, is not adequate to entrap all the
impurities in the gas or in gas main pipes.
To prevent malfunctioning of the valve,
or in certain cases even to cut out the
safety device with which the valve is
equipped, install an adequate filter on
the gas pipe.
2.4 FILLING THE SYSTEM
Cold system filling pressure must be 1
bar. The system must be filled slowly
so that air bubbles are released through
the specific escapes.

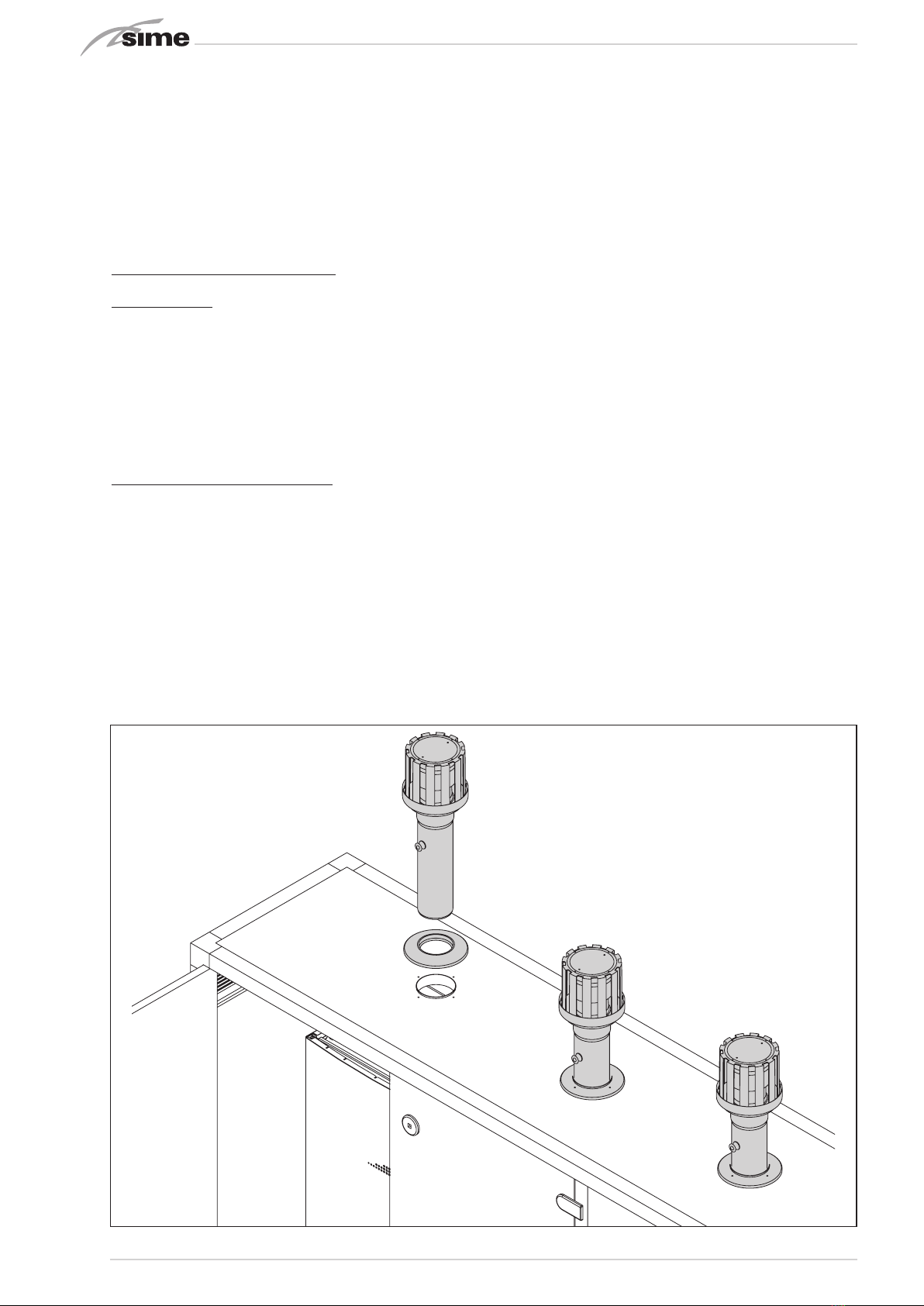

2.5 EXHAUST FOR OUTDOOR
INSTALLATION (FIG. 5)
The exhaust terminal for single module
code 8089530 is required for this type of
installation.
For separately supplied accessory
assembly see fig. 5.
Fig. 5

13
390
ø125 180
MURELLE 110 BOX ErP
con kit collettore fumi
cod. 8102510
460
ø200
498
ø200
MURELLE EQUIPE 220 BOX ErP
con kit collettore fumi
cod. 8102530
MURELLE EQUIPE 330 BOX ErP
con kit collettore fumi
cod. 8102531
Fig. 6
MURELLE EQUIPE 220 BOX ErP
exhaust manifold kit
code 8102530
MURELLE EQUIPE 330 BOX ErP
exhaust manifold kit
code 8102531

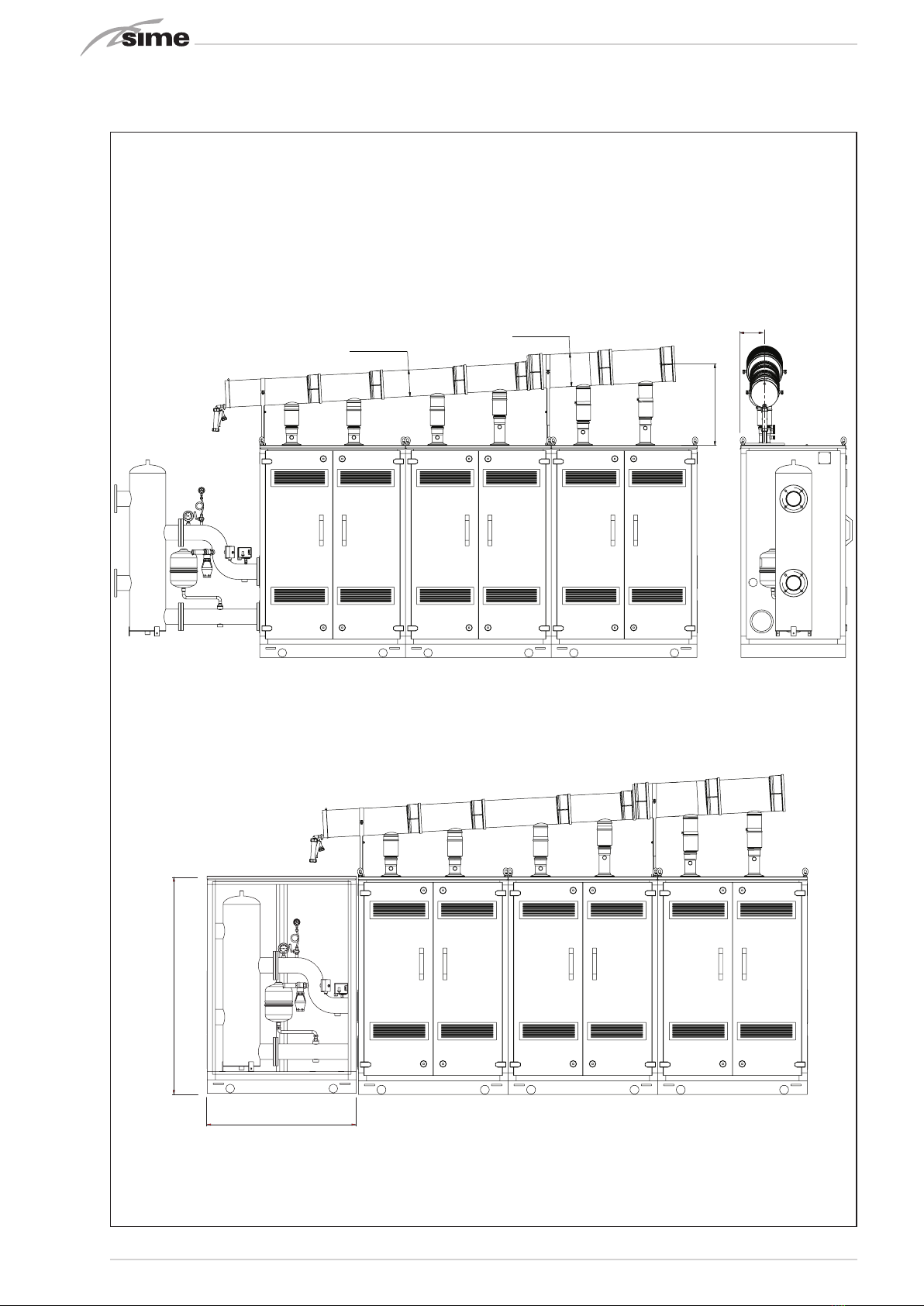

2.6 INDOOR INSTALLATION EXHAUST
KIT (FIG. 6  6/A  6/B  6/C)
Refer to fig. 6 and 6/a-b for this type of
installation. The indicated solutions have
the exhaust manifold (available separately)
positioned on the module’s to right.
It is however possible to move the
exhaust of the left by simply rotating the
manifold 180°.
NOTE: The kits are purposely treated
also to resist weathering when installed
outdoors.
In these cases the compensator and
safety device must be inserted in the
double container box code 8101527.

14
527
ø200
MURELLE EQUIPE 440 BOX ErP
con kit collettore fumi
cod. 8102532
MURELLE EQUIPE 440 BOX ErP
(con box contenitore per separatore idraulico
e kit sicurezze ISPSEL cod. 8101527)
1100
1600
180
Fig. 6/a

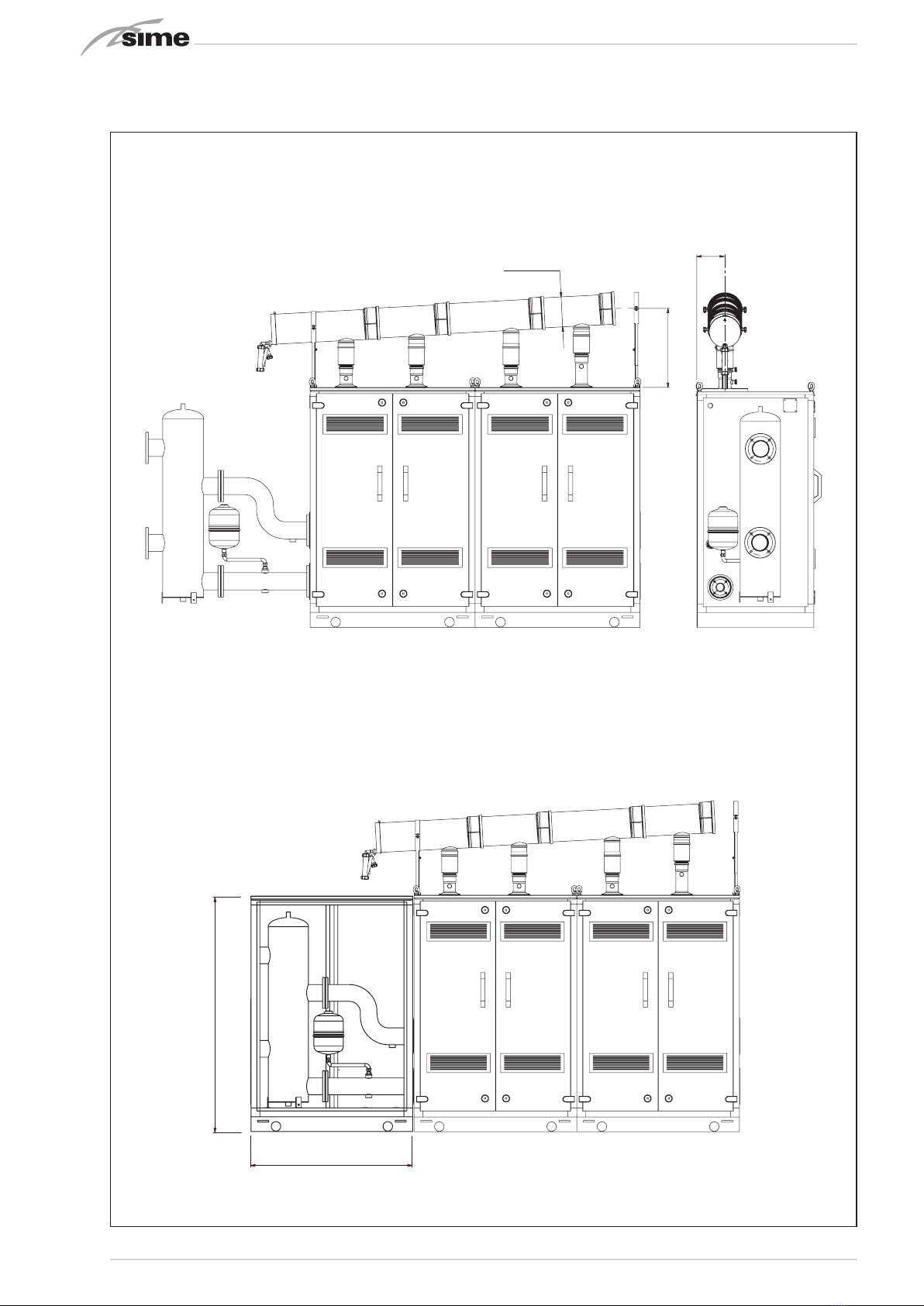

MURELLE EQUIPE 440 BOX ErP
exhaust manifold kit
code 8102532
MURELLE EQUIPE 440 BOX ErP
(with box container for hydraulic separator
code 8101527)

15
180
ø200
565
1100
1600
MURELLE EQUIPE 550 BOX ErP
(con box contenitore per separatore idraulico
e kit sicurezze ISPSEL cod. 8101527)
MURELLE EQUIPE 550 BOX ErP
con kit collettore fumi
cod. 8102533
Fig. 6/b
MURELLE EQUIPE 550 BOX ErP
exhaust manifold kit
code 8102533
MURELLE EQUIPE 550 BOX ErP
(with box container for hydraulic separator
code 8101527)

16
180
ø 200
ø 250
616
1100
1600
MURELLE EQUIPE 660 BOX ErP
(con box contenitore per separatore idraulico
e kit sicurezze INAIL cod. 8101527)
MURELLE EQUIPE 660 BOX ErP
con kit collettore fumi
cod. 8102534
Fig. 6/c
MURELLE EQUIPE 660 BOX ErP
exhaust manifold kit
code 8102534
MURELLE EQUIPE 660 BOX ErP
(with box container for hydraulic separator
code 8101527)

17
Fig. 7
Fig. 7/a
2.7 TUBES CONNECTING THE
HYDRAULIC SEPARATOR KIT (FIG.
7  FIG. 7/A)
Tubes connecting the hydraulic separator
kit code 8101532 supplied as option for
“MURELLEEQUIPE 220-330 BOX ErP”
models it is formed (fig. 7):
-System supply flanged section code
6291968
-System return flanged section code
6291968
-Gaskets, nuts and fastening screws M16
-Expansion vessel 8 liters code 6245108
(Preload pressure 1.5 bar Maximum
pressure 10 bar) and connection pipe
code 6227661
WARNING: In models “220-330 BOX ErP”
the tubes connecting hydraulic separator
kit can be inserted in a specific protective
box code 8101527 supplied separately
(see fig 4).
Tubes connecting the hydraulic separator
kit code 8101533 supplied as option for
“MURELLEEQUIPE 440-550-660 BOX
ErP” models it is formed (fig. 7/a):
-System supply flanged section code
6291969
-System return flanged section code
6291971
-Gaskets, nuts and fastening screws M16
-Expansion vessel 8 liters code 6245108
(Preload pressure 1.5 bar Maximum
pressure 10 bar) and connection pipe
code 6227661.
WARNING: In models “440-550-660 BOX
ErP” the tubes connecting hydraulic
separator kit can be inserted in a specific
protective box code 8101527 supplied
separately (see fig. 4).

18
X 2

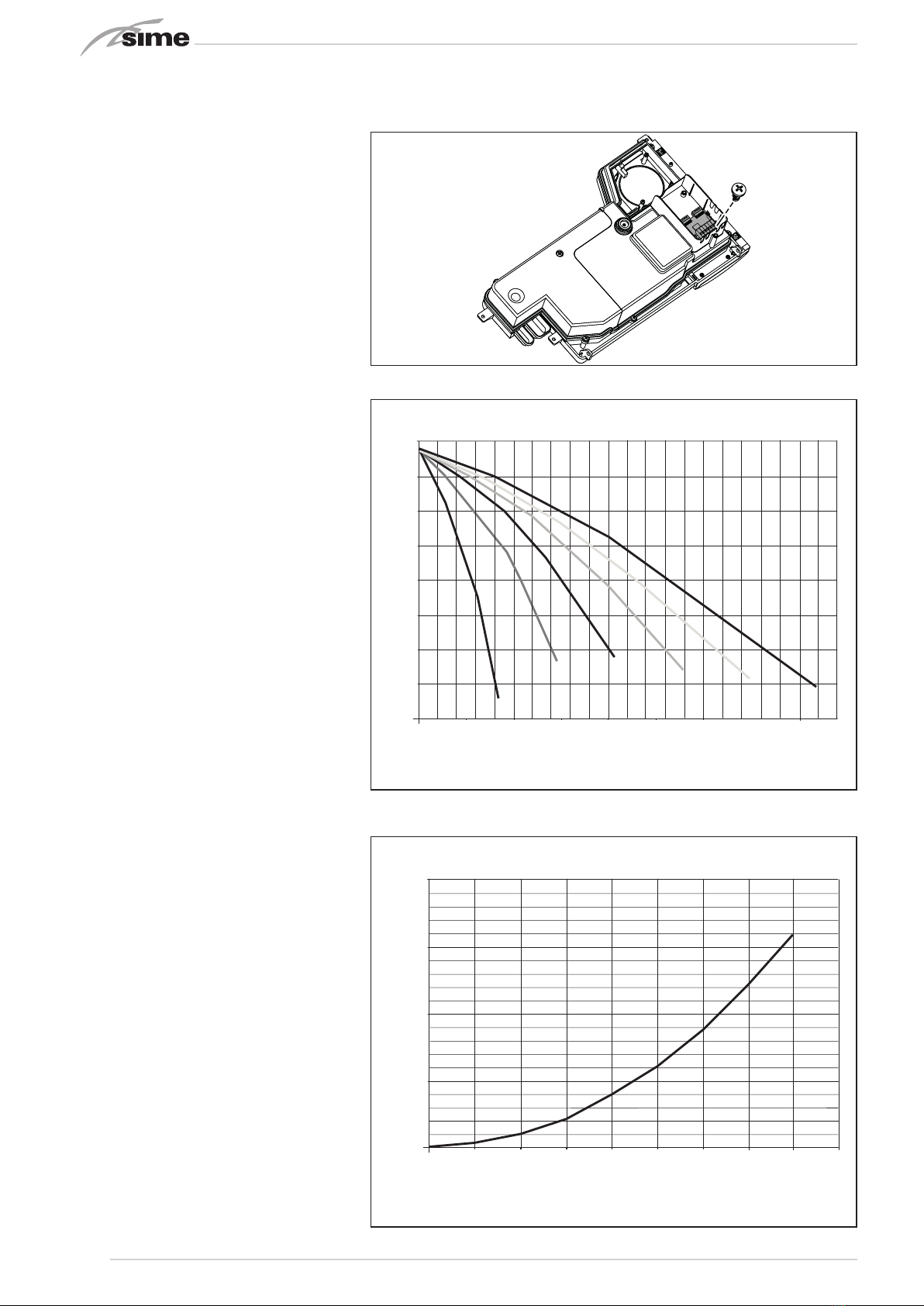

2.8 RS485 BOARD (FIG. 8)
Each generator is supplied with the RS-
485 board which allows you to manage the
boilers in sequence/cascade (see fig 8).
The board is placed on the back of the
control panel.
2.8.1 MODBUS mode
This mode allows for MODBUS
communication of at least two boilers in
cascade and is performed by requesting
MODBUS INTERFACE KIT code 8092278.
Fig. 8
2.9 SYSTEM AVAILABLE HEAD (FIG. 9)
The head available of the generator
supply/return manifolds vs. the flow rate
is shown on the chart of figure 9.
2.9.1 Load loss hydraulic separator
Hydraulic separator load losses are
indicated in the diagram in fig. 9.
WARNING: The hydraulic separator can
be inserted in a specific protective box
code 8101527 supplied separately.
400
500
600
700
0510 15 20
100
200
300
Æp (mbar)
Murelle Equipe
800
110 BOX ErP - 92.5 R ErP
220 - 220 BOX ErP
330 - 330 BOX ErP / 280 - 280 BOX ErP
440 - 440 BOX ErP / 370 - 370 BOX ErP
550 - 550 BOX ErP / 460 - 460 BOX ErP
660 - 660 BOX ErP
PORTATA (m³/h)
100
150
5
PORTATA (m3/h)
10 15 20 25 30
0
50
∆p (mbar)
35 40 45
200
SYSTEM AVAILABLE HEAD
LOAD LOSS HYDRAULIC SEPARATOR
CAPACITY (m3/h)
CAPACITY (m3/h)
ÆP (mbar)
p (mbar)
Fig. 9
Fig. 9

19
C
C
Fig. 10
Fig. 10/a
2.9.2 Hydraulic separator “220-330 BOX
ErP” (fig. 10)
The hydraulic separator is supplied
separately in a kit code 8101552 complete
with gaskets, nuts and fastening screws
(figure 10).
2.9.3 Hydraulic separator “440-550-660
BOX ErP” (fig. 10/a)
The hydraulic separator is supplied
separately in a kit code 8101553 complete
with gaskets, nuts and fastening screws
(figure 10/a). The plant is supplied with
three supporting “C” brackets that should
be used only to rest the compensator onto
the ground.

20
TA2 (24 VRAC)
TA1 (24 VRAC)
SA
(5 VDC)
SE (5 VDC)
TS (24 VDC)
SM (5 VDC)
SF (5 VDC)
SR (5 VDC)
RS-485 (24 VAC)
OP (24 VAC)
TPA
V
EV 1-2
TFU
CR
0...10 VDC
TRA
EA
ER
PI
C1
KEY
F1-2 Fuse (4 AT)
TRA Ignition transformer
PI Pump high efficiency
V Fan
TL Limit thermostat
EA Ignition electrode
ER Detection electrode
EV1-2 Gas valve coil
TS Safety thermostat
SF Sensor fumes
TFU Thermal fuse
SM C.H. flow sensor
SR C.H. return sensor
TPA Pressure transducer
JP1 Selection TA2 or 0-10 VDC
TA1 Zone 1 environment thermostat
TA2 Zone 2 environment thermostat
SA Auxiliary probe:
- boiler L = 2000 (optional)
- siphon antifreeze (optional)
CR Remote control SIME HOME (optional)
SE External sensor (optional)
OP Programming clock (optional)
AR Remote alarm
VZ Zone valve
AUX Auxiliary connection
RS-485 CASCADE/MODBUS board
C1 Filter capacitor (if present)
NOTE: Connect TA1 to the clamps 7-8 after
having removed the bridge.
CONNECTOR SPARE
PART CODES:
CN1 code 6319176
CN2 code 6319178
CN3 code 6319174
CN4 code 6316203
CN5 code 6316200
CN6 code 6316202
CN7 code 6316204
CN9 code 6316201
CN10 code 6319165
CN12 code 6319177
CN13 code 6325619
CN14 code 6293583
CN18 code 6319147
For the range 0 ... 10VDC:
- Remove the jumper JP1
- Connect the positive signal at terminal 10 of CN6
- Connect the negative signal at terminal 9 of the CN6
- Keep TA1 jumpered

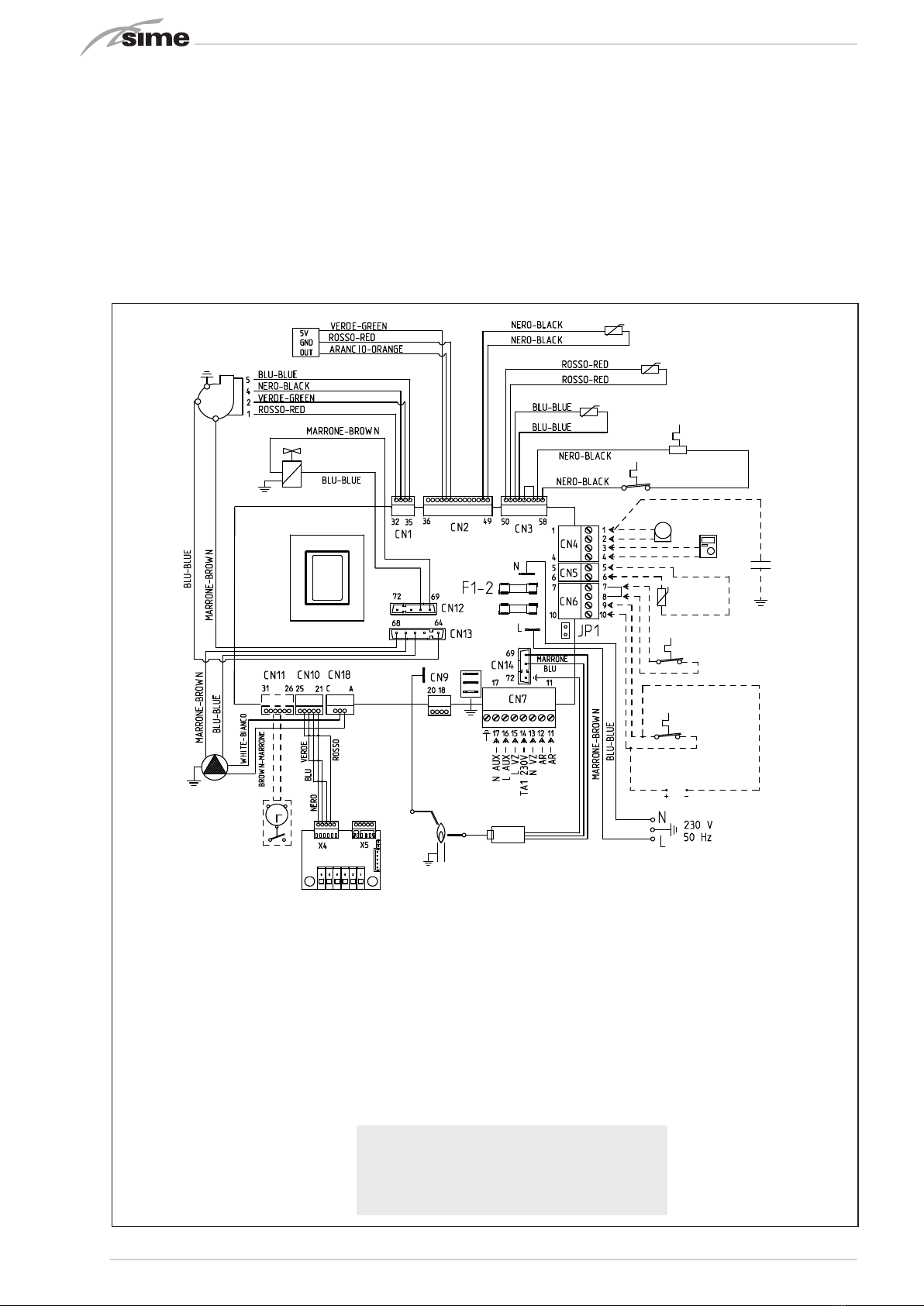

2.10.1 Wiring diagram single generator (fig. 11)
Fig. 11
2.10 ELECTRICAL CONNECTIONS
Each module is supplied with a power cord
which, if replacement is required, it must
be replaced with one of similar type and
dimensions.
230V – 50 Hz single phase voltage is
required using a fuse protected main
switch with at least 3 mm. between
contacts. Observe the L – N polarity and
grounding connection. Each generator
should be fused at 3 A.
NOTE: Sime declines all responsibility
for injury or damage to persons,
animals or property resulting from the
failure to provide for proper earthing
of the appliance. Wiring diagram single
generator (fig. 11)
