Sime MURELLE HE 110 R ErP Quick guide

MURELLE HE 110 R I - 110 R E
INSTALLATION AND SERVICE INSTRUCTIONS
Fonderie SIME S.p.A Cod. 6322972B - 09/2018
EN
CAUTION
This product must be installed exclusively by professionally qualified personnel in accordan-
ce with the requirements of the standards AS/NZS 5601, AS/NZS 3500, AS/NZS 3000 (current
version) of the local gas, electricity authorities and other relevant legislation.
Condensing wall mounted boiler
Gas Safety Certificate AS/NZS 5263.1.2 LN: SAI-400271

All descriptions and illustrations provided in this manual have been carefully prepared but we reserve the right to make changes and
improvements in our products that may affect the accuracy of the information contained in this manual.
This boiler may require 2 or more operatives to move it into its installation site, remove it from its packaging and
during movement into its installation location. Manoeuvring the boiler may include the use of a sack truck and
involve lifting pushing and pulling.
Caution should be exercised during these operations.
Operatives should be knowledgeable in handling techniques when performing these tasks and the following pre-
cautions should be considered:
– Grip the boiler at the base
– Be physically capable
– Use personal protective equipment as appropriate e.g. gloves, safety footwear.
During all manoeuvres and handling actions, every attempt should be made to ensure the following unless unavoi-
dable and/or the weight is light.
– Keep back straight
– Avoid twisting at the waist
– Always grip with the palm of the hand
– Keep load as close to the body as possible
– Always use assistance
WARNING
Caution should be exercised when performing any work on this appliance.
Protective gloves and safety glasses are recommended.
– Avoid direct contact with sharp edges.
– Avoid contact with any hot surfaces.
NOTICE
Please be aware that due to the wet testing of the appliance, there may some residual water in the hydraulic circuit.
– Protect any surfaces, carpets or floorings.
– Use a suitable container to catch any water that escape when removing the protective caps from the connections.
THE APPLIANCE IS NOT TO BE USED BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY
OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN
SUPERVISION OR INSTRUCTION.
CHILDREN BEING SUPERVISED NOT TO PLAY WITH THE APPLIANCE.
SAFE HANDLING
COMPLIANCE
Our company declares that Murelle HE 110 R I-E boilers comply with the following Australian Standards:
– AS/NZS 5601 Gas Installations
– AS/NZS 3500 Water services,Sanitary plumbing and drainage
– AS/NZS 3000 Electrical installations, Buildings, structures and premises.
Licence Number: SAI-400271

3
USER INSTRUCTIONS
CONTENTS
1 LIGHTING AND OPERATION..................................................................................................................................3
2 HANDOVER INSTRUCTIONS .................................................................................................................................6
3 SERVICE RECORDS...............................................................................................................................................7
LIGHTING AND OPERATION
BOILER IGNITION (fig. 1)
The first ignition of the boiler must be
carried out by qualified technical person-
nel.
Successively, if it is necessary to start
up the boiler again, adhere strictly to the
following instructions: open the gas tap
to allow the flow of the fuel and move the
main switch of the system to “ON”.
When fuel is fed to the boiler, a sequence
of checks will be carried out and the di-
splay shows the normal condition of the
functioning, always indicating the pres-
sure of the system. If the blue luminous
bar is on, this indicates the presence of
voltage.
Press the button (
5
3
1
2
4
) of control panel
(pos. 2) for start # functioning. The display
shows as figure:
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
N.B.: The first press of any keys of the
controls (2), acts only to illuminate the
display.
REGULATION OF THE WATER
TEMPERATURE FOR HEATING (fig. 2)
To set the temperature of the water for
heating, press the key of the controls
(2).
The first time the key is pressed, the SET
of heating circuit 1 is selected. The se-
cond time it is pressed, the SET of hea-
ting circuit 2 is selected. The display will
be as shown in the figure.
Change the values with the key
5
3
1
2
4
and
5
3
1
2
4
.
Standard display will return by pressing
the key again, or after 10 seconds if
no key is pressed.
Regulation of the external sensor
(fig. 2/a)
If an external sensor is installed, the
value of the output temperature is au-
tomatically chosen by the system, which
quickly adjusts the environmental tem-
perature on the basis of the external
temperature.
If you wish to change the value of the
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 1
WARNINGS
– In case of fault and/or incorrect equipment operation, deactivate it, without making any repairs or taking any
direct action. Apply only to qualified technical personnel.
– Boiler installation and any other assistance and/or maintenance activity must be carried out by qualified per-
sonnel registered as a gas technician. Under no circumstances, the devices sealed by the manufacturer can be
tampered with.
– It is absolutely prohibited to block the intake grilles and the aeration opening of the room where the equipment
is installed.
– The manufacturer shall not be held liable for any damage caused by improper use of the appliance.
– This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction con-
cerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.

4
temperature, increasing or decreasing
that calculated automatically by the elec-
tronic card, proceed as indicated in the
preceding paragraph.
The level of various correction of a value
of temperature proportional calculated.
The display will be as shown in fig. 2/a.
TO SWITCH OFF THE BOILER (fig. 2)
In the case of a short absence, press the
key (
5
3
1
2
4
) of the controls (pos. 2).
The display will be as shown in the fig.
24. In this way, leaving the electricity and
the fuel supply connected, the boiler is
protected from frost and from the pump
becoming jammed.
If the boiler is not used for a prolonged
period, it is advisable to disconnect the
electricity supply, by switching off the
main switch of the system, and to clo-
se the gas tap and, if low temperatures
are expected, to completely empty the
hydraulic circuits to avoid pipes being
damaged by frost.
ERRORS AND SOLUTIONS
When there is a functioning error,
the display shows an alarm and the
blue luminous bar becomes red.
Descriptions of the errors with the
relative alarms and solutions are gi-
ven below:
– ALL 02 (fig. 3/a)
If the water pressure detected is
lower than 0.5 bar, the boiler will
stop and the display will show
“ALL 02”.
Using the external filling device,
repressurise the heating system
until the pressure indicated by the
display is between 1 and 1.5 bars.
If it is necessary to repeat the re-
filling procedure, it is advisable
to contact qualified technical per-
sonnel to check the soundness
of the heating system (to check
whether there are any leaks).
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 3/a
– ALL 03
Request assistance from quali-
fied technical personnel.
– ALL 04
Request assistance from quali-
fied technical personnel.
– ALL 05
Request assistance from quali-
fied technical personnel.
– ALL 06 (fig. 3/c)
Press the key
5
3
1
2
4
of the controls
(2) to re-start the boiler.
If the error persists, request as-
sistance from qualified technical
personnel.
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 3/c
– ALL 07 (fig. 3/d)
Press the key
5
3
1
2
4
of the controls
(2) to re-start the boiler.
If the anomaly persists, request
assistance from qualified techni-
cal personnel.
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 3/d
– ALL 08
Request assistance from quali-
fied technical personnel.
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 2
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 2/a
Heating circuit 2
Heating Circuit 3,
when fitted

5
– ALL 09
Request assistance from quali-
fied technical personnel.
– ALL 10
Request assistance from quali-
fied technical personnel.
– ALL 13 (fig. 3/e)
Press the key
5
3
1
2
4
of the controls
(2) to re-start the boiler.
If the error persists, request as-
sistance from qualified technical
personnel.
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Apre
2
2
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 3/e
– ALL 14
Request assistance from quali-
fied technical personnel.
– ALL 15
Request assistance from quali-
fied technical personnel.
–
EXTERNAL SENSOR FAULT
(fig. 3/f)
If a external sensor (SE) is fitted,
should it become short-circuited,
the symbol flashes on the display
5
3
1
2
4
:
During such error the boiler conti-
nues normal functioning.
Apre
22
2
Circuito
riscaldamento 2
Circuito
riscaldamento 3
(impianto tre
zone)
Fig. 3/f
– ALL 20
Request assistance from quali-
fied technical personnel.
– ALL 21
Request assistance from quali-
fied technical personnel.
– ALL 22
Request assistance from quali-
fied technical personnel.
– ALL 23
Request assistance from quali-
fied technical personnel.
– ALL 29
Request assistance from quali-
fied technical personnel.
– From “ALL 30” to “ALL 35”
Request assistance from quali-
fied technical personnel.
– ALL 70 e ALL 71
These errors are shown on Re-
mote control display panel SIME
HOME. Request assistance from
qualified technical personnel.
GAS CONVERSION
If it is necessary to change to a diffe-
rent type of gas, request assistance
only from authorised technical per-
sonnel.
MAINTENANCE
Annual maintenance of the applian-
ce should be planned sufficiently
in advance, and can only be done
by registered, licenced technical
personnel.

6
2 HANDOVER INSTRUCTIONS
Handover Instructions
No. Description ✔
when
done
1 Fill in all the details on this Boiler manual
2 Instruct the owner/users on the correct operation of this heating system, this includes
how to turn the system on and off, adjust the time and temperature settings.
3 How to turn the heating system off in summer and on for winter.
4 Where all the major items are, their functions and how to check and turn them on or
off. Simple fault resolution i.e. power on.
5 How to check and remove air in the radiators. Give them a bleed key.
6 The importance of this SERVICE RECORDS, keeping safe & accessible when required
7 Recommend that the boiler should be serviced at/before the start of winter next year
then every two years.

7
3 SERVICE RECORDS
Service – 1 – year 1 Date
Service technician Name PIC Licence No.
Service Company
Contact phone number
Work Completed
Note
Service – 2 – year 3 Date
Service technician Name PIC Licence No.
Service Company
Contact phone number
Work Completed
Note
Service – 3 – year 5 Date
Service technician Name PIC Licence No.
Service Company
Contact phone number
Work Completed
Note
Service – 4 – year 7 Date
Service technician Name PIC Licence No.
Service Company
Contact phone number
Work Completed
Note

8
Service – 5 – year 9 Date
Service technician Name PIC Licence No.
Service Company
Contact phone number
Work Completed
Note
Service – 6 – year 11 Date
Service technician Name PIC Licence No.
Service Company
Contact phone number
Work Completed
Note
Service – 7 – year 13 Date
Service technician Name PIC Licence No.
Service Company
Contact phone number
Work Completed
Note

9
DESCRIPTION OF THE APPLIANCE
CONTENTS
1.1 CHARACTERISTICS ..................................................................................................................... ...................... 10
1.2 DIMENSIONS
1.3 TECHNICAL FEATURES .............................................................................................................. ...................... 12
1.4 FUNCTIONAL DIAGRAM .............................................................................................................. ...................... 13
1.5 MAIN COMPONENTS .................................................................................................................. ...................... 14
1.6 APPROXIMATE MINIMUM DISTANCES
1.7 BOILER ELECTRICAL .................................................................................................................. ...................... 15
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS
IN OPERATION
.
DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIACE.
DO NOT MODIFY THIS APPLIANCE.
THE APPLIANCE IS NOT SUITABLE FOR POOL OR SPA HEATING.

10
1.1 CHARACTERISTICS
MURELLE HE 110 R I/E boilers are pre-
mixed gas condensing heating modules
with wide range of power modulation
(from 20% to 100%). They are designed
for single installation and modular sy-
stems with multiple generators con-
nected in sequence/cascade and inde-
pendent of each other.
For optimum installation and operation,
always follow the instructions provided in
this manual.
200 120 115
70
120 235
M
R
R3
S3
G
281
156
203
865
500
120 160
CS CA
135
870 18,5
600
405
==
Fig. 1
FIXTURES
R Heating return G 1 1/2” (UNI - ISO 228/1)
R3 D.H.W. tank return G 1 1/2” (UNI - ISO 228/1)
M Heating flow G 1 1/2” (UNI - ISO 228/1)
G Gas connection G 3/4” (UNI - ISO 228/1)
S3 Condensation outlet ø 25
S1 Safety discharge connection
CA Air inlet ø 80
CS Exhaust ø 80
1.2 DIMENSIONS
1.2.1 MURELLE HE 110 R I (fig. 1)
S1

11
1.2.2 MURELLE HE 110 R E (fig. 1/a)
405
870
Ø80/125
132
1127
203
156
70
286
120 235
270
550
246
306
199 120 139
74
S3
R3
R
M
S1
G
600
Fig. 1/a
FIXTURES
R Heating return G 1 1/2” (UNI - ISO 228/1)
R3 D.H.W. tank return G 1 1/2” (UNI - ISO 228/1)
M Heating flow G 1 1/2” (UNI - ISO 228/1)
G Gas connection G 3/4” (UNI - ISO 228/1)
S3 Condensation outlet ø 25
S1 Safety discharge connection
CA Air inlet ø 80
CS Exhaust ø 80

12
1.3 TECHNICAL FEATURES
MURELLE HE 110 R I/E
Heat output
Nominal (80-60°C) kW 104.0
Nominal (50-30°C) kW 112.8
Reduced (80-60°C) kW 21.1
Reduced (50-30°C) kW 23.6
Heat input nominal * kW - MJ/h 118.1 - 425
Heat input reduced * kW - MJ/h 21.6 - 86.6
Max/min useful yield (80-60°C) ** % 97.8 / 97.7
Max/min useful yield (50-30°C) ** % 106.1 / 109.1
Losses after shutdown to 50°C W 126
Max/Min inlet water pressure kPa 500 / 50
Supply voltage V-Hz 230 - 50
Adsorbed power consumption W 309
Electrical protection grade IP X4D
C.H. setting range °C 20/80
Water content boiler l 8.2
Maximum water head kPa 500
Maximum temperature °C 85
Expansion vessel ( kit optional code 8101581 ) ***
Capacity/Pressure l/kPa 8/147
D.H.W. setting range °C --
D.H.W. flow rate l/min --
Continuous D.H.W. flow rate ∆T 30°C l/min --
Minimum D.H.W. flow rate l/min --
D.H.W. pressure min/max kPa --
D.H.W. pressure min. nom. power kPa --
Exhaust fumes temperature at max flow rate (80-60°C) °C 86.2
Exhaust fumes temperature at min. flow rate (80-60°C) °C 74.6
Exhaust fumes temperature at max flow rate (50-30°C) °C 61.6
Exhaust fumes temperature at min. flow rate (50-30°C) °C 49.2
Smokes flow min/max kg/h 37/186
CO2 at max/min flow rate Natural Gas % 9.0/9.0
CO2 at max/min flow rate UNIVERSAL LPG Gas % 10.0/10.0
Licence No. SAI 400271
Category II2H3P
Type B23-53/B23P-53P/C13-33-43-53-83
NOx emission class 5 (< 30 mg/kWh)
Weight when empty (I/E) kg 100/113
Main burner nozzle
Quantity nozzles n° 1
Natural Gas nozzle diameter ø mm 17.2
UNIVERSAL LPG Gas nozzle diameter ø mm 9.8
Consumption at maximum/minimum flow rate
Maximum Natural Gas m3/h 11.25
Minimum Natural Gas m3/h 2.28
Maximum UNIVERSAL LPG Gas kg/h 8.25
Minimum UNIVERSAL LPG Gas kg/h 1.68
Gas supply pressure
Natural Gas (min/max) kPa 1.13 / 5.00
UNIVERSAL LPG (min/max) kPa 2.75 / 7.00
* They are obtained by gross calorifie Value = 37.78 MJ/m3
*** For boilers in cascade dimension the expansion vessel
** They are obtained by net calorifie Value = 34.02 MJ/m3

13
GMRR3
8
12
3
11
13
14
17
1
2
S3
4
6
5
7
18
19
20

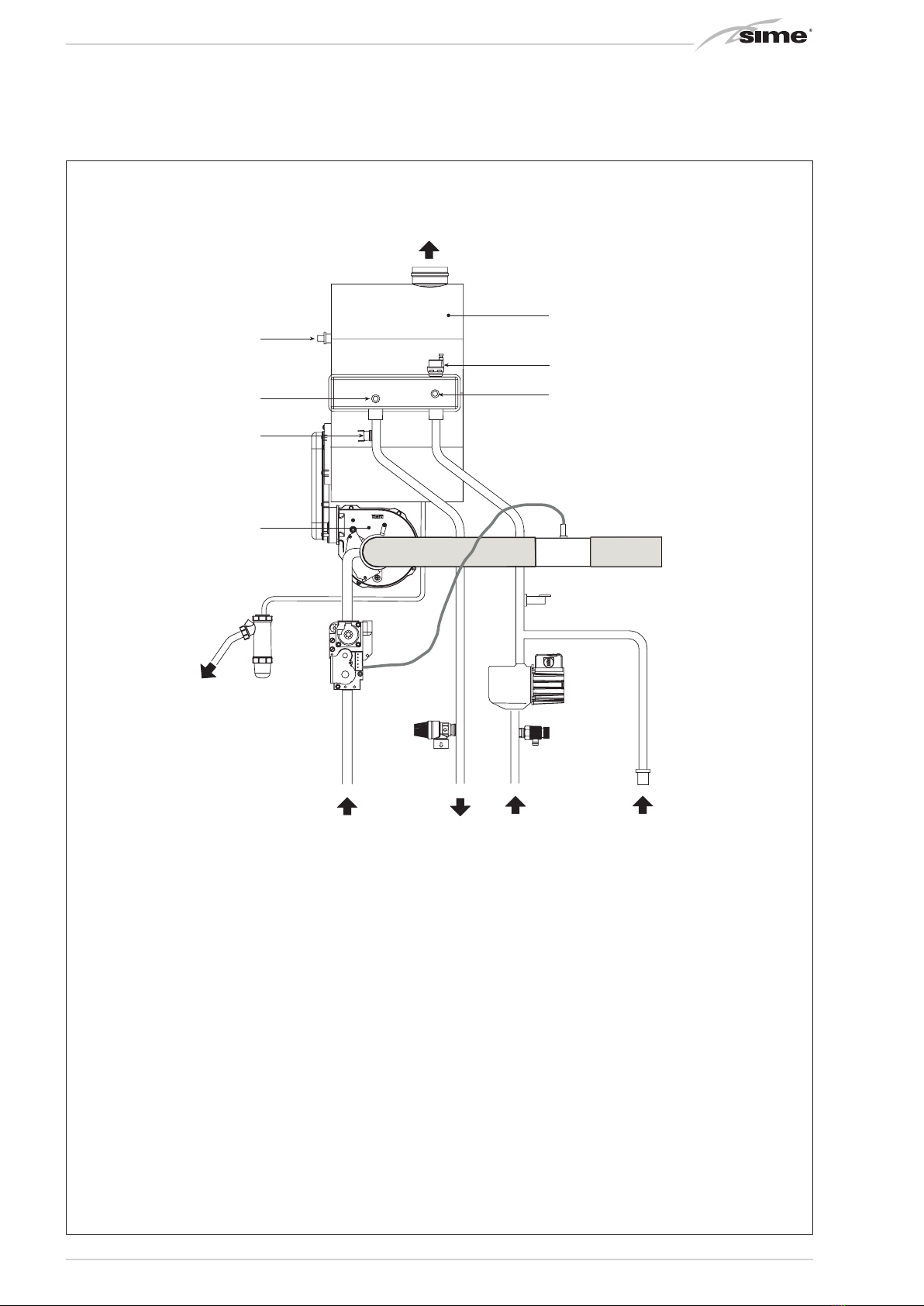

1.4 FUNCTIONAL DIAGRAM (fig. 2)
Fig. 2
KEY
1 Gas valve
2 Condensate drain trap
3 Heating return sensor (SR)
4 Fan
5 Heating flow sensor (SM)
6 Safety thermostat 95°C
7 Exhaust probe (SF)
8 Primary heat exchanger
11 Water pressure transducer
12 Auto air vent
13 Pump
14 Drain vent
17 5 bar (490 kPa) safety valve
18 Collector signal
19 Pressure probe
20 Connecting pipe
CONNECTIONS
R Heating return
M Heating flow
G Gas connection
S3 Condensation outlet
R3 D.H.W. Tank return

14
1
2
3
4
5
6
7
8
9
10
11
12
Fig. 3

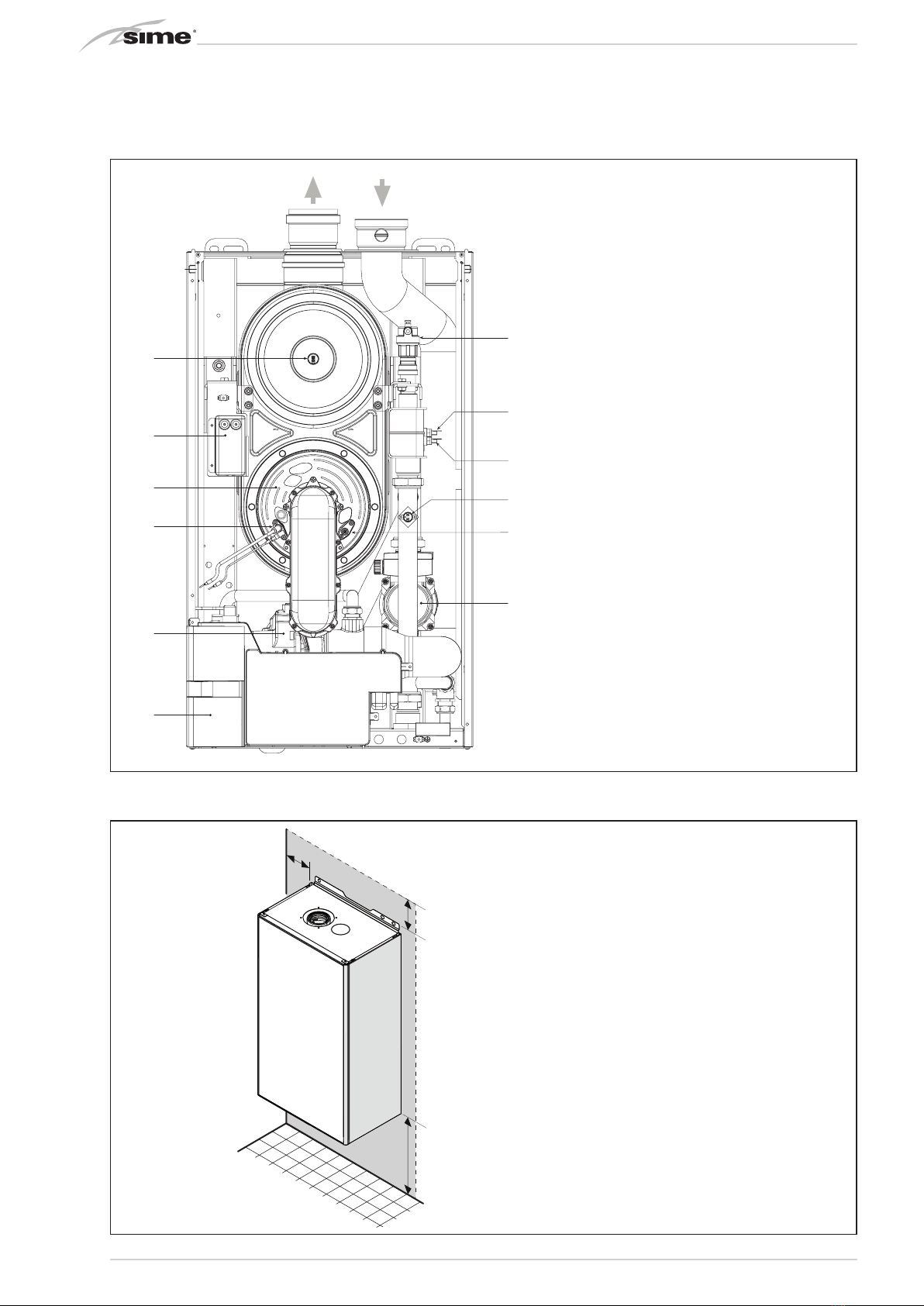

1.5 MAIN COMPONENTS (fig. 3)
KEY
1 Control panel
2 Fan
3 Ignition electrode
4 Primary heat exchanger
5 Ignition transformer
6 Exhaust probe (SF)
7 Auto Air Vent
8 Heating return sensor (SR)
9 Heating flow sensor (SM)
10 Safety thermostat 95°C
11 Ionisation electrode
12 Pump
≥ 50 mm ≥ 300 mm
≥ 900 mm
1.6 APPROXIMATE MINIMUM DISTANCES (fig. 3/a)
CAUTION
These minimum clearances must
be maintained also in considera-
tion of outdoor installations in con-
fined spaces (e.g. alcoves).
Fig. 3/a

15
1.7 BOILER ELECTRICAL (fig. 3/b)
A
B
D
20s
Di
A
B
D
KT1 ADJUSTMENTS
7s
Fig. 3/b
KEY
F1-2 Fuse (4 AT)
TRA Ignition transformer
PI Boiler pump
V Fan
EA Ignition electrode
ER Ionisation electrode
EV1-2 Gas valve coil
TS Safety thermostat
SF Fumes temperature sensor
TFU Thermal fuse
SM Flow temperature sensor
SR Return temperature sensor
TPA Pressure transducer
JP1 Selection TA2 or 0-10 VDC
(See note below)
TA1 Zone 1 environment thermostat
TA2 Zone 2 environment thermostat
SB Sensor tank L. 2000 (optional)
CR Remote control SIME HOME
(optional)
SE External sensor (optional)
OP Programming clock (optional)
AR Remote alarm
VZ Zone valve
AUX Auxiliary connection
SA Frost detector
(external version only)
RS-485 CASCADE/MODBUS board
KT1 Timer
KA1 Relay post fan
CONNECTOR SPARE
PART CODES:
CN1 code 6325677
CN2 code 6319168
CN3 code 6319164
CN4 code 6316203
CN6 code 6316202
CN7 code 6325678
CN10 code 6319165
CN12 code 6319166
CN13 code 6319167
CN14 code 6319169
NOTE - JP1 link
With JP1 link fitted TA2 input is by operation of a clean contact.
For operation by a BMS (0-10 v dc) signal, JP1 must be removed, TA1 link fitted and
the BMS connected, +ve to terminal 10 - CN6, -ve to terminal 4 - CN4.
PAR 14 will require setting to the maximum flow temperature required.

16
INSTALLER INSTRUCTIONS
CONTENTS
1 INSTALLATION............................................................................................................................ ...................... 17
2 CHARACTERISTICS ..................................................................................................................... .......................29
3 COMMISSIONING, USE AND MAINTENANCE ............................................................................... .......................37
4 COMMISSIONING CHECKLIST ..................................................................................................... .......................45
5 EXPLODED VIEWS ...................................................................................................................... .......................46
6 REPLACEMENT OF PARTS .......................................................................................................... .......................52
7 BOILER REGISTRATION ............................................................................................................... .......................54
IMPORTANT
When carrying out commissioning of the boiler, you are highly recommended to perform the following checks:
–
Make sure that there are no liquids or inflammable materials in the immediate vicinity of the boiler.
– Make sure that the electrical connections have been made correctly and that the earth wire is connected to
a good earthing system.
– Open the gas tap and check the soundness of the connections, including that of the burner.
– Make sure that the boiler is set for operation for the type of gas supplied.
– Check that the flue pipe for the outlet of the products of the combustion is unobstructed and has been pro-
perly installed.
– Make sure that any shutoff valves are open.
– Make sure that the system is charged with water and is thoroughly vented.
– Check that the circulating pump is not locked.
– Purge the system, bleeding off the air present in the gas pipe by operating the pressure relief valve on the
gas valve inlet.
–
The installer must provide the user with instruction in operation of the boiler and safety devices and hand over
the instruction booklet to the user.

17
The boiler must be installed in a fixed
location and only by specialized and
qualified firms in compliance with all
instructions contained in this manual.
Furthermore, the installation must be in
accordance with current standards and
regulations.
1.1 BOILER ROOM
MURELLE HE 110 R I - E boilers an be
installed in boiler rooms whose size and
requirements meet current regulations.
Vents with openings of not less than 3000
cm2 (in the case of gas with a density
greater than 0.8 to 5,000 cm2 must be
installed.
1.2 INSTALLATION
1.2.1 Single boiler
The use of a hydraulic separator is man-
datory for single boiler installations a kit
8101581 is available (see fig. 4).
The kit is suitable for the application of a
storage tank with a capacity equal to or
greater than 80 liters.
Section 2.5 shows the various fluing
options. PAR 9 must be adjusted accor-
ding to the tables shown in each option:
- PAR 9 = See TABLE 1-2-3-3/a.
For INSTALLER PARAMETERS see 2.3
section.
1.2.2 Cascade boilers
(fig. 4/a)
For sequence/cascade installations using
polypropylene smoke collectors with
a clapet valve, every single boiler that
makes up the heating system must have
the following installation parameters
modified
When the boiler is used in cascade, PAR
1 of each boiler in the cascade must be
reset as follows:
- PAR 1 = 8 (if boiler is NATURAL GAS)
- PAR 1 = 16 (if the boiler is UNIVERSAL LPG)
ATTENTION: In the event that intake pres-
sure drops are applied to sequence/cascade
installations, it is important to verify the CO2
at MAX and MIN capacity and, if necessary,
bring it back to the correct value descri-
bed in section 3.2.2. In sequence/cascade
installations, it is mandatory to arrange the
thermal system with the hydraulic separator
and safety devices.
The boiler is supplied with RS-485 board
that allows management of up to 8 boi-
lers in cascade mode and MODBUS com-
munication.
The board is on the back of the control
panel.
Select the correct mode (CASCADE or
MODBUS) positioning by positioning the
DIP SWITCH, as shown as figure 4/a
1 INSTALLATION
R3
235
70
500600
500
600
R3
235
70
M2
RM
RM
M2
355 265 115
115
265
663
663
865
865
355
ITALIA EXPORT
301
301
Single installation
with optional kit code 8101581
CAUTION:
- The use of a hydraulic separator is mandatory.
- When replacing boilers in existing installations it is advisable to install a plate heat exchanger to separate the
heating circuit from the secondary circuits. See the available pump head curve shown in Fig. 14.
Fig. 4
M Heating flow
R 2” (UNI-ISO 7/1)
R Heating return
R 2” (UNI-ISO 7/1)
M2 Tank flow
G 1” (UNI-ISO 228/1)
R3 Tank return
G 1 1/2” (UNI-ISO 228/1)

18
CASCADE mode (fig. 4/b)
Electrically connect all boilers in
CASCADE mode and set PAR 15 accordin-
gly (master or slave).
(As shown in Fig. 4 / b).
CASCADE WITH MORE
THAN TWO BOILERS
When more than two boilers are connected
in cascade, it is essential that the OEM
parameter on the “Master” boiler is reset
to coincide with the number of boilers in
the cascade.
This must be done after setting PAR 15 on
the designated Master boiler to “0”.
On the “Master” boiler press any key to
wake up the display.
Then press simultaneously the and
the buttons for 5 seconds until the
display is as shown.
Then press again, simultaneously, the
and the buttons for 2 seconds until
the display shows.
Next press, in the order shown
The display will be as shown.
Press the button, and the display
will show.
Use the and buttons to set the
number of boilers in the cascade.
Then press to confirm the settings.
DIP SWITCH
GESTIONE IN CASCATA
12 3
CASCADE MANAGEMENT
DIP SWITCH
GESTIONE IN MODBUS
MODBUS MANAGEMENT
123
ON
123
ON
x 2
CN10
CHIAVE
POLARIZATION
Fig. 4/a

19
DIP SWITCH
DIP SWITCH
DIP SWITCH
123
123456
123456
123456
X5 X5
WIRED
CONNECTOR CN10
(code 6319165)
RS-485 BOARD
RS-485 BOARD
RS-485 BOARD
WIRED
CONNECTOR CN10
(code 6319165)
WIRED
CONNECTOR CN10
(code 6319165)
BOILER BOARD (SLAVE ...)
BOILER BOARD (SLAVE 1)BOILER BOARD (MASTER)
ON
123
ON
123
ON
EXTERNAL SENSOR (SE)
CASCADE SUPPLY PROBE (SMC)
CHARACTERISTICS
OF ELECTRIC CABLE:
-
3 wires of 24 AWG
- Screened and twisted - Characteristic impedance 100 Ω - Shield connected to ground with only one side of the line
–
+
GND
–
+
GND
–
+
GND
–
+
GND
–
+
GND
–
+
GND
INSTALLER PARAMETERS SETTING: PAR 15 CASCADE ADDRESS -- = Disabled 0 = Master 1...7 = Slave (N.B. Ensure that each slave is numbered separately!) ATTENTION: - CONNECT UP TO A MAXIMUM OF 8 RS-485 BOARDS. - THE EXTERNAL SENSOR MUST BE CONNECTED TO THE MASTER BOILER (SE). - CONNECT CASCADE DELIVERY SENSOR (SMC) TO THE SLAVE 1 BOILER. - SE, SMC sensor and the RS-485 boards wired connector are provided in a kit at the request code 8092250. - NOTE: RS485 LED, THIS WILL BE ILLUMINATED GREEN ON THE ASSIGNED MASTER BOILER, AND ORANGE ON SLAVE BOILERS. - THE RED LED WILL FLASH WHEN THE DIP SWITCH IS SET INCORRECTLY.
Fig. 4/b

20
MODBUS mode (fig. 4/c)
The RS-485 board can be used for
MODBUS communication of every
MURELLE HE 110 R I / E boiler. In this
case, proceed as follows:
- Set the DIP SWITCH of the RS-485 board
and the PAR 16 as indicated in the figure.
- Choose the communication configu-
ration suited to the MODBUS network
(PAR 17 INST) according to Table PAR
17 INST.
SCHEDA CALDAIA
DIP SWITCH
SCHEDINO RS-485
123
CO
NNETT
O
R
E
C
ABLAT
O
C
N1
0
(
cod. 6319165
)
123456
WIRED CONNECTOR
CN10
(code 6319165)
COMUNICAZIONE MODBUS
MODBUS COMMUNICATION
RS-485 BOARD
/ BOILER BOARD
ON
–
+
GND
–
+
GND
INSTALLER PARAMETERS SETTING:
PAR 16 MODBUS MODE
-- = Disabled
1...31 = Slave from 1 to 31
(ATTENTION: Each slave must be
assigned with a different num-
ber).
PAR 17 MODBUS CONFIGURATION
-- = Disabled
1...30 = Factory value 25
(See Tab. PAR 17 INST)
ATENTION: Switch off and restart the boiler
after setting PAR 17!
11200 8No 1
21200 8No 2
31200 8Pari /1
41200 82
51200 8Dispari / 1
61200 82
72400 8No 1
82400 8No 2
92400 81
10 2400 82
11 2400 81
12 2400 82
13 4800 8No 1
14 4800 8No 2
15 4800 81
16 4800 82
17 4800 81
18 4800 82
19 9600 8No 1
20 9600 8No 2
21 9600 81
22 9600 82
23 9600 81
24 9600 82
25 19200 8No 1
26 19200 8No 2
27 19200 81
28 19200 82
29 19200 81
30 19200 82
PAR 17 INST Baud Rate N° Bit Dati Parità Bit di Stop
Par 17 INST Baud Rate No. Data Bit Parity Stop Bit
Pari /
Pari /
Pari /
Pari /
Pari /
Pari /
Pari /
Pari /
Pari /
Dispari /
Dispari /
Dispari /
Dispari /
Dispari /
Dispari /
Dispari /
Dispari /
Dispari /
Even
Even
Even
Even
Even
Even
Even
Even
Even
Even
Odd
Odd
Odd
Odd
Odd
Odd
Odd
Odd
Odd
Odd
TABELLA PAR 17 INST/ Tab. PAR 17 INST
Fig. 4/c
