Simpex Electronic CAMTEC CPS-i2000 User manual

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany S.1/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
CPS-i2000 2000W Lab Power Supply scalable
19“ embedded 2U/3U or hardmount in all positions, PFC 0,99
Features:
•
3D-HD (3D Heat Dissipation)
•Real time C/V programming
•Real time & value C/V-monitoring
•Reference voltage f. autonomous programming
•CSB Current Share Bus
•Inhibit for safe interlocking
•Remote Shutdown
•Sense mode
•Power Good Relay DC-ok
•Precise dynamics on load change
•Series & parallel operation up to >100kW
•EMC norm classe B
•Efficiency 92-94%
•PFC Powerfactor 0,99
•Variable controlled fans from Papst
•Long lifetime under hard operation
•Quick down programming option PSOT
•Solid 2U and 3U subframes available
Model Voltage [V] Current [I]
CPS
-
i2
000.018
0
-
18Vdc
0
-
165
A
CPS
-
i2
000.030
0
-
30Vdc
0
-
100
A
CPS
-
i2
000.060
0
-
60Vdc
0
-
50
A
CPS
-
i2
000.090
0
-
90Vdc
0
-
33
A
CPS
-
i2
000.150
0
-
150Vdc
0
-
20
A
In accordance with IEC60950-1

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.2/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Technical description
-
a unique mechanical concept
The Camtec CPS
-
i models are
high
-
precision lab power supplies „Made in Germany“. These power
supplies are designed for scalable power systems in the testing automation.
For more than 20 years the Camtec Power Supplies manufactures high-end switch mode power supplies
in Germany. A field breakdown of below 4 sigma over a 10 years period under review approves our
ambitious quality concept. Each manufactured Camtec product passes several 100% random tests for
each detailed function and a full-load Burn-In test.
Although it is not required from the safety norms our production applies a routine safety test to each
manufactured device, even if it is an extra low-voltage model. The components in the assembled device
pass stress aging to achieve an even level and to prevent from delayed failures. Our internal product
engineering guidelines provide a clear target: Camtec product reputation must say „mount and forget“.
Quality is never a mere promise for our team.
The CPS-i laboratory power supplies provide low noise and ripple, a very quick programming, and an
absolutely precise setting at high load changes. With an efficiency of 92-94% and a power factor of 0.99,
the devices are highly energy efficient.
Equipped with high-end capacitors of outstanding lifetime our power supplies guarantee a very long and
reliable operation time. The circuit design of the CPS-i Series allows cope playing with complex loads. The
internal protection circuits protect the power supply and the connected system, even in exceptional
situations. The CPS-i series is protected from high transients by strong filters with high energy efficiency.
All inputs and outputs and the interface are electrically isolated. The design specifications call for the
highest standards of safety and interference suppression. The device was developed in accordance with
the requirements of IEC/CSA/UL60950-1 and the EMC standards EN55022 Class B.
The mechanical design of the CPS-i2000 device series is unique. It is the first power supply line in
the world market, which can be flexibly adapted to any installation situation.
The forced air cooling system with monitored and load-dependent variable fan control, allows a detached
position in the system. By simple and cost-effective wall brackets the device can be integrated in any
position in 90° increments. Unlike comparable power supplies Camtec comes here for the first time to let
the system integrator completely free hand. The cooling concepts for supply and exhaust air can be
designed to completely remove the heat dissipation from the cabinet. Complex and expensive air-
conditionings for switch cabinets can be reduced to a minimum or even completely eliminate. Brackets for
air channels are available as an option. In selecting the fan, as with all our power supplies, in our opinion
we use with the German manufacturer EBM Papst the highest quality and most reliable devices in the
world market.
The installation of the power supply in a 19" subrack is guaranteed in the simplest way. Again, our
engineers have decided to offer a completely open and flexible system. The optional front panels allow the
power supplies the use in either a 2U or 3U subrack. In this way we can realized 6kW in 2U-rack and up to
10kW in a 3U-rack with the CPS-i2000 models. Up there is almost no limit: With Zero-Stacking the series
allows scalable DC supplies of over 100kW in a single small 19" rack.

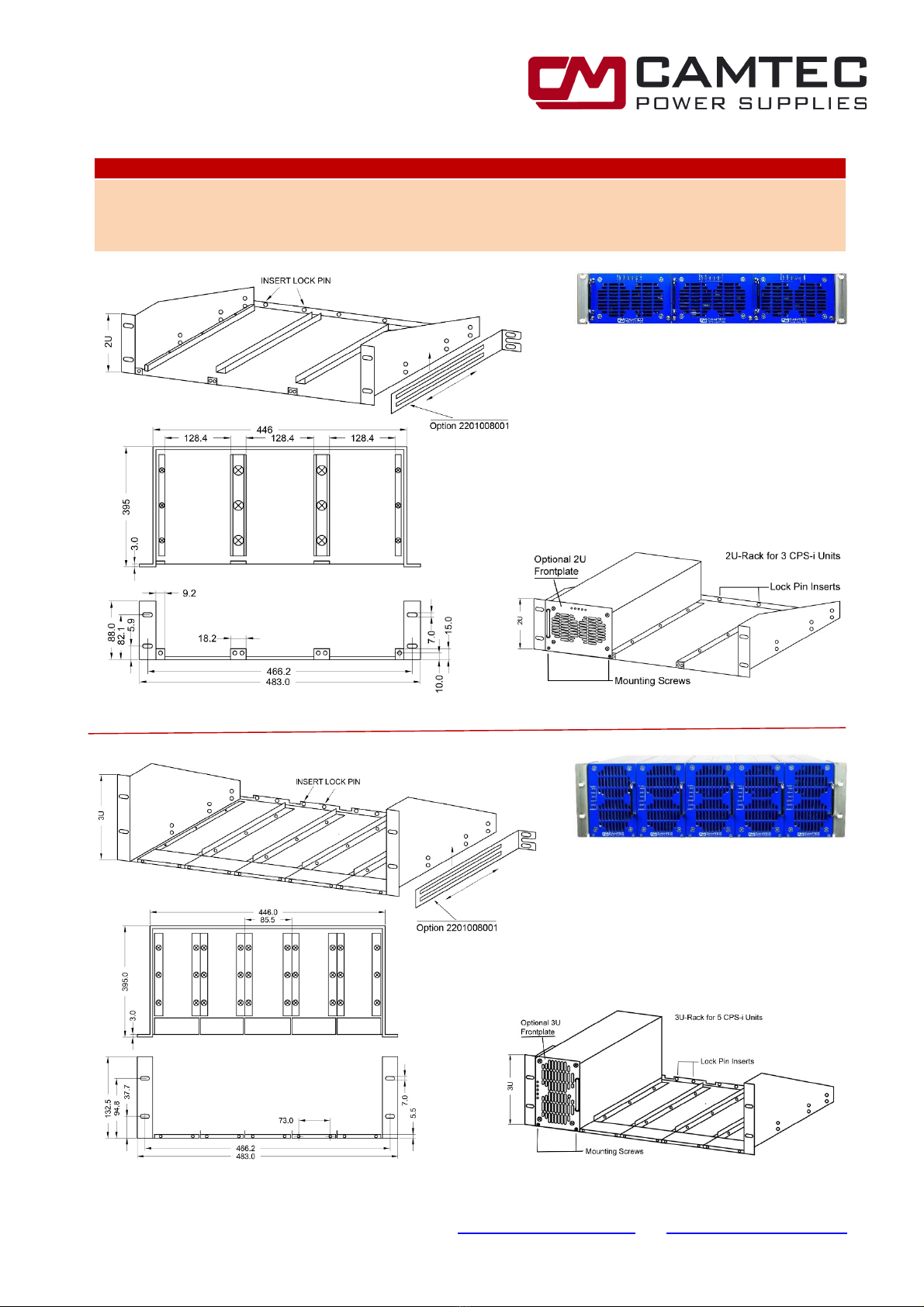

As accessories for the CPS-i Camtec provides matched 19 "subframes. Our subracks deserve the name of
a carrier, because they really are extremely stable made of stainless steel. The power supplies have
nickel-plated steel pins to position the power supplies in the subframes. The so married together systems
withstand the toughest conditions. All mechanical connections in the power supplies or on the racks are
constructed with A2 or nickel-plated screws, so that they provide maximum protection against corrosion
and conductivity.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.3/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Features
Idling behavior
The CPS-i Series is permanently open-circuit proof. When an output
voltage is preset it comes stable. If a load is switched suddenly, the unit
stabilized within <1ms. An overshoot of the output voltage is irrelevant.
Start behavior
The power supply has a start delay of 1s to stabilize all measuring
circuits for the interface messages accurately. The power supply starts
with a ramp (soft start) of 100ms. The output voltage does not overshoot
- regardless of whether a load is connected or not.
Galvanic isolation and insulation
The switching power supply is galvanically isolated between the input
and the output. All major digital inputs and outputs of the interface are
electrically isolated.
V programming (Ureg)
The output voltage of the CPS-i power supply can be adjusted by a
control signal. The setting is linear to the input signal. The power supply
operates data stable even at very low output voltages.
C programming (Ireg)
The output current of the CPS-i power supply can be adjusted by a
control signal. The setting is linear to the input signal. The power supply
operates data stable even at very low output currents.
V Monitor (Umon)
The power supply provides real-time monitoring of the output voltage. It
is the exact and real value at the output terminals. If the sense line is
used, the real value is measured directly at the load. The latency signal
preset to the measured value is negligible, since the control circuit is
constructed completely analogously.
C Monitor (Imon)
The power supply provides real-time monitoring of the output current. It
is the exact and real value at the output terminals. If the sense line is
used, the real value is measured directly at the load. The latency signal
preset to the measured value is negligible, since the control circuit is
constructed completely analogously.
Constant Voltage or Constant Current Mode (CV/CC)
The device can optionally be operated as a DC voltage source or a
constant current source. The operating mode is signaled on the
interface.
Auxiliary Voltage (AUX)
The devices feature a 12V / 500mA auxiliary voltage to operate external
peripheral.
Potentiometer Internal Control (Uadj/Iadj)
If the power supply shall only set with the built in internal potentiometers,
the use of the internal auxiliary voltage is possible. The power supply
requires no external signals and can operate completely autonomously.
Potentiometer External Control (Uadj/Iadj)
If the power supply shall only set with external potentiometers, the use
of the internal auxiliaryy voltage is possible. The power supply requires
no external signals and can operate completely autonomously.

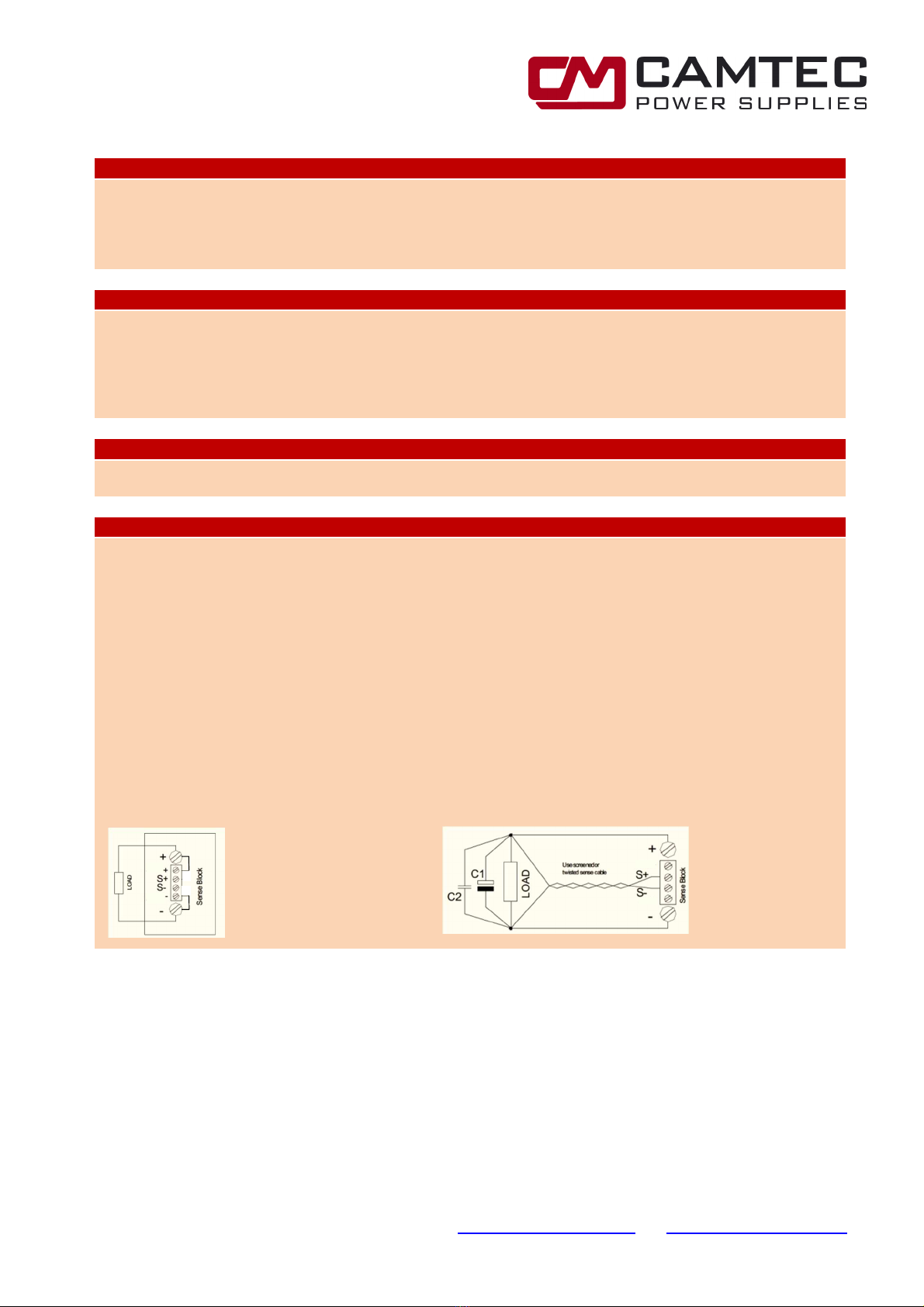

Sense Mode
The power supply has a sense mode to compensate for voltage drops of
2V per load line.
Fuse Mode
The unit can be operated in fuse mode. In the fuse mode, the unit is
turned off and locked when it was more than 5 seconds in constant
current mode to protect a connected defect load. The lock can be
controlled remotely or repeal by disconnection from the mains again.
Continuous Mode
The unit can be operated in continuous mode. In the continuous mode,
the power supply provides constant current mode in a continuous flow
and no ticker-operation.
Master-Slave Mode (Ureg-Out/Ireg-OUT)
The master-slave mode can be defined in the parallel operation. One device
can be set as the master, the other involved network units act as a slave and
the setting signals follow current / voltage, which are commanded by the
Master. This ensures that all devices are operated synchronously.
Current Share Bus (CS)
In parallel operation, the involved network components communicate with
each other and share the total power evenly to each other.
Remote Shutdown (SD)
All CPS-i devices have a remote shutdown (open collector or switching
contacts).
Inhibit Mode (Interlock)
The inhibit circuit reliably prevents unintentional starting of the power supply.
The control loop is internally locked. Since this blocking is done progressively
it is active even when the control signal, is missing due to a cable break or
temporarily suspends. A premature restart of the power supply is prevented.
The inhibit input can be connected to a relay or switch. If the contact is
interrupted, the power supply is switched off. If the contact is closed again, the
power supply restarts.
DC and AC Fail
By DC-fail the power supply reports that the power output is disabled.
By AC-fail the power supply reports an AC undervoltage. Both signals have
separate outputs. Each of them can be selected between NO and NC.
Over Voltage Protection (OVP)
On the interface is a message signal. Until the abolition of the fault the device
switches off.
Over Current Protecttion (OCP)
On the interface is a message signal. Until the abolition of the fault the device
switches off. (ticker mode)
Temperature Control (TEMP)
The operating temperature of the power supply can be monitored via a signal
applied to the interface output.
Temperature Alarm (TA)
If the device is in the critical range, a warning signal is applied to the interface.
Over Temperature Thermal Shutdown (OT)
The device has a thermal monitoring: shutdown with automatic restart. The OT
signal is applied to the interface.
Fan Failure Monitoring (FF)
If it comes to a fan failure or blocking, a signal is applied to the interface. The
speed signal of the fan is monitored. Thus, even a creeping fault is detected at
an early stage and there is a warning long sold separately in front of a fan
failure.
Fast Down Programming & PowerSink (PS)
For fast down programming an internal PowerSink is offered as an option. The
current sink discharges the output electrolytic capacitors and eleminates
skidding inge fed tensions.
A further output allows to control external PowerSink modules. The internal
current sink for quick programming must be installed at the factory.
Digitale Interface (in preparation)
The standard equipment of the power supply is an analog interface.
Optionally, the unit can be equipped on request with a digital interface.
Options include either a RS485 interface or a TCP/IP interface.
3D-HD (3D Heat Dissipation)
Our aligned and controlled heat dissipation design opens possibilities that are
formerly being reserved to custom design power supplies: Steplessly hard
mount of the CPS-i2000/3000 power supply modules in a 3D-room.
In practice that means that one can mount the modules into every angle
imaginable. Our 3D heat dissipation (3D-HD) ensures optimal cooling in each
mounting position you may consider.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.4/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Techn
ical Data Table
AC
Input Range
184
–
265Vac
AC
Input Frequency
47
–
63
Hz
DC
Input Range
250
–
350
Vdc
AC
Nominal Voltage
230Vac
<
10
A
DC
Nominal
Voltage
250Vdc
<
9,3
A
350Vdc
<6,7
A
DC Vout
programmable
0
-
18Vdc
0
-
30Vdc
0
-
60Vdc
0
-
90Vdc
0
-
150Vdc
DC C
out p
rogrammable
0
-
16
5A
0
-
10
0
A
0
-
50
A
0
-
33
A
0
-
20
A
Over Voltage
OVP
22Vdc
35Vdc
70Vdc
105Vdc
175Vdc
Ripple Noise
230Vac 20MHz
35
mV
pp
35
mV
pp
100
mV
pp
15
0mV
pp
20
0mV
pp
Axiliar Voltage
12V
dc
/0,5
A
accuracy
±0,5V R&N
30mVpp
,
not influ
e
nced from
SB, SD, INH
operations
Continuous Power
P
nom
2
000W
/
184
–
230Vac
Power Density
8
W / Cubic
-
Inch
Cooling
Continuously
controlled
and
monitored fans
from
EBM Papst (
Germany
)
Efficiency
typ.
92
-
94%
230Vac
at full load
Power
Fac
tor
Control (PFC)
0,99
/
230Vac Volllast
Short Circuit Resistance
yes
Open Circuit Protected
yes
Base Load (OCP)
Non required
(
open circuit protected
)
Load Regulation
< ± 0,05% 0
-
100%
Load Regulation Time
<1ms
on load switch
10
-
100%
Rise Time and Latency
0
V
–
Vout
ma
x
,
15ms
over all
Accuracy
Ureg:
≤
± 0,
5%
,
Ireg:
≤
± 1%
,
Umon:
≤
± 0,5%
,
Imon:
≤
± 1%
, Uref:
≤
±1%
Temperatur
e Control
ye
s
, therm
al shutdown
& autorecovery
(+70°C,
outside
measuring point distance
10mm)
Hold Up Time
>
2
0ms 230Vac
ma
ins buffering at full load
Inrush Current
<14,6Aeff <
20,
7
Apeak 230Vac
a
c
tive
electronic
inrush protection
(
no
simple
NTC)
Startup Delay
typ. 1s
Softstart
typ. 100ms
Ambient Temperature
-
2
0°C…+60
°C
operating, derating 2,5%/°C >
50°C
Storage Temperature
-
40°C…+85°C
Ambient Conditions
Humidity 95
%
non
-
condensing
@
25
°
C
, climate class 3K3,
pollution degree 2
ROHS
2011/65/EU
c
onform
REACH
EG No. 1907/2006 c
onform
EMI
EN55022 class B
EMS
EN61000
-
6
-
2,3
S
afety
c
UL60950 (design is c
onform
= UL classified
),
IEC/
EN60950
-
1,
IEC/
EN60204
-
1
S
aftey Class
I
VDE0805, VDE0100
Isolation
Input to
Output
3000Vac
Isolation
Input to
Case
2500Vac
Isolation
Output to
Case
500Vdc ,
≥60Vdc= 1200Vdc /
≥150Vdc
=
2100
Vdc
MTBF (IEC61709)
419
000h
(Meantime Between Failure
s
:
statistic
time
between failures
after
repairs
)
MTTF
(IEC61709)
14
6105
h
(Meantime To Failure: statistic time to ever fails
)
Dimensions (HxWxD
)
84x126,4x444
mm
| 3,3x5x17,5 Inch
(
without
frontplat
e
, note cable outlet in planning
)
Weight
4,4k
g
Input Power
Connections
Neutrik NAC3FCA
(
locked by bajonet
t)
included
Output Power Connections
Brass
-
Powerbars with metric
M8
thread
,
a
touch protection is included
Programm
ing Time
Vout
[ms]
Model
CPS
-
i2000
.018
.030
.060
.090
.150
Rise Time
0
-
100%, 10/100% Last, [ms] typ.
15/15
15/15
15/15
15/15
15/15
Slew Rate
90
-
10%, 10/100% Last, [ms] typ.
tba
520/52
tba
tba
tba
Slew Rate
PS
-
Option 100
-
0%, 0% Last, [ms] typ.
200
200
200
200
200
Output
Capacity
, [mF] typ.
tba
216
tba
tba
tba

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.5/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Manual und Technical Details
Analog
Interface
CON1 (
Connector Model
Weidmue
ller
1277320000
=
included
)
Pin
Name
Typ
e
Func
tion
Signal
Remarks
1
AC OK
-
1
Output
Closers
,
Signal
AC OK
R
elay
Potential
-
free
2
DC
OK
-
1
Output
Closers,
Signal
DC OK
Relay
Potential
-
free
3
AC OK
-
2
Output
Center
,
Sign
al AC OK
Relay
Potential
-
free
4
DC OK
-
2
Output
Center
,
Signal
DC OK
Relay
Potential
-
free
5
AC OK
-
3
Output
Break,
Signal
AC OK
Relay
Potential
-
free
6
DC OK
-
3
Output
Break,
S
ignal DC OK
Relay
Potential
-
free
7
SB
Input
Control Signal
Standby
Switch
/ Open Collector
8
SD
Input
Control Signal
Shutdown
Switch
/ Open Collector
9
DGND
-
Digital Ground
-
10
+12V AUX
Output
Auxiliary
Voltage
12Vdc/0,5A
±0,5V
30mVpp
≤1000uF
,
O
-
Ring
Diode
11
DGND
-
Digitale Ground
-
12
INH
Input
Control Signal
Inhibit (Interlock)
Switch
Analog
Interface
CON2 (
Connector Model Weidmueller
1277330000
=
included
)
Pin
Name
Type
Func
tion
Signal
Remarks
1
DGND
-
Digital Ground
-
2
TEMP
Output
Temperatur
e Control
Voltage
10mV/°C
3
DGND
-
Digital Ground
-
4
PSOT
Output
Signal
PowerSink
Over Temperature
Open Collector
5
DCF
Output
Signal
DC F
ailure
Open Collector
6
ACF
Output
Signal
AC F
ailure
Open Collector
7
FF
Output
Signal
F
an Failure
Open Collector
8
INH
Output
Signal Inhib
i
t Active
Open Collector
9
OT
Output
Signal
Over Temperature
Open Collector
10
TA
Output
Signal
Temperat
ure Alarm
Open Collector
Early warning
11
OCP
Output
Signal
Over Current
Open
Collector
12
CC
Output
Signal
C
onstant
Current Mode
Open Collector
13
OVP
Output
Signal
Over Voltage
Open Collector
14
CV
Output
Signal
Constant Voltage Mode
Open Collector
Analog
Interface
CON3
(
Connector Model Weidmueller
127734
0000
=
included
)
Pin
Name
Type
Func
tion
Signal
Remarks
1
A
GND
-
Analog Ground
-
2
Imon
Output
Current Monitor
0
-
5Vdc / 5mA, 0
-
10Vdc / 5mA
3
PS
Output
Control Sign
al External PowerS
ink
Prepared Control Output
4
Umon
Output
Voltage Monitor
0
-
5
Vdc / 5mA
, 0
-
10
Vdc
/ 5mA
5
CS
ON/OFF
Cu
rrent Share Bus
(CSB)
Parallel
Operation
Bidirec
tional
6
Ireg
-
OUT
Output
Current Programming
Slave
0
-
5V / 5mA
7
AGND
-
Analog Ground
-
8
Ureg
-
Out
Output
Voltage Programming
Slave
0
-
5V / 5mA
9
AGND
-
Analog Ground
-
10*
Iadj
Output
Potentiometer
Connection Current
With external poti
11
Uref
Output
Referen
ce Voltage
5,2Vdc / 5mA
, 10,
4Vdc
/ 5mA
12*
Uadj
Output
Potentiometer Connection Voltage
With external poti
13
CS
I/O
Current Share Bus
(CSB)
Parallel
Operation
B
idirec
tional
14
Ireg
-
IN
Input
Current Programming
0
-
5V, 0
-
10V, 0
-
20mA, 4
-
20mA
15
AGND
-
Analog Ground
-
16
Ureg
-
IN
Input
Voltage Programming
0
-
5V, 0
-
10V, 0
-
20mA, 4
-
20mA
Analoge
Interface
CON4
(
Connector Model Weidmueller
127729
0000
=
included
)
Pin
Name
Type
Func
tion
Signal
Remarks
1
Sense
-
Input
Sense
Connection
-
2V
/ load line
2
Sense
-
Input
Sense Connection
-
3
, 4
NC
-
Must not be
connected
5, 6
NC
-
7
Sense +
Input
Sense Connection
-
2V
/ load line
8
Sense +
Input
Sense Connection
-
PIN10/12* when no external control Steuersignal shall be used the device can be set with internal potentiometers. Please
connect Pin10 with Pin14 and Pin12 with Pin16 to operate this mode.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.6/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
CON1
Push In
0,14-
1,5mm²
AWG26-16
CON2
CON3
CON4
DC +/- M8 200A/60°C
250V c
20A
Neutrik
PowerCon®
3x2,5 mm²
Neutrik NAC3FCA
Copy of the original instruction:
http://www.neutrik.com/de/powercon/powercon 20 a/nac3fca
- Interface pluggable Push-Pull-Connectors from Weidmueller (included)
- Input Power Connector Neutrik NAC3FCA (included)
- Output Power Connection M8 Powerbars
- Lock-Pins snap into the 2U/3U 19“ subrack

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.7/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)

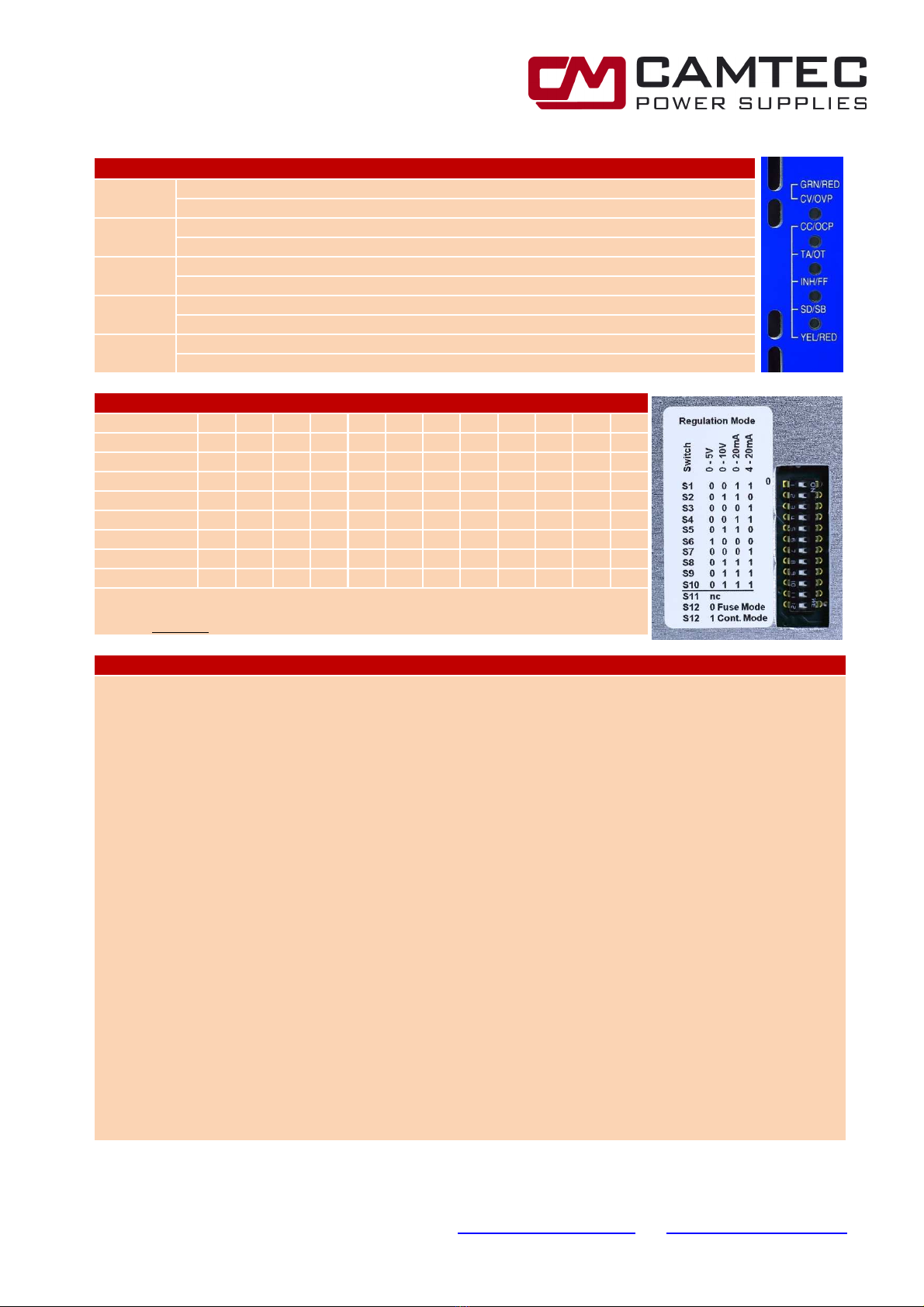

LED
Operating Signal
CV/OVP CV Constant Voltage Mode LED lits Green
OVP Overvoltage maloperation or interference voltage LED lits Red
CC/OCP CC Constant Current Mode LED lits Yello
OCP Over Voltage LED flashes Red, also see >>Fuse Mode<<
TA/OT TA Temperature Alarm LED lits Yello, warning temperature shutdown pending
OT Over Temperature Shutdown LED lits Red
INH/FF INH Inhibit (Interlock) Shutdown LED lits Yello
FF Lan Failure LED lits Red
SD/SB SD Shutdown LED lits Yello
SB Standby LED lits Red
C
onfiguration
of the Analog
Interface
Mode
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
0
5V
0
0
0
0
0
1
0
0
0
0
0
10V
0
1
0
0
1
0
0
1
1
1
0
20mA
1
1
0
1
1
0
0
1
1
1
4
2
0mA
1
0
1
1
0
0
1
1
1
1
CS ac
tiv
e
0
CS
non
ac
tiv
e
1
Fuse
Mode
0
Continuous Mode
1
Warning
!
CS
(Current Share M
ode)
only applies
, w
hen a current distribution must take place while
parallel operation mode. In single or parallel operation without the need of CS, always switch CS with S11
to OFF=1. Factory set: 0 10V Programming / CS non active (S11=1), Continuous Mode (S12=1)
Programmi
ng
/
Monitoring V/C
A
nalog
Interface
(Ureg
-
IN
/Ireg
-
IN
)
(Umon/Imon)
The standard programming of the CPS-i Series is an analog interface. The output voltage is linearly
proportional to the adjusted analog control signal. If the control signal 0V and/or 0A applies the power
supply delivers 0V at the output. The power supply is already working from 0V output voltage and low load
with high precision.
The monitor signal is analog linear to the output voltage. The monitor signal for current and voltage is the
real value that is measured directly at the output of the power supply. If a sense line is connected to
compensate for the voltage drop across the load lines, the monitor signal is exactly the value that is
measured at the connection point of the sense line. The description of the power supply in the sense
operation is carried out in a separate section.
The analog inputs and outputs are non-floating. The mass is connected to the DC negative output
The adapter provides the ability to select the desired input / output via a DIP switch. The burden of the
control voltages is 1mW. The burden of the current interface is 500Ω. The latency to full compensation of
V/C on the interface from 0-100% is 15ms for all CPS-i models.
If the power supply is operated with a low load, the down-programming time up to the desired set point may
be very long. The power supply has large built-in capacitors and an enormous energy reserve. A similar
effect occurs by skidding input energy, which is not easily removed from the power supply. A PowerSink
(PS) modul can be ordered as an option for each CPS-i power supply unit. The PS option is used for fast
down programming and the degradation of skidding energy fed. The option must be equipped in the factory.
For further information about the PS option, please refer to the technical details in a separate section.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.8/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Programmi
ng
V/
C
via
Potentiometer (Ua
d
j/Iadj)
–
Stand Alone
Operation
The power supply is equipped with 2 potentiometers Uadj and Iadj for setting voltage and current.
To enable the setting on the potentiometer, configure the interface via the DIP switch for 0-5V. Connect
each Uadj and Iadj of CON3 to the inputs Ureg-IN and I reg-IN. If one of the two potentiometer is not used,
the other value can still be programmed via the interface. In such case, only the control signal 0-5V can be
used.
Fuse Mode
The Fuse Mode can be used mode to prevent a major damage to a defective load. Fuse Mode can be
activated via the associated switch S12 DIP switch.
If the device is in the Fuse Mode (DIP switch S12=0), the device switches off when the constant current
operation is taking longer than typ. 5s. The red OCP LED flashes with a period of 0,4s. The PSU is locked.
The interlock can be canceled by the power supply is either switched off by the mains input, SB or SD
contact for a moment.
Continuous Mode
If you select Continiuous Mode at DIP switch S12 (DIP switch S12=1), the device provides continuous
power. It also applicable in the Constant Current Mode. Factory setup = Continuous Mode
C
ompensation
of Load Line Drop Voltage
(Sense ++/
--
)
,
standard operation mode
The CPS-i power supply has a Sense Mode to compensate for the voltage drop over long load lines. The
compensation amounts to a maximum of 2V per load line. Under certain circumstances, it can be expected
to apply fairly more complicated external interference suppression. If sense is not used, CON4 Sense +/+
and Sense -/- shall necessarily be connected by short bridges to the power outputs (factory setup).
Sense operation: Remove the bridges between Sense +/+, Sense -/- and the power outputs. Connect the
sense lines directly to the load. It is irrelevant which of the local connections Sense +/+ and Sense -/- are
applied. Pay attention to the polarity of plus and minus of the load to prevent damage to the power supply.
To avoid interference, twist the sense lines. In order to reduce inductive effects, we recommend that the
load lines position is close to each other. In order to supply a pulsating load, the use of an electrolytic
capacitor and a cermic capacitor has proved. The internal Over Voltage Protection (OVP) of the power
supply controls the DC power directly to the DC output terminals. In case of an error the OVP acts
automatically (see OVP values corresponding table).
The sense terminals are directly connected to the power outputs.
Lokal Sensing Remote Sensing
(factory setup) (twisted sense lines)

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.9/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Compensation of Load Line Drop Voltage
(Sense ++/
--
)
battery
c
harger
operation mode
Remote Sensing
as a bat
tery charger
If the CPS-i power supply unit is used as a battery charger, it is recommended to refrain from sensing. It can
lead to severe damage to the power supply, if the polarity of the sense line is confused (field experience:
such error often occurs when system service is required, e.g. when the batteries are changed). If it is
absolutely necessary to use sensing, proceed as described in the figure below. Proven approaches are
250mA for the fuses and 3...5A load capacity of diodes.
Master
-
Slave
Mode
(Ureg
-
OUT/Ireg
-
OUT)
The CPS-i laboratory power supplies offer the possibility of Master-Slave operation. To increase the output
current, two or more units of the same type and output voltage can be connected in parallel. One device
takes over the function of the master, the other devices assume the slave function. The Current Share Bus
(CS) marries the involved power supplies together. The CS bus allows a symmetrical current distribution in
parallel operation of several identical CPS-i units.
Define the power supply as the master, which you want to address with your control. A coding of the power
modules as the master or the slave is required (see below table). The signals of the interface are looped
together. Connect Ureg-out and Ireg-out of the master to Ureg-in and Ireg-in from to slave. Connect the
corresponding Ureg-out/Ireg-out from the slave to the next slave, etc. All the monitoring signals of each
power supply are still available.
Master Slave
0
5V
0
10V
0
20mA
4
20mA
Potis
0
5V
0
10V
0
20mA
4
20mA
Potis
S1
0
0
1
1
0
S1
0
0
0
0
0
S2
0
1
1
0
0
S2
0
0
0
0
0
S3
0
0
0
1
0
S3
0
0
0
0
0
S4
0
0
1
1
0
S4
0
0
0
0
0
S5
0
1
1
0
0
S5
0
0
0
0
0
S6
1
0
0
0
1
S6
1
1
1
1
1
S7
0
0
0
1
0
S7
0
0
0
0
0
S8
0
1
1
1
0
S8
0
1
1
1
0
S9
0
1
1
1
0
S9
0
1
1
1
0
S10
0
1
1
1
0
S10
0
1
1
1
0
S11
0
0
0
0
0
S11
0
0
0
0
0
S12
1
1
1
1
1
S12
1
1
1
1
1
Current Distribution in Parallel Mode
(
CS)
, CSB Current Share Bus
In parallel operation, a uniform current distribution between the participating power supplies is important. To
prevent one of the power supplies going early into the current limitation and display error message. An
uneven load and thus premature aging of the participating devices is prevented.
Connect CON3 contact 5 (CS) to contact 13 of the slave. Are other devices involved in the parallel
operation, you may grind the CS bus through from unit to unit. The current division between the devices will
be performed automatically. The accuracy of the current distribution is ±10%.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.10/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
External Shutdown (
SD
)
The power supply is set to the Shutdown mode, when the
control input is either shorted via a relay contact, a switch
contact or an NPN transistor with open collector (voltage
drop <1V, current typ. 1,5mA). Alternatively, a voltage of
10 to 30V (typ. 12V/1.5mA, 24V/5.5mA) can be applied.
If the shutdown repeals the power supply starts with a
delay of 35ms.
Using the soft start the current and the voltage rises within
100ms continuously to the default set values. Between
control input SD, power input and power output is a
reinforced Isolation of max. 400Vdc.
Standby (SB
)
The power supply is switched to standby mode when the
control input is shorted optionally via a relay contact, a
switch contact or an NPN transistor with open collector
(voltage drop <1V, current typ. 1.5mA). Alternatively, a
voltage of 10 to 30V (typ. 12V/1.5mA, 24V/5.5mA) can be
applied.
If the standby repeals, the power supply starts with a delay
of 500ms.
Using the soft start the current and the voltage rises within
100ms continuously to the default set values. Between
control input SB, power input and power output is a
reinforced Isolation of max. 400Vdc.
Inhibit
/ Interlock (INH)
The power supply is equipped with a control input Inhibit
(INH) to interlock a DC-shutdown of the power supply.
For the nominal operation of the power supply the
connections of the control input "INH" must always be
short-circuited.
The power output is switched off as soon as the
connection between the contacts of the control input
INH is interrupted.
If Inhibit is repealed, the power supply starts with a delay
of 35ms. Using the soft start the current and the voltage
rises within 100ms continuously to the default set values.
Between control input INH, power input and power output
is a reinforced Isolation of max. 400Vdc. Between the INH
contacts applies a current of typical 2mA.
! Warning against damage in case of incorrect connection assignment
Never apply any external voltage to the control input INH. Never connect a resistor to the INH interface.
Between control input INH, power input and power output is a reinforced Isolation of max. 400Vdc.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.11/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Signal
Inhibit (INH)
Interlock
INH is high, as soon as the connection between the contacts of the control input INH is interrupted.
Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
Auxiliary
y Voltage
+12V (AUX)
The power supply offers an auxiliaryy voltage 12V/500mA. The accuracy is ±500mV. Ripple & Noise
30mVpp. The auxiliaryy voltage is not affected by the control signals Standby (SB), Shutdown (SD) and
Inhibit (INH) and remains always active. Between auxiliary voltage, power input and the power output is a
reinforced Isolation max. 400Vdc.
DC
-
OK Relay
(DC Power Good)
The alarm signal DC OK has potential-free relay contacts (changeover). The contacts of CON1 Pin2 and
CON1 Pin4 are closed (relay coil is energized) when the power output is active. In (SD) shutdown mode, the
contacts are closed.
The contacts CON1 Pin2 and CON1 Pin4 are open when the power output is inhibited by SB, INH, ACF,
OT, FF, OVP or a defective PFC. Contact load (resistive load): 30Vdc/1A, 60Vdc/0.3A, 30Vac/0.5A.
Betwenn the intermediate relay contact, power input and the power output is a reinforced Isolation max.
400Vdc.
DC Fail
Signal
(DCF)
DCF is high when the power output is disabled by SB, INH, DCF, OT, FF or OVP. While SD is active the
message signal DCF is low. Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
AC
-
OK Rel
ay
(AC Power Good)
The Power Good relay reports whether the input voltage is too low or missing. The notification signal AC OK
is generated with potential-free relay contacts (changeover).
The contacts of CON1 Pin1 and CON1 Pin3 are closed (relay coil is energized) when the input voltage is
higher than typ. 175Vac or 210Vdc (switch-on). The contacts of CON1 Pin5 and CON1 Pin3 are closed
(relay coil is not energized) when the input voltage is lower than typical 165Vac or 145Vdc (turn-off).
Contact load (resistive load): 30Vdc/1A, 60Vdc/0.3A, 30Vac/0.5A.
Between the relay contacts and the power input, and the output power is a reinforced isolation max.
400Vdc.
AC Fail
Signal
(ACF)
The alarm signal ACF is high when the input voltage is lower than typ. 165Vac or 145Vdc.
The alarm signal ACF is low when the input voltage is higher than typ. 175Vac or 210Vdc.
Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
Over Voltage Protection Signal
(OVP)
If an over-voltage occurs to the output (for example, defective components, external feed voltage), it is
followed by the shutdown of the power output. A periodic restart attempts (ticker operation period 1s) and a
message is triggered: The alarm signal OVP is high.
Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
Constant Voltage Mode
(CV)
The alarm signal CV is high when the power supply operates as a constant voltage source. Output Open
Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V. When OVP, INH, SB, SD, FF, OCP or a defective PFC occur
the message signal CV is low because the power output is switched off. The change between the CV and
the CC mode is automatic. Please pay attention to the DIP switch setting of the Fuse Mode to avoid
provoking malfunction.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.12/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Constant Current Mode
(CC)
The alarm signal CC is high when the power supply operates as a constant voltage source. Output Open
Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V. When OVP, INH, SB, SD, FF, OCP or defective PFC occur
the message signal CC is low because the power output is switched off. The change between the CV and
the CC mode is automatic. Please pay attention to the DIP switch setting of the Fuse Mode to avoid
provoking malfunction.
CC
-
Mode
& Over Current Control in the
Fuse Mode
(OC
P)
The alarm signal OCP is high, when the constant current
operation appears for more than typical 5s (Fuse Mode
DIP switch S12=0).
Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
By switching the unit on and off from SB, SD, or the mains,
the power supply returns into operation.
The power output is switched off. The PFC and the fans
are not switched off. In the SB or SD mode the message
signal OCP is low. In the INH mode the status of the power
supply does not change.
Temperatur
e Control Signal
(TEMP)
The power supply has a temperature monitor. Here, the temperature of the power supply is continuously
measured. The signal TEMP provides a voltage U
TEMP
corresponding to the internal temperature of the
power supply T
INT
:T
INT
=U
TEMP
/(10mV/°C), U
TEMP
in mV. Measuring range: +2...+150°C. Output impedance
2kOhm. Between the signal TEMP and the power input and the power output is a reinforced Isolation max.
400Vdc.
Temperatur
Control of
the
PowerSink (PSOT)
The PowerSink option has a temperature monitor. The alarm signal PSOT is high when the internal
PowerSink module is overheated. Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
If PSOT is active, the power supply is still operating. The internal PowerSink option is not operating as long
as the OT applies.
Temperatur
e Warning
(TA)
The power supply has a Temperature Warning. The signal provides the user the option to save important
data before the power supply shut down from OT, or to put his system in the emergency mode. The alarm
signal TA is high when the internal temperature of the power supply is approximately 5°C below the
overtemperature protection threshold. Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
Over Temperature Shutdown
(OT)
The alarm signal OT is high when the temperature of the power supply is higher than the over-temperature
protection threshold. Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.
Fan Fail
Signal
(FF)
The power supply fans are continuously monitored. FF occurs when one or both fans have an error (lower
speed due to bearing contamination, blockage or failures). A failure message is sent: The status signal FF
applies high. Output Open Collector C
MAX
=10mA, V
LOW
≤0,6V, V
MAX
=30V.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.13/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)

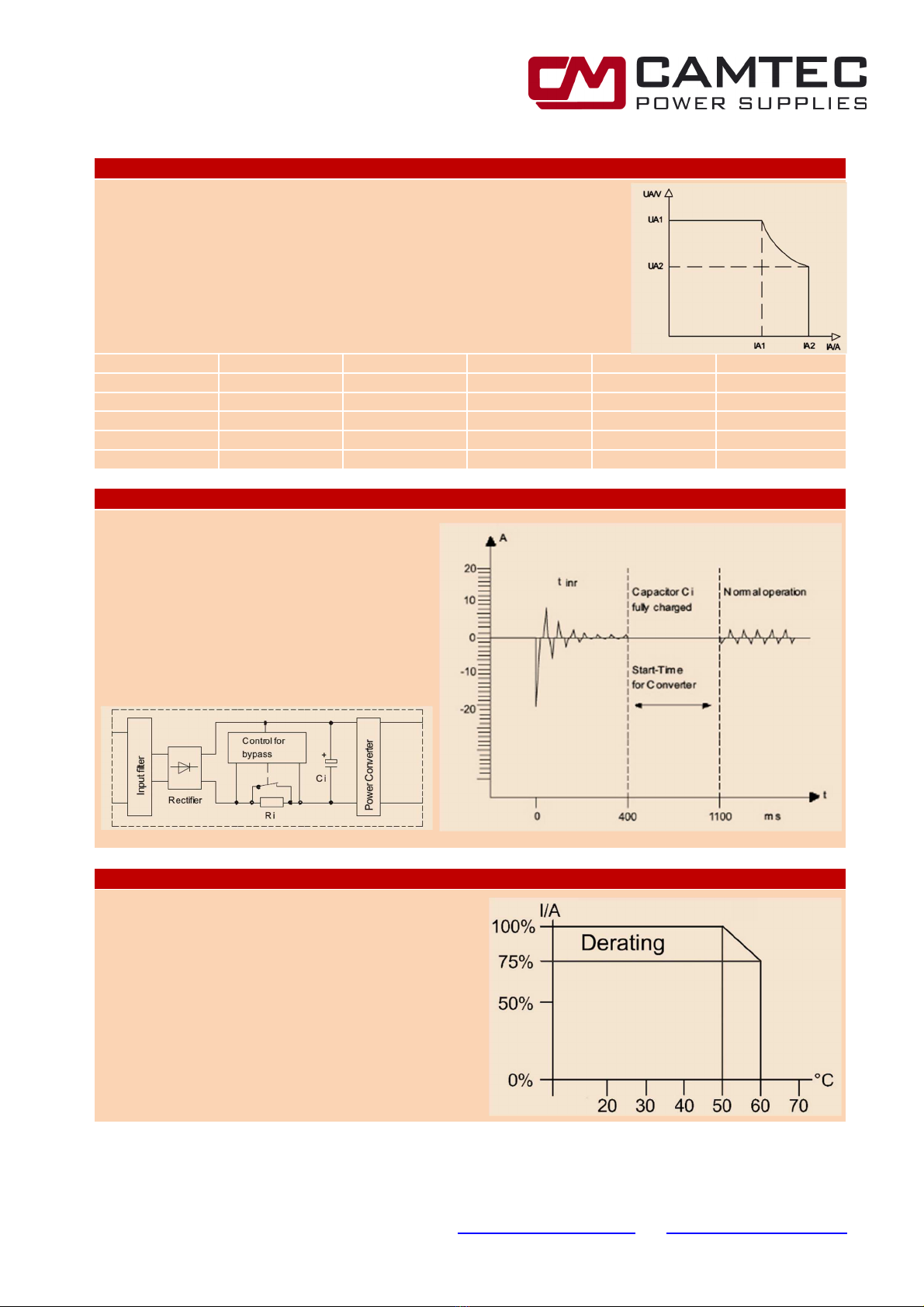

C
/
V Chart and Operating Point
The output voltage set Vout is always linear proportional to the control
signal Ureg.
The desired control signal is selected via the DIP switcher:
0-5V, 0-10V, 0-20mA oder 4-20mA.
Model Value UA1 (V) Value IA1 (A) Value UA2 (V) Value IA2 (A) Pmax (IA1/IA2)
CPS-i2000.018 18Vdc 110A 12Vdc 165A 1980/1980W
CPS-i2000.030 30Vdc 67A 20Vdc 100A
2010
/
2000
W
CPS-i2000.060 60Vdc 33,3A 40Vdc 50A
1998
/
2
000W
CPS-i2000.090 90Vdc 22,2A 60Vdc 33A
1998/1980
W
CPS-i2000.150 150Vdc 13,3A 100Vdc 20A
1995/2
000W
Inrush Current Protection (electronic)
The power supply unit has an electronic current
limiter (230Vac=14,6A
rms
/20,7A
peak
).
It is a precisely working circuit instead of a
usual simple NTC solution. The accuracy is
±10%, regardless of the operating temperature
and the duty cycles (interval ≥10s). We
recommend the smallest circuit breaker a
characteristic B with 16A.
Temperatur
e Monitoring
& Derating
The maximum ambient temperature during operation
is + 60°C. If the overtemperature protection is
activated, the power supply but not the fan is switched
off.
The measuring point is 10mm outside the power
supply. The power supply unit starts automatically
when it has cooled down.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.14/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Open Collector
Circuit
Interface
Z3.3
Between all open collector outputs and the power input and the power
output is a reinforced Insulation of max. 400Vdc.
(Note: this applies to all signals from CON1 and CON2, regardless of
whether they are designed as open collector, or not)
Series Operation
Two or more units of the same model and output voltage can be operated up to a total voltage of 600Vdc in
series. Due to the dielectric strength of the internal components used, only the models with an output
voltage of 90Vdc and later are approved for series operation. Other power supplies are not approved for
series operation above 60Vdc.
If the units are remotely controlled via the analog interface it is compulsory to use a potential-free control
voltage!
Parallel
Operation
&
N+1 Decoupling
In order to increase the overall power of the power
supply, two or more devices of the same model
with the same output voltage may be operated in
parallel. We recommend using a busbar for the DC
power connector. Make sure that the cable lengths
and cable cross-sections of all power supplies to
the busbar or to the star point are identical. If you
want to use the sensing function, connect it also to
the star point or busbar. To avoid measurement
errors, select the line length from the neutral point
or from the busbar to the load as short as possible
and use the maximum possible conductor cross-
section.
The CPS-i models have no internal O-ring diode, to
operate the devices N+1 redundant.
Drawing Parallel Mode t.b.a

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.15/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Elec
tri
cal Saf
ety (Factory
-
Test
/
Fiel
dtest
Owner
)
T
A
B
C
¹)
D
Type
Test
60s 2500Vac 3000Vac 500Vdc 3000Vac
Factory Test
5s 2000Vac 2000Vac 500Vdc 1000Vdc
Field Test
2s 2000Vac 2000Vac 500Vdc 1000Vdc
¹) ≥60Vdc= 1200Vdc / ≥150Vdc= 2100Vdc
Type and Factorytest are the manufacturer. While repating damage can
happen to the power supply unit. For the Fieldtest (owner) follow the below instruction:
a) Use suitable test equipment, raising the voltage slowly
b) Short circuit L1 and N, and all the DC output terminals.
c) Use only test voltages of 50/60Hz. The outputs are unearthed and
therefore they have no resistance to GND/PE.
d) If the residual voltage is ≥60Vdc, observe the safety standards.
Use only specially insulated screwdriver to trim the Ua/Ia.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.16/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Mechanics
Aluminium-housing IP20.
Cooling is achieved via
front-to-rear fans.
In order to ensure
adequate heat
dissipation, 50mm to the
front and 150mm
blockade-free distance
from the device back wall
must be guaranteed.
The harnesses are to be
designed and installed to
that the air outlet of the
unit is not being blocked.
In a rack mounting of
multiple subracks, the
rear distance of the
cable-management
increases, depending on
the type of the air duct.
An optional cable-
accession assistance for
the racks will be available
soon.

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.17/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Available Options
PS Option
for Quick Downward Programming
(PSOPT)
Quick
Down
Programming
:
The input capacitance of a power supply can be discharged only slowly at low load. A quick downward
programming of the output voltage of an almost non-loaded power supply is not possible. This fact leads to
undesirably long cycle times on a test bench. The PS option works as an electronic circuit. It communicates
with the control circuit of the power supply and therefore permits a much higher dynamics of the system, as
an external passive base load.
Back-Feed Energy:
In the back-feed power by a consumer a regenerative current is charging the output capacitors. The output
voltage will increase. The following formula shows dv/dt=i/C.
When an electronic current sink is used, the output voltage remains constant at the set value. The current
sink provides a fast dynamic response.

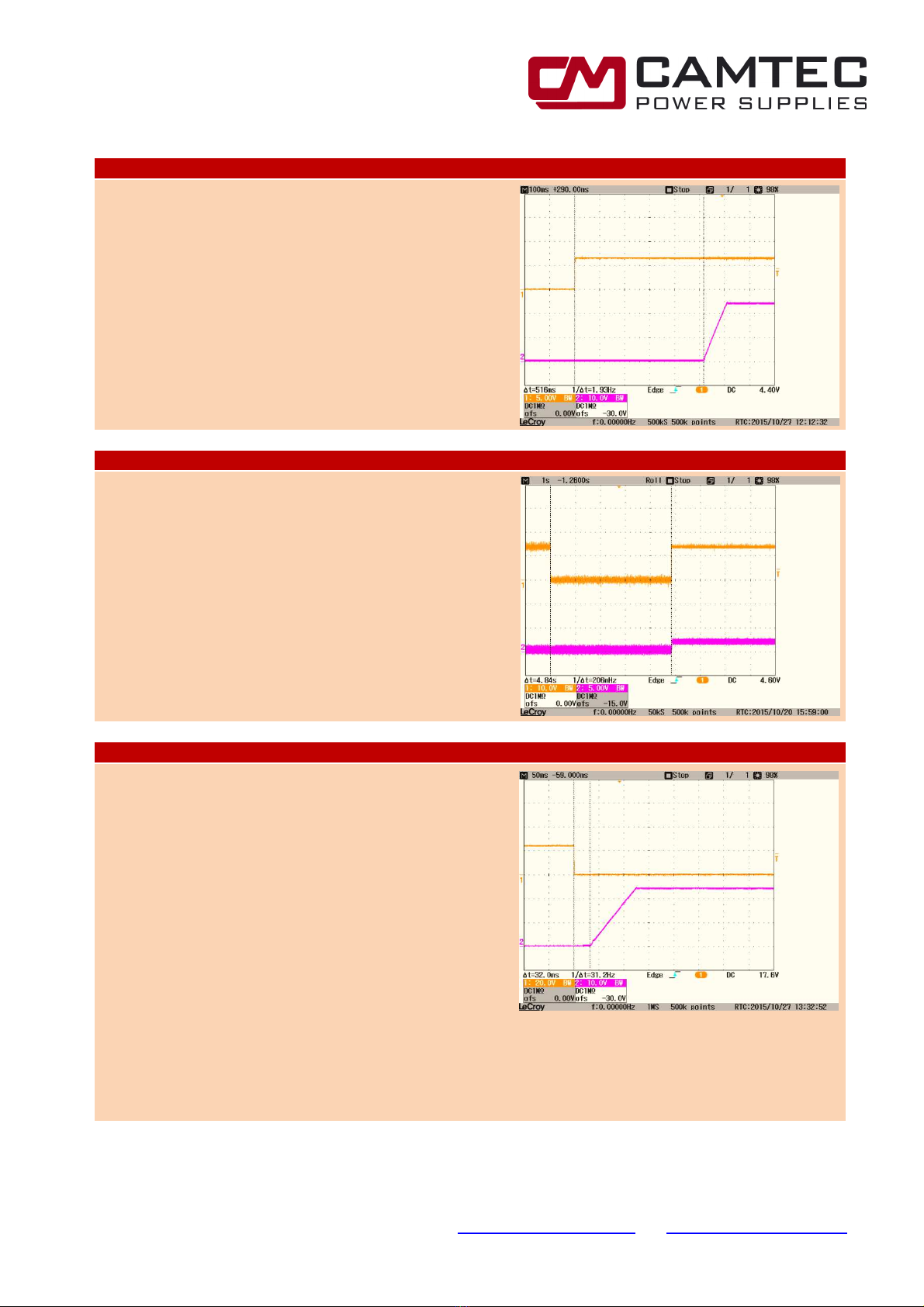

Fig 1 Fig 2 Fig 3
A Power Sink (see Fig. 1) enables fast down programming at low load conditions or without a load. For
comparison, see Figure 2 (without) and Figure 3 (with PS option).
The PS-option must be installed in the plant, because it is not accessible from the outside. It is necessary to
match the power supply after installation and perform electrical safety testing. We therefore recommend a
required a necessary PowerSink option to be purchased with the power supply unit.
Retrofit PS option:
Individual trained CPS-i dealer are pre-retrofit able. Alternatively, a CPS-i power supply may also be sent to
the factory. Please apply for this an RMA number from our service.
Test Certificate and Calibration
Optionally we offer with the delivery of a CPS-i power supply a Manufacturer's Inspection Certificate of
electrical setpoint / actual values. The power supply then is "calibrated". Such Manufacturers Calibration
Certificate for each power supply can uniquely be assigned via the device serial number.
A manufacturer calibration of a CPS-i can frequently be done via controlled recirculation on a regular basis.
Please request the help of your local CPS-i dealer or contact us directly: [e-mail]

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.18/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
19“
48TE
Subrack
2
U & 3U
2U Subrack 48TE for 1-3 CPS-i2000 or CPS-i3000 with up to 6KW continuous power
3U Subrack 48TE for 1-5 CPS-i2000 or CPS-i3000 with up to 10KW continuous power

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.19/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Wall Mount Option &
3D
Heat Dissipation (
3D
-
HD)
Our aligned and controlled heat dissipation design opens possibilities that are formerly being reserved to
custom design power supplies: Steplessly hard mount of the CPS-i2000/3000 power supply modules in a
3D-room.
In practice that means that one can mount the modules into every angle imaginable. Our 3D Heat
Dissipation (3D-HD) ensures optimal cooling in each mounting position you may consider.
All you may consider is to make sure, that at least a distance of 5cm (2 Inch) to the front cooling slots and
15cm (6 Inch) to the back cooling slots are guaranteed to prevent from blocking the airflow. The cabling
must also not block the heat dissipation.
When the CPS-i2000/3000 is hard mounted the optional front plates cannot be used. The standard control
LEDs allow visualization from any mounting position (see below drawing).
Ordering Codes

Made in Germany
Camtec Power Supplies GmbH - Gewerbestraße 30 - DE-76327 Pfinztal / Germany
S.20/20 (03/2016.01.3)
Tel. [phone] - 0 Fax [phone] - 77 www.camtec-gmbh.com - [e-mail]
(Technical changes and errors. This product may not readily be used in life support systems.)
Term Information Camtec Article Number
CPS-i2000.018 0-18Vdc 3041106001CA
CPS-i2000.030 0-30Vdc 3041106002CA
CPS-i2000.060 0-60Vdc 3041106003CA
CPS-i2000.090 0-90Vdc 3041106004CA
CPS-i2000.150 0-150Vdc 3041106005CA
CPS-i2000.018PS PowerSink / Quick Downward Programming 3041106011CA
CPS-i2000.030PS PowerSink / Quick Downward Programming 3041106012CA
CPS-i2000.060PS PowerSink / Quick Downward Programming 3041106013CA
CPS-i2000.090PS PowerSink / Quick Downward Programming 3041106014CA
CPS-i2000.150PS PowerSink / Quick Downward Programming 3041106015CA
Certifacte Calibration Separate works certificate for manufacturer calibration of the power supply 4031107001CA
RS485 Interface Including i.Drive Software Download In preparation
TCP/IP Interface Including i.Drive Software Download In preparation
19“ Frontplate 2U Mounting Kit Included 2201006001CA
19“ Frontplate 3U Mounting Kit Included 2201007001CA
19“ Blindplate 2U Mounting Kit Included 2201009001CA
19“ Blindplate 3U Mounting Kit Included 2201010001CA
19“ Subrack 2U 84TE 3 Modules mountable only in conjunction with front panel 2U orderable 2201004001CA
19“ Subrack 3U 84TE 5 Modules mountable only in conjunction with front panel 3U orderable 2201005001CA
19“ Rack-Rail 2x Support Rails for rack mount, mounting kit included 2201008001CA
Cable Management Rail Cable support for rack mount, mounting kit included In preparation
Hard Mount Holder Strait 2x Holder for strait wall mount, mounting kit included 2201011001CA
Hard Mount Holder Flat 2x Holder for flat wall mount, mounting kit included 2201012001CA
Cooling System Flange Front/Rear Flange for cooling system, mounting kit included, only for wall mounting! In preparation
Safety regulations
:
Please read these instructions
completely
before using
the equipment
.
Keep
these instructions on to hand. The device may only be operated by trained specialist staff.
Installation:
1) The device is designed for devices and systems
that meet the standard requirements for
hazardous voltages, power and fire prevention.
2.) Installation and service only by trained
persons. The AC power must be switched off. The
work is to be labeled; accidental reconnection of
the system must be prevented.
3.) Opening the device, its modification, loosening
bolts or operation outside the specified herein
specification or in an unsuitable environment, has
the immediate loss of warranty to follow. We
disclaim any responsibility for any resulting
damage to persons or things.
4.) Note: The device must not be operated without
an upstream circuit breaker (CB). We recommend
the use of B-Type 16A. It is forbidden to use the
unit without PE. It may be necessary upstream
device has a power switch.
Warning :
Non-compliance can result in fire and serious
injury or death.
1. Operate the appliance without PE connection.
2. Before connecting the device to the network,
turn off the power.
3. Pay attention to careful and standardized
wiring.
4. Never open the unit. Inside are dangerous
voltages that may lead to a severe electrical
shock.
5. It may fall into the machine any objects.
6. Run. The appliance in damp or wet conditions
7. Operation under EX-conditions is prohibited.
All parameters after 15 minutes of continuous operation at full load / 25°C / 230Vac 50/60Hz, unless otherwise indicated.
