Simplicity ZT Series User manual

Parts Manual
Rev. 12/1998
TP 400-2209-00-AT-SMA
ZT SERIES
A TTACHMENTS & A CCESSORIES
Mfg. No. Description
1691872 Turbo Quad Bagger
1692883 38” Grass Mulcher Kit
1692884 44” Grass Mulcher Kit
1692885 50” Grass Mulcher Kit
1693106 44” Turbo Grass Collector
1693107 Quad Bagger Dump Cart
1693108 Wide Body Dump Cart
1693150 38” Clean Sweep Twin Bag Grass Catcher
1693151 38”, 44” & 50” Turbo Twin Bag Catcher
1693225 38” Turbo Grass Collector
1693228 50” Turbo Grass Collector
1693427 Arm Rest Accessory

1
TP 400-2209-00-AT-SMA
Table of Contents
ATTACHMENTS & ACCESSORIES
1691872 - Turbo Quad Bagger . . . . . . . . . . . . . . . . . .2
1692883 - 38” Grass Mulcher Kit . . . . . . . . . . . . . . . .4
1692884 - 44” Grass Mulcher Kit . . . . . . . . . . . . . . . .6
1692885 - 50” Grass Mulcher Kit . . . . . . . . . . . . . . . .8
1693106 - 44” Turbo Grass Collector
Blower Group . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Mounting Group . . . . . . . . . . . . . . . . . . . . . . . . . .12
1693107 - Quad Bagger Dump Cart . . . . . . . . . . . . . .14
1693108 - Wide Body Dump Cart
Cart Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Tube & Hitch Group . . . . . . . . . . . . . . . . . . . . . . .18
1693150 - 38” Clean Sweep Twin Bag Grass Catcher
Adapter, Blade & Tube Group . . . . . . . . . . . . . . . .20
Cover & Bag Group . . . . . . . . . . . . . . . . . . . . . . .22
Hitch Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
1693151 - 38”, 44”, 50” Turbo Twin Bag Catcher
Cover & Bag Group . . . . . . . . . . . . . . . . . . . . . . .22
Hitch Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Tube Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
1693225 - 38” Turbo
Blower Group . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Mounting Group . . . . . . . . . . . . . . . . . . . . . . . . . .30
1693228 - 50” Turbo
Blower Group . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Mounting Group . . . . . . . . . . . . . . . . . . . . . . . . . .34
1693427 - Arm Rest Accessory . . . . . . . . . . . . . . . . .36
REFERENCE INFORMATION:
Part Number Index . . . . . . . . . . . . . . . . . . . . . . . . . .38
Torque Specification Chart . . . . . . . . .Inside Back Cover
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.

2
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.

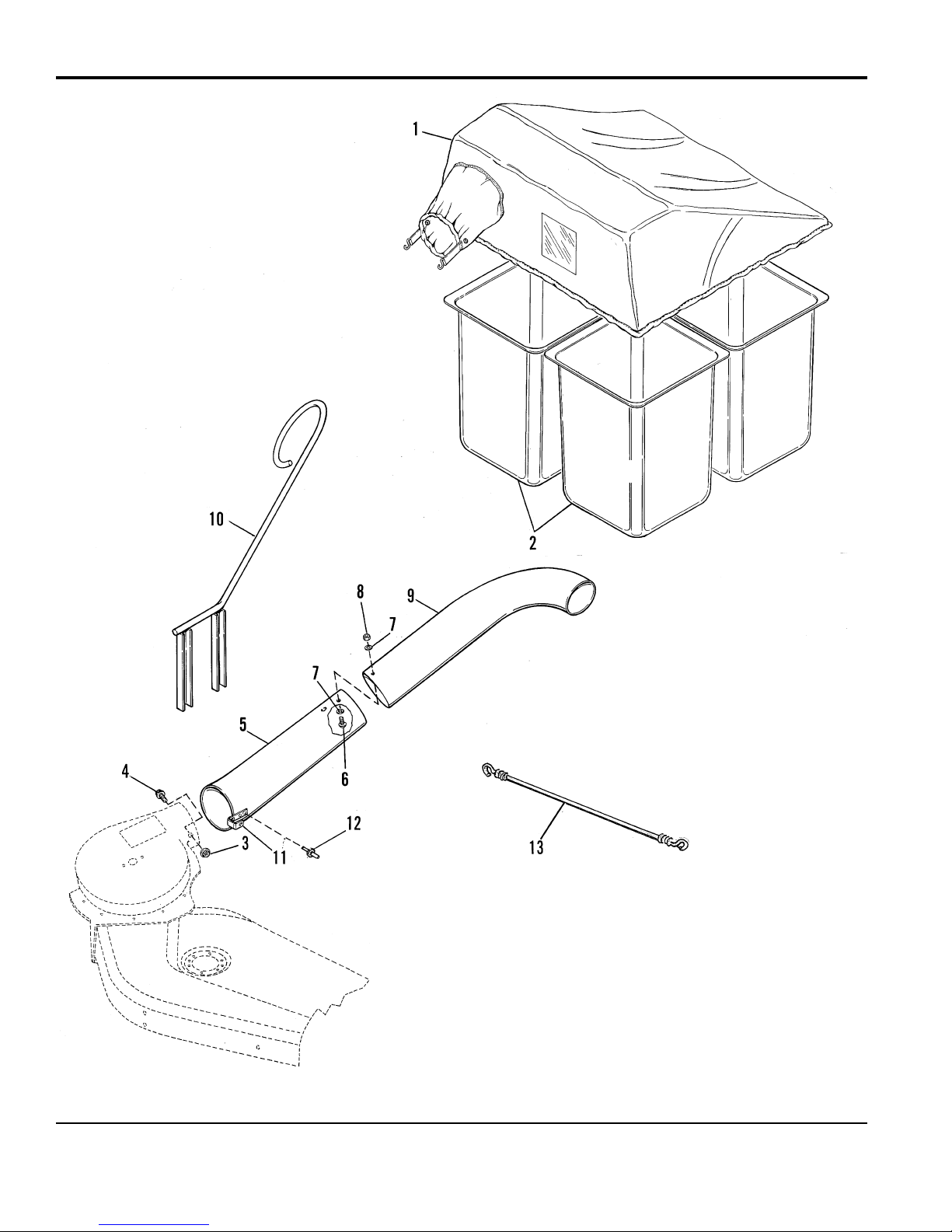

Turbo Quad Bagger - 1691872
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43201A
The above parts group applies to the following Mfg. Nos.:
1691872, Turbo Quad Bagger

3
TP 400-2209-00-AT-SMA
Turbo Quad Bagger - 1691872
1 1705783 1 HOOD
2 1703378 4 BASKET, Grass Collector
3 1930641 1 NUT, Hex, Flange, Lock, 1/4-20
4 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8
5 1705112 1 TUBE ASSY., Lower (Incl. Ref. Nos. 11 & 12)
6 1930531 2 SCREW, Truss Hd., #10-32 x 1/2
7 1910531 4 WASHER, Plain, #10
8 1928919 2 NUT, Hex, Washer Assy., #10-32
9 1705779 1 TUBE, Upper
10 1707691 1 SUPPORT, Tube
11 1705063 1 CLIP, Spring
12 1673320 2 RIVET, Pop
13 1705282 1 CORD
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1691872, Turbo Quad Bagger

4
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.

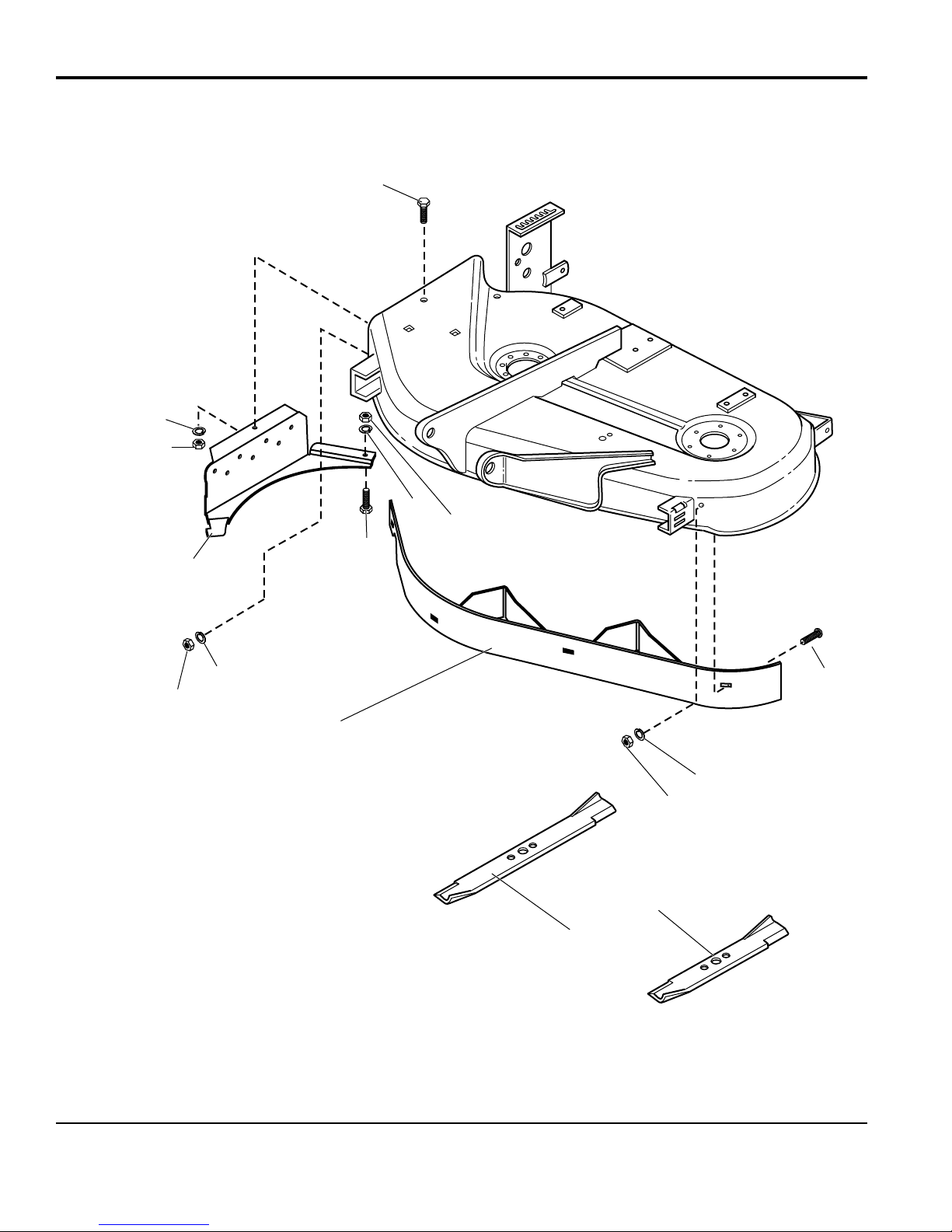

38” Grass Mulcher Kit - 1692883
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43202A
The above parts group applies to the following Mfg. Nos.:
1692883, 38” Grass Mulcher Kit
4
1
2
5
6
7
8
3
4
6
3
3
4
34

5
TP 400-2209-00-AT-SMA
38” Grass Mulcher Kit - 1692883
1 1716105 1 PLATE, Discharge Closure, 38”
2 1716147 1 BAFFLE ASSY, 38”
3 1917372 6 NUT, Hex 5/16-18
4 1917356 6 LOCK WASHER, 5/16
5 1931332 4 BOLT, Carriage 5/16-18 x 0.625
6 1925205 2 BOLT, Hex Head 5/16-18 x 0.625
7 1716696 1 BLADE, Mulch 16.12”
8 1716695 1 BLADE, Mulch 22.5”
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1692883, 38” Grass Mulcher Kit Grass Mulcher Kit

6
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.

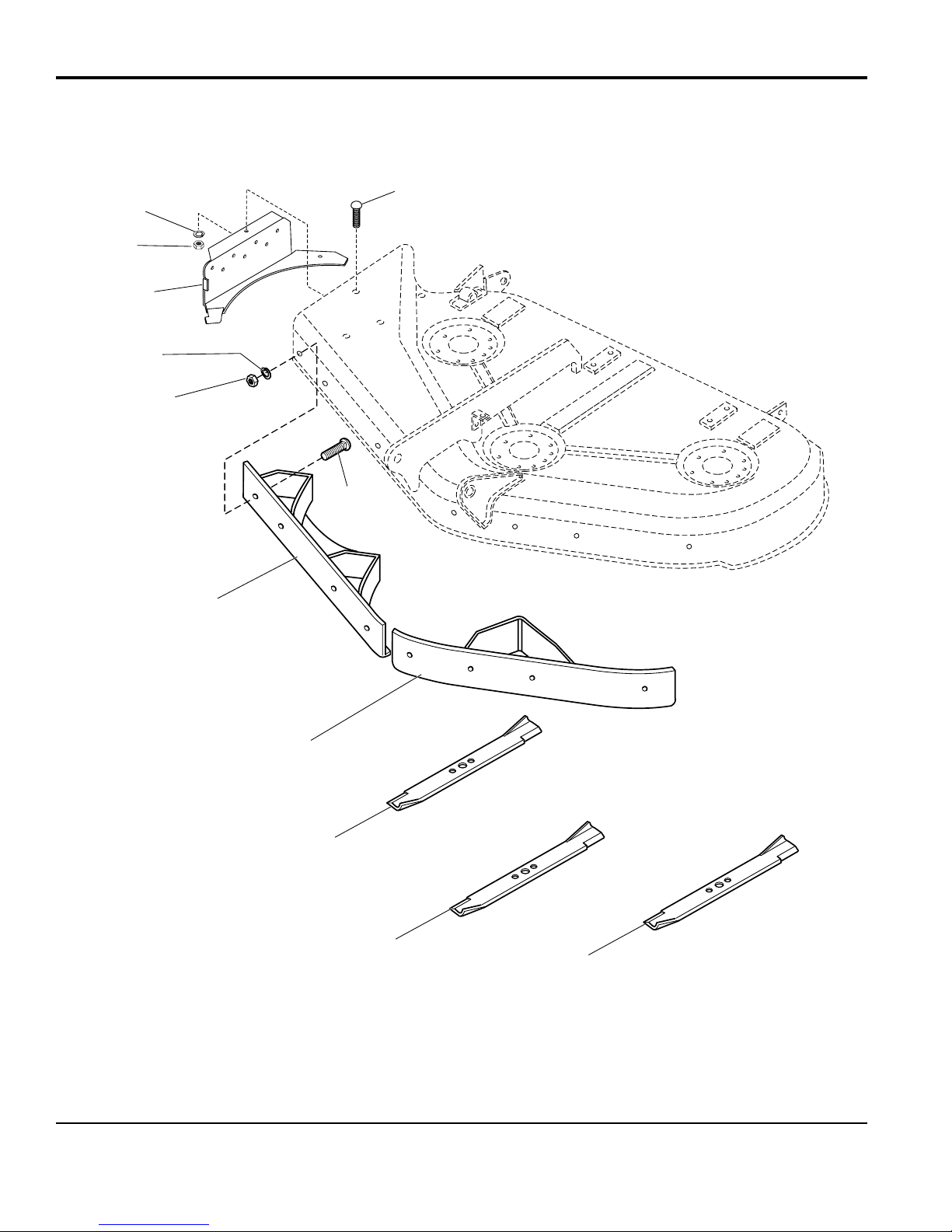

44” Grass Mulcher Kit - 1692884
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43203A
The above parts group applies to the following Mfg. Nos.:
1692884, 44” Grass Mulcher Kit
1
2
3
4
5
6
7
7
7
6
4
5

7
TP 400-2209-00-AT-SMA
44” Grass Mulcher Kit - 1692884
1 1715811 1 PLATE, Discharge Closure
2 1716149 1 BAFFLE Assembly, RH 44”
3 1716148 1 BAFFLE Assembly, LH 44”
4 1917372 10 NUT, Hex 5/16-18
5 1917356 10 LOCK WASHER, 5/16
6 1931332 10 BOLT, Carriage 5/16-18 x 0.625
7 1716696 3 BLADE, Mulch for 44”
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1692884, 44” Grass Mulcher Kit

8
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.
50” Grass Mulcher Kit - 1692885
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43204A
The above parts group applies to the following Mfg. Nos.:
1692885, 50” Grass Mulcher Kit
1
2
3
4
5
6
7
7
7
6
4
5

9
TP 400-2209-00-AT-SMA
50” Grass Mulcher Kit - 1692885
1 1715811 1 PLATE, Discharge Closure
2 1716151 1 BAFFLE Assembly, RH 50”
3 1716150 1 BAFFLE Assembly, LH 50”
4 1917372 10 NUT, Hex 5/16-18
5 1917356 10 LOCK WASHER, 5/16
6 1931332 10 BOLT, Carriage 5/16-18 x 0.625
7 1716697 3 BLADE, Mulch for 50”
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1692885, 50” Grass Mulcher Kit

10
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.

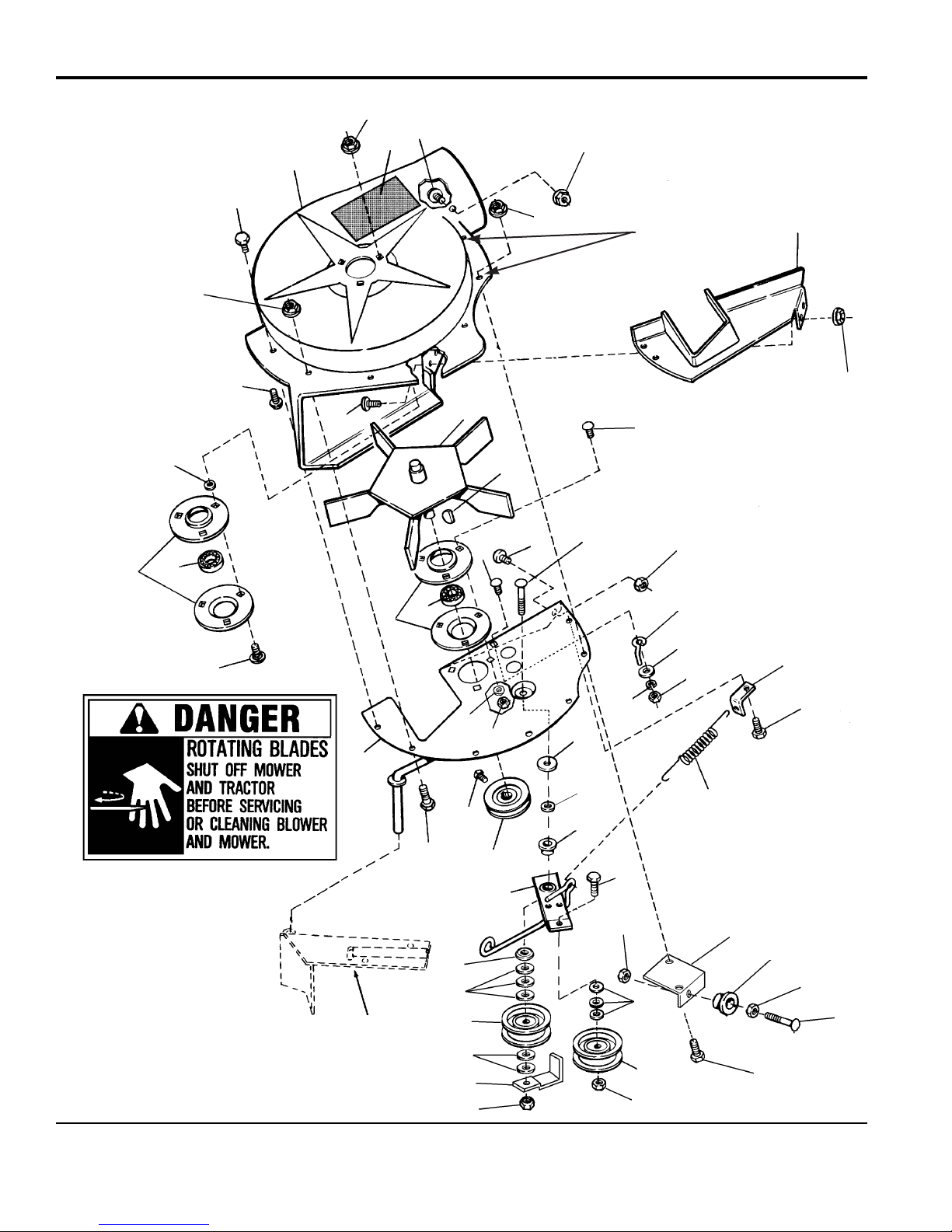

44” Turbo, Blower Group - 1693106
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43205A
The above parts group applies to the following Mfg. Nos.:
1693106, 44” Turbo
NOTE: All original mower deck
parts are shown as phantom parts.
28
12
29 937 31
31 11
15
22
38
31
35
35
41
32
14 29
41
32 22 33 31
31
8
26
20 5
24
3
19
27
27
16
13
30
34
25 25
39
18
36
21
10
7
6
24
40
40
41
42
17
17
23
32
2
Ref. No. 9
See Mounting
Group
Mounting holes
for 44" Turbo
Bracket Assy.,

11
TP 400-2209-00-AT-SMA
44” Turbo, Blower Group - 1693106
1 108202 2 BEARING
2 960403 1 KEY, Woodruff, Modified
3 1716853 1 SPRING, Tension
4 1665982 4 BEARING, Retainer
5 1668500 1 BRACKET, Anchor, Spring
6 1714255 1 SPACER, Idler Arm
7 1931942 1 PUSHNUT, 3/8
8 1678435 1 BELT STOP
9 1700259 1 DECAL, Danger, Blower
10 1918431 1 WASHER, Plain
11 1705267 1 PLATE, Cover
12 1705492 1 FAN HOUSING (Incl. Ref. No. 9)
13 1717101 1 LEVER ASSY, Turbo (Incl. Ref. Nos. 6 &10)
14 1706465 1 PLATE ASSY.
15 1706631 1 FAN ASSY., 5 Blade
16 1706634 1 PULLEY, Driven
17 1708030 2 IDLER PULLEY ASSY.
18 1717108 1 BRACKET ASSY., Turbo
19 1917356 1 WASHER, Spring Lock, 5/16
20 1917372 1 NUT, Hex, 5/16
21 1921969 1 CAPSCREW, 3/8-16 X 1-1/2
22 1960472 2 SCREW, Truss Hd., 1/4-18 x 5/8
23 1921959 3 CAPSCREW, Hex, 1/4-20 x 5/8
24 1924009 3 CAPSCREW, Hex Hd., 1/4-20 x 3/4
25 1960339 2 NUT, 3/8-16
26 1924874 1 WASHER, Flat
27 1924940 5 WASHER, Plain
28 1925003 1 CAPSCREW, Hex, Taptite, 1/4-20 x 1/2
29 1927557 6 NUT, Flange, Whizlock, 5/16-18
30 1928691 1 SETSCREW, Hex, Socket Hd., 5/16-18 x 5/16
31 1930641 10 NUT, Hex, Flange Lock, 1/4-20
32 1931333 7 CARRIAGE BOLT, 5/16-18 x 3/4
33 1931355 1 CARRIAGE BOLT, 3/8-16 x 2-1/4
34 1708352 1 BELT STOP
35 1933988 6 PUSH NUT, 3/8
36 1924356 1 WASHER
37 1960252 1 CARRIAGE BOLT, 1/4-20 x 5/8
38 1960256 2 SCREW, Washer. Hd.., 1/4-18 x 5/8
39 1922755 3 WASHER
40 1931277 2 NUT, Whizlock, 5/16-18
41 1679164 1 CUP WASHER
42 1960565 1 CARRIAGE BOLT, 5/16-18 x 2-1/2
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693106, 44” Turbo

12
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.

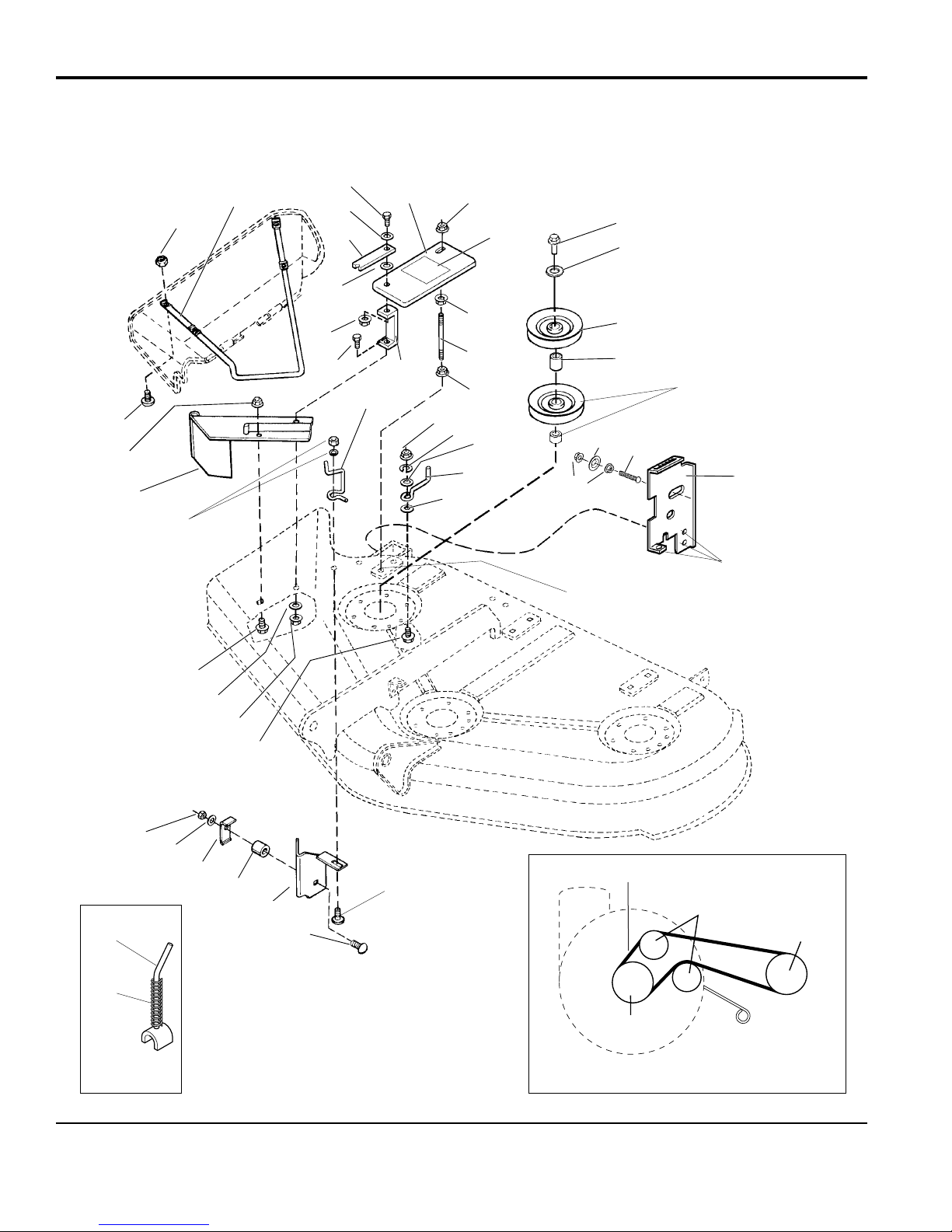

44” Turbo, Mounting Group - 1693106
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43206A
The above parts group applies to the following Mfg. Nos.:
1693106, 44” Turbo
NOTE: All original mower deck
parts are shown as phantom parts.
3
4
5
6
7
8
9
10
11
12 13
14
15 16
17
18
19 20
21
22
23
24
25
26
27
28 29
30
31
32
33
34
35
1
20
19
8
13
4
4
9
4
4
Existing
Hardware
Existing
Hardware
Existing
Pulley &
Spacer
Tap
front
hole
Use Existing
Hardware
31
32
Counterbalance
Assembly
36
37
Mower Deck
Arbor Pulley
Turbo Drive
Pulley
Idler
Pulleys
2
Belt Routing

13
TP 400-2209-00-AT-SMA
44” Turbo, Mounting Group - 1693106
1 1931333 1 CARRIAGE BOLT, 5/16-18 x 3/4” Lg.
2 1717146 1 V-BELT
3 1705070 1 PIVOT ASSEMBLY
4 1931277 5 NUT, Hex Flange, Whiz0lock, 5/16-18
5 1960404 4 CAPSCREW, Truss Head, #10-24 x 3/4” Lg.
6 1933896 6 NUT, Nylock, #10-24
7 1718295 1 ROD, Deflector
8 1921333 2 CAPSCREW, Hex Hd., 5/16-18 x 1” Lg.
9 1919326 2 WASHER, Flat, 11/32
10 1717107 1 SUPPORT STRAP, Deflector
11 960210 1 WASHER, Nylon, 0.388” Dia.
12 1717105 1 COVER, Turbo Belt
13 1919438 2 NUT, Hex, Nylock, 5/16-18
14 1717291 1 DECAL, Warning
15 1921333 1 CAPSCREW, Hex Hd., 5/16-18 x 1” Lg.
16 1717104 1 SUPPORT, Belt Cover
17 1717106 1 STUD, 5/16-18 x 5-3/4” Lg.
18 1715018 1 LATCH, Spring Wire
19 1917372 3 NUT, Hex, 5/16-18
20 1917356 3 LOCKWASHER, 5/16
21 1674315 1 STOP, Belt
22 1924940 1 WASHER, Flat, 3/8
23 1713523 1 NUT, Sleeve
24 1603592 1 WASHER, Belleville
25 1717123 1 PULLEY
26 1713624 1 HUB, Double, 1.160” Long
27 1717109 1 BRACKET, Height Adjustment
28 1679164 1 CUP WASHER
29 1960565 1 CAPSCREW, Rnd Hd., 5/16-18 x 2.5 Lg.
30 1960223 1 CARRIAGE BOLT, 5/16-18 x 1-1/4” Lg.
31 1704880 1 BRACKET ASSEMBLY
32 1666294 1 SPACER
33 1705308 1 BRACKET, “L”
34 1927557 1 NUT, Hex Flange, Whiz-Lock, 5/16-18
35 1922755 1 WASHER, Flat, 13/32
36 1718215 1 LEVER ASSEMBLY, ZT Counterbalance
37 1718214 1 SPRING, Compression
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693106, 44” Turbo

14
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.
Quad Bagger Dump Cart - 1693107
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43207A
The above parts group applies to the following Mfg. Nos.:
1693107, Quad Bagger Dump Cart
25
26
27
28
29
30 26
31

15
TP 400-2209-00-AT-SMA
Quad Bagger Dump Cart - 1693107
1 1708239 1 TAILGATE
2 1923114 2 CAPSCREW, 1/2-13 x 1
3 1921958 2 CAPSCREW, Hex, 1/4-20 x 1/2
4 1708238 1 BOX
5 1930644 3 LOCKNUT, Hex, Flange, 1/2-13
6 1703334 1 BRACKET, Pivot, L.H.
7 1921210 8 CAPSCREW, Hex, 3/8-16 x 1
8 1703336 1 FRAME
9 1676892 2 WHEEL, Swivel
10 1924940 8 WASHER, 3/8
11 1930651 8 NUT, Hex, Lock, 3/8-16
12 102004 2 PIN, Clevis, 1/2 x 1-1/2
13 176012 2 PIN, Safety
14 1916622 2 NUT, Hex, 1/4-20
15 1916964 2 LOCKWASHER, 1/4
16 1700768 1 HANDLE, Lift
17 1921977 1 CAPSCREW, 5/16-18 x 1-1/4
18 1919326 2 WASHER, 5/16
19 177649 2 WASHER, Spring, Special, 5/16
20 1700765 1 HANDLE, Latch
21 1917372 1 NUT, Hex, Full, 5/16-18
22 1920161 1 NUT, Hex, Jam, 5/16-18
23 1703335 1 BRACKET, Pivot, R.H.
24 1703370 1 DECAL, Max. Capacity
25 1921210 1 Capscrew, 3/8-16 x 1
26 1924940 2 Flat Washer, 3/6
27 1666332 2 Spacer
28 1703334 1 Hitch
29 1916965 2 Lockwasher, 3/8
30 1922130 2 Capscrew, 3/8-16 x 2-1/4
31 1930561 1 Hex Nut, 3/8-16
* 1708120 1 DECAL, Max. Cap.
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693107, Quad Bagger Dump Cart

16
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.
Wide Body Cart, Cart Group - 1693108
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43208A
The above parts group applies to the following Mfg. Nos.:
1693108, Wide Body Dump Cart

17
TP 400-2209-00-AT-SMA
Wide Body Cart, Cart Group - 1693108
1 1708211 1 COVER
2 1700763 1 ROD, Straight
3 176012 2 CLIP
4 1700866 1 SLEEVE, Plastic, Connecting
5 1708099 1 CLAMP, Sleeve
6 1700758 1 TUBE, Support
7 1700768 2 HANDLE, Lift
8 1916964 4 LOCKWASHER, 1/4
9 1916622 4 NUT, Hex, 1/4-20
10 1923362 4 NUT, Lock, 5/16-18
11 1919326 6 WASHER, Flat, 5/16
12 1708212 1 HANDLE, Latch
13 177649 2 WASHER, Spring, 5/16
14 1917372 1 NUT, Hex, Full, 5/16-18
15 1920161 1 NUT, Jam, 5/16-18
16 1700267 2 SPACER, Plastic, 5/16
17 1921677 4 CAPSCREW, Hex Hd., 5/16-18 x 1-1/2
18 1919326 4 WASHER, 11/32 x 3/4
19 1921977 1 CAPSCREW, Hex Hd., 5/16-18 x 1-1/4
20 1700761 1 ROD, Support
21 1921210 8 BOLT, Hex, 3/8-16 x 1
22 102004 2 PIN,1/2x 1-1/4
23 1708213 1 FRAME
24 1924940 8 WASHER, Flat, 3/8 S.A.E.
25 1930651 8 NUT, Hex Lock, 3/87-16
26 1676892 2 WHEEL, Swivel, 410/350-4
27 1922134 2 NUT, Hex Lock, 1/2-13
28 1921176 4 CAPSCREW, Hex Hd., 1/2-13 x 1-1/4
29 1700767 1 “U” BRACKET
30 1917372 3 NUT, Hex, 5/16-18
31 1917356 3 LOCKWASHER, 5/16
32 1918249 3 BOLT, Slotted, Truss Hd.
33 1921958 4 CAPSCREW, Hex Hd., 1/4-20 x 1/2
34 1708210 1 BOX
35 1700266 1 STRAP, Rubber, 6”
36 1700762 1 ROD, Support
37 1920397 1 NUT, Nylon insert, 1/4-20
38 176012 2 SAFETY CLIP
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
* Not Pictured
The above parts group applies to the following Mfg. Nos.:
1693108, Wide Body Dump Cart

18
TP 400-2209-00-AT-SMA
© Copyright 1998 Simplicity Manufacturing, Inc. All Rights Reserved.

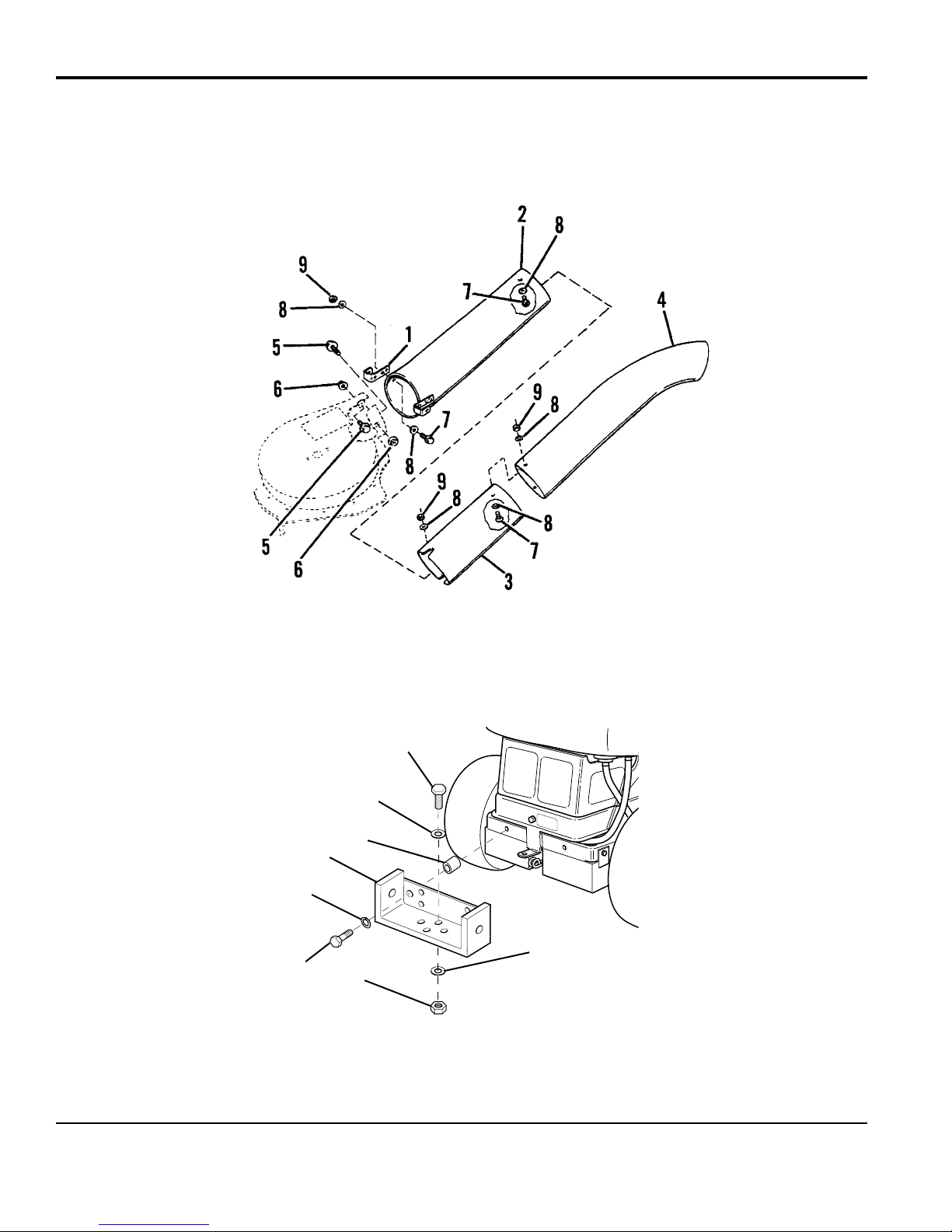

Wide Body Cart, Tube & Hitch Group - 1693108
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
A-AT43209A
The above parts group applies to the following Mfg. Nos.:
1693108, Wide Body Dump Cart
10
11
12
13
14
15 11
16

19
TP 400-2209-00-AT-SMA
Wide Body Cart, Tube & Hitch Group - 1693108
1 1705063 1 CLIP, Spring
2 1707712 1 TUBE ASSY, Lower
3 1704854 1 TUBE ASSY, Middle
4 1707710 1 TUBE ASSY, Upper
5 1960252 2 CARRIAGE BOLT, 1/4-20 x 5/8
6 1930641 2 LOCKNUT, Flange, 1/4-20
7 1930531 6 SCREW, Truss Head, 10-32 x 1/2
8 1910531 12 WASHER, Plain, #10
9 1928919 6 NUT & WASHER ASSY, 10-32
10 1921210 1 Capscrew, 3/8-16 x 1
11 1924940 2 Flat Washer, 3/6
12 1666332 2 Spacer
13 1703334 1 Hitch
14 1916965 2 Lockwasher, 3/8
15 1922130 2 Capscrew, 3/8-16 x 2-1/4
16 1930561 1 Hex Nut, 3/8-16
REF NO. PART NO. QTY. DESCRIPTION
Footnotes:
The above parts group applies to the following Mfg. Nos.:
1693108, Wide Body Dump Cart
