Operator’s manual
Baron
1693494 Baron tractor
1693575 102 cm (40") deck
1720602
Rev. 05/1999
TP 100-2282-00-BR-S

Adjustments and service ....................................................................................................F
Specifications and Identification numbers........................................................................ii-v
Safety rules and information...............................................................................................A
Features and controls.........................................................................................................B
Operating the tractor..........................................................................................................C
Lawn care and mowing information ...................................................................................D
Regular maintenance .........................................................................................................E
Troubleshooting..................................................................................................................G
Initial setup.........................................................................................................................H
i
123...
TP 100-2282-00-BR-S

107cm (42")
92cm (36")
188cm (74")
246cm (97")
130cm (51")
109cm
(43")
Specifications
Weight
Tractor 218 kg (480 lb)
Grass catcher 18 kg (40 lb)
Mower deck 50 kg (110 lb)
Crate (approx) 57 kg (125 lb)
Capacities
Grass catcher 310 liters
Fuel tank 9,3 l (3,5 gal)
Engine
Make Briggs & Stratton
Model InTek™ V-Twin
Horsepower 18 HP
Transmission
Make Tuff Torq
Model K-51
Max. forward speed 8,8 kph (5,5 mph)
Max. reverse speed 5,5 kph (3,4 mph)
Transmission oil SAE 10W30, API SG, Motor
Oil capacity 1,7 l (2,5 qt)
Wheels
Tire size
Front 15 x 6,0-6
Rear 18 x 8,5-8
Tire pressure
Front 83-104 kPa (12-15 psi)
Rear 41-55 kPa (6-8 psi)
123...
ii

DE
123...
iii
Identification numbers
Record the identification numbers for your model in
the space provided. The identification tags (A) are located
on the tractor (B) and the mower deck (C). For the location
of the engine identification numbers, refer to the engine
manual.
When contacting your authorized dealer for replacement
parts, service or information, you MUST have these
numbers.
Be sure to fill out and return the warranty registration card
supplied with your unit.
Identification numbers
Tractor manufacturing number Tractor serial number
169 __ __ __ __
Mower deck manufacturing number Mower deck serial number
169 __ __ __ __
Dealer name Date purchased
Engine make and model Engine serial number
169XXXX
MFG
Simplicity Manufacturing, Inc.
Port Washington, WI 53074-0997 U.S.A.
SERIAL
XXXXX
SSAAMMPPLLEE
A
BC

iv

A-1
Safety rules
and information

Safety rules and
information
About this manual and tractor
• Read, understand and follow all instructions in the manual
and on the unit before starting.
• Before first time operation, drive in an open area without
mowing to become accustomed to the unit.
The alert triangle signifies important
cautions or warnings which must be
followed to prevent injury to persons.
The DO NOT symbol precedes cautions
which must be followed to prevent damage
to equipment.
The information circle indicates information
which can be helpful in understanding and
using the equipment.
Read all safety rules and follow them closely. Failure to
obey these rules could result in loss of control of unit,
severe personal injury or death to you or bystanders, or
damage to property or equipment.
A-2

A-3
Before each use
Prepare yourself and others
• Be sure the area is clear of other people before mowing.
Stop unit if anyone enters the area.
• Make sure you can reach all controls from operator’s position.
• Wear appropriate clothing, safety goggles and safety gloves.
Prepare the area
• Clear the area of objects such as rocks, tree twigs, wire, etc.,
which can be picked up and thrown by the blades.
• Remove large obstacles such as lawn furniture, toys, tree
limbs, garden hose, etc.
Prepare the machine
• Check brake operation frequently. Adjust and service
as required.
• Keep all nuts and bolts, especially blade attachment bolts,
tight and keep equipment in good condition.
• Check that crankcase is filled to full mark on dipstick. See
the engine manual for instructions and oil recommendations.
• To reduce fire hazard, keep the engine, tractor and mower
deck free of grass, leaves, excess grease or other debris
build-up. Clean up oil or fuel spillage.

A-4
Extra precautions with children
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the unit
and the mowing activity. Never assume that children will
remain where you last saw them.
• Keep children out of the mowing area and under the
watchful care of another responsible adult.
• Be alert and turn unit off if children enter the area.
• Before and during reverse operation, look behind and
down for small children.
• Never carry children. They may fall off and be seriously
injured or interfere with safe unit operation.
• Never allow children to operate the unit.
• Never leave the tractor in an area where children may come
into contact with it. If there’s any chance of unauthorized
use, remove the spark plugs and put in a safe place. Be sure
the spark plug openings are protected from foreign objects
with a suitable cover.

A-5
Fuel precautions
• Always observe safe fuel handling practices when
refueling the tractor. Fuel is highly flammable and vapors
are explosive. Handle with care. Do not allow open flame,
smoking or matches in the area. Do not smoke while
handling gasoline.
• Never remove fuel cap or add fuel with the engine running.
Never fill the tank when the engine is still hot from recent
operation. Always allow the engine to cool before refueling.
• Never refuel the unit indoors. Never store the unit or fuel
container inside where there is an open flame or pilot light,
such as near a water heater.
• Avoid overfilling the fuel tank. Fill the fuel tank slowly to
the bottom of filler neck. Wipe up spills immediately.
• Use only an approved container.
• Do not mix oil with fuel. Refer to engine manual for
fuel recommendations.
• Drain fuel into an approved container outdoors away
from open flame or sparks.
Beware of potential fire hazards
To reduce fire hazard, keep the engine and mower deck free
of grass, leaves and excess grease. Do not stop or park tractor
over dry leaves, grass or combustible materials.

A-6
Operating precautions
Who should operate the unit
• Only allow responsible adults, who are familiar with
the instructions, to operate the unit.
• Do not operate the unit while under the influence of
alcohol or drugs.
• Never carry passengers.
Operating areas
• Never run a unit in an enclosed area.
• Make sure desired direction of travel is clear of objects,
people and animals.

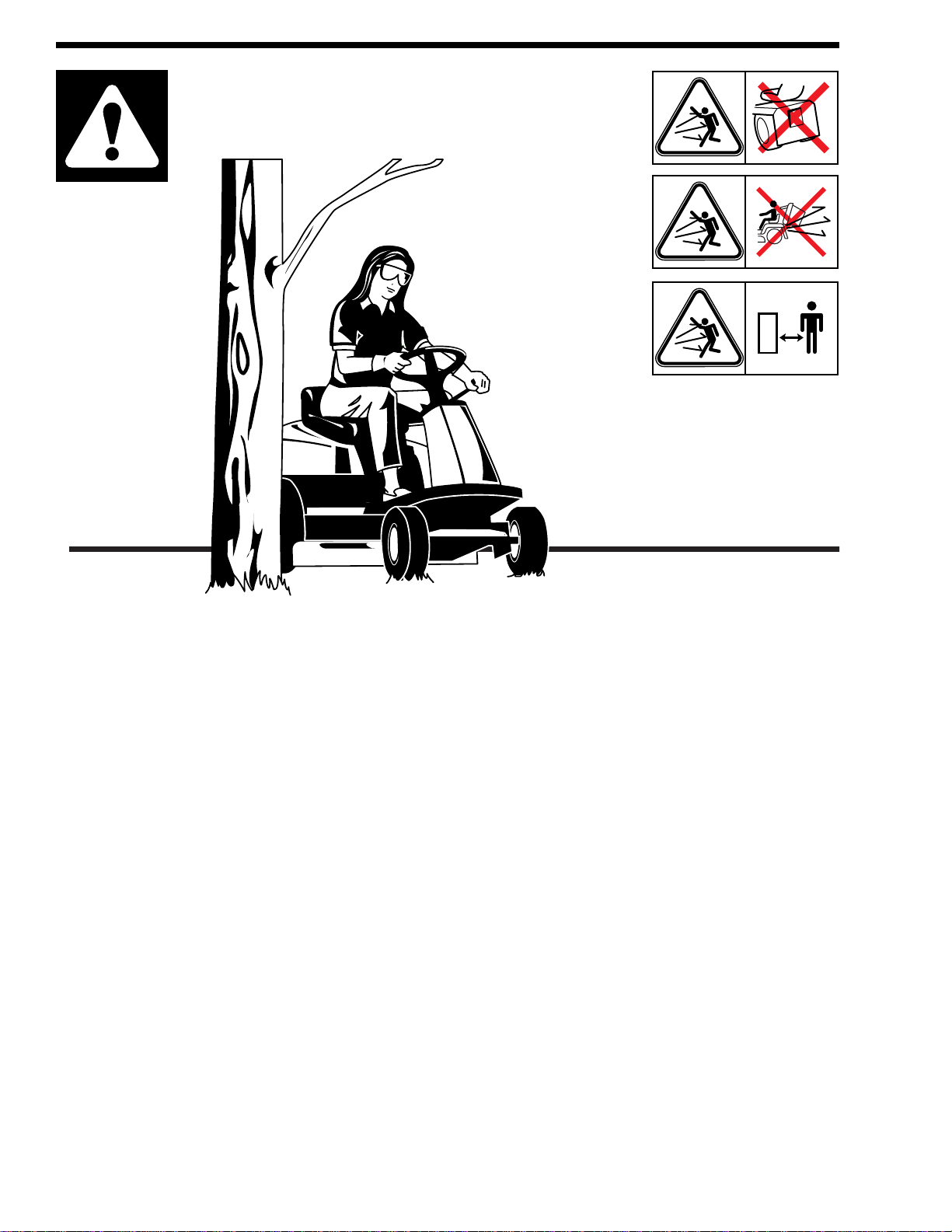

• Use extra care when approaching blind corners, shrubs,
trees or other objects that may obscure vision. Slow down
before turning. Watch for traffic when operating near or
crossing roadways.

A-7
Mowing precautions
• Mow only in daylight or good artificial light.
• Do not operate the mower without either the entire grass
catcher or the deflector in place.
• Be aware of the mower discharge direction and do not
point it at anyone.
• Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while
travelling in reverse.
• Before and during reverse operation, look behind and
down for small children.
• Stop unit if anyone enters the area.
• If you strike an object, stop the unit, stop the engine
and inspect the equipment. Repair, if necessary,
before restarting.
• Never leave a running unit unattended. Before leaving the
operator’s position for any reason, always disengage the
PTO, set parking brake, stop engine, and remove the key.
• Push down on the PTO switch to disengage the blades
when not mowing.
• Stop engine before removing grass catcher or
unclogging the chute.

A-8
Extra precautions on slopes
Slopes are a major factor related to loss-of-
control and tip-over accidents, which can result
in severe injury or death. All slopes require
extra caution. If you cannot back up the slope
or feel uneasy on it, do not mow it. See your authorized
dealer for wheel weights to improve stability.
• Mow up and down slopes, not across.
• Watch for holes, ruts or bumps. Uneven terrain could
overturn the unit. Tall grass can hide obstacles.
• Do not start or stop on a slope. If tires lose traction, dis-
engage the blades and proceed slowly down the slope.
• Use slow speeds so that you will not have to stop or shift
while on the slope. Do not make sudden changes in speed or
direction. Turn only when necessary, and then slowly and
gradually downhill, if possible.
(procedure continues)
10°Max.10°Max.

A-9
Extra precautions on slopes (continued)
• Use extra care with grass catchers or other attachments.
These can change the stability of
the unit.
• Do not mow near drop-offs, ditches or embankments. The
mower could suddenly turn over if a wheel goes over the
edge or if an edge caves in.
• Do not mow on wet grass. Reduced traction could cause
sliding.
• Do not try to stabilize the unit by putting your foot on the
ground.
10°Max.10°Max.

A-10
Safety system precautions
This unit is equipped with safety interlock switches and other
safety devices. These safety systems are present for your
safety. Do not attempt to bypass safety switches and never
tamper with safety devices. Check their proper operation
regularly.
Operational safety checks
Your tractor is equipped with a seat switch safety system.
Check the seat switch operation every fall and spring with the
safety tests contained further along in this manual.
If the unit does not pass a safety test, do not
operate it. See your authorized dealer. Under
no circumstance should you attempt to defeat
the purpose of the safety system.

A-11
Maintenance and service precautions
• Mower blades are sharp and can cut. Wrap the blades or
wear gloves, and use extra caution when servicing them.
• Never make adjustments or repairs with the engine running
unless specified otherwise in the engine manual.
• Grass catcher components are subject to wear, damage and
deterioration, which could expose moving parts or allow
objects to be thrown. Frequently check components and
replace with manufacturer’s recommended parts, when
necessary.
• Always comply with factory specifications on all settings
and adjustments.
• Use only factory authorized replacement parts when
making repairs.
• Only authorized service locations should be utilized for
major service and repairs.
• Never attempt to make major repairs on this unit unless you
have been properly trained. Improper service procedures can
result in hazardous operation, equipment damage and
voiding of manufacturer’s warranty.

A-12
Storage precautions
• Fuel vapor is toxic if inhaled, so never store the tractor in
any structure used for human or animal habitation.
• Never store the unit or fuel container inside where there is an
open flame or pilot light, such as near a water heater. Allow
unit to cool before storing.
• Always follow the engine manual instructions for storage
preparations before storing the unit — for either short term
or long term periods.
• Always follow the engine manual instructions for proper
start-up procedures when returning the unit to service.
Here is a checklist of things to remember when storing your
tractor temporarily or in between uses:
• Keep the tractor in an area away from where children may
come into contact with it.
• If there’s any chance of unauthorized use, remove the spark
plugs and put in a safe place. Be sure the spark plug open-
ings are protected from foreign objects with a suitable cover.
• If the tractor can’t be stored on a reasonably level surface,
chock the wheels.
