Simplified MFG TX1PRO User manual

TX1PRO
HDMI 2.0b (18Gbps) 4K HDR/DolbyVision®
HDBaseT Transmitter
VER 2.1

Thank you for purchasing this Device
The Simplified MFG TX1PRO was designed to provide years of reliable service.
At Simplified MFG we want your experience with this device to be the best
possible and are committed to helping achieve that experience. Please read
and keep this manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended to protect and extend the life of
your equipment. If connected to satellite or cable boxes, the HDSURGE is
recommended to prevent surges through the HDMI cable.
Table of Contents
1. Introduction. ............................................................................. 3
2. Features..................................................................................... 3
3. Package Contents. ..................................................................... 3
4. Specifications. ........................................................................... 4
5. Operation Controls and Functions. ............................................ 5
5.1 Transmitter Panel...……………………………………………………5
5.2 IR Pin Definition...…………………………………………………….6
6. Application Example. ................................................................. 7
7. Warranty and Contact Information……………………………………8
**Please use 568b protocol when terminating the category
cable.

3 / 8
1. Introduction
This TX1PRO 18Gbps HDMI Extender can extend HDR/Dolby Vision™
audio/video, RS-232, bi-directional IR, and the distance is up to 131ft /40m
and a 1080p signal up to 230ft (70m) between transmitter and receiver
(HDBaseT certified display) via a single CAT cable. It supports resolution up
to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. The TX1PRO was designed
specifically for use with HDBaseT enabled projectors.
2. Features
•HDBaseT certified for use with other HDBaseT devices
•HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
•Supports 18Gbps bandwidth
•40m (131ft) distance at HDMI 2.0b 4K/UHD
•70m (230ft) distance at 1080p
•HDR 8/10/10+ and Dolby Vision™ support
•Supports digital audio formats including Dolby+, Atmos, and DTS-X
•WCG (Wide Color Gamut) and HLG (Hybrid Log Gamma) support
3. Package Contents
Qty
Item
1
18Gbps HDMI over HDBaseT Extender (Transmitter)
1
IR Blaster cable (1.5 meters)
1
20~60KHz IR Receiver cable (1.5 meters)
2
Mounting Ears
1
3-pin Phoenix connectors
1
24V/1A Locking Power adapter
1
User Manual

4 / 8
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2 / HDCP 1.4
Video Bandwidth
18Gbps
Video Resolution
4K2K 50/60Hz 4:4:4/4:2:2/4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200
Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth
8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr
4:2:2/4:2:0)
8-bit (4K60Hz 4:4:4 )
HDMI Audio Formats
LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD,
Dolby+, Atmos, DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
ESD Protection
Human body model — ±8kV (Air-gap discharge) & ±4kV (Contact
discharge)
Connections
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
1x Service [Mini-USB, Update port] Outputs: 1x
HDBT Out [RJ45, 8-pin female
Control: 1x IR IN [3.5mm Stereo Mini-jack]
1x IR Out [3.5mm Stereo Mini-jack]
1x RS-232 [Phoenix jack]
Mechanical
Housing
Metal Enclosure
Color
Black

5 / 8
Dimensions
Transmitter
140mm/5.5” [W] x 65mm/2.56” [D] x 18mm/0.71” [H]
Weight
235g/8.3oz.
Power Supply Input: AC 100 - 240V 50/60Hz
Output: DC 24V/1A (Locking connector)
Power Consumption
5W Max
Operating Temp
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)
5. Operation Controls and Functions
5.1 Transmitter Panel
❽❸❷❹ ❶❺ ❻ ❼
No.
Name
Function/Description
1
HDMI In
HDMI input port form HDMI source. Examples are Cable/Sat, media
players or Blu-Ray player
2
HDBaseT Out
RJ45 Output for using Cat6/6a/7 cable to connect to RX
3
Category
Connection
LED Indicator
- Illuminated: The RX and TX are connected well
- Flashing: The connection is poor
- Off: The connection is not made
4
Data Signal
Connection
LED Indicator
- Illuminated: HDMI Signal is passing and has HDCP
- Flashing: HDMI Signal is passing and does not have HDCP
- Off: HDMI circuit is not complete for some reason (check HDMI cables)

6 / 8
5
IR In
Will send IR signals to RX if RX portion is equipped to receive them. IR
receiver is supplied
6
IR Out
IR TX (Flasher) connects here and outputs IR from RX IR input if
equipped
7
RS-232
3-Pin Phoenix connector for RS-232 pass-through. TX, ground, & RX are
indicated on the metal chassis
8
DC 24V
Power Supply connection

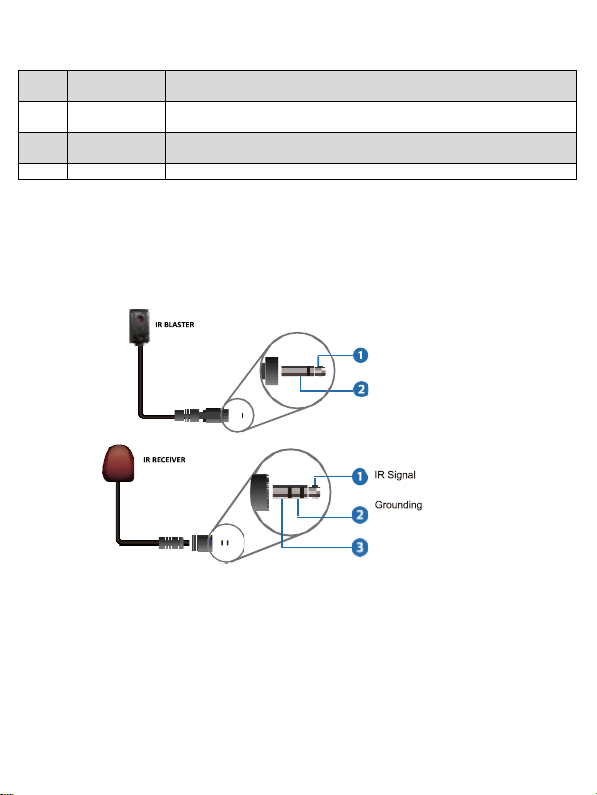

5.2 IR
Pin Definition
IR Receiver and Blaster pin’s definition is as below:
+
-
Power 12V

7 / 8
6. Application Example
The terms HDMI and HDMI High-Definition Multimedia interface, and the
HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.

8 / 8
7. Warranty and Contact Information
Should you feel that this product does not function adequately due to
defects in materials or workmanship, we (referred to as “the warrantor”)
will, for the length of the period indicated below (starting from the
original date of the purchase) either a) repair the product with new or
refurbished parts. Or b) Replace the product with new or refurbished
product. All Simplified MFG products are covered by a 3-year warranty.
During this period there will be no charge for unit repair, replacement of
unit components or replacement of the product if deemed necessary.
The decision to repair or replace is made by the warrantor. The
purchaser must mail in the product during the warranty period. This
limited warranty only covers the product purchased as new and is
extended to the original purchaser only. It is non-transferrable to
subsequent owners, even during the warranty period. A purchase receipt
or other proof of purchase date is required for the limited warranty
service.
Sales and Tech Support
P. 833-HDMI-411 (833-436-4411)
E. [e-mail]
Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa AZ 85210
© Copyright Simplified MFG 2023
