Abus Security Center TV8780 User manual

Radio-Transmission Set
Installation instructions
TV8780

5
1. Preface
Thank you for purchasing this radio transmission set. This product was
designed and built using state-of-the-art technology, which complies
with the current standards of domestic and European regulations.
The CE has been proven and all related certifications are available from
the manufacturer upon request. To maintain this status and to
guarantee safe operation, it is your obligation to observe these
operating instructions.
2. Features
- Transmission of video and audio signals
- 4 radio channels selectable
3. connections at transmitter and receiver
Transmitter and receiver are marked at the bottom side of each device.
Attention: To avoid demage of the transmitter please
plug the antenna of the transmitter before you plug in the
power supply.
1 – right audio input/
output (red)
2 – left audio input/
output (white)
3 – video input / output
(yellow)
4 – channel selector
5 – status LED
6 – antenna connector
7 – power supply
7

6

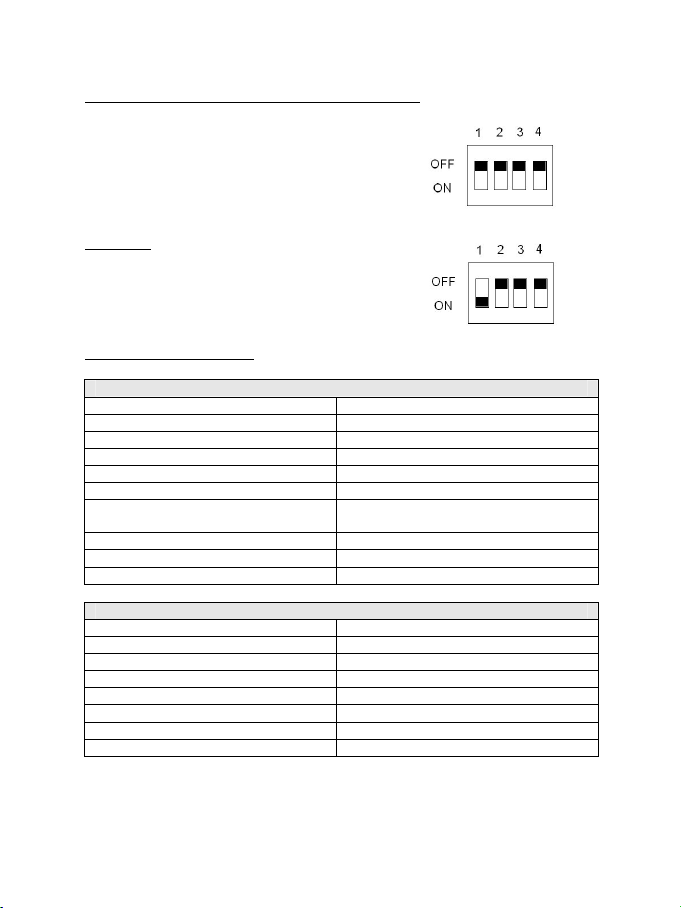

4. Channel selection at transmitter and receiver
Please set one DIP switch to “ON” then the
desired channel will be activated.
The channel settings of transmitter and
receiver must be the same.
Example:
The following example shows the
activation of channel 1 for transmitter and
receiver.
Technical specifications
Transmitter
Video input signal 1Vss
Audio input signal 1Vss
Modulation type FM
Output power 10 mW
Output impedanz 50 Ohm / SMA connector
Antenna 3 dBi omni-directional
Frequency (channels) CH1: 2414 MHz, CH2: 2432 MHz,
CH3: 2450 MHz, CH4: 2468 MHz
Temperature -10 bis 50°C
Voltage/Current 9 VDC @ 300 mA
Dimensions LxWxH (mm) 110x92x30
Receiver
Video output signal 1Vss
Video frequency range 50 Hz – 5.5 MHz
Audio output signal 3Vss
Audio frequency range 50 Hz – 15 kHz (-3 dB Bandbreite)
Antennas 3 dBi, 5 dBi
Temperature -10 bis 50°C
Voltage/Current 9 VDC @ 300 mA
Dimensions LxWxH (mm) 110x92x30
