INSTALLATION MANUAL

SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 2 |
SimpliPhi’s battery technology utilizes the industry’s most
environmentally benign chemistry combined with proprietary
architecture and power electronics (BMS) that eliminate the
need for cooling or ventilation to create products that provide
energy security and resiliency.
SimpliPhi Your
Power Security and
Independence
and gain control of your own power.
SimpliPhi helps you manage your power as a personal resource.
Anytime. Anywhere. SimpliPhi energy storage optimizes
integration of renewable power with the grid and protects your
home and mission-critical business functions from
power outages
and intermittency. SimpliPhi storage technology eliminates
operating temperature constraints, toxic coolants and the risk of
thermal runaway and fire.
SimpliPhi Power offers proprietary, commercially available
energy storage and management systems that are safe, non-
toxic, reliable, durable, efficient, highly scalable, and economical
over the lifetime of the PHI 3.5 Battery.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 3 |
Table of Contents
Section 1.0 – PHI 3.5 Battery Safety Protocol…………………….……………………...................
4
1.1 – Safety & Protective Features……......................................................................................
4
1.1.1 – 80A Breaker
1.1.2 – Charging at Temperatures Below Freezing
1.1.3 – Battery Management System (BMS)
1.1.4 – PHI 3.5 Battery Connection Terminals
1.2 – Battery Performance Parameters and Sizing Calculations ……........................................
6
Section 2.0 – Installation Procedure and Diagrams……………………………............................
7
2.1 – System Sizing for Your Installation………………………………………...............................
7
2.2 – System Configuration – Basic Concepts ………….............................................................
7
2.2.1 – System Wiring Basics
2.2.2 – Increasing Storage Capacity & Simple Parallel Arrangements
2.3 – Torque Values…………………………………….….............................................................
9
2.4 – Mounting Hardware……………………………..…………………………….……...................
9
2.5 – Battery Weight……………………………….…..…...............................................................
10
2.6 – Battery Wall Mount + Bracket Dimensions………….……..................................................
10
Section 3.0 – PHI 3.5 Battery Wiring Methods …………….…......................................................
13
3.1 – Connecting Cable Leads to the PHI 3.5 Batteries …………..............................................
13
3.1.1 – Considerations for Power Cable Terminals
3.1.2 – Protection from the Environment
3.2 – Final Connection of the Installation….................................................................................
13
Section 4.0 – Operating Parameters Per Warranty ………………………………………...............
14
Section 5.0 – PHI 3.5 Battery Safety & Green Attributes, Certifications...................................
15
5.1 – Safety Attributes and Certifications…………………….......................................................
15
5.1.1 – Intrinsically Safe Operation & Installation
5.1.2 – No Safety Hazards due to Off-Gassing, Acids, Thermal Runaway
5.1.3 – PHI 3.5 Battery Control and Protective Circuitry
5.1.4 – UN DOT Certified Cells
5.1.5 – UL Compliance
5.1.6 – RoHS Compliant
5.2 – Green Attributes, Environmental and Ecological Considerations.…………………….........
16
5.2.1 – Materials
5.2.2 – Byproducts
5.2.3 – Operation
5.2.4 – Life Cycle
5.2.5 – Disposal
5.2.6 – Lithium Ferrous Phosphate Batteries and the Environment
Section 6.0 – SimpliPhi Technical Support..................................................................................
17
Appendix A – Materials Safety Data Sheet...................................................................................
18
A.1 – Product Identification
A.2 – Composition and Ingredient Information
A.3 – Hazards Identification
A.4 – First Aid Measures
A.5 – Firefighting Measures

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 4 |
Section 1.0 – PHI 3.5 Battery Safety Protocol
Section 1.1 – Safety & Protective Features
1.1.1 – 80A Breaker
All PHI 3.5 Batteries are outfitted with an 80A hydraulic/magnetic circuit breaker which will show a
white base when tripped. This breaker increases safety during shipping and installations and
allows the battery to effectively be turned “off” or “on.” The breaker works in conjunction with the
built-in battery management system (BMS) and creates additional safety, efficiency and
functionality to the overall power storage system.

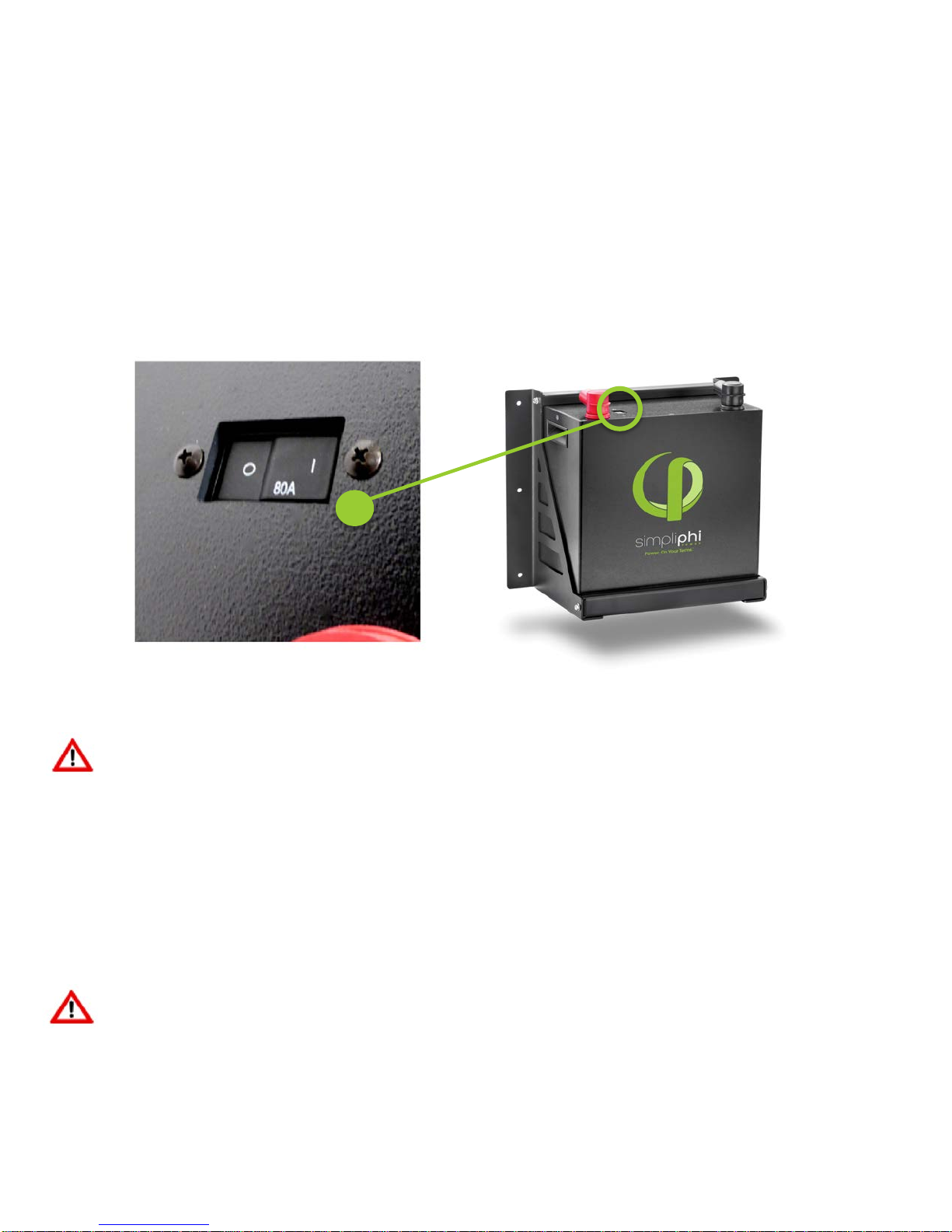

Figure 1.0 - PHI 3.5 80A Circuit Breaker
CAUTION: Circuit Breakers, Disconnects and Fuses should be employed throughout several points of a
power storage and generation installation to effectively isolate and protect all components of the system
to safeguard against faults, short circuits, polarity reversals or a failure of any component in the overall
system. Fuses, breakers, wiring ratings and values should be determined by established standards and
evaluated by certified electricians, licensed installers, and regional code authorities. Although each PHI
3.5 Battery contains both an 80 Amp circuit breaker and an internal BMS with circuitry that protects the
Lithium Ferrous Phosphate cells from overcharge, over-discharge and excessive load amperage, the PHI
3.5 Batteries must always be installed with a charge controller and the appropriate settings to protect the
PHI 3.5 from open PV voltage and other high voltage charging sources. The PHI 3.5 Battery Management
System (BMS) and internal circuit breaker alone will not protect the PHI batteries from these extreme
electrical phenomena. Failure to adhere to installation protocol will void the Warranty.
CAUTION: Verify polarity at all connections with a standard volt meter before 1) energizing the system
and 2) turning the PHI 3.5 80 Amp breaker “ON/OFF” switch to the “ON” position. Reverse polarity at the
battery terminals will void the Warranty and destroy the batteries.
PHI 3.5 Batteries pose some risk of shock or sparking during the installation and initial wiring and
connection process. This is consistent with all other battery-based storage formats. Be sure to turn the
built-in 80 Amp breaker to the “OFF” position to minimalize the risk of shock or sparks during the

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 5 |
installation and commissioning of the system. Use of insulated gloves, clothing and footwear is always
recommended when working in close proximity to electrical devices. Cover, restrain or remove jewelry or
conductive objects (metal bracelets, rings, belt buckles, metal snaps, zippers, etc.) when working with any
electrical or mechanical device. Cover or restrain long hair and loose clothing when working with any
electrical or mechanical device.
PHI 3.5 Batteries do not vent any harmful gasses, and do not require special ventilation or cooling.
PHI 3.5 Batteries are not capable of thermal runaway. If the cells are severely damaged due to physical
abuse incurred outside of warranted specifications, which can cause electrolyte leakage and other
failures, as with any battery, the electrolyte can be ignited by an open flame. However, unlike other lithium
ion batteries (LCO) there are no hazardous or toxic materials in the electrolyte or the material
components of PHI 3.5 Batteries. See MSDS for chemical analyses (Appendix A).
1.1.2 – Charging at Temperatures Below Freezing
It is important to take necessary steps to determine the temperature of the battery prior to
charging the battery, as the battery may otherwise be adversely impacted.
CAUTION:Do not attempt to charge the battery below 32 F (0 degrees C). Although cold temperatures
do not harm PHI batteries, attempts to charge at subfreezing temperatures can adversely affect SOH and
cycle life, and will void the Warranty. If the battery must be charged below 32 F (0 degrees C), the rate of
charge must be at no more than 5% of the battery’s rated capacity (C/20).
CAUTION:Only use a SimpliPhi approved LFP charger if ancillary charging is required before installation,
testing or troubleshooting. Failure to use a SimpliPhi approved LFP charger will damage the battery and
void the warranty.
1.1.3 – Battery Management System (BMS)
PHI 3.5 Batteries are manufactured utilizing Lithium Ferrous Phosphate (LFP) cells, which are
produced under exclusive patented licensed technologies, as well as proprietary materials,
architecture, assembly methods and battery management system (BMS). This assures the
highest grade and quality, longest cycle-life, greatest efficiency and freedom from material
impurities, toxicity and hazardous risk.
Each PHI 3.5 Battery contains circuitry that protects the Lithium Ferrous Phosphate cells from
overcharge, over-discharge and excessive load amperage. If the values specified are exceeded,
the protective circuitry will shut down the flow of electricity to/from the PHI 3.5 Batteries. In some
cases, this will result in the need to re-initialize an inverter charger. Often, inverter system
settings will be saved within the inverter memory storage and will not need to be reset. This is not
an absolute standard but is common amongst most inverter chargers and should be anticipated if
the PHI 3.5 Batteries go into a state of self-protection and shut down the flow of electricity.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 6 |
1.1.4 – PHI 3.5 Battery Connection Terminals
The PHI 3.5 Batteries are equipped with two 3/8’’ threaded studs with a lock washer and nut. The
red colored high temperature molded insert connection is for the positive lead. The black colored
high temperature insert connection is for the negative lead.
CAUTION: Do not attempt to loosen the large brass nut at the base of the terminals.
CAUTION: Do not reverse polarity. It will void the warranty. Use a volt meter to check polarity before connecting
terminals.
Water Resistant Cable Boots are also included and will be in place when your units arrive. The
boots are to be placed over the cable terminations and will stretch to form a water-resistant seal
around the base of the molded inserts and terminal connections.
Section 1.2 – Battery Performance Parameters and Sizing
Calculations
PHI 3.5 Batteries are designed to operate at a continuous C/2 rate across a large operating temperature
range. As long as the batteries are kept within this range during operation, then there is no need to de-
rate performance or increase sizing to compensate for the temperature. When used as recommended, no
increase in sizing, no special compensations or insulation needs to be considered when determining the
size of the energy storage and management system. See specific inverter manufacturer program settings
for optimizing system integration.
Table 1.0 - PHI 3.5 Specifications
Notes:
1. Max operating conditions. Refer to "Guide for Operating Parameters per Warranty" section.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 7 |
2. Specifications are typical/nominal.
3. Subject to change without notice.
4. There is less than 1% loss of energy during charging.
PHI 3.5 Batteries do not need to be de-rated unless running continuously at more than 90% capacity, at
temperatures below 0 degrees Celsius, or above 49 degrees Celsius. To achieve higher, warrantied cycles
of 10,000+, please refer to operating temperatures and inverter settings in operating parameters per
warranty section. Further details are available on request from SimpliPhi Power.
Section 2.0 – Installation Procedure and Diagrams
This section covers system sizing for your installation, basic concepts of system configuration and
increasing storage capacity by wiring in parallel. It also provides sample installation diagrams as well as
mounting hardware and weight as well as torque value information.
Section 2.1 – System Sizing for Your Installation
The number of PHI 3.5 Batteries should be specified in terms of total storage capacity before the initial
installation based on the goals and objectives of the project. All PHI 3.5 Batteries are balanced during
final production and testing stages. Following proper wiring guidelines ensures that a system will not
require any manual balancing processes.
CAUTION: Do not combine PHI 3.5 Batteries with other brands or chemistries.
CAUTION: Do not mix PHI 3.5 Batteries from different installations, clients or job sites.
Section 2.2 – System Configuration – Basic Concepts
Safe and reliable installation requires trained and certified technicians. The following discussion of PHI
Battery configurations is a basic primer. Due to the variety of systems and components in the field, all
possible scenarios are not covered. This is not the purpose of this section of the manual. Refer to
professional installers regarding your system and its components and specifications. We encourage you or
your installer to contact us with any specific questions for technical support. We are committed to working
with you and your installation team to achieve a safe, reliable storage system that will provide years of
maintenance free service.
CAUTION: PHI 3.5 Batteries are designed for parallel operation only – do not arrange in series for increased
voltage.

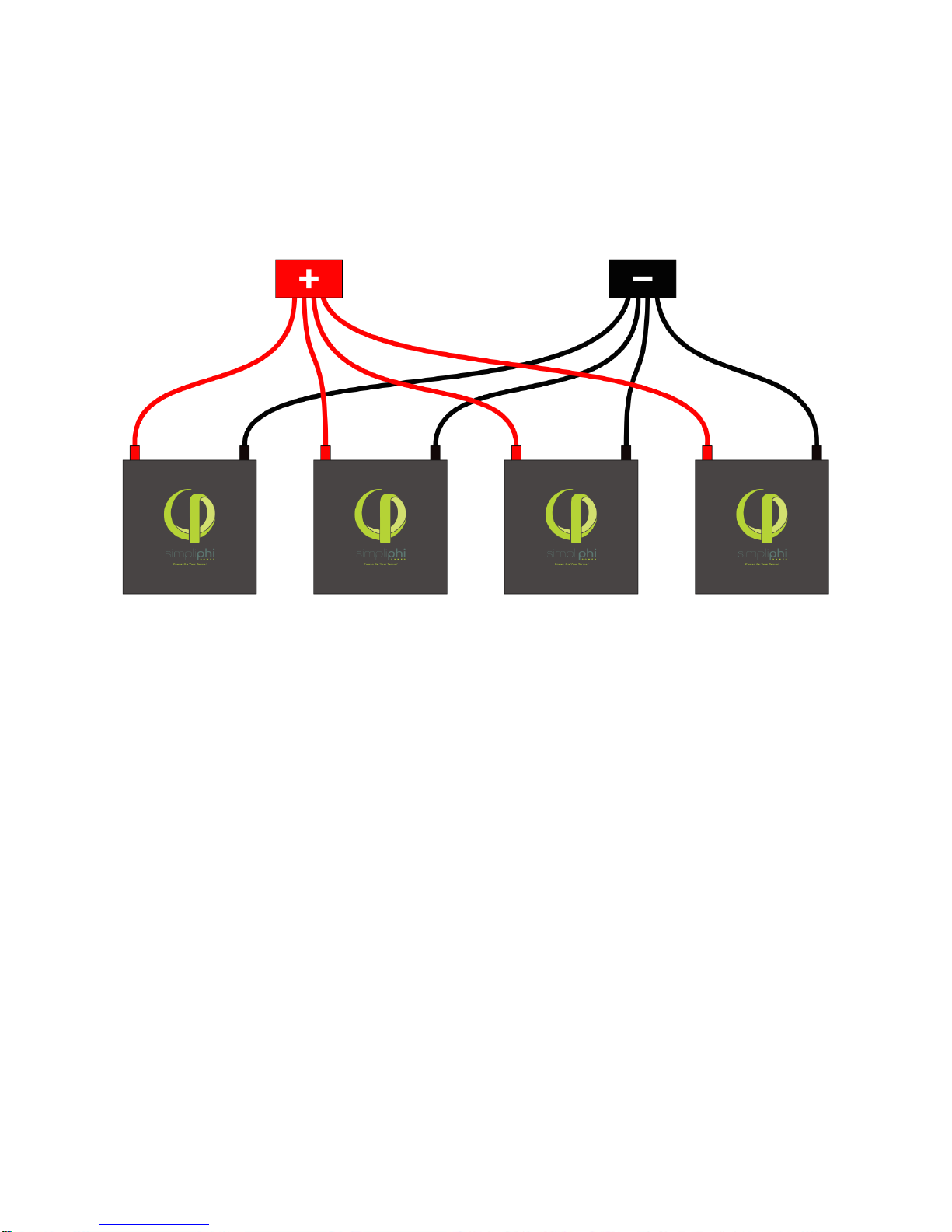

2.2.1 – System Wiring Basics
Refer to published electrical wiring specifications and ratings. All wire should be an appropriate
gauge and construction to handle the loads that will be placed upon it. Heavy gauge, high strand
copper wire is the industry standard due to its stability, efficiency and overall quality. A qualified
installer should understand this and must adhere to the industry standard and published electrical
guidelines.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 8 |
For all installations:
•Maintain identical wire lengths from each PHI 3.5 Battery terminal to the common bus.
•Use identical wire construction from each PHI 3.5 Battery terminal to the common bus.
All PHI 3.5 Batteries are designed to serve at a fixed voltage range in parallel arrangements for
maximum available amperage and storage capacity. PHI 3.5 Batteries are not designed to be
arranged in series for increased voltage. Series arrangements can result in damage to the
Battery’s protective circuitry and will void the Warranty.
2.2.2 – Increasing Storage Capacity & Simple Parallel
Arrangements
Storage Capacity and total available Amperage is increased incrementally with the number of
units in Parallel arrangements. The following illustration shows two PHI 3.5 Batteries in Parallel.
For example, assume that these are 24V Batteries.
Note the overall Voltage range is not changed. The arrangement remains at 24 Volts, the
available AH capacity (ability to provide 24 Volt power over time) has also been doubled with the
addition of a 2nd battery. The available amperage from the system has been doubled. The same
configuration should be applied to other parallel arrangements, whether they are 24V or 48V. See
Figure 1.3.
CAUTION: PHI 3.5 Batteries are designed for parallel operation only. Do not arrange in series for increased
voltage. Wiring in series will void warranty.
Figure 2.0 – Two PHI 3.5 Batteries in Parallel
Figure 2.0 represents two PHI 3.5 Batteries in Parallel. Wire lengths from PHI Batteries should be
identical in length and gauge in order to balance the load across (all) PHI Batteries in the
installation. Identical wiring length is a critical feature of parallel power storage systems
that must be adhered to throughout all parallel wiring instructions.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 9 |
Special attention should be paid for parallel installations. Correct wiring is essential to insure
optimum performance and system longevity. All wire “runs” should utilize identical wiring gauge
and identical wire lengths between PHI 3.5 Batteries and the common negative or positive
“Bus” or Load. Figure 3.0 depicts four PHI 3.5 Batteries that have been wired in Parallel. This
configuration requires 8 identical lengths of appropriately heavy gauge copper wire.
Figure 3.0 - Four PHI 3.5 Batteries in Parallel
Helpful Tips:
•Use identical length and gauge wire to balance the load across the batteries.
•Determine the cable length for the battery terminal farthest from the bus.
•Make all Battery cables a matching length.
•Additional cabling or slack that remains with the shorter distance runs can be coiled
and secured with Zip Ties.
Wiring Methods:
1. For 1 to 8 units: Wire directly to inverter & charge controller equipment.
2. For 6 to 20 units: Use a DC combiner or panelboard.
3. For 20+ units: Connect the battery terminals directly to a common bus.
Section 2.3 – Torque Values
For the DC terminals on the PHI 3.5, torque bolts to 160-in lbs (13.3 ft-lb).
Section 2.4 – Mounting Hardware
The SimpliPhi Power Mounting Brackets (sold separately) are designed to secure one PHI 3.5 Battery to
a load bearing surface. SimpliPhi Power Batteries can be mounted in practically any orientation
(Terminals Up or on any Side), with no impact to the performance of the battery. Do not install them
upside down. The brackets can be mounted directly to a wall or can be arranged on strut channels for

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 10 |
ease of positioning (mounting hardware not included). A qualified installer should be familiar with
accomplishing this with the appropriate load bearing requirements.
For ease of measuring, arranging and mounting your PHI Battery array, a drawing of the PHI 3.5
Mounting Brackets with dimensions is provided (Figure 4.0).
During mechanical testing, individual PHI 3.5 Mounting Brackets were exposed to 200 pounds each of
downward pressure along the bracket’s outer edge. During this test, a deflection of approximately 30
thousandths of an inch was measured. Combined bracket sets can easily bear weights in excess of 400
pounds. Bracket sets are designed to hold one PHI 3.5 Module, with a weight of 77.5 pounds.
Section 2.5 – Battery Weight
PHI 3.5 Batteries weigh 77.5 pounds. The Wall Mount Bracket Assemblies weigh 8 Pounds. The
SimpliPhi Power Mounting Brackets should be mounted into load bearing beams, studs or solid materials
with appropriate fasteners. SimpliPhi Power is not liable for damage caused by inappropriate installation
mounting of brackets.
Section 2.6 – Battery Wall Mount + Bracket Dimensions
Table 2.0 –Specifications: Battery vs Battery W/ Mounting Bracket
PHI 3.5 Battery
PHI 3.5 Battery
w/ Mounting Bracket
Width 13.5’’ 13.7”
Height 15.5’’ (including 1.5” terminal height)15.5” (including 1.5” terminal height)
Depth 8” 9.16”
Weight 77.5 Pounds 85.5 pounds

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 11 |

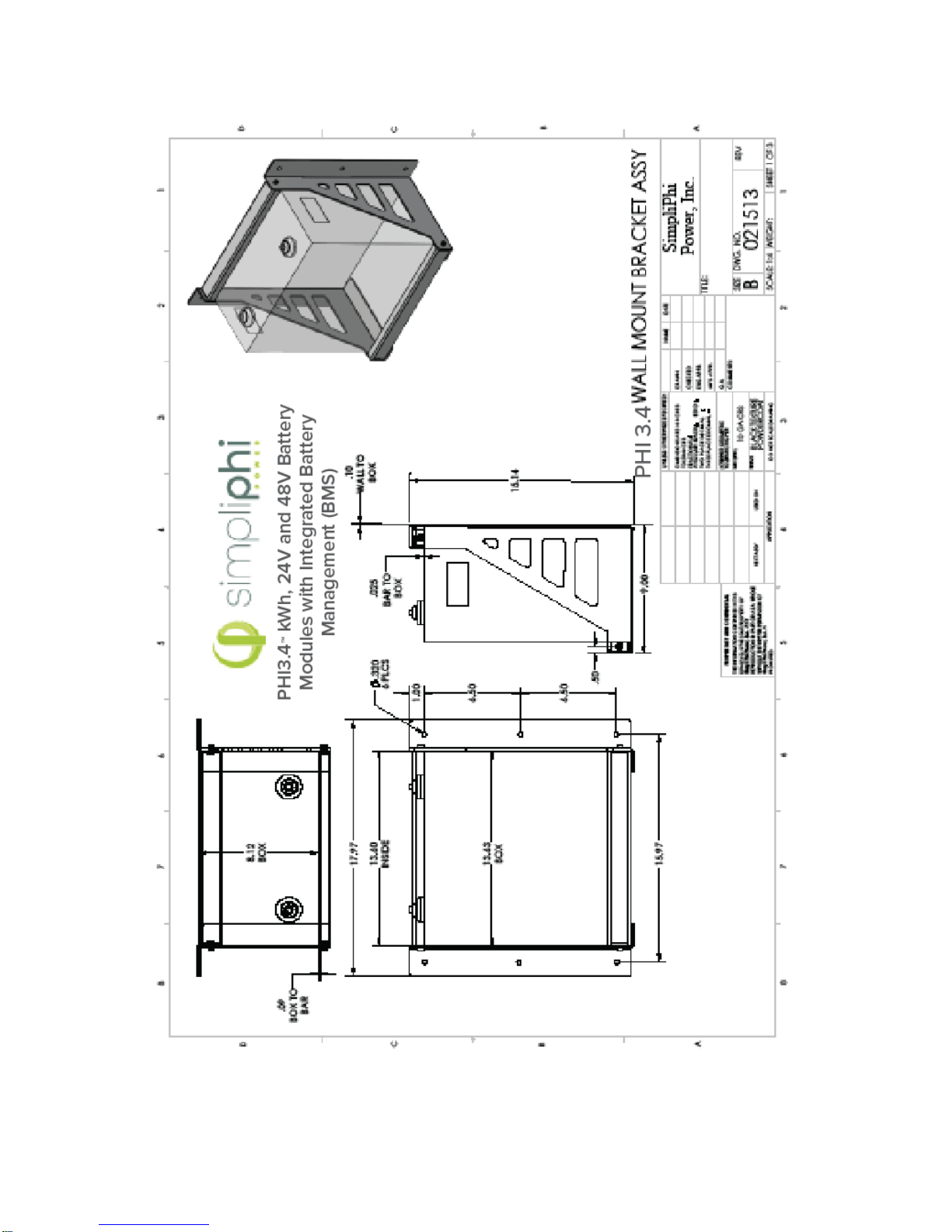

Figure 4.0 – Mounting Bracket Assembly

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 12 |
Section 3.0 – PHI 3.5 Battery Wiring Methods
Section 3.1 – Connecting Cable Leads to the PHI 3.5 Batteries
Before connecting the cable leads to the PHI 3.5 battery, please be aware of the following information
concerning power cabling, considerations for power cable terminations as well as installation
environments.
CAUTION: Spark may be present when connecting wires to PHI 3.5 terminals.
CAUTION: Do not reverse polarity. It will void the warranty. Use a volt meter to check polarity before connecting
terminals.
A brief small spark is often present when connecting the second of two leads to a battery. Example: If the
Positive has been connected, a small spark will likely be present when connecting the Negative lead.
This is a normal occurrence. Complete all connections in a clean, ventilated, well-lit area. To avoid any
spark or electrical event when connecting the terminal leads on the PHI 3.5 Battery, turn the 80 Amp
breaker “ON/OFF” switch to “OFF” position.
Power Cabling for the PHI 3.5 Battery is not included. Your qualified installer or application
specifications will determine the wire gauge for your system. Connection to the battery terminal should
only be made using appropriately sized ring terminals for your battery cables.
High amperage rated ring terminals can be found for these and other common wire gauges. Your
installer can source these.
3.1.1 – Considerations for Power Cable Terminations
Please factor in the below information for power cable terminations:
•PHI 3.5 Battery Mounting Stud Size: 3/8’’
•Power Cable Wire Gauge: Generally anywhere from 6 AWG to 2/0 AWG or larger
3.1.2 – Protection from the Environment
Anticorrosive compounds or epoxies are occasionally used in harsh or marine climate
installations. Please contact your Electrician or Qualified Installer to determine if this is advisable,
and if so, what solution best suits your application.
Section 3.2 – Final Connection of the Installation
Final installation and operation guidelines will be dictated by your Electrician and Installer based on the
overall properties of and procedures for the equipment in your installation and any code requirements that
apply to your region. SimpliPhi Power, Inc. technicians and sales staff are available to provide any
additional information on the PHI 3.5 Battery as needed. Please contact SimpliPhi Power for any
technical support at your convenience. SimpliPhi Power, Inc. is committed to providing safe, reliable
energy storage and management that is maintenance free, non-toxic and long-lasting. This commitment
extends to our customers, valued installers, partners, and to the community at large. Please be aware of
the potential electrical hazards before interacting with any and all electrical or mechanical devices. Please
take all necessary precautions in your projects and installations. Please refer to page 4 for safety
guidelines.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 13 |
PHI Batteries feature a Low Battery Voltage Cut Off (LBCO). This is a self-protection mechanism that
prevents over discharge. The LBCO will cause the battery to turn off once batteries approach Zero
Capacity or 100% Depth of Discharge.
Most, if not all, inverters have related features. These features are often referred to as “Load Disconnect”,
“Load Shedding” or similar. These features are there to protect the battery bank from excessive
discharge. In instances of low battery voltage, when there is no incoming energy to recharge the battery
bank, the inverter will disconnect the load and remain in standby until the battery bank is recharged.
For Off Grid installations, where charge energy is only provided by PV arrays, Inverter “Load Disconnects”
are generally set at a value that will allow a system to remain online and in standby for at least 24 hours
(10% at top of charge and 10% at bottom of charge). This allows a system to stay online until at least one
full day of sun can recharge the battery bank.
In any application, off-grid or grid-tied, if your PHI 3.5 battery bank is reaching the LBCO, load
disconnects or load shedding set points may need to be adjusted. Refer to (Operating Parameters per
Warranty).
In case of LBCO, cycle the DC Battery Disconnect (inverter), in order to reset the system. Only complete
this procedure when there is a charge source available, otherwise, the system will simply reach LBCO in
a short time period and shut down again.
Section 4.0 – Operating Parameters Per Warranty
Although SimpliPhi batteries are capable of performing at very high rates and depths of discharge within a
very wide temperature range, in order to achieve extended life cycles and to comply with the Warranty,
the Warranty conditions the recommended operating parameters, indicated in Tables 3.0 and 4.0 below,
must be adhered to.
Table 3.0 – Warranty Operation Parameters
Recommended Operating Conditions for 10 Year Warranty
Equivalent to 80% Retained
Capacity
10,000 cycles
5,000 cycles
3,500 cycles
Discharge/Charge Rate1,2
C/2
DoD4
80%
90%
100%
Operating Temperature °F (°C)
32 to 110 (0 to 43)
32 to 120 (0 to 49)
32 to 120 (0 to 49)
Programming Settings for
Ancillary Equipment
24V
48V
24V
48V
24V
48V
Absorb / High Cut-Off Voltage
(V)
3
28
56
28.8
57.6
28.8
57.6
Recharge / Low Cut-Off
Voltage (V)
3
25.1
50.2
24.8
49.6
24
48

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 14 |
Table 4.0 – Operating Limitations
Notes / Operating Limitations for
PHI 3.5 Batteries
1 Limitations by Model
24V 48V
Continuous Discharge Rate (A)
60 34
Continuous Charge Rate (A)
45 34
2 60A Discharge/Charge Rate (10 minutes maximum)
3 Levels are typically @ 25°C and may need adjusting at temperature extremes.
4 When performing rapid deep charge/discharge cycles, the battery should be allowed to "rest" 15 mins in between.
CAUTION: Verify polarity at all connections before energizing system. Reverse polarity at the battery terminals
will void the Warranty and destroy the batteries.
CAUTION: Before commissioning the system the appropriate controller and inverter settings must be
programmed per the manufacturer’s recommendations. Consult the manufacturer’s manuals and/or
access technical support (Schneider, SMA, Magnum, Outback, etc.). The following Charge Controller
Integration tables are for general reference only.
CAUTION: All SimpliPhi Power products are designed to work exclusively in parallel. Never connect in
series to achieve higher voltages.
Section 5.0 – PHI 3.5 Battery Safety & Green
Attributes, Certifications
This section covers the PHI 3.5 battery safety attributes and certifications, such as the lack of thermal
runaway and off-gassing, UN DOT certification and UL compliance. It also covers the PHI 3.5 battery’s
green attributes – from products to materials to disposal, as well as relevant environmental and ecological
considerations.
Section 5.1 – Safety Attributes and Certifications
5.1.1 – Intrinsically Safe Operation and Installation
The PHI Lithium Ferrous Phosphate (LFP) battery cell component is made with an intrinsically
safe cathode material (iron phosphate). This creates a strong molecular bond, which withstands
extreme conditions, prolongs cycle life, and maintains integrity with little or no maintenance over
extended periods of time. There is virtually no danger of Thermal Runaway, as there may be with
Lead Acid, NiCd, and Lithium Cobalt type batteries. No venting or cooling is required. No
precautions or special structural considerations are necessary when installing PHI 3.5 Batteries.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 15 |
5.1.2 – No Safety Hazards due to Off-Gassing,
Acids, Thermal Runaway
PHI 3.5 Batteries do not vent dangerous gasses, such as hydrogen and oxygen, because there
are no chemicals used in the creation of the electrical energy, in contrast to Lead Acid and other
battery chemistries. There are no dangers of exposure to sulfuric acid because PHI 3.5 Batteries
do not have caustic electrolytes. Thermal runaway is not an issue with PHI products due to the
basic nature of Lithium Ferro Phosphate cell chemistry utilized in all our power storage products.
5.1.3 – PHI 3.5 Battery Control and Protective Circuitry
SimpliPhi Power Inc. utilizes balancing, voltage regulation, thermal, current controls, as well as
other protective measures, in its PHI 3.5 Battery Management System (BMS). This protective
circuitry is embedded in the architecture of each PHI 3.5 Battery.
5.1.4 – UN DOT Certified Cells
The Lithium Ferrous Phosphate (LFP) cells are independently certified to withstand the UN DOT
T1-T8 testing guidelines with no special circuitry added. These tests include short circuit, over-
voltage, overcharging, extreme temperature, high altitudes, shock and extreme vibration testing.
5.1.5 – UL Compliance
The Lithium Ferrous Phosphate cells within the PHI 3.5 Batteries fully comply with the safety
testing parameters of UL 1642.
5.1.5 – RoHS Compliant
SimpliPhi Power Batteries are RoHS compliant. Any RoHS compliant component is tested for the
presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr),
Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). For Cadmium and
Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw
homogeneous materials levels. For Lead, PBB, and PBDE, there must be no more than 0.1% of
the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant
component must have 100 ppm or less of mercury and the mercury must not have been
intentionally added to the component. In the EU, some military and medical equipment are
exempt from RoHS compliance.
Section 5.2 – Green Attributes, Environmental and Ecological
Considerations
5.2.1 – Materials
The primary materials (lithium, iron, phosphate) that make up PHI 3.5 Batteries are
environmentally benign and pose very few polluting or environmentally degrading by-products in
the harvesting and refinement processes. This is especially true when compared to those of lead
acid, NiCad, and NiMH batteries.
5.2.2 – By Products
There are no toxic by-products associated with the assembly or use of PHI 3.5 Batteries, such as
off-gassing hydrogen, sulfuric acid spillage, lead contamination, or explosive chemicals.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 16 |
5.2.3 – Operation
There is no need for maintenance, such as adding water or chemicals, nor is there corrosion of
terminals or containment facilities, or dispersion of fumes as with other battery types. Once
installed, PHI 3.5 Batteries are maintenance free.
5.2.4 – Life Cycles
PHI 3.5 Batteries are designed for thousands of cycles while maintaining 80 percent or more of
their initial capacity. To achieve this, it is critical to follow the operating conditions outlined in the
warranty.
5.2.5 – Disposal
PHI products are non-hazardous, may be disposed of without damage to the ecosystem, and
returned to the earth, while easily recombining with the elements without harmful by-products.
The outer casing and brackets contain steel, aluminum, copper, cardboard, and recyclable
plastic. Lithium Ferrous Phosphate (LFP) materials can also be recycled through established
battery centers if desired.
5.2.6 – Lithium Ferrous Phosphate Batteries and the
Environment
As the use of this battery chemistry in larger batteries becomes more common, questions of
sustainability and environmental impact inevitably arise. Of the lithium ferrous phosphate
chemistries being considered for large format batteries, SimpliPhi Power believes that batteries
based on our proprietary lithium ferrous phosphate chemistry and circuitry offer a clear
advantage, not only over alternate Li-ion chemistries (lithium cobalt oxide), but all battery
chemistries that are currently commercially available. This belief is based on the minimal
environmental impact associated with the manufacturing of PHI 3.5 Batteries, the extended cycle
life and the significantly smaller end-of-life footprint that results from the use of PHI 3.5 Batteries.
Section 5.3 – Summary
The Lithium Ferrous Phosphate (LFP) cells utilized throughout the entire PHI and LibertyPak product
lines are classified as non-hazardous by OSHA and WHMIS. They are non-toxic, unlike NiMH, NiCad or
Lead Acid types of batteries (including AGM). The PHI 3.5 Batteries contain the least amount of toxic
metals, and are the most eco-friendly of all common battery types. Lithium easily combines into harmless
compounds when disposed of. The PHI 3.5 Batteries are the least polluting rechargeable batteries on the
market today – no fumes, leaking, or gas discharge and no chemicals or acids to worry about.
Designed and Assembled in the USA Using Exclusive American Patented Technologies.
Section 6.0 – SimpliPhi Technical Support
For technical support related to your PHI 3.5 Battery, please contact us as follows:
805.640.1874
[email protected]

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 17 |
Appendix A – Material Safety Data Sheet
A.1 – Product Identification
Product Name: Electronically Managed Energy Storage Device (Battery)
Models: PHI 2.6, PHI 3.5
Product Use: Electric Power Supply - Harmony Code #8504.40.9540, Foreign Trade Schedule B
Manufacturer: SimpliPhi Power, Inc., Ojai Ca. U.S.A. 805 640 6700
A.2 – Composition and Ingredient Information
Under normal use, this battery does not expose the user to hazardous ingredients.
USA: This battery is an article pursuant to 29 CFR 1910.1200 and, as such, is not subject to the OSHA
Hazard Communication Standard Requirement.
The information contained in this Material Safety Data Sheet contains valuable information critical to the
safe handling and proper use of the product. This MSDS should be retained and available for employees
and other users of this product.
Canada: This is not a controlled product under WHMIS. This product meets the definition of a
“Manufactured Article” and is not subject to the regulations of the Hazardous Products Act.
A.3 – Hazards Identification
Common Chemical Name CAS # Percent of
Content (%) Classification & Hazard Labeling
Lithium Ferrous Phosphate (LiFePo4)
15365-14-7
25-35
Eye, Skin, Respiratory
Irritant
Carbon, as Graphite
7440-44-0
12-18
Eye, Skin, Respiratory
Irritant
Aluminum Metal
7429-90-5
3-7
Inert
Copper Metal
7440-50-8
5-9
Inert
Electrolyte
12-17
Mixture:
Ethylene Carbonate
96-49-1
Flammable; Reactive;
Sensitizer
Dimethyl Carbonate
616-38-6
Eye, Skin, Respiratory
Irritant
Ethyl Methyl
Carbonate
623-53-0
Lithium
Hexafluorophosphate
21324-40-3
Table 5.0
Preparation Hazards and Classification: Not dangerous with normal use. The battery should not be
disassembled or incinerated. Exposure to the ingredients contained within or their combustion products
could be harmful.
Appearance, Color, and Odor: Solid object, no odor.
Primary Route(s) of Exposure: Risk of exposure will only occur if the battery or cell is mechanically,
thermally or electrically abused and the enclosure is compromised. If this occurs, exposure to electrolyte
solutions contained within the battery or cell may occur by inhalation, eye contact, skin contact
and ingestion.

REV0209
18
SimpliPhi Power, Inc. | 420 Bryant Circle | Ojai, CA 93023, USA | [phone] | [e-mail] | SimpliPhiPower.com
| 18 |
Potential Health Effects:
Inhalation: Inhalation of material from a sealed battery is not an expected route of exposure. Vapors or
mists from a ruptured battery may cause respiratory irritation.
Ingestion: Swallowing of material from a sealed battery is not an expected route of exposure. Swallowing
mists from a ruptured battery may cause respiratory irritation, chemical burns of the mouth and
gastrointestinal tract irritation.
Skin: Contact between the battery and skin will not cause any harm. Skin contact with positive and
negative terminals of high voltages may cause burns to the skin. Skin contact with a ruptured battery can
cause skin irritation.
Eye: Contact between the battery and eye will not cause any harm. Eye contact with the contents of a
ruptured battery can cause severe irritation to the eye.
Medical Conditions Aggravated by Exposure: Not Available
A.4 – First Aid Measures
Skin Contact: Wash affected area with lukewarm water for at least 30 minutes. If irritation or pain
persists, seek medical attention.
Eye Contact: Wash affected eye with lukewarm water for at least 30 minutes. Rinse with saline solution if
possible. Seek medical attention.
Inhalation: Move victim to fresh air and remove source of contamination from area. Seek medical
attention.
Caution: In all cases if irritation persists, seek medical assistance at once.
A.5 – Firefighting Measures
Extinguishing Media: Water, carbon dioxide, dry chemical powder and foam are most effective means to
extinguish a Lithium Ferrous Phosphate (LFP) battery fire.
Fire Fighting Procedure: Put on fully protective gear, including self-contained breathing apparatus,
goggles, fireproof jacket and gloves.
Unusual Fire and Explosion Hazards: Exposing battery pack or cell to excessive heat, fire or over
voltage condition may cause a leak, fire, hazardous vapors and hazardous decomposition products.
Damaged or opened cells can result in rapid heating and the release of flammable vapors
