SImx LHT1058 User manual

ECO SPOT SELECT
LHT1058 BLACK / LHT1059 WHITE
Single 10W LED Spot Light
INSTALLATION INSTRUCTIONS
This product is suitable for use only with a supply voltage of 220-240V AC 50Hz.
All electrical work must be carried out in accordance with local and national electrical codes as applicable.
We strongly recommend that this light fitting is installed by a registered electrician.
Always switch power off prior to installation. A means of mains power isolation must be installed in the circuit
for the purpose of safe access for any internal cleaning, recalibration, or maintenance.
This light fitting is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety. Young children should be
supervised to ensure that they do not play with the appliance.
Any changes or modifications made or attempted to this product, or product installed contrary to these
installation instructions without the prior written approval of the manufacturer, will void any and all stated
warranties.
IMPORTANT
!
ECO SPOT SELECT
LHT1056 BLACK / LHT1057 WHITE
Twin 10W LED Spot Light
Thankyou for purchasing this Simx Eco Spot Select light fitting.
This product is suitable for sheltered exterior locations.
It requires a 230V AC power supply to operate and should be installed by a registered electrician.
TECHNICAL SPECIFICATIONS
Single Twin
Power Source 220-240V AC Class II
Rated Load 10W 20W
Lumens 3000K 900 lm 1800 lm
by Colour Temp 4000K 1000 lm 2000 lm
5000K 1000 lm 2000 lm
Protection Rating IP54
Mounting Ceiling or wall
Construction Polycarbonate UV stabilised
Warranty 3 years
SIMX is proudly distributed by Ventair Pty Ltd
4 Capital Place, Carrum Downs, 3201 VIC, AUSTRALIA.
Technical Support: 1300 665 926
e: [e-mail] | www.ventair.com.au | www.simx.com.au 230620

We strongly recommend this light fitting is installed by a registered electrician
Switch off the power supply before commencing any electrical work.
Unscrew the fixing cover screws and remove the rear cover.
Use the rear cover to mark the position of screw holes onto mounting surface.
Drill the wall to depth of about 4 cm and fit the wall plugs (supplied).
Care should be taken to avoid drilling or screwing into concealed electrical wiring/plumbing.
Push the cable through the cable gland. Affix the back of the housing to the mounting surface with
mounting wall screws.

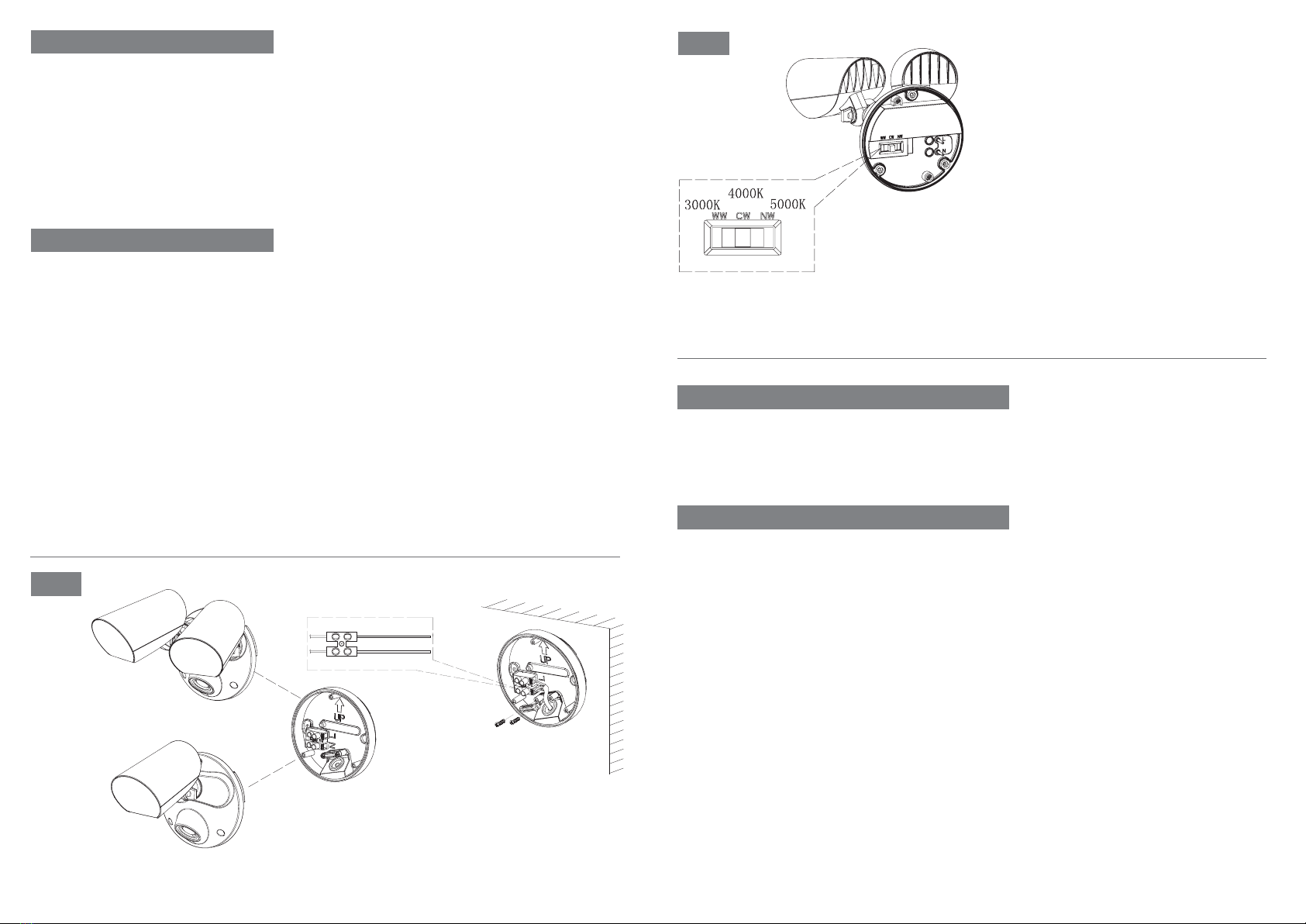

Connect the power cables to the terminal block securely (refer to Fig. 1). Refit the terminal block and
cable anchorage. Select lamp colour from internal dip switch (refer to Fig. 2).
Align the power supply pins. Reattach and screw securely the cover to the base.
Ensure cables are not pinched in closing the unit. Reconnect mains power.
Test circuit (see below).
Before any aiming adjustments, switch Eco Spot Select off and allow the hot lamp housings to cool.
The Eco Spot Select should be wired to its own light switch. Do not interconnect with other lamp
types on the same switch. An earth connection must be used for electrical safety.
To achieve best results, please consider the following points:
Eco Spot Select should be mounted 1.8 to 3.0 metres above the ground.
This light fitting is rated to IP54 making it suitable for sheltered exterior locations, please ensure the
desired location does not exceed this rating.
BEFORE YOU START
INSTALLATION
Please read all the instructions prior to installation.
Fig. 1
Fig. 2
Selecting lamp colour with power supply connected
may cause irrepairable damage. Always disconnect
at mains before making any colour seletion.
This product is guaranteed by Ventair Pty Ltd for 3 years from the date of purchase against faulty materials or
workmanship which affects its designed ability to operate. During this period if the product has a
defect of this nature it will be repaired or replaced free of charge by Ventair with the same item, or a similar
one of higher specification. ON CONDITION THAT:
The buyer returns it to the seller from whom it was bought, freight paid.
The product has been bought by the user. ie a receipt/sales invoice is produced as proof of purchase.
The product has not been misused or handled carelessly, installed in anyway contrary to the installation
instructions, used on a supply voltage other than that indicated in the product specifications, or installed
in any unusually exposed or harsh environmental conditions.
This guarantee excludes liability for discolouration of paint or plastic, or any user serviceable parts.
It does not confer any rights other than those expressly set out above and does not cover any claims for
consequential loss or damage.
Our Goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the Goods repaired or replaced if the Goods fail
to be of acceptable quality and the failure does not amount to a major failure.
MANUFACTURERS EXTENDED WARRANTY
PRODUCT COMPLIANCES
Product complies with:
AS/NZS 60598.1:2017 AS/NZS 60598.2.1:2014 AS CISPR15:2017
EN61000.3.2:2014 EN61000.3.3:2013 EN55015.2013 EN62031.2015 EN62473.2015
AS/NZS 61347.1:2016 AS/NZS 61058.1:2008 and relevant amendments
N L
L = Brown or Red
N = Blue or Black
