Sinoboom GTJZ0608E User manual

GTJZ0608E/0608E/2132E
GTJZ0808E/0808E/2732E
Operation
Manual
Part No.501053100002
Rev: B
Mar 2021
GTJZ
0608E (2132E)
GTJZ
0808E (2732E)
GTJZ
0808E (2732E)
GTJZ
0808E (2732E)
长沙市宁乡高新技术产业园区金洲大道东
128 号
0731-87116111 hr@sinoboom . c om . cn ww w .sinoboom . c om . cn
Al w ays F or B e t t er A cc ess Solution s
我们一直在追求新的高 度
尺寸 ：
210×285mm
20mm
20mm
产品说明书
PRODU C T MAN U AL

Operating, servicing and maintaining this vehicle or
equipment can expose you to chemicals including engine
exhaust, carbon monoxide, phthalates, and lead, which
are known to the State of California to cause cancer and
birth defects or other reproductive harm. To minimize
exposure, avoid breathing exhaust, do not idle the engine
except as necessary, service your vehicle or equipment in
a well-ventilated area and wear gloves or wash your
hands frequently when servicing. For more information
go to: www.P65warnings.ca.gov.

Please contact us:
Website : www.sinoboom.com
E-mail : [email protected]
Sales Tel : [phone]
Service Tel : [phone]
Address : No.128, East Jinzhou Avenue, Ningxiang High-tech Industrial Park, Changsha,
Hunan, China
Zip Code : 410600
Copyright © Hunan Sinoboom Intelligent Equipment Co., Ltd. All Rights Reserved
The final interpretation right of this manual belongs to Hunan Sinoboom Intelligent Equipment Co., Ltd.
Manual revision history：
REV DATE DESCRIPTION REMARK
AJul 2020 Original issue of the manual
B Mar 2021 Updated manual, adding GTJZ0808E outdoor use with
limited height, etc.

APPLICATION
Use the following table to identify the specific serial number for models included in this manual. Check
the model of your machine before consulting the manual, and then use the correct manual according to
the serial number of the model. See the nameplate on your machine to identify the model and serial
number.(See of the Operation Manual for details.)
MODELS
Trade identification
SERIAL NO.
Metric Imperial
GTJZ0608E 0608E 2132E From 0105300150 to Current
GTJZ0808E 0808E 2732E From 0105400200 to Current
NOTE:
•Product model is applied in product nameplate for distinction of products of different main
parameters.
•Product trade identification is applied in marketing and machine decals for distinction of products of
different main parameters, and can be classified as metric type and imperial type: The metric type of
trade identification is applicable to machines for countries/regions using metric system or as spe-
cially required by customers; The imperial type of trade identification is applicable to the machines
for countries/regions using imperial system or as specially required by customers.

This Page Intentionally Left Blank

STATEMENTS
Hunan Sinoboom Intelligent Equipment Co., Ltd. (Hereinafter referred to as Sinoboom) will upload the
latest product manual information to the website www.sinoboom.com as soon as possible. However,
due to continuous product improvement, the information in this manual is subject to change without prior
notice.
This manual covers the basic parts information of one or more products. Therefore, please use this
manual according to your needs. If you find problems in the manual or have suggestions for improve-
ment, feel free to share your feedback with Sinoboom, and we will address these issues as soon as
possible.
Feel free to consult and download the Operation Manual,Maintenance Manual and Parts Manual of the
products you need online at www.sinoboom.com.
Hunan Sinoboom Intelligent Equipment Co., Ltd. retains the right of final interpretation of the manual.

This Page Intentionally Left Blank

GTJZ0608E&0808E Operation Manual i© Mar 2021
TABLE OF CONTENTS
Introduction ............................. iii
1 Machine Specifications ........ 1-1

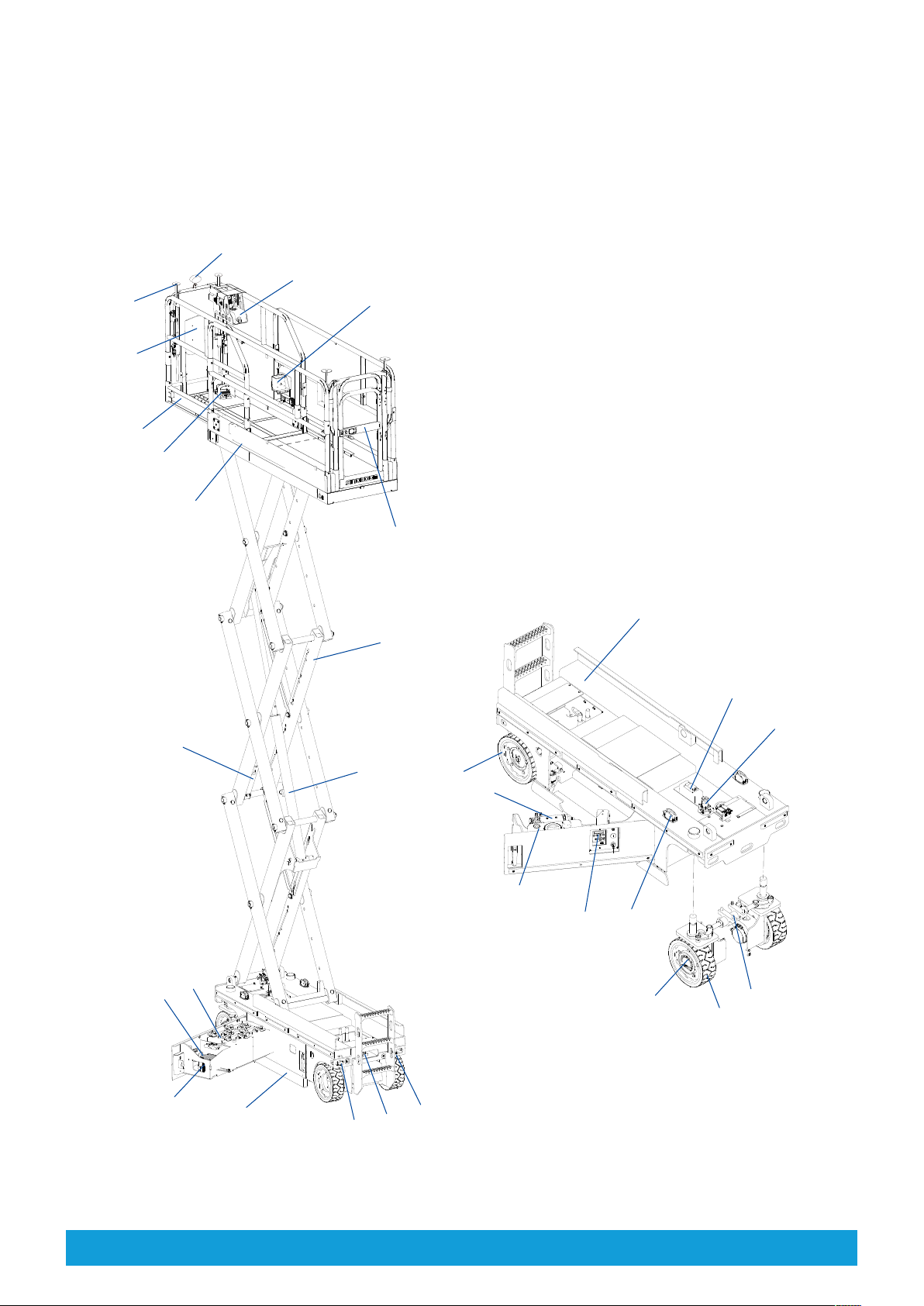

2 Machine Components .......... 2-1
3 Safety............................... 3-1
Safety Definitions .. ... . . . .. . . . . ... . . .. 3-1
Reporting Accidents. . . . ... . . ... . . ... . . 3-1
Electrocution Hazards. . . . .. . . . ... . . . .. 3-1
Tipping Hazards and Rated Load ... . . 3-2
Work Environment Hazards. . . ... . . . .. 3-4
Unsafe Operation Hazards.. . ... . . ... . 3-5
FallHazards...........................3-6
Collision Hazards .. . ... . . ... . . . ... . . . . 3-6
Crush Hazards . . . ... . . . ... . . ... . . ... . . 3-7
Explosion and Fire Hazards. . . . ... . . .. 3-7
Damaged Machine Hazards ... . . . .. . . 3-8
Bodily Injury Hazards . . . ... . . . .. . . . ... 3-8
Battery Hazards. . . .. . . . . ... . . ... . . ... . 3-8
Charging the Battery. . . ... . . . ... . . .. 3-9
Handling the Battery . .. . . . ... . . ... . . 3-9
Welding and Polishing Requirements . 3-9
After Using the Machine... . . . .. . . . ... . 3-9
4 Jobsite Inspection............... 4-1
5 Pre-operation Inspection ...... 5-1
Tips for Conducting a Pre-operation
Inspection.............................5-1
Conducting a Pre-operation
Inspection.............................5-1
Inspecting Parts. . . .. . . . ... . . . ... . . ... . 5-2
Inspecting Entire Machine ... . . . .. . . . . 5-2
Inspect Hydraulic Oil Level.. . . . ... . . . . 5-2
Inspecting the Battery . .. .. .. .. .. .. .. .. 5-2
6 Pre-operation Function Test .. 6-1
Preparing for a Pre-operation Func-
tionTest...............................6-1
Testing the Ground Controller.. . . ... . . 6-1
Testing the Platform Controller . .. .. . .. 6-3
Testing the Drive Speed. . .. . . . ... . . . .. 6-5
Testing the Emergency Lowering
Function...............................6-5
Testing the Tilt Protection Function . . . 6-6
Testing the Pothole Guard . . . . ... . . ... 6-7
Testing the Weighing System
(optional)..............................6-7
7 Operating the machine ......... 7-1
Emergency Stop .. ... . . . ... . . ... . . . ... 7-1
Using the Emergency Lowering
Feature................................7-1
Emergency Towing/Dragging .. . .. . . . . 7-2
Operation from Ground . . ... . . . ... . . . . 7-3
Operation from Platform . .. . . . . ... . . .. 7-3
Operating with the Platform Control-
ler on the Ground .. ... . . . ... . . . ... . . . . 7-4
Extending/Retracting the Platform .. . . 7-4
Folding/Unfolding Platform Rails . .. . . . 7-4
Driving on a Slope. .. . . . ... . . ... . . . .. . . 7-5
Inspect Battery Level. . . . .. . . . ... . . ... . 7-5
Charging the Battery ... . . ... . . . . .. . . . . 7-6
Changing Charger Battery Curve . . . .. 7-7
Indoor/Outdoor Mode Setting .. . . ... . . 7-7
8 Transporting and Lifting the
Machine........................... 8-1
Lifting the Machine with a Forklift . .. . . 8-1
Lifting the Machine with a Crane . . . ... 8-2
Transporting the Machine .. . . . . ... . . .. 8-2
9 Maintenance ...................... 9-1
Conducting a Pre-delivery Inspection . 9-1

© Mar 2021 ii GTJZ0608E&0808E Operation Manual
Following a Maintenance Schedule . .. 9-2
Completing a Repair & Inspection
Report.................................9-2
10 Decals/Nameplates
Inspection ....................... 10-1
Decals/Nameplates （CE-
Imperial）-GTJZ0608E .. .. .. .. .. ..10-2
Decals/Nameplates （CE-
Imperial）-GTJZ0808E .. .. .. .. .. ..10-5
Decals/Nameplates（GB）-
GTJZ0608E.. . . . ... . . . ... . . . .. . . . ..10-8
Decals/Nameplates（GB）-
GTJZ0808E.. . . . ... . . . ... . . . .. . . . .10-11
Decals/Nameplates（AS）-
GTJZ0608E.. . . . ... . . . ... . . . .. . . . 10-14
Decals/Nameplates（AS）-
GTJZ0808E.. . . . ... . . . ... . . . .. . . . 10-17
Decals/Nameplates（KCS）-
GTJZ0608E.. . . . ... . . . ... . . . .. . . . 10-20
Decals/Nameplates（KCS）-
GTJZ0808E.. . . . ... . . . ... . . . .. . . . 10-23
Decals/Nameplates（CE-PL）-
GTJZ0608E.. . . . ... . . . ... . . . .. . . . 10-26
Decals/Nameplates（CE-PL）-
GTJZ0808E.. . . . ... . . . ... . . . .. . . . 10-29
Decals/Nameplates（CE-JP）-
GTJZ0608E.. . . . ... . . . ... . . . .. . . . 10-32
Decals/Nameplates（CE-JP）-
GTJZ0808E.. . . . ... . . . ... . . . .. . . . 10-35
Decals/Nameplates（ANSI）-
GTJZ0608E.. . . . ... . . . ... . . . .. . . . 10-38
Decals/Nameplates（ANSI）-
GTJZ0808E.. . . . ... . . . ... . . . .. . . . 10-41
Decals/Nameplates（CE-Metric）
GTJZ0608E.. . . . ... . . . ... . . . .. . . . 10-44
Decals/Nameplates （CE-
Metric）-GTJZ0808E ... .. .. .. .. . 10-47
Decals/Nameplates（CSA）-
GTJZ0608E.. . . . ... . . . ... . . . .. . . . 10-50
Decals/Nameplates（CSA）-
GTJZ0808E.. . . . ... . . . ... . . . .. . . . 10-53
Appendix 1: Symbols and
Description.......................A-1
Appendix 2: Prepare the Work
Record Before Delivery ....... A-5
Appendix 3: Repair & Inspection
Report .............................A-7

GTJZ0608E&0808E Operation Manual iii © Mar 2021
INTRODUCTION
Thank you for choosing and using the machinery of
Hunan Sinoboom Intelligent Equipment Co., Ltd. Al-
ways read, understand and become familiar with the
operation requirements of the machine and its associ-
ated safety procedures before operating, maintaining
and repairing the machine. Operating the machine with-
out becoming familiar with its specific operation require-
ments and safety procedures poses serious risks.
Operators who follow safety rules and operate the ma-
chine carefully and effectively will prevent personal in-
jury, property loss and accidents.
Use this machine only to transport tools to work loca-
tions and for performing tasks on the work platform. Op-
erators must be competent and must obtain training to
carefully use the machine and follow safety procedures.
Only trained and authorized personnel may operate the
machine.
This manual guides the operator in operating and using
the machine. The operator is responsible for reading,
understanding and implementing the operation and
safety procedures in this manual and for following the
manufacturer’s instructions before beginning any work.
Read, understand and follow all safety rules and oper-
ating instructions. The operator must also consider the
machine’s uses and limitations and the conditions at
the jobsite before using this machine. Strictly following
all safety requirements in this manual is critical.
Consider this manual a part of the machine, along with
Maintenance Manual and Parts Manual, and always
keep the manuals with the machine. The owner or ad-
ministrator of the machine shall offer all manuals and
other necessary information provided by the machine
manufacturer regarding the daily inspection and main-
tenance to each of the renters. If the machine is sold,
the owner or administrator must pass along the man-
uals and other necessary information to the purchaser.
The owner or administrator of the machine shall also
provide the manufacturer’s maintenance information to
the person responsible for maintaining the machine.
If you have any questions, contact Hunan Sinoboom In-
telligent Equipment Co., Ltd..

© Mar 2021 iv GTJZ0608E&0808E Operation Manual
This Page Intentionally Left Blank

GTJZ0608E&0808E Operation Manual 1-1 © Mar 2021
1MACHINE SPECIFICATIONS
Table 1-1 GTJZ0608E Specifications
MEASURE 0608E (METRIC) 2132E (IMPERIAL)
DIMENSION
Max. platform height 6.3m 20 ft 8 in.
Max. working height 8.3m 27 ft 3 in.
Max. horizontal extension 0.9m 3 ft
Length 2.46m 8 ft
Width 0.83m 2 ft 8.7 in.
Height (stowed, rails folded) 1.84m 6 ft
Height (stowed, rails up) 2.24m 7 ft 4 in.
Wheel base 1.88m 6 ft 2 in.
Wheel span 0.7m 2 ft 4 in.
Ground clearance (pothole guards
retracted) 100mm 4 in.
Ground clearance (pothole guards
deployed) 25mm 0.98 in.
Tire size (diameter × width / type) φ380x125mm/Solid φ15x5 in./Solid
Platform dimension (Length × Width ×
height) 2.30mx0.8mx1.1m 7 ft 6.5 in. x2 ft 7.5 in. x3 ft 7 in.
PERFORMANCE
Rated load capacity of platform 380Kg 838 lb
Max. load capability of extended platform 120kg 265 lb
Max. platform occupancy (indoor/outdoor) 2 person(indoor)/1 person(outdoor)
Drive speed (stowed) 0～4km/h 0～2.5mph
Drive speed (raised) 0～0.8km/h 0～0.5mph
Uptime (in a no-load state) 25～30 s
Downtime (in a no-load state) 30～35 s
Gradeability 25%
Max. allowable inclination 3°(Front to back)/1.5°(Left to right)
Turning radius (inside) 0 0
Turning radius (outside) 2.1m 6 ft 10.7 in.
Rated load capacity of a single tire 1180kg 2601 lb

© Mar 2021 1-2 GTJZ0608E&0808E Operation Manual
MACHINE SPECIFICATIONS
Table 1-1 GTJZ0608E Specifications (continued)
MEASURE 0608E (METRIC) 2132E (IMPERIAL)
Max. allowable manual force (indoor/
outdoor) 400N(indoor)/200N(outdoor) 90 lbf(indoor)/45 lbf(outdoor)
Max. noise 72dB
POWER
Hydraulic tank capacity 15L 3.3 gal(imperial)/4 gal(US)
Hydraulic system capacity (including tank) 15L 3.3 gal(imperial)/4 gal(US)
Hydraulic system pressure 21MPa 210 bar
Battery specification (quantity × voltage,
capacity) 4x6V, 225Ah
System voltage 24VDC
Control voltage 24VDC
GROUND BEARING DATA
Max wheel load 900 kg 1984 lb
Pressure against ground 1075 KPa 156 Psi
ENVIRONMENT
Max. allowable wind speed (indoor/
outdoor) 0m/s(indoor)/12.5m/s(outdoor) 0 mph(indoor)/28 mph(outdoor)
Max. allowable altitude 1000m 3280.8 ft
Allowable ambient temperature (lead-acid
batteries) -10℃to 40℃14℉to 104℉
Allowable ambient temperature (lithium
batteries) -20℃to 40℃-4℉to 104℉
Max. allowable ambient relative humidity 90%
Storage condition Stored at -20℃to 50℃(-4℉to 122℉) in a well-ventilated environ- ment with 90% relative humidity (20℃[68℉]), and away from rain,
sun, corrosive gas and inflammable explosive.
WEIGHT
Weight (in a no-load state) (indoor/
outdoor) 2090kg 4608 lb
Table 1-2 GTJZ0808E Specifications
MEASURE 0808E (METRIC) 2732E (IMPERIAL)
DIMENSION
Max. platform height 8.1m 26 ft 7 in.
Max. working height 10.1m 33 ft 2 in.
Max. horizontal extension 0.9m 3 ft

MACHINE SPECIFICATIONS
GTJZ0608E&0808E Operation Manual 1-3 © Mar 2021
Table 1-2 GTJZ0808E Specifications (continued)
MEASURE 0808E (METRIC) 2732E (IMPERIAL)
Length 2.46m 8 ft
Width 0.83m 2 ft 8.7 in.
Height (stowed, rails folded) 1.96m 6 ft 5 in.
Height (stowed, rails up) 2.36m 7 ft 9 in.
Wheel base 1.88m 6 ft 2 in.
Wheel span 0.7m 2 ft 4 in.
Ground clearance (pothole guards
retracted) 100mm 4 in.
Ground clearance (pothole guards
deployed) 25mm 0.98 in.
Tire size (diameter × width / type) φ380x125mm/Solid φ15x5 in./Solid
Platform dimension (Length × Width ×
height) 2.30mx0.8mx1.1m 7 ft 6.5 in. x2 ft 7.5 in. x3 ft 7 in.
PERFORMANCE
Rated load capacity of platform 250Kg 551 lb
Max. load capability of extended platform 120kg 265 lb
Max. platform occupancy(indoor/outdoor) 2 person(indoor)/1 person(outdoor)
Drive speed (stowed) 0～4km/h 0～2.5mph
Drive speed (raised) 0～0.8km/h 0～0.5mph
Uptime (in a no-load state) 30～35 s (indoor)
22～26 s (outdoor)
Downtime (in a no-load state) 34～39 s (indoor )
25～29 s (outdoor)
Gradeability 25%
Max. allowable inclination 3°(Front to back)/1.5°(Left to right)
Turning radius (inside) 0 0
Turning radius (outside) 2.1m 6 ft 10.7 in.
Rated load capacity of a single tire 1180kg 2601 lb
Max. allowable manual force(indoor/
outdoor) 400N(indoor)/200N(outdoor) 90 lbf(indoor)/45 lbf(outdoor)
Max. noise 72dB
POWER
Hydraulic tank capacity 15L 3.3 gal(imperial)/4 gal(US)
Hydraulic system capacity (including tank) 15L 3.3 gal(imperial)/4 gal(US)

© Mar 2021 1-4 GTJZ0608E&0808E Operation Manual
MACHINE SPECIFICATIONS
Table 1-2 GTJZ0808E Specifications (continued)
MEASURE 0808E (METRIC) 2732E (IMPERIAL)
Hydraulic system pressure 21MPa 210 bar
Battery specification (quantity × voltage,
capacity) 4x6V, 225Ah
System voltage 24VDC
Control voltage 24VDC
GROUND BEARING DATA
Max wheel load 900 kg 1984 lb
Pressure against ground 1075 KPa 156 Psi
ENVIRONMENT
Max. allowable wind speed (indoor/
outdoor) 0m/s(indoor)/12.5m/s(outdoor) 0mph(indoor)/28 mph(outdoor)
Max. allowable altitude 1000m 3280.8 ft
Allowable ambient temperature (lead-acid
batteries) -10℃to 40℃14℉to 104℉
Allowable ambient temperature (lithium
batteries) -20℃to 40℃-4℉to 104℉
Max. allowable ambient relative humidity 90%
Storage condition Stored at -20℃to 50℃(-4℉to 122℉) in a well-ventilated environ- ment with 90% relative humidity (20℃[68℉]), and away from rain,
sun, corrosive gas and inflammable explosive.
WEIGHT
Weight (in a no-load state) (indoor only) 2265kg 4994 lb
NOTE:
a) The working height adds 2m (6ft 7in) of human height to platform height.
b) In different areas, hydraulic oil, engine oil, coolant, fuel and lubrication should be added in accordance with the
environmental temperature.
c) In cold weather, auxiliary devices are needed to start the machines.
d) The ground bearing data is approximate values not considering different options and only used when it is safe
enough.
e) The loads of persons, accessories, tools and materials are factored into the rated platform capacity.

GTJZ0608E&0808E Operation Manual 2-1 © Mar 2021
2MACHINE COMPONENTS
Figure 2-1
16
14
11
12
10
1
3
9
4
1315
17
1918
85
6
2
7
20
28
29
2426
25
30
27
22
23
21

© Mar 2021 2-2 GTJZ0608E&0808E Operation Manual
MACHINE COMPONENTS
Component China CE CSA ANSI AS Japan Korea Poland
1. Fixed Platform √
2. Foot Switch √
3. Extended Platform √
4. Manual Storage
Container √
5. Overhead Protection √
6. Working Light √
7. Platform Control Box √
8. AC Power Socket √ √
9. Platform Entry Gate √
10. Safety Arm √
11. Scissor Components √
12. Lift Cylinder √
13. Industrial Plug √
14. Emergency Decent
Handle √
15. Charger Plug √
16. Pothole Protection
Plate √
17. Battery charger √
18. Main Power Handle
Assembly √
19. Battery √
20. Chassis √
21. RCBO √√
22. Level Sensor √
23. Flash Light √√
24. Steer Cylinder √
25. Steer Wheel √
26. Drive Reducer,DC √
27. Ground Controller √
28. Power Unit √
29. Hydraulic Oil Tank √
30. Rear Wheel √

GTJZ0608E&0808E Operation Manual 3-1 © Mar 2021
3SAFETY
Read, understand and comply with the safety rules and
regulations of your workplace and your government.
Before using the machine, obtain proper training on
safe machine operation and make sure you can safely
control and operate the machine.
Understand that as the operator you have the responsi-
bility and right to shut down the machine in case of fail-
ure with the machine or other emergency at your
workplace.
NOTICE
People suffering from heart disease, hypertension,
epilepsy and other diseases and people who fear
heights must never operate or use this machine. Al-
so, people who have alcohol or drugs in their system,
or experience excessive fatigue or depression, are
prohibited from operating or using this machine.
SAFETY DEFINITIONS
This safety alert symbol appears with
most safety statements. It means atten-
tion, become alert, your safety is in-
volved! Please read and abide by the
message that follows the safety alert
symbol.
Indicates a hazardous situation that, if not
avoided, will result in death or serious injury.
Indicates a hazardous situation that, if not
avoided, could result in death or serious injury.
Indicates a hazardous situation that, if not
avoided, could result in minor or moderate injury.
NOTICE
Indicates a situation that can cause damage to the
engine, personal property and/or the environment, or
cause the equipment to operate improperly.
NOTE: Indicates a procedure, practice or condition that
should be followed in order for the engine or component
to function in the manner intended.
REPORTING ACCIDENTS
In case of any accident involving the machinery of , noti-
fy Immediately, even if no personal injury or property
damage occurs during the accident. Contact by tele-
phone and provide all necessary details. Failure to noti-
fy the manufacturer within 48 hours of the incident
involving the machinery of may void the product's
warranty.
NOTICE
Thoroughly inspect the machine and all its functions
after any accident, being sure to test first from the
ground controller and then from the platform control-
ler. Ensure the machine's lifting height does not ex-
ceed 3 m(9.8 ft) until all damage has been repaired
and all controllers operate properly.
ELECTROCUTION
HAZARDS
NOTE: This machine is not insulated and does not have
an electric shock protection function.
All operators and managers shall comply with national
or local regulations regarding the minimum safe dis-
tance of live conductors above the ground. In the ab-
sence of such requirements, operators and managers
should follow the minimum safety distance require-
ments in Table 3-1 , page 3-2.

© Mar 2021 3-2 GTJZ0608E&0808E Operation Manual
SAFETY
ELECTRICAL SHOCK HAZARDS
• Always maintain a safe distance
from power lines and electrical
equipment in accordance with ap-
plicable government regulations
and see Table 3-1 , page 3-2.
• Consider platform movement,
wire swinging or drooping, be-
ware of strong winds or gusts,
and do not operate the machine
when there is lightning or heavy
rain.
• If the machine comes into contact
with live wires, keep away from
the machine. Personnel on the
ground or on the platform must
not touch or operate the machine
until the power is switched off.
• Do not use the machine as a
ground wire during welding and
polishing operations.
Table 3-1
Voltage
(Phase to Phase, kV)
Minimum Safe Distance
(m/ft)
0-50 3.05 (10)
50-200 4.60 (15)
200-350 6.10 (20)
350 -500 7.62 (25)
500 -750 10.67 (35)
750 -1000 13.725 (45)
TIPPING HAZARDS AND
RATED LOAD
Maximum rated load bearing capacity of the platform:
Table 3-2
GTJZ0608E
Retracting 380kg(838 lb)
Extending: Stationary only 260kg(573 lb)
Extending: Extension only 120kg(265 lb)
GTJZ0808E
Retracting 250kg(551 lb)
Extending: Stationary only 130kg(286 lb)
Extending: Extension only 120kg(265 lb)
