Greencut ELH1000M User manual

ELEVADOR
ELH1000M
Elevador de Motocicletas Hidráulico de 1000LB
i
EN Instruction
manual

2

3
EN
INDEX
INTRODUCTION 4
SAFETY RULES AND PRECAUTIONS 4
WARNING SYMBOLS 5
PRODUCT DESCRIPTION 6
FEATURES 6
TECHNICAL DATA 6
USING THE PRODUCT 7
MAINTENANCE 9
RECYCLING / DISPOSING 10
GUARANTEE 10

4
INTRODUCTION
Thank you for choosing this GREENCUT product. We are sure you shall appreciate the quality and
performance of this machine, which will facilitate your task for a long period of time.
Remember that you can contact our Technical Support for any queries regarding assembly o
maintenance, as well as for the resolution to any problems that may arise, and for the purchase of
spare parts and/or accessories.
ATTENTION
Please read these Operating Instructions carefully as well as the safety precautions
before using your device. Failure to do so could result in an electric fault, re hazard
and/or in personal injury. The manufacturer will not take responsibility for accidents
or injuries caused to the user, third parties or objects as a result for not following
the instructions in the user manual.
This machine is not intended for professional use.
Keep this user manual safe for future reference. Should you sell this machine in the future, please
remember to hand it to the new owner.
SAFETY RULES AND PRECAUTIONS
The aim of the following warning signs and their meaning is to explain the levels of risk related to this
product.
ATTENTION
READ and UNDERSTAND this manual completely before using the Shop Press.
Operator must read and understand all safety and warning information, operating
instructions, maintenance and storage instructions before operating this
equipment. Failure to properly operate and maintain the shop press could result in
serious injury to the operator or bystanders.
SYMBOL SIGN MEANING
ATTENTION
IIt indicates a dangerous situation where you need to pay full
attention to avoid any kind of personal injuries or damage to the
device.
NOTE It indicates useful information which can facilitate your task.

5
EN
Please read this instruction manual carefully. Note the safety instructions & warnings. Use this product
correctly and with care. Use it only for the purpose for which it is intended.
1. ALWAYS check the lift before use.
2. ALWAYS push motorcycle by hand onto lift. Acquire assistance if needed.
3. NEVER ride motorcycle onto ramp.
4. Do not operate under the table, keeping hands and body away from the table when it’s
operating. The air hose should be pulled from the bottom, not on the table.
5. When lowering the table, take care to control the speed of descent.
6. When the table is at its highest elevated position, do not attempt to pump the table higher,
as this can damage the hydraulic mechanism.
7. Always lock hydraulic foot pedal when working on motorcycle at a higher level or in storage.
WARNING SYMBOLS
The warning icons on labels in this machine and/or in the manual indicate the necessary information
for the safe use of the device.
Warning: Danger
Carefully read this manual before starting or using the machine.
Keep unprotected people away from the work area.
Blade hazard. Blade can cut through skin and break bones.
Keep hands away
Attention! Before carrying out maintenance or repair work, shut off the machine
and disconnect the spark plug.
Use protective non skid boots with protective steel.
Use appropriate security gloves
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
Complies with the European Union Directive.

6
PRODUCT DESCRIPTION
FEATURES
• Hydraulic Mechanism.
• Removable plate for increased access, such as rear wheel removal.
• Adjustable foot pedal for increased safety and stability. Hands and ngers are clear from any
moving parts.
• Adjustable screw for setting and xing height increases safety against accidental descent of table.
TECHNICAL DATA
NOTE
GREENCUT reserves the right to modify the specications of the device without
prior notice.
ELH1000M
Hose Length 1340mm
Maximum Load Capacity 450Kg
Working Height 200-815mm
Type Jack & Stand
Table Width 600mm
Table Length 2000mm
Overall Length 2600mm
Maximum Wheel Width 200mm

7
EN
USING THE PRODUCT

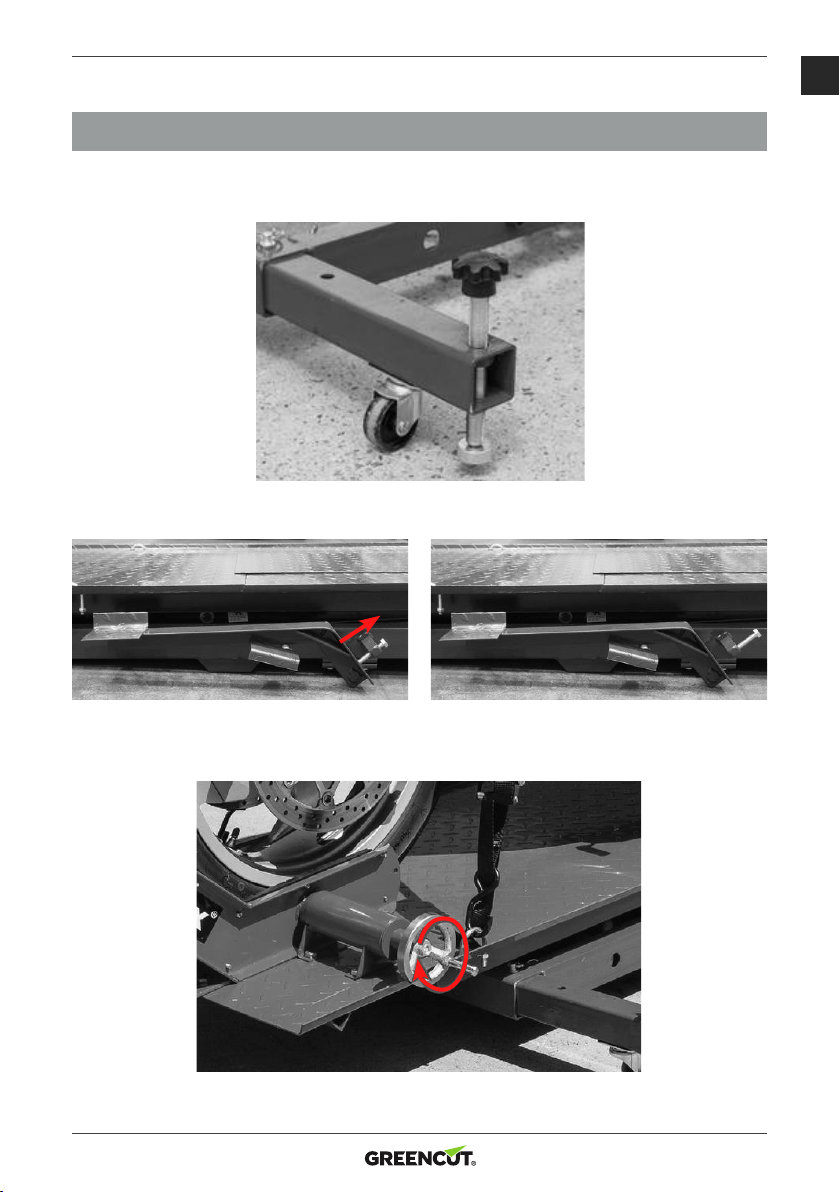

1. Wheel lift to desired position, ensuring that the table is fully lowered and tighten locking screws.
2. Secure the hydraulic foot pedal then unscrew (but do not remove) the locking screw.
3. Load motorcycle by hand onto the table and then secure the front wheel into the chock by
rotating chock wheel.

8

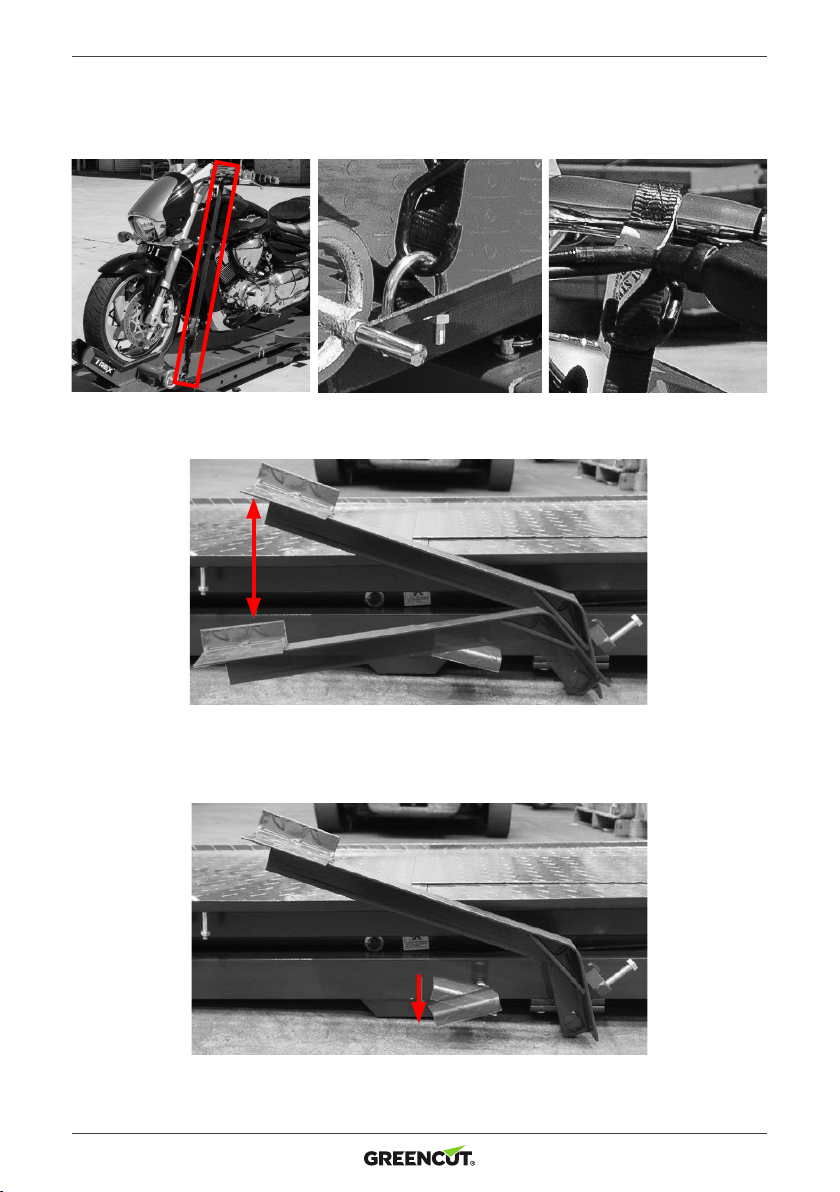

4. Tie down and anchor motorcycle handles with rope and anchor points.
5. Steadily pump the foot pedal to raise table.
6. Once work has been nished on motor cycle, gently press down smaller pedal with a constant
pressure until table is fully lowered.

9
EN
MAINTENANCE

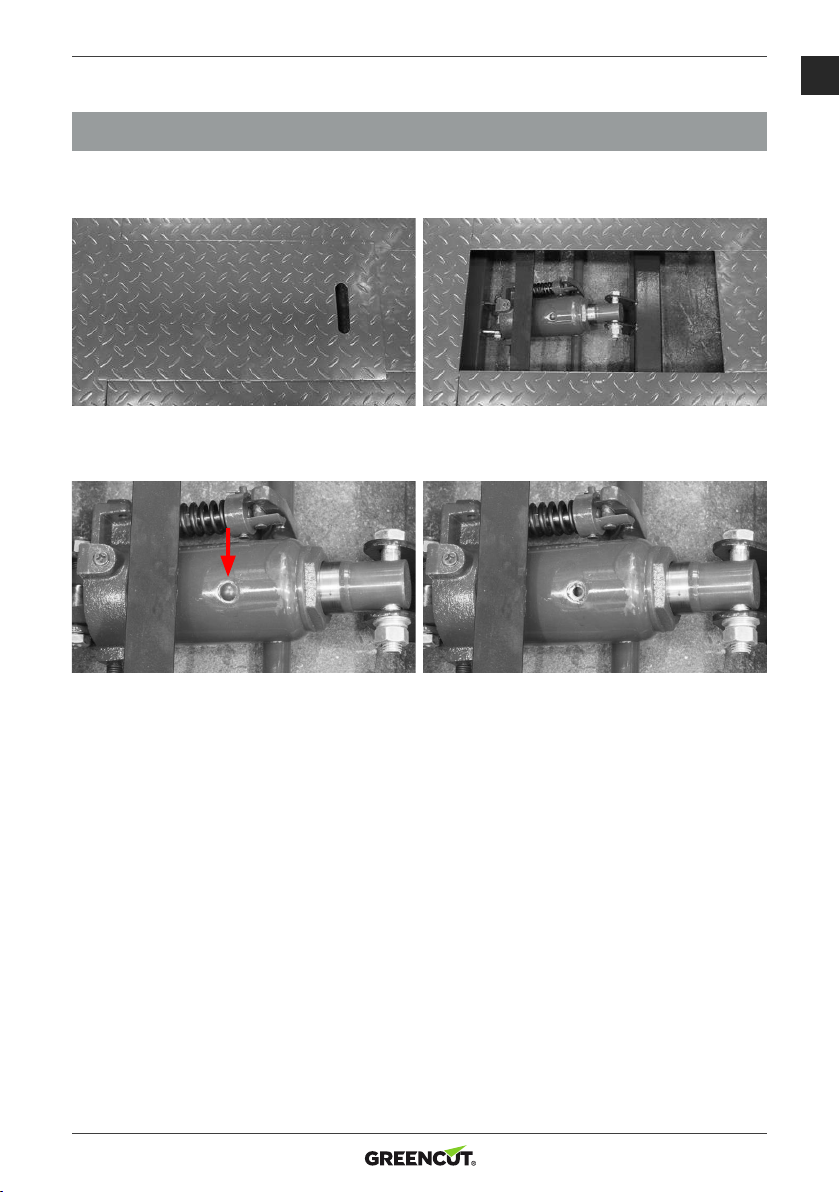

1. When the table is in the lowered position, remove the table cover.
2. Remove hydraulic cap from pump and ll with hydraulic jack oil (or ISO 32 hydraulic oil).

10
RECYCLING / DISPOSING
When you decide to get rid of the machine, make sure to follow the local regulation.
Protect the environment. Get rid of the machine taking care of the environment. Do not simply throw
it away in the trash. Please separate plastic and steel to recycle.
Petrol, used oil, oil/petrol mixtures, as well as objects stained with petrol (e.g.: cloths) must not be
disposed of into the domestic waste, pipes, soil, rivers, lakes or the sea. All objects stained with oil
must be disposed of according to the local regulations: take it to the most suitable recycling centre.
Package materials are recyclables. Please, throw them away on the appropriate trash can.
GUARANTEE
This product has a 2 years guarantee. This guarantee covers damages and bad function, only if the
product has not been misused and all the instructions have been correctly followed.
In order to claim your guarantee, you must present your receipt of purchase. The product has to be
complete and have all its parts.
The guarantee does not cover wear and tear, lack of maintenance, negligence, incorrect assembly and
inappropriate usage (blows, using the wrong power supply, storage, using conditions, etc).
It is also excluded when non original or not-adequate assembly accessories or parts have been used
on the product.

11
EN

www.greencut.es
Manual revisado en agosto de 2017
