SINTERIT SANDBLASTER XL User manual

Sinterit SANDBLASTER XL
USER MANUAL
Read the instruction manual before using the device.
Version 9/2020

2 | Sinterit SANDBLASTER XL User Manual
Table of contents
1. Marking text conventions used in a document............................................................................................................... 3
2. Safety Information ............................................................................................................................................................ 4
A. Environment and place of installation ......................................................................................................................... 4
B. General safety rules ...................................................................................................................................................... 4
C. Personal protection ...................................................................................................................................................... 4
D. Power supply ................................................................................................................................................................. 5
E. Safety during sandblasting, repair and maintenance ................................................................................................. 5
F. Scrapping ....................................................................................................................................................................... 5
3. Contents of the Sinterit SANDBLASTER XL pack ............................................................................................................. 6
A. Contents of the box with Additional Equipment ......................................................................................................... 6
B. Inside of the sandblaster chamber you nd................................................................................................................ 7
4. Sinterit SANDBLASTER XL ................................................................................................................................................ 7
A. Description .................................................................................................................................................................... 7
B. Specication: .................................................................................................................................................................. 9
5. Initial startup of the Sinterit SANDBLASTER XL after delivery ....................................................................................... 10
6. Sandblasting the printouts ................................................................................................................................................ 13
7. Maintenance of the Sinterit SANDBLASTER XL............................................................................................................... 15
A. Replacement of the Abrasive material ........................................................................................................................ 15
Exchange of Abrasive material with Sinterit ATEX Vacuum Cleaner.......................................................................... 15
Standard exchange of Abrasive Material ..................................................................................................................... 16
B. Replacement of the ceramic nozzle from the Inner Air Blow Gun ............................................................................. 16
C. Replacement of Protective Rubber Gloves.................................................................................................................. 17
D. Maintenance of the viewing window of the sandblaster ............................................................................................ 17
8. Troubleshooting ................................................................................................................................................................. 18
9. General legal information.................................................................................................................................................. 18
10. Disclaimer .......................................................................................................................................................................... 19
11. Trademarks ........................................................................................................................................................................ 19
12. Terms of warranty.............................................................................................................................................................. 19
13. Technical support .............................................................................................................................................................. 19
The SANDBLASTER XL is designed for cleaning, polishing and nishing of printouts, using dry abrasive material only.
Sandblaster does not include an air compressor.

Sinterit SANDBLASTER XL User Manual | 3
1. Marking text conventions used in a document
Listed below are descriptions of symbols used on the device. They constitute a warning or convey the information to
protect the user, other individuals or surrounding objects and ensure the correct and safe use of the device.
WARNING!
An inevitably dangerous situation which can result in serious injury or even death. Initiation,
the omission of a specic procedure or inattention can cause severe physical injury to the
user.
ATTENTION!
Initiation or omission of a specic procedure can cause physical damage to the equipment
or the user.
ATTENTION!
Risk of electric shock which can be fatal or cause severe burns. An inevitably dangerous
situation which can result in serious injury or even death, if not mitigated. Before working
with any equipment, you should be aware of the dangers associated with the ow of
electric current, and become familiar with the standard procedures to prevent accidents.
CAUTION!
Beware of moving parts which can crush hands.
WARNING!
Risk of re and explosion!
Avoid re! Powder dust is ammable.
STOP!
Action prohibited.
ATTENTION!
It is necessary to wear protective gloves and a face mask. Mandatory action when working
with powder.
ATTENTION!
It is necessary to wash hands after each use of the Sandblaster XL.
IMPORTANT!
Information essential to correctly perform a specic task.
IMPORTANT!
You must read the instructions before taking action.

4 | Sinterit SANDBLASTER XL User Manual
2. Safety Information
The Sinterit SANDBLASTER XL may create a powerful stream of abrasive particles. To avoid injuries and/or property damage,
carefully read the instruction manual before assembling, operating or performing maintenance of the sandblaster. At all
times use your common sense when operating machines.
A. ENVIRONMENT AND PLACE OF INSTALLATION
WARNING!
• The sandblaster must be positioned protected against atmospheric agents (rain, hail, snow,
fog, dust in suspension, etc.) with an environmental running temperature between 5°C and
45°C and relative humidity not above 70%.
• The work environment must be clean, well-enough lit and devoid of the explosive atmosphere.
• Keep the working environment clean and well-lit, debris and bad lighting are factors that
cause dangerous situations.
• Never use this machine in a dangerous working environment. The use of power equipment
in moist environments or rain can cause electrocution.
• Place the unit on a solid and level surface.
B. GENERAL SAFETY RULES
WARNING!
• Only adults should use the sandblaster.
• When using the machine, mind other people, especially children. Keep kids and visitors at a
safe distance.
WARNING!
• Fire and explosion hazard! The sandblaster must not be operated in a
corrosive or explosive environment.
• Avoid prolonged contact with solvents and inhaling their vapours.
• Avoid using the device close to open ames or sources of heat.
• Never use this machine near ammable liquids and/or gases.
C. PERSONAL PROTECTION
WARNING!
• The operator must always wear antistatic clothes and shoes.
• The oor in the area to be worked must be antistatic.
WARNING!
• During operation, do not expose your skin or hands directly to the line of
operation of the Sinterit SANDBLASTER XL Static Nozzle 19 and Air Blow
Guns D, 20 .
• Prevent breathing in dust at all times, wear respiratory protection at all times.
When one enters the room where the sandblaster stands with regard to
particulate matter that is released during the blasting and remains in the air.
• Breathing in particulate matter causes serious lung problems.
• At all times wear Protective Dust Mask and Protective Glasses when
opening the cover after using the machine (e.g. you can use the “PERSONAL
PROTECTION” set included with Lisa printers).

Sinterit SANDBLASTER XL User Manual | 5
ATTENTION!
After each use of the Sinterit SANDBLASTER XL, wash your hands.
D. POWER SUPPLY
WARNING!
• Before plugging in, make sure the power voltage and frequency are those
shown on the machine safety plate.
• Make sure the machine is properly grounded. In case you are using an
extension, check if it is grounded and if the capacity is sucient.
• During use, mind the power supply cables and avoid crushing or pulling these.
• Periodically check the mains power cable to ensure it is not damaged.
• In the event of the cable, plugs or couplings being replaced, make sure these
are protected against water spray and check mechanical strength.
STOP!
• Never touch electric cables, switches, buttons, etc. with wet hands.
• In the event of the cable being damaged, the machine must not be used.
• Never pull the machine by means of the power cable.
E. SAFETY DURING SANDBLASTING, REPAIR AND MAINTENANCE
ATTENTION!
• Check the quality of all hoses and pneumatic tubing before each use. Check that all
connections are secured.
• Check the machine previous to each use for damaged and/or defect parts. Pay special
attention if all seals are still good and check all tubing for leakages.
• Check that all components of the Sinterit SANDBLASTER XL are properly sealed.
• Check the machine for defects previous to each use, in case of a defect, or when the machine
does not function properly, rst have it repaired by a specialized person/company.
• Failure to heed these instructions may cause damage to materials and/or injures!
ATTENTION!
• Do not direct the Air Blow Guns D, 20 at people or objects.
• Do not exceed the maximum operating pressure of the Sinterit SANDBLASTER XL.
F. SCRAPPING
IMPORTANT!
In case of scrapping, all the component parts of the sandblaster will have to be
disposed of through adequate disposal channels in accordance with applicable
legislation. Before scrapping, all plastic and rubber parts will have to be separated
from the electrical material. Parts made of plastic, aluminium and steel only may
be recycled if collected by special centres.

6 | Sinterit SANDBLASTER XL User Manual
3. Contents of the Sinterit SANDBLASTER XL pack
ABRASIVE
MATERIAL
8 kg
ADDITIONAL EQUIPMENT
Sinterit SANDBLASTER XL
USER MANUAL
Read the instruction manual before using the device.
Version 6/2020
A. CONTENTS OF THE BOX WITH ADDITIONAL EQUIPMENT
F
C
I
A
E
B
GHD
A.Power supply (US or EU version with proper plug) / B.T-type push-in pneumatic tting /
C.Pneumatic quick coupler (½” internal thread) / D.Air blow gun / E.PVC protection tape / F. Wrench 14’’ (for nozzle) /
G.Spare gasket / H.Replaceable ceramic nozzle for Inner Air blow gun (5 pcs.) / I.Spare lock hole covers (2 pcs)

Sinterit SANDBLASTER XL User Manual | 7
B. INSIDE OF THE SANDBLASTER CHAMBER YOU WILL FIND
L M
JK
N
J.Control pedal’s pneumatic tubings (red and black) / K.Control pedal / L.Air blow gun pneumatic tubing /
M.Compressor pneumatic tubing / N.Replaceable PE protective foil for SANDBLASTER XL viewing window (5 pcs.) /
4. Sinterit SANDBLASTER XL
A. DESCRIPTION
7
1
3
4
2
6
5
67

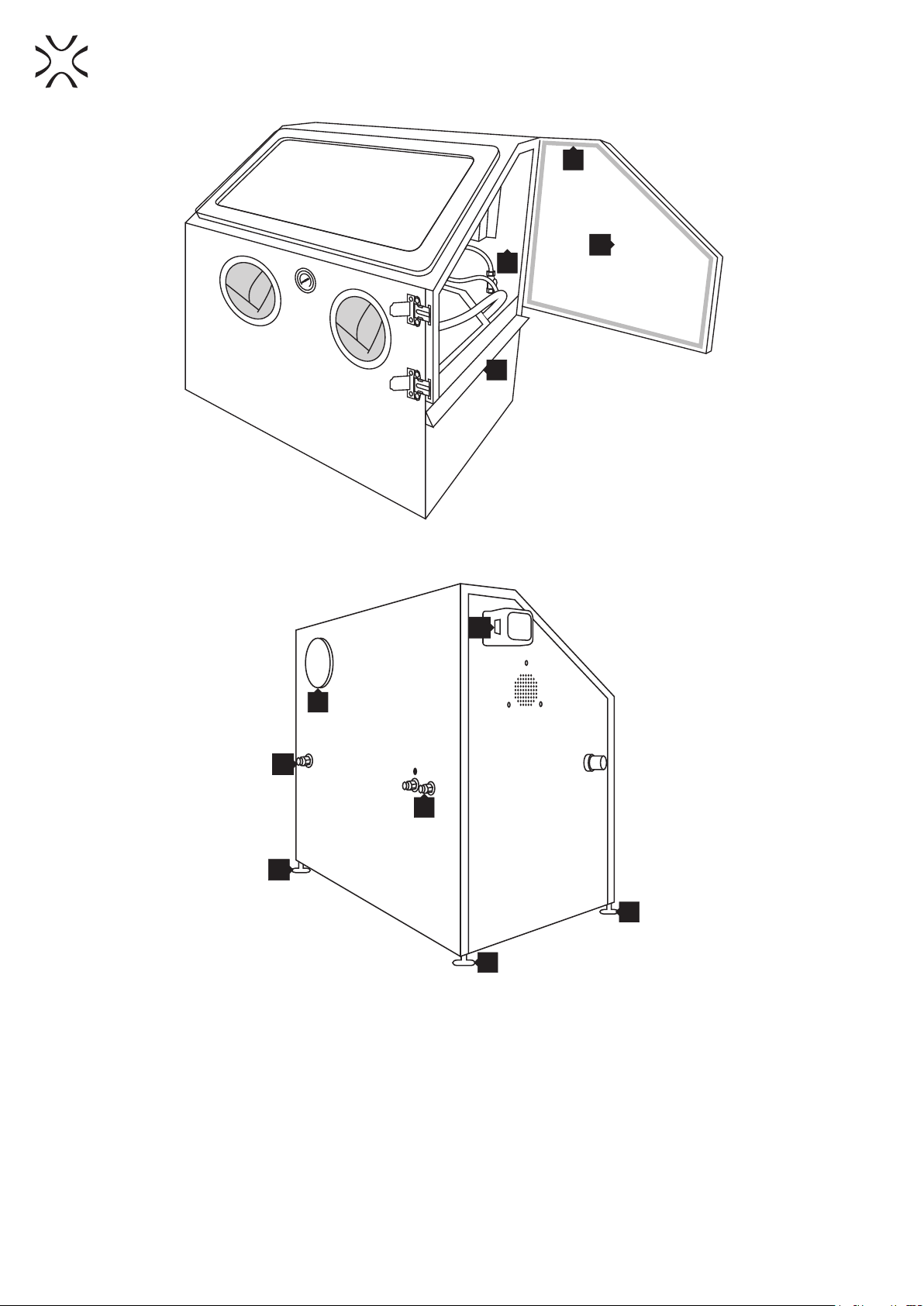

Image 1. View of the Sinterit SANDBLASTER XL front and left side.
1.Power switch / 2. Air lter outlet cover / 3.Pneumatic pressure regulator / 4.Viewing window / 5.Pressure gauge /
6.Protective Rubber Gloves / 7.Door locks

8 | Sinterit SANDBLASTER XL User Manual
10
8
9
11
Image 2. View of the Sinterit SANDBLASTER XL front and right side.
8.Gutter (for collecting dust) / 9.Sandblaster chamber / 10.Door / 11.Door gasket
14
16
12
16
16
15
13
Image 3. View of the Sinterit SANDBLASTER XL back and left side.
12.Power socket / 13.Lock hole cover / 14.Pneumatic inlet nipple / 15.Control pedal input nipples /
16.Adjustable mounting feet (4 pcs.)

Sinterit SANDBLASTER XL User Manual | 9
6
24
6
21
21
23
22
20
25
18
17 19

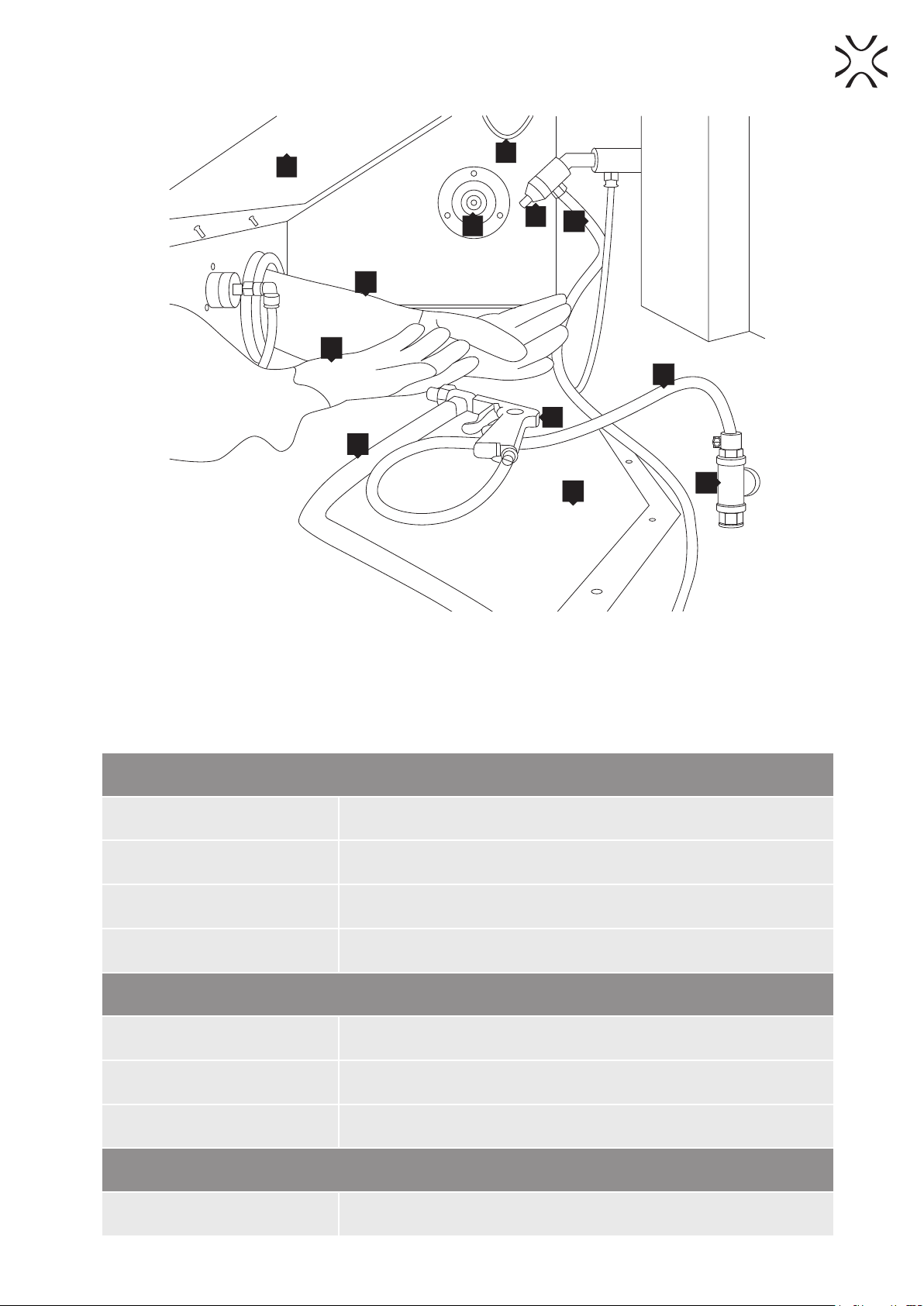

Image 4 View of the Sinterit SANDBLASTER’s XL inner chamber.
17.Air lter / 18.LED light / 19.Static Nozzle (nozzle lock nut with ceramic nozzle) / 20.Inner Air Blow Gun /
21.Inner Air Blow Gun pneumatic tubings / 22.Inner T-type push-in pneumatic tting (for Inner Air Blow Gun) /
23.Static Nozzle Pneumatic tubing / 24.Inner chamber grid / 25.PE protective foil for viewing window
B. SPECIFICATION:
TECHNICAL DATA
Dimensions 760 x 500 x 720 [mm] (29.9 x 19.7 x 28.3 [in])
Weight 27 kg] (59.5 [lbs])
Working area 675 x 450 x 415 [mm] (26.6 x 17.7 x 16.3 [in])
Type of sandblaster Stationary. Manual.
PACKAGING
Size of package 760 x 500 x 720 [mm] ( 29.9 x 19.7 x 28 [in])
Package weight 40 [kg] (88.2 [lbs])
Package contents Sandblaster + 8 [kg] (17 [lbs]) of Abrasive material + User Manual
+ Accessories
POWER
Power supply 230 [V] / 50 [Hz] or 120 [V] / 60 [Hz]

10 | Sinterit SANDBLASTER XL User Manual
Average power consumption 6 [W]
Max. pressure 8.6 [bar] (125 [psi])
Working pressure 5.0-8.6 [bar] (72.5-125 [psi])
Min / Max air consumption
(suggested air compressor
parameter)
290 [l/min]
ABRASIVE MATERIAL
Type Glass balls
Size of material 200 [μm]
Abrasive material
container capacity 10 [kg] (22 [lbs])
SAFETY
Certicates CE
5. Initial startup of the Sinterit SANDBLASTER XL after delivery
1. Remove all the solid protective packaging.
2. Gently pull out the Sinterit SANDBLASTER XL and other accessories.
3. Remove the bubble wrap and place the machine on a stable surface.
4. Check the leveling of the sandblaster. In case of problems, correct with Adjustable mounting feet 16 .
5. Take from the box with additional equipment: Power supply A, T-type push-in pneumatic tting B, Pneumatic
quick coupler C, Air Blow Gun D.

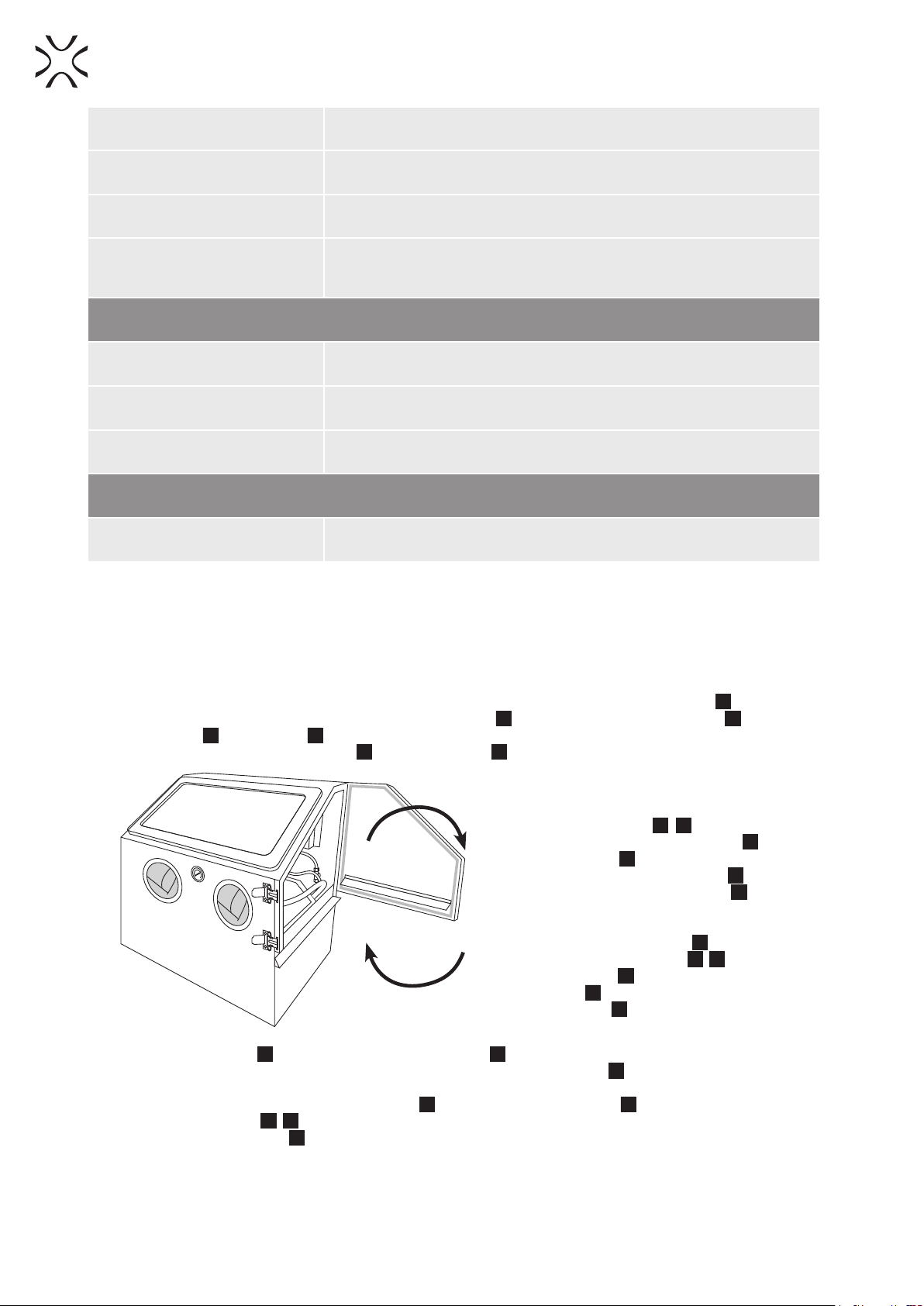

6. Unlock the two sandblaster door locks 7and open the door 10 .
Remove from inside:
• Transport protection
• Pneumatic tubings L, M
• Contol pedal’s pneumatic tubings J
• Control pedal K
• Replaceable PE protective foils N
• Spare Protective Rubber Gloves O
Check the tting and tightness of:
• Protective Rubber Gloves 6
• Inner Pneumatic tubings 21 , 23
• Static Nozzle 19
• Air lter 17
• Door gasket 11
7. Plug the Power supply Ainto the sandblaster Power socket 12 .
8. Remove the transport protection (plastic cable ties) from the Inner Air blow gun 20 .
9. Connection of the compressor and external Air Blow Gun (Image 5):
a. Connect the T-type push-in pneumatic tting Bto the Pneumatic inlet nipple 14 , and then, on both sides, the
Pneumatic tubings M,L.
b. Plug the Air blow gun D into the left tubing and the compressor into the right tubing. REMEMBER: the
compressor is not included in the Sinterit SANDBLASTER XL set.

Sinterit SANDBLASTER XL User Manual | 11
14
M
D
21
20
L
22 B
COMPRESSOR

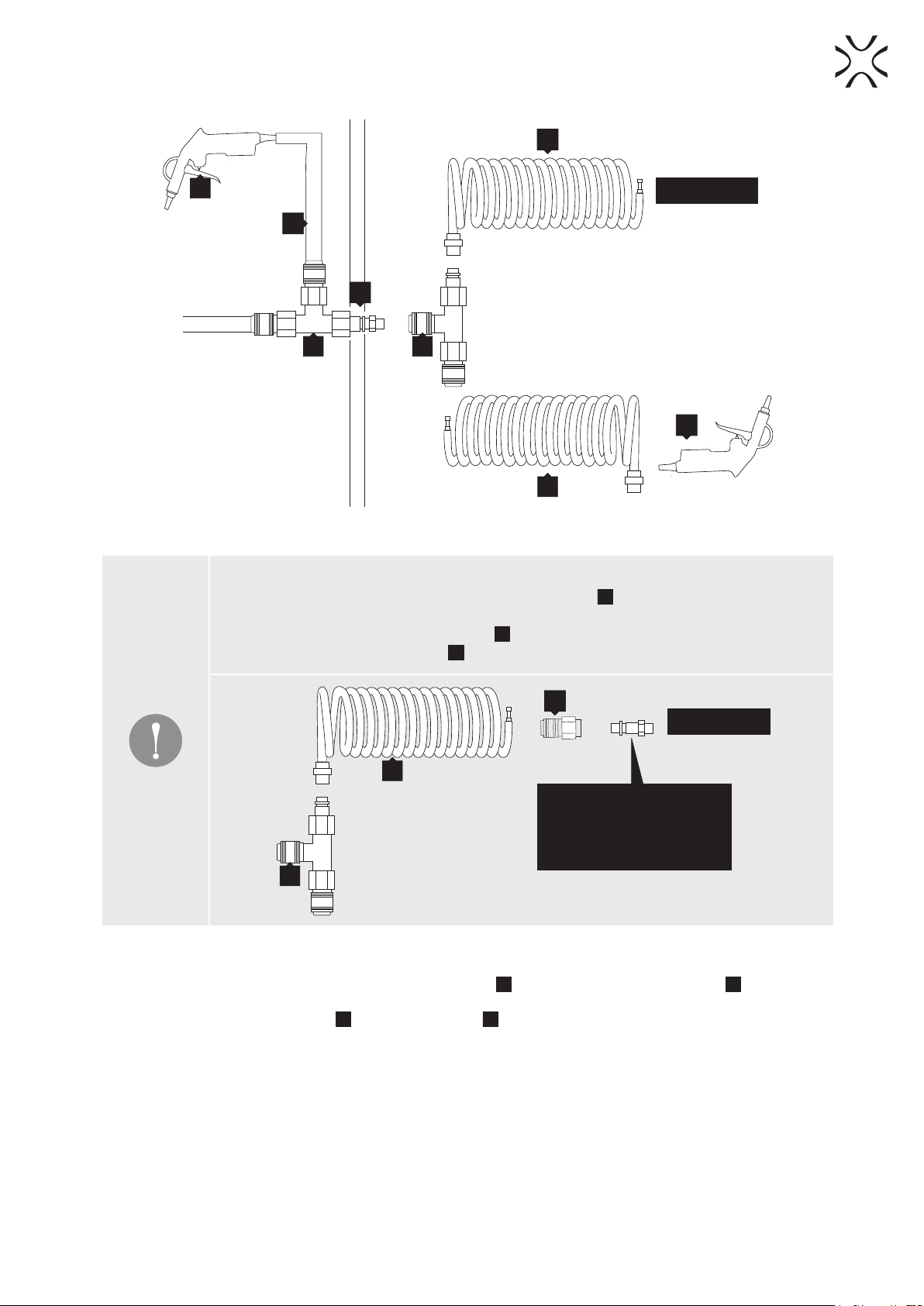

Image 5. Correct connection of the compressor and external Air blow gun.
IMPORTANT!
What if the connection of a Compressor pneumatic tubing Mto a compressor is not possible
due to different diameters?
Use the supplied Pneumatic quick coupler C and select an additional quick coupler to t both
your compressor and quick coupler C.
C
B
M
COMPRESSOR
PNEUMATIC QUICK
COUPLER WITH THE
CORRECT DIAMETER
TO FIT YOUR COMPRESSOR

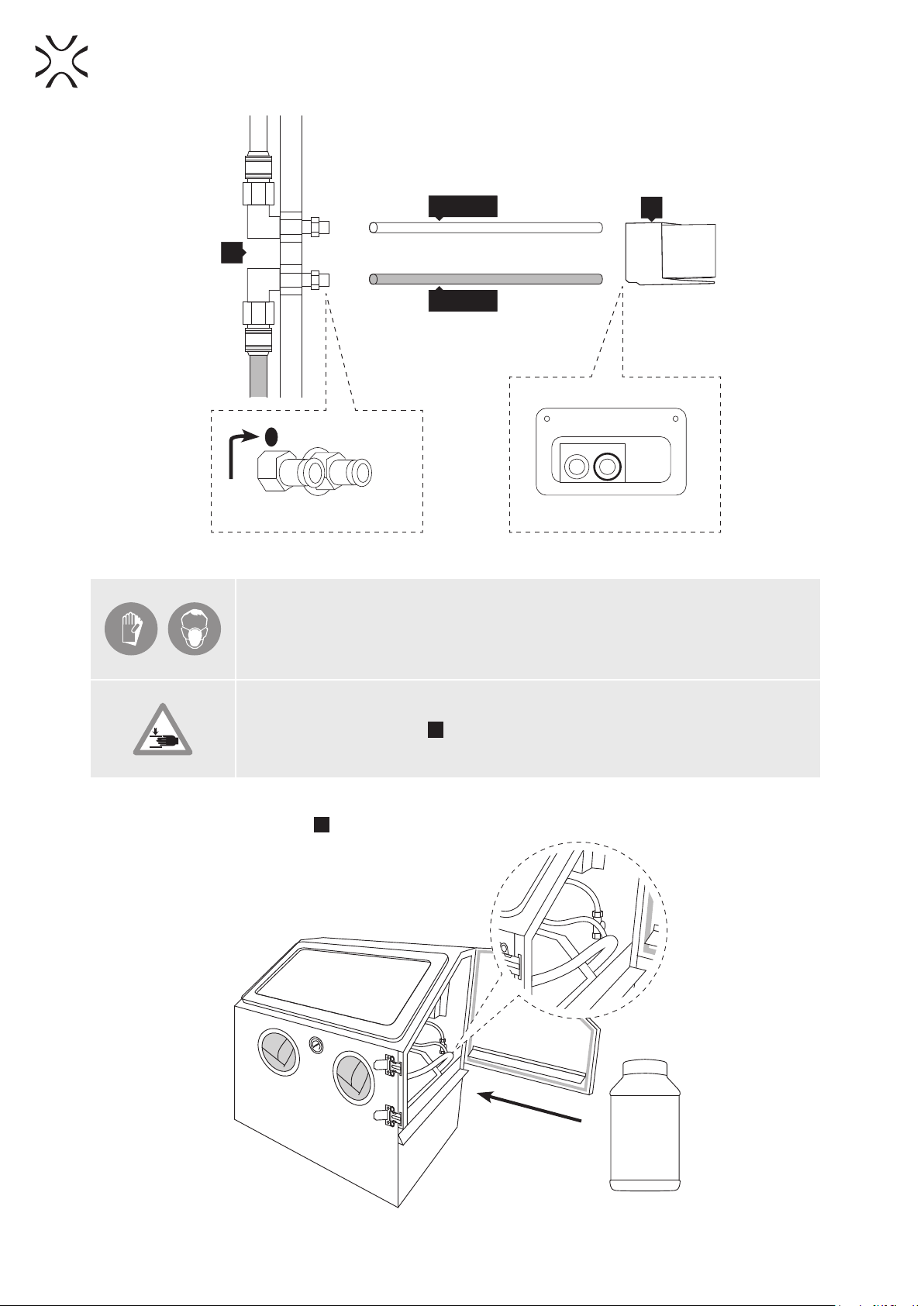

10. Connection of the Control Pedal (Image 6):
a. Connect properly the Control Pedal pneumatic tubings Jto the Control pedal input nipples 15 : black marker
above - black tubing, no marker- red tubing.
b. Push the Pneumatic tubings Jto the Control pedal K accordingly: black collar (A) - black tubing, red collar
(P) - red tubing.

12 | Sinterit SANDBLASTER XL User Manual
J - black
J - red K
26
P A
BLACK MARKER ABOVE
- BLACK TUBING
BLACK COLLAR (A) - BLACK TUBING
RED COLLAR (P) - RED TUBING
P A
BLACK MARKER ABOVE
- BLACK TUBING
BLACK COLLAR (A) - BLACK TUBING
RED COLLAR (P) - RED TUBING
Image 6. Correct connection of the Control pedal pneumatic tubings to the Sinterit SANDBLASTER XL.
ATTENTION!
• Before starting any job with an Abrasive material, always wear Protective Glasses,
Protective Dust mask, and optional gloves.
• You can use use the “PERSONAL PROTECTION” set included with Sinterit Lisa printers.
CAUTION!
• The Inner chamber grid 24 is heavy!
• Danger of crushing upper limbs when rising the Inner chamber grid.
10. Take the container with the Abrasive Material supplied with the Sinterit SANDBLASTER XL, open it and gently pour
it in through the hole in the grid 24 . Add not more than 10 kg / 22 lbs.
ABRASIVE
MATERIAL
8 kg
ABRASIVE
MATERIAL
4 kg
ABRASIVE
MATERIAL
4 kg
Image 6. Location of the hole in the grid for the Abrasive Material.

Sinterit SANDBLASTER XL User Manual | 13
11. Check that the PE protective foil for viewing window 25 is installed (it is on default). Clean it with a soft cloth if
necessary.
12. Close the sandblaster door 10 rmly.
13. Connect the Power supply Ato the power source.
14. Turn on the sandblaster with the Power switch 1 .
15. Check that the LED light 18 is working.
16. Turn on the compressor. Press Foot-operated Control pedal K and check all pneumatic tubings and joints for leaks
in Static Nozzle 19 .
17. Also, check the tightness of connections in both Air Blow Guns (internal 20 and external D ) – press the handle of
each gun.
18. If there are any leaks, use Wrench F or PVC protection tape Eto resolve the problem.
6. Sandblasting the printouts
ATTENTION!
• Before starting any job with Sinterit SANDBLASTER XL, always wear Protective
Glasses, Protective Dust mask, and optional gloves.
• You can use use the “PERSONAL PROTECTION” set included with Sinterit Lisa printers.
ATTENTION!
• It is strongly forbidden to start sandblasting when the sandblaster is not fully closed
(open door) or when LED light 18 is not on.
• Make sure the Power switch 1 is OFF-position before plugging in the machine.
• The Inner Air Blow Gun 20 and external Air Blow Gun D should always point away
from the operator to the workpiece.
IMPORTANT!
• Before you can start sandblasting make sure the printout is free of oil, water and
moisture.
• The Abrasive Material should be moist free. Moist grit clutters, which causes a bad
ow and clogging.
1. Turn on the compressor and the Sinterit SANDBLASTER XL.
2. Check all the pneumatic tubings and joints for leaks. If they appear, replace the element or seal it with PVC tape E
or Teon tape (not available in the set).
3. Open the sandblaster door 10 and insert the printout into the chamber 9.
4. Place the printout on the grid 24 under the Static Nozzle 19 .
5. Close the sandblaster door 10 rmly.
IMPORTANT!
• Use the Inner Air Blow Gun 20 only for large and strong prints.
• The Static Nozzle 19 is ideal for standard and fragile prints.
• By default, ceramic nozzle no. 5 is installed in the Inner Air Blow Gun. You can also choose
to use a larger or smaller ceramic nozzle (available in the Accessory box).
• Nozzles smaller than No. 5 do not work precisely with the Sinterit Abrasive material.
• A bigger size ceramic nozzle gets the job done faster because it can blast a larger surface,
this also causes a higher air consumption, make sure the compressor can handle it.
6. Use the Pneumatic pressure regulator 3 and the Pressure gauge 5 and set the work pressure of the compressed
air between 5 and 8.6 bar (58-125 psi). You can start with a working pressure of 4-5 bar, then most workpieces can
be blasted easily with this pressure.

14 | Sinterit SANDBLASTER XL User Manual
7. In order to adjust the cleaning
intensity in Static Nozzle 19 , unlock
the regulating device by pulling
the Pneumatic pressure regulator
3 and use the indications of the
Pressure gauge 5 to select an
appropriate value. After performing
the adjustment, lock the Pneumatic
pressure regulator by pressing the
knob (Image 7).
3
5
Image 7. Unblocking the pneumatic pressure regulator.
ATTENTION!
• The Inner Air Blow Gun 20 has no pressure adjustment - it is used to sandblast larger
surfaces and elements.
• Adjust the sandblasting intensity appropriately, depending on the type of object to be
cleaned.
• For solid, thick-walled objects, the pressure may be near the maximum, which is 8.6 bar (125 psi).
• For objects with openwork structure, it is recommended to lower the pressure to 5 bar (125 psi).
• If despite lowering the pressure, the object becomes damaged, select lower pressure value
empirically, as appropriate.
8. Put your hands in the Protective Rubber Gloves 6 , grab the printout and start cleaning by pressing the Control
pedal K .
• When using the Inner Air Blow Gun: do the same, but instead of using the Control pedal, press the handle of
the Inner Air blow gun and start sandblasting.
9. Sandblast the printout with a continuous stream of air, moving the printout in circular motions until all unnecessary
powder is removed.
• Keep the Inner Air Blow Gun 20 at an angle of 45-60 degree towards the work piece at a distance of 10-15 cm
with the nozzle pointing towards the backside of the sandblaster.
• Never hold the Inner Air Blow Gun in a 90 degrees toward the workpiece, this causes the grit to rebound back
into a spray, which causes a less effective spray. This also causes extra wear to the gun and PE protective foil
25
.
10. After cleaning the printout, wait a moment for the dust to fall off. Open the door and remove the sandblasted
object.
11. Close the door.
12. All remaining powder and abrasive material can be blown out of the printout with an external Air blow gun D .
13. After nishing work, turn off the pressure to 0 bar (0 psi) and turn off the sandblaster.

Sinterit SANDBLASTER XL User Manual | 15
7. Maintenance of the Sinterit SANDBLASTER XL
WARNING!
Before replacing the accessories or beginning the assembly, repair, transport, or
any form of maintenance, disconnect the Sinterit SANDBLASTER XL from the
compressor, turn off the machine and unplug it from the power source.
Check before each use:
1. Check the sandblaster chamber 9 previous to each use for damaged and/or deformed parts.
2. Check all pneumatic tubings for wear and tear and check if the Static Nozzle 19 and Inner Air Blow Gun’s nozzle 20
are not too worn.
3. Check if the Air lter 17 works well, clean it if necessary, nally, also check if the door 10 still close properly (check
the door gasket 11 ).
4. Clean the window (outside and inside) and the parts of the sandblaster with a soft cloth. Do not use any solvents
for cleaning!
5. Avoid allowing moisture into the abrasive material, as it may cause clogging of the nozzles.
6. In case of a malfunction/defect, do not use the sandblaster until it has been repaired.
A. REPLACEMENT OF THE ABRASIVE MATERIAL
1. In case the Abrasive material is clotting, this means there is moisture in the compressed air or there is moisture/
oil in the system. This leads to clogging and an uneven spray.
2. It could also be that there is too much debris in the Abrasive material, this can be solved by ltering/replacing it.
3. When the spray is often disrupted, place a thumb (WITH PROTECTIVE RUBBER GLOVES ON) over the Static Nozzle
19
and (press rmly) and depress the Control pedal K for a few seconds. Now the air blows back into the suction
pneumatic tubing, which can dissolve possible obstructions.
STOP!
The user is responsible for disposing of used Abrasive material in accordance with
applicable laws.
EXCHANGE OF ABRASIVE MATERIAL WITH SINTERIT ATEX VACUUM CLEANER
To remove the used Abrasive material from the inside of the sandblaster we recommend using Sinterit ATEX Vacuum
Cleaner.

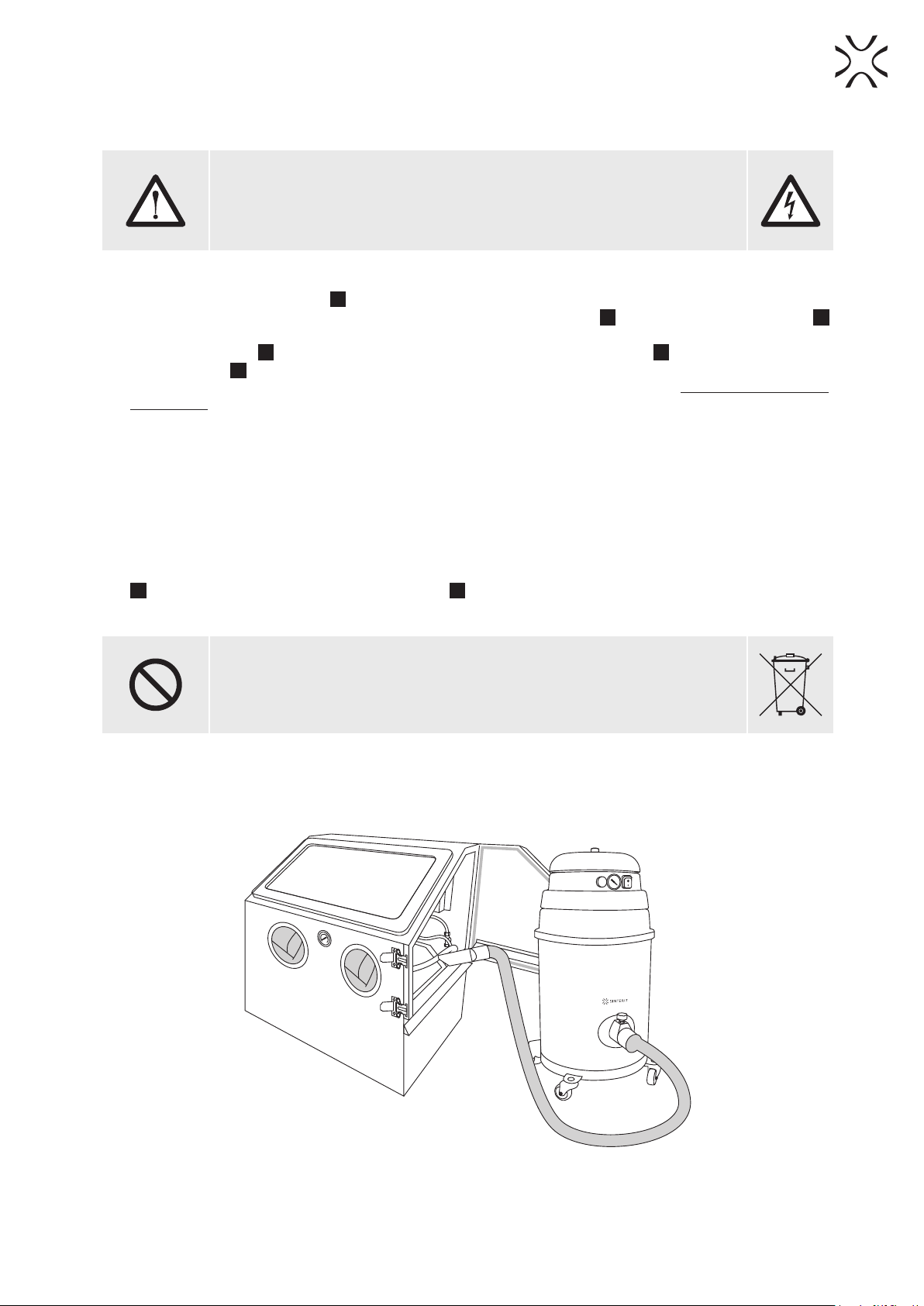

Image 8. One way to remove used Abrasive material is to use the Sinterit ATEX Vacuum Cleaner.

16 | Sinterit SANDBLASTER XL User Manual
1. Disconnect the sandblaster from the Power supply 12 and the compressor 14 .
2. Gently lift the sandblaster grid 24 and insert the rubber nozzle of the vacuum cleaner into the chamber.
3. Turn on the vacuum cleaner and remove all used Abrasive material, also clean the remaining parts in the chamber
(Air lter, pneumatic tubes, housing, Protective Rubber Gloves).
4. Gently transfer the whole contents of the vacuum cleaner into the sealed container. Treat it as industrial waste.
Dispose it in accordance with local waste management policy.
5. Take the container with the new Abrasive material open it and gently pour it in through the hole in the grid 24 . Add
not more than 10 kg / 22 lbs.
6. Connect the Power supply and the compressor.
STANDARD EXCHANGE OF ABRASIVE MATERIAL
WARNING!
A second person is required to help with the standard Abrasive material change. The Sinterit
SANDBLASTER XL with the Abrasive weighs approx. 40 kg – improper maintenance (without the
help of a second person) an cause injury.
CAUTION!
• The Inner chamber grid 24 is heavy!
• Danger of crushing upper limbs when rising the Inner chamber grid.
1. Disconnect the sandblaster from the Power supply 12
and the compressor 14 .
2. Remove the grid 24 carefully from inside of the
sandblaster 9 . Put it on the work tray (so as not to
contaminate the workplace).
3. Prepare a container for used Abrasive material.
4. The plastic cork 27 for removing the Abrasive material
from inside the sandblaster is located in the middle of
the bottom (Image 9).
5. With the help of another person, slide half of the
sandblaster out of the worktop.
6. When one person is holding the sandblaster, the other
person must place the container under the bottom of
the sandblaster and unscrew the cork 27 .
7. When the contents of the sandblaster are poured to
the container, quickly insert the cork in place and move
the sandblaster to the workplace. Treat used Abrasive
material as industrial waste. Dispose it in accordance
with local waste management policy.
8. Take the container with the new Abrasive Material
open it and gently pour it in. Add not more than 10 kg
/22 lbs.
9. Put the grid in place. Be careful not to damage the
components inside the sandblaster chamber.
10. Connect the Power supply and the compressor.
27
Image 9. The position of the plastic cork for removing
used Abrasive material.
B. REPLACEMENT OF THE CERAMIC NOZZLE FROM THE INNER AIR BLOW GUN
1. Disconnect the sandblaster from the Power supply 12 and the compressor 14 .
2. Unlock the door 10 with the door ’s lock 7and open it.
3. Remove the Inner Air Blow Gun 20 .
4. Unscrew the nozzle lock and pull the ceramic nozzle out of it.
5. Clean the Inner Air Blow Gun of any possible dirt and powder.
6. Insert the new ceramic nozzle H into the nozzle lock nut (the ve spares ceramic nozzles are available in additional
accessories of the sandblaster. Remember, that they have different dimensions).
7. Tighten using the supplied wrench F . Put the Inner Air Blow Gun back into the sandblaster.

Sinterit SANDBLASTER XL User Manual | 17
C. REPLACEMENT OF PROTECTIVE RUBBER GLOVES
1. Disconnect the sandblaster from the Power supply 12 and the compressor 14 .
2. Unlock the door 10 with the door ’s lock 7 and open it.
3. To loosen the metal clamp around Protective Rubber Glove 6 , twist off the clamping screw.
4. Gently remove used Protective Rubber Gloves.
5. Clean the surface thoroughly from dirt.
6. Fit the Spare Protective Rubber Gloves.
7. Mount the metal clamp back in place and tighten the clamping screw.
D. MAINTENANCE OF THE VIEWING WINDOW OF THE SANDBLASTER
1. Use a soft cloth or paper towels to clean the sandblaster Viewing window 4 .
2. When the Viewing window 4 itself is damaged, replace it by safety glass with the same thickness and
measurements. Contact with Sinterit Support.
3. Poor visibility inside the sandblaster can be caused by damaged PE protective foil 25 , which is placed over the
Viewing window 4 (inside the chamber). This can easily be replaced by new foil (the ve spare PE protective foils
N are available in additional accessories of the Sinterit SANDBLASTER XL).
• Remove the old PE protective foil 25 .
• Clean the inside of the Viewing window 4 with a soft cloth (it is best to soak it with alcohol).
• Wait until all it dries and carefully place the new PE protective foil N .
31
35
23
23
30
28
29
32
33
34

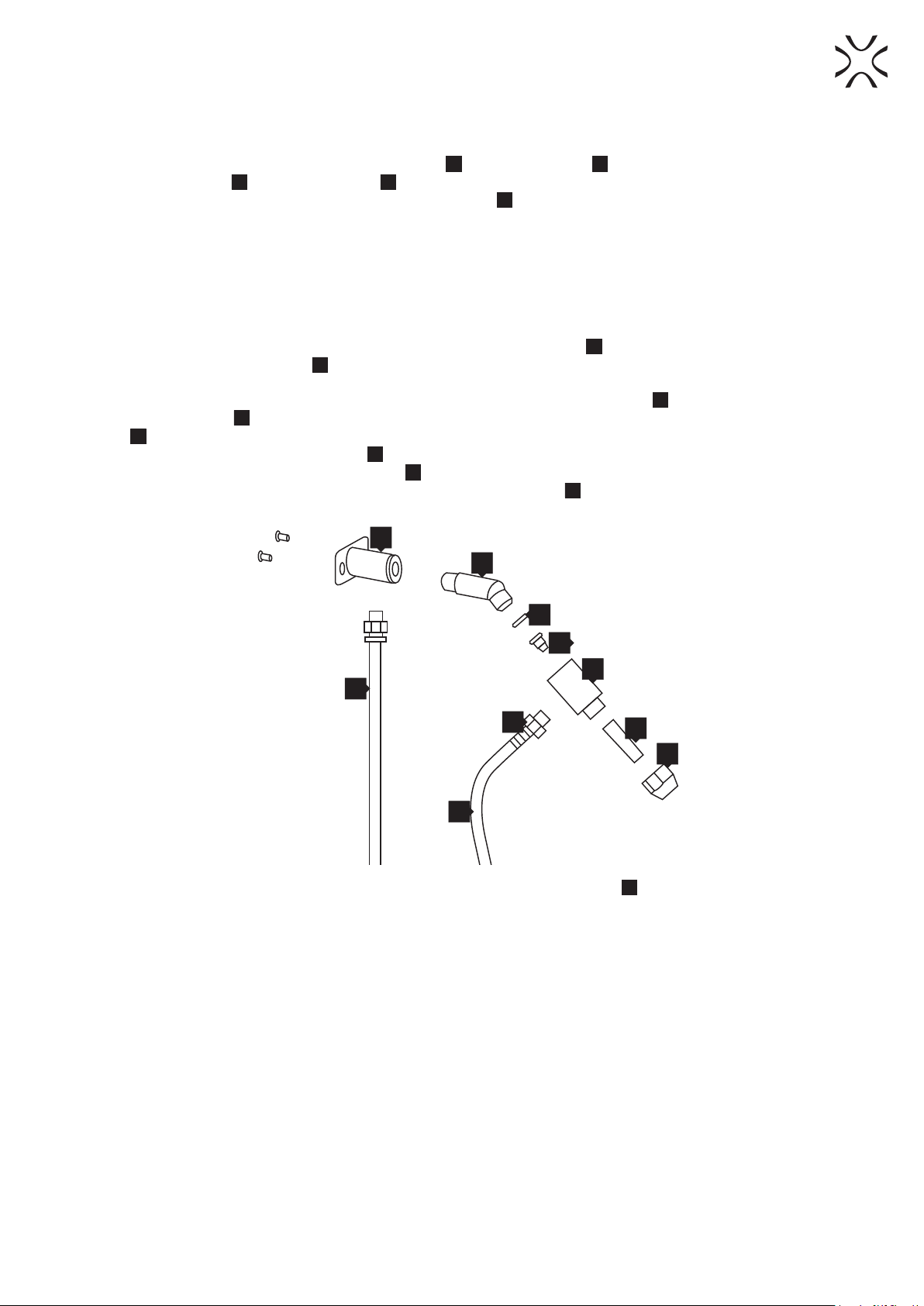

Image. 10. Detailed cross-section through the Static nozzle 19 .
28.Static Nozzle seat / 29.G1/4-45 degree bend / 30.Rubber gasket / 31.Venturi tube / 32.Static Nozzle body /
33.Ceramic nozzle / 34.Nozzle lock nut / 35.Pneumatic tubing connector / 23.Static Nozzle Pnaumatic tubing

18 | Sinterit SANDBLASTER XL User Manual
8. Troubleshooting
Fault symptoms Possible Causes Remedial actions
Excessive dust in the Sinterit
SANDBLASTER XL.
Blocked vent or airow. Clean the vent and keep it away from the wall.
Leakage at the pneumatic
connections.
Tighten up the connections and check that they
are all correct.
Too much Abrasive material in
the sandblaster. Remove the excessive Abrasive material.
Inconsistent effects of the
Abrasive material. Moisture in the sandblaster. Replace the Abrasive material.
Incorrect speed or inecient
sandblasting.
Abrasive material running out. Replace the Abrasive material.
Pressure too low. Increase the inlet pressure and check that the air
regulator is fully open.
The nozzle does not turn off.
Incorrectly connected control
pneumatic tubings. Connect the control pneumatic tubings properly.
Lack of integrity in the control
tubings.
A ow of abrasive is too weak. The Static Nozzle is clogged.
1. Remove the ceramic nozzle and clean it with
compressed air.
2. Install it back.
A ow of abrasive is weak and
the nozzle has been cleaned.
1. Remove the ceramic nozzle, close the
sandblaster and start the abrasive ow.
2. This process should remove every object that
is in the air owing duct.
3. Install the ceramic nozzle back.
Check if the Venturi tube 31 is correctly installed
in the Static Nozzle or if it is not clogged.
Check if the Venturi tube is correctly installed in the Static Nozzle or if it is not clogged.
ATTENTION!
Any other problems not described in this manual should be reported to Sinterit Support by
contacting through:
• email: [email protected]
• www: sinterit.com/support-page/
• phone: [phone].
9. General legal information
Where this manual refers to Sinterit or the Company, this means Sinterit sp. z o.o. with its legal seat in Krakow, registered
by the District Court for Kraków-Śródmieście in Krakow, XI Commercial Division of the National Court Register under
number: 535095, NIP (tax number): 6793106416, with the share capital for a date of publication of this manual of PLN
102,050 (say: one hundred and two thousand and fty).
This document contains material protected under copyright and industrial property laws. This means that the document
may not be, including but not limited to, reproduced or modied without the consent of Sinterit.
This manual serves to assist you in the correct use of the device, perform basic maintenance and, if necessary, to solve
simple problems, allowing you to maintain the device in a good condition.
This manual contains content exclusively for the provision of information and the use by individuals professionally
trained and engaged in the operation and maintenance of the equipment described below.
The information contained in this document is intended for use only with the product called Sinterit SANDBLASTER XL.
Due to the constant development of Sinterit’s products the information contained in this manual, specications and
markings are subject to change without notice.

Sinterit SANDBLASTER XL User Manual | 19
10. Disclaimer
Sinterit is not responsible for any use of this information in relation to other products.
Sinterit is not liable for any damages, including but not limited to losses or lost prots, resulting from the use of any
materials (consumables) other than those provided to the purchaser by Sinterit.
Sinterit is not liable to the purchaser of the product or any third party for any damages, including but not limited to
losses or lost prots resulting from improper use of the product, particularly not in accordance with this manual, or
modications or repairs unauthorised by Sinterit or improper maintenance.
Although every effort has been taken to provide accurate information about the product, Sinterit assumes no responsibility
for any incorrect information or omission. Sinterit reserves the right to correct any errors and disclaims any liability in
situations resulting from these errors.
Further limitations or exclusions of Sinterit`s liability may result from the applicable laws or agreements entered into with
the purchaser of the products.
11. Trademarks
Sinterit logo is a registered trademark of the Company.
12. Terms of warranty
The terms of the warranty are set forth in the agreement between the buyer and the Company.
In case of a purchase made in the Sinterit online shop, the terms of the guarantee are specied in the Terms and
Conditions, subject to the acceptance of the Customer before placing an order.
In case of purchases made outside the Sinterit online store, the warranty terms may be specied in the offer, or in another
form chosen by the Company to provide the customer with relevant information before making a purchase decision.
Sinterit’s warranty does not cover including but not limited to:
• damages, abnormalities or malfunction caused by a client or any third party,
• damages, abnormalities or malfunction caused by inappropriate use, effects of force, insucient or inappropriate
maintenance, abnormal operating conditions, incorrect installation or inadequate servicing,
• damages, abnormalities or malfunction caused by dismantling, alterations, tuning or other changes of the product
by a client or any third party made without written consent of Sinterit,
• damages, abnormalities or malfunction caused by or related to use of consumables other than those being supplied
by Sinterit,
• damages, abnormalities or malfunction caused by or related to use of product against instructions/manuals or
safety regulations,
• damages or abnormalities Sinterit is not liable for, according to the applicable law,
• damages exceeding the price paid by the client,
• costs incurred by the client in connection with the conclusion of the product sale agreement as well as storage and/
or insurance of products,
• damages of property caused by the defect of the product,
• loss of prots,
• incidental, indirect, consequential damages.
The warranty does not cover any cleaning of working parts
13. Technical support
The latest information, technical support and versions of the manual are available by contacting us through:
• email: www.sinterit.com/support-page
• phone: [phone]
The list of distributors and technical support in specic countries can be found at www.sinterit.com/contact

SINTERIT Sp.z o.o.
ul. Nad Drwina 10 bud. B3, 30-741 Krakow, Poland
www.sinterit.com
Contact: [phone]
