This document is intended to provide guidance when adding a modem from the
ZETA-xxP series to your system.
The ZETA-xxP series of LTE Cat 1/LTE Cat 4/LTE Cat M/LTE Cat NB IoT/GSM
Ultra Low Power modems are an advanced range of high performance modems
developed for easy integration into existing systems and for embedded application
development.
The ZETA-xxP modem range is based on the Telit xE910 GPRS/UMTS/LTE
module series and is designed to be ultra low power for use in power sensitive
applications. The modem manages the module power up sequence and can be
programmed to perform additional custom tasks. In addition to offering 2G/GSM
fallback the modem also provides access to the new LTE Cat M1 and LTE Cat NB
IoT networks for full future compatibility.
The modem family is also available with current LTE Cat 1 and LTE Cat 4 variants
for high speed applications.
This document discusses the modems states and modes of operation in addition
to the electrical characteristics of the modems interfaces.
Introduction

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
4
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Siretta, located in Reading, United Kingdom have been manufacturing antennas,
cable assemblies and cellular modems for over 10 years. We supply our products
globally to many of the world’s leading organisations.
Whether you require an off the shelf or custom solution, Siretta has a wide portfolio of
antenna, RF cable assemblies and modems to t your application.
Our extensive knowledge and experience in the wireless market allows us to support
a wide range of customer applications, focusing on frequencies typically within the
75MHz - 5.8GHz range. These encompass the HF, VHF, ISM, GSM/GPRS/3G/4G
and GPS frequencies as well as industrial WLAN and VHF/UHF antenna/Wi-Fi
antenna solutions.
With a heavy emphasis on design, we have a team of dedicated Application
Engineers and Product Managers, backed up by Field Sales Engineers, who
specialise in wireless applications.
We have made signicant investments in R&D facilities which boast GPS hardware
development equipment and a GSM Pico Cell on site, as well as development
software and a comprehensive suite of Industrial, Scientic and Medical band, and
non ISM band frequency products. We have many technology partners enabling us to
keep at the forefront of the communications industry and offer class leading wireless
solutions.
About Siretta

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
5
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
The ZETA-xxP range of LTE Cat 1/LTE Cat 4/LTE Cat M/LTE Cat NB IoT/GSM Ultra
Low Power modems are amongst the most versatile modem series available today.
The ZETA-xxP series offers a range of interface options including USB and RS232
serial port communication, for connection to existing legacy equipment and high
speed USB interfaces.
The ZETA-xxP has been designed from the ground up to be very power efcient and
incorporates some unique features to allow it to run in an ultra low power state when
utilizing the standard AT+CFUN=5 low power mode.
The Siretta ZETA-xxP contains a powerful C development environment which reduces
redundancy and optimizes the architecture of your solution and lowers system
component costs. In a typical integration project, IoT device developers employ a
microcontroller to manage the modem functionality and other device peripherals. The
Siretta ZETA-xxP integrates Telit IoT AppZone which eliminates the requirement for an
external controller, reducing cost and complexity, embedding application code right in
the module.
The Siretta ZETA-xxP Includes a comprehensive set of high-level enabling functions
allowing you to focus on the market-differentiating value-added features of your
application software. Reduces time to market and project costs; and when you
complete your development, reuse it across different products and technologies to
expand your markets and opportunities.
Create a proof of concept in record time and with minimal investment. Leverage
robust building blocks to shorten your development cycles through to mass
deployment.
General Description

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
6
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Specications
ZETA-NLP-LTEM (GL) *ZETA-NEP-LTEM (GL)
2G frequency band: B2 (1900MHz), B3 (1800MHz), B5 (850MHz), B8
(900MHz)
B2 (1900MHz), B3 (1800Mhz), B5 (850Mhz), B8
(900MHz)
4G frequency band:
B1 (2100MHz), B2 (1900MHz), B3 (1800MHz),
B4 (AWS1700MHz), B5 (850MHz), B8 (900MHz),
B12 (700MHz), B13 (700MHz), B18 (800MHz),
B19 (800MHz), B20 (800MHz), B26 (850MHz),
B28 (700MHz)
B1 (2100MHz), B2 (1900MHz), B3 (1800MHz),
B4 (AWS1700MHz), B5 (850MHz), B8 (900MHz),
B12 (700MHz), B13 (700MHz), B18 (800MHz),
B19 (800MHz), B20 (800MHz), B26 (850MHz),
B28 (700MHz)
Dimensions: 93 x 67 x 28mm 93 x 67 x 28mm
Weight: 101g 101g
Supply voltage: 7 - 42V 7 - 42V
Operating temperature: -40 - +85 °C -40 - +85 °C
Cellular/GNSS connector: SMA Female / None SMA Female / None
General Purpose Inputs/Outputs: None 3 (0-42V) / 2 (Vcc @ 1A)
Debug RS232 Serial: None 3 Wire Interface
GNSS Positioning: None None
Table 1. Specications of the ZETA-xxP-LTEM modem (LTE Cat M, LTE Cat NBIoT, 2G/GSM)
ZETA-NLP-LTE1 (EU) ZETA-NSP-LTE1 (EU)
2G frequency band: B3 (1800MHz), B8 (900MHz) B3 (1800MHz), B8 (900MHz)
3G frequency band: B1 (2100MHz), B3 (1800MHz), B8 (900MHz) B1 (2100MHz), B3 (1800MHz), B8 (900MHz)
4G frequency band: B1 (2100MHz), B3 (1800MHz), B7 (2600MHz),
B8 (900MHz), B20 (800MHz), B28A (700MHz)
B1 (2100MHz), B3 (1800MHz), B7 (2600MHz),
B8 (900MHz), B20 (800MHz), B28A (700MHz)
Dimensions: 93 x 67 x 28mm 93 x 67 x 28mm
Weight: 101g 101g
Supply voltage: 7 - 42V 7 - 42V
Operating temperature: -40 - +85 °C -40 - +85 °C
Cellular / GNSS connector: SMA Female / None SMA Female / None
General Purpose Inputs/Outputs: None None
Debug RS232 Serial: None None
GNSS Positioning: None None
Table 2. Specications of the ZETA-xxP-LTE1 modem (LTE Cat 1, 3G/UMTS, 2G/GSM)
NOTE: For the specication of the ZETA-NLP-LTEM (EU) please download the product datasheet here.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
7
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Table 3. Specications of the ZETA-xxP-LTE4 (EU) modem (LTE Cat 4, 3G/UMTS, 2G/GSM)
ZETA-NEP-LTE4 (EU) ZETA-GEP-LTE4 (EU)
2G frequency band: B3 (1800MHz), B8 (900MHz) B3 (1800MHz), B8 (900MHz)
3G frequency band: B1 (2100MHz), B3 (1800MHz), B8 (900MHz) B1 (2100MHz), B3 (1800MHz), B8 (900MHz)
4G frequency band: B1 (2100MHz), B3 (1800MHz), B7 (2600MHz),
B8 (900MHz), B20 (800MHz), B28A (700MHz)
B1 (2100MHz), B3 (1800MHz), B7 (2600MHz),
B8 (900MHz), B20 (800MHz), B28A (700MHz)
Dimensions: 93 x 67 x 28mm 93 x 67 x 28mm
Weight: 101g 101g
Supply voltage: 7 - 42V 7 - 42V
Operating temperature: -40 - +85 °C -40 - +85 °C
Cellular / GNSS connector: SMA Female / None SMA Female / SMA Female
General Purpose Inputs/Outputs: 3 (0-42V) / 2 (VCC @ 1A) 3 (0-42V) / 2 (VCC @ 1A)
Debug RS232 Serial: 3 Wire Interface 3 Wire Interface
GNSS Positioning: None GPS / Glonass / Galileo / Beidou / QZSS
Table 4. Data transfer speeds
Model Region Max Download Max Upload
LTE Cat NBIoT Global 26Kbps 66Kbps
LTE Cat M1 Global 300Kbps 375Kbps
GPRS Class 10 Europe/USA 236.8Kbps 59.2Kbps
UMTS Europe/USA 7.2Mbps 5.76Mbps
LTE Cat 1 Europe/USA 10Mbps 5Mbps
LTE Cat 4 Europe/USA 150Mbps 50Mbps

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
8
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
NOTE - For part numbering and ordering information see page 15.
Model Network Cellular Region GNSS Region Max Download Max Upload
ZETA-NLP-LTEM GPRS Global 236.8Kbps 59.2Kbps
ZETA-NLP-LTEM LTE Cat M Global 300Kbps 375Kbps
ZETA-NLP-LTEM LTE NBIoT Global 26Kbps 66Kbps
ZETA-NEP-LTEM GPRS Global 236.8Kbps 59.2Kbps
ZETA-NEP-LTEM LTE Cat M Global 300Kbps 375Kbps
ZETA-NEP-LTEM LTE NBIoT Global 26Kbps 66Kbps
ZETA-NLP-LTE1 GPRS Europe/USA 236.8Kbps 59.2Kbps
ZETA-NLP-LTE1 UMTS Europe/USA 7.2Mbps 5.76Mbps
ZETA-NLP-LTE1 LTE Cat 1 Europe/USA 10Mbps 5Mbps
ZETA-NSP-LTE1 GPRS Europe/USA 236.8Kbps 59.2Kbps
ZETA-NSP-LTE1 UMTS Europe/USA 7.2Mbps 5.76Mbps
ZETA-NSP-LTE1 LTE Cat 1 Europe/USA 10Mbps 5Mbps
ZETA-NEP-LTE4 GPRS Europe/USA 236.8Kbps 59.2Kbps
ZETA-NEP-LTE4 UMTS Europe/USA 7.2Mbps 5.76Mbps
ZETA-NEP-LTE4 LTE Cat 4 Europe/USA 100Mbps 50Mbps
ZETA-GEP-LTE4 GPRS Europe/USA Global 236.8Kbps 59.2Kbps
ZETA-GEP-LTE4 UMTS Europe/USA Global 7.2Mbps 5.76Mbps
ZETA-GEP-LTE4 LTE Cat 4 Europe/USA Global 100Mbps 50Mbps
Table 5. Device transfer speeds

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
9
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
AT Commands
The ZETA-xxP range of wireless modems has a cellular engine at its heart which can
be controlled via the serial interface using standard AT commands.
The AT command is an ATTENTION command and is used as a prex to other
parameters in a formatted string. The AT command combined with other parameters
can be sent to the modem with your preferred terminal emulator package (TMSTerm/
TeraTerm/HyperTerminal) and typed in manually as a command line instruction.
The wireless module is compliant with the following AT command formats:
1) Hayes standard AT command set, in order to maintain the compatibility with
existing SW programs.
2) 3GPP 27.007 specic AT command and GPRS specic commands.
3) 3GPP 27.005 specic AT commands for SMS (Short Message Service) and CBS
(Cell Broadcast Service)
4) FAX Class 1 compatible commands
5) Proprietary command set, the module family also supports a proprietary set of AT
commands for special purposes outside of the standard AT specication.
To obtain the latest AT command reference guide* with a full list of supported AT
commands, please contact your Siretta representative or alternatively visit:
www.siretta.com
NOTE - This following document refers to useful AT commands throughout and offers
descriptions of how to use the AT commands with the ZETA-xxP wireless modems.
*For all LTE modems refer to the latest LTE AT Command Manual.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
10
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
ZETA-xxP Interface
Standard Hardware Interfaces
The ZETA-NLP and ZETA-NSP modem series come complete with the following interfaces:
»1 x RS232 serial port interface for direct serial connection to module (9 wire interface)
»1 x RJ12 power connection with 2 power lines (7- 42V) and 4 input interfaces
»1 x SMA female cellular antenna connector
»1 x SIM card reader (push-push)
»3 x external LED status indicators (Red, Green, Blue)
»1 x FS USB port
The ZETA-NEP modem series comes complete with the following interfaces:
»1 x RS232 serial port interface for direct serial connection to module (9 wire interface)
»1 x RJ12 power connection with 2 power lines (7- 42V) and 4 input interfaces
»1 x SMA female cellular antenna connector
»1 x SIM card reader (push-push)
»3 x external LED status indicators (Red, Green, Blue)
»1 x FS USB port
10-Way connector
»1 x wired (10-way) RS232 debug port for direct serial connection to module (3 wire interface)
»1 x wired (10-way) 3.3V power supply output interface
»1 x wired (10-way) 12-bit ADC interface (42V tolerant)
»3 x wired (10-way) general purpose input interfaces (0-42V)
»2 x wired (10-way) general purpose output interface (VCC @ 1A)
The ZETA-GEP modem series comes complete with the following interfaces:
»1 x RS232 serial port interface for direct serial connection to module
»1 x RJ12 power connection with 2 power lines (7- 42V) and 4 input interfaces
»1 x SMA female cellular antenna connector
»1 x SMA female GNSS antenna connector
»1 x SIM card reader (push-push)
»3 x external LED status indicators (Red, Green, Blue)
»1 x FS USB port
10-Way connector
»1 x wired (10-way) RS232 debug port for direct serial connection to module (3 wire interface)
»1 x wired (10-way) 3.3V power supply output interface
»1 x wired (10-way) 12-bit ADC interface (42V tolerant)
»3 x wired (10-way) general purpose input interfaces (0-42V)
»2 x wired (10-way) general purpose output interface (VCC @ 1A)

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
11
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Optional Coverage
The ZETA-xxP series modems have the following coverage options available:
»(EU) European Union
»(USA) Americas
»(GL) Global
Optional Technologies
The ZETA-xxP series modems have the following optional technologies available:
»GPRS (2G)
»UMTS (3G)
»LTE Cat 1 (4G)
»LTE Cat 4 (4G)
»LTE Cat M
»LTE Cat NBIoT
Optional Modem Features*
*To add optional features on your modem, see ordering Information on page 15.

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
12
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition

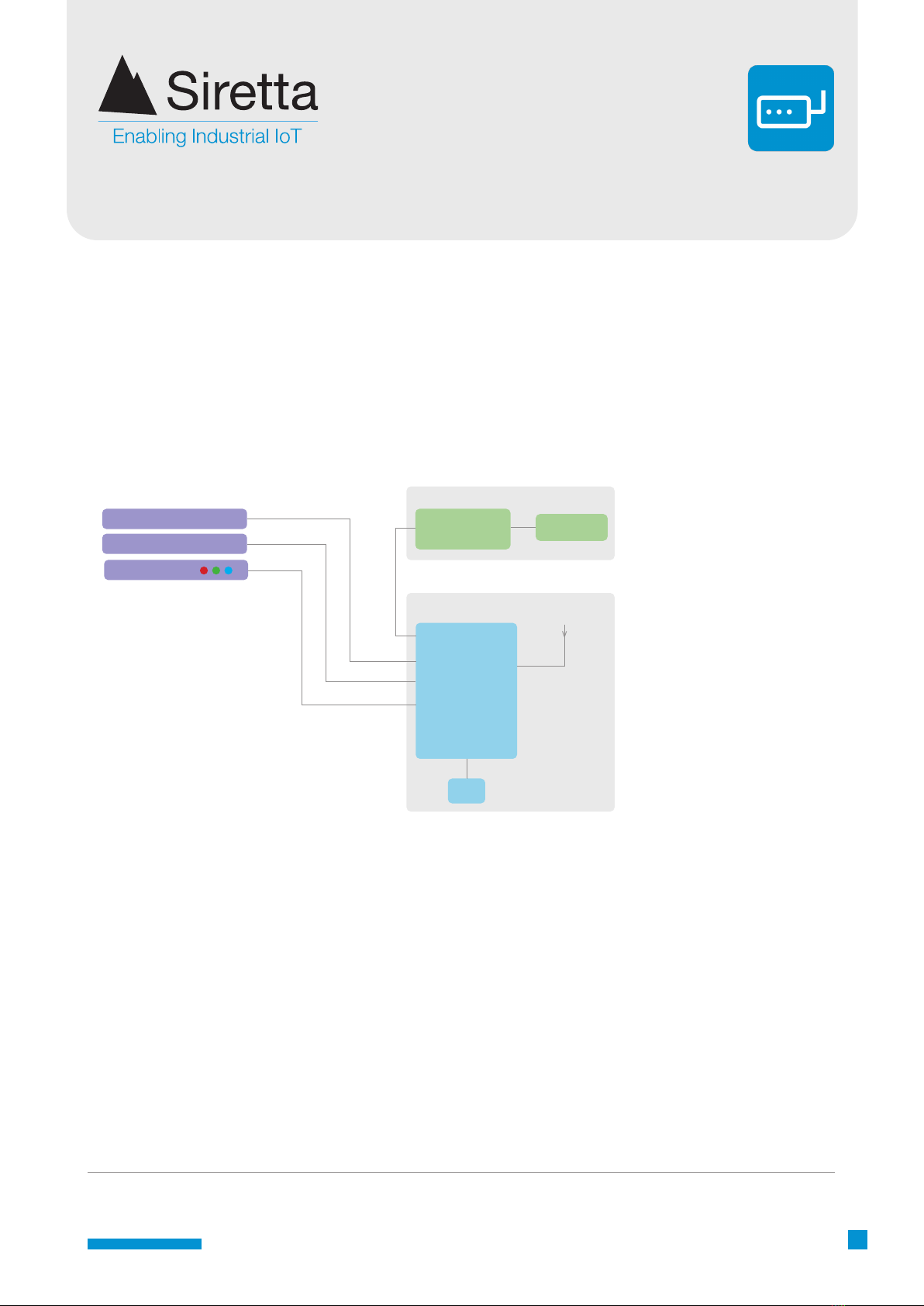

System Diagram
Figure 1 ZETA-NLP / ZETA-NSP Block Diagram
The ZETA-xxP series is a versatile range of modems offering multiple communication
channels and interfaces to connect into other systems. The system diagram below
gives a visual representation of the ZETA-xxP interfaces available to the user and
shows the various subsections which make up the complete ZETA-xxP modem.
Cellular
7 - 42V
PSU Power Input
SIM
RS232 Serial Port Interface
Visual Indicators
Intelligent Power Supply Subsection
Communication Subsection
HS USB Port
Telit xE910
Module

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
13
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Figure 3 ZETA-GEP Block Diagram
Figure 2 ZETA-NEP Block Diagram
Cellular
7 - 42V
PSU Power Input
SIM
RS232 Serial Port Interface
Visual Indicators
Intelligent Power Supply Subsection
Communication Subsection
HS USB Port
Telit xE910
Module
Debug Serial Port
10-Way Interface Subsection
2 x Inputs
1 x GND
1 x ADC
1 x 3.3V Power Output
GNSS
2 x Outputs
Cellular
7 - 42V
PSU Power Input
SIM
RS232 Serial Port Interface
Visual Indicators
Intelligent Power Supply Subsection
Communication Subsection
HS USB Port
Telit xE910
Module
Debug Serial Port
10-Way Interface Subsection
2 x Inputs
1 x GND
1 x ADC
1 x 3.3V Power Output
2 x Outputs

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
14
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
This ZETA-xxP can be used in a number of applications, some examples are
shown below:
»Low power cellular communication interface
»Upgrade your estate with a low power solution which continues to operate on the
existing 2G/GSM network
»Future proof your applications today by installing a 4G/LTE compatible solution
which operates with 2G/GSM fall back
»Standard RS232 modem attached to existing equipment (PC/MAC/Linux)
Typically connected devices are:
»PC/MAC/Linux platforms for use as a dial-up modem
»Embedded (connected directly to remote equipment without a PC attached)
Operating System Connected Modem
»Internet enable a remote device with RS232 connectivity over 2G/GPRS, 3G/
UMTS, LTE Cat M, LTE Cat NBIoT, LTE Cat 1, LTE Cat 4. Internet connectivity
can be retrotted to end equipment without changing the software or
conguration of the remote device.
»Used in countries or places where broadband and WiFi is a less common method
to connect to the internet or where services are unavailable. The ZETA-xxP
modem can overcome this restriction by providing a mobile internet solution over
the LTE/4G network.
Examples:
»Vending machine where the head ofce would poll for drinks remaining/money
taken etc. This would be an on-demand pull to obtain results in real time.
»Monitoring AMR/temperature/equipment in a home, i.e. Interrogate lights etc.
»Remote entry system, i.e. Send a message to the modem to open a gate/door to
allow access.
»Streaming live data from remote system to a central location
»Remote printing applications (remotely print over the GPRS network)
»Polling remote devices for information to prevent an engineer callout
System Overview
USB Interface
This is a USB standard Communication Device Class (CDC) device. A device driver
is available for Windows OS. Linux uses standard CDC ACM drivers. Please contact
your siretta representative for more information.
Modes of Operation

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
15
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Ordering Information
ZETA XXX XXXX (XX)
Module Type
N = Without GNSS
G = With GNSS (GPS, Glonass, Beidou, Galileo, QZSS)
LP = Ultra Low Power
SP = Low Power
EP = Enhanced Low Power
Product Module Version
LTE1 = LTE Cat 1 Technology
LTE4 = LTE Cat 4 Technology
LTEM = LTE Cat M / LTE Cat NBIoT Technology
Coverage Options
(EU) = European Coverage of 2G / GSM, 3G / UMTS and 4G / LTE
(USA) = American Coverage of 2G / GSM, 3G / UMTS and 4G / LTE
(GL) = Global Coverage of 2G / GSM, 3G / UMTS and 4G / LTE
Part Numbering Examples
»ZETA-NLP-LTEM (GL) = Ultra Low Power Global Coverage LTE Cat M / LTE Cat NBIoT Modem
»ZETA-NSP-LTE1 (EU) = Low Power European Coverage LTE Cat 1 Modem
»ZETA-GEP-LTE4 (EU) = Low Power European Coverage LTE Cat 4 Modem with GPIO and GNSS
Modem Identier
ZETA = Siretta Low Power Modem
- -

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
16
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Dimensions
All dimensions are shown in mm. These drawings are relevant for the entire ZETA-xxP
series modems.
Figure 4. ZETA-NLP and ZETA-NSP modem - SIM holder and LED indicator view - dimensions

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
17
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition

Figure 6. ZETA-xxP modem - RS232 and USB serial connectors view - dimensions
Figure 5. ZETA-NEP and ZETA-GEP modem - SIM holder, 10-way IO header and LED indicator view - dimensions

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
18
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
Figure 8. ZETA-xxP modem antenna and power view - dimensions
All dimensions are shown in mm. The mounting holes are suitable for a M3 xing
screws. These drawings are relevant for the ZETA-xxP modems.
ZETA-xxP Modems
Figure 7. ZETA-xxP modem top view - dimensions
28
67
15.25 17.55
15.4
17.5
FRONT ELEVATION
100
SIDE ELEVATIONSIDE ELEVATION
100
55
19
45 11
PLAN
1:1 @ A3 Sheet Size
A
B
C
D
E
F
G
H
I
7 6
5 4
3
I
H
G
F
E
D
C
B
2
A
1
AMENDMENTS JOB NUMBER DRAWING TITLE STATUS PROJECT INFO
COPYRIGHT WARNING These drawings and designs remain the property of Sequoia Technology Group. Any unauthorised use will render the offender liable for damages.
ALL DIMENSIONS ARE IN UNLESS OTHERWISE STATED
Sheet1
DRAWING: X:\Sequoia Design\Sequoia\SQ864\ SQ864 Dual Antenna
MODEL: X:\Sequoia Design\Sequoia\SQ864\ SQ864 v2.0
DESIGNER
03/05/2013
ISSUE DATE
DO NOT SCALE OFF DRAWING EMAIL [email protected] FOR DXFS OR OTHER SCALABLE FILES.
Page No: 01 /01
GENERAL NOTES:
PART NUMBER
REV
SCALE
28
67
15.25 17.55
15.4
17.5
FRONT ELEVATION
100
SIDE ELEVATIONSIDE ELEVATION
100
55
19
45 11
PLAN
1:1 @ A3 Sheet Size
A B C D E F G H I
7
6
5
4
3
I H G F E D C B
2
A
1
AMENDMENTS
JOB NUMBER
DRAWING TITLE
STATUS
PROJECT INFO
COPYRIGHT WARNING
These drawings and designs remain
the property of Sequoia Technology
Group. Any unauthorised use will
render the offender liable for damages.
ALL DIMENSIONS ARE IN UNLESS OTHERWISE STATED
Sheet1
DRAWING: X:\Sequoia Design\Sequoia\SQ864\ SQ864 Dual Antenna
MODEL: X:\Sequoia Design\Sequoia\SQ864\ SQ864 v2.0
DESIGNER
03/05/2013
ISSUE DATE
DO NOT SCALE OFF DRAWING
EMAIL [email protected] FOR DXFS OR OTHER
SCALABLE FILES.
Page No: 01 /01
GENERAL NOTES:
PART NUMBER
REV
SCALE

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
19
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
ZETA-xxP Series Images
Figure 9. ZETA-NLP, ZETA-NSP and ZETA-NEP
Figure 11. 3D view of the ZETA-NLP and ZETA-NSP
Figure 10. ZETA-GEP
Figure 12. 3D view of the ZETA-NEP and ZETA-GEP

Registered in England No. 08405712
VAT Registration No. GB163 04 0349
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
email
web
[phone]
[email protected]
www.siretta.com
20
ZETA-xxP Series
Hardware Manual
rev D
Download Latest Edition
LED Indicators
There are 3 LED outputs on the ZETA-xxP modem coloured Red, Green and Blue.
By default, these show the functional/operational state of the modem. However,
these may also be congured using software control by the user for other indication
purposes. Table 4 describes the functions of the LEDs.
Table 4. LEDs

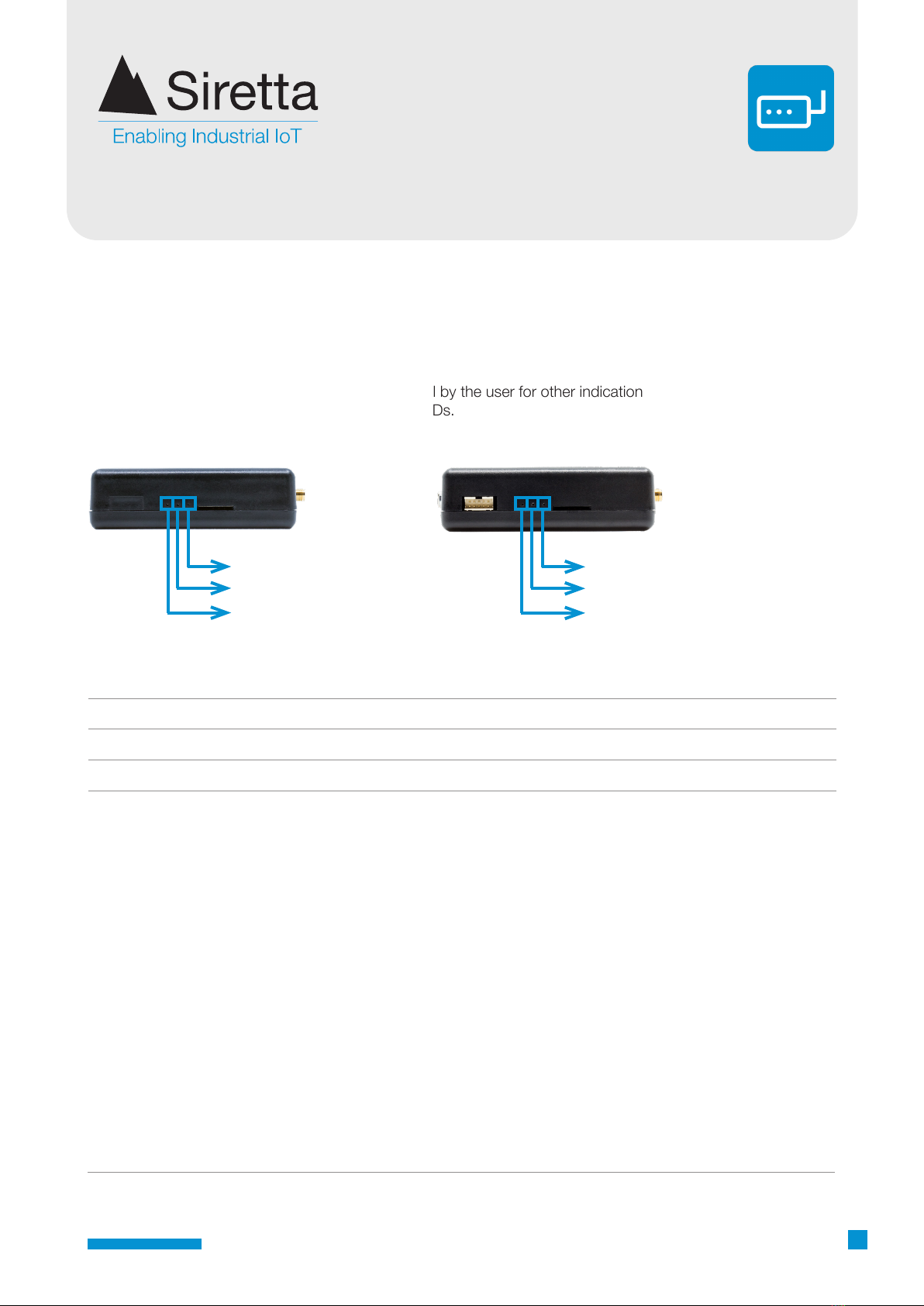

Figure 13. ZETA-NLP and ZETA-NSP LEDs
Blue LED
Green LED
Red LED
LED At power up or PWRON_IN / PWROFF_IN control After power up
Red Undened state Network registration state / call indication
Green Rapid blink during power on, otherwise off Off / User dened
Blue Rapid blink during power off, otherwise off Off / User dened
On initial application of power, all LEDs will briey illuminate. During power up, the
green and blue LEDs are controlled directly by the ZETA-xxP power management
controller, and the red LED is controlled by the embedded modem module. While
the ZETA-xxP is in the power up state the green LED will ash rapidly (500mS on,
500mS off) and the Blue LED will be off until the power up process is complete.
ZETA-NLP Variants
After the power on process has completed, red, green and blue LED’s are disabled
completely to save power whilst it is in an operating state. The green LED will
briey ash once every 30 seconds to indicate that the modem is in the on.
ZETA-NSP, ZETA-NEP and ZETA-GEP Variants
After the power on process has completed, red, green and blue LED’s are
controlled directly by the module using the standard set of AT commands seen on
page 17.
Power Up LED States
Blue LED
Green LED
Red LED
Figure 14. ZETA-NEP and ZETA-GEP LEDs
