Sirius Satellite Radio SIR-ALP1 User manual

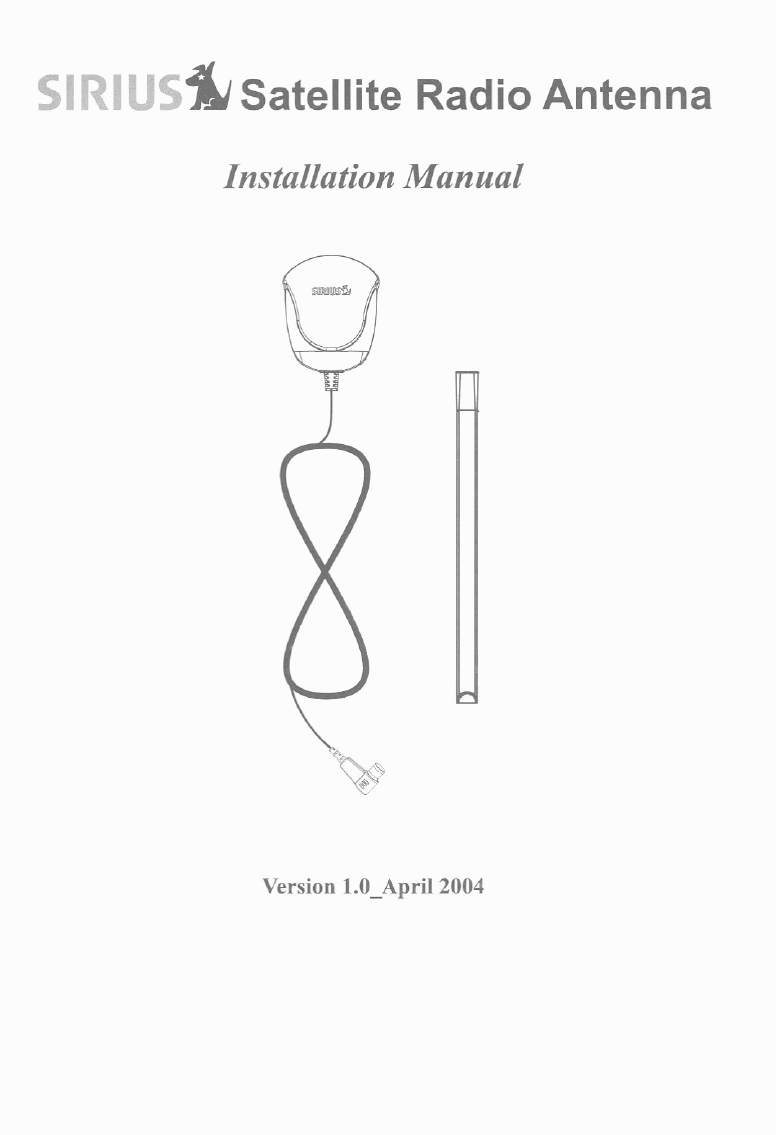

atellite Radio Antenna
Installation Manual
Version 1.0-April 2004

Package Contents
Carcfully unpack the contents of this box and cnsure yon have the itcms listed below.
In the event that any item is missing,
or if you find any mismatch or damage,
promptly contact your dealer.
Car Antenna
Rubber
Tail
P
Adhesive Strip
Alcohol Wipe
Introduction
Thank you for purchasing this product. Your new SIRIUS@ Satellite Radio Antenna is
designed to optimally receive both signals from
SIRIUS’ satellites and terrcstrial
(ground) iransmittcrs.
This antenna has been approved by SIRIUS Satellite Radio,
Inc to receive signals under
a varicty of conditions within SIRIUS’ North American
coverage area.
instructions tu cnsure the hest-quality signal reception.
The antenna should he mounted propcrly according to these
Alnstailation Caution
It is recommended that the antenna he installed at or above room temperature, as
lower tcmperatnres may cause the antenna’s tail not to adhereproperly. Maximum
adhesion usually occurs within
72 hours at room temperaturc.
as othcr contact with the antenna and tail, should be avoidcd during this timc.
Warmer temperaturcs will allow
for casier antenna installation over-all, iricluding
easier routing of antcnna cable through ruhher molding around windows and other
objects on your vehicle.
Car washes, as well

Mounting Your Antenna
Your ncw SIRIUSOSatellite Radio Antenna has a strong magnetic mounting to hold
the antenna in place during normal driving conditions (highwayicity) and to allow for
easy removal for transferring to other vchicles.
whether to install the antenna with the tailpiece or without.
performance, it
is recommended that the tail he installed with the antenna (Ex: A).
The tail gives you a recomrncnded measured-distance and cable-concealment to
install the antcnna in a position
to give it the best view of the sky.
includes an adhesive strip that
also protects thc cxposed portion oftheantenna cable
and holds it securely in place.
It is the discretion of the consumer
For optimum
The antenna’s tail
I. Siirface Preparation: Clean the general surface area of your vehicle where you
intend to mount your antenna, with included alcoholwipe.
the selected location and the magnets will attach to the surface.
2. W?th-TailInstallation (recommended): The antcnna should be mounted along
the centerline of the roof, on a metal surface at minimum 12” x 12” and exactly
6.5” (lengthfor tailpiece) fromthe from the vehicles rear window for most sedan
applications. Guide the cable through the bottom of the tailpiecc cavity, don not
adhereyet.
the rubber molding, beginningwith the tail end first.
(Ex: A)
or othcr blunt object to lift the ruhher molding and tuck the cable underneath.)
Route cabledown window to the lowest point and into the trunk area, using
existing cable channel or wiring conduit, and to through the interior-trim to
recciver location.
happy with the location, remove the protective backing from one side of the
adhesive strip and prcss it firmlyalongthe bottom of the tailpiece, over the
cable-guide. Next, remove the other protective hacking on the adhesive and
firmly place this onto your vehicle’s surface. Make sure you are happy with the
location and press firmly down on tail for at
least 30 seconds.
* At room temperature, maximum adhesion usually oecurs within 72 hours.
During this period, car r,ashesand other contact with the antennaand tail
should be avoided.
Place the antcnna at
The cable shouldhe routed along the rear window and underneath
(Use a plastic knife
Once the cable is routed through to the trunk and you are
3. Without-TailInstallation:
Follow instructions above, bui locate antenna at edge
of rear window.

Ex: A and R:Examples ofpropcrantenna location (with and without tail).
* If the vehicle has a roof rack or skid ribs, it is necessary to mount the antenna
off-center, far from barriers that could interfere with reception.
4. ConvertibleInstallation: Follow instructions above for With or Without-Tail
Installation, but mount antennaontrunk of car routed directly into truck-area.
5.
SUVk, Mini-Vansand 5 Door Vehicles:
cableunder rubber molding from thc tailgate and continue under the interior trim.
Follow the instruction above, but if molding for thc brake light
Follow instructions above, but routc
6. Pick-Up Trucks:
is made of rigid plastic, drilling a small hole may be necessary to route cable into
the cab. Seal the hole with a silicone compound after installation.
* If the vehicle has a roof rack or shdribs, it may be necessary to mount the
antenna off-center, far from any barriers that could interfere with reception.
I. Refcr to the instruction manual that comes with your SIRIUSO Satellite Radio
receiver for additional instruction and troublc shootingrecommcndations.
AWarning:Make sure not to cut, damage or puncture the
external jacket of the cable during installationprocedure.
Damage
to the cable can cause signal to be degraded or
unavailableandcanalsocausewatertowickupintotheantenna,
further causing the antenna to fail.
Shape
Color
Dimensions
Weight
Cable
Connector
Mounting
Cover
"Reveled Teardrop"
Black
2 28" x I 89" x 0 63"
Approx 4 807.
21 ft, micro low loss
SMB (90 degree, Right-angle)
Magnetic
Impact-resistant glass-filled nylon

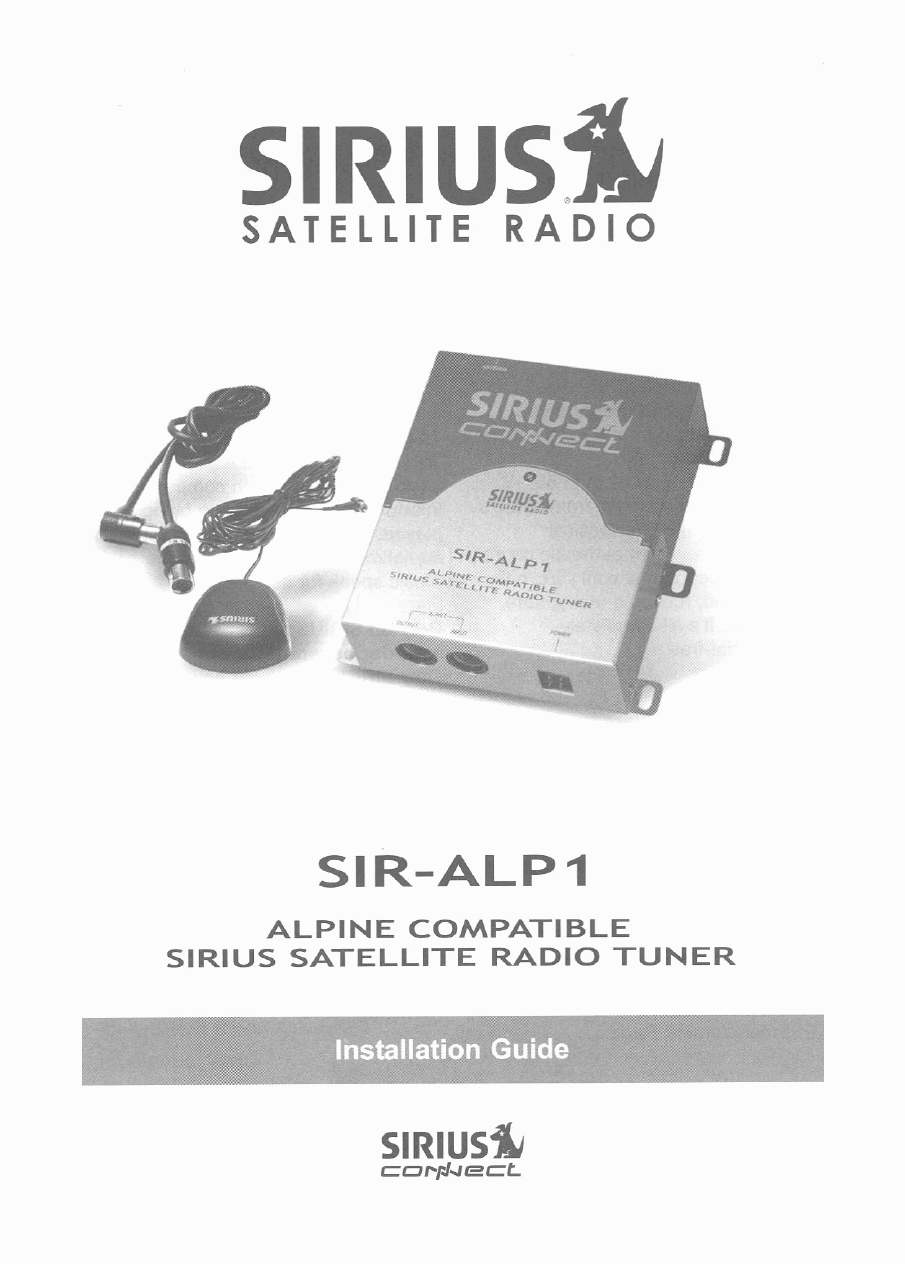

SATELLITE RAD1
a
SIR-ALP I
ALP I N E COM PATI B LE
SIRIUS SATELLITE
RADIO TUNER

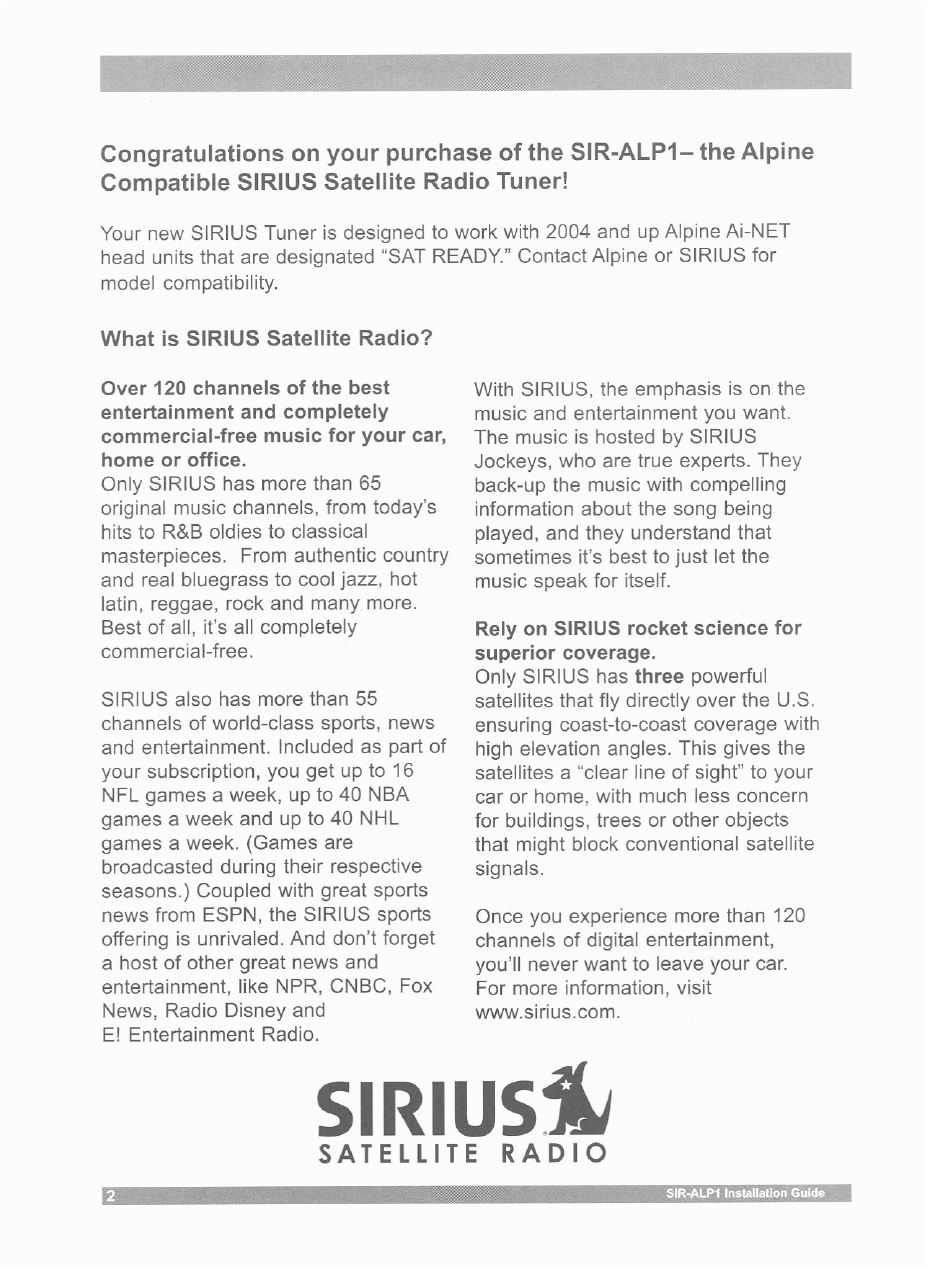

Congratulationson your purchase of the SIR-ALPI- the Alpine
Compatible
SIRIUS Satellite RadioTuner!
Your new SIRIUS Tuner is designed to work with 2004 and upAlpineAi-NET
head units that are designated "SAT READY." ContactAlpine or SIRIUS for
model compatibility.
What is SIRIUS Satellite Radio?
Over 120 channels ofthe best
entertainment and completely
commercial-free
music for your car,
home
or office.
Only SIRIUS has more than
65
original music channels, from today's
hits
to R&B oldies to classical
masterpieces. From authentic country
and real bluegrass to cool jazz, hot
latin, reggae, rock and many more.
Best of all, it's all completely
commercial-free.
SIRIUS also has more than
55
channels of world-class sports, news
and entertainment. Included
as part of
your subscription, you get up to 16
NFL games a week, up to
40 NBA
games a week and up
to 40 NHL
games a week. (Games are
broadcasted during their respective
seasons.) Coupled with great sports
news from ESPN, the SIRIUS sports
offering is unrivaled.And don't forget
a host of other great news and
entertainment, like NPR, CNBC, Fox
News, Radio Disney and
E! Entertainment Radio.
With SIRIUS, the emphasis is on the
music and entertainment you want.
The music is hosted by SIRIUS
Jockeys, who are true experts. They
back-up the music with compelling
information about the song being
played, and they understand that
sometimes it's best
to just let the
music speak for itself.
Rely
on SIRIUS rocketscience for
superior coverage.
Only SIRIUS has three powerful
satellites that fly directly over the U.S.
ensuring coast-to-coast coverage with
high elevation angles. This gives the
satellites a "clear line of sight" to your
car or home, with much
less concern
for buildings, trees or other objects
that might block conventional satellite
signals.
Once you experience more than 120
channels of digital entertainment,
you'll never want
to leave your car.
For more information, visit
www.siri
us. corn .
SATELLITE RADIO

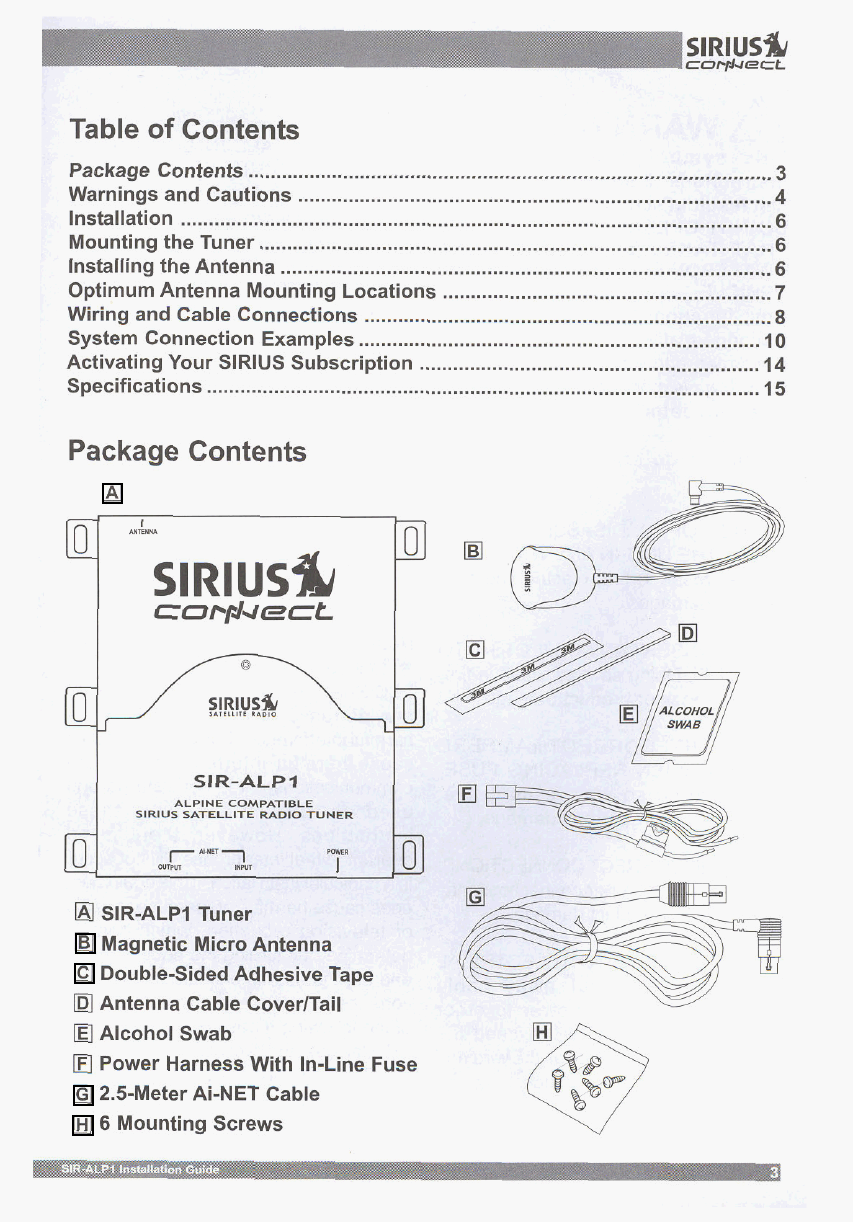

Table of Contents
Package Contents .............................................................................................. 3
Warningsand Cautions ..................................................................................... 4
MountingtheTuner
............................................................................................ 6
InstallingtheAntenna ........................................................................................ 6

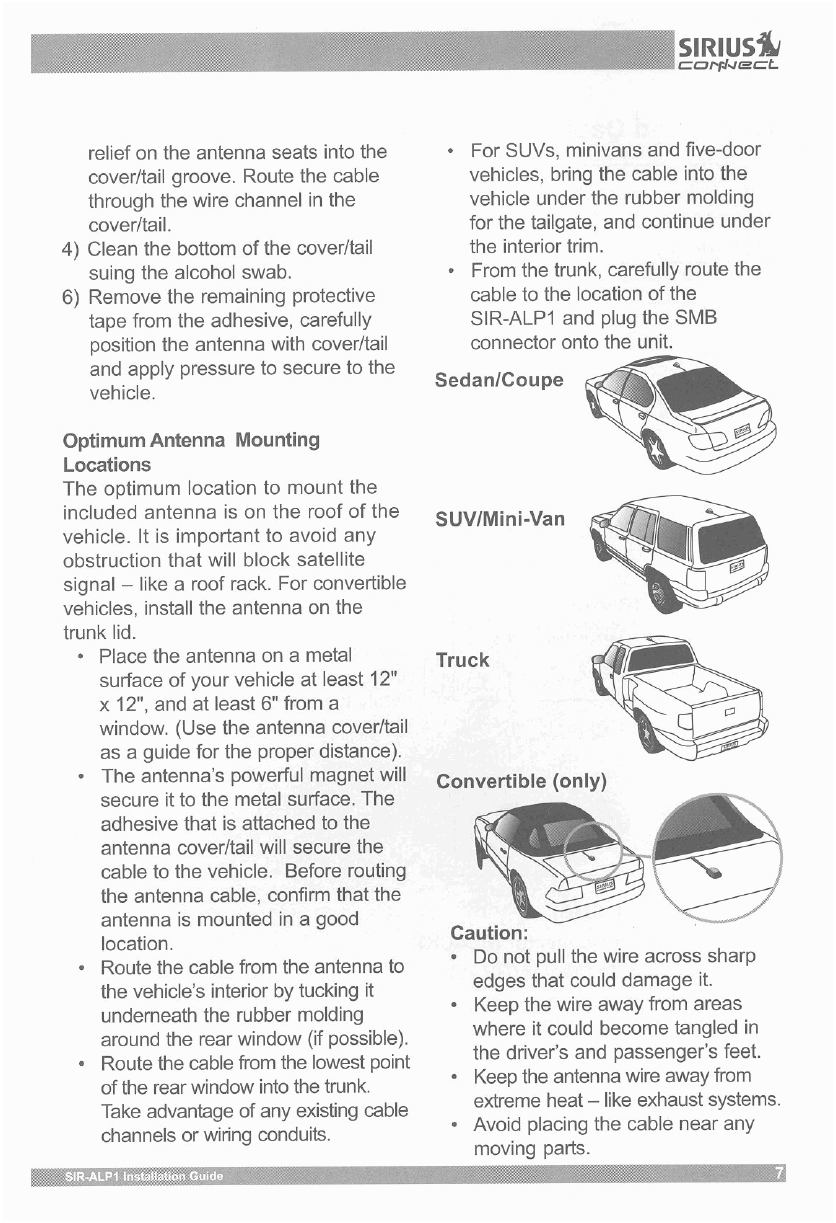

OptimumAntenna MountingLocations ........................................................... 7

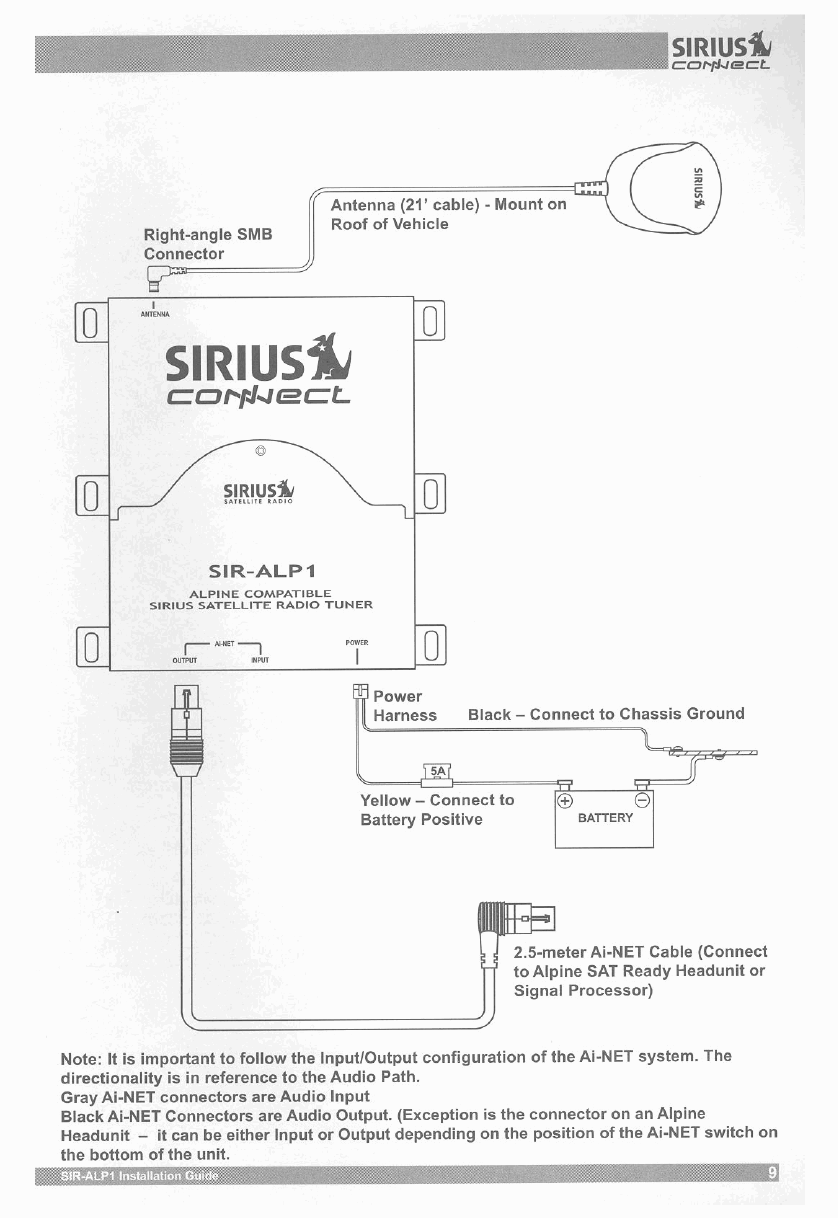

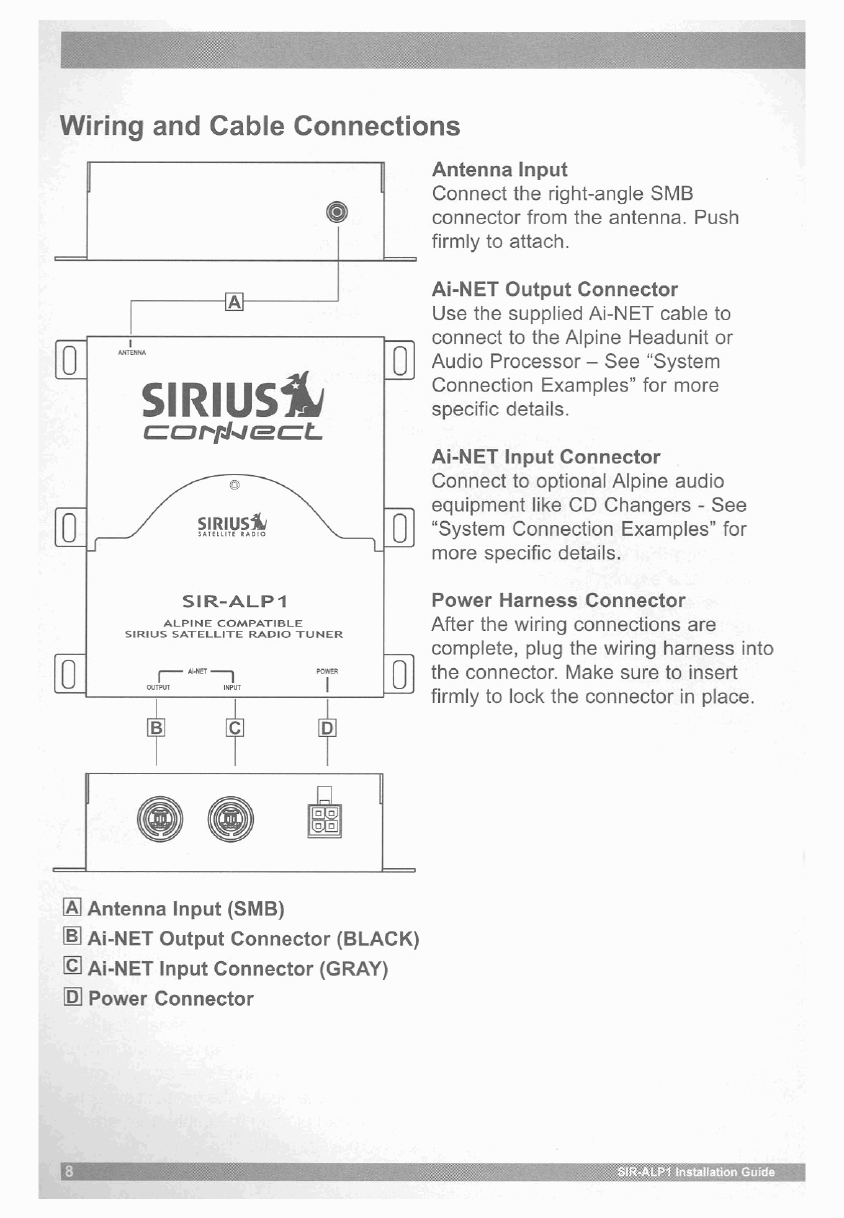

Wiring and Cable Connections ......................................................................... 8

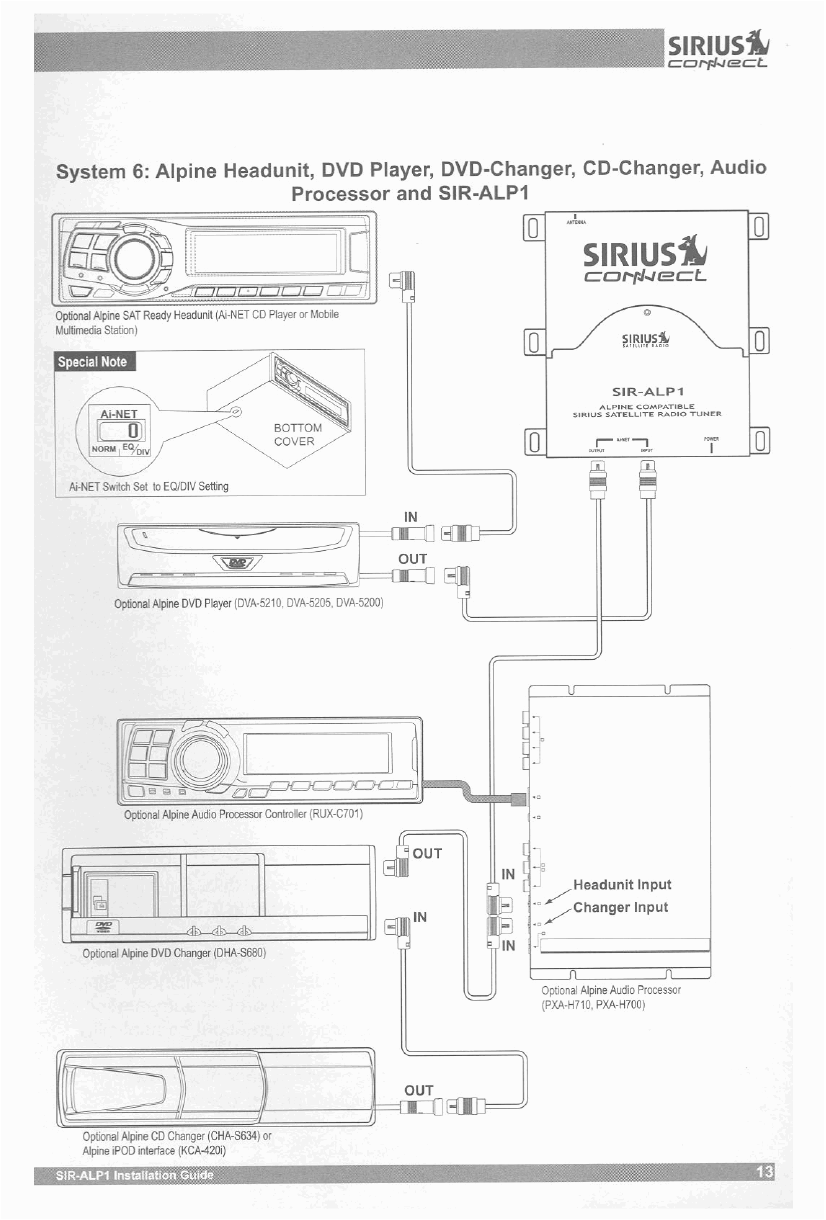

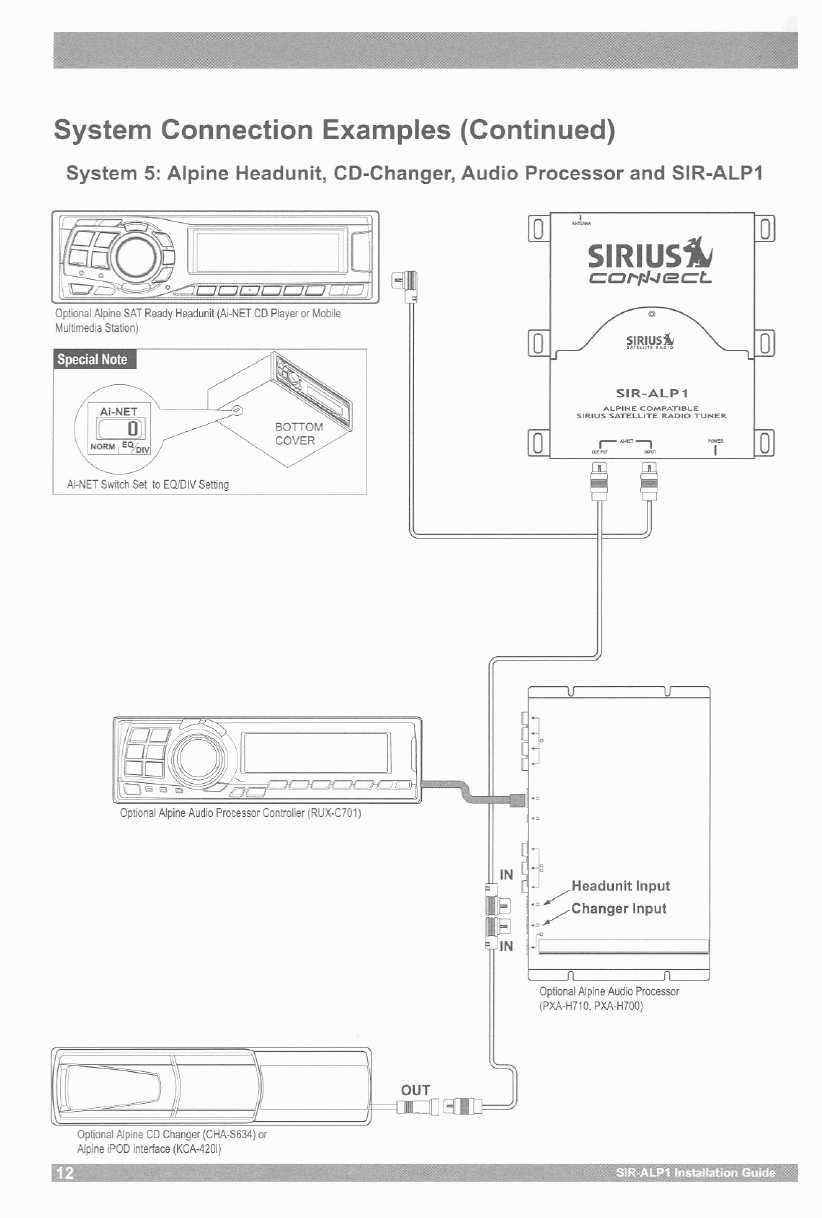

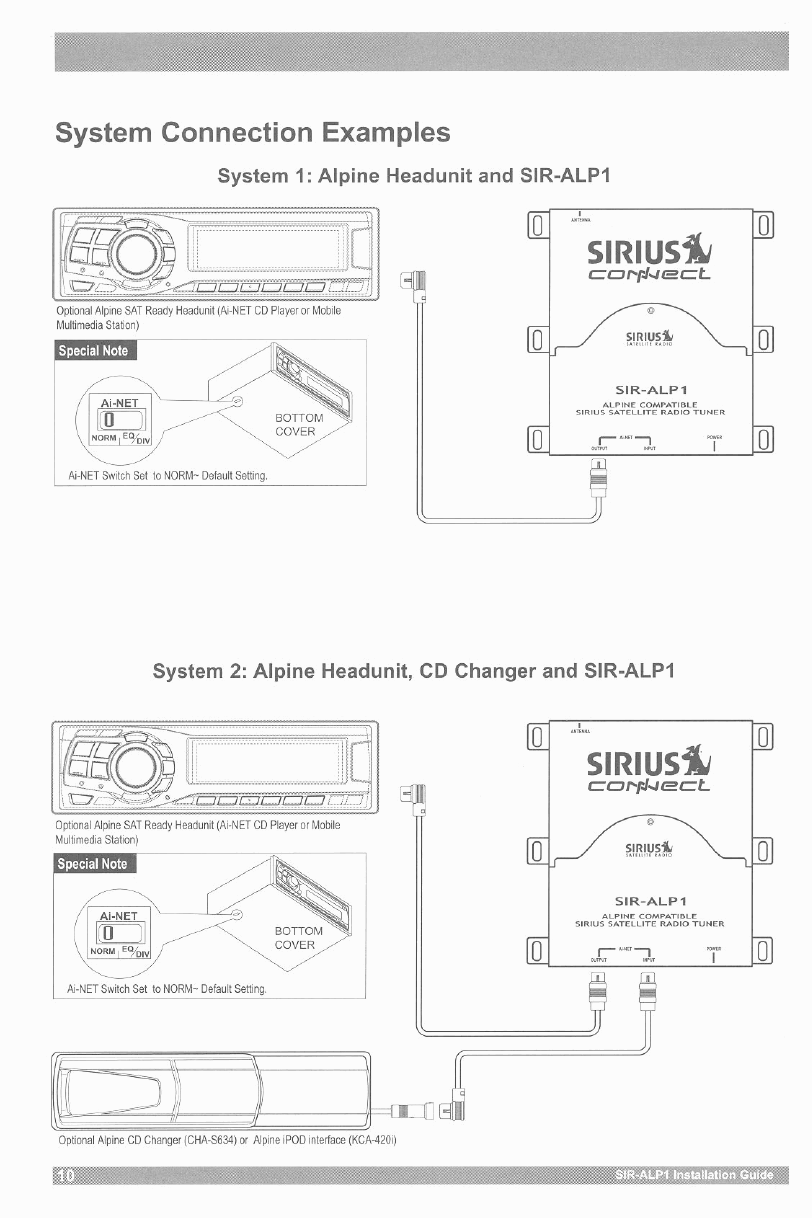

SystemConnectionExamples ........................................................................ 10

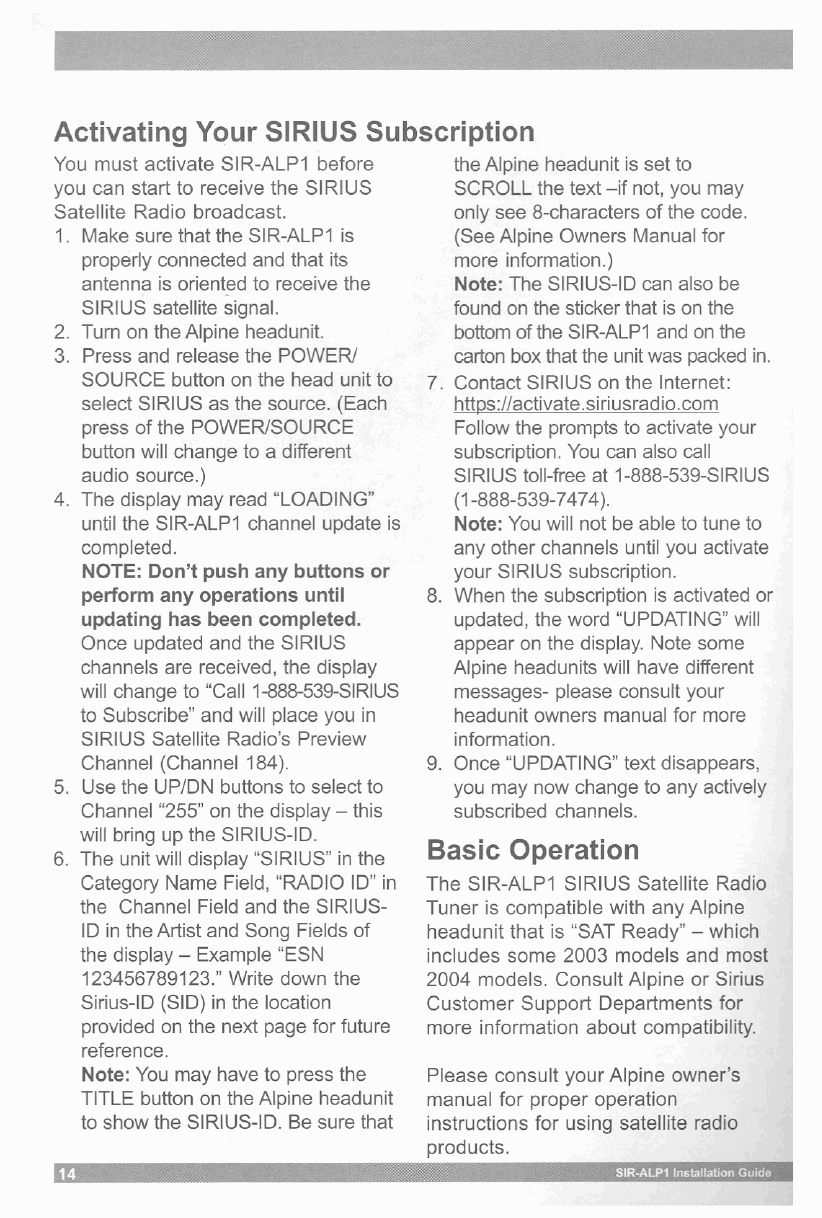

ActivatingYour SIRIUS Subscription
............................................................. 14

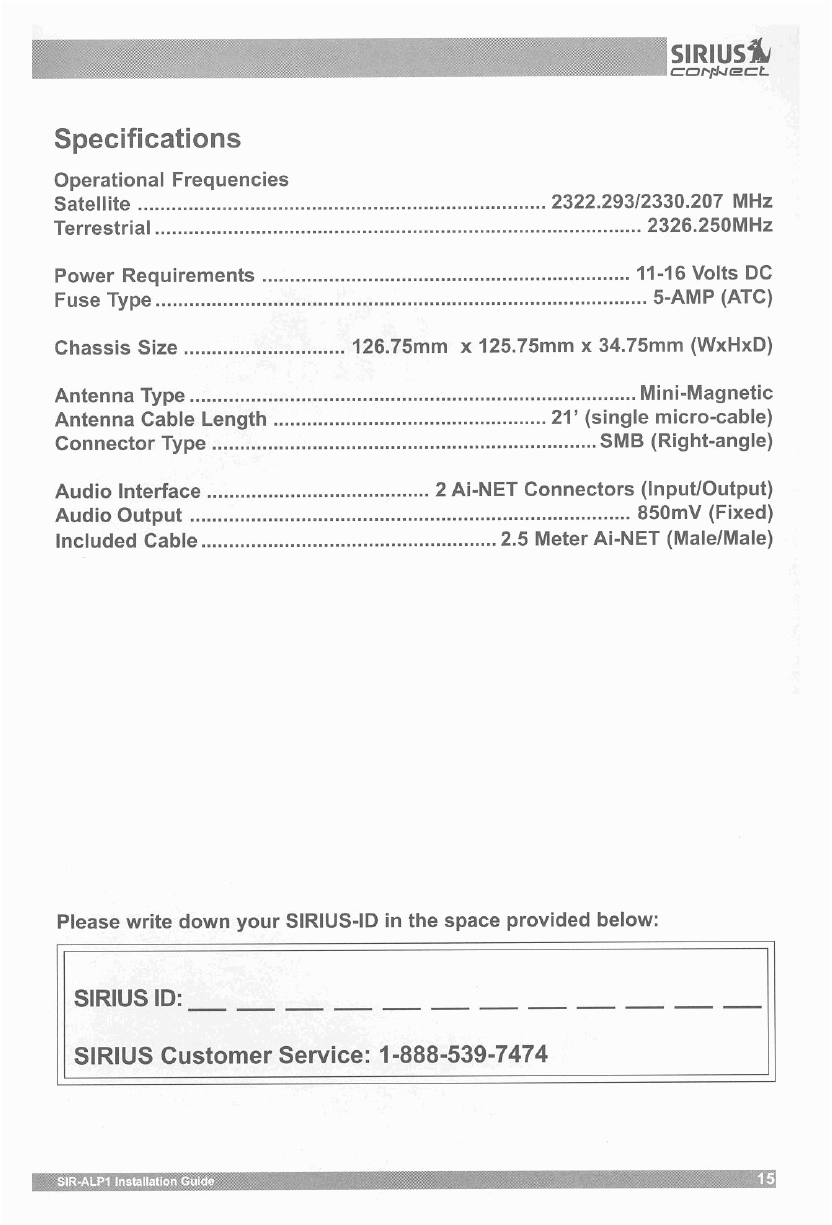

Specifications
................................................................................................... 15

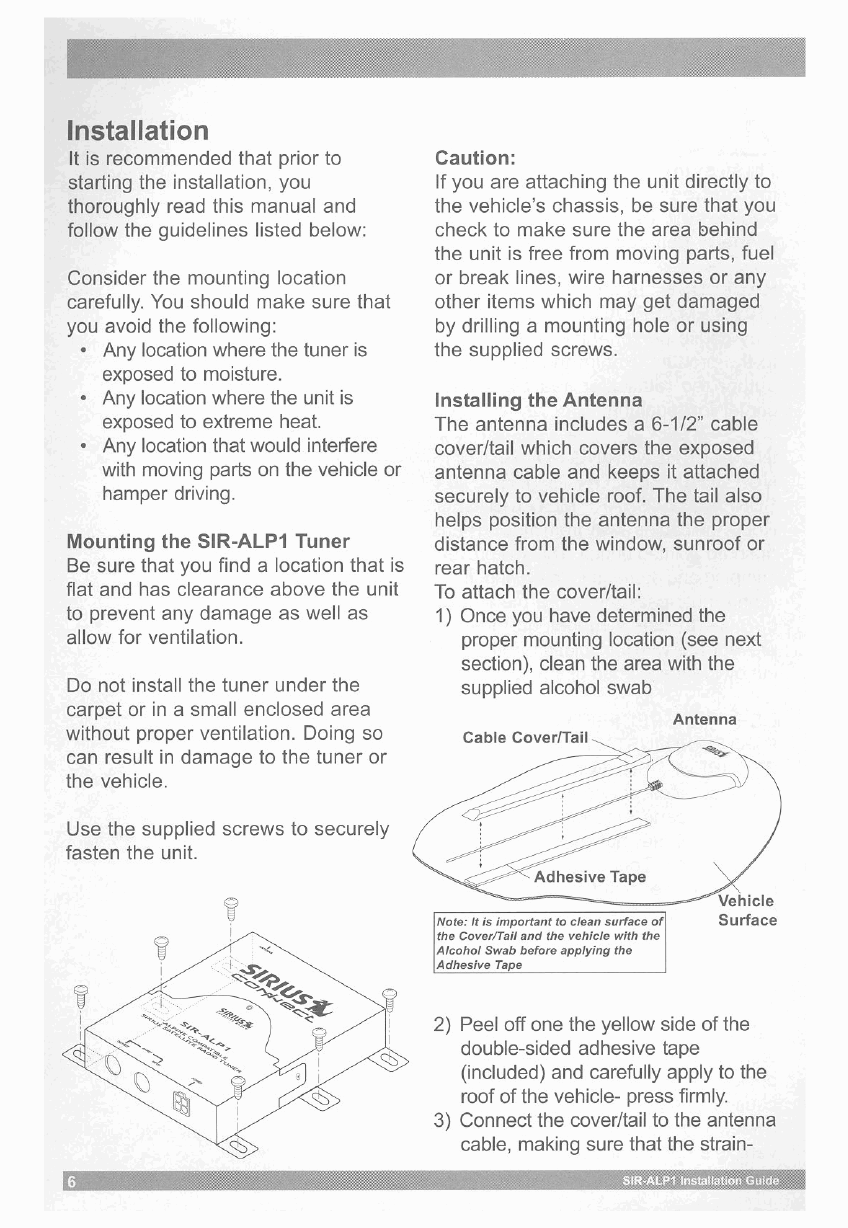

Installation
.......................................................................................................... 6
..
Package Contents
SIR-ALP 1
SIRIUS sAmmirE RAD^ TUNER
ALPINE COMPATOBLE
SIR-ALP1Tuner
MagneticMicroAntenna
DoubleaidedAdhesiveTape
AntennaCableCovermail
0
[El Alcohol Swab
0 Power HarnessWith In-LineFuse
2.5-Meter Ai-NET Cable
6 MountingScrews

x
A WARNING
This symbol means important
instructions. Failure
to heed them
can result
in serious injury or death.
DO NOT OPERATE ANY FUNCTION
THAT TAKES YOUR ATTENTION
AWAY
FROM SAFELY DRIVINGYOUR
VEHICLE.
Any function that requires your
prolonged attention should only be
performed after coming to a complete
stop.Always stop the vehicle
in a safe
location before performing these
functions.
Failure to do
so may result in an
accident.
DO NOT OPEN, DISASSEMBLE OR
ALTER THE UNIT INANY WAY. Doing
so may result in fire, electric shock or
product damage.
DO NOTINSERTANYOBJECTSINTO
THE UNIT. Doing
so may result in fire,
electric shock or product damage.
USE THE CORRECT AMPERE
RATING WHEN REPLACING FUSE.
Failure
to do so may result in fire,
electric shock or product damage.
MAKETHECORRECTCONNECTIONS.
Failure
to make proper connections may
result in fire or productdamage.
DO NOTSPLICEINTOAELECTRICAL
CABLES. Never cut away cable
insulation
to supply power to other
equipment. Doing
so will exceed the
currentcarryingcapacityof thewireand
result in fire or electric shock.
DO NOT INSTALL IN LOCATIONS
THAT MIGHT HINDER VEHICLE
OPERATION. Doing
so may obstruct
vision or hamper movementwhich can
result in a serious accident.
DO NOT INSTALLTHE UNITTO HIGH
LEVELS OF HUMIDITY, MOISTURE
OR DUST.Doing
so canresultinelectric
shock or product failure.
FCC Warning: This equipment may
generate
or use radiofrequencyenergy.
Changes or modifications to this
equipment may cause harmful
interference unless the modifications
are expressly approved in this User
Guide.The usercouldlosethe authority
to operate this equipment if an
unauthorized change or modificationis
made.
Note: This equipment has been tested
and found to comply with Part
15 of the
FCC Rules.These rulesare designed to
provide reasonable protection against
harmfulinterference.Thisequipmentmay
cause harmful interference to radio
communications if it is not installed and
used in accordance with these
instructions. However, there is no
guaranteethat interferencewill not occur
inaparticularinstallation. Ifthis equipment
does cause harmfulinterference
to radio
or television reception, which can be
determined by turning the equipment
off
and on, the user is encouraged to try to
correct the interference by one of more
of the followingmeasures:
* Relocatethe receivingantenna.
* Consultthe dealeror an
experienced technician for help.

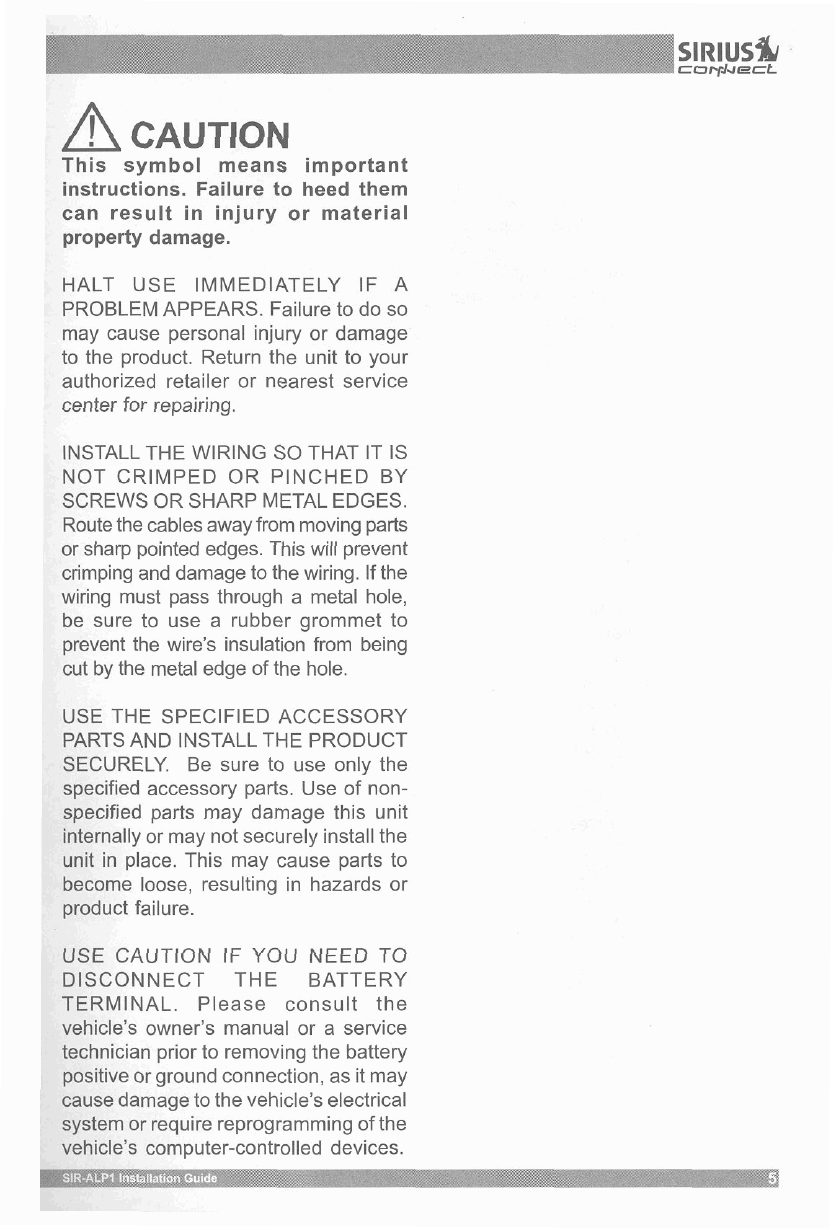

/i\ CAUTION
This svmbol means imDortant
instructions. Failure to heed them
can result
in injury or material
propertydamage.
HALT USE IMMEDIATELY IF A
PROBLEMAPPEARS. Failure
to do so
may cause personal injury or damage
to the product. Return the unit to your
authorized retailer or nearest service
center for repairing.
INSTALL THE WIRING
SO THAT IT IS
NOT CRIMPED OR PINCHED BY
SCREWSOR SHARP METALEDGES.
Routethecablesaway from movingparts
or sharp pointededges. This will prevent
crimpingand damage
to thewiring. If the
wiring must pass through
a metal hole,
be sure
to use a rubber grommet to
prevent the wire's insulation from being
cut by the metal edge
of the hole.
USE THE SPECIFIED ACCESSORY
PARTSAND INSTALLTHE PRODUCT
SECURELY. Be sure
to use only the
specified accessory parts. Use of
non-
specified parts may damage this unit
internally or may notsecurelyinstall the
unit in place. This may cause parts
to
become loose, resulting in hazards or
productfailure.
USE CAUTION IF YOU NEED TO
DISCONNECT THE BATTERY
TERMINAL. Please consult the
vehicle's owner's manual or a service
technicianprior
to removingthe battery
positiveor groundconnection,as it may
causedamage
to thevehicle'selectrical
system or requirereprogrammingof the
vehicle's computer-controlled devices.

Installation
It is recommended that prior to
starting the installation, you
thoroughly read this manual and
follow the guidelines listed below:
Consider the mounting location
carefully.You should make sure that
you avoid the following:
* Any locationwhere thetuner is
exposed
to moisture.
* Any locationwhere the unit is
exposed to extreme heat.
- Any location that would interfere
with moving parts on the vehicle or
hamper driving.
Mountingthe SIR-ALP1 Tuner
Besure that you find a location that is
flat and has clearance above the unit
to prevent any damage as well as
allow
for ventilation.
Do not install the tuner under the
carpet or in a small enclosed area
without proper ventilation. Doing
so
Caution:
If you are attaching the unit directly to
the vehicle's chassis, be sure that you
check to make sure the area behind
the unit is free from moving parts, fuel
or break lines, wire harnesses or any
other items which may get damaged
by drilling a mounting hole or using
the supplied screws.
Installingthe Antenna
The antenna includes a 6-112" cable
cover1tail which covers the exposed
antenna cable and keeps it attached
securely to vehicle roof. The tail also
helps position the antenna the proper
distance from the window, sunroof or
rear hatch.
To attachthe coverhail:
1) Onceyou have determinedthe
proper mounting location (see next
section),clean the area with the
supplied alcohol swab
Antenna
Cable CoverlTail,
can result in damage to the tuner or
the vehicle.
Usethe supplied screws to securely
fasten the unit.
2) Peel
off one the yellow side of the
double-sided adhesive tape
(included)and carefully apply to the
roof of the vehicle- pressfirmly.
3) Connectthe coverhail to the antenna
cable, making sure that the strain-

relief on the antenna seats into the
coverltail groove. Routethe cable
through the wire channel in the
coverltail.
4) Clean the bottom of the coverltail
suing the alcohol swab.
6) Remove the remaining protective
tape from the adhesive, carefully
positionthe antenna with coverltail
and apply pressureto secure to the
vehicle.
OptimumAntenna Mounting
Locations
The optimum location to mount the
included antenna is on the roof of the
vehicle. It is important
to avoid any
obstruction that will block satellite
signal
- like a roof rack. For convertible
vehicles, installthe antenna on the
trunk lid.
* Placethe antenna on a metal
surface of your vehicle at least
12”
x IT, and at least 6 from a
window.
(Use the antenna coverltail
as a guide for the proper distance).
- The antenna’s powerful magnet will
secure it to the metal surface. The
adhesive that isattached
to the
antenna coverltail will secure the
cable to the vehicle. Before routing
the antenna cable, confirm that the
antenna is mounted in a good
location.
- Routethe cablefrom the antennato
the vehicle’s interior by tucking it
underneath the rubber molding
around the rearwindow (if possible).
- Routethe cablefromthe lowest point
of the rearwindow intothetrunk.
Take advantageof any existingcable
channelsor wiring conduits.
For
SUVs, minivansand five-door
vehicles, bringthe cable into the
vehicle under the rubber molding
for the tailgate, and continue under
the interiortrim.
- From the trunk, carefully route the
cable
to the location of the
SIR-ALP1 and
Dlua the SMB
SUVIMini-Van
Truck
Convertible (only)
Caution:
- Do not pull the wire across sharp
edges that could damage it.
- Keepthe wire away from areas
where it could become tangled in
the driver’s and passenger’sfeet.
- Keepthe antennawire away from
extreme heat
- like exhaust systems.
- Avoid placing the cable near any
movina Darts.
I.

Wiring and Cable Connections
Antenna Input
Connect the right-angle SMB
connector from the antenna. Push
firmly
to attach.
SIR-ALP 1
ALPlNE COMPATIBLE
51WUS SATELLITE RADIO TUNER
-
m '""1 I
Ai-NET Output Connector
Use the supplied Ai-NET cable to
more specific details.
Power Harness Connector
After the wiring connections are
complete, plug the wiring harness into
the connector, Make sure to insert
0
Antenna Input (SMB)
Ai-NET Output Connector (BLACK)
Power Connector
[CI Ai-NET Input Connector (GRAY)

Antenna (21' cable). Mount on
Roof of Vehicle
Right-angle SMB
Connector
bc'
I
Urn*
SIRIUS%
SIR-ALP 1
ALPINE COMPATWLE
SIRIUS SATELLITE RADIO TUNER
-1
I
r **" 7-l
nm-l
Power
Harness Black
- Connect toChassis Ground
1
Yellow - Connect to
Battery Positive
BATTERY
2.5-meter Ai-NET Cable(Connect
toAlpine SAT Ready Headunit or
Signal Processor)
h
-
Note: It isimportant tofollow the InpuffOutput configuration of the Ai-NET system. The
directionality is in reference tothe Audio Path.
GrayAi-NET connectors areAudio Input
BlackAi-NET Connectors areAudio Output. (Exception isthe connector on anAlpine
Headunit
- it can be either Input orOutput depending onthe position of theAi-NET switch on
the bottom
of the unit.

System Connection Examples
System 1:Alpine Headunit and SIR-ALP1
OptionalAlp8ne SAT Ready Headunit [Al~NETCD Playeror Mobile
Mull#med#a SIal8onj
II II
System 2: Alpine Headunit, CD Changer and SIR-ALP1
Multimedia Station/
ILm,*E LDlslT,BLs
IIR1"I IATELLITE -010 TYNElj
Optional Alpine CD Changer [CHA~SfiYlorAlpine #POD inlaeriace lKCA-4201i

System 3: Alpine Headunit, DVD Player and SIR-ALP1
Oplional hlwe ShTReady HeadunNt (Ai-NETCD Playerarllobile
~~
Optional Alpine DVD Player (DVA~SZIO.DVA-5205.DVA-5200)
System 4: Alpine Headunit, DVD Changer and SIR-ALP1
SIR-ALP4
ALPlNI 'O*-IIIBLL
I,s,"I IaIELLITE Ty*T*

System Connection Examples (Continued)
System 5: Alpine Headunit, CD-Changer, Audio Processor and SIR-ALP1
Optional Alpine Audio Pmceur
(PXP~HllO. PXAHIOO)

System 6: Alpine Headunit, DVD Player, DVD-Changer, CD-Changer, Audio
Processor and SIR-ALP1
OpUanal Alpine DVD Player (DVA-5210,DVA-5205.DVA-52001
(PXAH710. PXA-H700)

Activating Your SIRIUS Subscription
You must activate SIR-ALP1 before
you can start to receivethe SIRIUS
Satellite Radio broadcast.
1. Make sure that the SIR-ALP1 is
properly connected and that its
antenna is oriented to receive the
SIRIUS satellite signal.
2. Turn ontheAlpine headunit.
3. Press and release the POWER/
SOURCE buttonon the headunit
to
select SIRIUS as the source. (Each
press of the POWER/SOURCE
buttonwill change
to a different
audio source.)
4. The display may read "LOADING
until the SIR-ALP1 channel update is
completed.
NOTE: Don't
push any buttons or
performany operations until
updating has beencompleted.
Once updated and the SIRIUS
channels are received, the display
will change to "Call 1-888534SIRIUS
to Subscribe"and will place you in
SIRIUS Satellite Radio's Preview information.
Channel (Channel 184).
5. Use the UP/DN buttons to select
to
Channel "255" on the diSDlaV - this
theAlpine headunit is set
to
SCROLL the text -if not, you may
only see 8-characters of the code.
(SeeAlpine Owners Manualfor
more information.)
Note: The SIRIUS-ID can also be
found onthe sticker that is onthe
bottomof the SIR-ALP1and
on the
carton boxthat the unitwas packed in.
7. Contact SIRIUS on the Internet:
httDs://activate.siriusradio.com
Followthe prompts to activate your
subscription.
You can also call
SIRIUS toll-free at I-888-539-SIRIUS
(1-888-539-7474).
Note:
You will not be able to tune to
any other channels untilyou activate
your SIRIUS subscription.
8. When the subscription is activated or
updated, the word "UPDATING will
appear
on the display. Note some
Alpine headunitswill have different
messages- please consult your
headunit owners manual for more
9. Once "UPDATING"text disappears,
you may now change to any actively
subscribed channels.
will bring upthe SIRIUS-iD..
6. The unitwill display "SIRIUSinthe
Basic Operation
Category Name Field,"RADIO ID in
the Channel Fieldand the SIRIUS-
IDintheArtist and Song Fields of
the display
- Example "ESN
123456789123.''Write down the
Sirius-ID (SID) inthe location
provided on the next page for future
reference.
Note:
You may haveto press the
TITLE button on the Alpine headunit
to show the SIRIUS-ID. Be sure that
The SIR-ALP1 SIRIUS Satellite Radio
Tuner is compatible with anyAlpine
headunit that is "SAT Ready"
- which
includes some 2003 models and most
2004 models. ConsultAlpine or Sirius
Customer Support Departments for
more information about compatibility.
Please consult your Alpine owner's
manual for proper operation
instructions for using satellite radio
products.

Specifications
Operational Frequencies
Satellite
......................................................................... 2322.293/2330.207 MHz
Terrestrial
....................................................................................... 2326.250MHz
Power Requirements
.................................................................. 11-16Volts DC
FuseType
........................................................................................ 5-AMP(ATC)
Chassis Size
............................. 126.75mm x 125.75mmx 34.75mm (WxHxD)
Antenna Type
................................................................................ Mini-Magnetic
Antenna Cable Length
................................................. 21' (single micro-cable)
Connector Type
..................................................................... SMB (Right-angle)
Audio Interface
........................................ 2 Ai-NET Connectors (Inputloutput)
Audio Output
............................................................................... 850mV (Fixed)
Included Cable
..................................................... 2.5 MeterAi-NET (MalelMale)
Please write down your SIRIUS-IDin the space provided below:
II
SIRIUS Customer Service: 1-888-539-7474

SATELLITE RADII
SIRIUS Satellite Radio
1221Avenue of the Americas
New York, NY 10020
www.sirius.com
[phone]
*
..
