Installation Guide
SIRSNY1C
SONYCOMPATIBLE
SIRIUSSATELLITE RADIO TUNER

2SIRSNY1C Installation Guide
Congratulations on your purchase of the SIRSNY1C– the Sony
Compatible SIRIUS Satellite Radio Tuner!
Your new SIRIUS Tuner is designed to work with Sony headunits that are
designatedtobe“SATELLITERADIOREADY”.ContactSonyorSIRIUSformodel
compatibility.
With SIRIUS, the emphasis is on the
music and entertainment you want.
The music is hosted by SIRIUS
Jockeys, who are true experts. They
back-up the music with compelling
information about the song being
played, and they understand that
sometimes it’s best to just let the
music speak for itself.
Rely on SIRIUS rocket science for
superior coverage.
Only SIRIUS has three powerful
satellites that fly directly over the U.S.
ensuring coast-to-coast coverage with
high elevation angles. This gives the
satellites a “clear line of sight” to your
car or home, with much less concern
for buildings, trees or other objects
that might block conventional satellite
signals.
Once you experience 110 channels of
digitalentertainment,you’llneverwant
to leave your car. For more
information,visitwww.siriuscanada.ca.
What is SIRIUS Satellite Radio?
110 channels of the best
entertainment and completely
commercial-free music for your car,
home or office.
SIRIUS has 65 original music
channels, from today’s hits to R&B
oldies to classical masterpieces. From
authentic Country and real Bluegrass
to cool Jazz, hot Latin, Reggae, Rock
and many more. Best of all, it’s all
completelycommercial-free.
SIRIUS also has 55 channels of world-
classsports,newsandentertainment.
Included as part of your subscription,
you get up to 16 NFL games a week,
up to 40 NBA games a week and up to
40 NHL games a week. (Games are
broadcasted during their respective
seasons.) Coupled with great sports
newsfromSIRIUSNFLRadioand
ESPN,the SIRIUS sports offering is
unrivaled.Anddon’tforgetahostof
othergreatnews and entertainment,
like NPR, CNBC, Fox News, Martha
StewartLiving Radio, RadioDisney, and
theMaximChannel.

3
SIRSNY1C Operation and Installation Guide 3 SIRSNY1C Installation Guide
Table of Contents
Package Contents ..............................................................................................3
Warnings and Cautions .....................................................................................4
Installation ..........................................................................................................6
Mounting the Tuner ............................................................................................6
Installing the Antenna ........................................................................................6
Optimum Antenna Mounting Locations ...........................................................7

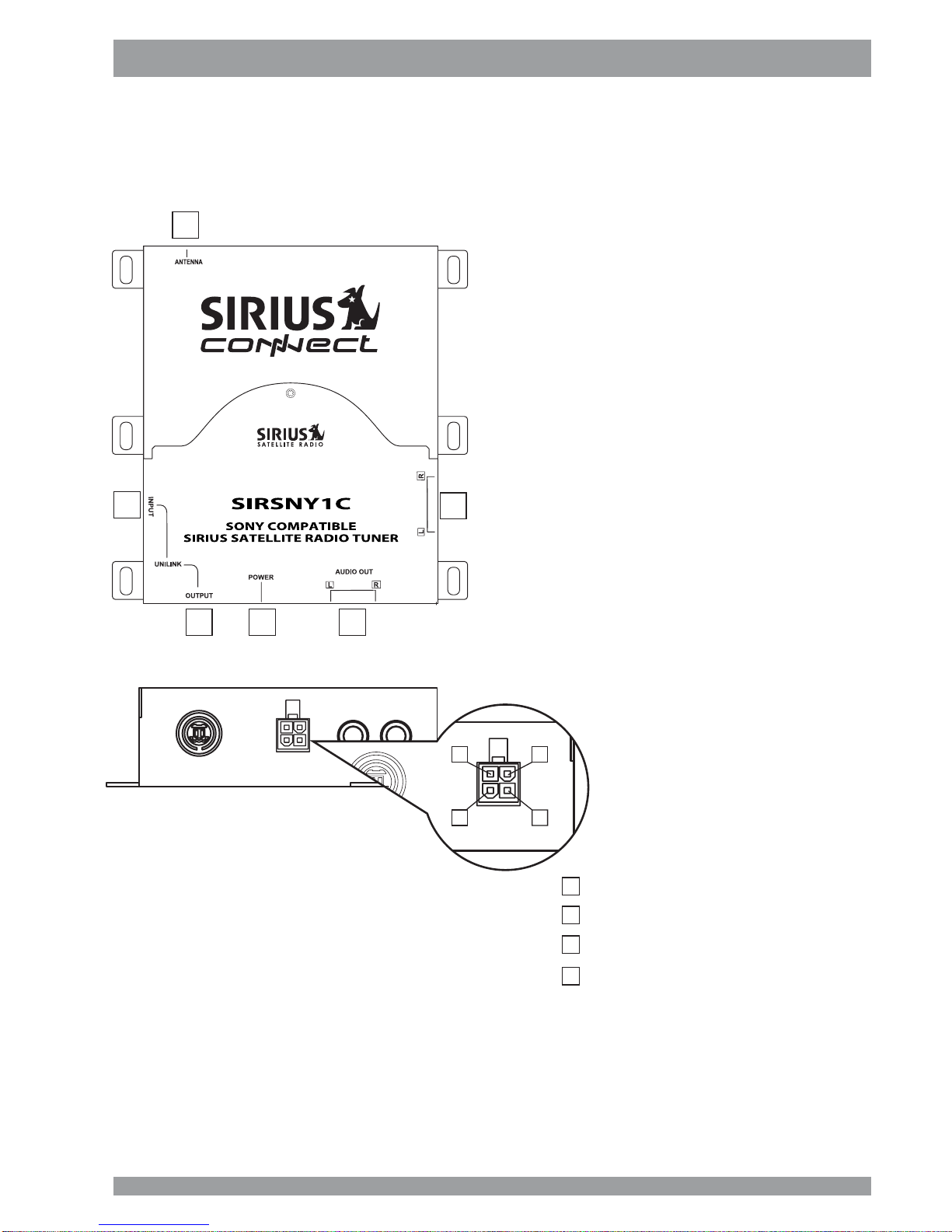

Wiring and Cable Connections .........................................................................8

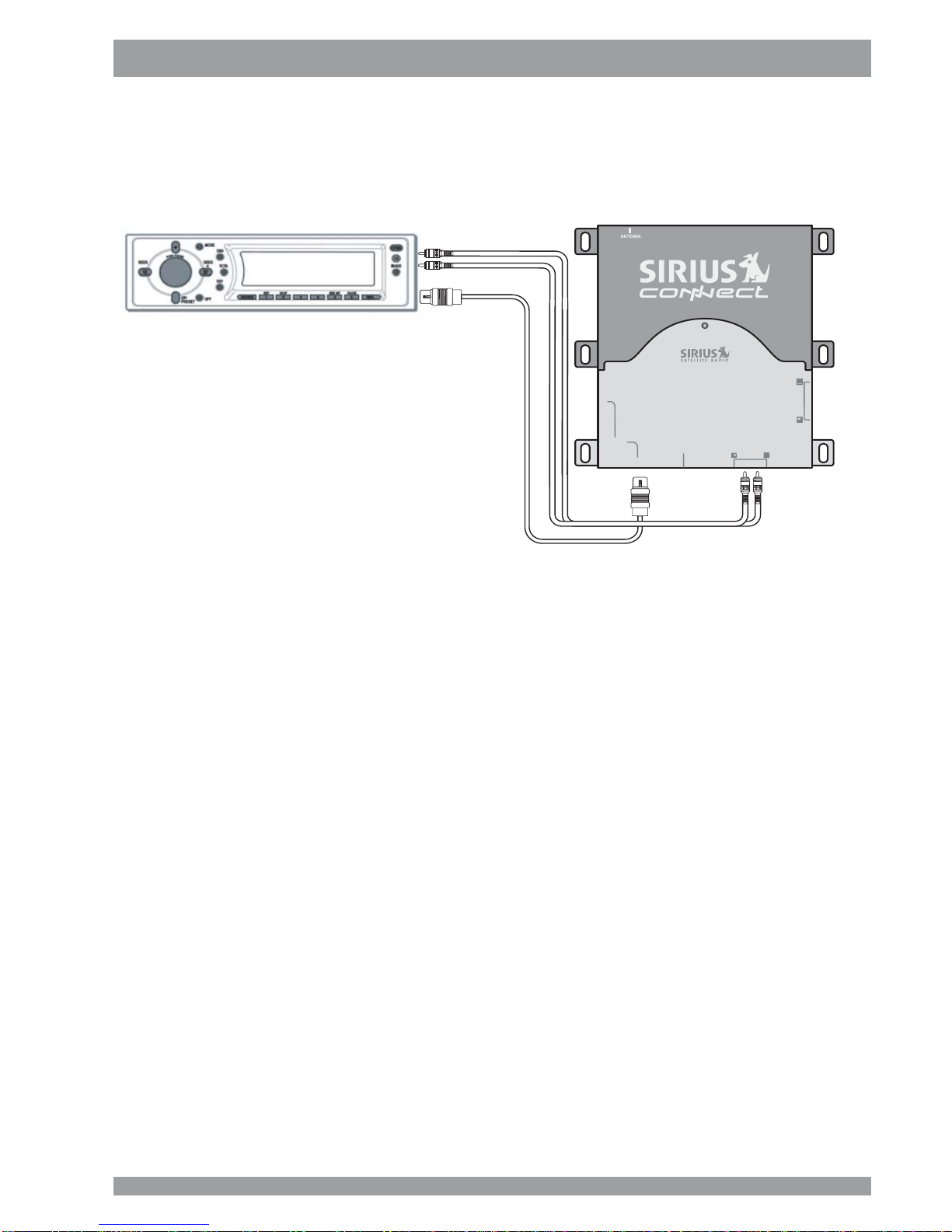

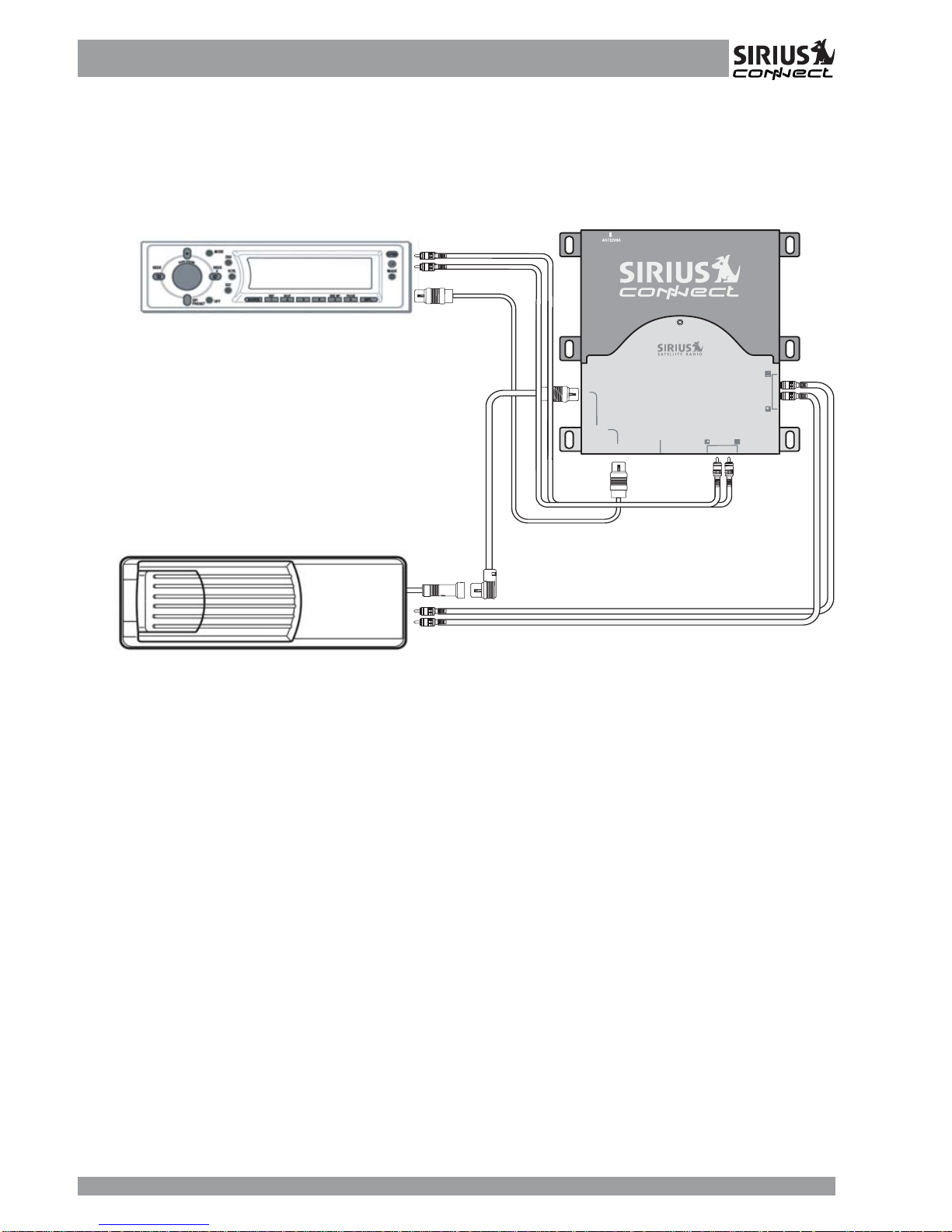

System Connection Examples........................................................................10
ActivatingYour SIRIUS Subscription............................................................... 12
Specifications ................................................................................................... 13
Package Contents
A
SIRSNY1C
SONY COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
INPUT
OUTPUT
POWER
UNILINK
AUDIO OUT
AUDIO IN
B
C
F
G
SIRSNY1C Tuner
Magnetic Micro Antenna
Antenna Cable Cover/Tail
Alcohol Swab
Power Harness With In-Line Fuse
2.5 Meter UniLink1 Cable
6 Mounting Screws
2.5 Meter RCA Cable
E
A
B
C
D
E
F
G
D
H
H
1UniLink is a trademark of Sony.

4SIRSNY1C Installation Guide
WARNING
This symbol means important
instructions. Failure to heed them
can result in serious injury or death.
DO NOT OPERATE ANY FUNCTION
THAT TAKES YOUR ATTENTION
AWAY FROM SAFELYDRIVINGYOUR
VEHICLE.
Any function that requires your
prolonged attention should only be
performed after coming to a complete
stop. Always stop the vehicle in a safe
location before performing these
functions.
Failure to do so may result in an
accident.
DO NOT OPEN, DISASSEMBLE OR
ALTER THE UNIT IN ANY WAY. Doing
so may result in fire, electric shock or
product damage.
DO NOT INSERTANYOBJECTS INTO
THE UNIT. Doing so may result in fire,
electric shock or product damage.
USE THE CORRECT AMPERE
RATING WHEN REPLACING FUSE.
Failure to do so may result in fire,
electric shock or product damage.
MAKETHECORRECTCONNECTIONS.
Failure to make proper connections may
result in fire or product damage.
DO NOT SPLICE INTOAELECTRICAL
CABLES. Never cut away cable
insulation to supply power to other
equipment. Doing so will exceed the
currentcarryingcapacityof the wire and
result in fire or electric shock.
DO NOT INSTALL IN LOCATIONS
THAT MIGHT HINDER VEHICLE
OPERATION. Doing so may obstruct
vision or hamper movement which can
result in a serious accident.
DO NOT INSTALL THE UNIT TO HIGH
LEVELS OF HUMIDITY, MOISTURE
ORDUST. Doingsocanresult in electric
shock or product failure.
FCC Warning: This equipment may
generateoruseradiofrequencyenergy.
Changes or modifications to this
equipment may cause harmful
interference unless the modifications
are expressly approved in this User
Guide.Theusercould lose the authority
to operate this equipment if an
unauthorized change or modification is
made.
Note: This equipment has been tested
and found to comply with Part 15 of the
FCC Rules. These rules are designed to
provide reasonable protection against
harmfulinterference.Thisequipmentmay
cause harmful interference to radio
communications if it is not installed and
used in accordance with these
instructions. However, there is no
guarantee that interference will not occur
inaparticularinstallation.Ifthisequipment
does cause harmful interference to radio
or television reception, which can be
determined by turning the equipment off
and on, the user is encouraged to try to
correct the interference by one of more
of the following measures:
• Relocate the receiving antenna.
• Consult the dealer or an
experienced technician for help.

5
SIRSNY1C Operation and Installation Guide 5 SIRSNY1C Installation Guide
CAUTION
This symbol means important
instructions. Failure to heed them
can result in injury or material
property damage.
HALT USE IMMEDIATELY IF A
PROBLEM APPEARS. Failure to do so
may cause personal injury or damage
to the product. Return the unit to your
authorized retailer or nearest service
center for repairing.
INSTALL THE WIRING SO THAT IT IS
NOT CRIMPED OR PINCHED BY
SCREWS OR SHARP METAL EDGES.
Routethecablesawayfrom movingparts
or sharp pointed edges. This will prevent
crimping and damage to the wiring. If the
wiring must pass through a metal hole,
be sure to use a rubber grommet to
prevent the wire’s insulation from being
cut by the metal edge of the hole.
USE THE SPECIFIED ACCESSORY
PARTS AND INSTALL THE PRODUCT
SECURELY. Be sure to use only the
specified accessory parts. Use of non-
specified parts may damage this unit
internally or may not securely install the
unit in place. This may cause parts to
become loose, resulting in hazards or
product failure.
USE CAUTION IF YOU NEED TO
DISCONNECT THE BATTERY
TERMINAL. Please consult the
vehicle’s owner’s manual or a service
technician prior to removing the battery
positive or ground connection, as it may
causedamage to the vehicle’s electrical
system or require reprogramming of the
vehicle’s computer-controlled devices.

6SIRSNY1C Installation Guide
Installing the Antenna
The antenna includes a 6-1/2” cable
cover/tail which covers the exposed
antenna cable and keeps it attached
securely to vehicle roof. The tail also
helps position the antenna the proper
distance from the window, sunroof or
rear hatch.
To attach the cover/tail:
1) Once you have determined the
proper mounting location (see next
section), clean the area with the
suppliedalcoholswab.
Installation
It is recommended that prior to starting
the installation, you thoroughly read
thismanualandfollowtheguidelines
listedbelow:
Consider the mounting location
carefully. You should make sure that
you avoid the following:
• Any location where the tuner is
exposed to moisture.
• Any location where the unit is
exposed to extreme heat.
• Any location that would interfere
with moving parts on the vehicle or
hamper driving.
Mounting the SIRSNY1C Tuner
Be sure that you find a location that is
flat and has clearance above the unit
to prevent any damage as well as
allow for ventilation.
Do not install the tuner under the
carpet or in a small enclosed area
without proper ventilation. Doing so
can result in damage to the tuner or
the vehicle.
Use the supplied screws to securely
fasten the unit.
2) Connectthecover/tailtotheantenna
cable, making sure that the strain-
reliefonthe antenna seats intothe
cover/tailgroove.Routethecable
throughthewirechannelinthecover/
tail.
Caution:
If you are attaching the unit directly to
the vehicle’s chassis, be sure that you
check to make sure the area behind the
unitisfree from moving parts, fuel or
break lines, wire harnesses or any
other items which may get damaged by
drilling a mounting hole or using the
suppliedscrews.
Antenna
(Bottom)
Adhesive Strips
Cable Cover/Tail
Connect the cable cover/
tail to the antenna cable,
insert the cable through
the grove. Peal off the
adhesive tape
SIRSNY1C
SONY COMPATIBLE
SIRIUS SATELLITE RADIO TUNER

7
SIRSNY1C Operation and Installation Guide 7 SIRSNY1C Installation Guide
3) Removetheremainingprotectivetape
fromtheadhesive,carefullyposition
theantennawithcover/tailandapply
pressuretosecure to the vehicle.
Sedan/Coupe
SUV/Mini-Van
Truck
Convertible (only)
• For SUVs, minivans and five-door
vehicles,bringthe cable into the
vehicleundertherubbermoldingfor
thetailgate,andcontinueunderthe
interiortrim.
• From the trunk, carefully route the
cable to the location of the
SIRSNY1CandplugtheSMB
connector onto the unit.
Caution:
• Do not pull the wire across sharp
edges that could damage it.
• Keep the wire away from areas
whereit couldbecome tangledinthe
driver’sandpassenger’sfeet.
• Keeptheantennawireawayfrom
extreme heat – like exhaust systems.
• Avoid placing the cable near any
movingparts
Optimum Antenna Mounting Locations
The optimum location to mount the
included antenna is on the roof of the
vehicle. It is important to avoid any
obstruction that will block satellite
signal – like a roof rack. For convertible
vehicles,install the antenna onthetrunk
lid.
• Place the antenna on a metal
surface of your vehicle at least 12" x
12", and at least 6" from a window.
(Usetheantennacover/tailasa
guidefortheproperdistance).
• Theantenna’spowerfulmagnetwill
secure it to the metal surface. The
adhesive that is attached to the
antennacover/tailwillsecurethe
cabletothevehicle. Beforerouting
theantennacable,confirmthatthe
antennais mountedin agood
location.
• Route the cable from the antenna to
the vehicle’s interior by tucking it
underneaththerubbermoldingaround
therearwindow(ifpossible).
• Routethecablefromthelowest point
oftherearwindowintothetrunk.Take
advantageofanyexistingcable
channelsorwiringconduits.
Vehicle
Cable Cover/Tail

8SIRSNY1C Installation Guide
AUDIO IN
Wiring and Cable Connections
C. UniLink Input Connector
Connectto optional Sony audio
equipmentlikeCDChangers.See
“SystemConnectionExamples”for
more specific details.
D. Power Harness Connector
Afterthewiring connections are
complete,plug the wiring harness into
the connector. Make sure to insert
firmly to lock the connector in place.
E. Audio Out
Use the supplied RCA cables to
connect to the bus-in audio inputs of
theSony headunit.
F. Audio In
Connecttoaudio output of optional
Sonyaudio equipment like CD
Changers.
A
B
C
D E
F




A. Antenna Input
Connect the right-angle SMB
connector from the antenna. Push
firmly to attach.
B. UniLink Output Connector
Use the supplied UniLink cable to
connect to the Sony Headunit. See
“SystemConnectionExamples”for
more specific details.
Open
Battery (+)
Chassis Ground (–)
Open
2
3
4
1

9
SIRSNY1C Operation and Installation Guide 9 SIRSNY1C Installation Guide
FILTER &
FUSE BOX
OUT
IN
AUDIO IN
Antenna (21’ cable) - Mount on
Roof of Vehicle
2.5-meter UniLink Cable (Connect to Sony
SAT-Radio Ready Headunit)
Right-angle SMB
Connector
Black - Connect
to Chassis Ground
Yellow - Connect to Battery Positive
2.5-meter RCA Cable (Connect to
Sony SAT-Radio Ready Headunit)
1-AMP Fuse

10 SIRSNY1C Installation Guide
System Connection Examples
System 1: Sony Headunit and SIRSNY1C
SIRSNY1C
SONY COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
INPUT
OUTPUT
POWER
UNILINK
AUDIO OUT
AUDIO IN
