Siruba 700ld User manual

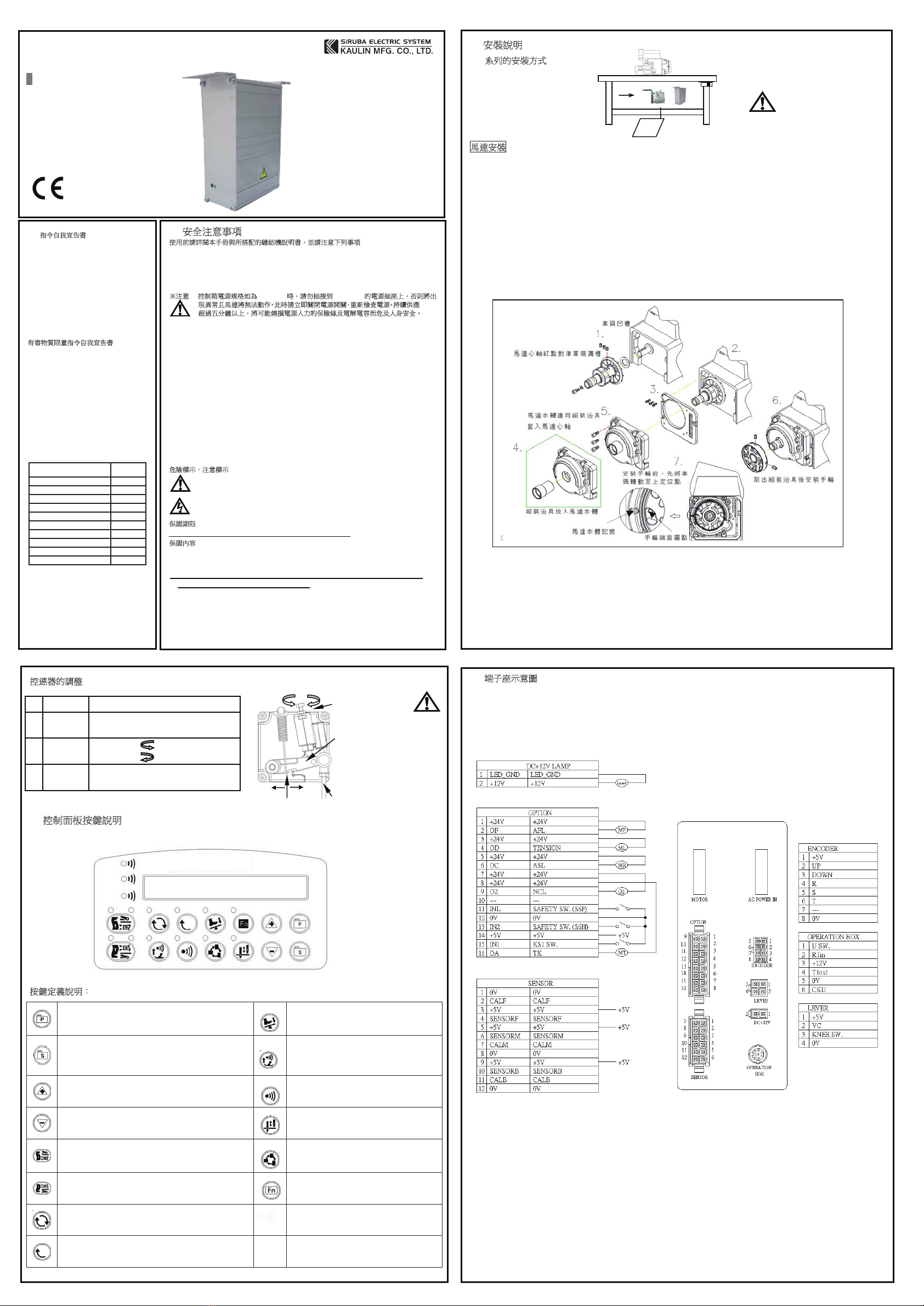

2. 安裝說明 :

HD 系列的安裝方式

將控速器及控制箱鎖裝於車板下方。

馬達安裝

拷克車模式 :

1. 將車頭的皮帶輪及散熱風葉卸下。

2. 將墊片放入車頭心軸後再放入馬達心軸。並利用端面螺絲迫緊馬達心軸。

注意：馬達心軸上紅點記號的 set螺絲固定於車頭心軸平面或凹槽上。

3. 將馬達支架固定於車頭上。

4. 將組裝治具放入馬達本體後，馬達本體連同組裝治具套入馬達心軸上，再將馬達本體順著組裝治具推向馬達支架端面。

將螺絲鎖緊固定後，再將組裝治具取出。注意：馬達心軸上黏著強力磁石，本體推向車頭平面注意強力磁石的吸引力，

避免手指夾傷或馬達本體碰撞，造成損壞。組裝治具每安裝一台即報廢，不可以重複使用。

5. 將馬達手輪放入心軸並推至靠面後，鎖緊 set 螺絲及完成。注意：鎖緊手輪前，先將車頭轉動至上定位點後，轉動手

輪，使手輪端面圓點對準馬達本體記號後，固定手輪 set螺絲。馬達運轉停針時，即可停於針上位置。

若停針位置不滿意，可放鬆手輪左右微調至滿意位置後固定即可。

1. 安全注意事項 :

使用前請詳閱本手冊與所搭配的縫紉機說明書，並請注意下列事項

˙安裝及操作須由受過正確訓練的人員來執行，拆卸安裝動作前請先關閉電源拔掉插頭並等待

5分鐘。

˙本驅動裝置僅適用於指定範圍的縫製機械，請勿移做其他用途。

˙電源電壓請遵照馬達與控制箱銘牌所標示之規格 ±10 %範圍內操作。

※注意 :控制箱電源規格如為 AC 220V時，請勿插接到 AC 380V的電源插座上，否則將出

現異常且馬達將無法動作。此時請立即關閉電源開關，重新檢查電源。持續供應 380V

超過五分鐘以上，將可能燒損電源入力的保險絲及電解電容而危及人身安全。

˙請遠離高週磁波機器或電波發射器等，以免所產生的電磁波干擾本驅動裝置因而發生誤動

作。

˙請不要在日光直接照射的場所、室外及室溫 45°C以上或 5°C 以下的場所操作。

˙請不要在暖氣(電熱器)旁、有露水的場所及在相對濕度 30 % 以下或 95 % 以上的場所操

作。

˙請不要在灰塵多的場所、具有腐蝕性物質的場所及有揮發性氣体的場所操作。

˙請注意不要被外物壓住或過度扭曲電源線。

˙為防止雜訊干擾或漏電事故，請做好接地工程。

˙在第一次開電後，請先以低速操作縫紉機並檢查轉動方向是否正確。

˙縫紉機運轉時，請不要去觸摸皮帶輪、天枰、針等會動作的部位。

˙所有可動作的部份，必須以所提供的防護裝置加以隔離，防止身體接觸並請勿在裝置內塞入

其他物品。

˙修理及保養須由經過訓練的技術人員執行，而所有維修用的零件須由本公司提供或認可，方

可使用。

˙請不要以不適當物體來敲擊或撞擊本產品裝置。

危險標示、注意標示

保固期限

本產品保固期限為購買日期起一年內或出廠月份起 18 個月內。

保固內容

本產品在正常情況且無人為失誤的操作下，於保固期間無償的為客戶維修使能正常操作。

但以下情況於保固期間將得以收取維修費用:

1.不當使用包括誤接高壓電源、將產品移做其它用途、自行拆卸、維修、更改、或不依

規格範圍使用、進水進油及插入異物於本產品.

2.火災、地震、閃電、風災、水災、鹽蝕、潮濕、異常電壓及其它天災或不當場所造成

之損害。

3.客戶購買後摔落本產品，或客戶自行運輸(或託付之運輸公司)所造成之損害。

*本產品於生產及測試上皆盡最大努力和嚴格控管使其達到高品質及高穩定的標準，但外

部之電磁或靜電干擾或不穩定的供應電源，仍可能對本產品造成影響或損害，因此操作

場所的接地系統一定要確實做好，並建議客戶安裝故障安全防護裝置(如漏電電驛)。

這個標示符號表示機器安裝時，如有錯誤恐會傷害到人體或機器會受到損壞，所以機器

方面有危險性的地方會有此標示。

這個標示符號表示有高壓電，電氣方面有危險性的地方會有此標示。

EC 指令自我宣告書 :

本公司在此宣告以下產品系列 :

AC 伺服馬達—HD42 系列

皆符合以下 EC 指令的規定 :

-EC 低電壓指令 (2014/35/EU)

-EC 電磁兼容指令(2014/30/EU)

-EC 機械指令 (2006/42/EC)

及配合相關安全標準如下 :

EN 60204-31 : 機械之電機設備之安全。

EN 12100 : 機械安全–基本概念，設計的一般原

則。

有毒物質限量指令自我宣告書 :

本公司在此宣告以下產品系列 :

AC 伺服馬達—HD42 系列

皆符合以下指令的規定 :

1. 歐盟 RoHS 指令

(2011/65/EU & (EU)2015/863)

2. 中華人民共和國電子行業標準 : 電子信息產品

中有毒有害物質的限量要求 (SJ/T

11363-2006)

本公司產品本身(馬達,控制箱)或其包裝材料及附

件(紙箱,螺絲配件包,說明書,貼紙,標籤,印刷品...等

等)或其元件與原材料供應商皆依照歐盟 RoHS 指

令及中華人民共和國電子行業標準的限量規定而

符合以下所列之十種有害物質的限量要求 :

有毒物質含量限值

(PPM)

鉛0001)bP(

汞0001)gH(

鎘001)dC(

六價鉻 (Cr VI) 1000

多溴聯苯 (PBB) 1000

多溴二苯醚 (PBDE) 1000

鄰苯二甲酸二酯(DEHP) 1000

鄰苯二甲酸丁酯苯甲酯(BBP) 1000

鄰苯二甲酸二丁酯(DBP) 1000

鄰苯二甲酸二異丁酯(DIBP) 1000

＊基板的無鉛製程 : 總鉛含有濃度基準量

800 ppm 以下。

＊包裝材料 : Pb+Hg+Cd+Cr VI 含有濃度基準總

共合計 80 ppm 以下。

控速器各部位名稱 : 如圖示

A : 前踏力量彈簧。

B : 後踏力量的調整螺栓。

C : 踏板旋臂。

D : 腳踏板吊桿。

調整需求

踏板前踏

力量的調整

踏板後踏

力量的調整

踏板行程

長短的調整

調整結果

當彈簧 A愈向右側勾時，表示力量的愈重。

當彈簧 A愈向左側勾時，表示力量的愈輕。

當螺栓 B愈向上時，則後踏力量愈輕。

當螺栓 B愈向下時，則後踏力量愈重。

當吊桿 D向右側孔鎖裝時，表示行程較長。

當吊桿 D向左側孔鎖裝時，表示行程較短。

注意 :

調整前請確定已關掉電源開關

及拔掉插頭以利人身安全。

STOP

踏板

注意 :

安裝及調整前請確定已關掉電源

開關及拔掉插頭以利人身安全。

輕重

3.1 端子座示意圖

控速器的調整

3. 控制面板按鍵說明 :

按鍵定義說明：

長按兩秒進入參數設定(001~030) / 參數碼遞增功能鍵

按住開電進入參數 (031~070) 手動車縫，開啟、關閉設定功能鍵

按住開電進入參數 (071~098) / 參數儲存鍵電眼連動壓腳動作，開啟、關閉設定功能鍵

數值遞增鍵電眼功能，開啟、關閉設定功能鍵

數值遞減鍵針停位置，針上、針下設定功能鍵

前吸風 / 前斬刀，功能開啟、關閉

按住開電進入參數 (101~111) / 參數碼遞增功能鍵

多功能接布，開啟、關閉設定功能鍵

後吸風 / 後斬刀，功能開啟、關閉

參數碼遞增功能鍵

計件功能鍵

全自動車縫，開啟、關閉設定功能鍵電眼動作指示燈

半自動車縫，開啟、關閉設定功能鍵

輕重

700LD

電控參數說明書

ELECTRONIC CONTROL PARAMETER MANUAL

Press S key + Power On

初始值參數說明

參數碼參數定義調整範圍 2KTKT

086BNITPTPBNI 入力功能

0871NIKTKT1NI 入力功能

088IN2

NOP/PT/OP/

TK/TK1/KSA

KSM/F/S6 S6 NOP IN2 入力功能

089AOKTKTAO 出力功能

090BOLCNLCNBO 出力功能

091COWSAWSACO 出力功能

092DOPONPONDO 出力功能

0931OPONPON1O 出力功能

094 O2

NOP/TK/OP/

OM/ML/NCL/

NCW/ASL/

ASW/MLL/

OP1/TOE

ASW ASW O2 出力功能

095 TM1 1-250 20 20 自動運轉 on 時間設定

096 TM2 1-250 20 20 自動運轉 Of 時間設定

097 UTD ON/OF OF OF 自動運轉功能

098 TOA --- --- --- 軟體版本顯示

099 TOT

100 VER

4.1.快捷參數設定方法：

多功能接布，功能開啟、關閉設定功能鍵

長按兩秒進入 [C1 01] 設定接布片數

輕按選擇 [C1 xx ~ C5 xx] 循環

數值遞增/遞減鍵

數值儲存，離開設定頁面

壓腳功能開啟、關閉

長按兩秒進入 [AFP] 參數設定

輕按選擇 [AFP~ESS] 相關參數循環

數值遞增/遞減鍵

數值儲存 , 離開設定頁面

前吸風 / 前斬刀，功能開啟、關閉

長按兩秒進入 [FDS] 參數設定

輕按選擇 [FDS~I1V] 相關參數循環

數值遞增/遞減鍵

數值儲存 , 離開設定頁面

後吸風 / 後斬刀，功能開啟、關閉

長按兩秒進入 [BDS] 參數設定

輕按選擇 [BDS~RDN] 相關參數循環

數值遞增/遞減鍵

初始值

參數碼參數定義調整範圍 TK TK2 參數說明

044 TCB ON / OFF 前段斬刀功能

045 FKN 1-20 前斬刀動作次數

046 FDT 0-9990 ms 前斬刀結束到前吸風結束間隔時間

047 FDN 0~999 電眼檢入到前斬刀開始間隔針數

048 TCE ON/OF ON ON 後段斬刀功能

049 RKN 1-20 1 1 後斬刀動作次數

050 RDT 0-2000ms 300100後斬刀結束到後吸風結束間隔時間

051 RDN 0-99 5 5 電眼檢出到後斬刀結束間隔針數

052 KCT 10-990ms 50 50 斬刀動作時間

053 KDT 10-990ms 50 50 斬刀間隔延遲時間

054 MTC ON/OF OF OF 手動切刀動作模式

055 KLM ON/OF ON ON 斬刀帶吸風功能

056 KST 0-990ms 10 10 斬刀動作提前吸風動作時間

057 KET 0-990ms 100100斬刀關閉後吸風延遲關閉時間設定

058 WSN 0-99 stitches 10 10 間接吸風間隔針數

059 WST

100-2500ms

1-250 stitches

(MAC=TK)

5 5 間接吸風動作時間

060 FCS OF/NS/WS WS WS 全後踏取消未完成工序

061 ADT 0~2500ms 0 0 工序完成後吸風延遲動作時間

062 RDD OF / A / M OF OF 多段縫功能模式選擇

063 SDR 0-999 stitches 0 0 預留

064 TCT 0-999 stitches 0 0 預留

065 FTC 0-20 stitches 0 0 中速度針數

Press S Key + Power On

初始值

參數碼參數定義調整範圍 TK TK2 參數說明

071 MAC TK/TK2 TK TK2 車頭碼選擇

FNIFFFNI270 入力功能選擇

073 INL

NOP/PT/OP/

TK/TK1/KSA/

KSM/F/S6 S6 NOP INL 入力功能選擇

074 NOP --- --- --- ---

075 DIR CW/CCW CW CW 馬達轉向

076 DD ON/OF ON ON 馬達轉向符號選擇

077 NUD UP/DN UP UP 停針位置選擇

078 SIN 0/2 0 0 單一信號定位器

079 NU L/H L L 單一信號定位器針上位準

080 PUA --- --- --- ---

081 PDA --- --- --- ---

082 DVM EFK/PEG PE

GPEG鬆線裝置類別

083 NOP NC/NO NC NC 安全開關模式選擇

084 ML ON/OF ON ON 馬達運轉信號輸出

085 FLW ON/OF OF OF 壓腳連動吸風控制功能

4. 常用參數列表 :

按住 P 鍵2秒鐘

初始值參數說明

參數碼參數定義調整範圍刻

度BCEACE

001 HS 200-7500 spm 100 6000 6000 針車最高速度

002 LS 200-500 spm 10 200 200 針車最低速度

003 AS 200-6000 spm 50 5000 5000 慢速起縫模式選擇

004 S 200-6000 spm 50 3000 3000 起縫慢針速度

005 SLS 1-99 stitches 1 30 30 起縫慢針針數

006 SLM T / A /OFF 1 NOP/MA=OFF

OT/A=T

NOP/MA=OFF

OT/A=T 後段吸風工序速度控制

001mps0057-0PS700 結尾自動車縫針數

008 OPM NOP / MA / OT / A 1 NOP NOP 結尾自動車縫轉速控制

009 PSN ON / OFF 1 NOP=OFF

MA/OT/A=ON

NOP=OFF

MA/OT/A=ON 自動運轉速度

010 SMP A / M 1 NOP/MA=M

OT/A=A

NOP/MA=M

OT/A=A 電眼功能選擇

011 STP ON / OFF 1 ON ON 上電眼動作準位選擇

012 FPM ON / OFF 1 ON ON 電眼檢出確認針數

013 FP 1-300 s 1 120 120 無布馬達運轉(安全裝置)

014 AFP 100-5000 ms 50 NOP/MA/OT=800(OFF)

A=800(ON)

NOP/MA/OT=800(OFF)

A=800(ON) 工序完成結束模式選擇

015 FD 100-2500 ms 50 NOP/MA=50

OT/A=200

NOP/MA=50

OT/A=200 工序自動重置功能

016 AFL ON / OFF 1 NOP/MA=OFF

OT/A=ON

NOP/MA=OFF

OT/A=ON 多功能接布選擇

017 AFT 100-5000 ms 50 NOP/MA=400

OT/A=750

NOP/MA=400

OT/A=750 (L) 多功能鬆線

018 HD 0-990 10 100 100 (d) 多功能電眼檢出針數

019 HHC ON / OFF 1 OFF OFF 大小針模組選擇

020 FHC ON / OFF 1 OFF OFF 大小針補正針數

0019-0CVS120 (TA) 壓腳抬起時間

0019-0CVT220 (TB) 壓腳放下後延遲時間

023 SFF ON / OFF 1 ON ON 結尾後自動抬壓腳

024 SFH ON / OFF 1 ON ON 自動押腳保持時間

025 SFM NC / NO 1 NO NO 押腳自動下放時間

026 BUZ ON / OFF 1 ON ON 儲存出廠設定

027 ANU ON / OFF 1 OFF OFF 恢復出廠設定

0019-0KHC820 全後踏切線電位

029 FASET YES / NO 1 NO NO 半後踏抬押腳功能選擇

030 FLOAD YES / NO 1 NO NO 全後踏功能選擇

按住 S鍵2秒鐘

031 SAB ON/OFF 1 ON ON 前段吸風功能

032 FDS 0-99 1 00 前段吸風延遲針數

033 FSN 0-70 1 77 前吸風針數

034 SAE ON / OFF 1 OFF OFF 後段吸風功能

035 BDS 0-99 1 00 後段吸風延遲針數

036 RSN 0-99 1 00 後吸風針數

037 LFB ON / OFF 1 OFF OFF 前段鬆線功能

038 LFD 0-30 1 00 前段鬆線延遲動作針數

039 FLS 0-20 1 11 前鬆線針數

040 LFE ON/OF 1 OFF OFF 後段鬆線功能

0013-0SPL140 鬆線裝置提前關閉針數

042 LSE 0-70 1 15 15 後段鬆線延遲動作針數

043 LES 0-70 1 00 後段鬆線動作針數

電眼功能開啟、關閉

長按兩秒進入 [SMP] 參數設定

輕按選擇 [SMP~STP] 相關參數循環

數值遞增/遞減鍵

數值儲存 , 離開設定頁面

計件值顯示、不顯示

長按兩秒進入[TKN]

數值遞增／遞減鍵；手動計件

數值儲存離開設定頁面，長按兩秒計件值歸零

5. 簡易故障排除：

故障碼警示出現時機狀態與對策

E.41. 電源 ON 時，檢知到電源電壓過高。

2. 插錯使用之供應電源。

馬達將關閉成無動作狀態。

請檢查供應此控制箱之 AC 電源是否正確。

E.7

1.馬達插頭配線接觸不良導致不轉。

2.定位器信號異常。

3.車頭機構鎖住或馬達皮帶輪異物捲入卡住。

4.加工物過厚，馬達扭力不足無法貫穿。

馬達將關閉成無動作狀態。

請檢查定位器信號是否異常。

請檢查車頭是否卡住或轉動困難。

E.P電源開啟時，控速器未在中立位置。將控速器回復至中立位置即可操作。

6. 七段顯示器字體與實際數值對照表 :

Speed Control Unit Adjustment

3. Panel Key Functions :

Description Of Key

Press and hold 2 seconds to enter parameter setting

(001~030)/press parameter increment key and hold to

enter parameter (031~070)

The key to act or close manual sewing

Hold and turn on the power at same time to enter

parameter (071~098)/ parameter saving

The key to act or close function for sensor

and presser foot lifting act at same time

Display value increased The key to act or close the sensor

Display value decreased The key to act or close needle up/down

To act or close front air suction/front cutter

Press and turn on the power at same time to enter

parameter (101~111)/parameter increment key

To act or close multi fabric joint together

To act or close rear air suction / rear cutter

Parameter increment key

Count

To act or close sewing full automatically Sensor LED light

To act or close semi sewing automatically

2. Installation :

HD42 Installation

Mounts speed control unit and control box

under the sewing machine table.

Motor Installation

Overlock Mode:

1. Take off the pulley of sewing machine, remain the exhaust fan.

2. Put washer into the shaft of sewing machine then put it in the shaft of motor, to use screw to screw tight the shaft of the

motor. Note: the red mark on motor to fix on the shaft of sewing machine by set screw.

3. Fix motor on sewing machine.

4. Put a fixture to motor then set into motor shaft, push motor to sewing machine end face by a fixture.

Note: Motor shaft sticking strong magnet, pleases pay attention to powerful magnetic while force motor to sewing

machine to avoid damage the motor or hurt your finger. Pleases throw away the assemble tooling after assembled one

machine. It is prohibit to use assemble tooling repeat.

5. Put motor pulley to motor shaft then tighten the screw.

Note: pleases turn the sewing machine to up position before tighten the pulley and fix the set screw on the pulley.

After that the needle at up position while motor is stop running. Pleases release the pulley to process micro

adjustment on pulley if the needle stop position is not satisfied.

1. Safety Precaution :

Please read this manual with sewing machine manual thoroughly and pay attention for the

following safetyprecaution.

˙Installation and operation must be done by the trained personnel, also turn off the power switch and remove the

plug from outlet and wait for 5 minutes before any installation.

˙This product is designed for the specific sewing machines and must not be used for other purposes.

˙Only use the power voltage as described on the name plate of the motor and control box in ±10 % ranges.

※Attention : If the control box is AC 220V system, please don’t connect to the AC 380V

power outlet, otherwise the error will occur and motor is not functional. If

that happened, please turn off the power switch immediately and check the

power voltage. Continue supply the 380V power over 5 minutes might

damage the fuses and burst the electrolytic capacitors and even might

endanger the person safety.

˙In order to prevent abnormal operation, keep the product away from the high frequency machines.

˙Don’t operate in direct sun light、outdoors area and the room temperature is 45°C above or 5°C under.

˙Don’t operate near the heater、dew area and the humidity is 30 % less or 95% more.

˙Don’t operate in dusty、evaporate、combustible gas area, and stay away from corrosive material.

˙Don’t apply heavy objects or excessive force on the power cord, also don’t bend or pull the power cord.

˙In order to prevent the static interference and current leakage, all grounding works must be done properly.

˙After power on the machine for the first time, use low speed to operate and check the correct rotation direction.

˙During machine operation, don’t touch any moving parts.

˙All moving parts must have protective device to avoid the body contact and objects insertion.

˙Maintenance and repair must be done by the properly trained technician, also all the spare parts for repair must be

approved or supplied by the manufacturer.

˙Don’t use any objects or force to hit or ram the product.

Danger and caution signs

Limited Warranty

Warranty period of this product is 1 year from purchasing, or 18 months from our manufacturing

date.

Warranty Detail

Any trouble found within warranty period under normal use condition in conformance with this manual, it will be

repaired free of charge. Repair will be chargeable in the following cases even if within warranty period :

1. Inappropriate use include: wrong connecting high voltage, wrong application, disassemble, repair,

modification by incompetent personnel, or operate the product without the precaution, or operate the

products out of its specification range. Insert odd objects or liquids into the product.

2. Damage by fire, Earth quake, lighting, wind, flood, salt corrosive, moisture, abnormal power voltage and any

other damage cause by the natural disaster or by the inappropriate environments.

3. Dropping after purchase, or damage in transportation by customer himself. (or by customer’s shipping

agency)

Note : We put our best effort and mind in testing and manufacturing for assuring the quality and reliable of this

product. But it is possible this product can still be damaged due to external magnetic interference and

electronic static or noise or unstable power source more than expected; therefore the grounding system of

operate area must be well-connected to this product and it’s also recommended to install a failsafe device.

(such as residual current breaker).

Risks that may cause personal injury or risk tothe machine are marked with this

symbol in the instruction manual.

This symbol indicates electrical risks and warnings.

EC Declaration of Conformity

We hereby declare that the following products:

AC servo motor—HD42 series

are in conformity with the provision of the EC

directives as following :

-EC Low Voltage Directive (2014/35/EU)

-EC Electromagnetic Compatibility Directive

(2014/30/EU)

-EC Machinery Directive (2006/42/EC)

Applied harmonized standards :

EN 60204-31 : Electrical equipment of industrial

machines. Particular requirements

for sewing machines, sewing units

and sewing system.

EN 12100 : Safety of machines.

Declaration of Conformity for

Concentration Limits for Certain

Hazardous Substances

We hereby declare that the following products:

AC servo motor—HD42 series

are complies with the following directives and

requirements :

1. European Union RoHS Directive and the

concentration limits for certain hazardous substances

(2011/65/EU & (EU)2015/863)

2. People’s Republic of China Electronic Business

Standard : Requirements for concentration limits for

certain hazardous substances in electronic information

products (SJ/T 11363-2006)

Our product itself (motor, control box) or its packing

materials and accessories (box, screws package,

user manual, sticker, label, print…etc.) or the

suppliers of parts and raw materials are all in

conformity with the provision of the European Union

RoHS Directive and People’s Republic of China

Electronic Business Standard to conform the following

concentration limits for the ten hazardous

substances :

Hazardous Substance Permissible

Values

Lead0001)bP(

Mercury(Hg) 1000

Cadmium (Cd) 100

Hexavalent chromium (Cr VI) 1000

Polybrominated Biphenyl

(PBB) 1000

Polybrominated Diphenyl ether

(PBDE) 1000

Di(2-ethylhexyl)phthalate

(DEHP) 1000

Butyl Benzyl Phthalate (BBP) 1000

Dibutyl phthalate (DBP) 1000

Diisobutyl phthalate (DIBP) 1000

＊The concentration of lead in the lead-free process

for PCB shall be less than 800 ppm.

＊For packing materials shipped with our products or

parts, the hazardous substances shall be 80 ppm or

less in sum of Pb+Hg+Cd+Cr VI.

3.1 Connector Diagram

Components of speed control

unit : see figure

A: Spring for toeing forward

force adjustment

B: Bolt for heeling backward

force adjustment

C: Pedal arm

D: Pitman rod for pedal

Caution :

Forpersonsafety, turn off the power

switch and remove the power plug

from outlet before any adjustment.

Term of adjustment

Toeing forward

force adjustment

Heeling backward

force adjustment

Pedal stroke

adjustment

Adjustment result

Spring A move to right = force increased

Spring A move to left = force decreased

Bolt B turn = force decreased

Bolt B turn = force increased

Rod Dsecure at right =stroke is longer

Rod D secure at left = stroke is shorter

Caution :

Forpersonsafety, turn off the power switch

and remove the power plug from outlet

before any adjustment.

Pedal

Decrease Increase

700LD

電控參數說明書

ELECTRONIC CONTROL PARAMETER MANUAL

4. General Parameter List :

Press P key

Initial Value DescriptionParameter

NO.

Function

Name Range 2KTKT

001 HS 200-6500 spm 6000 6000 Maximum sewing speed

002 LS 200-500 spm 200 200 Low speed

003 SLM T/A/OF OF OF Slow start

004 S 200-2000spm 400 400 Slow start speed

005 SLS 1-99 stitches 2 2 Stitch of slow start

006 SMP A/M M M Speed for rear air suction step

007 ASE 0-70 10 10 Rear air suction

008 ASP ON/OF OF OF Speed forautomatic sewing at end

009 AS 200-6500 spm 4000 4000 Speed of motor run at automatically

010 SEN ON/OF ON ON Selection of sensor

011 IBV ON/OF ON OF Selection for top sensor level

012 CMS 0-99 stitches 3 3 Stitch setting for sensor detection

013 PSN ON/OF ON ON Safety device

014 SET ON/OF ON ON Entertrimmingsequence afterleft the

sensor

015 STP ON/OF ON ON Step reset

016 LIN ON/OF OF OF Type selection for pedal

017 LM ON/OF ON ON (L) Multi tension release

018 MSE 0-99 16 16 (d) Multi sensor stitches detection

019 BSM 6-18 12 12 The size of the needle selection mode

020 BSN 22-42 32 32 Stitch correction

021 AFP 100-5000ms 500 500 (TA) Time for presser foot lifting activate

022 FD 100-2500ms 100 100 (TB)Delay time for foot lifter drop down

023 AFL ON/OF OF OF Foot lifting at motor stop

024 FPT 100-9900ms 9900 9900 Full on time foot lifter

025 AFT 100-5000ms 500 500 Time setting for foot lifter drop down

026 FSA YES/NO NO NO Factory setting

027 FLO YES/NO NO NO Recovery to factory setting

028 TVC 0-9 0 0 Trimming potential at full hell back the

pedal

029 HHC ON/OF OF OF Presser foot lifter selection at half hell

back the pedal

030 FHC ON/OF OF OF Function selection at full heel back the

pedal

Press S key + Power On

031 SAB ON/OF ON ON Front air suction

032 FDS 0-30 0 0 Stitch for frontair suction delay

033 FSN 0-70 6 6 Stitch setting for suction at start

034 SAE ON/OF OF OF Rear air suction

035 BDS 0-50 12 20 Stitch for rear air suction delay

036 RSN 0-70 5 5 Stitch setting for suction at end

037 LFB ON/OF OF OF Front thread releases

038 LFD 0-30 0 0 Stitch for front thread release delay

039 FLS 0-20 1 1 Stitch setting for thread release at start

040 LFE ON/OF OF OF Rearthread release

041 LPS 0-3 0 0 Stitch setting for thread release close

earlier

042 LSE 0-70 12 20 Stitch setting at thread release delay at

end

043 LES 0-70 0 0 Rear tension release stitches setting

044 TCB ON/OF ON ON Front cutter function selection

045 FKN 1-20 1 1 Frontcutter number of times

046 FDT 100-2000ms 100 200 Frontcutter link air saving

047 FDN 0~99 7 7 Stitches between sensor detected and

front tape cutter activated

Initial ValueParameter

NO. Function Name Range TK TK2 Description

048 TCE ON/OF ON ON Tape cutter for rear step

049 RKN 1-20 1 1 Number of time for rear tape cutter

050 RDT 0-2000ms 300 100 Interval time for rear tape cutterstop to air

suction stop

051 RDN 0-99 5 5 stitches between sensor detected and rear

tapecutter activated

052 KCT 10-990ms 50 50 Time setting for tape cutter

053 KDT 10-990ms 50 50 Tape cutter interval delay time

054 MTC ON/OF OF OF Manual tape cutter

055 KLM ON/OF ON ON Tape cutter link air suction

056 KST 0-990ms 10 10 Time setting for air suction before tape

cutter activated

057 KET 0-990ms 100 100 Time setting for air suction stop after tape

cutter activated

058 WSN 0-99 stitches 10 10 Interval stitch for indirect air suction

059 WST

100-2500ms

1-250 stitches

(MAC=TK)

5 5 Time setting for indirect air suction

060 FCS OF/NS/WS WS WS Healbalk to cancel unfinished step

061 ADT 0~2500ms 0 0 Delay time for air suction after the step

finished

062 FSM OF / A / M OF OF Militia-step function selection

063 FS1 0-999 stitches 0 0 Reserved

064 FS2 0-999 stitches 0 0 Reserved

065 SMN 0-20 stitches 0 0 Middle speed stitches setting

066 M 500-3000 spm 3000 3000 Middle speed

067 FTC ON/OF ON ON Sensor function , If sewing machine run

after sensor covered at the start seam.

068 FTP M/A M M Type selection for foot lifting solenoid

069 FO 0-990 ms 350 350 Full-on time setting for foot lifting solenoid

070 FC 10-75% 40 40 Duty cycle time setting for foot lifting

solenoid

Press S key + Power On

Initial ValueParameter

NO. Function Name Range TK TK2 Description

071MAC TK/TK2 TK TK2 Machine code

072FFFNI INF Input function Select

073 INL

NOP/PT/OP/

TK/TK1/KSA/

KSM/F/S6 S6 NOP INL Input function Select

074NOP --- --- --- ---

075DIR CW/CCW CW CW Direction of motor rotation

076DD ON/OF ON ON Direct drive or belt drive

077NUD UP/DN UP UP Selection of needle position

078SIN 0/2 0 0 Single positioning signal

synchronizer

079NU L/H L L Define the UP positioning signal

mode H/L

080NOP --- --- --- ---

081NOP --- --- --- ---

082DVM EFK/PEG PEGPEG Type of thread release

083SFM NC/NO NC NC Safety switch

084ML ON/OF ON ON Motor running function selection

(MLL output)

085FLW ON/OF OF OF Full heeling pedal with ASL / ASW

function

Press S key + Power On

Initial Value DescriptionParameter

NO.

Function

Name Range 2KTKT

086tupniBNITPTPBNI

087tupni1NIKTKT1NI

088IN2

NOP/PT/OP/

TK/TK1/KSA/

KSM/F/S6 S6 NOP IN2 input

089tuptuoAOKTKTAO

090tuptuoBOLCNLCNBO

091tuptuoCOWSAWSACO

092tuptuoDOPONPONDO

093tuptuo1OPONPON1O

094 O2

NOP/TK/OP/

OM/ML/NCL/

NCW/ASL/

ASW/MLL/

OP1/TOE

ASW ASW O2 output

095 TM1 1-250 20 20 Time setting for motor run

automatically at on

096 TM2 1-250 20 20 Time setting for motor run

automaticallyat off

097 UTD ON/OF OF OF Motor run automatically

098 VER --- --- --- Software version

4.1. Shortcut For Parameter Setting：

Key for act or close multi fabric joint together.

Press and hold 2 seconds to enter [C1 01] to set how many pieces fabric to joint.

Press lightly to select [C1 xx ~ C5 xx] circulation.

Value increment / decreasing.
