SITETEC M405D User manual

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
Unit manual

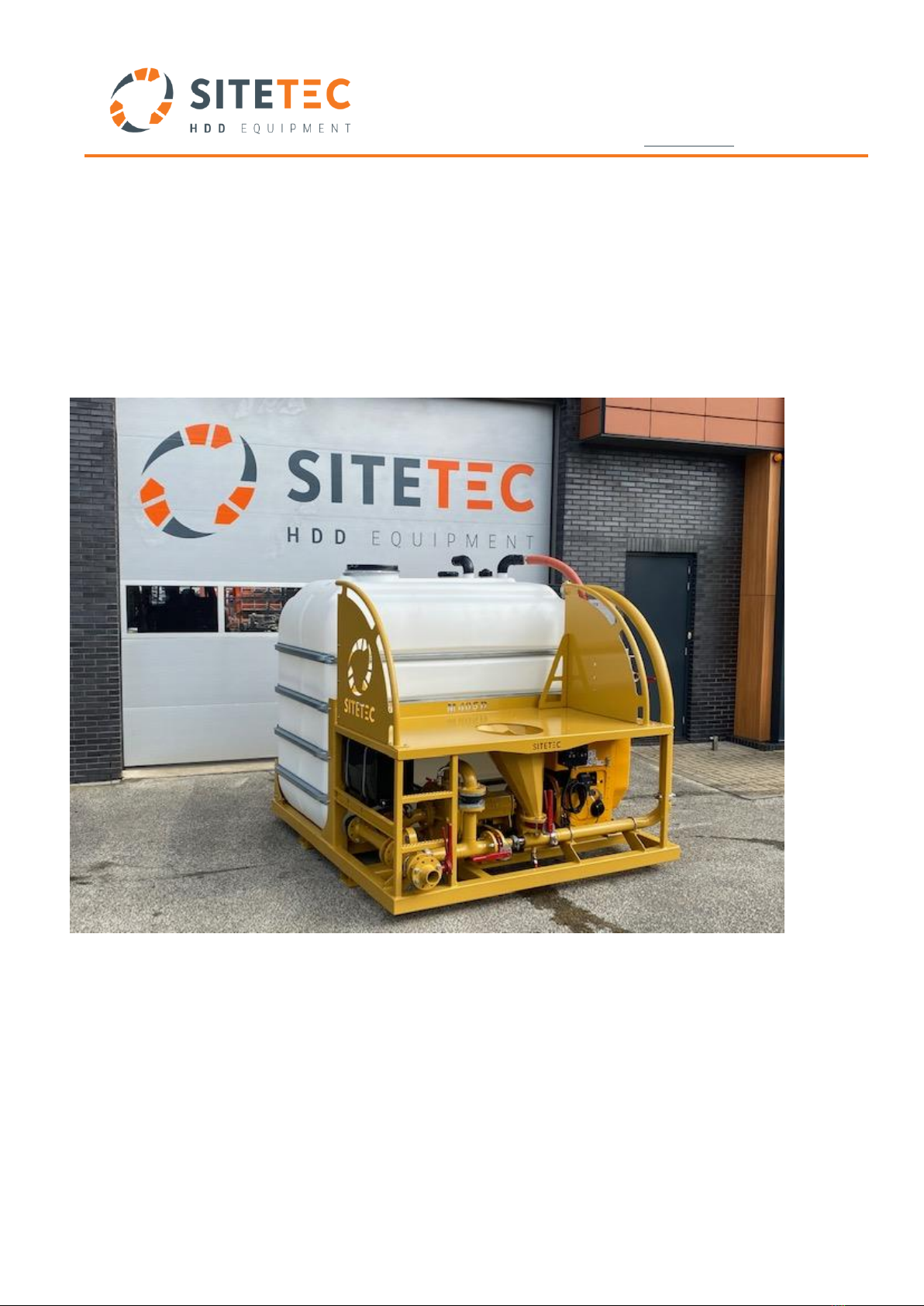

M405D mixing unit
First of all we like to thank you for purchasing this mixing unit and hope it will be of complete
satisfaction to you. This product is built to perform, easy to maintain and is user friendly. To insure a
long lifetime of this quality product we would like your attention for this maintenance- and operating
manual. Please keep it near the mixing unit at all times so it can be of help.

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
OPERATING MANUAL
1.1 MOBILISATION
1.2 PLACING THE MIXING UNIT ON SITE
1.3 OVERALL CHECK OF THE MIXING UNIT
1.4 CAPACITY PARAMETERS
2.1 VALVE SCHEDULE
2.2 CHECK BEFORE STARTING THE MIXING UNIT
2.3 STARTING THE MIXING UNIT
2.4 OPERATING THE MIXING UNIT WITHOUT RECYCLING UNIT
2.5 OPERATING THE MIXING UNIT IN GENERAL
2.6 SERVICING ON THE MIXING UNIT AND EXCHANGING PARTS
3.1 12 HOUR SHIFT MAINTENANCE
3.2 24 HOUR SHIFT MAINTENANCE
3.3 WEEKLY MAINTENANCE
3.4 MONTHLY MAINTENANCE
3.5 3 MONTH MAINTENANCE
4.1 DEMOBILISATION
4.2 LONG-TERM STORAGE
5.1 PARTS SUPPLY AND RECOMMENDED PARTS STOCKLIST
5.2 PARTS & SERVICE
5.3 MAINTENANCE SCHEDULE

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
1.1 MOBILISATION
The unit is equipped with fork lift pockets to mobilize this mixing unit. The weight of the unit is 1540 kg.
Prior to lifting the mixing unit a few checks must be made:
1. Check if all stored articles on the mixing unit are securely tied down
2. Take the ignition key out of the control panel
3. Make sure the mixing tank, pump and piping is drained and cleaned
4. Open all valves
NEVER:
1. Stand or walk underneath the load
2. Use certified lifting equipment
1.2 PLACING THE MIXING UNIT ON SITE
Before you place your mixing unit on location, make the following preparations:
1. Place a sheet of 4x4 meters of oil resistant plastic foil on the location of the unit
2. Place 3 drag line boards each at least 3 meter long horizontally, well supported by solid soil, on top of the plastic
foil
3. If you decide not to use the plastic foil: always use drag line boards or something similar placed horizontally to
give the mixing unit its full support and to create a non-slippery working floor
The unit has the following connections:
1. Water : 2’’ id BSP thread
2. Mud discharge : 3’’ victaulic ring
The installed power is:
2L41c Hatz diesel stage V engine

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
1.3 OVERALL CHECK OF THE MIXING UNIT
Before you start mixing there are several checks to be made:
1. Check for debris in the mixing tank. Tank must be clean
2. Put 2 pump strokes of high quality bearing grease in all nipples on the AMTEQ pumps
3. Check if all electrical cables and wires are still in good condition, repair if necessary
4. Check, overall, for any damaged or loose parts and repair if needed
5. Check all guards
6. Check the tank for cracks
1.4 CAPACITY PARAMETERS
This unit is capable of mixing 500 ltr/min with fresh water, 7 ph and up to 60 sec of viscosity.
2.1 VALVE SCHEDULE
1. Suction valve mix tank to pump
2. Discharge from pump to venturi
3. Discharge from pump to tank nozzles
4. Discharge from pump to outlet
5. Outlet to drain tank
6. Hopper inlet valve dry bentonite
7. Water inlet valve to mix and water tank
8. Bleed valve
9. Suction from water tank, only at dual tank model

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
2.2 CHECK BEFORE STARTING THE MIXING UNIT
Before starting the unit you must do a quick check of all components of the unit:
1. Check the pump: - fluid levels
- debris plugging suction
2. Open suction valve and close drain valve
2.3 STARTING THE MIXING UNIT
First make your self acquainted with the valve schedule in 2.1
1. To start the mixing unit, fill the tank with ¾ water
2. Open suction valve mix pump from mix tank nr. 1
3. Close the air bleed valve on the impeller housing of the mixing pump when all air is out of the pump
4. Open the discharge valve from pump to venturi nr. 2
5. Start diesel engine
6. Now you can start mixing bentonite with the unit: open the valve of the hopper approx. half way
7. Now suction noise will be heard out of the hopper funnel. Slowly add bentonite
8. Add bentonite until required mud-viscosity is reached
9. Open discharge valve to nozzles
10. Run the unit for a few minutes: keep in mind that the viscosity of the mud will increase in this time as the mud is
being sheared
As mud is being used the fluid level inside the mixing tank must be maintained. Add water and bentonite on time and, if a
mud recycling unit is used, check the mud level of the mud pit. With a SiteTec recycling unit, mud will be transferred from
the recycling unit to the mixing unit. This means you have to add very little bentonite and/or water, keep the mud level in
the mixing tank to its maximum and in the right condition.
2.4 OPERATING THE MIXING UNIT WITHOUT RECYCLING UNIT
To maintain a continuous mixing process add water and bentonite in the correct ratio. With a minimum of 500 liter water
per minute.
2.5 OPERATING THE MIXING UNIT IN GENERAL
Before using the mixing unit always check all items of chapter 1.3 and 2.2.
Fill ¾ of the tank with water. Make sure the level reaches above the centrifugal pump. Open venturie valve and slowly the
hopper valve, make sure that all the other valves are closed. Start adding dry product at the correct ratio. When reached the
correct mixture close hopper valve.
When mixing only, open venturie valve and hopper valve, when circulating and using outlet, always close hopper valve.
For max circulation use nozzles with venturie. To charge the High Pressure pump, close venturi and hopper valves and
open nozzles valve.
If no mud is used you can close the valve of the hopper and stop the mixing pump.
This reduces wear of the unit. Do start-up before mud is needed!
Never start without deaerating the pump or without fluid.
In case of use of recycled fluid, mount stainless eductors/tank nozzles in the tank.
2.6 SERVICING ON THE MIXING UNIT AND EXCHANGING PARTS

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
1. Before working on the unit, stop all functions and switch off the main switch
2. Disconnect main power cable
3. Before working on the pump close all valves and drain the pump
READ AMTEQ INSTRUCTION MANUAL TO REPLACE PARTS ON THE AMTEQ PUMP
3.1 12 HOUR SHIFT MAINTENANCE
When the mixing unit is running on a 12 hour shift, check the unit overall as described in 1.3.
3.2 24 HOUR SHIFT MAINTENANCE
When the mixing unit is running on a 24 hour shift, check the unit overall as described in 1.3. (2x in 24 hours).
3.3 WEEKLY MAINTENANCE
For weekly maintenance on the mixing unit the following activities are recommended:
1. Check the unit overall as described in chapter 1.3
2. Clean the complete unit including the tank
3. Grease all nipples on the AMTEQ pump: see the AMTEQ instruction manual (use Shell RHODINA EP2)
3.4 MONTHLY MAINTENANCE
For monthly maintenance on the mixing unit the following activities are recommended:
1. Follow all points described in weekly maintenance
2. Remove guard from Flex tire drive and tire mount and check the condition
3. Check impeller, seal plate and impeller housing for wear. See AMTEQ instruction manual
3.5 3 MONTH MAINTENANCE
For 3 month maintenance on the mixing unit the following activities are recommended:
1. Follow all the points described in monthly maintenance
2. Check mixing tank for cracks or loose welds
While working in the tank, make sure it is clean and empty.
READ AMTEQ INSTRUCTION MANUAL TO REPLACE PARTS ON THE AMTEQ PUMP

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
4.1 DEMOBILISATION
The unit is equipped with fork lift pockets to demobilize this mixing unit.
Prior to lifting the mixing unit a few handlings must be made:
1. Drain the unit by opening the drain valve on the pump and bottom of tanks
2. Undo all hoses and open all (drain) valves
3. Clean the whole unit including the inside of the tank
When all this is done you can lift the unit with a forklift.
NEVER:
1. Stand or walk underneath the load
2. Use certified lifting equipment
4.2 LONG-TERM STORAGE
When the mixing unit is not being used for more than 3-4 weeks.
Make the following preparations:
1. Drain all the mud out of the unit
2. Drain mud from the tank and MCM pump
3. Flush the AMTEQ pump with clean water, open all valves
4. Check to see if oil changes have to be made
5. Clean the entire unit

Molenvliet 28
3961 MV Wijk bij Duurstede
[phone]
www.sitetec.nl | [e-mail]
In all cases in which we act as offerer or supplier, our offers, assignments given to us and agreements concluded with us are subject to the METAALUNIE
TERMS AND CONDITIONS. These terms and conditions have been filed at the Registry of the Rotterdam District Court. The Dutch law is applicable on all
our agreements. KVK nr. 34043947 | VAT/BTW nr. NL.0034.76.443.B01 | IBAN NL94ABNA 0565320300
5.1 PARTS SUPPLY AND RECOMMENDED PARTS STOCKLIST
For optimal use, we recommend to use genuine SiteTec parts only. We recommend to have the following wear parts on
stock. When ordering parts always mention unit type and serial number.
WEAR PARTS MIXING UNIT M405D
pos #
AMTEQ MudMax 3" x 2" x 11"
1
Mechanical seal MudMax
2
Stuffingbox for mechanical seal
3
Ceramic Shaft Sleeve
4
Graphite packing
5
11" Impeller
6
Housing for 3" x 2" x 11"
7
Victaulic clamb 2" and 3"
8
Victaulic clamb 2" and 3" rubber
9
Waterfilter
10
Waterfilter cup
11
Oilfilter
12
Fuel filter
13
Airfilter
14
Manometer 0-6 bar
15
PE Tank manhole cover
16
Tire coupling
17
Butterfly valve 3"
18
Eductor Nozzle 1,5"
19
Venturi Nozzle 2"
20
Venturi Diffuser
21
5.2 PARTS & SERVICE contact:
Telephone: [phone]
E-mail: [email protected]
5.3 MAINTENANCE SCHEDULE
Weekly
250 hour
500 hour
1
Grease nipples
2
Engine oil
3
Pump powerend oil
4
Engine filter set
5
Coolfluid and filter
