CORDLESS DRILL/DRIVER
2321 (F0152321..)

2
12321
ʾʽƓ˅
ÇÄÌ
A
B
CH
D
E
F
G
2
ʾƓʽÿ
ʽʾƯʿʽʽˀ
ʽƘ˂˂ʽ
˅ÅÅ
˃ÅÅ
ʾÀÇÍÊ
5 63 4 7
8
Á
9

3

@
0 !
@a
c
b

4
E
#
$

5
ʾˆ
ʾ
 
%
F
^ &
*
PHILLIPS
POZIDRIV
SLOTTED

6
( )
¡ ™
ACCESSORIES ➞WWW.SKIL.COM

7

Cordless drill/driver 2321
INTRODUCTION
• This tool is intended for drilling in wood, metal, ceramic
and plastic; tools with electronic speed control and left/
right rotation are also suitable for screwdriving and thread
cutting
• This tool is not intended for professional use
• The light of this power tool is intended to illuminate the
power tool΄s direct area of working operation and is not
suitable for household room illumination
• Read and save this instruction manual 3

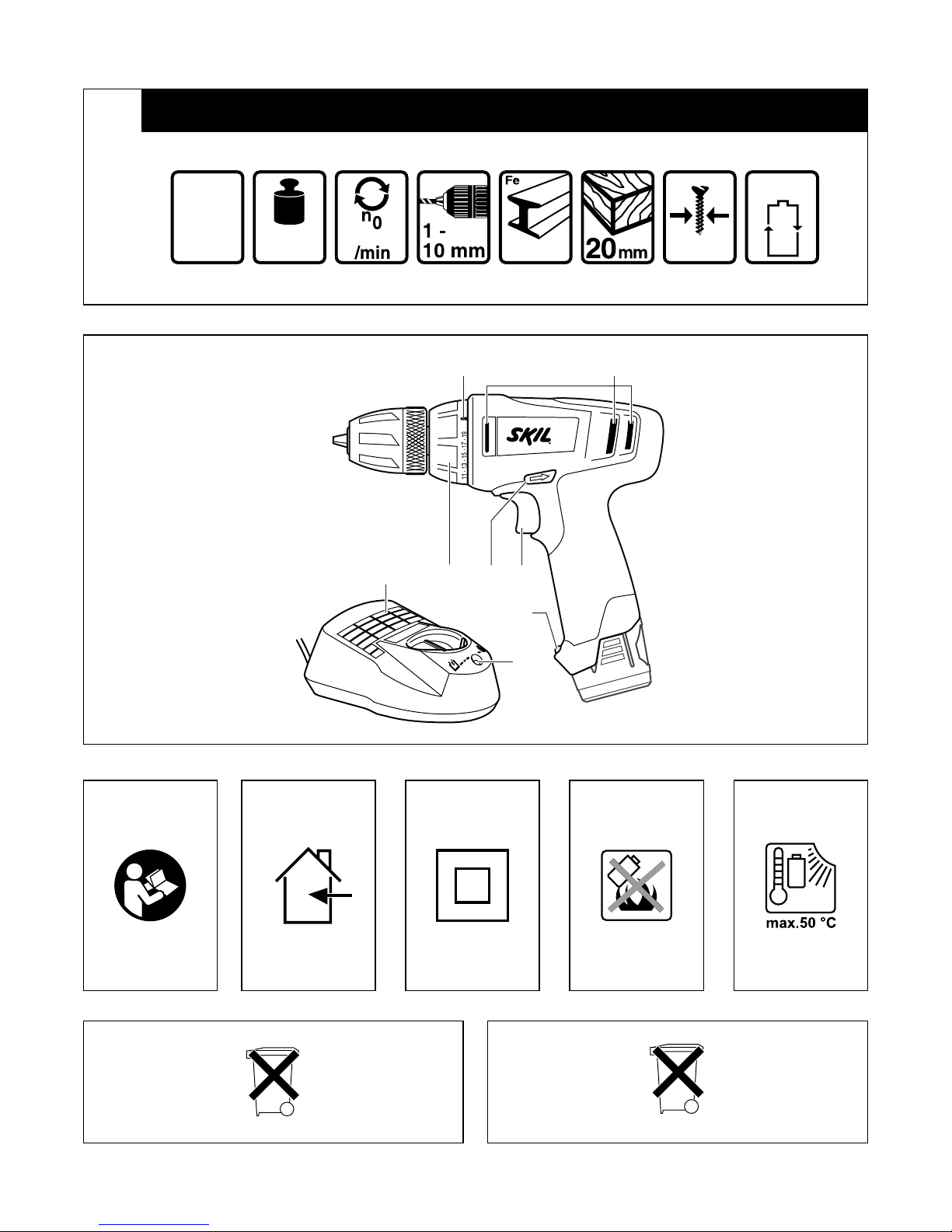

TECHNICAL DATA 1
Max. torque for hard screwdriving application according to
ISO 5393 : 25Nm
TOOL ELEMENTS 2
A Switch for on/o and speed control
BGreen charging light

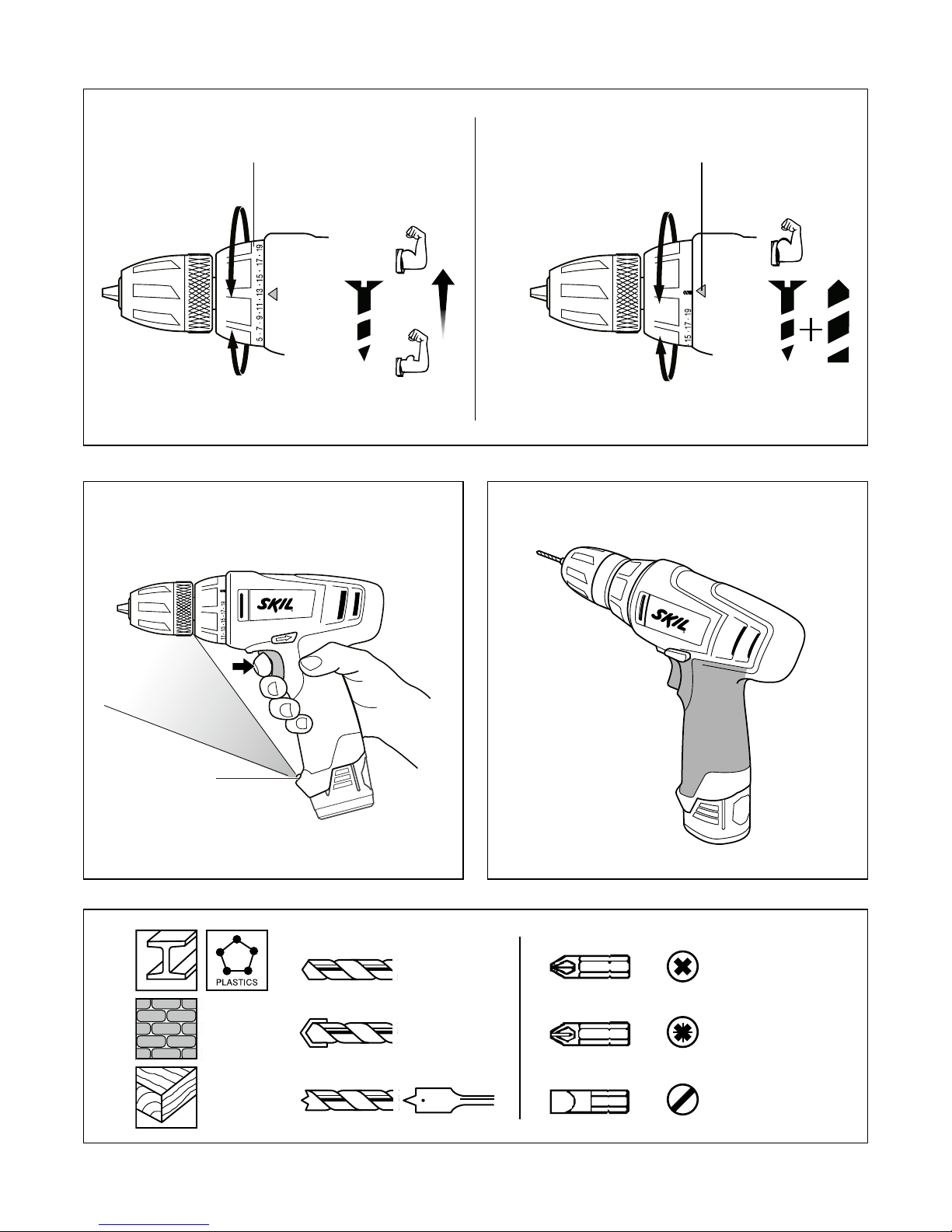

C Ring for torque control
D Lock-position (clutch)

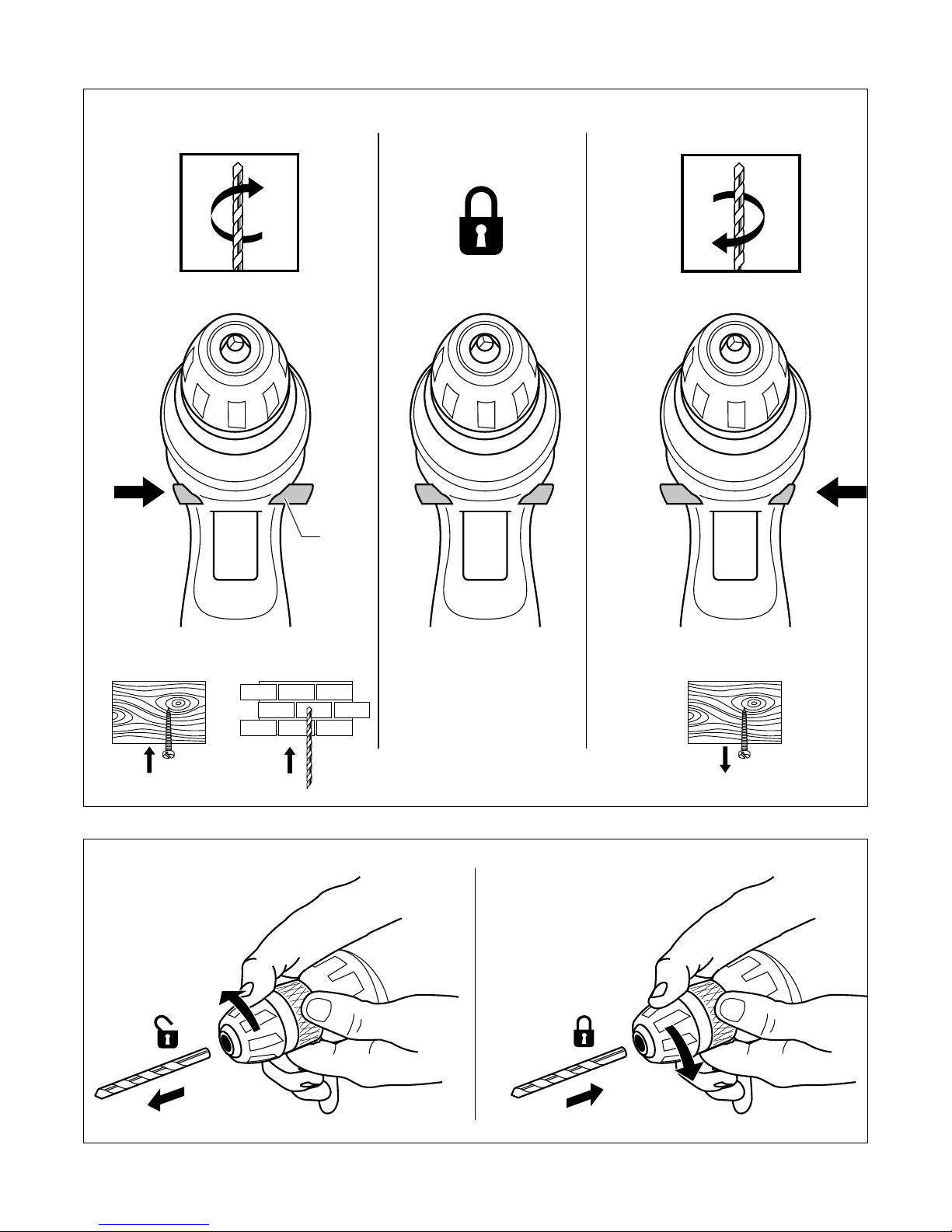

E Switch for changing direction of rotation
FSpot light
GVentilation slots
HCharger
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instructions
may result in electric shock, fire and/or serious injury. Save
all warnings and instructions for future reference. The
term “power tool” in the warnings refers to your mains-
operated (corded) power tool or battery-operated (cordless)
power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks which
may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.
Unmodied plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do not
use a power tool while you are tired or under the
influence of drugs, alcohol or medication. A moment
of inattention while operating power tools may result in
serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the tool. Carrying power tools with your nger on the
switch or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do
the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.

8
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in
accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations dierent
from those intended could result in a hazardous situation.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of re when used with
another battery pack.
b) Use power tools only with specifically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
c) When battery pack is not in use, keep it away from
other metal objects like paper clips, coins, keys,
nails, screws, or other small metal objects that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause burns
or a re.
d) Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help. Liquid
ejected from the battery may cause irritation or burns.
6) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
SAFETY INSTRUCTIONS FOR CORDLESS DRILL/
DRIVERS
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the charger
• In case of electrical or mechanical malfunction,
immediately switch o the tool or unplug charger from
power source
• SKIL can assure awless functioning of the tool only
when original accessories are used
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
• The tool/charger is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the tool/charger by a person
responsible for their safety
• Ensure that children do not play with the tool/charger

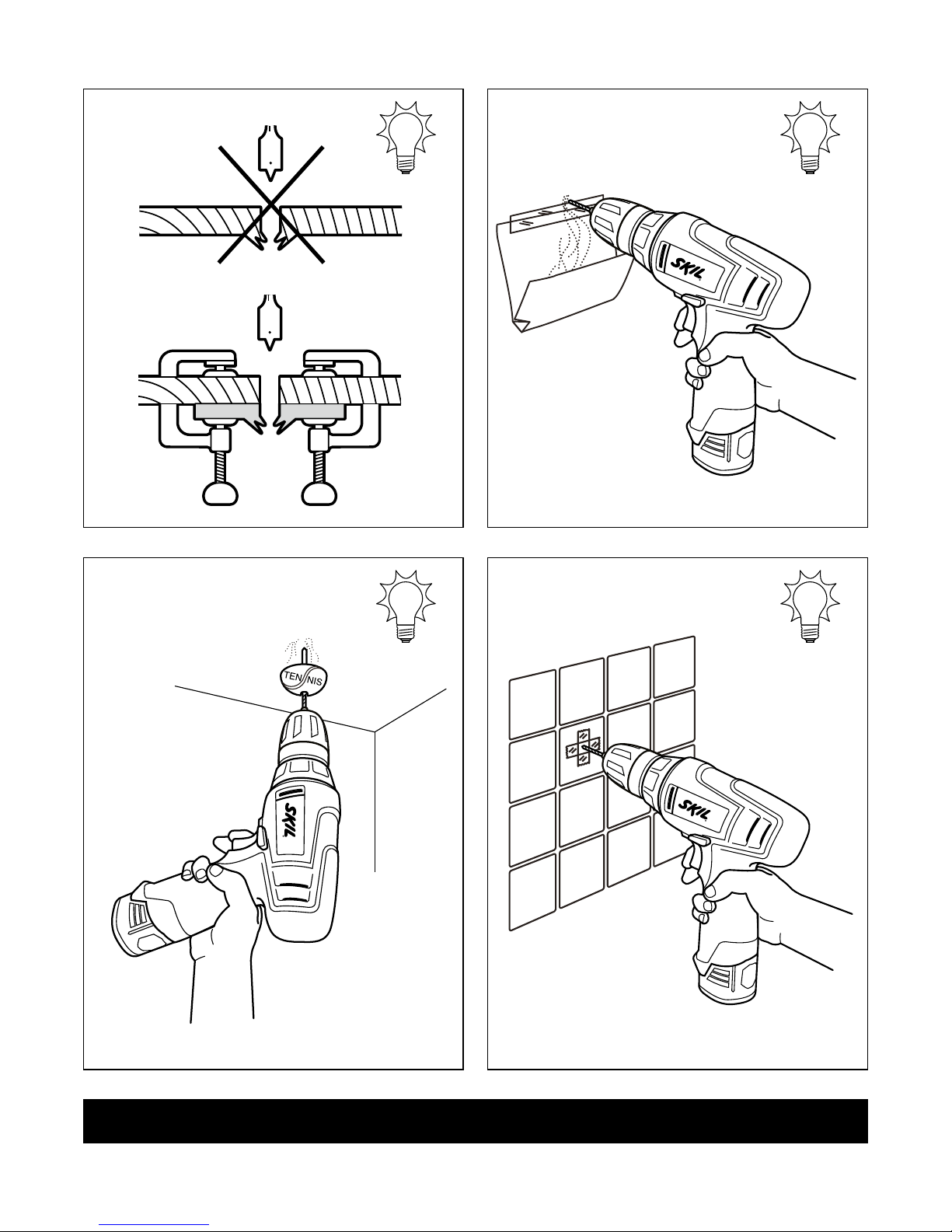

• Secure the workpiece (a workpiece clamped with
clamping devices or in a vice is held more securely than
by hand)
• Hold the power tool only by the insulated gripping
surfaces when performing an operation where the
accessory may contact hidden wiring or its own
power cord (contact with a “live” wire will also make
exposed metal parts of the power tool “live” and shock
the operator)
• Use suitable detectors to find hidden utility lines or
call the local utility company for assistance (contact
with electric lines can lead to re or electrical shock;
damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause allergic
reactions and/or respiratory diseases to the operator or
bystanders); wear a dust mask and work with a dust
extraction device when connectable
• Certain kinds of dust are classied as carcinogenic (such
as oak and beech dust) especially in conjunction with
additives for wood conditioning; wear a dust mask and
work with a dust extraction device when
connectable
• Follow the dust-related national requirements for the
materials you want to work with
• Ensure that switch E 2 is in the middle (locking) position
before making any adjustments or changing accessories
as well as when carrying or storing the tool
CHARGING/BATTERIES
• Charge battery only with the charger that is supplied with
the tool
• Do not touch the contacts in the charger
• Do not expose tool/charger/battery to rain
• Do not charge battery in damp or wet environments
• Store tool/charger/battery in locations where temperature
will not exceed 50°C or drop below 0°C
• Do not use charger when damaged; take it to one of the
ocially registered SKIL Service Stations for a safety
check
• Do not use charger when cord or plug is damaged; cord
or plug should be replaced immediately at one of the
ocially registered SKIL Service Stations
• Do not use battery when damaged; it should be replaced
immediately
• Do not disassemble charger or battery
• Do not attempt to recharge non-rechargeable batteries
with the charger
• If you anticipate long periods of non-use for the tool, it is
best to unplug the charger from its power source
EXPLANATION OF SYMBOLS ON CHARGER/BATTERY
3Read the instruction manual before use
4Only use the charger indoors
5Double insulation (no earth wire required)

9
6Batteries may explode when disposed of in fire, so
do not burn battery for any reason
7Store tool/charger/battery in locations where
temperature will not exceed 50°C
8Do not dispose of the charger together with
household waste material
9Do not dispose of the battery together with
household waste material
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of the charger to the earth terminal of the plug
• If for any reason the old plug is cut o the cord of the
charger, it must be disposed of safely and not left
unattended
USE
• On/o 0
• Speed control for smooth starting !
• Charging battery @
- connect charger to power source as illustrated
- green light B will turn on indicating that the charger is
ready for operation @a
- insert battery into charger as illustrated @b
- green light B will blink indicating that the battery is
being charged @b
- after approximately 1 hour the battery is fully charged
and green light B stays on after blinking @c
! remove battery from charger after charging
period has ended thereby lengthening the service
life of the battery
IMPORTANT:
- if green light B does not blink after inserting a battery,
this may mean:
1) that the battery is too cold or too hot (charger only
charges batteries when its temperature is between
0°C and 45°C)
2) that the battery should be replaced
- the lithium-ion battery can be charged at any time
(interrupting the charging procedure does not damage
the battery)
- the lithium-ion battery does not have to be empty
before charging (no “memory-eect” as with
nickel-cadmium batteries)
- while charging, the charger and the battery may
become warm to touch; this is normal and does not
indicate a problem
- ensure that the outside surface of the battery is clean
and dry before inserting into charger
- do not remove battery from tool while it is running
- a signicantly reduced working period after charging
indicates that the battery is worn out and should be
replaced
• Changing direction of rotation #
- when not properly set in left/right position, switch A 2
cannot be activated
! change direction of rotation only when tool is at a
complete standstill
• Changing drill bits $
- insert the bit as deep as possible in the chuck
- use screw bits in combination with a bitholder
! do not use bits with a damaged shank
! only use sharp bits
• Torque control (VariTorque) %
- output torque will increase as clutch ring C is rotated
from 1 to 19; position D will lock up the clutch to permit
drilling or driving heavy duty work
- when turning in a screw, rst try VariTorque position 1
and increase until the desired depth has been reached
• Spot light F ^
Spot light F automatically lights on when activating switch
A 2
• Battery protection
Switches o the tool automatically when
1) the load is too high
2) the battery temperature is not within the allowable
operating temperature range of -10 to +60°C
3) the lithium-ion battery is nearly empty (to protect
against deep discharge)
! do not continue to press the on/off switch after
the tool is switched off automatically; battery may
be damaged
• Holding and guiding the tool &
! while working, always hold the tool at the
grey-coloured grip area(s)
- keep ventilation slots G 2 uncovered
- do not apply too much pressure on the tool; let the tool
do the work for you
APPLICATION ADVICE
• Use the appropriate bits *
! only use sharp bits
• When drilling ferrous metals
- pre-drill a smaller hole, when a large hole is required
- lubricate drill bit occasionally with oil
• When turning in a screw at/near the cross cut end or an
edge of wood, pre-drill a hole in order to avoid cracking of
the wood
• For an optimal use of the tool a steady pressure on the
screw is required, especially while removing
• When screwdriving in hard wood one should pre-drill a hole
• Splinterfree drilling in wood (
• Dustfree drilling in walls )
• Dustfree drilling in ceilings ¡
• Drilling in tiles without skidding ™
• For more tips see www.skil.com
MAINTENANCE / SERVICE
• This tool is not intended for professional use
• Keep tool and charger clean
- clean charging contacts in charger with alcohol or
contact cleaner
! unplug charger from power source before
cleaning
• If the tool/charger should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool or charger undismantled together with
proof of purchase to your dealer or the nearest SKIL
service station (addresses as well as the service
diagram of the tool are listed on www.skil.com)
- in case of a defective charger send both charger and
battery to your dealer or the SKIL service station

10
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2012/19/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol 8 will remind you of this when the need for
disposing occurs
• The battery must be kept separate from the natural
environment and should not be disposed of as normal
domestic waste (symbol 9 will remind you of this when
the need for disposing occurs)
! prior to disposal protect battery terminals with
heavy tape to prevent short-circuit
DECLARATION OF CONFORMITY
• We declare under our sole responsibility that the product
described under “Technical data” is in conformity with the
following standards or standardization documents: EN
60335, EN 61000, EN 60745, EN 55014, in accordance
with the provisions of the directives 2006/95/EC,
2004/108/EC, 2006/42/EC, 2011/65/EU, 2009/125/EC
(EU regulation 1194/2012)
• Technical file at: SKIL Europe BV (PT-SEU/ENG1),
4825 BD Breda, NL
¹ÊÁÂÆιÆ¼½ÊÇǾ¼½Æ
ȽʹÌÁÇÆËŵÆ¿Áƽ½ÊÁÆ¿
ÍÊÇȽƓˁ˅ʿ˂ʽ¼¹Ɠ
Ĺ¾ÁÂÿʹ¹¾
ÈÈÊÇιÄ¹Æ¹¿½Ê
19.12.2013 09
NOISE/VIBRATION
• Measured in accordance with EN 60745 the sound
pressure level of this tool is <70 dB(A) (standard
deviation: 3 dB) and the vibration ✱m/s² (hand-arm
method; uncertainty K = 1.5 m/s²)
✱ when screwdriving <2.5 m/s²
✱ when drilling in metal <2.5 m/s²
• The vibration emission level has been measured in
accordance with a standardised test given in EN 60745; it
may be used to compare one tool with another and as a
preliminary assessment of exposure to vibration when
using the tool for the applications mentioned
- using the tool for dierent applications, or with dierent
or poorly maintained accessories, may signicantly
increase the exposure level
- the times when the tool is switched o or when it is
running but not actually doing the job, may signicantly
reduce the exposure level
! protect yourself against the effects of vibration
by maintaining the tool and its accessories,
keeping your hands warm, and organizing your
work patterns

Perceuse/visseuse sans fil 2321
INTRODUCTION
• Cet outil est conçu pour le perçage dans le bois, le métal,
la céramique et les matières plastiques; les outils avec
réglage électronique de la vitesse et rotation à droite/à
gauche sont également appropiés pour le vissage et le
letage
• Cet outil n’est conçu pour un usage professionnel
• L’éclairage de cet outil électroportatif est destiné à
éclairer l’espace de travail de l’outil; il n’est pas conçu
pour servir de source d’éclairage ambiant dans une pièce
• Lisez et conservez ce manuel d’instruction 3
CARACTERISTIQUES TECHNIQUES 1
Couple max. vissage dur suivant ISO 5393 : 25Nm
ELEMENTS DE L’OUTIL 2
A Interrupteur de marche/arrêt et réglage de vitesse
B Voyant du chargeur vert
C Anneau pour réglage du couple
D Position de verrouillage (embrayage)
E Commutateur pour inverser le sens de rotation
FLampe
G Fentes de ventilation
HChargeur
SECURITE
INSTRUCTIONS GENERALES DE SECURITE
ATTENTION! Lisez tous les avertissements de
sécurité et toutes les instructions. Ne pas suivre les
avertissements et instructions peut entraîner un choc
électrique, un incendie et/ou de graves blessures sur les
personnes. Conservez tous les avertissements et
toutes les instructions pour pouvoir s’y reporter
ultérieurement. La notion d’”outil électroportatif” dans les
avertissements se rapporte à des outils électriques
raccordés au secteur (avec câble de raccordement) et à
des outils électriques à batterie (sans câble de
raccordement).
1) SECURITE DE LA ZONE DE TRAVAIL
a) Maintenez l’endroit de travail propre et bien éclairé.
Un lieu de travail en désordre ou mal éclairé augmente le
risque d’accidents.
b) N’utilisez pas l’appareil dans un environnement
présentant des risques d’explosion et où se
trouvent des liquides, des gaz ou poussières
inflammables. Les outils électroportatifs génèrent des
étincelles risquant d’enammer les poussières ou les
vapeurs.
c) Tenez les enfants et autres personnes éloignés
durant l’utilisation de l’outil électroportatif. En cas
d’inattention vous risquez de perdre le contrôle sur
l’appareil.
