SKUTCH CK-1P3 User manual

Page 1 of 4
"Telecommunication Products to solve Telecommunication Problems"
CK-1P3
Promotion-On-Hold
Adapter
(For Panasonic
KX-TG6500 and KX-TG6502 )
Introduction
Thank you for purchasing the
Skutch CK-1P Promotion-On-Hold
Adapter for the Panasonic KX-
TG6500B & KX-TG6502 two line
cordless phone system. The CK-1P
is a true plug and play device. The
unit does not require any "Learning" to operate. When a call is placed ON HOLD from
the base set, or any one of the cordless phones, the caller will hear the Promotion-On-
Hold audio. When the line is re-answered, the audio automatically stops. It's that simple!
Installation
1- Position the CK-1P box under the base telephone with the jacks facing towards the
back of the phone. Remove the paper backing from the two double sided foam tape on
the top cover of the CK-1 black box, and attach the phone to the cover. (See Fig. 1).
2- Connect the short modular cord from [1&2 Phone on CK-1] to [LINE 1/2 on Phone].

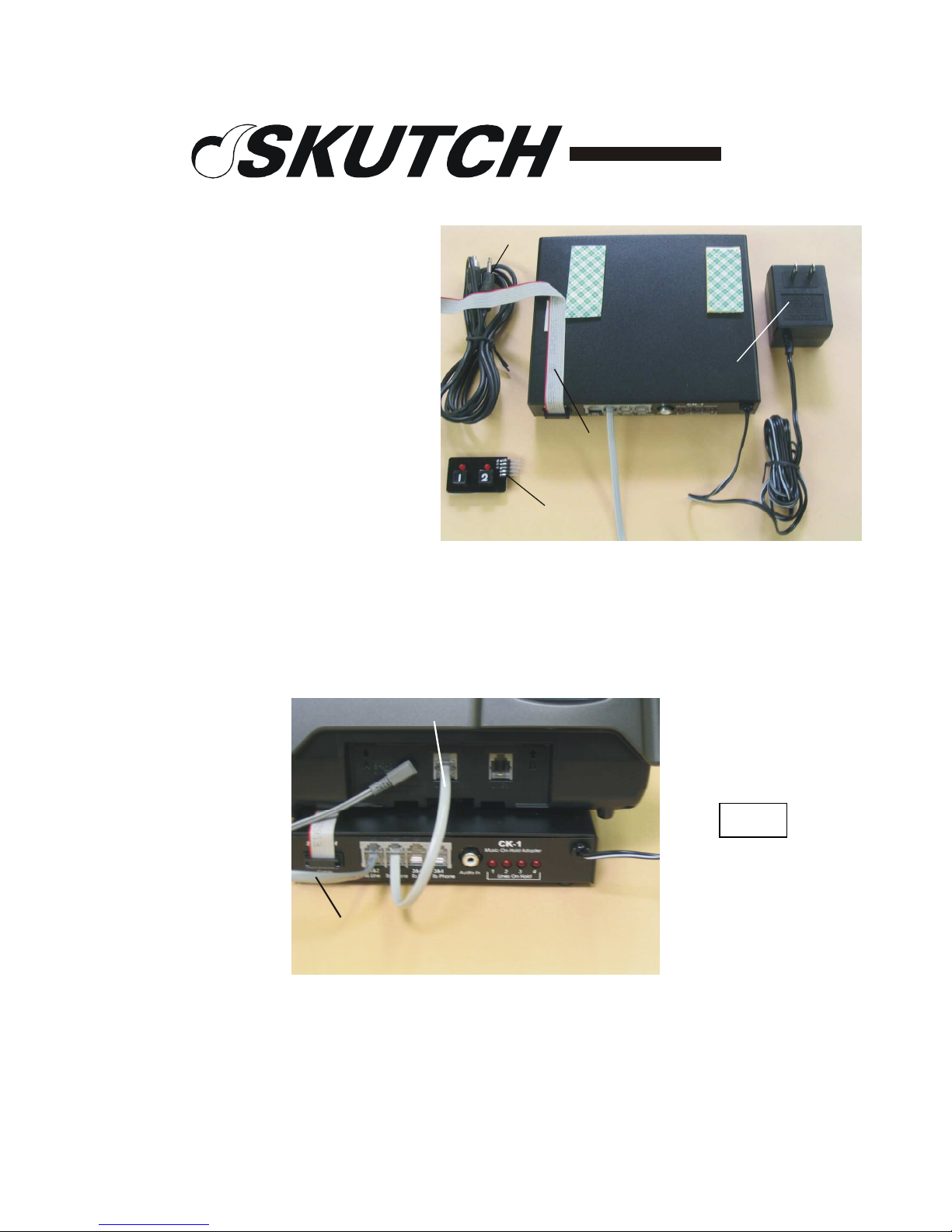

Fig. 1
Sensor Board
Sensor Cable
Power Cube
Audio Cord
Line 1\2
To LINE

Page 2 of 4
- Connect the audio cord from your audio source, to the AUDIO IN jack on the back of
the CK-1 box. For DIGITAL units use the cable that comes with the digital player.
4- Connect a MOD cord from Telephone Wall Jack 1&2 to [1&2 Line on CK-1].
5- Locate the CK-1P "SENSOR BOARD", peel off the protector paper from the bottom
of the sensor board, and carefully place it OVER the LINE buttons on the Panasonic base
set as shown in Fig. #2. The buttons on the SENSOR BOARD MUST be centered
directly over the line 1 and 2 selector buttons on the phone. The SENSOR BOARD
MUST be attached to the phone for proper operation.
6- Connect the Sensor Cable to the Sensor Board as shown in fig. 2.
7- Connect the POWER CUBE from the CK-1 box to 115VAC power. That's it!
Fig. 2
Fig.
Align Buttons over buttons on phone
Attach cable to Sensor Board

Page of 4
Testing the System:
1- Pickup line 1 on your telephone. The No."1" LED on the CK-1P Sensor Board should
light up.
2- Repeat this test for line 2. If both lines light up when picked up, the CK-1 is working
properly. If either light does not light up, then
a) Make sure that the CK-1P and Phone is connected to power.
b) Make sure that the SENSOR BOARD is aligned properly.
Lights on CK-1 ox.
When you place a line on HOLD, the corresponding LED on the rear of the CK-1P box
lights up to confirm the Promotion-On-Hold condition.
Using Other models of telephones
The CK-1P will ONLY provide Promotion-On-Hold audio when a call is placed ON
HOLD from the KX-TG6500B base or any of it's cordless telephones. Other models of
telephones can be used with the KX-TG6500B, but the Promotion On Hold audio will not
be played to calls placed ON HOLD from these telephones.
Tech Support - 916-786-6186
If you have any problems getting the unit to work properly feel free to give us a call.
Technical Support is available between the hours of 7: 0 AM and 4: 0 PM Pacific Time,
Monday through Friday.
• ONE YEAR LIMITED WARRANTY
This SKUTCH PRODUCT is warranted against defects for a period of one (1) year from the date of the
original invoice. Within this period, we will repair it without charge for parts and labor. To obtain
warranty service the product must be returned, at the customer's expense, to SKUTCH Electronics along
with a copy of the original invoice. After the unit has been repaired, SKUTCH will ship the PRODUCT
back via UPS GROUND service at our expense. If any other form of return shipment is requested, the
customer will pay for 100% of the shipping cost.
This Warranty does not apply if in the sole opinion of SKUTCH Electronics, the PRODUCT has been
damaged by lightning or any other Acts of God, or by accident, misuse, neglect, or improper packing,
shipping, modification or servicing by other than an authorized SKUTCH Service Center.
EXCEPT AS SPECIFICALLY PROVIDED IN THIS AGREEMENT, THERE ARE NO OTHER
WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTIES OR MERCHANTABILITIES OR FITNESS FOR A PARTICULAR PURPOSE AND IN
NO EVENT SHALL SKUTCH ELECTRONICS BE LIABLE FOR LOSS OF PROFITS OR BENEFITS,
INDIRECT, SPECIAL, CONSEQUENTIAL OR OTHER SIMILAR DAMAGES ARISING OUT OF
ANY BREACH OF THIS WARRANTY OR OTHERWISE.

Page 4 of 4
ACTA Statement
This equipment complies ith Part 68 of FCC rules and the requirements
adopted by ACTA. On the bottom side of this equipment is a label that contains, among
other information, a product identifier in the format US: AAAEQ##TXXXX. If requested,
this number must be provided to the telephone company.
A plug and jack used to connect this equipment to the premises wiring and
telephone network must comply with the applicable FCC Part 68 rules and requirements
adopted by the ACTA. A compliant telephone cord and modular plug is provided with
this product. It is designed to be connected to a compatible modular jack that is also
compliant. See installation instructions for details.
The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not ringing
in response to an incoming call. In most but not all areas, the sum of RENs should not
exceed five (5.0). To be certain of the number of devices that may be connected to a
line, as determined by the total RENs, contact the local telephone company. For
products approved after July 23, 2001, the REN for this product is part of the product
identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the
REN ithout a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is
separately sho n on the label.
If this equipment causes harm to the telephone net ork, the telephone company
ill notify you in advance that temporary discontinuance of service may be required. But
if advance notice isn't practical, the telephone company ill notify the customer as soon
as possible. Also, you ill be advised of your right to file a complaint ith the FCC if you
believe it is necessary.
The telephone company may make changes in its facilities, equipment,
operations or procedures that could affect the operation of the equipment. If this
happens the telephone company ill provide advance notice in order for you to make
necessary modifications to maintain uninterrupted service.
If trouble is experienced ith this equipment, for repair or arranty information,
please contact our company. If the equipment is causing harm to the telephone net ork,
the telephone company may request that you disconnect the equipment until the
problem is resolved.
Connection to party line service is subject to state tariffs. Contact the state public
utility commission, public service commission or corporation commission for information.
