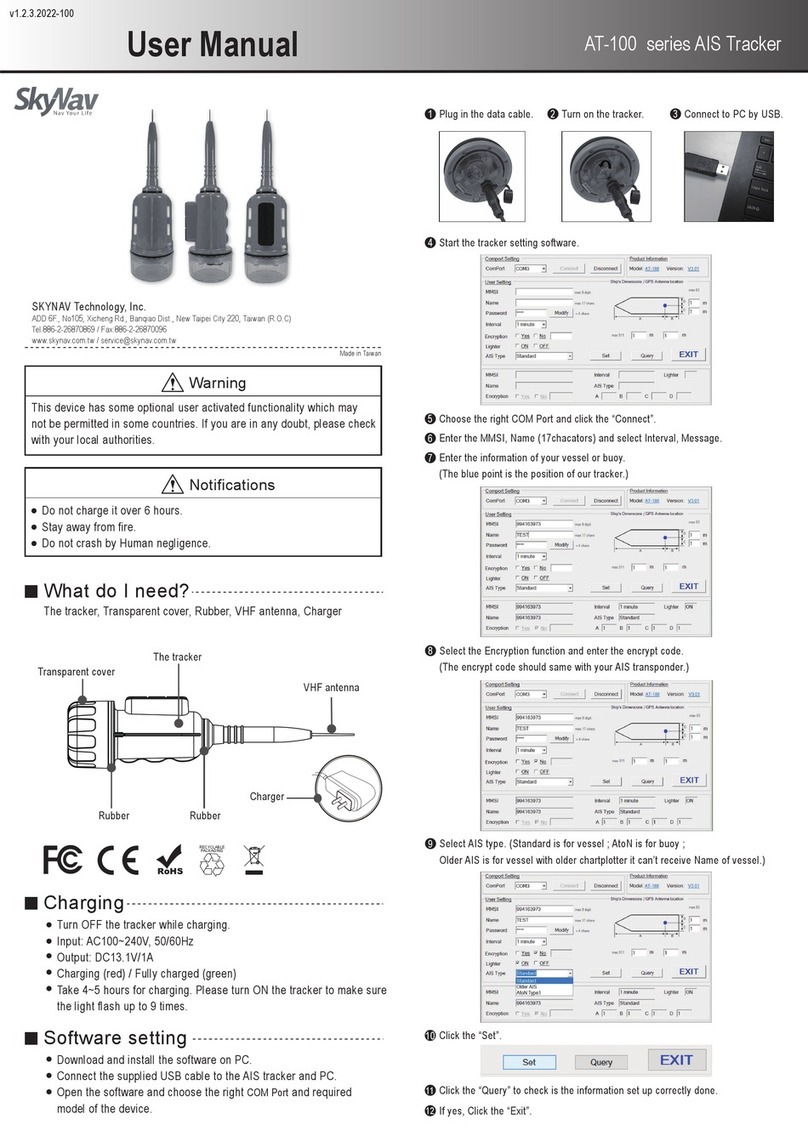

SKYNAV AT-100 Series User manual

User Manual AT-100 series AIS Tracker
Warning
This device has some optional user activated functionality which may
not be permitted in some countries. If you are in any doubt, please check
with your local authorities.
v1.1.1.2021-100
Notifications
Do not charge it over 6 hours.
Stay away from fire.
Do not crash by Human negligence.
SKYNAV Technology, Inc.
ADD 6F., No105, Xicheng Rd., Banqiao Dist., New Taipei City 220, Taiwan (R.O.C)
Tel:[phone] / Fax:[phone]
www.skynav.com.tw / [e-mail]
Made in Taiwan
What do I need?
The tracker, Transparent cover, Rubber, VHF antenna, Charger
VHF antenna
RubberRubber
The tracker
Transparent cover
Charger
RECYCLABLE
PACKAGING
Software setting
Download and install the software on PC.
Connect the supplied USB cable to the AIS tracker and PC.
Open the software and choose the right COM Port and required
model of the device.
Charging
Turn OFF the tracker while charging.
Input: AC100~240V, 50/60Hz
Output: DC13.1V/1A
Charging (red) / Fully charged (green)
Take 4~5 hours for charging, return ON the tracker to make sure
the light flash 9~10 times.
Start the tracker setting software.
4
Enter the MMSI, Name (17chacators) and select Interval, Message.
6
Enter the information of your vessel.
(The blue point is the position of our tracker.)
7
If yes, Click the “Exit”.
12
Sellect the Encryption function and enter the encrypt code.
(The encrypt code should same with your AIS transponder.)
8
Sellect AIS type. (Standard is for vessel ; AtoN is for buoy ;
Older AIS is for vessel with older chartplotter it can’t receive Name of vessel.)
9
Click the “Set”.
10
Click the “Query” to check is the information set up correctly done.
11
Choose the right COM Port and click the “Connect”.
5
Plug in the data cable.
1Turn on the tracker.
2Connect to PC by USB. 3

LED Flash Code
Application
Specification
Installation
User Manual AT-100 series AIS Tracker
v1.1.1.2021-100
Check the Battery status:
Flashing 1~10 times (red & green light) Showing battery level 10~100%.
Fast flashing red light for 10 seconds showing the battery is less than 50%.
GPS searching status:
Green light flashing is searching GPS.
Please put the Tracker outdoors or along the window in order to receive the
GPS signal.
After 40~70seconds, the green light stops flashing while GPS signal fixed.
AIS signal status:
Flashing red & green 3 times at the same time means the AIS data is
transmitting, once the signal transmitted the light will stop flashing.
Congratulations, you set the Trackers successfully.
Check the device is work
13
Notifications
If you need to continue to set another tracker, you do not need to choose
your COM Port.
Just click connect and repeat step 5 to 9.
Please remember to restart the tracker before test and use it.
If you can receive MMSI on target list but no vessel name of tracker.
Please try to change Message type from 19 to 24.
Fasten it properly while installing the antenna and the transparent cover.
Setting it on the target that you want to track. And make sure the
environment is outdoors without hindrance.
Please install the tracker more than 1 meter above sea level to increase
transmission range.
Install at the highest position.
Near ocean vessel, Yacht, Fishing boat.
Maintain
When the charger can’t work—Try to use the different charger for
cross-comparison.
Please replace the waterproof rubber every 3~6 months to prolong
the product life.
Distributor
Sold Date: ___ / ___ / ______ (dd/mm/yyyy)
Warranty
Remark:
1.One-year warranty effects from the purchase date.
2.The warranty covers any manufacturing technical
defect excluding breakage.
3.The warranty does not cover faults resulting from
operation careless handing or not the following
instruction. Also, to electric shock cases.
Please keep this warranty card to retain
buyer’s legal rights. No replacement if lost.
Quad Band：161.975 MHz / 162.025 MHz
Output Power：2 W
Battery：12.6V 3200 mAh
Battery Type：Rechargeable Li-ion battery
Operating time：Up to 20 days (reporting interval: 3 min)
Size (Main Body)：21 cm x 9.3 cm
Weight (Main Body)：550g
Waterproof：IPX8
Operating Temperature：-10°C~60°C
Storage Temperature：-20°C~70°C
Flashing 1~10 times (red & green) to
show battery level 10~100% while
turning on the tracker
The red light continues lighting
Fast flashing red after showing
battery status
Flashing green per second
Green light stop flashing
Flashing red & green for 3 times
per second
Battery status
You didn’t set the MMSI and
vessel name correctly
Low power warning that the power
is less than 50%
GPS signal searching
GPS signal fixed
Transmitting AIS data
