Skyrc Quattro B6AC User manual

Professional Balance Charger/Discharger
Built-In AC Power Supply
U1B6M10111 Version 1.1
INSTRUCTION MANUAL
SKYRC Technology Co., Ltd. 2011.06
C
www.skyrc.com

TABLE OF CONTENTS
TABLE OF CONTENTS
INTRODUCTION
SPECIAL FEATURES
WARNING AND SAFETY NOTES

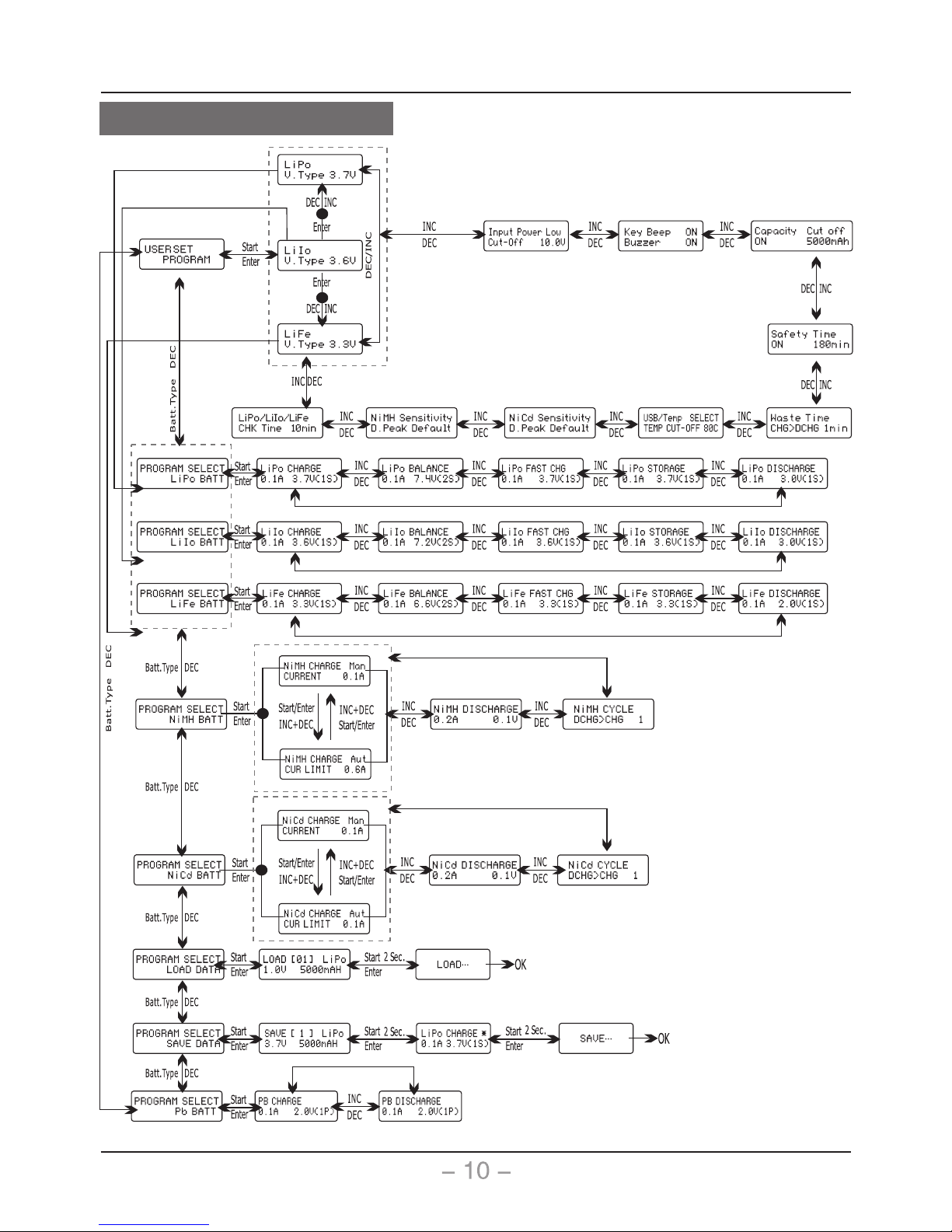

PROGRAM FLOW CHART
LITHIUM POLYMER BALANCE CHARGE PROGRAM
INITIAL PARAMETER SETUP (USERS SET UP)
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
FAST CHARGING OF LITHIUM BATTERY
DISCHARGING OF LITHIUM BATTERY
DISCHARGE OF NICD/NIMH BATTERY
CHARGING OF THE PB BATTERY
STORAGE DATA PROGRAM
VARIOUS INFORMATION IN THE PROGRAM
WARNING AND ERROR MESSAGE
SPECIFICATION
RECOMMENDED ACCESSORIES
CONFORMITY DECLARATION
02
04
06
10
11
12
16
17
18
18
20
21
22
23
24
25
26

INTRODUCTION
INTRODUCTION
Congratulations on your choice of the SKYRC QUATTRO B6AC digital intelligent charger from
SKYRC Technology Co., Ltd. You are now the owner of a compact charger with battery
management and integral balancer.
The unit is simple to use, but the operation of a sophisticated automatic charger such as
the SKYRC QUATTRO B6AC does require some knowledge on the part of the user.
These operating instructions are designed to ensure that you quickly become familiar
with its functions.
It is therefore important that you read right through the Operating Instructions, Warning
and Safety Notes before you attempt to use your new automatic charger for the first time.
We hope you have many years of pleasure and success with your new battery charger.
SKYRC QUATTRO B6AC is a high-performance, micro processor control charge/discharge
station with battery management suitable for use with all current battery types. With integral
equalizer for six-cell Lithium-Ion (LiIon), Lithium-Polymer (LiPo) and Lithium-Ferrum (LiFe)
batteries.
Maximum 6A charge current; can be powered by a 12 Volt car battery or from the 110V AC(US
Version) or 220V AC via the built in switch-mode power supply.
And the circuit features four totally independent identical power outputs which are powered 50
watts each. Total powers are 200 watts. As a result , it can charge or discharge up to 4 x 15 cells
of NiCd/NiMH or 4 x 6 series of Lithium batteries simultaneously. Quattro B6AC has four
individual cell voltage balancer at each outputs, so it does not required any balancer separately
when charging Lithium Battery (LiPo/LiIon/LiFe) for voltage balancing.
When a Nickel battery is fully charged, the unit terminates the process using the Delta-Peak
method. Lithium and lead (Pb) batteries are charged using the CC-CV method.
The fan cooling system is so smart and efficient. The fan speed is controlled by
internal temperature sensor.
Following instructions only apply to one of the four chargers, as all of them operate
according to same principle.
Please BE SURE to read these instructions and Warning and Safety Notes before you
use the charger for the first time.
It can be dangerous to mis-handle batteries and battery chargers, as there is always a
risk of batteries catching fire and exploding.
This charger is designed and approved exclusively for use with the types of battery
stated in these Instruction Manual. SKYRC accepts no liablility of any kind if the charger
is used for any purpose other than that stated. We are unable to ensure that you follow
the instructions supplied with the charger, and we have no control over the methods you
employ for using, operating and maintaining the device. For this reason we are obliged
to deny all liability for loss, damage or costs which are incurred due to the incompetent
or incorrect use and operation of our products, or which are connected with such
operation in any way. Unless otherwise prescribed by law, our obligation to pay
compensation, regardless of the legal argument employed, is limited to the invoice value
of those SKYRC products which were immediately and directly involved in the event in
which the damage occurred.
(EU Version)
Liability Exclusion

INTRODUCTION
Menu Control Buttons
Menu Control Buttons
LCD Screen
Battery
Battery Sockets
Universal Balancing
Port Pitch=2.54mm
Universal Balancing
Port Pitch=2.54mm
AC Input Power Port
Temp. Sensor/PC Link
Available for 1 & 3 only output
Temp. Sensor/PC Link
Available for 2 & 4 only output
Ventilation Fan
with Temperature
Sensor Control
Sockets Battery
Sockets
DC Input
Socket
Please read this entire operating manual completely and attentively before using this
product, as it covers a wide range of information on operating and safety. Or please do use
this product in company with a specialist!
100-120V AC
220-240V AC
(US Version)
(EU Version)

SPECIAL FEATURES
SPECIAL FEATURES

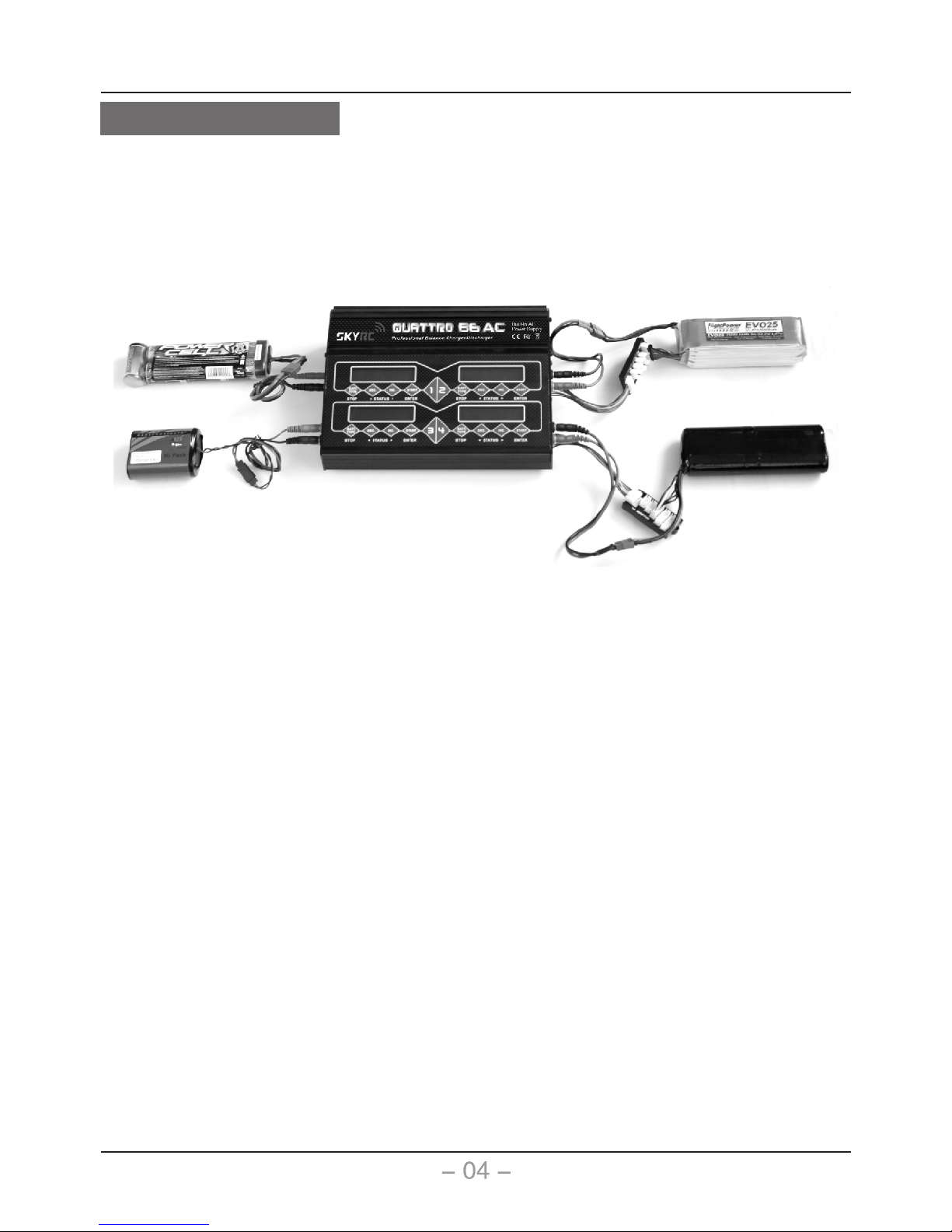

SKYRC QUATTRO B6AC allows you to plug 4 batteries into one charger simultaneously,
and it will intelligently and automatically charge all 4 of them at once to their maximum
capacity. To top of it, the batteries being charged do not even need to have the same
configuration. You can connect different chemistry（Ni-MH/Ni-CD/LiPo/LiFe）batteries into
any of the charging ports. No more staying up late for charging batteries.
Optimized operating software
SKYRC QUATTRO B6AC features the so-called AUTO function that set the feeding current
during the process of charging or discharging. Especially for Lithium batteries, it can
prevent the overcharging which may lead to an explosion due to the user's fault. It can
disconnect the circuit automatically and alarm once detecting any malfunction. All the
programs of this product were controlled through two way linkage and communication, to
achieve the maximum safety and minimize the trouble. All the settings can be configured
by users!
Internal independent lithium battery balancer
SKYRC QUATTRO B6AC employs an individual-cell-voltage balancer. It isn't necessary to
connect an external balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, SKYRC QUATTRO B6AC can monitor and balance
each cell of the battery individually. Error message will be indicated and the process will be
ended automatically if the voltage of any single one cell is abnormal.
Adaptable to various type of lithium battery
SKYRC QUATTRO B6AC is adaptable to various types of Lithium batteries, such as Li-ion,
LiPo and the new LiFe series of batteries.

SPECIAL FEATURES
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, 'fast' charge reduce the duration of charging,
whereas 'store' state can control the final voltage of your battery, so as to store for a long
time and protect useful time of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle of
the Delta-peak voltage detection. When the battery's voltage exceeds the threshold, the
process will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH
battery, it is useful for the NiMH battery of low impedance and capacity in the 'AUTO'
charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If the
charging capacity exceeds the limit, the process will be terminated automatically when you
set the maximum value.
Temperature threshold*
The battery's internal chemical reaction will cause the temperature of the battery to rise. If
the temperature limit is reached, the process will be terminated.
* This function is available by connecting optional temperature probe, which is not included in the package.
Processing time limit:
You can also limit the maximum process time to avoid any possible defect.
Data store/load
The maximum five batteries' data can be stored for each output(4×5SET). You can keep
the data pertaining to program setting of the battery of continuous charging or discharging.
Users can call out these data at any time without any special program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is operable
for battery refreshing and balancing to stimulate the battery's activity.
PC based analysis uing USB Communication*
SKYRC QUATTRO B6AC offer PC based program can analysis the characteristic of the
battery via USB port. It shows a graph of voltage, current, capacity curves. It also shows
the individual voltage of each cell in the Lithium battery pack.
*PC-LINK USB adaptor can be purchased separately.

Never attempt to charge or discharge the following types of batteries:
A battery pack which consists of different types of cells
(including different manufacturers)
A battery that is already fully charged or just slightly discharged
Non-rechargeable batteries (pose an explosion hazard)
Batteries that require a different charge technique from NiCd, NiMh, LiPo or gel cell
(Pb, lead-acid battery)
A faulty or damaged battery
A battery fitted with an integral charge circuit or a protection circuit
Batteries installed in a device or which are electrically linked to other components
Batteries that are not expressly stated by the manufacturer to be suitable for the
currents the charger delivers during the charge process
WARNING AND SAFETY NOTES
WARNING AND SAFETY NOTES
The allowable DC input voltage is 11-18V DC.
The allowable AC input voltage is 100-120V AC(US Version) or 220-240V AC(EU Version).
These warnings and safety notes are particularly important. Please follow the instructions
for maximum safety; otherwise the charger and the battery can be damaged or at worst it
can cause a fire.
Never leave the charger unattended when it is connected to its power supply. If any
malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the
operation manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and vibration.
Never drop it.
This charger and the battery should be put on a heat-resistant, non-flammable and
non-conductive surface. Never place them on a car seat, carpet or similar surface.
Keep all flammable volatile materials away from the operating area.
Make sure you know the specifications of the battery to be charged or discharged to
ensure it meets the requirements of this charger. If the program is set up incorrectly,
the battery and charger may be damaged. Fire or explosion can occur due to
overcharging. This warranty is not valid for any damage or subsequent damage arising
as a result of a misuse or failure to observe the procedures outlined in this manual.
To avoid short circuiting between the charge lead, always connect the charge cable to
the charger first, then connect the battery. Reverse the sequence when disconnecting.

WARNING AND SAFETY NOTES
Please bear in mind the following points before commencing charging:
Did you select the appropriate program suitable for the type of battery you are charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be wired in parallel
and in series, i.e. a 2-cell pack can be 3.7V (in parallel) or 7.4V (in series).
Have you checked that all connections are firm and secure? Make sure there are no
intermittent contacts at any point in the circuit.
Standard Battery Parameters
Be very careful to choose the correct voltage for different types of battery otherwise
you may cause damage to the batteries. Incorrect settings could cause the cells to
fire or explode.
3.7V/cell
Nominal
Voltage
Min. Discharge
Voltage
Max Charge
Voltage
Storage
Voltage
Allowable
Fast Charge
3.7V/cell
4.2V/cell
3.8V/cell
≦1C
≧3.0V/cell
LiPo LiIon
3.6V/cell
4.1V/cell
≧2.5V/cell
≦1C
3.3V/cell
3.6V/cell
3.3V/cell
≦4C
≧2.0V/cell
LiFe
1.2V/cell
1.5V/cell
n/a
1C-2C
≧0.85V/cell
NiCd
1.2V/cell
1.5V/cell
n/a
1C-2C
≧1.0V/cell
MiMH
2.0V/cell
2.46V/cell
n/a
≦0.4C
≧1.75V/cell
Pb

WARNING AND SAFETY NOTES
Charging
During charge process, a specific quantity of electrical energy is fed into the battery. The
charge quantity is calculated by multiplying charge current by charge time. The maximum
permissible charge current varies depending on the battery type or its performance, and
can be found in the information by the battery manufacturer. Only batteries that are
expressly stated to be capable of quick-charge are allowed to be charged at rates higher
than the standard charge current.

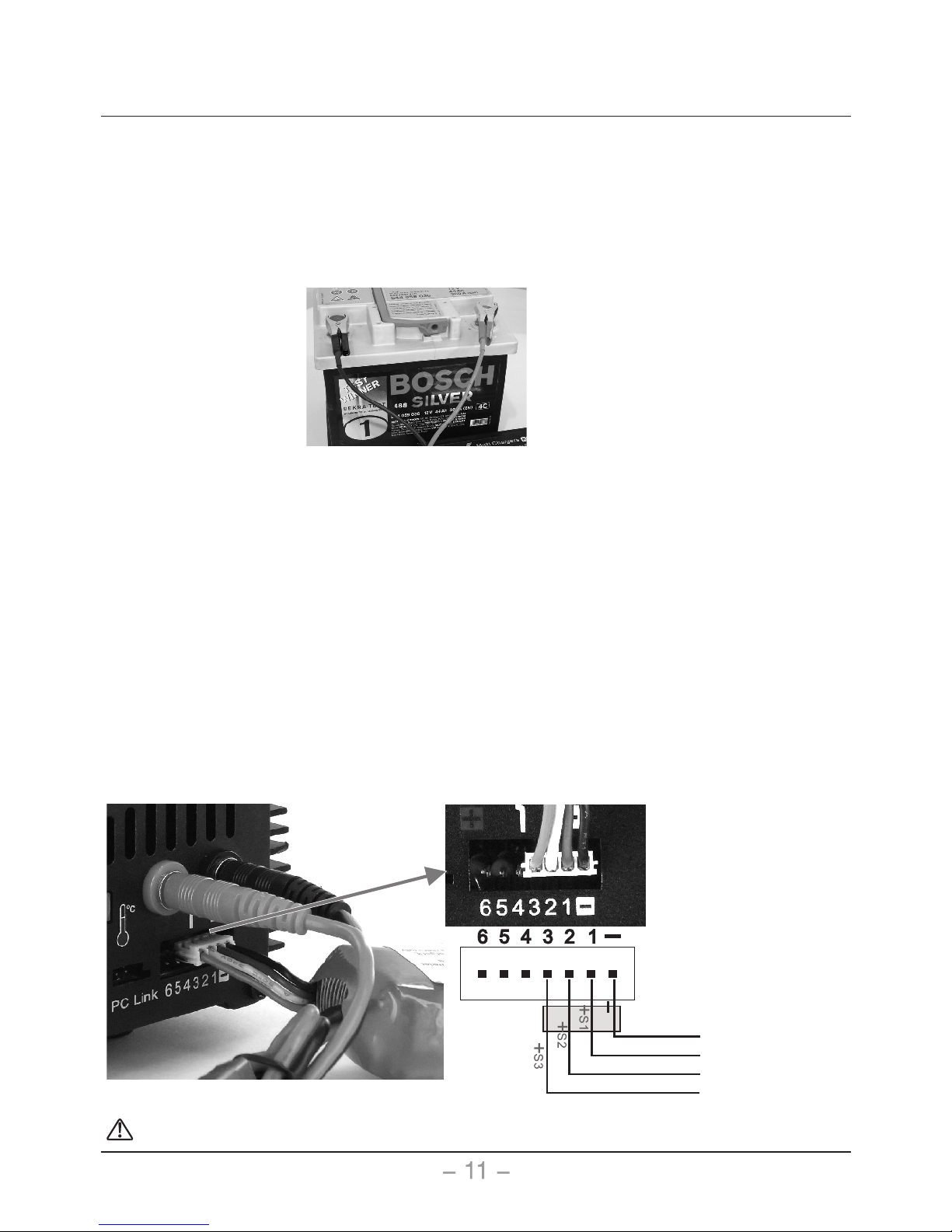

Connect the battery to the terminal of the charger: red is positive and black is negative.
Due to the difference between resistance of cable and connector, the charger can not
detect resistance of the battery pack, the essential requirement for the charger to work
properly is that the charge lead should be of adequate conductor cross-section, and high
quality connectors which are normally gold-plated should be fitted to both ends.
Always refer to the manual by the battery manufacturer pertaining to charging methods.
Operate according to their recommended charging current and charging time. Lithium
batteries, in particular, should be charged strictly according to the manufacturer’s
instruction.
Close attention should be paid to the connection of Lithium batteries.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that Lithium battery packs can be wired in parallel and in series. In
the parallel connection, the battery's capacity is calculated by multiplying single the
battery's capacity by the number of cells, bearing in mind that total voltage stays the same.
If the voltage is imbalanced, it may cause a fire or explosion. Lithium batteries are
recommended to charge in series.

WARNING AND SAFETY NOTES
Discharging
The main purpose of discharging is to clean the residual capacity of the battery, or to
reduce the battery' voltage to a defined level. The same attention should be paid to the
discharging process as the charging process. The final discharge voltage should be set up
correctly to avoid deep discharging. Lithium batteries cannot be discharged to lower than
the minimum voltage, or it will cause a rapid loss of capacity or a total failure. Generally,
Lithium batteries don't need to be discharged. Please pay attention to the minimum voltage
of Lithium batteries to protect them.
Some rechargeable batteries have a memory effect. If they are partly used and recharged
before the whole charge is accomplished, they remember this and will only use that part of
their capacity next time. This is a 'memory effect' It is said that NiCd and NiMH batteries
are suffering from memory effect. NiCd has more ‘memory effect’ than NiMH.
Lithium batteries are recommended to be discharged partially rather than fully. Frequent
full discharging should be avoided if possible. Instead, charge the battery more often or
use a battery of larger capacity. Full capacity cannot be reached until it has been subjected
to 10 or more charge cycles. The cyclic process of charge and discharge will optimize the
capacity of battery pack.

PROGRAM FLOW CHART
PROGRAM FLOW CHART

LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
CONNECTING THE CHARGER
CONNECTING THE BATTERY
Balance socket:
Using terminal
clip attaching
to car battery
The balance wire attached to the battery must be connected to the charger with the black
wire aligned with the negative marking. Take care to maintain correct polarity! (See the
wiring diagram below.)
This diagram shows the correct way to connect your battery to the SKYRC QUATTRO
B6AC while charging in the balance charge program mode only.
WARNING:
Failure to connect as shown in this diagram will damage this charger.
SKYRC QUATTRO B6AC comes with the built in switching power supply. You can connect
the AC power cord directly to the main AC socket. (100-120V AC US Version or 220-240V
AC EU Version) For attaching directly to 12V car batteries. It is critically important that you
use a fully charged 13.8V car battery
Important!!! Before connecting a battery it is absolutely essential to check one last time
that you have set the parameters correctly. If the settings are incorrect, the battery may
be damaged, and could even burst into flames or explode. To avoid short circuits between
the banana plugs, always connect the charge leads to the charger first, and only then to
the battery. Reverse the sequence when disconnecting the pack.

INITIAL PARAMETER SETUP (USERS SET UP)
INITIAL PARAMETER SETUP (USERS SET UP)
USER SET
PROGRAM->
LiFe
V.Type 3.3V
LiPo/LiIo/LiFe
CHK Time 10min
INC
INCDEC
INCDEC
-+
By default, this charger will be set to typical user settings when it is connected to DC
11~18V for the first time. The screen displays the following information in sequence and
the user can change the parameter on each screen.
If you need to alter the parameter value in the program, press “Start/Enter” key to make it
blink then change the value with “INC” or “DEC” key. The value will be stored by pressing
“Start/Enter” key once.
User setup starting screen.
The screen displays the nominal voltage of Lithium battery. There are
three kinds of Lithium battery: LiFe(3.3V), Lilo(3.6V) or LiPo(3.7V).
This is very important so you have to check the battery carefully and
set it up correctly. If it is different from correct value the battery may be
exploded during charge process.
SKYRC QUATTRO B6 recognize the cell count of Lithium battery
automatically at the beginning of charge or discharge process to avoid
from erroneous setting by user. But deeply discharged battery can be
perceived incorrectly. To prevent the error, you can set the time term to
verify the cell count by the processor. Normally, 10 minutes are
enough to perceive the cell count correctly. For the battery of larger
capacity, you may extend the time term. But if you set the time term to
long for the battery of smaller capacity, the charge or discharge
process can be finished within the time term with the erroneous cell
count. This may cause the fatal result. If the processor recognizes the
cell count incorrectly at the beginning of charge or discharge process,
you may extend the time. Otherwise, you had better use with the
default value.

INITIAL PARAMETER SETUP (USERS SET UP)
NIMH Sensitivity
D.Peak Default
NICD Sensitivity
D.Peak Default
Temp. Cut-off
ON 80C
INCDEC
INCDEC
- +
INC
DEC
- +
INCDEC
INCDEC
- +
INCDEC
INCDEC
- +
INCDEC
INCDEC
INCDEC
- +
INCDEC
- +
Waste time
CHG/DCHG 5min
Safety time
ON 120min
INC
DEC
-+
INC
DEC
-+
Safe Timer Calculation
For example:
This shows the trigger voltage for automatic charge termination of
NiMH and NiCd battery. The effective value ranges from 5 to 20mV
per cell. If the trigger voltage is set higher, there is a danger of
overcharging the battery; if it is set lower, there is a possibility of
premature termination. Please refer the technical specification of the
battery. (NiCd default: 12mV, NiMH default: 7mV)
An optional feature using temperature probe contacting the surface
of battery, the temperature cut-off can be on or off. If it is on, set the
maximum temperature at which the charger should allow battery to
reach during charge. Once a battery reaches this temperature
during charge, the process will be terminated to protect the battery.
The battery becomes warm after cycles of charge/discharge
process. The program will insert a time delay after each charge/
discharge process to allow the battery enough time to cool down
before beginning next cycle of charge/discharge process. The valid
value ranges from 0 to 60 minutes.
When the charge process starts, the integrated safety timer starts to
run simultaneously. If an error is detected or the termination circuit
cannot detect whether the battery is fully charged or not, the unit is
programmed to prevent overcharging. Please refer to the below
statement to calculate the safe timer to be set.
When charging NiCd or NiMH batteries, divide the capacity by current, then divide the
result by 11.9, set this number of minutes as the value for safety timer setting. If the
charger stopped at this time threshold, about 140% of the capacity will have been fed into
the battery.
Capacity Current Safety Time
2000mAh 2.0A (2000/2.0=1000)/11.9=84 minutes
3300mAh 3.0A (3300/3.0=1100)/11.9=92 minutes
1000mAh 1.2A (1000/1.2=833)/11.9=70 minutes

Lithium battery (LiIon/LiPo/LiFe) program
These programs are only suitable for charging and discharging Lithium batteries with a
nominal voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different
charge technique that is termed constant current (CC) and a constant voltage (CV)
method. The charge current varies according to the battery capacity and performance.
The Lithium battery is charged at a
constant current until it reaches the
final charge voltage of 4.2 V per cell
(B). After this point the voltage is
kept at a constant level, and the
residual charge takes the form of a
declining current curve (C) until the
cut-off point (D) is reached. Charge
current = C/10. At this point the
battery can be disconnected from
the charger, and is ready for use.
The final voltage of charge process is also very important; it should be precisely matched
with the charged voltage of the battery. They are 4.2V for LiPo, 4.1V for Lilo, and 3.6V for
LiFe. The charge current and nominal voltage as for cell count set on the charge program
must always be correct for the battery to be charged. When you are willing to alter the
parameter value in the program, press start/enter key to make it blink then change the
value with Inc> or <Dec key. The value will be stored by pressing start/enter key once.
4.2V
V
A
Ah
ABCD
t
V/A/Ah
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
Key Beep ON
Buzzer ON
Input Power Low
Cut-Off 10.0V
Capacity Cut-Off
ON 5000 mAh
INCDEC
INCDEC
INCDEC
INCDEC
- +
INC
DEC
- +
INC
DEC
- +
LITHIUM (LIPO/LILON/LIFE) PROGRAM
The program provides maximum capacity protection function. If the
delta-peak voltage cannot be detected or the safe timer times out,
the charge process will stop automatically when the battery reaches
the maximum charge capacity set by the user.
A beep to confirm users' operation sounds every time a button is
pressed. A beep or melody sounds at various times during operation
to confirm different mode changes.
These functions can be switched on or off. This function monitors the
voltage of the input battery used to power this charger. If the voltage
is lower than the value set by the user, the program will end to
protect the input battery.

CHARGING LITHIUM BATTERY IN THE CHARGE MODE
CHARGING OF LITHIUM BATTERY
LiPo CHARGE
2.0A 11.1 V(3S)
INCDEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
Start
Enter
R:3SER S:3 SER
CONFIRM(ENTER)
Li3s 1.2 A 12.59V
CHG 022:43 00682
Number
of cells
Charging
time
Charging
current
Battery
voltage
Charged
capacity
The left side of the first line shows the type of battery you choose.
The value on the left of the second line of the charger is current
user set, After setting the current and voltage, press
START/ENTER key for more than 3 seconds to start the
process.(charge current: 0.1-6.0A, voltage: 3.7-22.2V).
This displays the number of cells you set up and the processor
detects. "R" shows the number of cells detected by the charger
and "S" is the number of cells set by you at the previous screen. If
both numbers are identical, you can start charging by press
START/ENTER button. If not, press BATT TYPE/STOP button to
go back to previous screen to carefully check the number of cells
of the battery pack before going ahead.
This screen shows the real-time status during charge process.
Press BATT TYPE/STOP key once to stop the charge process.
‘>3 seconds’
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
This charging mode is for charging Li-Po/Ion/Fe battery without balance lead.

CHARGING LITHIUM BATTERY IN THE BALANCE MODE
BALANCE OF LITHIUM BATTERY
LiPo BALANCE
2.0A 11.1V(3S)
INCDEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
Start
Enter
R:3SER S;3 SER
CONFIRM(ENTER)
Li3s 1.2A 12.59V
CHG 022:43 00682
Number
of cells
Charging
time
Charging
current
Battery
voltage
Charged
capacity
CHARGING LITHIUM BATTERY IN THE BALANCE MODE
The left side of the first line shows the type of battery you
choose. The value on the left of the second line of the charger is
current user set, After setting the current and voltage, press
START/ENTER key for more than 3 seconds to start the
process.(charge current: 0.1-6.0A, voltage: 3.7-22.2V).
This displays the number of cells you set up and the processor
detects. "R" shows the number of cells detected by the charger
and "S" is the number of cells set by you at the previous screen.If
both numbers are identical you can start charging by press
START/ENTER button. If not, press BATT TYPE/STOP button to
go back to previous screen to carefully check the number of cells
of the battery pack before going ahead.
This screen shows the real-time status during charge process.
Press BATT TYPE/STOP key once to stop the charge process.
This function is for balancing the voltage of Lithium-polymer battery cells while charging. In
the balance mode, the battery needs to have a balance lead to connect to the individual
balance port at the right side of the charger. And you need to connect the battery's power
lead to the output of charger. Charging in this mode is different from the normal mode. The
built-in processor monitors the voltage of individual cells and controls the input current fed
into each cell to equalized voltage.
‘>3 seconds’

FAST CHARGING OF LITHIUM BATTERY
FAST CHARGING OF LITHIUM BATTERY
CHARGING LITHIUM BATTERY IN THE FAST CHARGE MODE
LiPo FAST CHG
2.0A 11.1V(3S)
INCDEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
Start
Enter
R:3SER S:3 SER
CONFIRM(ENTER)
Li3s 2.0A 12.59V
FAS 022:43 00682
Number
of cells
Charging
time
Charging
current
Current
voltage
battery
Supplied
capacity
STORAGE CONTROL OF LITHIUM BATTERY
CHARGING LITHIUM BATTERY IN THE STORAGE MODE
LiPo STORAGE
1.0A 11.1V(3S)
INCDEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
Li3s 1.0A 12.59V
STO 0.22:43 00682
Number
of cells
Elapsed
time
Charge or
discharge
current
Current
voltage
battery
Supplied
capacity
The value on the left side of the second lines sets the charge
current. The value on the right side of the second lines sets the
battery pack's voltage. After setting current and voltage, press
STAR/ENTER for more than 3 seconds to start the process.
This displays the number of cells you set up and the processor
detects. 'R' shows the number of cells detected by the charger
and 'S' is the number of cells set by you at the previous screen. If
both numbers are identical, you can start charging by press
START/ENTER button. If not, press BATT TYPE/STOP button to
go back to previous screen to carefully check the number of cells
of the battery pack before going ahead.
This screen shows the real-time status during charge process.
Press BATT TYPE/STOP key once to stop the charge process.
Charging current will become lower when it progress to the end of charging. A specific CV
process will be reduced to end the charging process earlier. In fact, the charging current
will goes to 1/5 when the charging process comes to 1/10. Charging capacity will be little
smaller than normal charging, but charging time will be shortened accordingly.
At this screen, you can set up the current and voltage of the
battery pack. Charging and discharging will make the batteries
come to the voltage level of 'storage' state.
This screen shows the real-time status charging. Press BATT
TYPE/STOP key once to stop the charge process.
This function is for charging/discharging batteries which are not used at once. This
program is designed for charging or discharging of batteries of specific original state. They
are classified by types:3.75V Lilo, 3.85V LiPo and 3.3V LiFe. The program will begin to
discharge if the original state of the battery exceeds the voltage level of storage.
‘>3 seconds’
‘>3 seconds’

DISCHARGING OF LITHIUM BATTERY
DISCHARGING OF LITHIUM BATTERY
VOLTAGE BALANCING AND MONITORING IN THE DISCHARGE PROCESS
CHARGING OF NICD/NIMH BATTERY
CHARGING NICD/NIMH BATTERY IN THE CHARGE MODE
LiPo DISCHARGE
1.0A 11.1V(3S)
INC
INC
DEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
Li3s 0.4A 12.59V
DSC 022:43 00682
BATTERY VOL ERR
CELL LOW VOL
Number
of cells
Elapsed
time
Discharge current
Battery
voltage
Discharged capacity
The processor detects voltage of one cell is too low.
NIMH CHARGE Aut
CUR LIMIT 5.0A
INCDEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
NIMH 2.0A 7.42V
CHG 022:45 00890
Battery
type
Elapsed
time
Charge current
Battery
voltage
Charged capacity
The value of discharge current on the left can not exceed 1C, and
the value on the right can not be under the voltage recommended
by the manufacturer to avoid deep discharging. Press
START/ENTER for more than 3 seconds to start discharging.
This shows the real-time status of discharging, you can press
BATT TYPE/STOP key to stop discharging.
The 4th cell was damaged. The value of voltage may be zero if
disconnection occurs.
The processor monitors voltage of each cell when the battery packs are during its 'storage'
and 'discharging' process. If voltage of any cell is abnormal, SKYRC QUATTRO B6AC will
show error message and terminate the program forcibly. So if there is battery damage or
disconnection, you can see the error message and press INC to know which cell is
damaged.
This program is for charging of NiCd/NiMH batteries associated
with R/C models applications. You can press START/ENTER key
to make it blink and then INC or DEC to change the parameter
value. Press START/ENTER key to store the value.
The screen shows the real-time status. Press BATT TYPE/STOP
key to end the program. The sound will emitted to indicates the
end of program.
This program charge the battery using the current you set up. In the 'auto' state, you
should set up the upper limit of the charge current to avoid damage by excessive feeding
current. Some batteries of low resistance and capacity can lead to higher current in the
'auto' charging mode. But in the manual mode, it will charge with the current you set. You
can make it blink in the current field and press INC and DEC simultaneously to swap
between Auto and Manual Mode. NOTE: Allowable fast charge current: 1C-2C.
4.14 4.16 4.09
2.18 0.00 0.00
‘>3 seconds’
‘>3 seconds’

DISCHARGE OF NICD/NIMH BATTERY
DISCHARGE OF NICD/NIMH BATTERY
CHARGE/DISCHARGE AND DISCHARGE/CHARGE
CYCLE OF NICD/NIMH BATTERY
NIMH DISCHARGE
1.0A 11.5A
INCDEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
NIMH 1.0A 7.42V
DSC 022:45 00890
Battery
type
Elapsed
time
Discharge
current
Battery
voltage
Discharged
capacity
NIMH CYCLE
DCHG>CHG 3
INCDEC
-+
INC
DEC
-+
Batt type
Stop
Start
Enter
NIMH 1.0A 7.42V
D>C 022:45 00890
DCHG 1 1314mAh
CHG 1 1430mAh
Battery
type
Elapsed
time
Discharge
or charge
current
Battery
voltage
Discharged
or charged
capacity
Set charge current on the left and the final voltage on the right.
Range of the charge current is 0.1-1.0A; range of final voltage is
0.1-25.0V. Press START/ENTER key for more than 3 seconds to
start the program.
The screen indicates the discharging state. You can press
START/ENTER key to alter discharge current. Press
START/ENTER again to store the value. Press BATT TYPE/STOP
key to stop discharging. The emitted sound alerts the end of
discharging.
You can set up the sequence on the left and the number of cycles
on the right. The range of the cycle number is 1-5.
Press BATT TYPE/STOP key to stop program, you can press
START/ENTER key to alter charge current. The sound indicates
the end of program.
When it approaches to the end, you can see the capacity of the
battery being charged or discharged. You can press INC or DEC
key to display result of each cycle.
‘>3 seconds’
‘>3 seconds’
