Sleipner Sm901970 User manual

SLEIPNER AS

P.O. Box 519

N-1612 Fredrikstad

Norway

www.sleipnergroup.com

DOCUMENT ID:

REVISION:

DATE:

LANGUAGE:

Installation Guide

For Automatic Main Switch

897612, 897624

EN

I M

519 6

4

2 0 21

2519 6 42 0 21

-

Sleipner Motor AS

P.O. Box 519, Arne Svendsensgt. 6-8

N-1612 Fredrikstad, Norway

MC_0020

Contents

Products

SM901970 | 897612 - Auto-Mainswitch 12V

SM901971 | 897624 - Auto-Mainswitch 24V

The installer must read this document to ensure necessary familiarity with the product before installation.

Instructions in this document cannot be guaranteed to comply with all international and national regulations. It is the responsibility of the

installer to follow all applicable international and national regulations when installing Sleipner products.

The recommendations given in this document are guidelines ONLY, and Sleipner strongly recommends that advice is obtained from a person

familiar with the particular vessel and applicable regulations.

This document contains general installation instructions intended to support experienced installers. If you are not skilled in this type of work,

please contact professional installers for assistance.

If required by local regulation, electrical work must be done by a licensed professional.

Appropriate health and safety procedures must be followed during installation.

Faulty installation of Sleipner products will render all warranties given by Sleipner Motor AS.

MC_0038

Responsibility of the Installer

MC_0273

Considerations and Precautions

• Install the automatic main switch as close to the battery(ies) as possible.

• Do not connect the Sleipner automatic main switch with other products than appropriate original Sidepower control panels or other Sidepower control

devices. (NB: Sleipner products are speci cally designed with a separate  fth control cable for the automatic main switch.)

• The automatic main switch must be installed so that it keeps dry at all times.

• The automatic main switch can NOT be  tted in spaces requiring Ignition protected equipment.

• Ensure to use the correct fuse for the main switch depending on the thruster model installed.

IMPORTANT

This manual is to be used in addition to the regular installation manual for the Sidepower thruster. This manual is intended for professionals only.

Installation Instructions

Considerations and Precautions................................................ 3

Measurements ......................................................................... 4

Specications ............................................................................ 5

AMS installation......................................................................... 6

Electrical Specications ............................................................ 7

Wiring Diagram ................................................................. 8 - 10

Service .................................................................................... 11

Spare Parts ............................................................................ 12

Warranty statement .............................................................. 12

3

519 6 42 0 21

-

The installer must read this document to ensure necessary familiarity with the product before installation.

Instructions in this document cannot be guaranteed to comply with all international and national regulations. It is the responsibility of the

installer to follow all applicable international and national regulations when installing Sleipner products.

The recommendations given in this document are guidelines ONLY, and Sleipner strongly recommends that advice is obtained from a person

familiar with the particular vessel and applicable regulations.

This document contains general installation instructions intended to support experienced installers. If you are not skilled in this type of work,

please contact professional installers for assistance.

If required by local regulation, electrical work must be done by a licensed professional.

Appropriate health and safety procedures must be followed during installation.

Faulty installation of Sleipner products will render all warranties given by Sleipner Motor AS.

MC_0038

Responsibility of the Installer

MC_0273

Considerations and Precautions

• Install the automatic main switch as close to the battery(ies) as possible.

• Do not connect the Sleipner automatic main switch with other products than appropriate original Sidepower control panels or other Sidepower control

devices. (NB: Sleipner products are speci cally designed with a separate  fth control cable for the automatic main switch.)

• The automatic main switch must be installed so that it keeps dry at all times.

• The automatic main switch can NOT be  tted in spaces requiring Ignition protected equipment.

• Ensure to use the correct fuse for the main switch depending on the thruster model installed.

IMPORTANT

This manual is to be used in addition to the regular installation manual for the Sidepower thruster. This manual is intended for professionals only.

4519 6 42 0 21

-

MC_0274

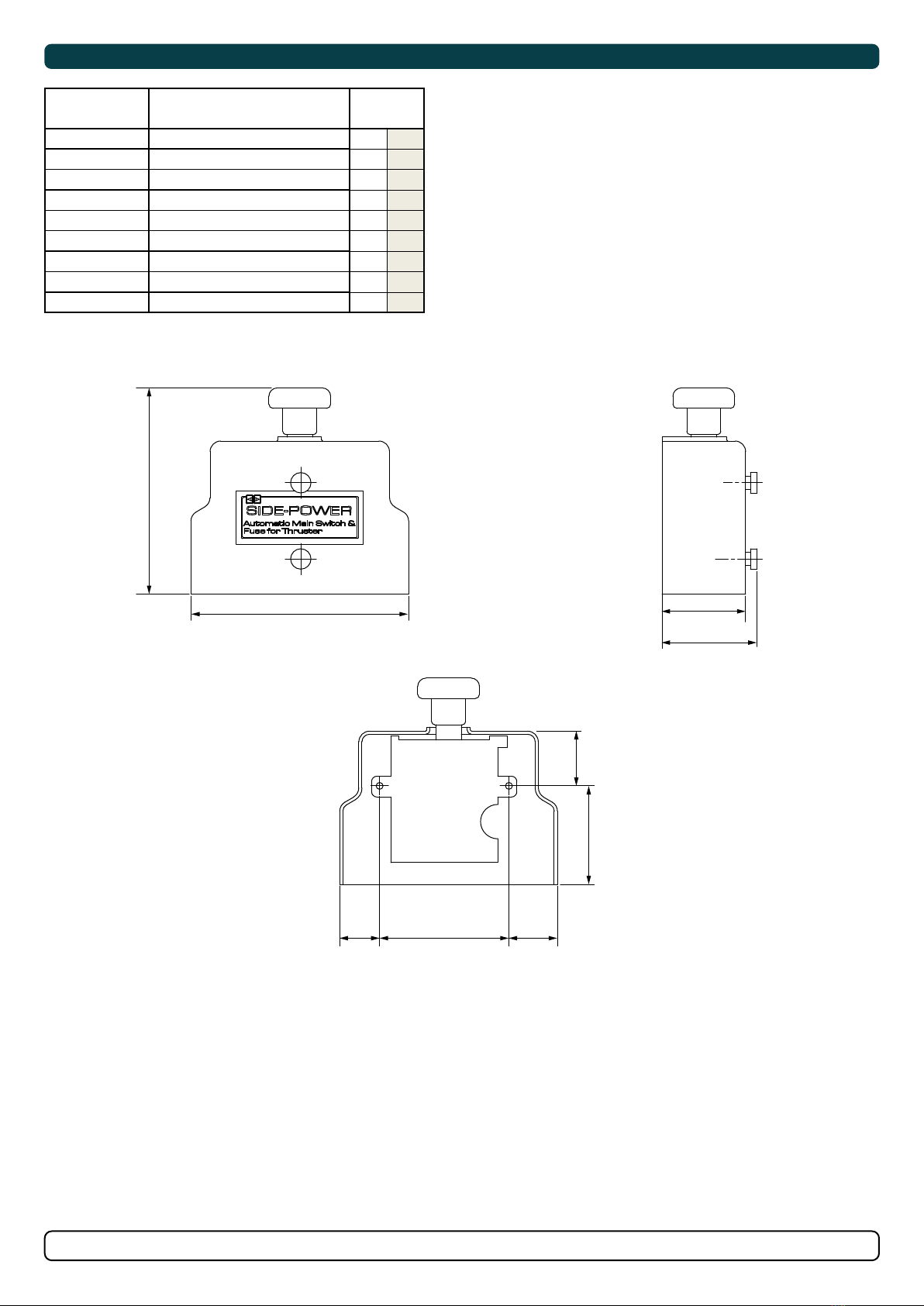

Thruster Measurements

Measurement

code Measurement description mm inch

H Height 194.3 7.6

L Length 205 8.1

W Width 79 3.11

+ W Width including fasteners 90 3.54

(a) Attachment hole from the top 51.5 2.03

(b) Attachment hole from the bottom 92.8 3.65

(c) Attachment hole from the side 37.5 1.5

(d) Distance between attachment hole 121.8 4.8

(e) Attachment hole from the side 45.7 1.8

AMS

MG_0321

H

W

+W

L

(a)

(b)

(c) (d) (e)

5

519 6 42 0 21

-

MC_0274

Thruster Measurements

Measurement

code Measurement description mm inch

H Height 194.3 7.6

L Length 205 8.1

W Width 79 3.11

+ W Width including fasteners 90 3.54

(a) Attachment hole from the top 51.5 2.03

(b) Attachment hole from the bottom 92.8 3.65

(c) Attachment hole from the side 37.5 1.5

(d) Distance between attachment hole 121.8 4.8

(e) Attachment hole from the side 45.7 1.8

AMS

MG_0321

H

W

+W

L

(a)

(b)

(c) (d) (e)

MG_0327

Manual over ride button.

Push to shut OFF

Pull to activate ON

Fuse holder

Main cable(s) from battery(ies)

Main cable(s) to the thruster

Automatic Main Switch

6519 6 42 0 21

-

MC_0275

AMS Installation

!Please refer to the graphic for special considerations relating to your model !

Installing the fuse and battery cables.

1. Remove the nuts and all the washers.

2. Install the fuse on top of the pre- tted conductors and washer.

3. Assemble the washers, battery cables and end washer and nuts.

4. Tighten the end nut to torque as shown above. (NB: Be cautious tightening the brass conductors as they are softer than steel bolts.)

Fitting the thruster cables.

5. Remove the nuts and washers.

6. Fit the cable/ cables as shown directly onto the pre- tted conductor.

7. Assemble the washers in the sequence shown.

8. Tighten the end nut.

Manual override button.

9. Pull OUT for ON.

10. Push IN for OFF.

11. Leave the switch in ON position when on-board.

12. Ensure the switch is in the OFF position when leaving the boat for long periods or when installing or servicing the thruster system.

MG_0323

1

2

3

4

5 - 8 9 - 12

Pull out

ON

Nut

Spring washer

Fasten

20 Nm

(14.5 lb/ft)

Washer

Fuse

Cable

Push In

OFF

7

519 6 42 0 21

-

MC_0275

AMS Installation

!Please refer to the graphic for special considerations relating to your model !

Installing the fuse and battery cables.

1. Remove the nuts and all the washers.

2. Install the fuse on top of the pre- tted conductors and washer.

3. Assemble the washers, battery cables and end washer and nuts.

4. Tighten the end nut to torque as shown above. (NB: Be cautious tightening the brass conductors as they are softer than steel bolts.)

Fitting the thruster cables.

5. Remove the nuts and washers.

6. Fit the cable/ cables as shown directly onto the pre- tted conductor.

7. Assemble the washers in the sequence shown.

8. Tighten the end nut.

Manual override button.

9. Pull OUT for ON.

10. Push IN for OFF.

11. Leave the switch in ON position when on-board.

12. Ensure the switch is in the OFF position when leaving the boat for long periods or when installing or servicing the thruster system.

MG_0323

1

2

3

4

5 - 8 9 - 12

Pull out

ON

Nut

Spring washer

Fasten

20 Nm

(14.5 lb/ft)

Washer

Fuse

Cable

Push In

OFF

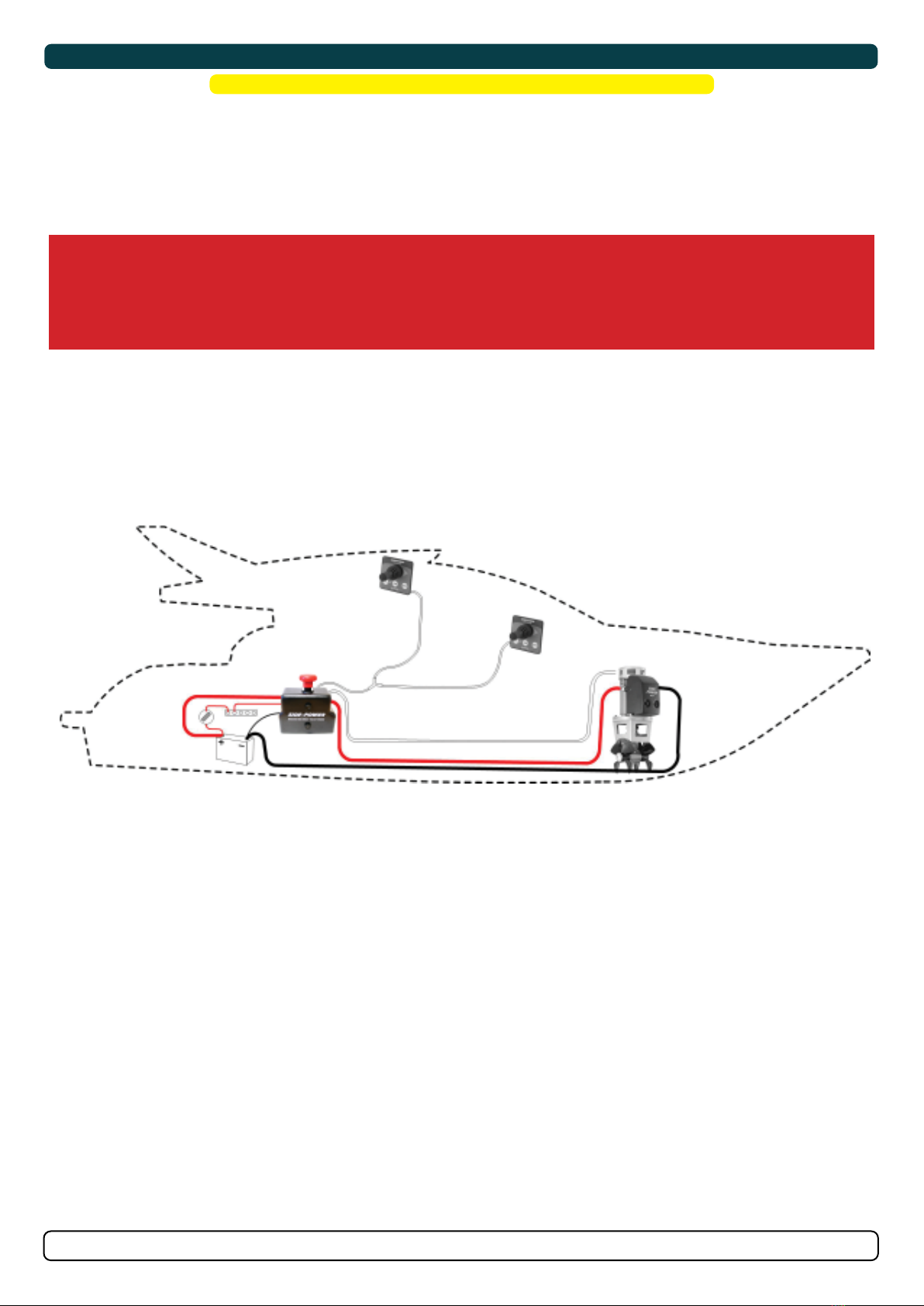

MC_0276

Electrical Installation

WARNING

Check the following with the main switch is set to off :

After all electrical connections have been completed check with an ohm meter that there is no electrical connection between

1. electro-motor flange and the positive terminal on the motor

2. electro-motor flange and the battery negative terminal on the motor

If unsure contact skilled personnel.

ON/ OFF conﬁ guration

Use a 4-lead control cable between the thruster and the automatic main switch. (NB: Only 3 leads are used, The red wire is not connected into the

automatic main switch.)

Proportional conﬁ guration

Use 5-lead control cables between the automatic main switch and control panels. (NB: use 5-lead Y-connectors to branch off to all controls ﬁ tted.)

Refer to the table in the thrusters manual for deciding the main cable sizes, the lengths are the total of positive and negative from the battery.

!Please refer to the graphic for special considerations relating to your model !

MG_0322

8519 6 42 0 21

-

MG_0324

Battery

12V or 24V

-

Automatic

Main switch

Control

box

6 1225

black

red

SIDE-

POWER

M

Sidepower

Control panel

New ####-A

models are ready

with yellow output

yellow

5 lead Sidepower control cable

4-lead

Sidepower

controlcable

(only 3 used)

Fuse

5A

To more

control

panels

Main switch with fuse, 12 or 24V version.

(Select fuse size depending on the thruster.)

ON/OFF thruster panel(s).

Thermal switch built into the thruster motor.

Power feed fused to protect the wire.

Negative power feed for the solenoid.

Single Thruster Wiring

A

B

C

D

E

Technical Wiring Diagram

9

519 6 42 0 21

-

MG_0325

+

Main

positive

Automatic

Main switch

Control

box

6 1225

black

SIDE-

POWER

M

yellow

5 lead

Sidepower

control cable

Automatic

Main switch

Control

box

6 1225

black

SIDE-

POWER

M

yellow

5 lead

Sidepower

control cable

To more control

stations

Sidepower DUAL

Control panel

8902-A or 8909-A

with yellow output

On thruster On thruster

Bow

Stern

Yellow

Red

to positive

see comments

Red

to positive

see comments

Main switch with fuse, 12 or 24V version.

(Select fuse size depending on the thruster.)

ON/OFF thruster panel(s).

Thermal switch built into the thruster motor.

Power feed fused to protect the wire.

Negative power feed for the solenoid.

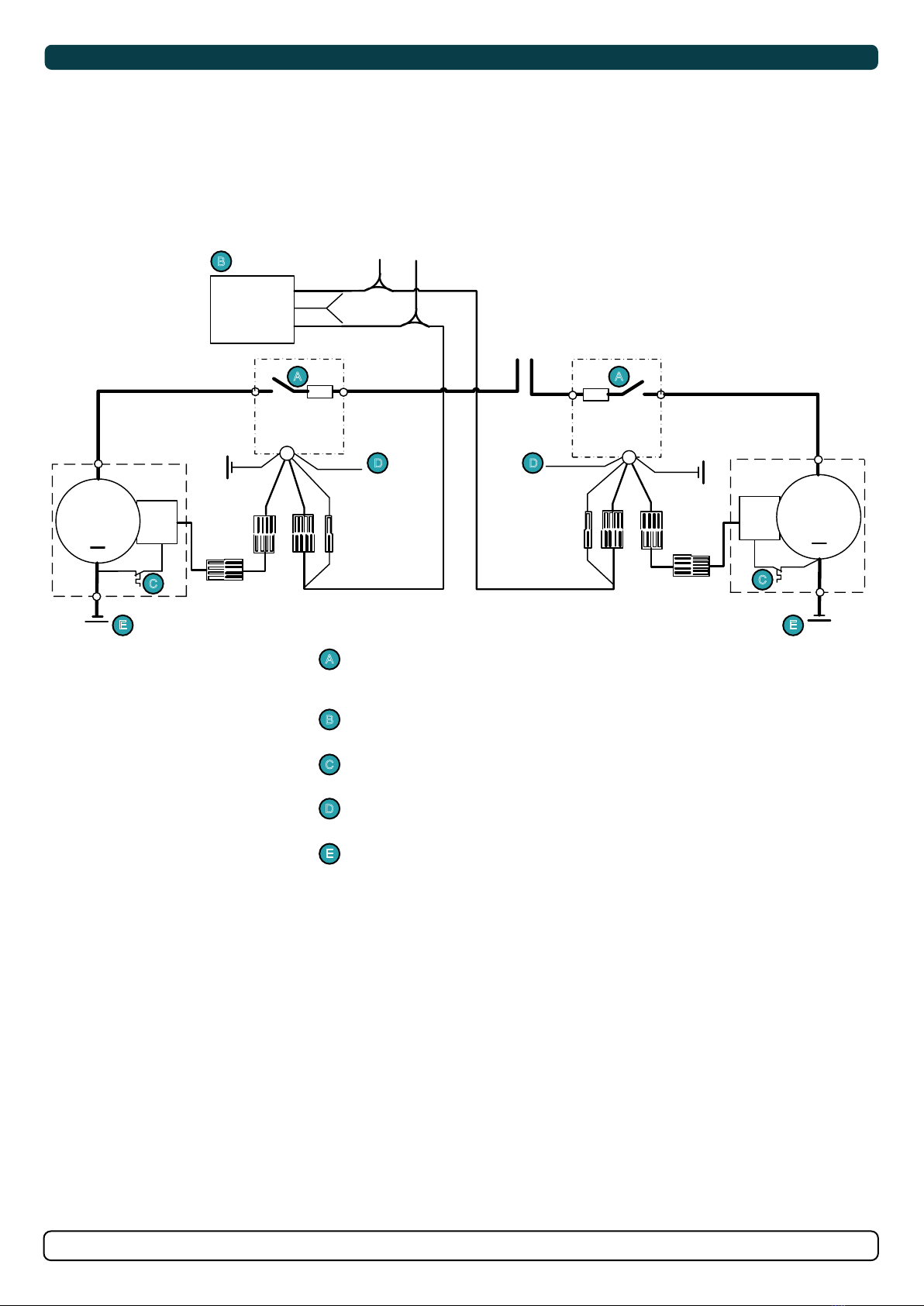

Dual Thruster Wiring

A

A A

B

C

CC

D

D D

E

E E

Technical Wiring Diagram

10 519 6 42 0 21

-

MG_0326

Automatic

Main switch

5 lead Sidepower control cable

4-lead

Sidepower

controlcable

(only 3 used)

To more

control

panels

Main switch with fuse, 12 or 24V version.

(Select fuse size depending on the thruster.)

ON/OFF thruster panel(s).

Thermal switch built into the thruster motor.

Power feed fused to protect the wire.

Negative power feed for the solenoid.

Install and wire series/ parallel box that replaces the fuse and main switch between batt. 2

and the thruster with the automatic main switch.

(Dotted lines show schematically the other main cables used when fitting a

series/parallel system.)

A fuse and manual main switch fitted between battery bank 1 and the series/ parallel

switch box for shutdown in case of a fault.

( Recommended to be left on at all times to ensure charge of ”Batt. 2". Only

disconnect when installing/ servicing or in case of a failure.)

Wiring with series/ parallel

switch box installation

A

B

C

D

E

F

G

F

E

Control

box

Sidepower

Batt. 2

12V or 24V

Batt. 1

12V or 24V

Series/ Parallel

switch box

models are ready

with yellow output

IMPORTANT

Do NOT use an automatic main switch between

Batt 1 and Batt 2. This will prevent charging of

batt.2.

The main switch between the batteries are only for

emergencies and should be left in the ON position

except in emergencies.

IMPORTANT

Only versions 897512A and

897524A is compatible with

series/ parallel box installations

Technical Wiring Diagram

11

519 6 42 0 21

-

MG_0326

Automatic

Main switch

5 lead Sidepower control cable

4-lead

Sidepower

controlcable

(only 3 used)

To more

control

panels

Main switch with fuse, 12 or 24V version.

(Select fuse size depending on the thruster.)

ON/OFF thruster panel(s).

Thermal switch built into the thruster motor.

Power feed fused to protect the wire.

Negative power feed for the solenoid.

Install and wire series/ parallel box that replaces the fuse and main switch between batt. 2

and the thruster with the automatic main switch.

(Dotted lines show schematically the other main cables used when fitting a

series/parallel system.)

A fuse and manual main switch fitted between battery bank 1 and the series/ parallel

switch box for shutdown in case of a fault.

( Recommended to be left on at all times to ensure charge of ”Batt. 2". Only

disconnect when installing/ servicing or in case of a failure.)

Wiring with series/ parallel

switch box installation

A

B

C

D

E

F

G

F

E

Control

box

Sidepower

Batt. 2

12V or 24V

Batt. 1

12V or 24V

Series/ Parallel

switch box

models are ready

with yellow output

IMPORTANT

Do NOT use an automatic main switch between

Batt 1 and Batt 2. This will prevent charging of

batt.2.

The main switch between the batteries are only for

emergencies and should be left in the ON position

except in emergencies.

IMPORTANT

Only versions 897512A and

897524A is compatible with

series/ parallel box installations

Technical Wiring Diagram

MC_0277

Service

!Please refer to the graphic for special considerations relating to your model !

Service/ maintenance

on all-electric equipment regularly Ensure:

- Equipment is clean and dry.

- Ensure all cable and other connections are tight and without signs of excessive heat or corrosion.

Troubleshooting

The control panel will not activate:

- Ensure the automatic main switch receives positive feed over its red thin lead.

(NB: If this goes over another main switch in the boat, make sure that this is ON.)

- Check the internal overheat switch (bi-metal switch on the circuit board) in the automatic main switch has not opened.

(NB: It automatically resets if it is open while the main switch is cold, contact your nearest Sleipner service for assistance.)

- Check 5A fuse installed on the red positive cable to the automatic main switch.

- Check the overheat switch in the electro motor has not blown due to excessive heat.

- Check all control cable connections against the wiring diagrams in the thrusters manual are correct.

The control panel activates, but the thruster will not run:

- Ensure the manual over-ride knob is in “ON” position (pulled out).

- Check that the main power fuse in the automatic main switch is not blown.

(NB: if so, ensure that it is the right size. If it is the correct size but the fuse continues to blow, the reason for this must be identiﬁ ed.)

- Check the main switch activates when the control panel is activated. If not, check the wiring, especially that you have a constant

separate negative feed (thin black lead) and the control panel is feeding a positive into the yellow lead.

- Check there is power supplied to the thruster. If it is not while the previous points are checked OK, the main cables must be checked.

- If there is power at the thruster, measure the voltage at the main battery cable connection points into the thruster while running the thruster.

(NB: If below 8,5V (12V system) or 16V (24V system) Check the batteries and main cables to ﬁ nd the reason for the voltage drop.)

Read the troubleshooting guide in the thrusters manual.

If you are unable to identify and resolve the problem, contact the nearest Sidepower service point for assistance. Have the notes from your

troubleshooting handy to inform the service person of what you have already checked and observed.

12 519 6 42 0 21

-

1. Sleipner Motor AS (The “Warrantor”) warrants that the equipment (parts, materials and embedded software of products) manufactured by the

Warrantor is free from defects in workmanship and materials for the purpose for which the equipment is intended and under normal use and

service (the “Warranty”).

2. This Warranty is in effect for two years (Leisure Use) or one year (Commercial and other Non-leisure Use) from the date of purchase by the end

user (for demonstration vessels, the dealer is deemed as end user).

3. This Warranty is transferable and covers the equipment for the speciﬁed warranty period.

4. The warranty does not apply to defects or damages caused by faulty installation or hook-up, abuse or misuse of the equipment including exposure

to excessive heat, salt or fresh water spray, or water immersion except for equipment speciﬁcally designed as waterproof.

5. In case the equipment seems to be defective, the warranty holder (the “Claimant”) must do the following to make a claim:

(a) Contact the dealer or service centre where the equipment was purchased and make the claim. Alternatively, the Claimant can make the

claim to a dealer or service centre found at www.sleipnergroup.com. The Claimant must present a detailed written statement of the nature

and circumstances of the defect, to the best of the Claimant’s knowledge, including product identiﬁ cation and serial nbr., the date and place of

purchase and the name and address of the installer. Proof of purchase date should be included with the claim, to verify that the warranty period

has not expired;

(b) Make the equipment available for troubleshooting and repair, with direct and workable access, including dismantling of furnishings or similar,

if any, either at the premises of the Warrantor or an authorised service representative approved by the Warrantor. Equipment can only be returned

to the Warrantor or an authorised service representative for repair following a pre-approval by the Warrantor’s Help Desk and if so, with the Return

Authorisation Number visible postage/shipping prepaid and at the expense of the Claimant.

6. Examination and handling of the warranty claim:

(a) If upon the Warrantor’s or authorised service Representative’s examination, the defect is determined to result from defective material or

workmanship in the warranty period, the equipment will be repaired or replaced at the Warrantor’s option without charge, and returned to the

Purchaser at the Warrantor’s expense. If, on the other hand, the claim is determined to result from circumstances such as described in section 4

above or a result of wear and tear exceeding that for which the equipment is intended (e.g. commercial use of equipment intended for leisure use),

the costs for the troubleshooting and repair shall be borne by the Claimant;

(b) No refund of the purchase price will be granted to the Claimant, unless the Warrantor is unable to remedy the defect after having a reasonable

number of opportunities to do so. In the event that attempts to remedy the defect have failed, the Claimant may claim a refund of the purchase

price, provided that the Claimant submits a statement in writing from a professional boating equipment supplier that the installation instructions of

the Installation and Operation Manual have been complied with and that the defect remains.

7. Warranty service shall be performed only by the Warrantor, or an authorised service representative, and any attempt to remedy the defect by

anyone else shall render this warranty void.

8. No other warranty is given beyond those described above, implied or otherwise, including any implied warranty of merchantability, ﬁtness for a

particular purpose other than the purpose for which the equipment is intended, and any other obligations on the part of the Warrantor or its

employees and representatives.

9. There shall be no responsibility or liability whatsoever on the part of the Warrantor or its employees and representatives based on this Warranty

for injury to any person or persons, or damage to property, loss of income or proﬁt, or any other incidental, consequential or resulting damage

or cost claimed to have been incurred through the use or sale of the equipment, including any possible failure or malfunction of the equipment or

damages arising from collision with other vessels or objects.

10. This warranty gives you speciﬁc legal rights, and you may also have other rights which vary from country to country.

At Sleipner we continually reinvest to develop and offer the latest technology in marine advancements. To see the many unique designs we have

patented visit our website www.sleipnergroup.com/patents

Find your local professional dealer from our certiﬁ ed

worldwide network for expert service and support.

visit our website www.sleipnergroup.com/support

For additional supporting documentation, we advise you

to visit our website www.sleipnergroup.com and ﬁ nd your

Sleipner product.

Service and Support

Product Spare Parts and Additional Resources

Warranty statement

Patents

MC_0024

13
