Slingshot TURBO 2 User manual

2007 TURBO2 INSTRUCTION MANUAL

2
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
WARNING
DO NOT USE THIS SLINGSHOT PRODUCT UNLESSYOU HAVE
READ AND UNDERSTAND THESE WARNINGS AND INSTRUCTIONS
WHICH ARE FOR YOUR SAFETY AND PROTECTION.THIS
INFORMATION MAY BE SUBJECT TO CHANGE AT ANYTIME.
FOR CURRENT UPDATES, PLEASE VISIT OUR WEBSITE AT:
WWW.SSKITEBOARDING.COM
IF YOU ARE UNDER THE AGE OF 18,YOU SHOULD HAVE
YOUR PARENT OR GUARDIAN READ THESE WARNINGS AND
INSTRUCTIONS AND SHOULD NOT USE THIS PRODUCT UNLESS
YOU ARE UNDER THE PROPER GUIDANCE AND SUPERVISION OF
SUCH A PERSON.
The use of this product exposes the user to many unavoidable and unexpected
risks, dangers and hazards. The suppliers of this product are not responsible for any
damages to property or any personal injury caused by any use, misuse, abuse, or
irresponsible use of this product.
Kiteboarding is an extreme sport. Power kites, their lines and control equipment can
be dangerous to flyers and to anyone in the vicinity of their use. Kiteboarding must
be taken seriously and we recommend that, at least in the early stages of use, you
seek the guidance of professional instructors and experienced kiteboarders. Improper
and/or unreasonable use of this kite may result in serious injury or death to yourself
and others. Do not use your kite near power lines, airports or streets, and keep your
kite flying lines away from people and obstacles. Always fly in an open area, observe
wind and weather conditions, particularly in circumstances where you may encounter
offshore, onshore winds or strong winds. Do not attempt to use your kite on water
until you are confident and comfortable with the use of a trainer kite on land. Spend
time to become familiar with the operation of your kite and remember that you are
responsible for its operation and for safety of those around you. Do not attach
yourself or tie yourself permanently to the kite lines. The kite is not intended for use
as a flying device nor indeed is it intended as a means of flotation.

2007 TURBO2 INSTRUCTION MANUAL
3
2007 TURBO2 INSTRUCTION MANUAL
TABLE OF CONTENTS
Overview&Package............................. 4
Features&Benefits ............................. 6
Safety ....................................... 10
KiteSetup.................................... 20
Launching&Landing .......................... 25
Performance .................................. 28
Tuning&Maintenance ......................... 30
Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . 34
Warranty/Disclaimer .......................... 36
Slingshot an industry leader in innovation, quality and overall style constantly push the
envelope to bring you, the rider, products that help you redefine your personal best.
CONTACTS
If you require further assistance, please call, email or visit our website:
www.sskiteboarding.com
Rider Service Line (Toll free in the U.S.): 1-877-775-4832
International Tel.: [phone]
CUSTOMER SERvICE:
Domestic: [email protected]
International: [email protected]

4
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
OvERvIEW
The NEW 2007 SlingshotTURBO 2 is a 4 line bow style kite with
its own proprietary DNA.The kite delivers all the rider require-
ments of range, instant de-power, boosting, re-launch ability and
stability.TheTURBO 2 is designed for any kiter, entry level to
advanced, looking for 4 line simplicity in a bow style platform.
Characteristics such as predictability, ease of use, unmatched
range and overall performance make this the ideal all around
kite. Along with a solid reputation and supported with Sling-
shot’s commitment to unsurpassed customer service, the NEW
SlingshotTURBO 2 makes kiteboarding accessible and fun!
KEy FEATURES
4 Line simplicity
NEW 4 Line Full Stroke Bar (Active Stopper Ball equipped)
Slingshot’s patented One pump
Newly redesigned swept leading edge and canopy shape
Wing tip scuff guards
Neoprene seam guards (Industry first)
NEW PREMIERE no stretch bridle system with 2 to1 pulleys on the bar
No Wear spectra pulley lines, and leader lines
Yellow Power Ball
KEy PERFORMANCE AdvANCEMENTS COMPAREd TO ThE
FIRST GENERATION TURBO dIESEL:
The most in flight stability available in a bow (no weird inverting)
Ease of use
Excellent water re-launch
Excellent up wind performance
More boost and hang time
Faster turning
Less bar pressure
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

2007 TURBO2 INSTRUCTION MANUAL
5
2007 TURBO2 INSTRUCTION MANUAL
PARTS LIST
TURBO 2 kite
4 Line Full Stroke Bar (Active Stopper Ball equipped)
23 meter line set
Newly redesigned kite backpack
Jenna J Double Pump
Patch Kit
User manual
Slingshot’s commitment to unsurpassed customer service.
1.
2.
3.
4.
5.
6.
7.
8.

6
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2
1. 8.
12.
3.
7.
9.
10.
11.
2.
4.
5.
6.

2007 TURBO2 INSTRUCTION MANUAL
7
2007 TURBO2 INSTRUCTION MANUAL
7
FEATURES & BENEFITS
1. Continuous swept leading edge
Effortless water re-launch.
Enables the TURBO 2 to pivot more
freely for better control and faster
turning
Enables more range and lighter bar
pressure
2. Onepump
The industry’s original, proven
and patented single point inflation
system
3. NEW ergonomic Onepump
nipple placement
Less overall drag
4. Revolutionary NEW PREMIERE
bridle material
Dyneema bridle material tested to
900 lbs recognized to have the least
amount of stretch. Bridle material
maintains integrity. Guaranteed.
5. Loop to loop bridle
attachment point
Anti snag during re-launch
6. Simple floating bridle system
Reduces bar pressure, hands off
100% de-power
•
•
•
•
•
•
•
•
7.Tailpipe bridle belts
Keeps bridle from snagging on tail
pipes
8. Self rescue handles
Safely self rescue with webbed
handles on the inside of each
wingtip
9. Mark cloth scuff guards
Prevents wear and tear while your
kite is parked on the sand
10. Mark cloth LE/Canopy/Trailing
edge reinforcement
Increases durability and wear
Helps to reduce flutter
11. Strut Tight Tail Pipes
Easier bladder removal and instal-
lation
12. Reinforced Spectra bridle
attachment points
Durability where you need it.
Legendary Slingshot
construction
The most durable kite construction
on the market today
•
•
•
•
•
•
•
•

8
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL

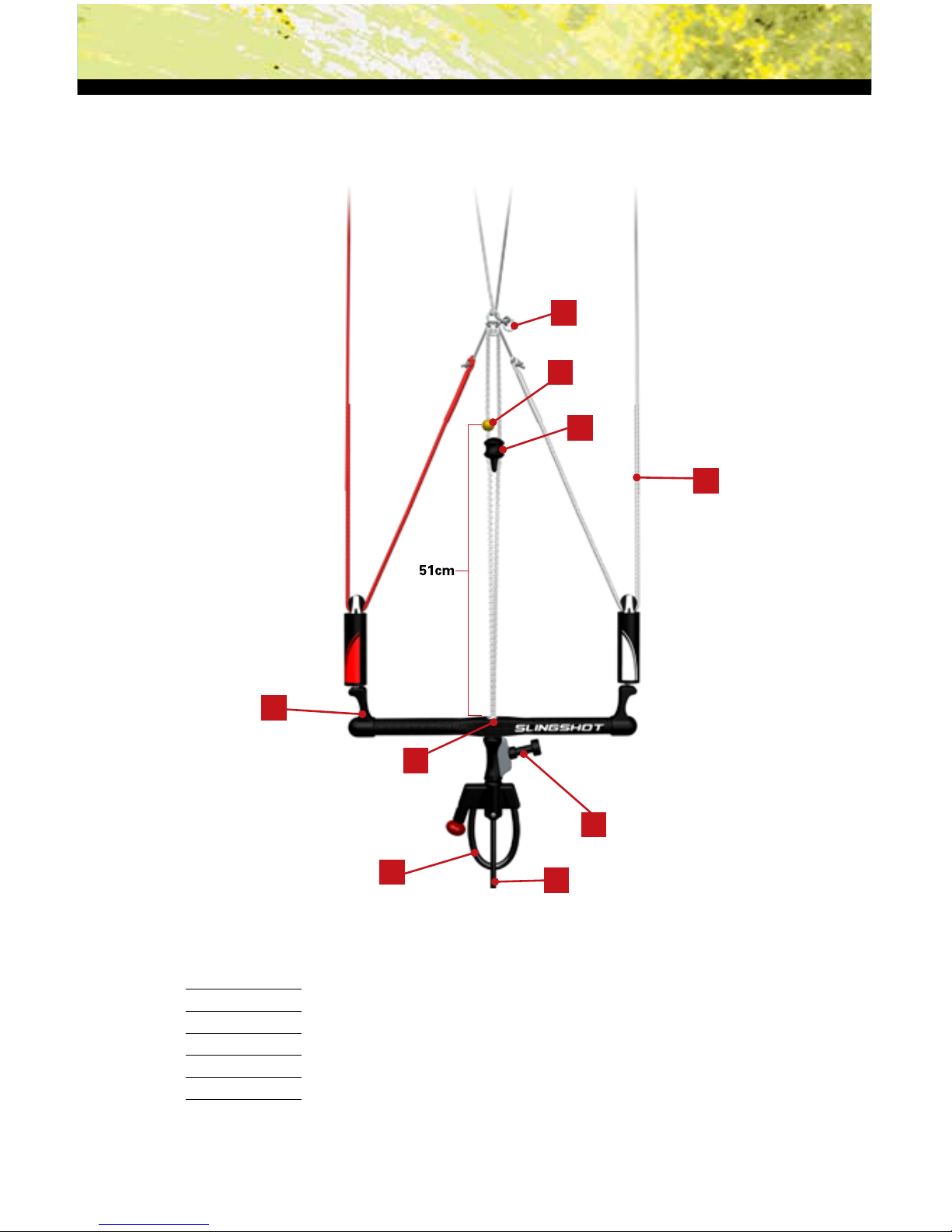

4 LINE FULL STROKE BAR
POWERBALL SPECIFICATION
5m 51cm
7m 51cm
9m 51cm
11m 51cm
14m 51cm
17m 51cm
6.
2.
3.
5.
7.
4.
8.
9.
10.

2007 TURBO2 INSTRUCTION MANUAL
9
2007 TURBO2 INSTRUCTION MANUAL
1. Newly redesigned 2007 4 Line
Full Stroke Bar
100% de-power can be achieved
simply by pushing the bar away from
you and effectively sheeting out.
2. NEW Aluminium Power Steering
Dug Out
Reduces bar pressure/increases
turning speed, prevents wear and
tear on the chicken loop line and
reduces weight
3. Below the bar de-power & TRIM
Puts the convenience of front line
power, de-power and TRIM within
the reach of the rider.
4. Active Stopper Ball
On-the-fly adjustment of chicken
loop throw eliminates bar pressure
associated with sheeting in for
more power.
•
•
•
•
5. Lock-N-Load Chicken Loop
Safe and immediate no load release
in any situation.
6. Super grip leader lines
Easy to grab lines eliminate the
discomfort on hands and reduces
potential tangles when relaunching.
7. Center flying line safety system
Full de-power when engaged.
8.Yellow Power Ball
Chicken throw limiter established
maximum chicken loop throw
9. Line winders
Keeps all of your kite line secure
when not in use.
10. Removable Donkey Dick
Easy on/off donkey dick for conve-
nience and security.
•
•
•
•
•
•
FEATURES & BENEFITS

10
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
SAFETy
IMPORTANT INFORMATION
FOR THE SAFETY OF YOU AND THOSE AROUND YOU, PLEASE
READ THE FOLLOWING SAFETY REMINDERS BEFORE OPERATING
YOUR SLINGSHOT KITE.
The use of this equipment could result in risk of serious bodily injury or
death to yourself or those in close proximity to you.
Slingshot strongly recommends that beginners take a lesson from a
certified school.
This product is designed and manufactured for recreational use on
water or snow only.
Slingshot advises that you closely inspect your equipment for signs of
wear and tear before each use. If there are any signs of wear and tear,
replace or repair them immediately. Contact www.sskiteboarding.com
for more information.
Never put yourself in a situation where breakage of any of the compo-
nents would put you or anyone else in danger.
Although these kites have a huge wind range, flying this kite in over
powered condition can be dangerous and is not recommended.
Slingshot strongly recommends using appropriate protective gear in-
cluding a certified helmet, flotation devise, and wetsuit in cool water.
Make sure you use properly designed and manufactured parts from
reputable suppliers. (Harnesses, helmets, etc)
Study the current conditions including, waves, tides, currents, and
weather forecasts before going kiteboarding.
Become familiar with any new kiteboarding location by talking to the
locals and asking questions. Study the weather conditions and know
your launching and landing zones.
•
•
•
•
•
•
•
•
•
•

2007 TURBO2 INSTRUCTION MANUAL
11
2007 TURBO2 INSTRUCTION MANUAL
Watch out for other beach users including sunbathers, fisherman, sand
castle builders and volleyball players and remember they have the right
of way.
Be sure you have your kite, board, and lines under control at all times.
Use the buddy system by riding with a buddy. Before kiteboarding,
always let someone know where you will be riding and when you plan
to return.
Keep your eye on the constantly changing conditions. Always return
to the beach if there is a significant change in the weather. (Waves
increasing, gusty winds, wind dying etc.)
As you learn the sport, work within your own limitations and do not
exceed them.
Do not alter or modify any Slingshot products.
Slingshot has designed this kite for kiteboarders averaging 175 pounds.
The minimum weight of a rider using this kite is 105 pounds. The maxi-
mum weight is 220 pounds.
Refer to these instructions for future reference.
•
•
•
•
•
•
•
•

12
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
INSTANT dE-POWER
The design of the kite combined with our revolutionary bar has made this kite the
ultimate in on-demand de-power. Immediate de-power is accomplished by pushing
the bar away from you. It’s that simple. The rider has total control of how much power
the kite generates by sheeting in or out on the center line chicken rope. Sheeted all
the way in is full power. As you sheet out, the power decreases until you reach the
point of total de-power and the kite will reach its maximum depower capability for the
given wind speed. Note that it is not recommended that you fly your kite outside the
maximum wind range. Although the TURBO 2 is equipped with immediate de-power if
flown beyond its comfort zone it will always retain some power. We recommend that
you fly the right size kite for the right wind range for ultimate safety.
SAFETy

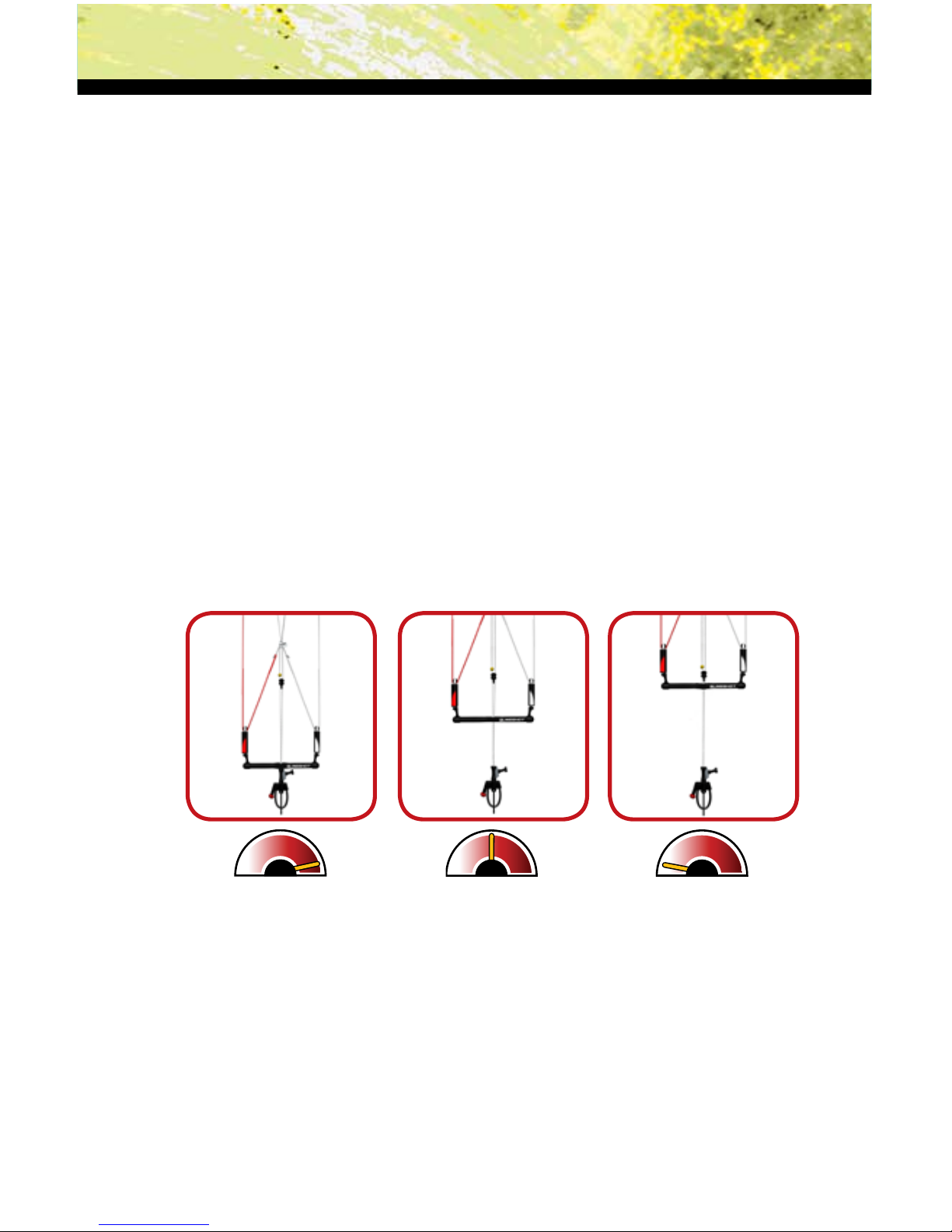

HOWTHE KITE’S POWER IS AFFECTED BY THE BAR:
Sheeted in: The kite has more power.
Sheeted out: The kite has less power.
100% de-power can be achieved simply by pushing the bar away from you an effective-
ly sheeting out. For riders that want to further fine tune their bar position and pressure
the de-power strap located below the bar should be used. The kite’s power meter is
shown below each image. Red, sheeted in means that the kite has the most power.
White, sheeted out means that the kite has the least amount of power. Important Note:
The Active Stopper Ball will limit depower of the kite. To ensure 100% depower, make
sure the Active Stopper Ball is placed away from you against the Yellow Power Ball.
DE-POWER
MID-POWER
FULL POWER
DE-POWER
MID-POWER
FULL POWER
DE-POWER
MID-POWER
FULL POWER

2007 TURBO2 INSTRUCTION MANUAL
13
2007 TURBO2 INSTRUCTION MANUAL
REdUNdANT SAFETy
The design of this kite and bar system gives the rider multiple options for safety. The
rider has the ability to be hooked in and let go of the bar for instant de-power as long
as the Active Stopper Ball is pushed away and touches the yellow Power Ball. If the
Active Stopper Ball is pulled in, the rider can pull the Lock-n-Load safety system which
releases the rider from the bar and activates instant de-power. If the leash is attached
to the O-Shit ring on the front flying lines, the kite will flag and fall directly downwind
till the kite rests safely on the water. The rider will remain attached to the kite with
the Quick Release Surefire Bungee leash. If the rider chooses to completely separate
from the bar and the kite, simply pull the red handle on the Quick Release Surefire
Bungee leash.
RELEASE SySTEM
If you find yourself in a situation where you need to separate from the kite, eject from
your chicken loop by pulling the red safety release knob on your Lock-N-Load chicken
loop. This will activate 100% de-power by flagging the kite allowing it to fall gently
from the sky. If for some reason you still need complete separation, you can activate
the quick release on our Quick Release Surefire Bungee leash.

14
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
RELEASING LOCK-N-LOAd SAFETy SySTEM

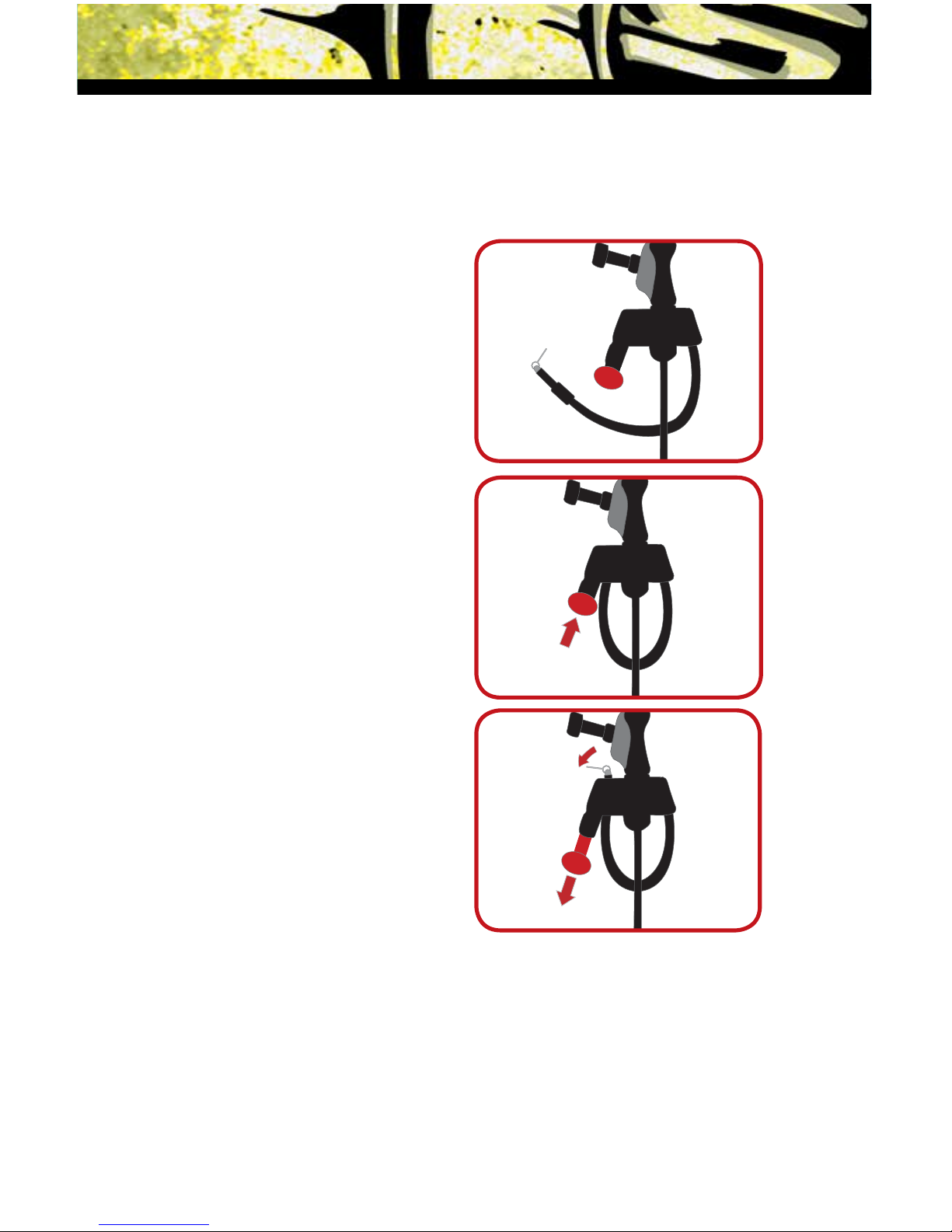

STEP 1
Firmly grasp the red
safety release knob and
pull away from the direc-
tion of the bar.
STEP 2
Continue to hold the red
safety release knob until
the safety pin is released.
STEP 3
The Lock-N-Load harness
line will then disconnect
and free the harness
spreader bar and rider
from the Lock-N-Load
safety system.
123
UNhOOK ANd LET GO:
SAFETy

2007 TURBO2 INSTRUCTION MANUAL
15
2007 TURBO2 INSTRUCTION MANUAL
REBOOTING LOCK-N-LOAd SAFETy SySTEM
STEP 1
Feed the safety pin through the opening
next to the safety release knob.
STEP 2
Continue to insert the pin into the Lock-
N-Load hole until the harness line is
seated in the hole
STEP 3
Fold safety pin over and pull back the
safety release knob at the same time.
STEP 4
Feed the safety pin into the opening at
the end of the safety release knob and
release the knob.
STEP 5
Pull on the chicken loop to assure a
proper reboot.

16
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
SUREFIRE BUNGEE LEASh ATTAChMENT
1
2

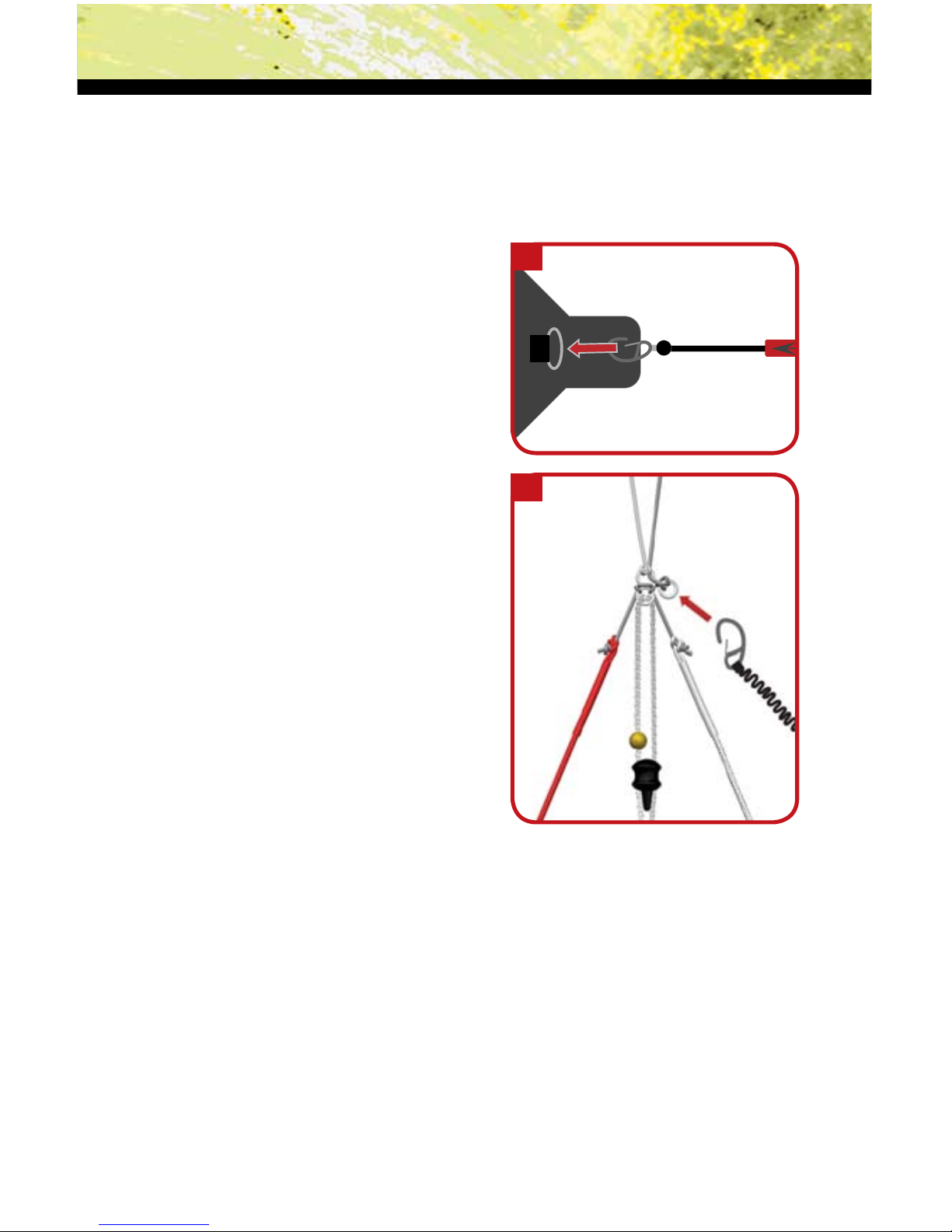

STEP 1
Make sure the end of the Quick Release
Surefire Bungee Leash, with the red
release handle closest to the rider, is
attached to a metal ring or secure place
on your harness using the stainless
steal clip.
STEP 2
The other stainless steal clip attaches
the O-Shit ring located on the center
flying lines.
SAFETy

2007 TURBO2 INSTRUCTION MANUAL
17
2007 TURBO2 INSTRUCTION MANUAL
SUREFIRE BUNGEE
LEASh ACTIvATION
To completely disconnect yourself from
the kite, firmly grasp the red safety
handle on the Quick Release Surefire
Bungee and pull towards you in the
same direction the arrow indicates.

18
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
1
2
3
REBOOTING ThE SUREFIRE
BUNGEE LEASh
There are two sections of the Quick
Release Surefire Bungee leash that,
when connected, make a complete
Quick Release Surefire Bungee leash.
One end of the leash has the red safety
handle with a stainless steel ring and
the other end has an Amsteel loop.

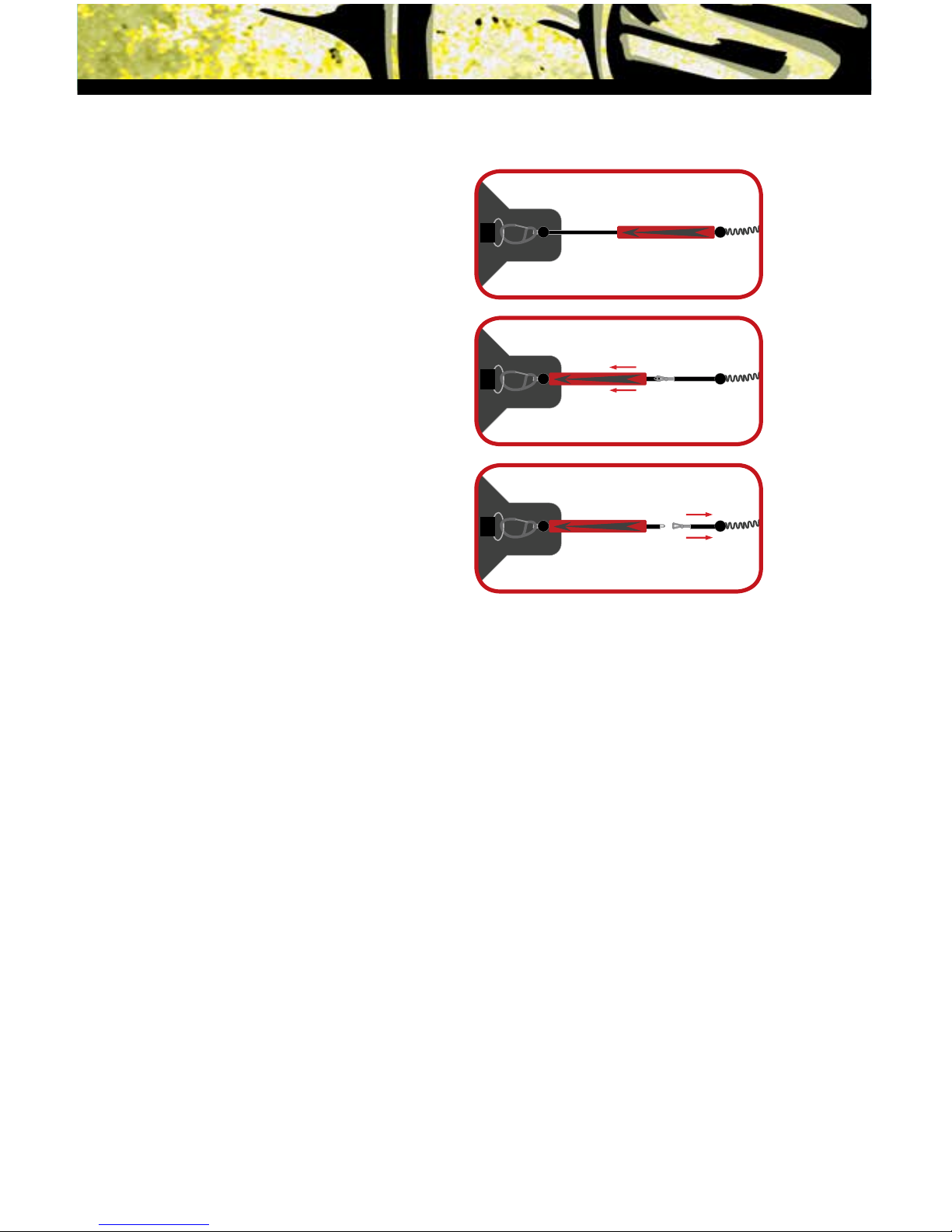

STEP 1
Insert the front half of stainless steel
oval ring in the Amsteel loop.
STEP 2
Fold the oval stainless steel ring over
the Amsteel loop and secure the end
of the stainless steel oval ring into the
plastic tubing of the red safety handle.
STEP 3
Grasp the red safety handle and pull it
over the stainless steel oval ring and
continue to pull down until it rest se-
curely against the round plastic ball.
STEP 4
Double check that your surefire bungee
leash is seated properly by pulling to the
outside of the red handle on both sides.
SAFETy

2007 TURBO2 INSTRUCTION MANUAL
19
2007 TURBO2 INSTRUCTION MANUAL
WINd RANGE
The TURBO 2 kite naturally has more range than a traditional ‘C’ shape kite. Having
said this we still recommend the three kite quiver to ensure maximum enjoyment of
the sport while maintaining safety.
TURBO 2 SIzING
5m 23-35+ mph
7m 20-35 mph
9m 15-28 mph
11m 13-25 mph
14m 10-20 mph
17m 8-18 mph
IMPORTANT NOTE:
The graph above shows the recommended wind range for the TURBO DIESEL II.
Actual wind ranges vary due to body weight, board size, water conditions, ability
level and riding style. Due to the de-power characteristics of the TURBO 2 it can be
flown outside of the range noted but is not endorsed by Slingshot. Regardless of your
height, weight or skill level, Slingshot encourages you to adhere to all safety notes in
this user manual. No kite is 100% safe. Flying any kite outside of it’s intended wind
range is dangerous.
SIZE
5
7
9
11
14
17
10
WIND
(KNOTS)
15 20 25 30 35

20
2007 TURBO2 INSTRUCTION MANUAL
2007 TURBO2 INSTRUCTION MANUAL
12 3
45 6 7
KITE SET-UP
INFLATION
STEP 1
Close the OUT valve and secure with
Velcro straps.
STEP 2
Make sure the valve clips for the struts
are open.
STEP 3
Clip the pump leash to the leash loop on
the leading edge (LE) of the kite.
STEP 4
Insert pump nozzle into the IN valve and
secure with a slight twist.
STEP 5
Inflate kite to 8 psi. In constant air tem-
peratures above 85 ° F / 30° C, inflate
only to 6 psi. This is due to air expansion
in higher temperatures
STEP 6
Pull pump nozzle and secure valve with
Velcro straps. No pinching is required.
STEP 7
Clip all valve clips to lock air for each
strut. This will allow your struts to
remain inflated in the event that your LE
loses air.
