SLX 27820HSR User manual

4 Way
Signal Booster
27820HSR
User Guide
Support: www.slxtechnology.com/support
Congratulations on the purchase of your new
SLx Booster. SLx is renowned for producing
high quality electrical accessories and signal
distribution products. SLx Ampliers benet
from a number of features which assist with
high quality distribution of your TV/ Radio
Signal around your home such as:
• More efcient Switch-Mode Power Supply -
these run cooler saving energy whilst also
making them safer in your home
• Improved gain atness delivering a better
balance across the performance range
• Lower noise gure for optimimum picture
and sound quality
• Greater signal handling capacity to cope
with more channels
• 4G Filtering – provides a typical 45DB
protection from 4G mobile phone signals
reducing interference
• Coaxial connectors – simple to plug in to
standard aerial connections
We are sure you will enjoy using your SLx
amplier, the ampliers are easy to install and
fully automatic in operation, meaning that
no user adjustment is required and the low
running cost permits continuous operation.
If you have any queries please get in touch
with our technical department at
www.slxtechnology.com/support
Additional Features
Dual Inputs – With separate inputs for UHF TV
and VHF (FM and or DAB) Radio and a built-
in signal combiner your signal distribution
system can easily be expanded to include
high quality radio signals in every room.
If you have a long cable run from the aerial
to the booster you can use a masthead
pre-amp near the aerial which the Auto Line-
Power will detect and supply 12V to power it.
All SLx aerial boosters comply with RED
(The Radio Equipment Directive 2014/53/EU).
Introduction
2
Inputs
ALP
Auto Line
Powering
Filtering
4G

Support: www.slxtechnology.com/support
Applications
SLx Boosters incorporate a Class 3 lter to
reduce 4G interference and are suitable
for digital TV signals Ch21-59 (470-782MHz)
however if you wish to receive TV on Ch60 you
should use an SLx Booster with IR Bypass. In
this case you may need a Ch60 lter if you
are affected by 4G interference (currently
available from at800 free of charge).
Installation
Important note: attention is drawn to the
General Safety Precautions Panel above
which contains advice on safe installation
and operation of these products.
Location
Choose a location for the booster from which
it is convenient to run cables from the
antennas and to the system outlets.Typical
examples of suitable locations are a loft
space or a cupboard. In weak signal areas it
is best to keep the aerial cables as short as
possible.
Select a cool, dry location to install the
booster.This means a location where the
ambient temperature will remain between
-10°C and +40°C, and which is free from risk of
dripping or splashing water.
The xing location should allow adequate
access to the equipment for wiring and
maintenance. Clearance of at least 25mm
should be allowed around the left hand
side and top of the unit for ventilation. More
clearance will be needed on the other sides
to allow access for cables.
Fixing
The booster should be xed to a wall or other
suitable hard surface using the keyhole slots
on the back of the housing and suitable
screws and wall plugs, a template is provided
on page 4.
The booster should not be left supported
by its own wiring, nor should it be left resting
on a carpet or other insulating and/or
inammable surfaces.
Signal Connections
Input and output signal connections are
made using IEC coax connectors. Good
quality plugs and digital quality double
screened coaxial cable should be used to
ensure optimum performance from your
booster.
Line Powering
The SLx4 has built-in full line powering which
can be used to provide power to masthead
boosters. When connected to a masthead
amplier, the SLx4 will send the required power
out of the UHF socket up to the masthead
amplier (up to 25mA). Please see your
masthead amplier operating instructions for
more details.
In order to provide a non-interrupted 12V
power supply to the masthead amplier.
it is important to ensure that there is no
equipment between the UHF socket and the
masthead amplier output socket.
If equipment is connected in between,
the booster will not be able to detect the
masthead amplier and so will automatically
not output 12V.
General Safety Precautions
To Prevent Overheating
The recommended clearances and other precautions given in these instructions must be
observed to prevent overheating. In addition, units should not be positioned where they are
likely to become covered by curtains, fabric or insulating material. The amp should not be
left resting on a carpet.
Other precautions
These appliances are not waterproof, they are intended for indoor use only and must not be
positioned where they could be exposed to dripping or splashing water. Objects containing
liquids should not be placed on or near the booster.
To prevent re, make sure the unit and attached cabling is installed well away from naked
ames and other heat sources.
Mains Plug
Your booster is supplied with a standard mains plug already tted, if you need to change
the plug use a competent professional (ELECSA or NICEIC) to make the connection.
If you need to change the fuse use a 3 Amp fuse to BS1362 carrying the ASTA or BSI
approved mark and ret the plastic fuse carrier.
Before Installing Please Note
2

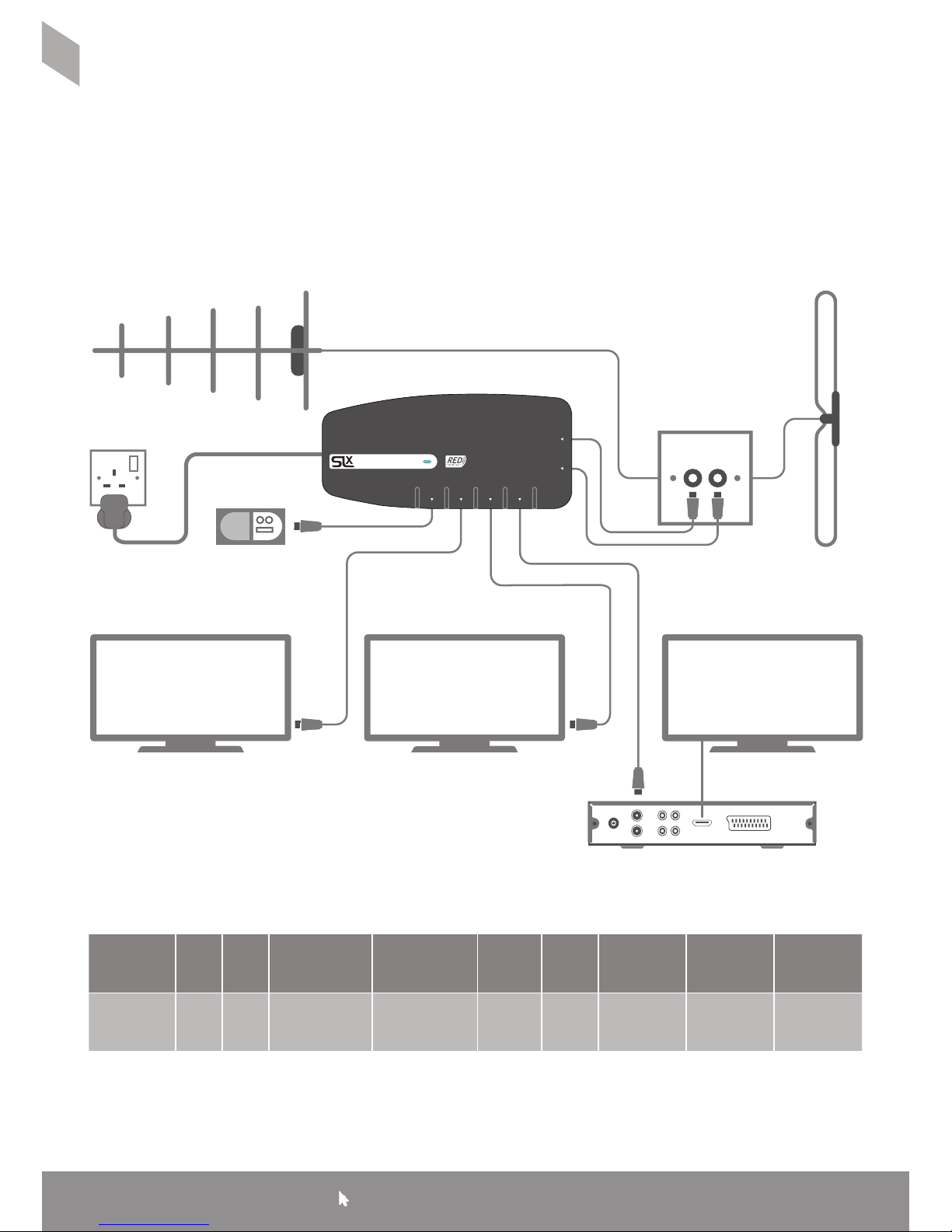

1. Connect your UHF aerial downlead to the
UHF socket and connect your FM/DAB
aerial downlead (if applicable) to the FM
socket on your booster.
2. Connect your TVs and DAB/FM tuners to
any of your booster”s TV sockets in any
combination.
If your TV does not have a built-in Freeview™
receiver you will need to connect your TV to
the booster via a Freeview™ of PVR set top
box.
TV TV TV
4 Way Signal Booster
TV1 TV2 TV3 TV4
VHF UHF
PVR/
Freeview Box
DAB/FM
Aerial
UHF Aerial
DAB Radio
Support: www.slxtechnology.com/support 3
Specications
Installing your Booster
Aerial signal distribution:
Philex reserve the right to modify their designs or specications, In the light of future
developments, without prior notice. Performance gures quoted are typical and subject to
normal manufacturing and service tolerances.
Booster In Out
Frequency
VHF Signal
UHF Signal
Suitable
for
Max
Gain Noise Isolation Out/Out
Max
Output
Typ. 4G
Protection
27820HSR
SLx 4 2 4 87-230MHz 470-782MHz
FM/DAB/
TV Ch 21-59
Freeview
11d B <3dB 20dB 90dBµV >45dB

Wall Mounting Drilling Template
Waste electrical and electronic
products should not be disposed of
with household waste. Please recycle
where facilities exist. Check with your
Local Authority for recycling advice.
© Philex Electronic Ltd 2017. v1 MK42 0NX
Support: www.slxtechnology.com/support
4
SLx4
Prepare holes with centres 61mm apart
for wall mounting
Standard: EN 303 354
Product Type: D Signal Distribution Amplier
Filter Class: 3 Mitigates 4G interference
Suitable for digital TV signal distribution
Ch21-59 in the UK and EIRE.
Troubleshooting
If you experience reception problems after
installing your SLx booster, please see below:
No picture or sound
Is the signal reaching your TV? Check:
- Everything, including the booster is plugged
in and switched on
- Coaxial connections are correctly made
(no braid or foil is touching the inner core
Picture or sound breaking up
- Use the best wideband aerial ideally tted
outdoors
- Use good quality coax cable, poorly
screened cable can pick up noise
- In some cases too much signal can cause
signal break-up which can be solved
by tting an attenuator to the input to the
booster
For specic help with digital TV reception
problems, visit www.digitaluk.co.uk or
www.bbc.co.uk/reception/television/
freeview/reception_problems
Technical Support
If you experience problems setting up your
aerial, please visit our technical website at
www.slxtechnology.com/support you can
send us a message or live chat during ofce
hours.
Waste electrical and electronic
products should not be disposed of
with household waste. Please recycle
where facilities exist. Check with your
Local Authority for recycling advice.
Declaration of Conformity
Hereby, Philex declares that this booster/
amplier for TV broadcast reception in
domestic premises is in compliance with the
Radio Equipment Directive 2014/53/EU.
The full Declaration of Conformity is available
by contacting the following internet address:
www.slxtechnology.com/DoC
COMPLIANT
