LED SPOT HEAD
USERS GUIDE
KING SPOT 250

1
1. Product Introduction:
1.1 Before unpack the fixture, pls make sure that the packing is in good condition, following items will be found in the
box:
-The fixture
-This users guide
-3m DMX cable
-1.5m power cable with powercon
-Omega bracket for hanging installation
-Safety chain
1.2 Specification
Source
Light source: LumiEngin COB-2-1600M-W
Led life: 60.000 hours
Luminous Flux: 8450lumen, 22460lux@2.5m
Control: Remote on/off via DMX
Ballast: switching mode power supply
Optical System
Beam angle: 13°
X/Y
Pan: 630(4.0 sec) or 540°(3.58 sec), Tilt: 265° (2.8 sec)
16-bit resolution
Auto repositioning
Colors
8+open, interchangeable, indexable and bidirectional rainbow effect
New color bounce effect
Gobos
Outside ￠27mm, inside ￠22mm
7+ open custom interchangeable position for rotating gobo wheel
7+ open fixed gobos
Real indexable and gobo shaking
Distinctive gobo animation effect
Features
DMX channels: 21/24/14/16
Color wheel: 8+1 colors
Fixed gobo wheel: 7+1 gobos
Rotating gobo wheel: 7+1 gobos
Motorized and auto focus
Full range 0-100% dimmer
Various strobe
Rotating Effect wheel with 3 facets,8 facets prism and frost
Iris
RDM function to change DMX address, display flip, X/Y Reverse and so on
Software upgrade via DMX
Hibernation when lost DMX for preset time
Indicate temperature info of base, arm and lamp

2
Fan speed auto change according to temperature
Display
2.4inch super nice LCD display with friendly English/ Chinese/French/Spanish menu
Auto lock
Flip
Back-up communicating IC

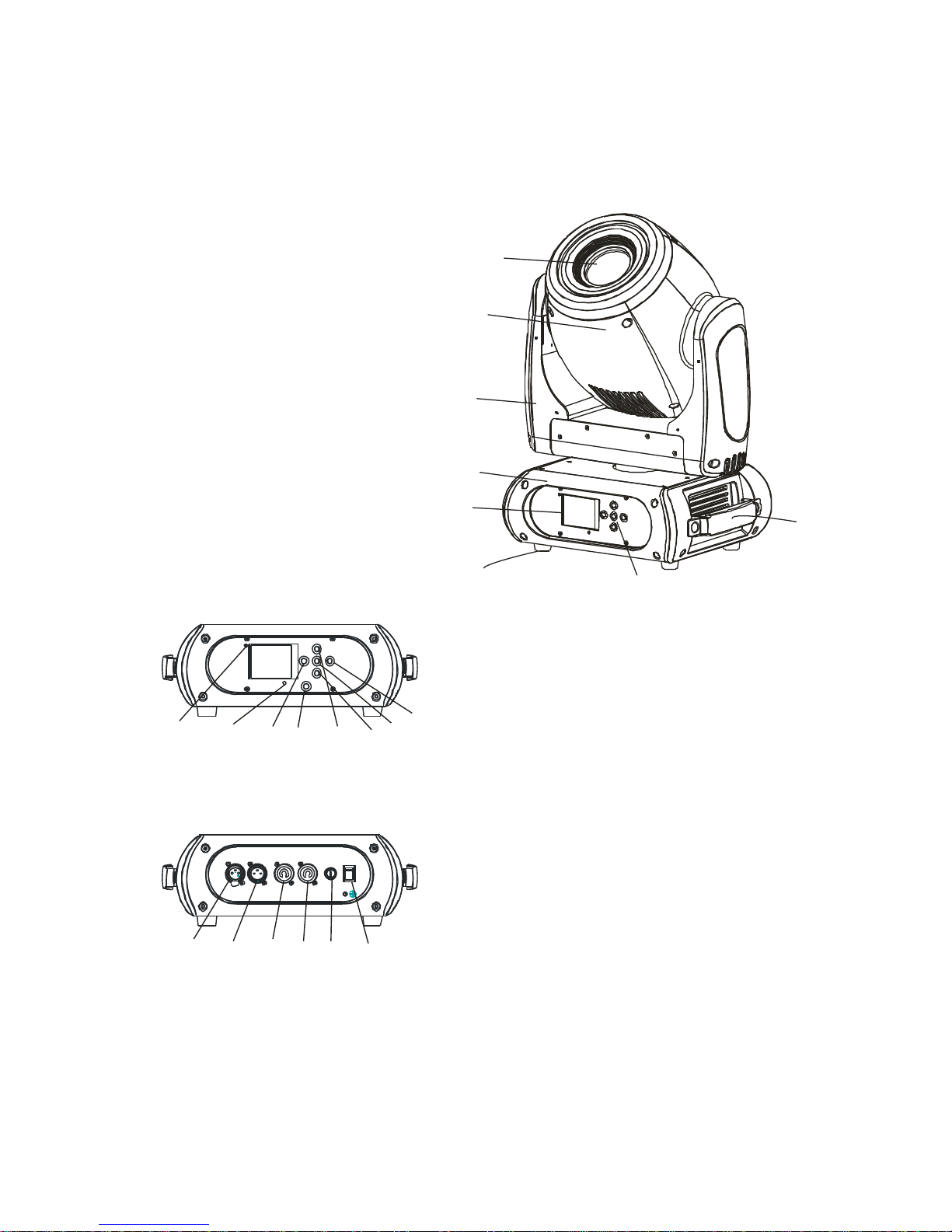

1.3 Description of the Device
1. Project lens
2. Head
3. Arm
4. Base
5. Display
6. Foot stand
7. Operation button
8. Handle
9. Wireless indicator
10. Mic
11. Left button
12. Battery indicator
13. Up button
14. Down button
15. Enter button
16. Right button
17. 3-pin DMX in
18. 3-pin DMX out
19. Powercon in
20. Powercon out
21. Fuse
22. Power switch
1
2
3
4
5
67
8
910 11 12131415
16
17 1819 202122

3
1.4 Colors and Gobos
1
Open
2
Megenta
3
Orange
4
Sky blue
5
Pink
6
Yellow
7
Green
8
Blue
9
Red
Static gobo wheel
Rotating gobo wheel (slot-in-out gobos)

4
2. Safety and maintenance Information
2.1 Safety Info
Before operate this unit, please carefully read this users guide and keep if needed in future. It’s
necessary to respect following rules.
The disposal of the device after lifecycle could damage the environment, need to take it to special
company for recycling or return to authorized dealer.
The products referred to in this manual conform to the European Community Directives and are
therefore marked with CE logo.
Keep this device away from children and unauthorized users, the manufacturer will not take
responsibility for the damage due to any disregard of the information provided in this manual and
wrong operation.
Before operate the device, pls make sure the fixture is in good housing, ensure pan and tilt can
rotate in its complete range.
--0.5m
Pls make sure minimal 0.5m distance need to kept between the fixture to any flammable material.
The device can only run with 100-240v voltage, 50/60Hz power, don’t connect to any other wrong
power. Disconnect the device from main power before open the shield or maintenance.
The device is designed only for indoor usage, pls keep it away from moisture. Do not expose the
device under the sun or directly to any other lighting source.
Never look directly into the projecting lens when the fixture is power on, the light may trigger
epileptic seizures in photosensitive persons or persons with epilepsy. Especially at beam effect,
extreme caution and observance of these safety instructions is mandatory.
Don’t put or install the device on a surface that subject to vibration or bumps.
Ta=45℃
The device is supposed to work in the temperate range -15° C and +45° C, do not use the device
when the temperate exceed this range.
The lens, shield need to be replaced when obviously broken, never use the device when the shield is
not completed closed.
Safety I class device, need to be earth connected.
When the fixture is hanged overhead, the safety rope must be fixed to the bottom of the device to
the appropriate fixing point.
Always carry the device by the handles, do not take the head or arm directly for transportation.
2.2 Maintenance
2.2.1 Operation only allowed to qualified person, damages due to unprofessional operation or remove of any parts
inside will not be considered in warranty service. There are no serviceable parts inside the device or package, service
only leaves to authorized dealers.
2.2.3 Never allow the optical components contact with oil, fat or any other liquid.
2.2.4 A regular clearance of the device is needed for long-term usage, this is very helpful to maintain the lifetime and
brightness need to use a soft and lint-free cloth to clean the optical system, fan and air flowing tunnel.

5
2.2.5. Trouble Shooting
Problems
Possible reasons
Checking or solutions
Device not power up
Powercon or power cable damaged
Faulty power supply
Change a good power cable to try
Replace new power supply
Pan/Tilt error or vibrate
Faulty Pan/Tilt PCB
Faulty opto sensor
Cable loosen
Replace PT001 PCB
Replace opto sensor OP001
Check the cable connect to OP001
LED off
Temperature protection
Fan not working
Faulty LED
Dimmer and strobe set at 0
Faulty power supply
Check the temperature from menu
Check the fan speed info from menu
Replace new LED
Set dimmer and strobe channel at 255
Replace new power supply
Device not response to DMX
Faulty communication IC
Faulty display PCB
Wrong DMX addressing
Faulty DMX cable
Replace the IC with back-up one in the display PCB
Replace new display PCB
Check the address and setting
Change to a good DMX cable
2.2.6 Replacement of the fuse
Need to replace with same type and rating, which originally installed in the device.
Step One: Unplug power cable from main power.
Step Two: Unscrew the fuse holder out of the housing with a screwdriver.
Step Three: Remove the broken fuse and replace with an exact same type of new fuse.
Step Four: Insert the fuse holder back to the housing and screw tight and reconnect power.
3. Installation
3.1 The device could be either put on a solid and
even Surface, or mounted upside down or sideways
like left picture.
3.2 The mounting place must be sufficient stable
and be able to support a weight of 10 times of the
unit’s weight. When the fixture is hanged, always
additionally secure the device with the safety chain,
fasten the safety rope at a suitable position so that
the maximum fall of the projector will be 20 cm

6
3.3 How to do mounting installation.
Step one: Installation the clamp onto the omega bracket;
Step two: Install the clamp and bracket on the bottom of panel, fasten the quick-locks;
Step three: Install the whole device onto appropriate truss and fasten the clamps, tight the safety rope with the truss or
other fixing point at a suitable position that drop down distance not exceed 20 cm.
4. Control menu
4.1 Meaning of the icon in menu
CONNECT
LIGHT
INFOMATION
SET
PROGRAM
4.2 Menu tree
Default setting shadowed. Mark with ①can be basic reloaded, ②be program reloaded, ③can be private reloaded.
CONNECT
DMX Address①
XXX
DMX address setting
Wireless①
Wireless Enabled
LIGHT
Max Temperature①
80~139℃,80℃/176~282℉,176℉
Lamp off if
temperature
continuously over for 5
minutes
Lamp Adjust①
PAN……
Adjust value of each
channels
INFORMATION
Time Info.
Current XXXX(Hours)
Fixture Life XXXX(Hours)
Fixture boot time
Fixture total run time
Temperature
Near Lamp Temp (depends on fixture)
Temperature Sensors
Fans Speed
Near Lamp Fan (depends on fixture)
Fan speed Sensors
Channel Value
PAN……
Display value of
channel
Error Message
Pan,Tilt……
Error channels

7
Fixture Model
xxxxxxxxxxxx
Display model brand
and model
Software Ver
1U01 V1.0.00
:
Version of each IC
SET
Reset
All
Pan&Tilt
Colors
Gobos
Others
Reset all
Reset Pan&Tilt
Reset Colors
Reset Gobos
Reset Others
Movement
Pan Reverse①
Tilt Reverse①
Pan Degree①
Encoders①
Pan/Tilt Mode①
ON/OFF
ON/OFF
630/540
ON/OFF
Stand/Smooth
Pan Reverse
Tilt Reverse
Choose Pan Degree
Encoder wheel on/off
Choose pan/tilt mode
UI Set
Mic Sens. ③
No Signal①
Temperature. C/F①
Fans Mode①
Hibernation①
Backlight①
Flip Display①
Display Bright③
Brand Show①
Key Lock①
Language①
0~99%,60%
Close/Hold/Auto/Music
Fahrenheit/Celsius
Auto Speed /High Speed
OFF, 01M~99M，15M
02~60m 02m
ON/OFF
00~31 10
ON/OFF
ON/OFF
En/简/繁/Fr/Sp
Sensitivity of Mic
Mode when no signal
Temperature at ℃/℉
Fans mode
Sleeping mode
Show backlight time
Display 180°reverse
Display Brightness
Show brand or not
Key lock on/off
Language Select
Users
User Mode①
Standard
Extended
Basic-8bit
Basic-16bit
User
Standard mode
Extended mode
Basic mode-8bit
Basic mode-16bit
User program mode
Edit User③
Max Channel = XX
PAN = CH01
:
Edit users mode
Calibration③
-Password-
Color
:
=XXX
=XXX
:
Password: 050
Calibrate channel value
Fixture ID③
Name
-Password-
PID Code
Name
Password: 050
Set PID of RDM
Wireless Set①
DMX On Cable
Reset Connect
ON/OFF
ON/OFF
DMX Send Out
Reset Connect
Reload Default
Basic Reload(①)
Program Reload(②)
---Password---
Private Reload(③)
All Reload
ON/OFF
ON/OFF
XXX
ON/OFF
ON/OFF
Basic Reload
Program Reload
Password: 050
Private Reload
All Reload

8
PROGRAM
Play①
DMX Receive
Slave Receive
Sequence
Music
Slave Receive 1,2,3
Master / Alone
Master / Alone
DMX Receive
Choose slave position
Run Sequence
Music mode
Select Chase②
Chase Part 1
Chase Part 2
Chase Part 3
Chase 1 ~ 8 Chase 1
Chase 1 ~ 8 Chase 2
Chase 1 ~ 8 Chase 3
Select and run auto
program
Edit Chase②
Chase 1
:
Chase 8
Chase Test
Step 01
Step 64
=SCxxx
=SCxxx
Test
Beginning scene
Ending scene
Edit Scenes②
Edit Scene 001
~ Edit Scene
250
Pan,Tilt,……
--Fade Time--
--Secne Time--
DMX Input
=xxx
=xxx
=xxx
Input manual scene
Modify manually fading
time
Modify manually scene
time
Input scene from
exterior controller
Scenes Record
ScXX=>ScXX
Auto Input scenes
5. DMX connection and DMX protocol
5.1 DMX addressing:
5.1.1 The device is controlled by universal DMX 512 protocol, DMX address is the start channel used to receive
instructions from the external controller. For independent control, each fixture must be assigned its unique address
control channels. For example, this device has four channel modes: 21/24/14/16, if we set the mode at standard 21
channels mode, and there are several models need to be independently controlled, we just simply address first fixture
at 1, and second fixture at 22, third one at 43, etc.
If the devices have the same address, they will behave synchronically.
DMX addressing is limited, don’t set the address so high that without enough control channels for the fixtures.
Display is flashing when no DMX signal is received.
5.1.2 This device is equipped with 3-pins DMX in and out sockets only.
Pin 1 = GND
Pin 2 = Signal (-)
Pin 3 = Signal (+)
5.1.3 The termination is prepared by soldering a 120Ω resistor between pins 2 and 3.

9

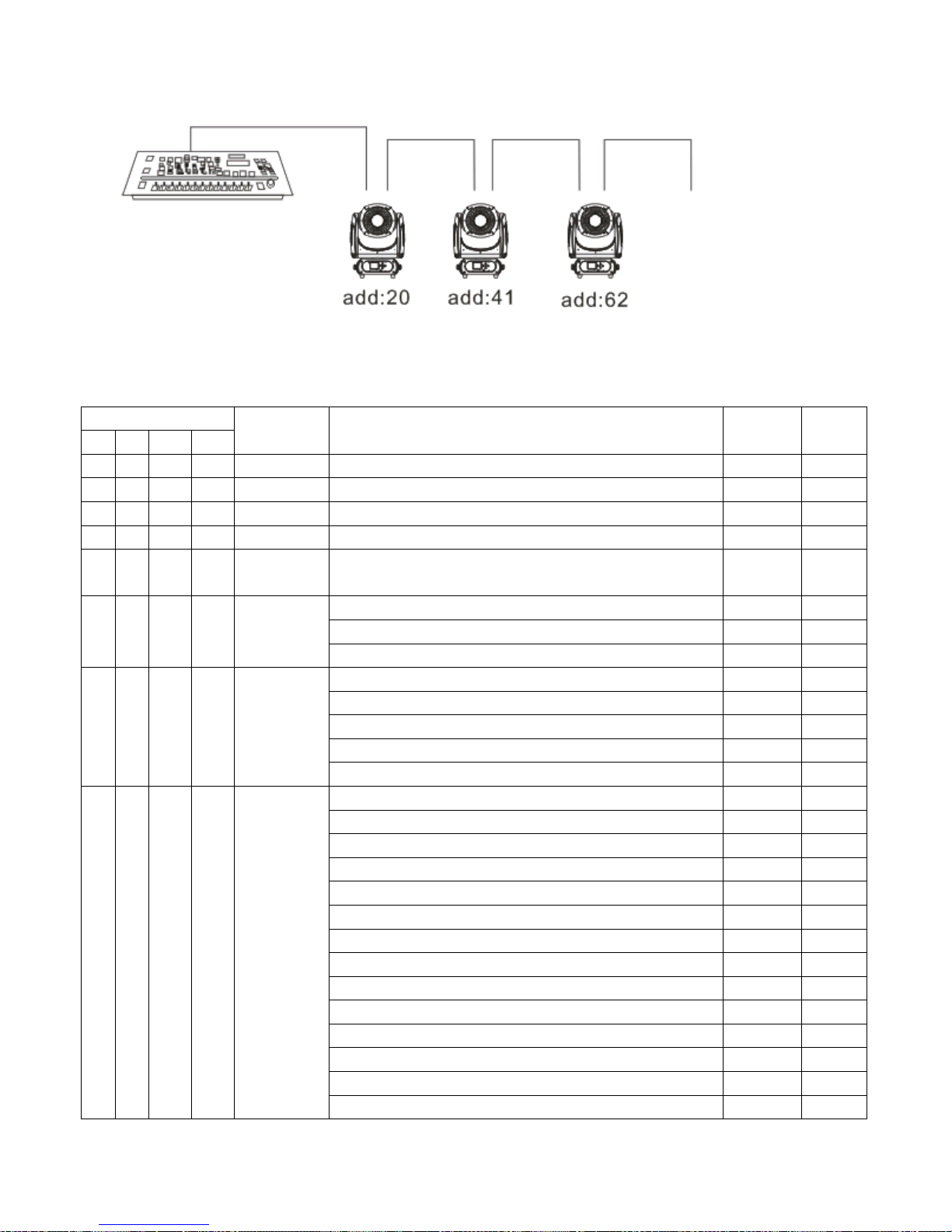

5.1.4 Connection: us DMX cable with 3-pin XLR-plugs to connect the controller with the fixture or one fixture with
another.
5.2 DMX chart
Channel
name
function
Min
DMX
Max
DMX
St
Ex
Ba1
Ba2
1
1
1
1
Pan
Pan Coarse
0
255
2
2
Pan fine
Pan Fine
0
255
2
3
2
3
Tilt
Tilt Coarse
0
255
4
4
Tilt fine
Tilt Fine
0
255
3
5
3
5
Movment
Speed
fastest to Slowest
0
255
6
Movement
Function
Normal
0
15
Movement With Blackout
16
31
TBD
32
255
4
7
Shutter
Function
Normal Shutter Functions
0
15
Pulse-effect Forward
16
31
Pulse-effect Reverse
32
47
Random Strobe
48
63
TBD
64
255
5
8
Shutter
Normal Shutter Functions
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Forward
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Pulse-effect Reverse
Close
0
31
Strobe Rate (slow to fast)
32
223
Open
224
255
Random Strobe
Close
0
31

10
Strobe Rate (slow to fast)
32
223
Open
224
255
4
6
Shutter
Shutter closed
0
31
No function (shutter open)
32
63
Strobe effect slow to fast
64
95
No function (shutter open)
96
127
Pulse-effect in sequences
128
159
No function (shutter open)
160
191
Random strobe effect slow to fast
192
223
No function (shutter open)
224
255
6
9
5
7
Dimmer
Dimmer(Close to Open)
0
255
7
10
Color
Function
Indexed
0
15
Indexed With Blackout
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Color Bounce
80
111
TBD
112
255
8
11
Color
Indexed & Indexed With BlackOut &Color Bounce
Position 1 (Open)
0
13
Position 2 ~ Position 18
14
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
6
8
Color
Indexed
Position 1 (Open)
0
2
Position 2 ~ Position 18
3
53
Indexed With Blackout
Position 1 (Open)
54
56
Position 2 ~ Position 18
57
106
Indexed With Bounce
Position 1
107
119
Position 2 ~ Position 9
120
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
9
12
Rot Gobo
Function
Indexed
0
15
Indexed With Blackout
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Shake
80
95

11
TBD
96
255
10
13
Rot Gobo
Indexed & Indexed With Blackout&Shake
Position 1 (Open)
0
31
Position 2 ~ Position 8
32
255
Forward Wheel Spin
Stop to fastest
0
255
Reverse Wheel Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
7
9
Rot Gobo
Indexed
Position 1 (Open)
0
5
Position 2 ~ Position 8
6
47
Indexed With Blackout
Position 1 (Open)
48
53
Position 2 ~ Position 8
54
97
Indexed With Shake
Position 2
98
115
Position 3 ~ Position 8
116
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
11
14
Gobo Rot
Function
Continuous
0
15
Forward Spin
16
31
Reverse Spin
32
47
Forward Animate Rotate
48
63
Forward Animate Rotate With Blackout
64
79
Reverse Animate Rotate
80
95
Reverse Animate Rotate With Blackout
96
111
TBD
112
255
12
15
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
255
Forward Spin
Stop to fastest
0
255
Reverse Spin
Stop to fastest
0
255
Forward Animate Rotate & Forward Animate Rotate With
Blackout
Stop to fastest
0
255
Reverse Animate Rotate & Reverse Animate Rotate With
Blackout
Stop to fastest
0
255
8
10
Gobo Rot
Continuous
Positioning from 0-360 degrees
0
191
Forward Animate Rotate

12
Stop to fastest
192
207
Reverse Animate Rotate
Stop to fastest
208
223
Forward Spin
Stop to fastest
224
239
Reverse Spin
Stop to fastest
240
255
13
16
Gobo
Function
Indexed
0
15
Indexed With Blackout
16
31
Forward Spin
32
47
Reverse Spin
48
63
Continuous
64
79
Shake
80
95
TBD
96
255
14
17
Fixed
Gobo
Indexed & Indexed With Blackout&Shake
Position 1 (Open)
0
31
Position 2 ~ Position 8
32
255
Forward Wheel Spin
Stop to fastest
0
255
Reverse Wheel Spin
Stop to fastest
0
255
Continuous
Positioning from 0-360 degrees
0
255
9
11
Fixed
Gobo
Indexed
Position 1 (Open)
0
5
Position 2 ~ Position 8
6
47
Indexed With Blackout
Position 1 (Open)
48
53
Position 2 ~ Position 8
54
97
Indexed With Shake
Position 2
98
115
Position 3 ~ Position 8
116
223
Forward Wheel Spin
Stop to fastest
224
239
Reverse Wheel Spin
Stop to fastest
240
255
15
18
10
12
Prism
Indexed & Indexed With Blackout
Position 1 (Open)
0
63
Position 2
64
127
Position 3
128
191
Position 4
192
255
16
19
11
13
Prism Rot
Forward Spin
Stop to fastest
0
127
Reverse Spin
Stop to fastest
128
255
17
20
Focus
Continuous
0
15

13
Function
5m Auto Focus
16
31
7.5m Auto Focus
32
47
10m Auto Focus
48
63
15m Auto Focus
64
95
>20m Auto Focus
96
127
TBD
128
255
18
21
12
14
Focus
Continuous
Focus In to Focus Out
0
255
Auto Focus
Focus In to Focus Out Fine
0
255
19
22
Iris
Function
Indexed
0
15
Pulse opening With Forward Blackout
16
31
Pulse opening With Reverse Blackout
32
47
Pulse closing With Forward Blackout
48
63
Pulse closing With Reverse Blackout
64
95
TBD
96
255
20
23
Iris
Indexed
Max. diameter to Min.diameter
0
255
Pulse opening & Pulse closing
Pulse Slow to Fast
0
255
13
15
Iris
Indexed
0
191
Pulse opening With Forward Blackout
192
207
Pulse opening With Reverse Blackout
208
223
Pulse closing With Forward Blackout
224
239
Pulse closing With Reverse Blackout
240
255
21
24
14
16
Control
Normal
0
7
Reset All
8
15
Pan&Tilt Reset
16
23
Color Reset
24
31
Gobo Reset
32
39
TBD
40
47
Other Reset
48
55
Display Off
56
63
Display On
64
71
TBD
72
79
TBD
80
87
Hibernation
88
95
TBD
96
255
6. Unique Features
6.1 RDM, stand for “Remote Device Management”, with this function, users can realize remote control of the device,

14
such as remotely changing DMX address, reverse pan/tilt setting, check a lot of useful information such as temperature,
power consumption, fan speed. Etc. Every single device has a unique RDM code before left factory to distinguish from
each other, usually not suggest users change this code freely.
6.2 Software upgrade function via DMX cable, if there is any new firmware for this device come out, it can be upgraded
simply via a software upgrade box, no need to change any mechanical parts. The upgrade box is not included in the
package, if need any further assistance pls just contact authorized dealers.
6.3 Hibernation, the device will enter sleeping mode if activated after a period of disconnecting DMX signal to save the
power consumption, and will return immediately as soon as the DMX signal is sent again.
6.4 Display battery, this function is prepaid in the display PCB, users just need to install a normal 10440 600mAh 3.7V
rechargeable lithium battery, then users could power on the display and do setting without connect to main power.
6.5 Display back-up communication IC, there is a back-up communication IC installed in the display PCB, so users could
replace at once if the working one is broken, no need to wait long time from service.
6.6 Display flip, by press up and down button for more than 3 seconds, the display will flip automatically, this function is
useful to read menu conveniently when device is hanged.
8. Dimensions Drawing
9. Technical specification
Power supply
100-240 V AC, 50/60 Hz ~
Power consumption
250W
LED
LumiEngin COB-2-1600M-W
DMX channels
21/24/14/16 modes
Beam angle
13°
Luminous flux
[email protected]m
Fuse
T 3.15 A, 250 V
Device dimensions
343x262x456mm
Net Weight
15KG
