Reactive power is necessary for the stability of the utility grid. With the functions "Integrated Plant Control" and
"Q on Demand 24/7", it is possible that SMA inverters of type Sunny Tripower feed in reactive power during operation
and at night. The following table provides an overview of the device types and firmware versions for which the various
functions are available.
Device type Reactive power provision
0 overexcited to 0 underexcited
Q on Demand 24/7 Integrated Plant Control
STP 15000TL-10/
STP 17000TL-10
from firmware version
2.60.02
from firmware version
2.60.02
from firmware version
2.62.04
STP 15000TLEE-10/
STP 20000TLEE-10
from firmware version
2.61.06
from firmware version
2.61.06
from firmware version
2.63.03
STP 20000TL-30/
STP 25000TL-30
from firmware version
2.80.04
from firmware version
2.82.03
from firmware version
2.82.03
Technical Information
Integrated Plant Control and Q on Demand 24/7
SUNNY TRIPOWER

1 Definition of Active Power, Reactive Power and Apparent PowerSMA Solar Technology AG
2 IPC_STP-TI-en-14 Technical Information
This document provides basic information on reactive power and how to set the inverter in order to feed reactive power
into the utility grid in compliance with standards and demand.
1 Definition of Active Power, Reactive Power and Apparent Power
Electrical power is the product of current and voltage. While current and voltage have stable values with direct current,
the strength and the direction of both current flow and voltage change regularly in alternating current. In the utility grid,
current and voltage have a sinusoidal shape, so that their product, electrical power, is also sinusoidal. In DC systems, the
sign of the power indicates the direction in which the electrical energy, in the form of active power, is transported.
In general, this also applies in an AC circuit. However, the power may not always be positive or negative, but rather its
sign can fluctuate periodically, causing the power to oscillate back and forth. This oscillating power does not do any work
and is therefore referred to as reactive power. The time delay between the current and voltage curve -- its so-called phase
shift -- is a value which is easy to measure and characteristic of the relation between active power and reactive power at
the point under consideration in the electric circuit.
1.1 Active Power P
With no phase shift between progression of current i(t) and voltage v(t) over time, both always have the same sign and
simultaneously reach their maximum and minimum values. The power oscillates between zero and the positive maximum
value. Averaged over time, this results in a positive power value P (unit: W; Watt) and only active power is generated P.
This behavior occurs only when ohmic loads are the only loads in the electric circuit. In a real utility grid, however, cable
inductance and capacitance ensure that the active power is always accompanied by a small amount of reactive power.
Figure1: Pure active power: current and voltage are in phase
STP 12000TL-US-10 /
STP 15000TL-US-10 /
STP 20000TL-US-10 /
STP 24000TL-US-10 /
STP 30000TL-US-10
from firmware version
2.80.00
from firmware version
2.80.00
from firmware version
2.80.00
Device type Reactive power provision
0 overexcited to 0 underexcited
Q on Demand 24/7 Integrated Plant Control

SMA Solar Technology AG 1 Definition of Active Power, Reactive Power and Apparent Power
Technical Information IPC_STP-TI-en-14 3
1.2 Reactive Power Q
With a phase shift phi of 90°, the maximum current occurs precisely when the voltage crosses zero; then the power
oscillates between positive and negative values, which is why the average value over time is zero. This is known as pure
reactive power Q (unit: Var, from the French volt-ampère-réactif) which moves "back and forth" in the cables.
Figure2: Pure reactive power: current and voltage are phase-shifted by 90°
1.3 Apparent Power S
In real AC circuits, there is a mix of active power and reactive power. This behavior occurs when there are leading or
lagging loads in the utility grid. The shift between current and voltage is denoted by the displacement power factor cos φ.
Figure3: In real AC grids, current and voltage are slightly phase-shifted and reactive power occurs together with active power.

1 Definition of Active Power, Reactive Power and Apparent PowerSMA Solar Technology AG
4 IPC_STP-TI-en-14 Technical Information
Calculating Apparent Power
The sum of active power and reactive power is the so-called apparent power S (unit: VA; volt-ampère). It should be noted
that the units are not simply added arithmetically, but must be represented as vectors: active and reactive power form the
sides of a right triangle whose hypotenuse corresponds to the apparent power. The cosine of the angle between the
active power and the apparent power is the displacement power factor.

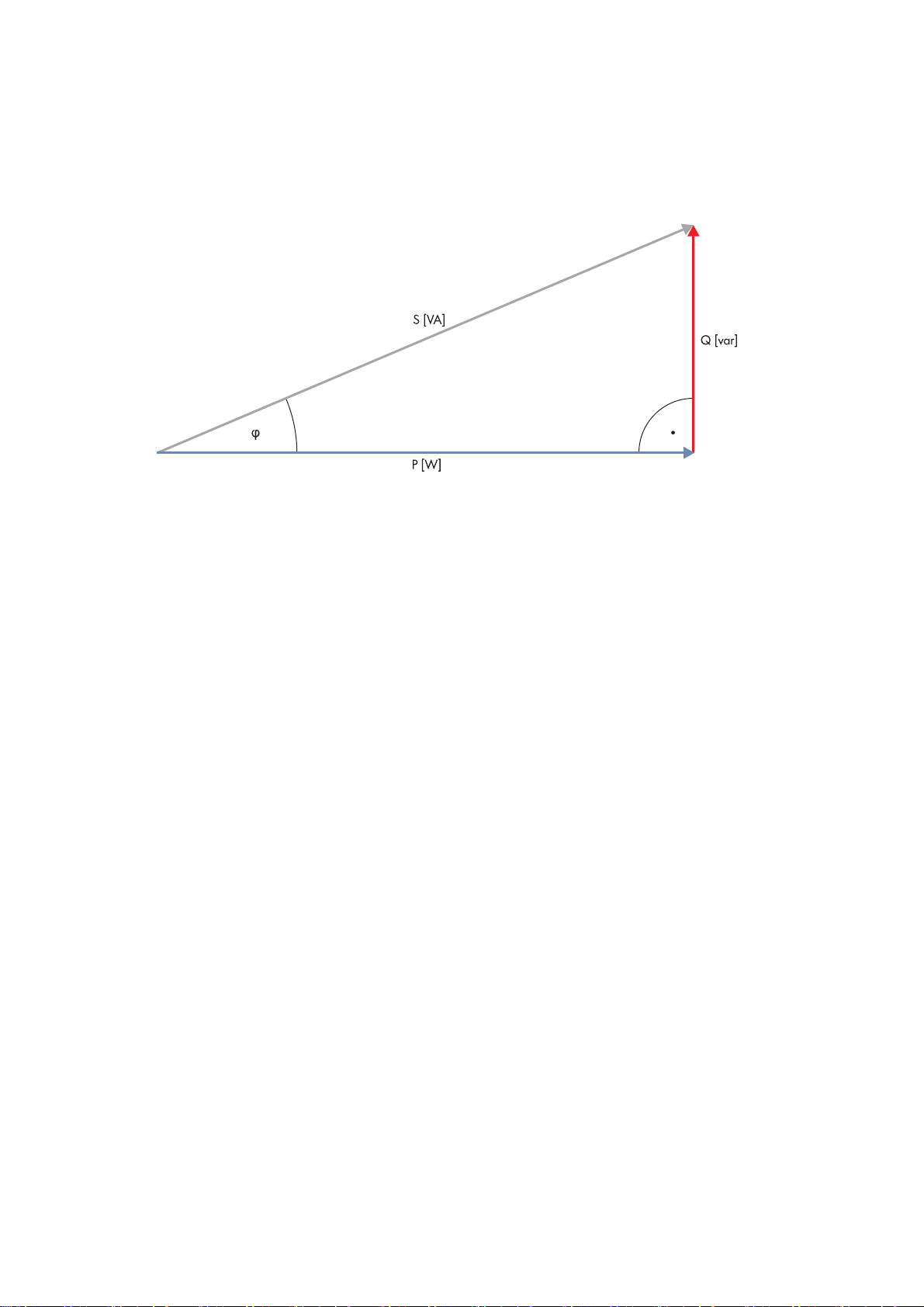

Figure4: Vector addition of active and reactive power
1.4 Compensating and Controlling Reactive Power with Sunny Tripower
Compensating Reactive Power Demand with Q on Demand 24/7
Leading or lagging loads (e.g. cables, transformers) require reactive power. Transporting reactive power from the power
plant to the load places a burden on the utility grid. It therefore makes sense to install a compensation system that provides
reactive power at sites with many leading or lagging loads. In order to ensure the stability of the utility grid, grid operators
require energy producers to take part in the compensation of reactive power. A PV system can complement or replace
such a compensation system.
Due to their design, large PV farms have a certain demand for reactive power which can be compensated with
Sunny Tripower inverters. At the same time, Sunny Tripower inverters can feed reactive power into the utility grid.
Compensation can take place both in feed-in and non-feed-in operation by using the Q on Demand 24/7 function.
Using this function, the Sunny Tripower inverter provides reactive power for the PV farm equipment without placing a
burden on the utility grid.
Controlling the Q(V) Characteristic Curve with Integrated Plant Control
The Sunny Tripower inverter can provide reactive power to the utility grid with the Integrated Plant Control function.
The grid operator specifies the preferred process by which the inverter should supply reactive power to the utility grid.
In many cases, the grid operator will require control in accordance with a Q(V) characteristic curve.
SMA inverters with Integrated Plant Control are capable of representing this Q(V) characteristic curve without performing
any measurement at the grid-connection point. The inverter can automatically compensate equipment installed between
the inverter and the grid-connection point.
The function "Integrated Plant Control" is not capable of compensating irregular or fluctuating reactive power demands
— e.g. from connected machinery — when the machinery is connected between the inverters and the grid-connection point.
If the machinery is connected directly at the grid-connection point, it is possible to dynamically determine the reactive
power demand of the machines using additional measurement equipment and then to provide this value as an offset to
the Q(V) control.

SMA Solar Technology AG 2 Design of PV Farms
Technical Information IPC_STP-TI-en-14 5
2 Design of PV Farms
2.1 Typical PV Farm with Central PV Farm Control
Decentralized PV farms must be able to control the flow of reactive power. It is not enough for each inverter to comply
with the characteristic specified by the grid operator because all of the equipment (cables, transformers, switching
equipment, etc.) has an influence on the characteristic curve of the PV power plant as a whole.
Figure5: Example of a Q(V) specified by the grid operators
This is why the central PV farm control records the most important grid values at the grid-connection point and compares
them with the characteristic curve provided by the grid operator. When deviations occur, a corrected uniform setpoint for
reactive power is transmitted to the inverters which then ensures that the required characteristic is achieved.
Figure6: PV farm with central PV farm control

2 Design of PV Farms SMA Solar Technology AG
6 IPC_STP-TI-en-14 Technical Information
2.2 PV Farm with Integrated Plant Control
The Integrated Plant Control function enables each inverter within a group of inverters to determine its individual
contribution in order to ensure that the necessary reactive power is fed into the grid at the grid-connection point.
Every inverter in the group compensates for the impedance influences of the cables and the transformer.
Figure7: PV farm with Integrated Plant Control
Advantages of Integrated Plant Control
• Economical: no additional costs for central farm control gear, measured value recording at the grid-connection point,
fast data transmission, and installation and commissioning
• Grid friendly: adherence to the characteristics desired by the grid operator even in the presence of very rapid
changes in grid voltage
• Simple and easy to understand: simplifies system design and maintenance. Inverter parameterization is calculated
with the Sunny Design software.
• Secure: redundancy through individual integration and one-time parameterization of each inverter
• Flexible: even small PV systems with two or more inverters can optimize their grid characteristics at low cost.
Existing PV systems can be retrofitted via a software update.
Functionality of Integrated Plant Control
Despite the utmost care in the production of the function Integrated Plant Control, SMA Solar Technology AG does
not provide any statutory warranty for the functionality of Integrated Plant Control.

SMA Solar Technology AG 3 Configuring Integrated Plant Control
Technical Information IPC_STP-TI-en-14 7
3 Configuring Integrated Plant Control
In order to operate PV systems with Integrated Plant Control, the following settings are necessary:
1. The individual design of the PV system with all of its essential equipment must be entered so that each inverter can
calculate its individual influence on the grid-connection point.
2. The desired characteristic at the grid-connection point must be set (generally specified by the grid operator).
3.1 Determining the Key Values of the System
In order to determine the parameter settings at the inverter, the equipment between the inverter terminals and the
grid-connection point must be characterized. Determine the following key values:
Cables Used
• Conductor material
•Cross section
• Cable length
MV Transformer
• Nominal apparent power (SN)
• Impedance voltage (vk)
• Impedance loss in case of short-circuit at nominal power (Psc)
3.2 Entering Key Values in Sunny Design
You can find a detailed manual for Sunny Design at www.SMA-Solar.com. Proceed as follows to enter the key values in
Sunny Design:
1. Open Sunny Design and log in as a user.
2. Create a new project.
3. Enter the project data.
4. Under Project data, select the option Carry out optimized reactive power adjustment with
Integrated Plant Control.
5. Select the button [Configure the PV system].
6. Select the PV arrays and inverters used from the menu.
7. Select the button [Wire Sizing].
8. If a project sub-distribution (LV3) is available, select the option Project subdistribution available (LV3) from the
Overview window.
9. In the Overview window, select the option Medium-voltage line and MV transformer available (MV).
MV transformer data
You can usually find the required data on the MV transformer on the type label or datasheet. If these are not
available, contact the manufacturer.

3 Configuring Integrated Plant Control SMA Solar Technology AG
8 IPC_STP-TI-en-14 Technical Information
☑ The tabs for entering the information on cables and the MV transformer are activated in the area Configuration.
10. Enter the key values for the cables used in the tabs Lines LV1, Lines LV2 and Lines LV3.
11. In the tab MV transformer, enter the key values for the MV transformer.
12. In the window Next steps, select the button [Download parameters].
☑ Sunny Design generates a CSV file containing the parameters that must be entered in the inverter.

SMA Solar Technology AG 3 Configuring Integrated Plant Control
Technical Information IPC_STP-TI-en-14 9
Parameter Description
3.3 Changing Inverter Operating Parameters
Always change operating parameters as described in this section. Some parameters that have sensitive functions can only
be viewed and changed by qualified persons (for further information on changing parameters, refer to the manual of the
communication product).
The operating parameters of the inverter are set to certain values by default. To optimize inverter operation, you can
change the operating parameters using a communication product.
Requirements:
☐ Depending on the type of communication, a computer with a BLUETOOTH or Ethernet interface must be available.
☐ A communication product corresponding to the type of communication used must be available.
☐ The inverter must be registered in the communication product.
☐ The changes to the grid-relevant parameters must be approved by the responsible grid operator.
☐ For changing the grid-relevant parameters, the SMA Grid Guard code must be available (see "Application for SMA
Grid Guard Code" at www.SMA-Solar.com).
Procedure:
1. Call up the user interface of the communication product or software and log in as Installer or User.
2. If required, enter the SMA Grid Guard code.
3. Select and set the required parameter.
4. Save settings.
Parameter name for BLUETOOTH or
Speedwire/Webconnect
Parameter name
for RS485
Description
Rated apparent power of all inverters Plnt.VARtg Nominal apparent power of all inverters [kVA]
Ohmic resistance for impedance
compensation
ImpCpn.OhmRis Ohmic resistance for impedance compensation
[Ω]
Inductive resistance for impedance
compensation
ImpCpn.IndRis Lagging resistance for impedance compensation
[Ω]
Capacitive resistance for impedance
compensation
ImpCpn.CapacRis Leading resistance for impedance compensation
[Ω]
Impedance compensation switched on ImpCpn.IsOn Impedance compensation switched on
/05*$&
Restricted function of Integrated Plant Control as a result of incorrect settings
If the required parameters for Integrated Plant Control are incorrectly calculated or if the parameters are entered
incorrectly in the inverter, the functioning of Integrated Plant Control is restricted. SMA Solar Technology AG does not
accept liability for incorrect entries made by customers.
• For error-free functioning of Integrated Plant Control, the system must be modeled correctly using Sunny Design.
• If required, and subject to a fee, SMA Solar Technology AG can provide assistance with the correct calculation
of the system parameters and with system parameterization.

3 Configuring Integrated Plant Control SMA Solar Technology AG
10 IPC_STP-TI-en-14 Technical Information
Storage of Documentation
The system settings should be properly documented and stored so that they can be easily retrieved.
Example:
Device type
and serial
number
PV system Impedance compensation
Nominal apparent
power of all
inverters [kVA]
Ohmic resistance for
impedance
compensation [Ω]
Lagging resistance for
impedance
compensation [Ω]
Leading resistance for
impedance
compensation [Ω]
STP 17000TL-10
0123456780
580 0.0062 0.012 35.6463
STP 17000TL-10
0123456781
580 0.0062 0.012 35.6463
STP 17000TL-10
0123456782
580 0.0062 0.012 35.6463
STP 10000TL-10
0123456783
580 0.0048 0.0119 35.6463

SMA Solar Technology AG 4 Q on Demand 24/7
Technical Information IPC_STP-TI-en-14 11
4 Q on Demand 24/7
The "Q on Demand 24/7" function keeps the inverter on the utility grid over night. It is powered by the grid in order to
provide reactive power (III)* . Additionally, in feed-in operation, the inverter can provide up to 100% of its apparent
power as reactive power (II) over and above its normal operating range (I).
Figure8: Extension of the operating range and limits of the Sunny Tripower by using the "Q on Demand 24/7" function
Parameters for Q on Demand 24/7
With the parameter Oper.st.vol.maint.at Q on Dem., st.vol.maint.conf. (Q-VArModDmd), you can activate only
the function "Q on Demand 24/7".
The general setting of the grid management service (e.g. cos(phi) setpoint or Q(V) characteristic curve) can be set
independently of function "Q on Demand 24/7" using the relevant parameters.
* If the inverter is disconnected from the utility grid during the night (e.g. under fault conditions), it cannot connect to the utility grid again until
the next morning if there is sufficient PV power. Until then, the function "Q on Demand 24/7" is inactive.
Parameter name Description
Oper.st.vol.maint.at Q on Dem.,
st.vol.maint.conf.
(Q-VArModDmd)
1 = default setting
Limitation of reactive power Q depending on the active power P is switched
on.
0 = Limitation of reactive power Q depending on the active power P is
switched off. When using the "Q on Demand 24/7" function, set this
parameter to 0.
Pmax
PP
Q
(I)
(II)
(III)
Q
Qmax= 0.5 x Pmax
