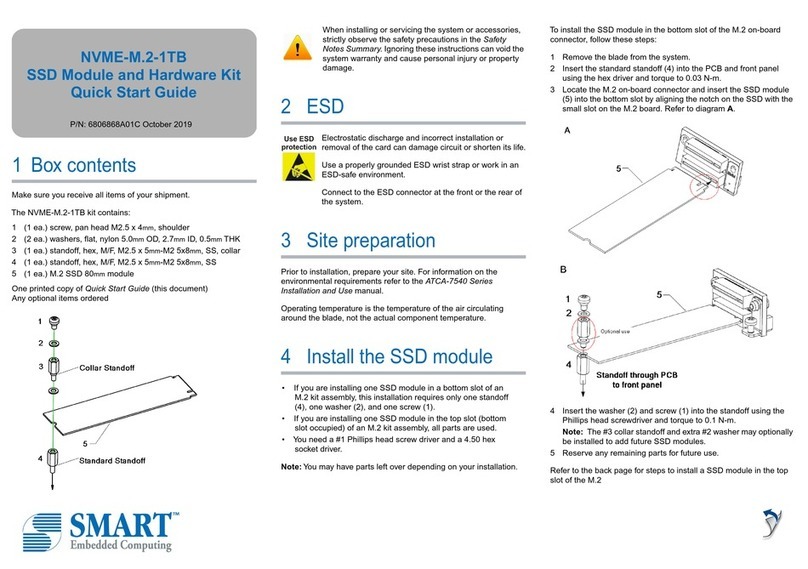

SMART Embedded Computing Penguin Edge NVME-M.2-1TB User manual

1 Box contents
Make sure you receive all items of your shipment.
The Penguin Edge™ NVME-M.2-1TB kit contains:
1 (1 ea.) screw, pan head M2.5 x 4mm, shoulder
2. (2 ea.) washers, flat, nylon 5.0mm OD, 2.7mm ID, 0.5mm THK
3. (1 ea.) standoff, hex, M/F, M2.5 x 5mm-M2 5x8mm, SS, collar
4. (1 ea.) standoff, hex, M/F, M2.5 x 5mm-M2 5x8mm, SS
5. (1 ea.) M.2 SSD 80mm module
One printed copy of Quick Start Guide (this document)
Any optional items ordered.
When installing or servicing the system or accessories,
strictly observe the safety precautions in the Safety
Notes Summary. Ignoring these instructions can void the
system warranty and cause personal injury or property
damage.
2 ESD
Electrostatic discharge and incorrect installation or
removal of the card can damage circuit or shorten its life.
Use a properly grounded ESD wrist strap or work in an
ESD-safe environment.
Connect to the ESD connector at the front or the rear of
the system.
3 Site preparation
Prior to installation, prepare your site. For information on the
environmental requirements refer to the Penguin Edge™ATCA-7540
Series Installation and Use manual.
Operating temperature is the temperature of the air circulating
around the blade, not the actual component temperature.
4 Install the SSD module
• If you are installing one SSD module in a bottom slot of an
M.2 kit assembly, this installation requires only one standoff
(4), one washer (2), and one screw (1).
• If you are installing one SSD module in the top slot (bottom
slot occupied) of an M.2 kit assembly, all parts are used.
• You need a #1 Phillips head screw driver and a 4.50 hex
socket driver.
Note: You may have parts left over depending on your installation.
To install the SSD module in the bottom slot of the M.2 on-board
connector, follow these steps:
1 Remove the blade from the system.
2. Insert the standard standoff (4) into the PCB and front panel
using the hex driver and torque to 0.03 N-m.
3. Locate the M.2 on-board connector and insert the SSD module
(5) into the bottom slot by aligning the notch on the SSD with the
small slot on the M.2 board. Refer to diagram A.
4. Insert the washer (2) and screw (1) into the standoff using the
Phillips head screwdriver and torque to 0.1 N-m.
Note: The #3 collar standoff and extra #2 washer may optionally
be installed to add future SSD modules.
5. Reserve any remaining parts for future use.
Refer to the back page for steps to install a SSD module in the top
slot of the M.2
Penguin Edge™ NVME-M.2-1TB
SSD Module and Hardware Kit
Quick Start Guide
P/N: 6806868A01D JUNE 2022

Penguin Edge™ NVME-M.2-1TB Quick Start Guide
Penguin Solutions™, 2900 S. Diablo Way, Suite 190, Tempe, Arizona 85282
If you are installing a second SSD into the top slot of the M.2
on-board connector:
6. Secure the lower SSD module to the PCB using the parts shown
in diagram C, in this order:
(2) Washer
(3) Standoff (collar)
7. Insert the SSD module (5) into the top slot by aligning the notch
on the SSD with the small slot on the M.2 board, as shown in
diagram A.
8. Secure the SSD module to the PCB using the parts shown in
diagram C, in this order:
(2) Washer
(1) Screw
Note: The collar standoff (3) sits between the top and bottom
SSD modules.
9. Use the tools and torque recommendations in Step 2. and Step
4..
10.Reinstall the blade into the system.
