Smart power LC Plus User manual

TRANSFORMER BASED FILTER SERIES (TBF™) POWER FILTERS
Considered to be one of the most significant developments in the power protection industry.
TBF™ Filters contain innovative technology that combines Surge Suppression and Noise
Isolation which filters the noise on the ground to less than 0.5 Volts (US Patent # 6229682).
Exclusive "POVP" Prolonged Over Voltage Protector (US Patent # 6560086) disconnects the
output power if voltage exceeds 155 volts. Exclusive Smart Technology (US Patent
#5721661) protects microprocessor based equipment against reverse polarity or no ground.
The patented TBF™ filters prevent 90% of the power problems experienced by your POS
system, computer, copier and facsimile machine.
Smart Power Systems warrants that our LC Plus Series Line Conditioners are free of defects
in material and workmanship for 5 years --or, they will be repaired or replaced free of charge.
See our website for more details - www.smartpowersystems.com
5 year product warranty
™
IMPORTANT
If for any reason you need to return the LC Plus unit to the manufacturer, you should
obtain an RMA (Return Material Authorization) number before returning the unit.
To request an RMA number please call 1-800-772-7633 or visit the website at
www.smartpowersystems.com/rma.htm
7409 Railhead Ln. - Houston, Texas 77043 - Tel:(713)464-8000 - Fax:(713)984-0841
E-mail: [email protected] - www.smartpowersystems.com 1-800-882-8285
AUTOMATIC VOLTAGE REGULATOR - AVR SERIES
Regulates the voltage to protect equipment against voltage sags and brownouts. Electronic
systems are designed to operate based on a clean and constant supply of AC voltage.
Smart Power Systems' AVR line provides boost & buck capability to eliminate under or over
voltage fluctuations.
UNINTERRUPTIBLE POWER SUPPLIES - UPS SERIES
Smart Power Systems' Uninterruptible Power Supplies (UPS) integrated TBF™ Technology
provide on-line power conditioning.
LINE CONDITIONERS
Reduces the need for a dedicated line where voltage on ground is present. This transformer
isolation technology is an option to expensive rewiring where poor wiring conditions exist on older
or renovated buildings.
OTHER POWER PROTECTION PRODUCTS
WARRANTY
$25,000 Connected Equipment Warranty
If the Smart Power Systems equipment fails and this failure allows a surge to pass through and
damage the connected equipment, Smart Power Systems will pay for the repair or replacement
of the connected equipment of the original purchaser . See our website for more details -
www.smartpowersystems.com
INSIDE THE BOX
LC Plus Unit User's Manual CAT.5 Patch Cord
COMPUTER-GRADE
LINE CONDITIONING
LC70SG-2R, LC100SG-2R, LC180SG-4R,
LC200SG-4R, LC300SG-4R
USER'S GUIDE
™
USER'S GUIDE
Thank you for purchasing this LC Plus. Smart Power
Systems is dedicated to developing and manufacturing
the highest performance power protection and filtration
devices for your electronic equipment. Proper use of this
device will provide the protection needed for your
connected equipment.
LC SMART
GROUND
With
User's guide for the following models:
ISOLATION TRANSFORMER-BASED
LINE CONDITIONER
16000900 Rev.04/20
CAUTION
• Use indoors only
• Avoid dropping the unit.
• Only plug the LC Plus into a three pronged grounded outlet. This unit is not to be used with any
type of ground “lift” or pin eliminator.
• Do not open the LC Plus unit, there are no serviceable parts inside. Opening the unit will void
your warranty.
If you have any questions call us at our Tech Support line toll free
1-800-772-7633 or email us at [email protected]S
IMPORTANT SAFETY INSTRUCTIONS
• SAVE THESE INSTRUCTIONS: This manual contains important instructions that should be
followed during installation and maintenance of the LC Plus.
• Install this unit in a controlled environment.
FEATURES
WARNING
CAUTION
• For indoor use only.
• Plug the LC Plus unit into a three pronged 120VAC power outlet.
• Use of adapters or ground pin eliminators will void your warranty.
• Risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing
to qualified service personnel.
• Avoid exposing the LC Plus to direct sunlight, stoves or any other heat source.
• To prevent overheating, make sure that the ventilation openings of the unit are not covered.
• Keep unit away from moisture and dust.
Magnetic Isolation Transformer For Noise Filtration
INSTALLATION
1. Turn off and unplug your equipment.
2. Plug your equipment into the LC Plus unit.
3. Plug the LC Plus unit into a properly grounded power outlet.
4. Turn on your equipment. Your equipment is now fully protected from disruptive and destructive
power disturbances.
SYSTEM DESCRIPTION
1. Normal
2. Power On
3. No Ground
1
1. Output Receptacles
2. Circuit Breaker
3. Input Power Cord
4. Network Protection
FRONT REAR
1
2
32
3
1. Output Receptacles
2. Circuit Breaker
3. Input Power Cord
4. Network Protection
4 RECEPTACLE MODEL
LC70 to LC300
4
2
3
4
1
SPECIFICATIONS
Input Cord Length
Input Plug
Output Receptacle
Overload Protection
Size D x W x H (In)
Output Current (Amps)
Power Rating (VA)
Color
MODEL
6 ft.
5-15P
(4) 5-15R
Black
Input Voltage
120V
Output Voltage
120V
Input/Output Frequency
60Hz (Optional 50Hz)
Typical Noise Rejection:
Common mode noise rejection >100dB (Less than 0.5 Volts pass through voltage) - Normal mode noise rejection >65dB (Less than 10 Volts pass through voltage)
Cooling
Convection
LC70SG-2R
0.7 1 1.5 2
84 120180 240
Net Weight (Lbs.)
Operating Environment
7.9 x 5.5 x 4.5 (200 x 139 x 114)
5.85 6.30 9.70 10.45
0-40°C at full load, 0-90% relative humidity (non condensing)
LC100SG-2R LC180SG-4R LC200SG-4R
2.5
LC300SG-4R
(2) 5-15R
30024018012084
13.45
Circuit Breaker & Electronic
WARRANTY
5 years
All models include Smart Ground (Patent Pending). Specifications subjects to change without notice.

This manual suits for next models

5

Popular Transformer manuals by other brands

RCF TRF-KIT DMA owner's manual

RCF

RCF TRF-KIT DMA owner's manual

Huazheng HZJ manual

Huazheng

Huazheng HZJ manual

Monacor Stage Line FGA-102 quick start guide

Monacor

Monacor Stage Line FGA-102 quick start guide

CARPOINT 0510214 quick start guide

CARPOINT

CARPOINT 0510214 quick start guide

Tivoli Audio ADNM Series quick start guide

Tivoli Audio

Tivoli Audio ADNM Series quick start guide

Wolf ATEX 400VA Operation and maintenance instructions

Wolf

Wolf ATEX 400VA Operation and maintenance instructions

SSS Siedle TR 602-01 Installation

SSS Siedle

SSS Siedle TR 602-01 Installation

Titanium TT-3528-L600 Connection instructions

Titanium

Titanium TT-3528-L600 Connection instructions

F&F TR-12 quick start guide

F&F

F&F TR-12 quick start guide

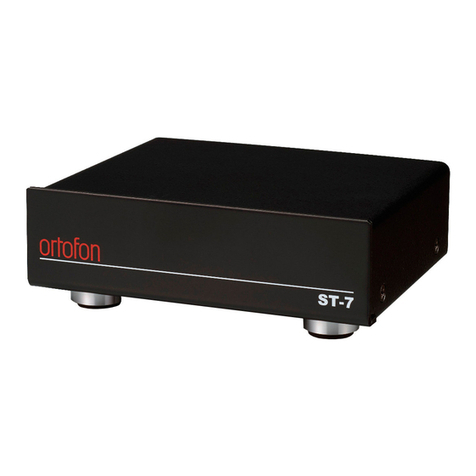

Ortofon ST-7 instruction manual
