SMARTWINGS WR01-15CH User manual

WR01-15CH Remote Programming Guide
SMARTWINGS MOTORIZATION
SMARTWINGS

Table of Contents
1. Remote Overview
2. Sleep Mode
3. Adjusting Limits
4. Favorite Positions
5. Remote & Motor Pairing
6. Mirroring Remotes
7. Group Control
8. Hiding/Unhiding Remote Channels
9. Adjusting Motor Speed
10. Reset to Factory Settings
11. Initial Setup Programming
12. Reverse Motor Direction
13. Tilt Mode
Each battery motor from Smartwings will come preprogramed from the factory. The
preprograming ensures the remote is paired with the motor, the upper and lower operation
limits are set, the remote is unlocked
.
1 .
1 .
Motor P B F
Recharge the battery
Troubleshooting

Remote Overview
FEATURES
• Push Button controls
LED Display
Hide unused channels function
wall mount holder
•
•
•
•
PACKAGE CONTENTS
Remote
wall mount holder & fixing screws
1.5V - AAA Battery
TECHNICAL SPECIFICATIONS
Voltage: 3V
Frequency: 433.92 MHz
Transmitting Power: 30 milliwatt
Ambient Operating
Temperature: - -
Transmission Distance: Approx. 65 feet in
open space
Battery: AAA
FRONT BACK

Each battery motor will come preprogramed from Smartwings Upon leaving the factory the motor is
placed into “Sleep Mode” to avoid accidental operation during shipping. It is necessary to “Wake” the
motor before operation and setup.
Sleep Mode
To “Wake” the motor and exit Sleep Mode, assure the motor is installed and secured in the
mounting hardware.
Once installed safely and securely, press and hold the programming button on the motor head
until the motor jogs once. It is now no longer in “Sleep Mode” and ready for further setup.
Warning:
•Shade - if you press and release the programming button quickly, the motor will operate to its
limit.
•
If required, to place the motor back into “Sleep Mode” press and hold the programming button
for a period of 10 seconds. Release the button when the motor has jogged three times. The “
Sleep Mode” has been activated.
Exit Sleep Mode
Enter Sleep Mode

Adjusting Limits
Each battery motor will come preprogramed from Smartwings .
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits
are set, the remote is unlocked .
Follow the below steps to adjust the upper and lower limits if required.
Press UP & STOP (5sec) Press UP + STOP (2sec)
(SET Top Limit)
ADJUSTING LOWER LIMIT
ADJUSTING UPPER LIMIT
Move the shade to the new desired
position to be set as limit.
Press DOWN & STOP (5sec) Press DOWN + STOP (2sec)
(SET Lower Limit)
If limits need adjusting, follow the instructions
below to unlock the remote for limit setting:
!!WARNING!! - Move shade in short increments by pressing the UP/DOWN button in 1 second intervals (pressing the
UP/DOWN button for more than 3 seconds may send the shade past desired upper/lower limit and may result in
damage to the product). Once you have reached the desired upper/lower limit, you can adjust the limit with either the
UP and DOWN buttons. (remember to adjust in short increments!)
Important!! Stop the shade prior to
traveling past the desired upper limit
Important!! Stop the shade prior to
traveling past the desired lower limit
Note: the motor jogs once
Note: the motor jogs once
Note: the motor jogs twice
Note: the motor jogs twice
Move the shade to the new desired
position to be set as limit.
+ +
+ +

Favorite Positions
Each battery motor will come preprogramed from Smartwings .
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits
are set, the remote is unlocked.
Follow the below steps to set a favorite position. The favorite position is used to set a custom stopping
point between the upper and lower limits. (1 favorite position per shade motor)
To set a favorite position for a shade motor, drive to the desired position and press the STOP
button to pause the drive operation.
Press P (1sec)
1(To Save Position)
Press UP or DOWN
to move shade to
desired favorite position
position
SETTING FAVORITE POSITION
3 2
•Press STOP (2sec) to move shade to the Favorite Position from any location
Repeat Steps 1-4 for all additional motors•
Press STOP (1sec)
DELETING FAVORITE POSIT ION
the shade is
1 (To Delete Position)
Note: the motor jogs twice
Note: the motor jogs once
Note: the motor jogs once
4Press STOP (1sec)
Press P (1sec) 3
2Press STOP (1sec)
Note: the motor jogs once
Note: the motor jogs once
Note: the motor jogs once
Press STOP (1sec)
4

Remote + Motor Pairing
Each battery motor will come preprogramed from Smartwings .
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits
are set, the remote is unlocked.
Follow the below steps to select the remote channel you want to pair with the motor(s) if required at a
later date.
Press any
button to
wake remote
Within 10sec Press
" " or " " to
select desired
channel.
1a 1b
1. SELECT CHANNEL
Within 10 sec of
activating pairing mode,
Press & Hold STOP
If you do not pair the remote in time the motor pairing sequence will time out, repeat the
above steps assuring to press and hold the STOP button within 10 seconds of the motor jog
2. PAIRING REMOTE TO MOTOR
Press & HOLD
Programming Button
on motor head (2sec)
2a ACTIVATE PAIRING MODE ON MOTOR
2b ADDING OR REMOVING THE REMOTE
Note: the motor jogs once
Note: the motor jogs twice.
Press STOP (2sec)

Mirroring Remotes
Each battery motor will come preprogramed from Smartwings .
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits
are set, the remote is unlocked.
Follow the below steps to copy settings from an existing remote to a new remote.
2. ADD OR REMOVE REMOTE USING AN EXISTING REMOTE
1Press P (1sec)
EXISTING
2Press P (1sec)
EXISTING
3Press P (1sec)
NEW
(To be Added or Removed)
Note: Select channel on existing remote to be copied
Select channel on new remote where existing channel will be copied
Note: the motor jogs once Note: the motor jogs twice Note: the motor jogs once
Press any
button to
wake remote
Within 10sec Press
select desired
channel.
1a 1b
1. SELECT CHANNEL
" " or " " to

Group Control
Each battery motor will come preprogramed from Smartwings . If multiple motors are
paired to the same 15 channel remote, the 0 channel is the default channel to control all motors at once.
Follow the steps below to group motors on a specific channel for simultaneous control.
To custom define a channel to control multiple motors, pairing in groups can be executed. This will
allow you to operate a series of motors in unison without needing to change channels. Each motor to be
grouped must be paired with the remote on its own channel prior to grouping.
1. SELECT CHANNEL TO BE PAIRED AS A GROUP
2. PAIRING OR REMOVING MOTOR FROM A SPECIFIC CHANNEL
Within 10 sec of
activating pairing mode,
Press & Hold STOP
If you do not pair the remote in time the motor pairing sequence will time out, repeat the
above steps assuring to press and the STOP button within 10 seconds of the motor jog
2a ACTIVATE PAIRING MODE ON MOTOR
2b PAIRING REMOTE
Press any
button to
wake remote
Within 10sec Press
select desired
channel.
1a 1b
Press & HOLD
Programming Button
on motor head (2sec)
Note: the motor jogs once
Note: the motor jogs twice.
Press STOP (2sec)
" " or " " to

Group Control
3. Adjusting limits of an individual shade paired on a group channel
To adjust the limits of a shade that is currently grouped on a channel with other shades, it is
necessary to place all shades with the exception of the shade to be adjusted, to sleep.
!!WARNING!! - Move shade in short increments by pressing the UP/DOWN button in 1 second intervals (pressing the
UP/DOWN button for more than 3 seconds may send the shade past desired upper/lower limit and may result in
damage to the product). Once you have reached the desired upper/lower limit, you can adjust the limit with either the
UP and DOWN buttons. (remember to adjust in short increments!)
Press & HOLD
Programming Button
on motor head (10sec)
Note: the motor jogs three times
Once all other shades have been put to sleep.
Adjust the shade limits as outlined below:
Press UP & STOP (5sec) Press UP + STOP (2sec)
(SET Top Limit)
ADJUSTING LOWER LIMIT
ADJUSTING UPPER LIMIT
Move the shade to the new desired
position to be set as limit.
Press DOWN & STOP (5sec) Press DOWN + STOP (2sec)
(SET Lower Limit)
Important!! Stop the shade prior to
traveling past the desired upper limit
Important!! Stop the shade prior to
traveling past the desired lower limit
Note: the motor jogs once
Note: the motor jogs once
Note: the motor jogs twice
Note: the motor jogs twice
Move the shade to the new desired
position to be set as limit.
+
+
+
+

Hide/Unhide Remote Channels
Each battery motor will come preprogramed from Smartwings .
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits
are set, the remote is unlocked .
Follow the below steps to hide and unhide channels on the remote.
old " "and " " 2
seconds Press STOP for 1 seconds
13
Press " "or " " to select
number of channel
2

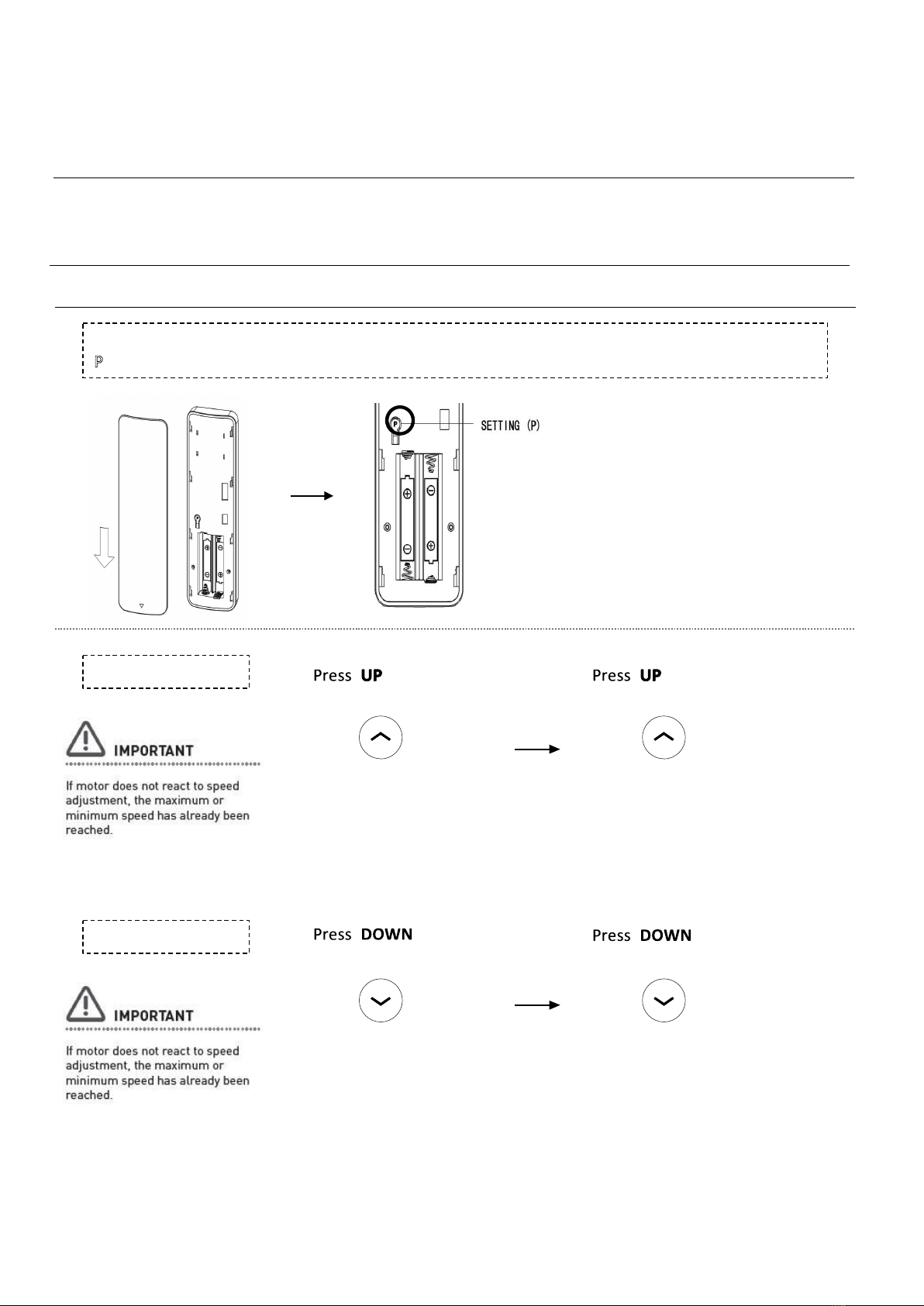

Adjusting Motor Speed
Each battery motor will come preprogramed from Smartwings .
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits are set,
the remote is unlocked
To enter speed adjustment mode remove the rear battery cover of the remote. Press the left
P button.
To Increase speed:
To Decrease speed:
Repeat
Follow the below steps to adjust the motor speed. To adjust the motor speed a remote must be paired.
Note: the motor jogs once
Note: the motor jogs once
Note: the motor jogs once
:
Note: the motor jogs twice
indicate middle speed
the motor jogs three times
indicate fast speed
Note: the motor jogs twice
indicate middle speed
the motor jogs once
indicate slow speed
:
:
Repeat
:

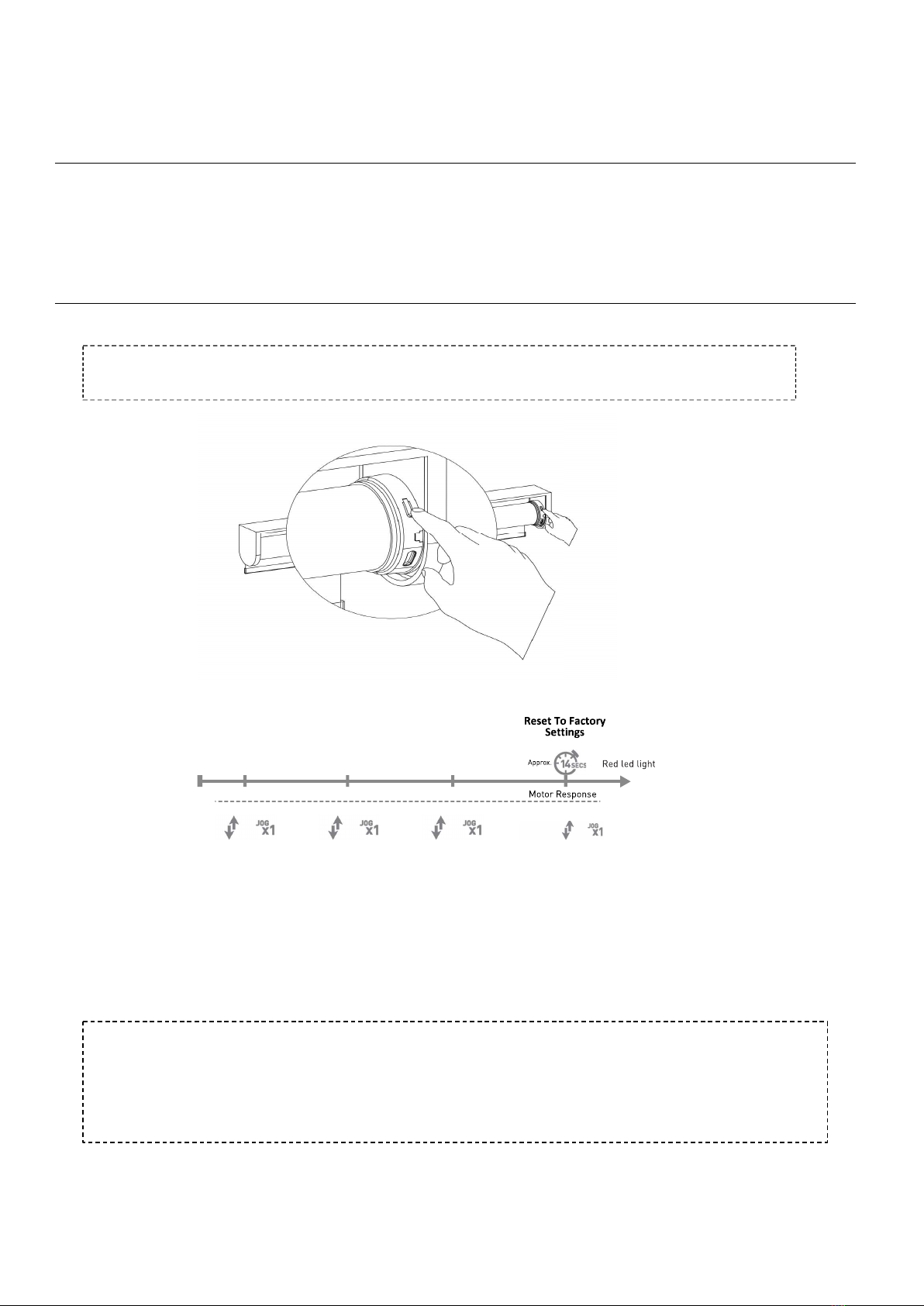

Reset to Factory Settings
Each battery motor will come preprogramed from Smartwings .
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits
are set, the remote is unlocked .
Follow the below steps to reset the motor to factory settings and delete all limits/remote pairings.
To reset the shade motor to factory settings with no stored limits locate the P1 button on the
motor head. Hold the programming button for 14 seconds. (the motor jogs four times)
The motor will jog 4 times before the reset is complete. The programming button must be held the
entire time. Red led light on confirm the factory reset is complete.
***Refer to the Initial Setup Programming section to program a shade after a factory reset.***

Initial Setup Programming
Press any
button to
wake remote.
Within 10sec Press
" " or " "to
select desired
channel.
1a 1b
1. SELECT CHANNEL
Within 10 sec of
activating pairing mode,
Press & Hold STOP
If you do not pair the remote in time the motor pairing sequence will time out, repeat the
above steps assuring to press and hold the STOP button within 10 seconds of the motor jog
2. PAIRING REMOTE TO MOTOR
Press & HOLD
Programming Button
on motor head (2sec)
2a ACTIVATE PAIRING MODE ON MOTOR
2b PAIRING REMOTE
Note:the motor jogs once
Note:the motor jogs twice
Press STOP (2sec)

Initial Setup Programming
3. Unlock/Lock Remote (Limit Setting Mode)
If limits need adjusting, follow the instructions below to unlock the remote for limit setting:
•Unlock the limit setting functionality by pressing the top right button on the back of the
remote (remove cover to expose the button)
Press and hold the button for approximately 15 seconds until the LED display shows a
flashing “U”, then release.
PLEASE NOTE - You will need to “Lock” the remote once final adjustments have been made.
Simply repeat the above step until a flashing “L” shows on the display (“U” for unlocked, “L”
for locked).
•
•
Press P (1sec)
12
3a Lock Remote
3b Unlock Remote
Press P (1sec)
12

Initial Setup Programming
To check motor direction, quickly press the
UP or DOWN button to move the shade
initially. Press STOP to pause the shade
operation.
IF DIRECTION DOES NOT ALIGN WITH
UP/DOWN BUTTONS – Press and hold down
the UP and DOWN button simultaneously until
the motor jogs UP and DOWN once.
REMOTE OPERATION
(Reversing motor direction using this method is only possible during initial set-up,
prior to first time limit setting, or after a re-set of motor)
4. Reverse Motor Direction If Required
Note:the motor jogs
+

Initial Setup Programming
Press DOWN + STOP (2sec)
Press UP + STOP (2sec)
(To SET Top Limit)(To SET Bottom Limit)
Drive the shade using continuous movement or fine adjust to the position you wish to set as the
upper limit. Set limit as described below. the motor jogs twice will confirm the limit is saved.
Repeat the same process to drive to and set the lower limit.
5. Setting Limits
Important!! When attempting below steps, be sure to stop the shade prior to traveling past the
desired position or damage to product can occur.
!!WARNING!! - Move shade in short increments by pressing the UP/DOWN button in 1 second intervals
(pressing the UP/DOWN button for more than 2 seconds may send the shade past desired upper/lower limit and
may result in damage to the product). Once you have reached the desired upper/lower limit, you can adjust the
limit with either the UP and DOWN buttons. (remember to adjust in short increments!)
Important!! Remember to return the remote control to “L” mode as previously described to
prevent inadvertent shade adjustment during normal operation and remote handling.
Note:the motor jogs twice Note:the motor jogs twice
++

Repeat the above procedure to re-enter Roller Mode
Tilt Mode
Each battery motor will come preprogramed from the factory.
The preprograming ensures the remote is paired with the motor, the upper and lower operation limits are
set.
Follow the below steps to switch between tilt mode (incremental movement) or roller mode (drives to
limits) on any motor. The motor must be paired to a remote .Motors come programmed by default in
roller mode.
With the remote unlocked. Hold the UP and
DOWN button on the controller for approximately
5 seconds. The motor will jog up and down once.
Immediately after the motor jogs, press and hold
the STOP button. The motor will jog up and down
and beep to confirm Tilt Mode has been entered.
If you do not activate tilt mode in time the motor programming sequence will time out, repeat
the above steps assuring to press the STOP button within 4 seconds of the motor jog
Note:the motor jogs once Note:the motor jogs once
Note:
+

Motor P Button Functions
