Instructions
52
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
Never touch the heating elements
during use.
• Protect your hands by wearing
oven gloves when moving food
inside the oven.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the flames
with a fire blanket or other
appropriate cover.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
• Children must not play with the
appliance.
• Keep children under the age of 8
at a safe distance unless they are
constantly supervised.
•Keep children under the age of 8
away from the appliance when it
is in use.
• Cleaning and maintenance must
not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid
on the pan and turn off the
relevant cooking zone.
• The cooking process must always
be monitored. A short cooking
process must be continuously
surveyed.
• While cooking do not place
metal objects, such as cutlery or
dishes on the hob surface as they
may overheat.

Instructions
53
EN
•Do not insert pointed metal
objects (cutlery or utensils) into the
slots in the appliance.
• Do not pour water directly on very
hot trays.
• Keep the oven door closed
during cooking.
• If you need to move food or at the
end of cooking, open the door
5 cm for a few seconds, let the
steam come out, then open it fully.
• Do not open the storage
compartment (where present)
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot
after using the oven.
• DO NOT USE OR STORE
FLAMMABLE MATERIALS IN
THE STORAGE
COMPARTMENT (IF AVAILABLE)
OR NEAR THE APPLIANCE.
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
•Switch off the appliance
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any operation
on the appliance, switch off the
power supply.
• Have qualified personnel carry
out installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of a qualified technician.
• Do not pull the cable to remove
the plug.
• In order to avoid hazard, if the
power supply cable is damaged,
contact technical support and
they will replace it.

Instructions
54
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Use wooden or plastic utensils.
• Racks and trays should be
inserted as far as they will go into
the side guides. The mechanical
safety locks that prevent them from
being removed must face
downwards and towards the
back of the oven cavity.
• Do not sit on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these could
then heat up and catch fire. Be
very careful
• Danger of fire: do not store items
on the cooking surfaces.
•DO NOT USE THE APPLIANCE
TO HEAT ROOMS FOR ANY
REASON.
• Do not spray any spray products
near the oven.
• Do not use plastic cookware or
containers for cooking.
• Do not place sealed tins or
containers in the oven cavity.
• Remove all trays and racks which
are not required during cooking.
• Do not cover the bottom of the
oven cavity with aluminium or tin
foil sheets.
• Do not place pans or trays
directly on the bottom of the oven
cavity.
• If you wish to use greaseproof
paper, place it so that it will not
interfere with the hot air circulation
inside the oven.
• Do not use the open door to
place pans or trays on the internal
glazing pane.
• Cooking vessels or griddle plates
should be placed inside the
perimeter of the hob.
• All pans must have smooth, flat
bottoms.

Instructions
55
EN
•If any liquid does boil over or spill,
remove the excess from the hob.
• Take care not to spill acid
substances such as lemon juice or
vinegar on the hob.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• If cracks or fissures form, or if the
glass ceramic cooking surface
breaks, turn off the appliance
immediately. Disconnect the
power supply and call Technical
Support.
• People who have pacemakers or
other similar devices fitted must
make sure that the operation of
these devices is not jeopardised
by the inductive field, whose
frequency range is between 20
and 50 kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the electromagnetic
induction cooking hob comes
under group 2 and class B
(EN 55011).
•Do not use steam jets to clean the
appliance.
• Do not use rough or abrasive
materials or sharp metal scrapers.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on parts made of steel or
that have metallic surface finishes
(e.g. anodizing, nickel- or
chromium-plating).
• Do not use abrasive or corrosive
detergents (e.g. scouring
powders, stain removers and
metallic sponges) on glass parts.
• Do not wash the removable
components such as the hob
grids, flame-spreader crowns and
burner caps in a dishwasher.
• Never use the oven door to lever
the appliance into place when
fitting.
• Avoid exerting too much pressure
on the door when open.
• Do not use the handle to lift or
move this appliance.

Instructions
56
Installation
• THIS APPLIANCE MUST NOT BE
INSTALLED IN A BOAT OR
CARAVAN.
• The appliance must not be
installed on a pedestal.
• Position the appliance into the
cabinet cut-out with the help of a
second person.
• To prevent any possible
overheating, the appliance should
not be installed behind a
decoration door or a panel.
• Have the electrical connection
performed by authorised
technicians.
• The appliance must be connected
to ground in compliance with
electrical system safety standards.
• Use cables withstanding a
temperature of at least 90 °C.
• The tightening torque of the
screws of the terminal board
leads must be 1.5 - 2 Nm.
For this appliance
• After use, turn off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
indication of residual heat. After
use the cooking zones remain hot
for a certain period of time even if
they have been turned off. Keep
children away from the cooking
zones.
• The glass ceramic surface is
highly resistant to impacts.
However, avoid hard, solid
objects falling on the cooking
surface as they may cause it to
break if they are sharp.
• The glass ceramic cooking
surface must not be used as a
surface for placing objects.
• Ensure that the appliance is
switched off before replacing the
bulb.
• Do not rest any weight or sit on
the open door of the appliance.
• Take care that no objects are
stuck in the doors.

Instructions
57
EN
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• Use of the appliance other than
that specified;
• failure to comply with the
instructions in the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.5 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user's reach for the whole working
life of the appliance.
Read this user manual carefully
before using the appliance.
1.6 Disposal
This appliance conforms to the
WEEE European directive
(2012/19/EU) and must be
disposed of separately from other
waste at the end of its service life.
The appliance does not contain
substances in quantities sufficient to
be considered hazardous to health
and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.

Instructions
58
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to
the retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Instructions
59
EN
1.8 To save energy
• Only preheat the appliance if the
recipe requires you to do so.
• Unless otherwise indicated on the
package, defrost frozen foods
before placing them in the oven.
• When cooking several types of
food it is recommended to cook
the foods one after the other to
make the best use of the already
hot oven.
• Use dark metal moulds: They help
to absorb the heat better.
• Remove all trays and racks which
are not required during cooking.
• Stop cooking a few minutes
before the time normally used.
Cooking will continue for the
remaining minutes with the heat
which has accumulated inside the
oven.
• Reduce any opening of the door
to a minimum to avoid heat
dispersal.
• Keep the inside of the oven clean
at all times.

Description
60
2 Description

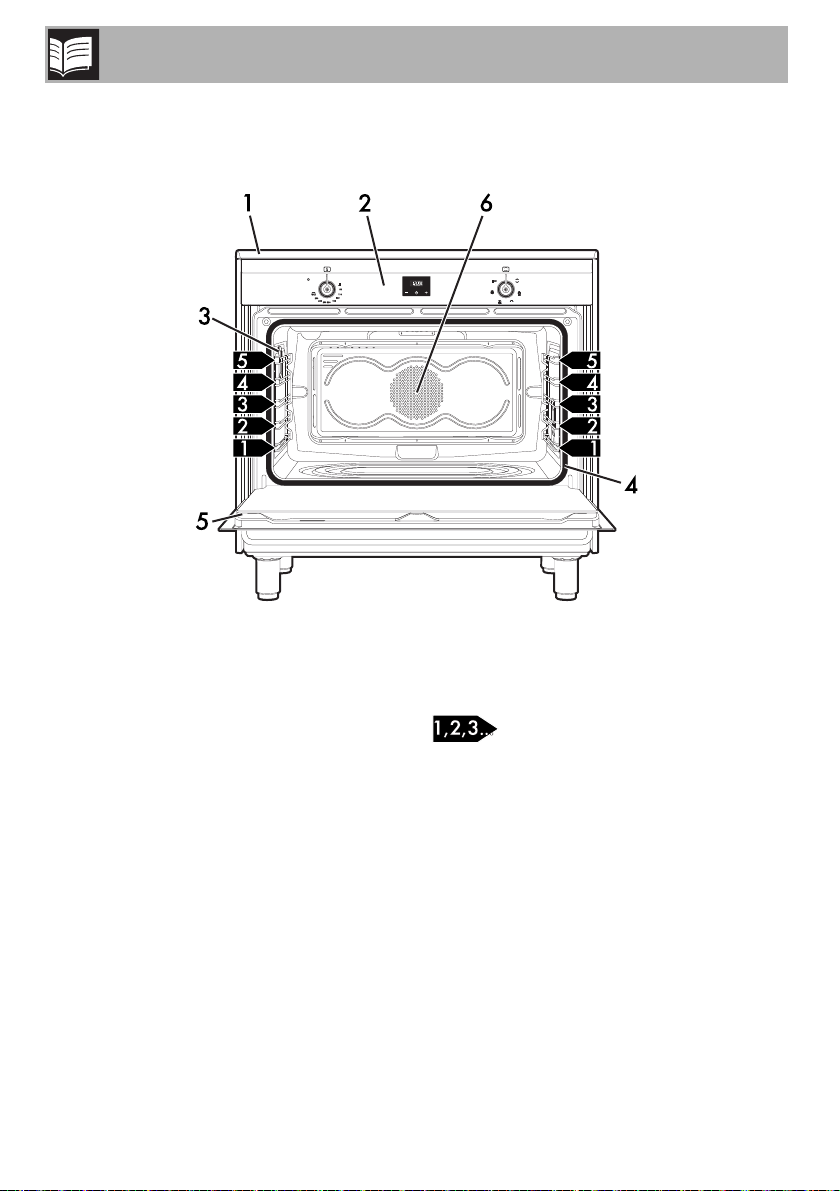

2.1 General Description
1 Cooking hob
2 Control panel
3 Light bulb
4 Seal
5 Door
6 Fan
Rack/tray support frames

Description
61
EN
2.2 Cooking hob
* Power levels are approximate and can vary according to the pan used or the settings made.
Advantages of induction cooking • Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of
the pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Zone Dimensions (H x L - mm) Max. power draw (W)* Power draw in booster function
(W) *
1 210 x 210 2300 3000
2 180 x 180 1300 1400
3 210 x 210 2300 3000
4 180 x 180 1300 1400
The hob is equipped with an
induction generator for each
cooking zone. Each generator
located under the glass ceramic
cooking surface creates an
electromagnetic field which
induces a thermal current in the
base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.

Description
62

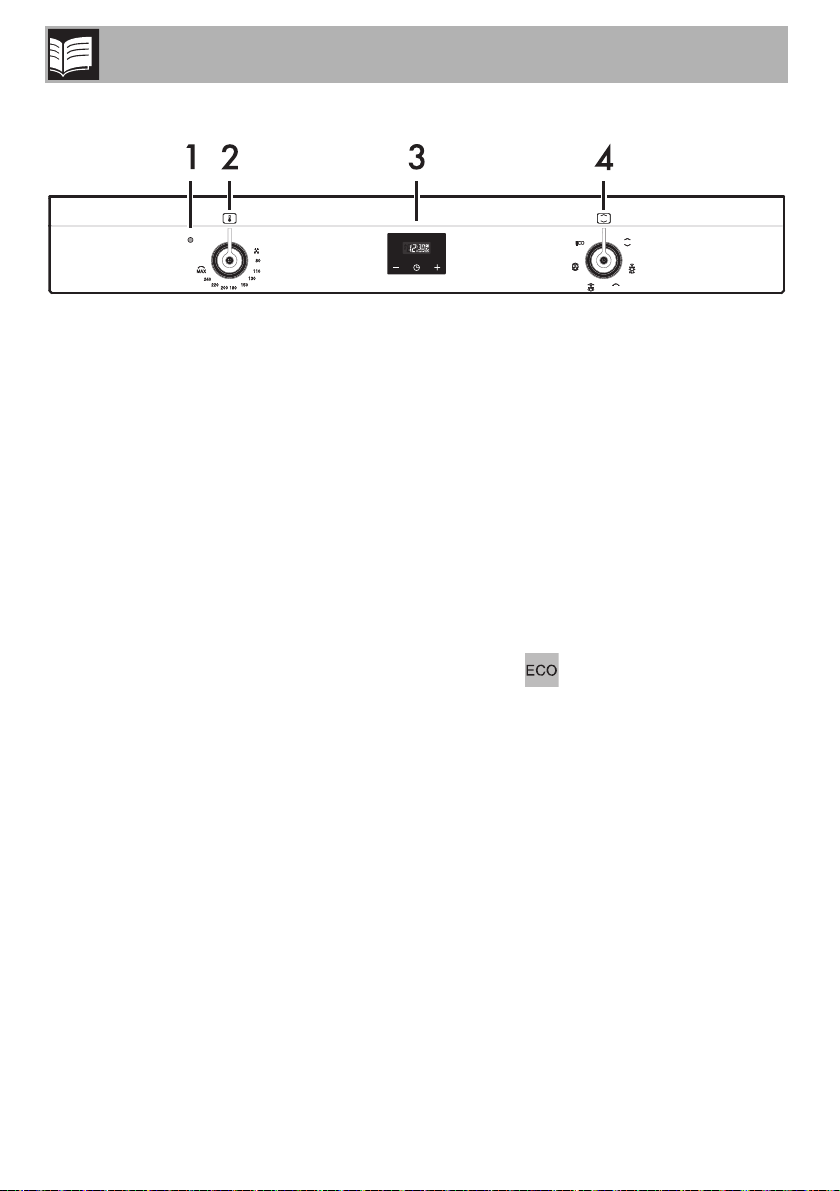

2.3 Control panel
1 Indicator light
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
2 Temperature knob
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
setting.
3 Programmer clock
For displaying the current time, setting
programmed cooking operations and the
minute minder timer.
4 Function knob
The oven's various functions are suitable for
different cooking methods. After selecting
the required function, set the cooking
temperature using the temperature knob.
2.4 Other parts
Shelves
The appliance features shelves to position
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
Description).
Interior lighting
The appliance’s interior lighting comes on:
• When the door is opened.
• When any function is selected, apart
from the function.

Description
63
EN
Cooling fan
The fan cools the ovens and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
2.5 Available accessories
Rack
Useful for supporting containers with food
during cooking.
Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Do not obstruct ventilation
openings and heat dispersal slots.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Supplied and optional accessories
can be requested to Authorised
Service Centres. Use only original
accessories supplied by the
manufacturer.

Use
64
3 Use
Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands by wearing oven
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the appliance.
• Do not pour water directly on very hot
trays.
• Keep children under the age of 8 away
from the appliance when it is in use.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
• Oils and fats could catch fire if
overheated. Be very careful.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot after
using the oven.
Improper use
Risk of damage to surfaces
• Do not cover the bottom of the oven
cavity with aluminium or tin foil sheets.
• If you wish to use greaseproof paper,
place it so that it will not interfere with the
hot air circulation inside the oven cavity.
• Do not place pans or trays directly on
the bottom of the oven cavity.
• Do not use the open door to place pans
or trays on the internal glazing pane.
• Do not pour water directly on very hot
trays.
• Cooking vessels or griddle plates should
be placed inside the perimeter of the
hob.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the hob.
• Never place pans with bases which are
not perfectly flat and smooth.
• Avoid hard, solid objects falling on the
surface of the hob.
• In case you notice cracks or fissures, turn
off the appliance immediately,
disconnect the power supply and
contact Technical Support.
• Do not use the hob as a support surface.

Use
65
EN
First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from the
accessories and from the cooking
compartments.
3. Remove and wash all the appliance's
accessories (see 4 Cleaning and
maintenance).
Oven cavity
4. Heat the empty oven at the maximum
temperature to burn off any residues left
by the manufacturing process.
Glass ceramic hob
5. Place a pan full of water on each of the
front cooking zones and switch them on
to the maximum power setting for at
least 30 minutes.
6. After 30 minutes, switch off the front
cooking zones and repeat this
operation for the rear cooking zones
and any central cooking zone.
7. If after carrying out the above
operations the controls do not work
properly, it might be necessary to
extend the operations until the moisture
has completely evaporated.
3.1 Using the accessories
Racks and trays
Racks and trays have to be inserted into the
side guides until they come to a complete
stop.
The mechanical safety locks that prevent the
rack from being taken out accidentally have
to face downwards and towards the oven
back.
High temperature inside the
storage compartment during use
Danger of fire or explosion
• Do not spray any spray product near the
appliance.
• Do not use or leave flammable materials
near the oven or the storage
compartment.
• Do not use plastic cookware or
containers for cooking.
• Do not place sealed tins or containers in
the oven cavity.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Remove all trays and racks which are
not required during cooking.
Gently insert racks and trays into
the oven until they come to a stop.

Use
66
3.2 Using the hob
All the appliance’s control and monitoring
devices are located together on the front
panel. The induction hob is controlled by
means of the Touch Control sensor keys.
Lightly touch a symbol on the glass ceramic
surface. The buzzer will sound to confirm
every effective touch.
On/Off: turns the hob on or off.
Increase: increases the power level or
cooking time.
Decrease: reduces the power level or
cooking time.
Front left cooking zone
Rear left cooking zone
Rear right cooking zone
Front right cooking zone
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium with
a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
Clean the trays before using them
for the first time to remove any
residues left by the manufacturing
process.
On first connection to the electrical
mains, an automatic check will be
carried out that will switch on all
indicator lights for a few seconds.

Use
67
EN
To see whether the pan is suitable, bring a
magnet close to the bottom: if it is attracted,
the pan is suitable for induction cooking. If
you do not have a magnet, you can put a
small amount of water in the pan, place it
on a cooking zone and start the cooking
zone. If the symbol appears on the
display, it means the pan is not suitable.
Cookware recognition
When there is no saucepan on a cooking
zone or if the saucepan is too small, no
energy will be transmitted and the symbol
will appear on the display.
If there is a suitable saucepan on the
cooking zone, the recognition system
notices it and turns on the hob to the power
level set using the knob. Energy transmission
is also interrupted when the saucepan is
removed from the cooking zone (the
symbol will be shown on the display).
If the cookware recognition function is
activated in spite of the saucepan or frying
pan on the cooking zone being smaller
than the zone itself, only the necessary
energy will be transmitted.
Cookware recognition limits: the minimum
diameter of the pan base is indicated by a
circle inside the cooking zone. Pans with
smaller diameters risk not being detected
and therefore not activating the inductor.
Use only cookware with a
perfectly flat bottom which is
suitable for induction hot plates.
Using cookware with an irregular
bottom could jeopardise the
efficiency of the heating system
and prevent cookware from being
detected on the cooking zone.

Use
68
Limiting the cooking duration
The hob has an automatic device which
limits the duration of use.
If the cooking zone settings are not
changed, the maximum duration of
operation for each zone depends on the
power level selected.
When the device for limiting the duration of
use is activated, the cooking zone turns off,
a short alert sounds and, if the zone is hot,
the symbol appears on the display.
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
To avoid excessively high temperatures
forming in the electronics, the power to the
cooking zone is reduced automatically.
Advice on energy-saving
• The diameter of the base of the pan must
correspond to the diameter of the
cooking zone.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also makes it possible to preserve
the vitamins in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover saucepans with
a suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
Set power level Maximum cooking
duration in hours
1 8
26
3 - 4 5
54
6 - 7 - 8 - 9 1 ½
Under certain circumstances, if the
hob and the oven are being used
at the same time, the maximum
power limit that can be used by the
electrical system might be
exceeded.

Use
69
EN
Power levels
The power in the cooking zone can be
adjusted to various levels. The table shows
the levels suitable for various types of
cooking.
* see power function
Switching the hob on and off
Keep the On/Off key pressed in for at
least 1 second to activate the hob. Keep
key pressed in for at least 2 seconds to
deactivate the hob.
Switching on the cooking zone
After switching on the hob:
1. Select the required cooking zone using
the appropriate zone selection keys (e.g.
: rear right cooking zone).
2. Use keys and to select the
cooking power from 1 to 9, or else
activate the power function, see “ Power
Function”.
Switching off the cooking zone
1. Select the cooking zone you wish to
switch off using the zone selection keys.
2. Use the key to bring the power
value to 0 (zero).
Residual heat
If the cooking zone is still hot after being
switched off, the symbol will be
displayed on the display. The symbol clears
once the temperature drops below 60 °C.
Set power level Maximum cooking
duration in hours
1 - 2 8
3 - 4 6
5 - 6 5
73
82
91½
If no power value is selected within
a few seconds, the hob is
automatically deactivated.
Hold the On/Off key down
for at least 2 seconds to switch off
all cooking zones at the same time.
Improper use
Danger of burns
• Supervise children carefully as they
cannot easily see the residual heat
indicator. The cooking zones remain hot
for a certain period of time even after
they have been turned off. Make sure
that children never touch the hob.

Use
70
Power Function
After activating the required cooking zone:
1. Press the key to bring the power to
9.
2. Press the key again; the symbol
will be shown on the display.
Press key to deactivate the Power
function.
Minute minder timer
After activating the hob:
1. Press the and keys at the same
time; will be displayed.
2. Set the required time in minutes using the
and keys (hold the keys down
to set the time more quickly). Flashing
dots will appear to indicate the count.
3. At the end of the previously set time, the
hob will warn the user with a series of
buzzers. Press any key to stop the
buzzer.
Cooking zone automatic switch-off timer
1. If the cooking zone is not selected, press
keys and at the same time,
will appear on the display.
This function allows you to use the
maximum possible power for the
cooking zone.
On the front left and rear right
cooking zones only:
The Power function is available for
10 minutes, after which the power
level drops automatically to 9.
This function is used to set a minute
minder timer, which will sound a
buzzer at the end of the pre-set
time (from 1 to 99 minutes).
Using the minute minder does not
switch off the cooking zones but
rather informs the user when the set
minutes have run out.
The timer can be activated while
the cooking zones are on or off.
To deactivate the minute minder
timer during the countdown, zero
the set time using key . When
the display shows the
timer will be deactivated.
This function is used to program the
automatic switch-off of each
cooking zone at the end of a
period of time (from 1 to 99
minutes).
